Новый Android материнская плата с двумя камерами процессор Rockchip RK3288 2G/4G/8G/16G RAM HD-MI LVDS EDP 6 * USB 2 0 4 COM 1 или RJ45 LAN для
- Категория товара: Motherboards >>>
- Поставщик (Оптовый магазин): Shenzhen,Elsky,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
New Android Motherboard Rockchip RK3288 CPU 2G/4G/8G/16G RAM HD-MI LVDS EDP 6*USB 2.0 4*COM 1 or 2 RJ45 LAN for Android Mini PC
(Support Android 7.1 system etc. Case can be designed for you according to your system)
Specifications:

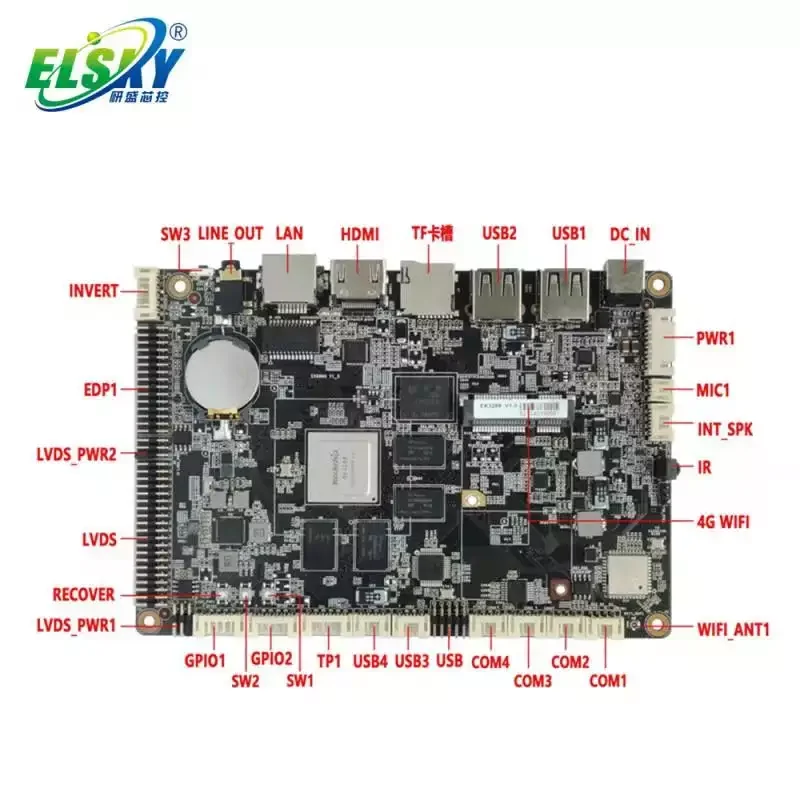

| EK8800 Android Motherboard Specification | |
| Motherboard size | 146mm*100mm*12mm |
| CPU | Rockchip RK3288, Cortex-A17 quad-core, clocked at 1.8GHz |
| Running memory | 2G/4G optional |
| Built-in storage | 8G/16G optional |
| Power supply | Support 12V voltage, DC head inner diameter is 2.0MM.The power consumption of the motherboard is about 15W at full load, and it is recommended to use a 12V/3A or above power supply |
| Display function | Motherboard HD-MI/EDP/LVDS supports single display, dual display copy, dual display expansion 1*HD-MI 1.4 port ,Support resolution 3840x2160@30HZ 1*EDP pin Support resolution 1920*1080@60HZ 1*LVDS pin,Support resolution 1920*1080@60HZ |
| Internet function | 1*RJ45 LAN port,Integrated Realtek 8211E Gigabit Ethernet chip 1*4G/WIFI port,Only support 3G/4G module, support Huawei, Quectel Mini PCI-E 3G/4G module 1*WiFi_ANT1 port,Built-in AP6255 WiFi module |
| Sound function | Integrated ES8336 two-in-one audio controller 1*LIN_OUT port,3.5mm standard interface, supports one-way three/four-segment earphone insertion 1*MIC pin,Support microphone input 1*INT_SPK pin,Power amplifier pin, support 8 ohm 5 watt speaker dual-channel outpue |
| USB function | 2*USB2.0 port 2* USB2.0 pins, one set has 1*USB2.0 1*J5 USB pin,USB2.0 pins, one set has 2*USB2.0 |
| Switch function | SW1 button,reset button SW2 button,Power switch button SW3 button,Enter MASKROM forced burning mode RECOVER1 button,Enter RECOVER1 mode or USB LOADER upgrade mode |
Company Information
Factory
Certifications
Packaging & Shipping
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 0.8-1.2KG);
5Pieces/Carton(G.W. : 3.0-6.0KG);
10Pieces/Carton(G.W. : 5.0-12.0KG);
20Pieces/Carton(G.W. : 10.0-23.0KG);
Shipping
DHL: 2-4 working days; tracking website: www.dhl.com
EMS: 5-7 working days; tracking website: www.ems.com
UPS: 2-4 working days; tracking website: www.ups.com
FedEx: 3-5 working days; tracking website: www.fedex.com
TNT: 3-5 working days; tracking website: www.tnt.com
