Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300

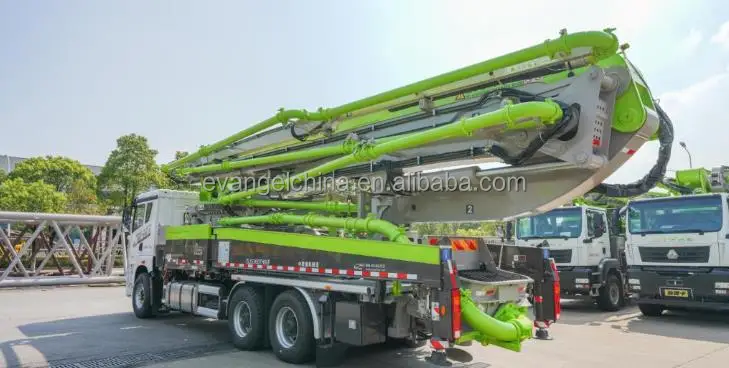

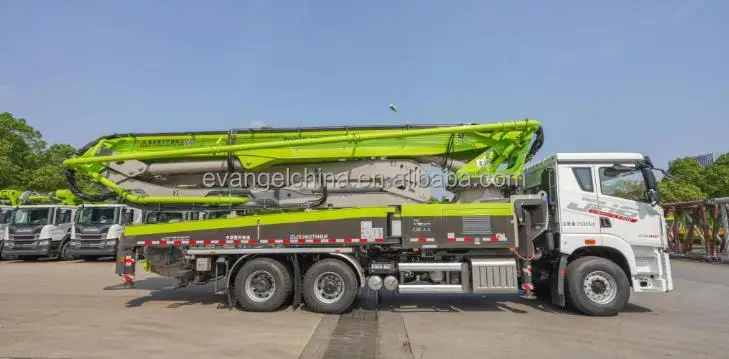

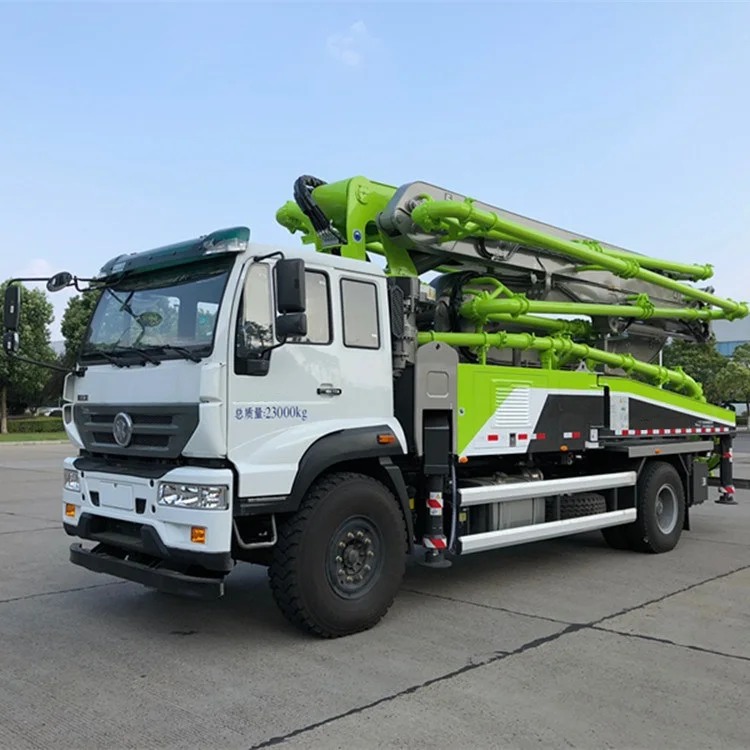

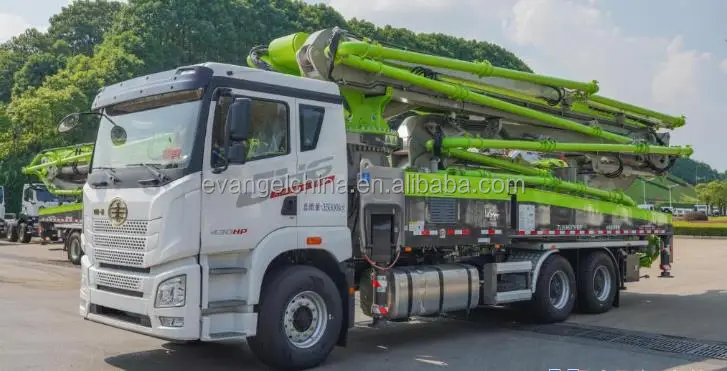

ZOOMLION 50 м грузовик-насос для бетона ZLJ5351THBKF цена
- Категория товара: Concrete Pumps >>>
- Поставщик (Оптовый магазин): Evangel,Industrial,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

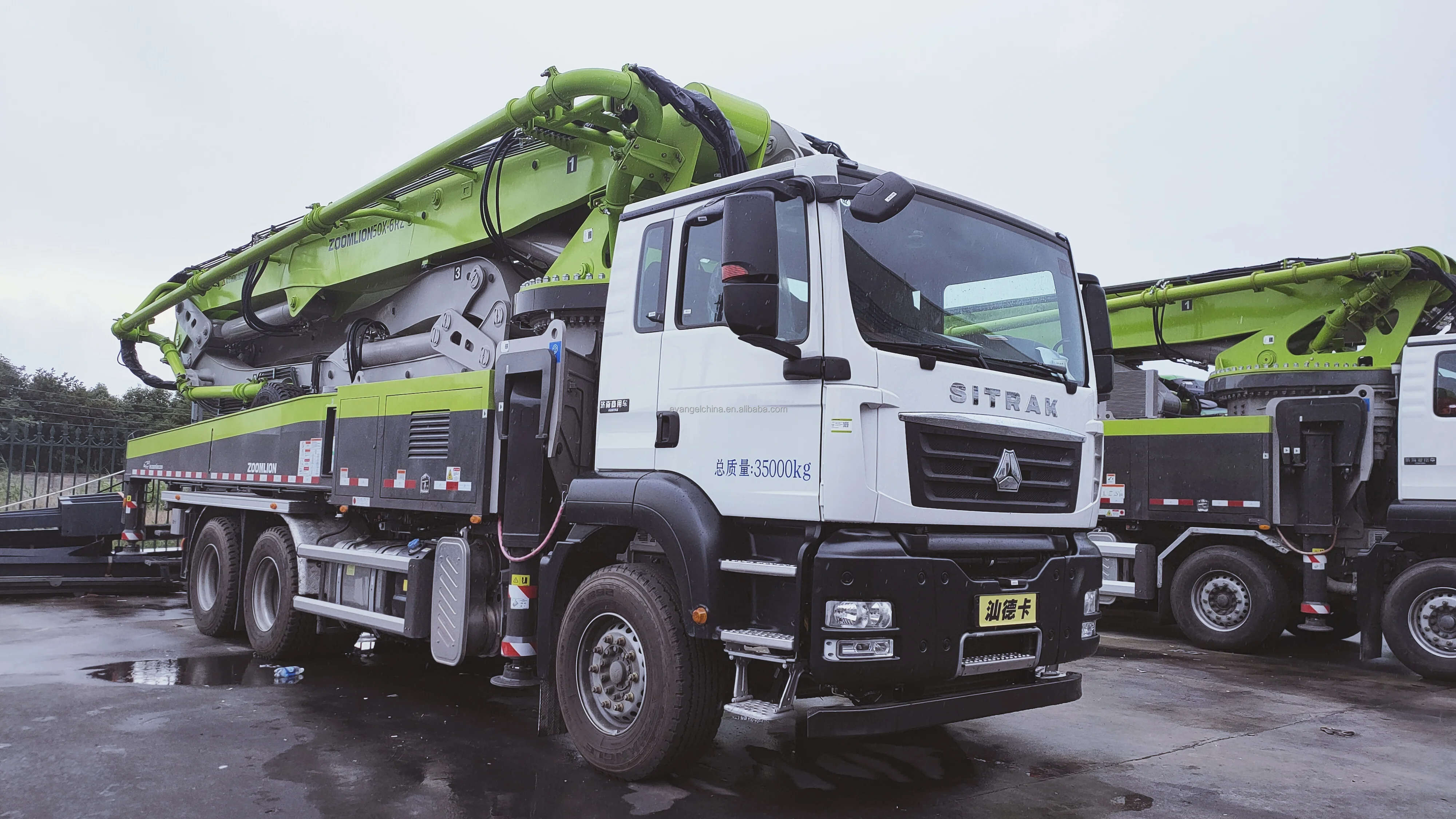

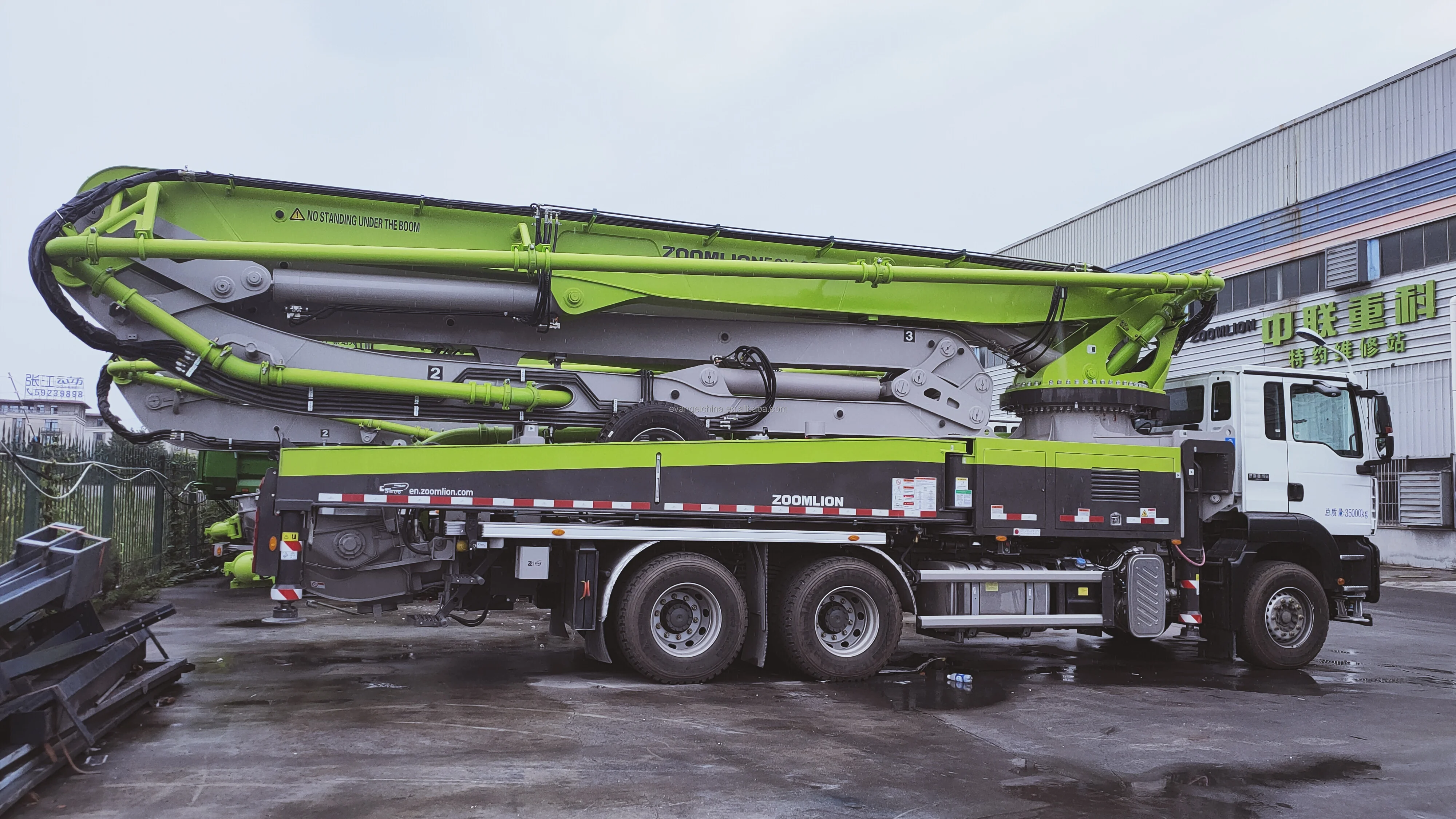

ZOOMLION 50m Truck-mounted concrete pump truck ZLJ5351THBKF machine price

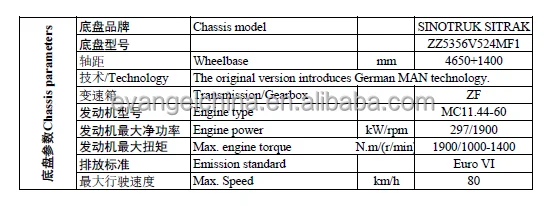

ZLJ5351THBKF 50X-6RZ three-axle 50M Sinotruk chassis pump truck is Lingyun series three-axle long boom pump truck, the main structure reliability industry-leading,
fuel saving, low energy consumption, with intelligent anti-blocking pipe, typical The material condition intelligently customizes the energy-saving,
powerful and smooth pumping mode, the pipe radius is optimized, the pumping resistance is greatly reduced, and the pipe blocking rate is reduced by 50%.

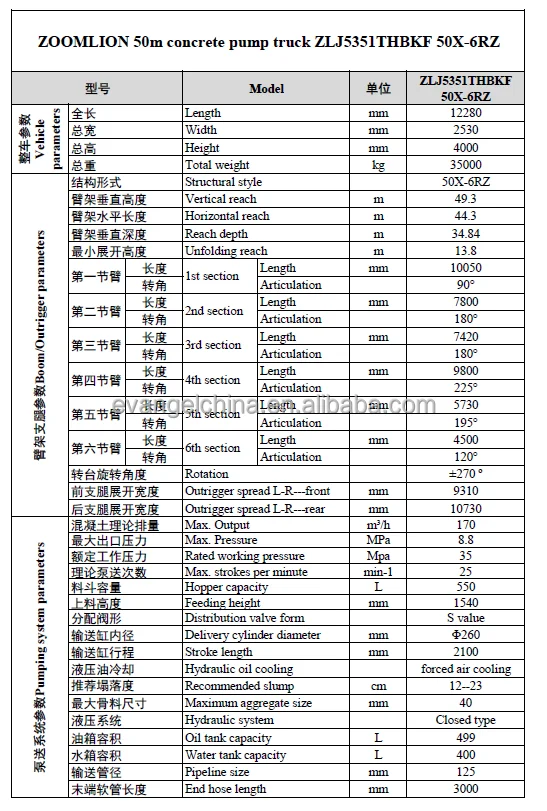

Maximum theoretical conveying capacity 170m3/h
Concrete maximum outlet pressure 8.8MPa
Rated working pressure 35MPa
Pumping frequency 25min-1
Concrete cylinder bore x stroke Φ260x 2100mm
Maximum cloth (height/radius/depth) 49.3/44.3/34.84m
Swivel angle ±270°
Outrigger span (front x rear x vertical) 9310*10730*9020mm
Conveyor tube diameter 125mm
End hose length 3000mm
The minimum opening height of the boom is 13800mm
Concrete maximum outlet pressure 8.8MPa
Rated working pressure 35MPa
Pumping frequency 25min-1
Concrete cylinder bore x stroke Φ260x 2100mm
Maximum cloth (height/radius/depth) 49.3/44.3/34.84m
Swivel angle ±270°
Outrigger span (front x rear x vertical) 9310*10730*9020mm
Conveyor tube diameter 125mm
End hose length 3000mm
The minimum opening height of the boom is 13800mm
