Hot press wood glue particle board production line melamine press machine can used in laminate flooring
Product Description

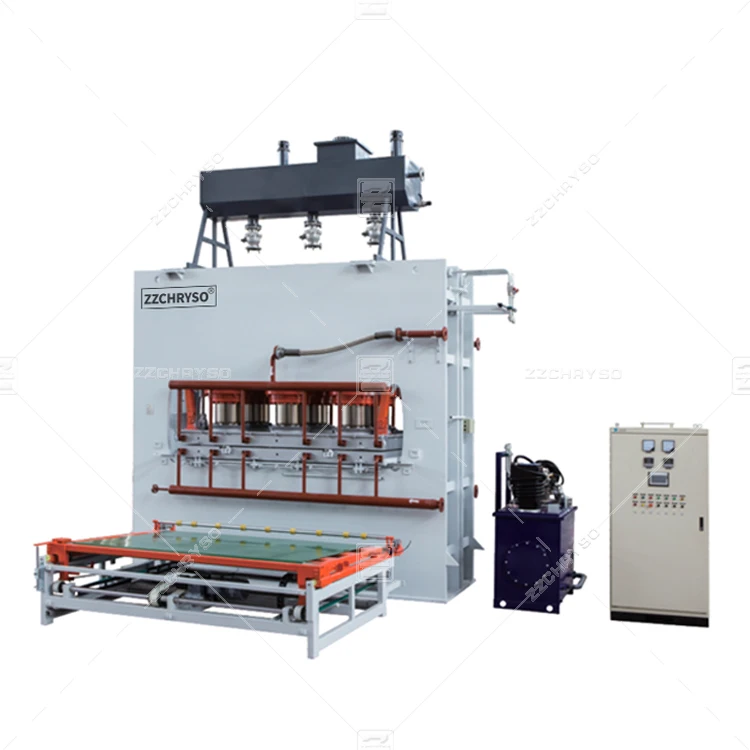

Brief Introduction of Short Cycle Melamine Veneer Hot Press Machine:
Hot press wood glue particle board production line melamine press machine can used in laminate flooring
The single layer veneer press line is designed for particleboard and MDF lamination on the short-cycle principle. In this process decorative papers (impregnated with melamine and urea resins) are bonded to a raw board; they are laid on hard-plated press cauls adn cushions and subjected to pressure and temperature.
The single layer veneer press line is designed for particleboard and MDF lamination on the short-cycle principle. In this process decorative papers (impregnated with melamine and urea resins) are bonded to a raw board; they are laid on hard-plated press cauls adn cushions and subjected to pressure and temperature.

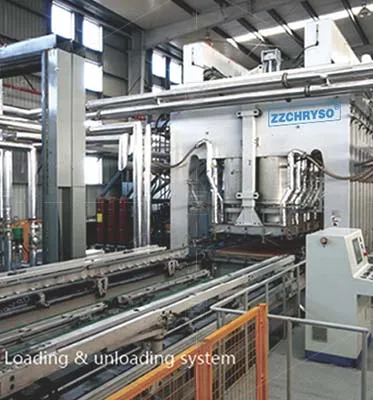

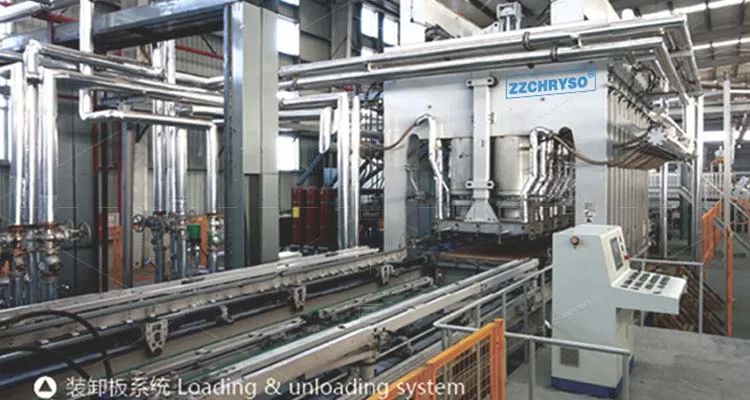

The Short Cycle Press Line is used for the short-cycle veneer lamination of the man-made panels
as base material, such as particle board or MDF, with melamine decorative paper. The optimum
lamination quality of various types of panels is ensured by its precise pressure regulation and sensitive temperature control system.
lamination quality of various types of panels is ensured by its precise pressure regulation and sensitive temperature control system.
Details Determine Machine's Quality
❖Short cycle melamine veneer hot press
❖Stable structure
❖Constant temperature and pressure
❖Energy saving
❖Environmental protection
❖Ensure safety
Five Outstanding Advantages
Advantages
①The button-type operation panel is equipped with functions such as pressure gauge, time meter, and temperature control meter. It only needs one button to start, and the operation is simple. It is also equipped with an emergency stop button, which has high safety performance;
Hot press wood glue particle board production line melamine press machine can used in laminate flooring
②Adopt a new integrated hydraulic system with accumulator control system and zero configuration pressure sensor to control the working pressure; configure a large-capacity mailbox and a new direct-connected liquid filling device up and down, and configure a forced air cooling system to effectively reduce the working temperature of the hydraulic system;
②Adopt a new integrated hydraulic system with accumulator control system and zero configuration pressure sensor to control the working pressure; configure a large-capacity mailbox and a new direct-connected liquid filling device up and down, and configure a forced air cooling system to effectively reduce the working temperature of the hydraulic system;
Hot press wood glue particle board production line melamine press machine can used in laminate flooring
③The cylinder body is designed with stainless steel, which has good sealing performance and good safety;
③The cylinder body is designed with stainless steel, which has good sealing performance and good safety;
Hot press wood glue particle board production line melamine press machine can used in laminate flooring
④The machine adopts an excellent hot pressing panel, which has good bearing performance and is not easy to deform; the oil pipeline is dredged, heated evenly, and has a long service life;
④The machine adopts an excellent hot pressing panel, which has good bearing performance and is not easy to deform; the oil pipeline is dredged, heated evenly, and has a long service life;
Hot press wood glue particle board production line melamine press machine can used in laminate flooring
⑤A safety isolation net is installed on the side of the machine to effectively protect the fuselage electrical appliances and prevent personnel from touching it, making it safer.
⑤A safety isolation net is installed on the side of the machine to effectively protect the fuselage electrical appliances and prevent personnel from touching it, making it safer.
Application
The series of press machines produced by our company are widely used in woodworking fields, building decoration and other industries. For example, the surface hot press with mature technology is suitable for single / double fast surface of particleboard, medium density fiberboard and high density reinforced floor. Common plate sizes like 4x8 feet, 4x9 feet, 6x8 feet, 6x9 feet, 7x9 feet, 7x12 feet and other production and marketing specifications.
Specification
Technical Parameter of Melamine Laminating Hot Press Machine
Main Press Machine Model | CRST4X8/800 |
Total Pressure | 8000KN |
Specification of hot platen(L×W) | 1400×2600mm |
Opening | 280mm |
Cylinder number | 6 |
Cylinder diameter | Φ260mm |
Cylinder stroke | 280mm |
System pressure | Max:≤25MPa Normal using:≤20Mpa |
Specific pressure | Max:≤47kg/cm2 Normal using： ≤35kg/cm2 |
Temperature of heating plate | ≤220℃ |
Heating medium | Thermal oil |
Capacity of boiler | 25×104 Kcal/h |
Feeding side | 1220mm |
Net weight | 38tons |
Voltage | 3PE 380V 50HZ |
Theory Rate of production | 60sheets/hour（caculated based on pressure holding time≤40s, the thickness of raw board is 16/18mm） |
Overall dimension(whole production line) | About 45500×8000×6500mm（over floor） |
Total power | About 160kw |
Remark: All the above parameters for reference only, they can be revised when designing under actual requirements

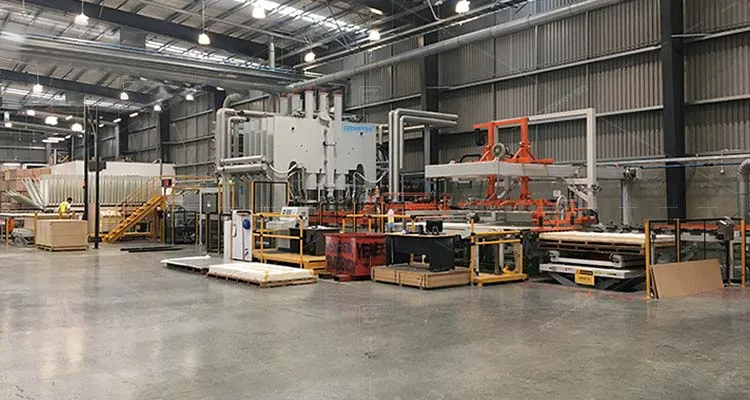

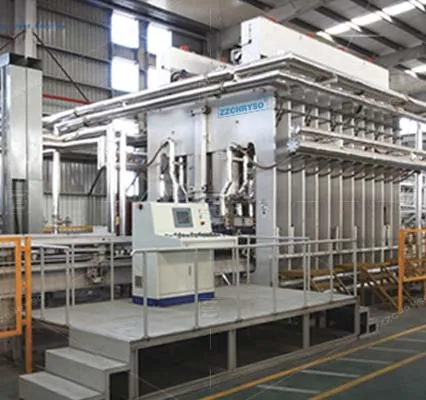

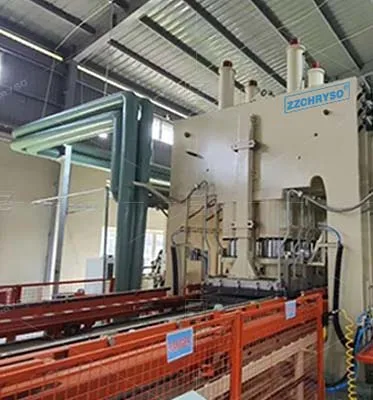

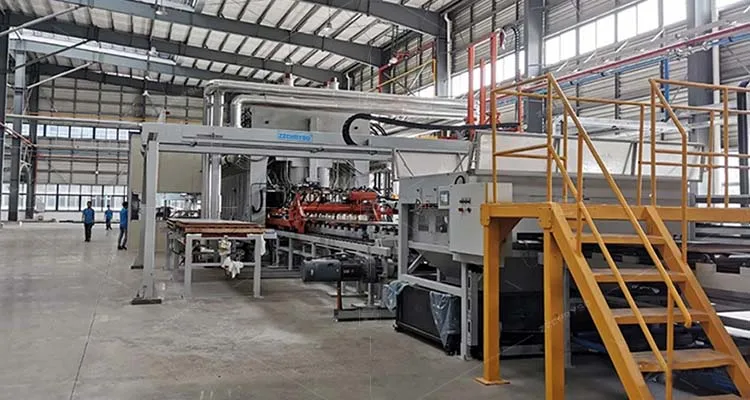

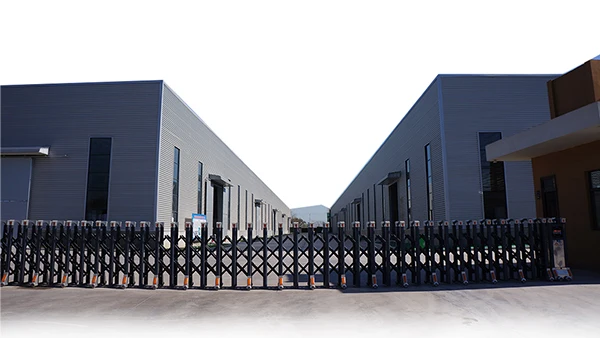

Factory View

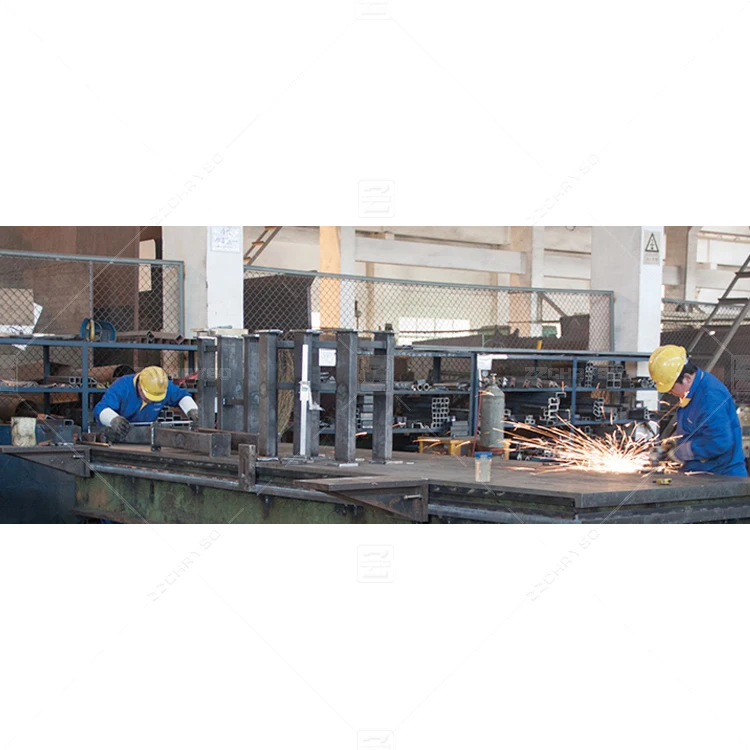

Our workers working photo

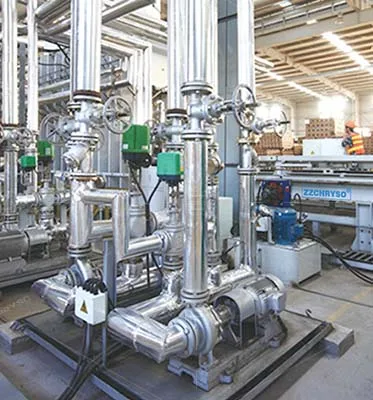

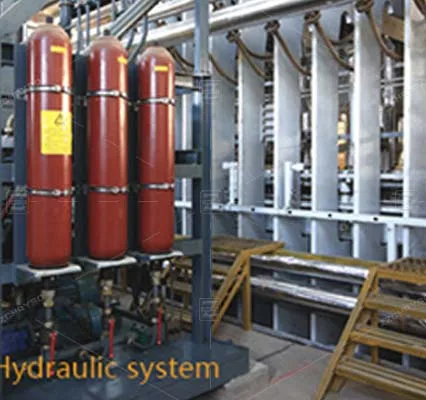

Hydraulic system photos

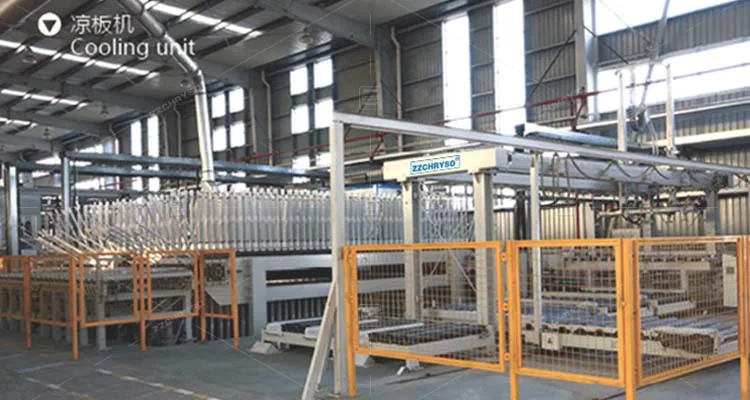

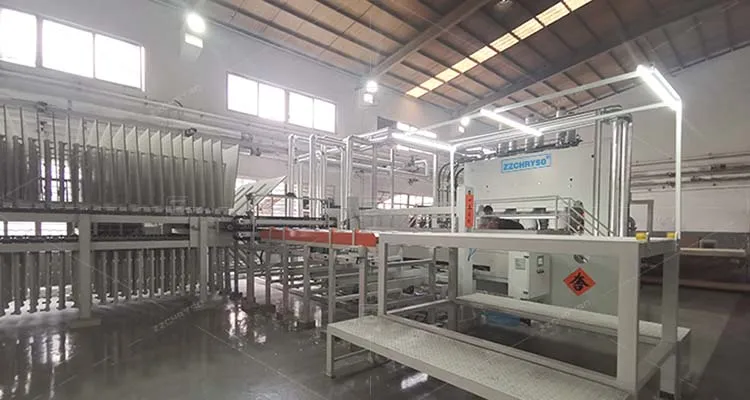

Board Cooling System
Company Profile
Zhengzhou Chryso Machinery Co., Ltd. is located in Zhengzhou, central area of China, a traditional industry city with rich culture and history. Away from Xinzheng interantional airport only half an hours,also have high speed train to every main city of China.
Plywood production line hot press melamine laminating machine factory supplier
"Business integrity, Quality first" is our principle. Our company is equipped with a professional team of quality control and after-sales service members to keep tracking of each order scientifically, so as to provide high-speed services for customers.
"Business integrity, Quality first" is our principle. Our company is equipped with a professional team of quality control and after-sales service members to keep tracking of each order scientifically, so as to provide high-speed services for customers.
Plywood production line hot press melamine laminating machine factory supplier
"To provide a design, production, quality control, inspection, testing ,sales and logistics service to companies that need a reliable supply of wood machinery from China."
Plywood production line hot press melamine laminating machine factory supplier
All members of ZZCHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!

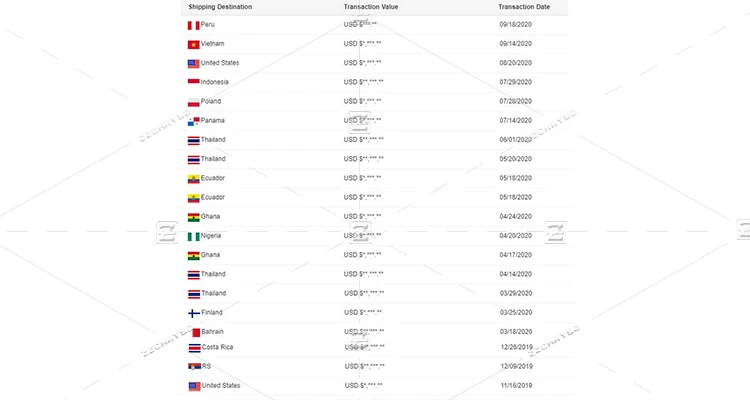

Transaction record and feedback
Our Service
Professional sales
We have sales team, together with all technical support from engineer team. - Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
After-sale service
We respect any feedback from you after receiving the goods.
- We provide 12 months' warranty after goods’ arrival.
- We promise all spare parts available in lifetime use.
- We handle your complain within 48 hours.
We respect any feedback from you after receiving the goods.
- We provide 12 months' warranty after goods’ arrival.
- We promise all spare parts available in lifetime use.
- We handle your complain within 48 hours.
