Оборудование для производства крема ухода за кожей 500 л гелевый вакуумный гомогенизатор эмульгатор миксер косметическая машина
- Категория товара: Cosmetics Production Equipment >>>
- Поставщик (Оптовый магазин): Yangzhou,Ailusi,Chemical,Machinery,Factory
Поделиться:
Описание и отзывы
Характеристики
Product Description
Standard configuration
◆ Emulsifier, water phase tanks, oil phase tank
◆ Vacuum pumps and sync solenoid valves
◆ emulsifier and material filter
◆ Stainless steel platform
◆ Inverter and electrical control box

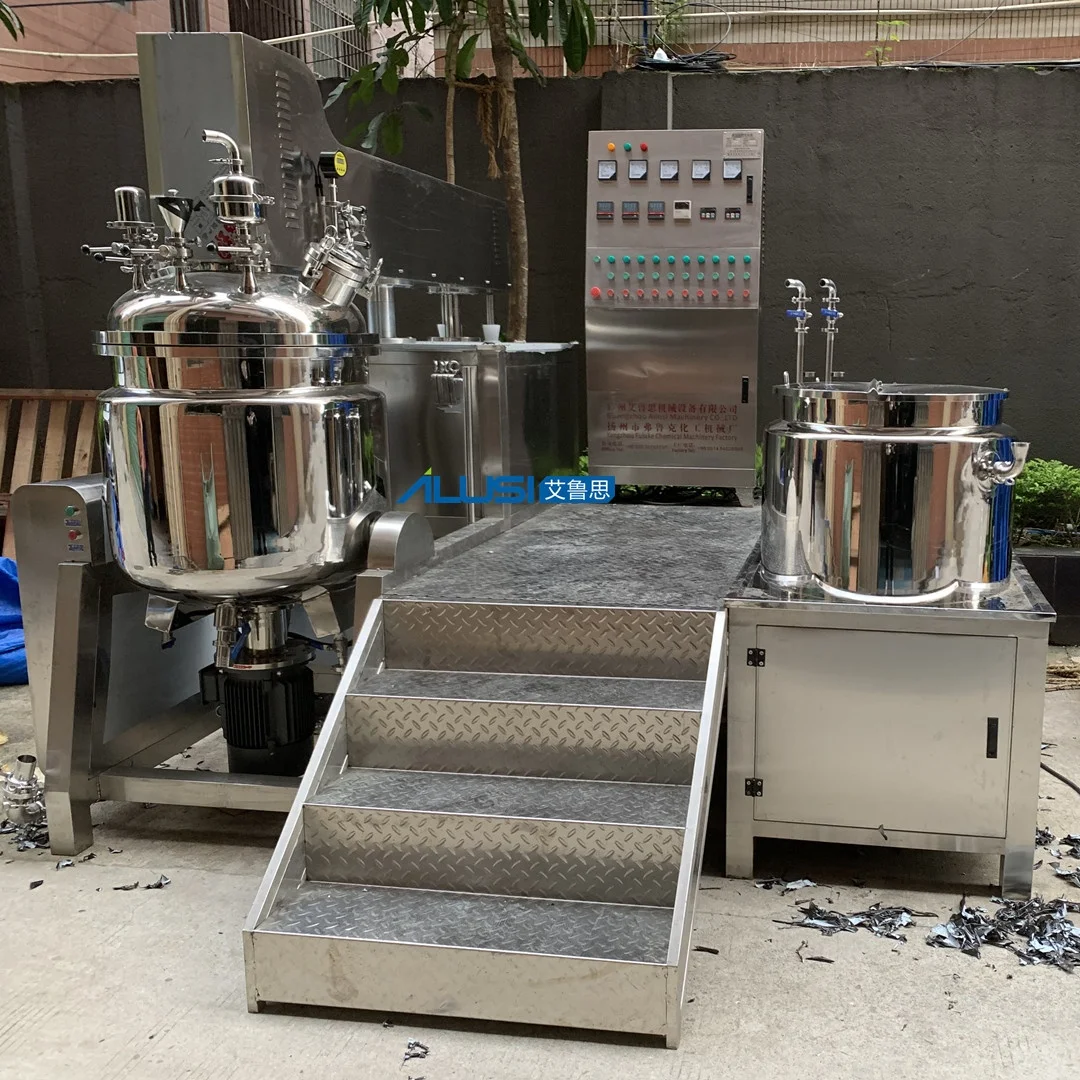

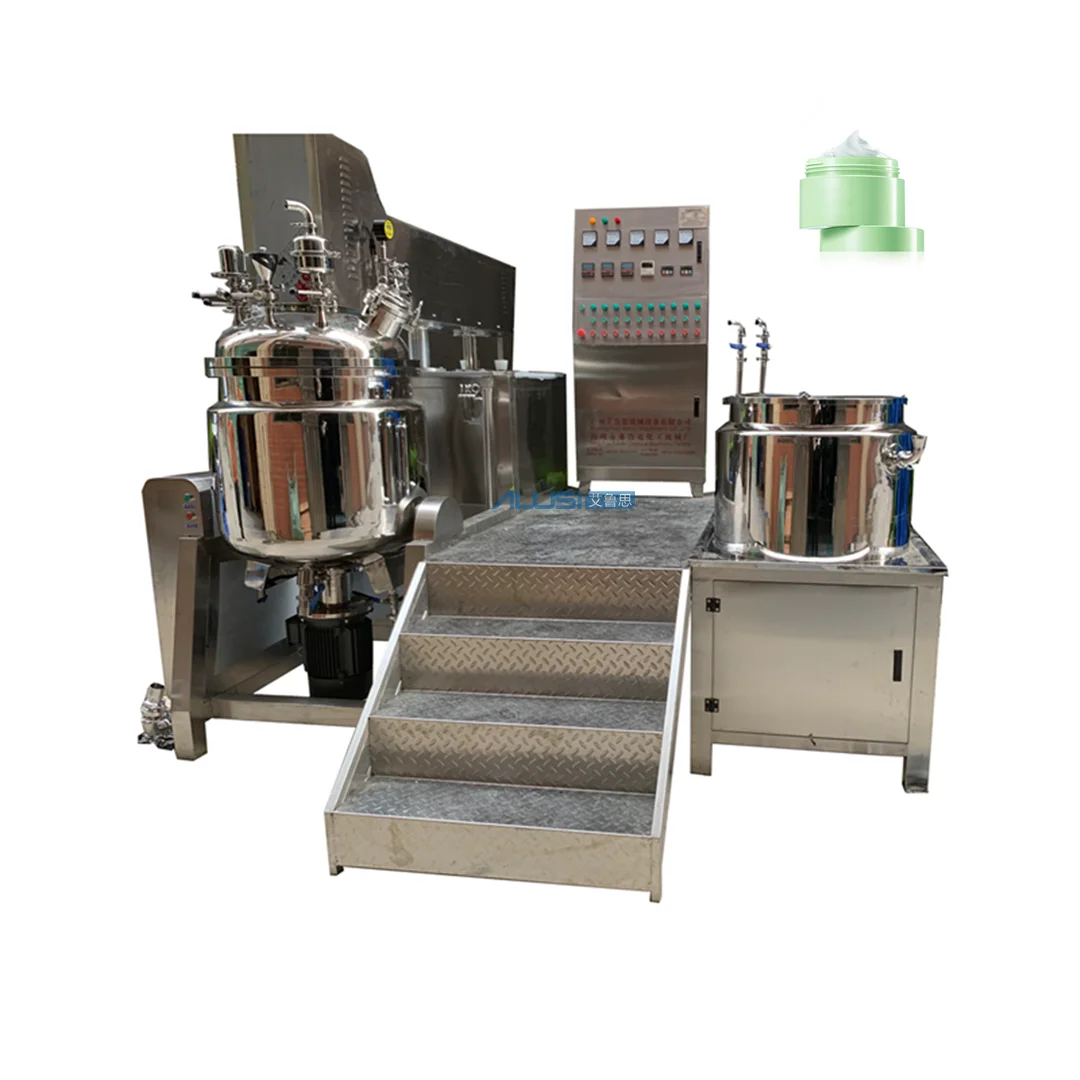

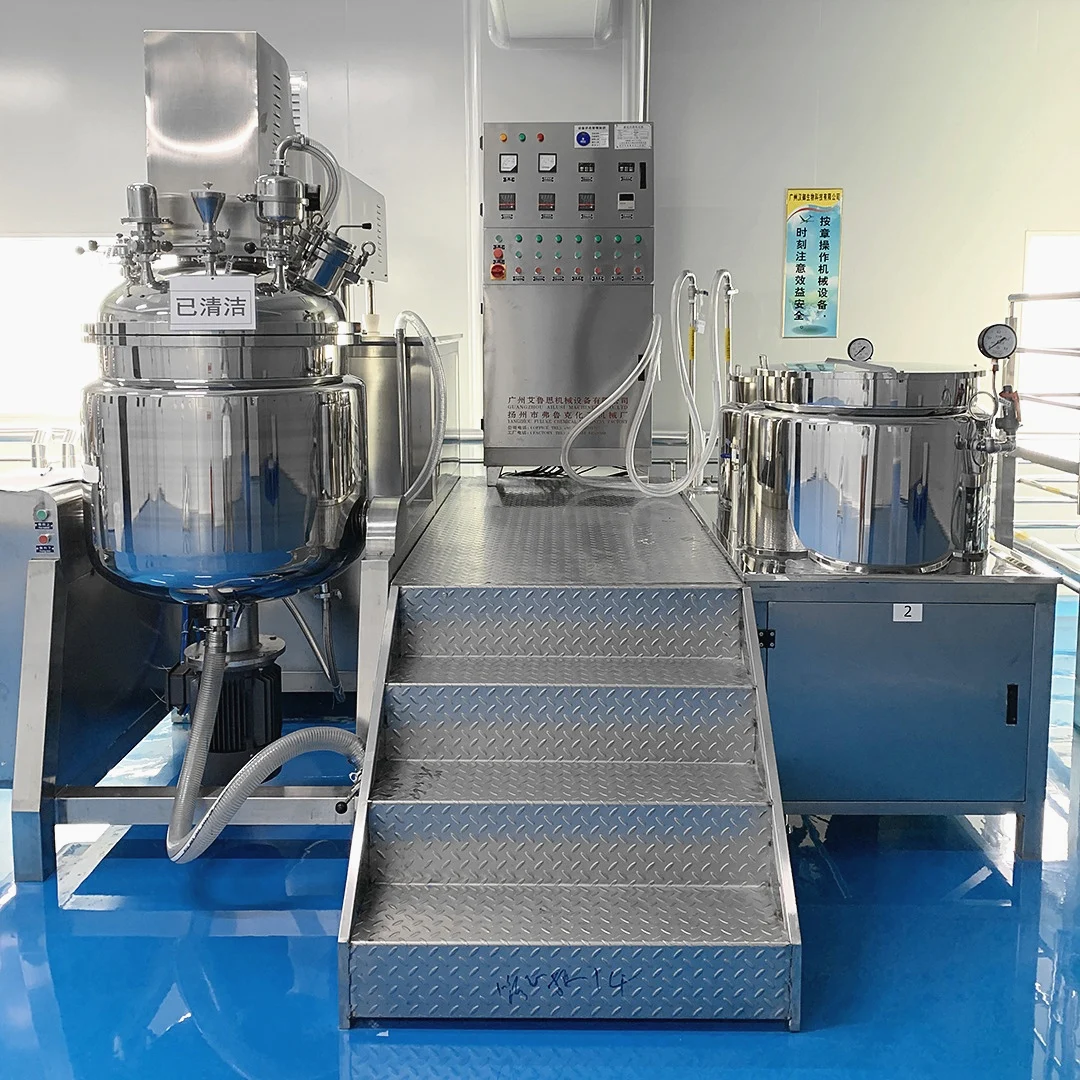

Hydraulic lifting vacuum emulsifying mixer：
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical
factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,
etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.

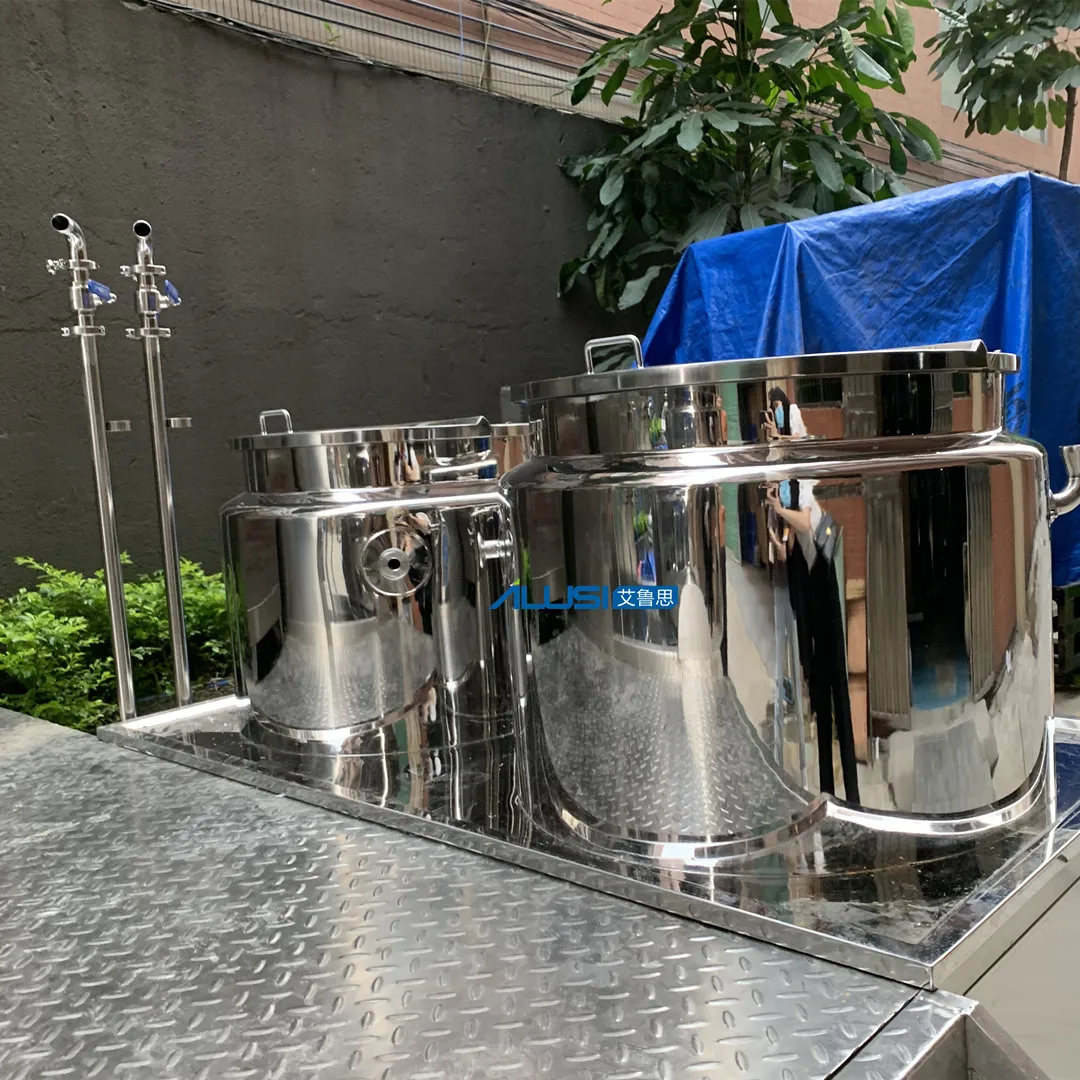

◆ Emulsifier, water phase tanks, oil phase tank
◆ Vacuum pumps and sync solenoid valves
◆ emulsifier and material filter
◆ Stainless steel platform
◆ Inverter and electrical control box
Hydraulic lifting vacuum emulsifying mixer：
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical
factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,
etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Specification
Item | Mixer(KW) | homogenizer(KW) | Main Pot Heater (KW) | Water Pot Heater (KW) | Oil Pot Heater(KW) | Water Pot Mixer(KW) | Oil Pot Mixer (KW) | Vacum Pump (KW) |
50L | 1.1 | 2.2 | 3 | 6 | 3 | 0.37 | 0.37 | 0.75 |
100L | 2 | 4 | 6 | 6 | 6 | 0.55 | 0.55 | 1.5 |
200L | 2 | 5.5 | 9 | 12 | 9 | 0.75 | 0.75 | 1.5 |
300L | 4 | 5.5 | 9 | 12 | 12 | 1.1 | 1.1 | 2.2 |
500L | 4 | 7.5 | 12 | 18 | 18 | 1.5 | 1.5 | 2.2 |
1000L | 5.5 | 11 | 18 | 18 | 18 | 2.2 | 2.2 | 4 |
2000L | 7.5 | 15 | 27 | 27 | 27 | 2.2 | 2.2 | 4 |
3000L | 11 | 18 | 36 | 36 | 36 | 3 | 3 | 5.5 |
Details Images

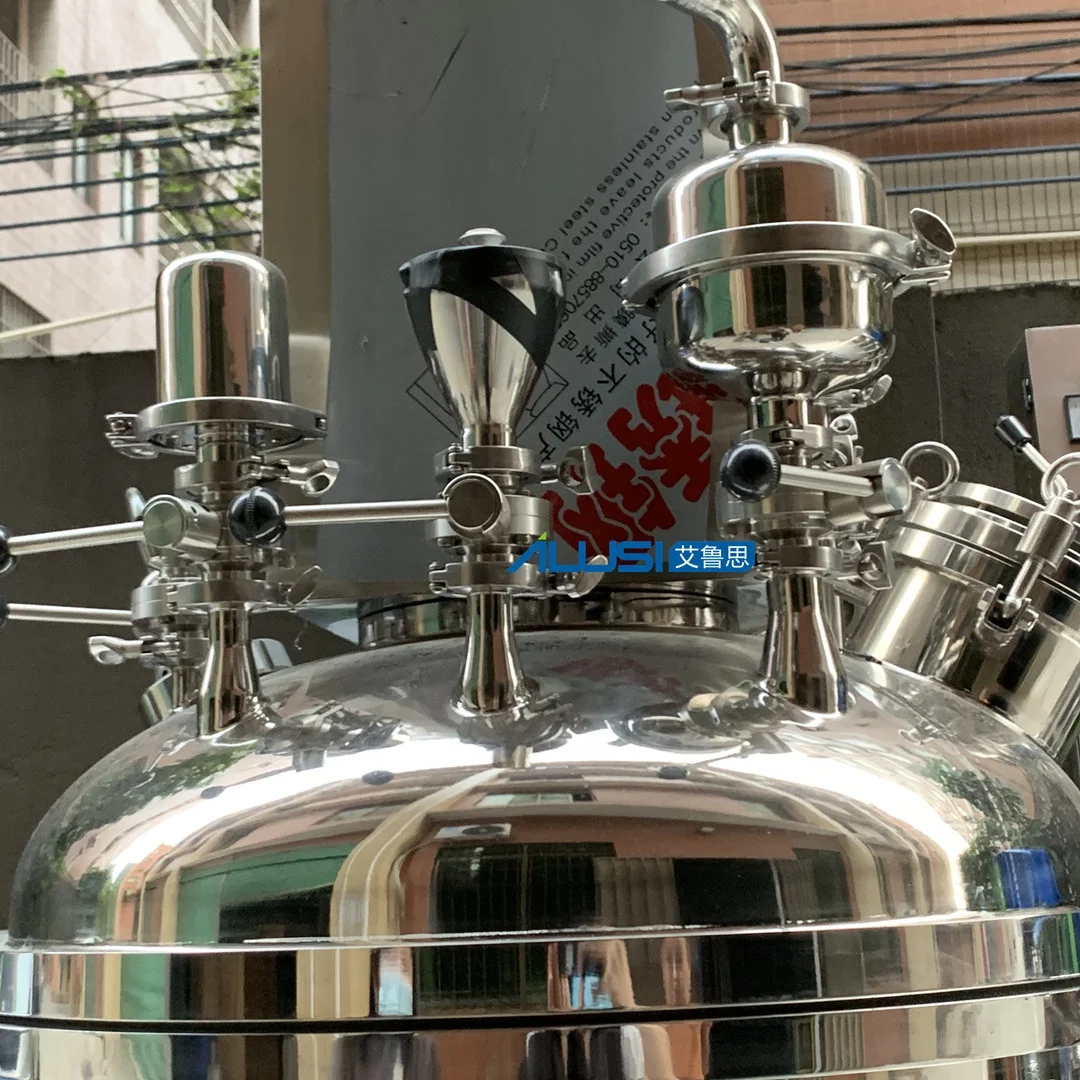

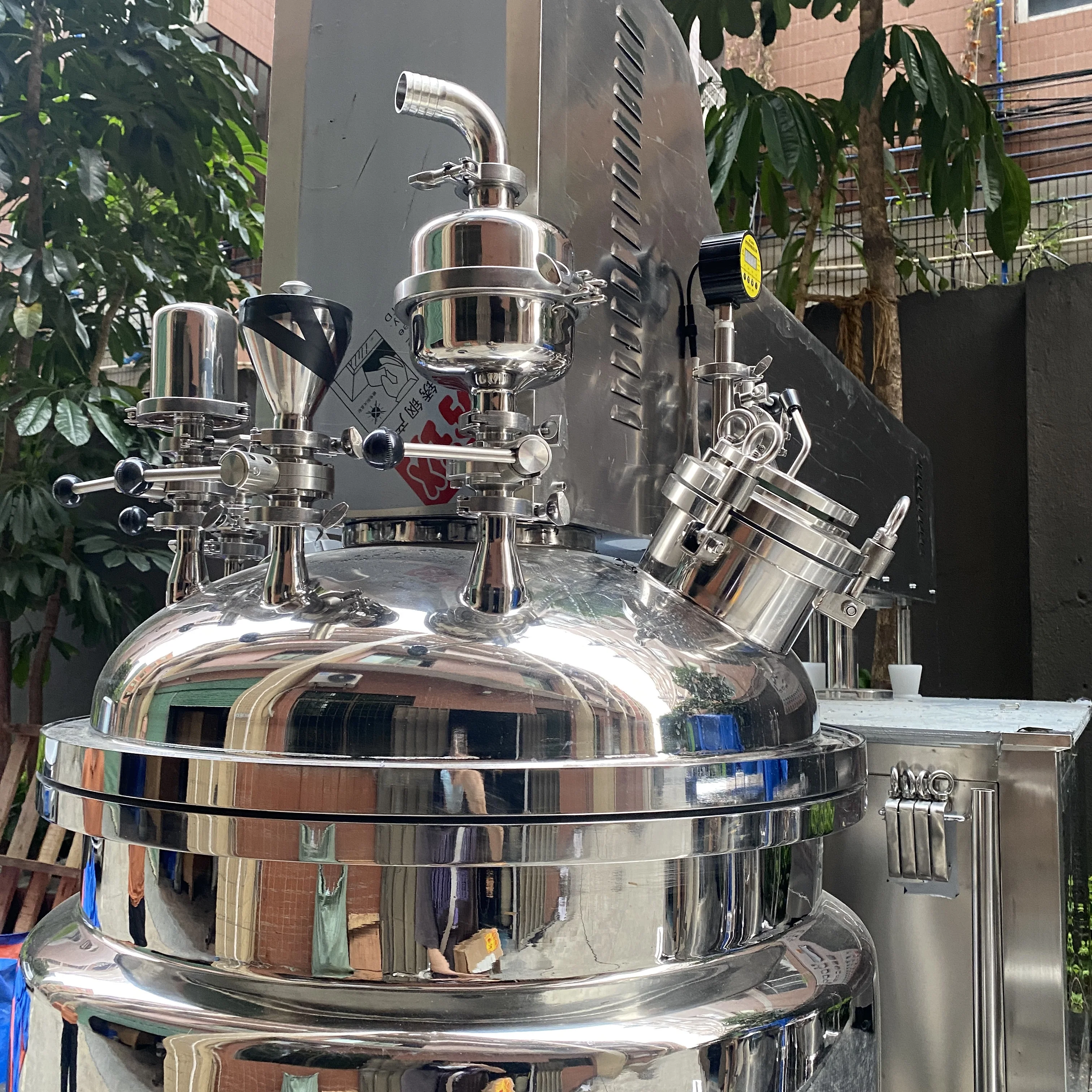

Lid Part:
Consisting of material filter, vacuum pressure meter, vacuum discharge valve, vacuum inlet, positive pressure inlet, CIP system (Spray ball), sight glass light, sight window, man-hole, hopper.
All contact material parts adopt GMP standard SUS316L Sanitation grade accessories & valves
Name: Hygiene grade mirror polish & SUS304&316L,
Half open lid, easy for operation;
Jacket Electric heating;
High shearing disperser plate;
Disperser on bottom

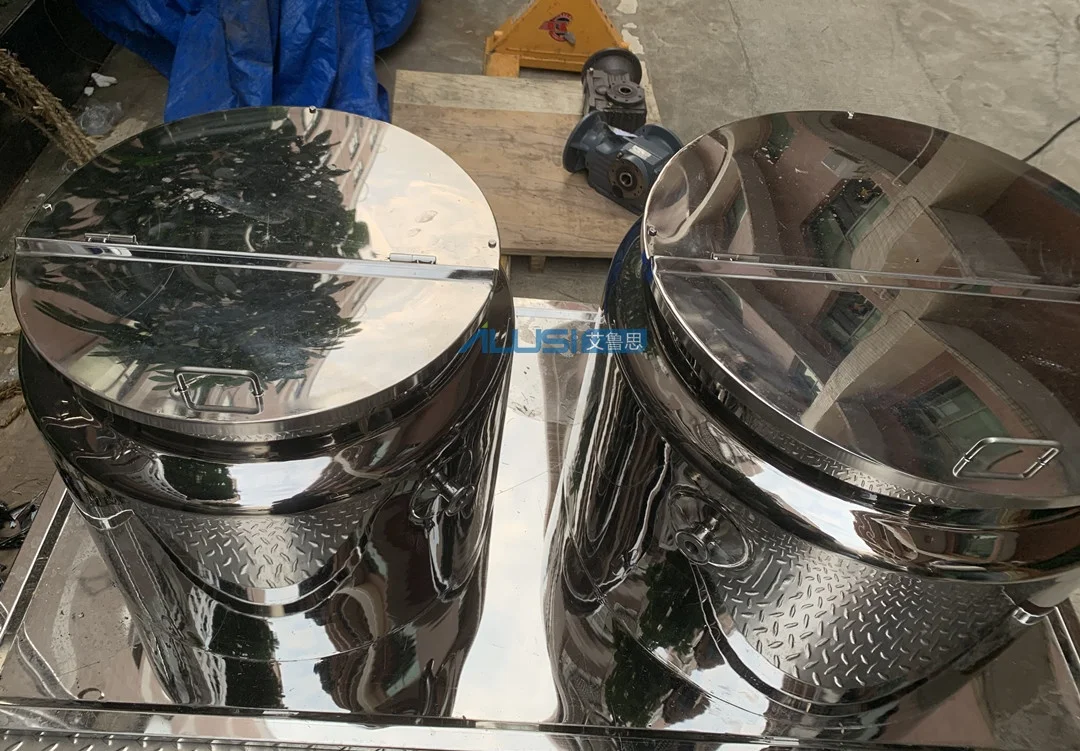

Water pot and oil pot drainer pipe connect to one outlet.
Half open lid, easy for operation;
Jacket Electric heating;
High shearing disperser plate;
Disperser on bottom
Water pot and oil pot drainer pipe connect to one outlet.

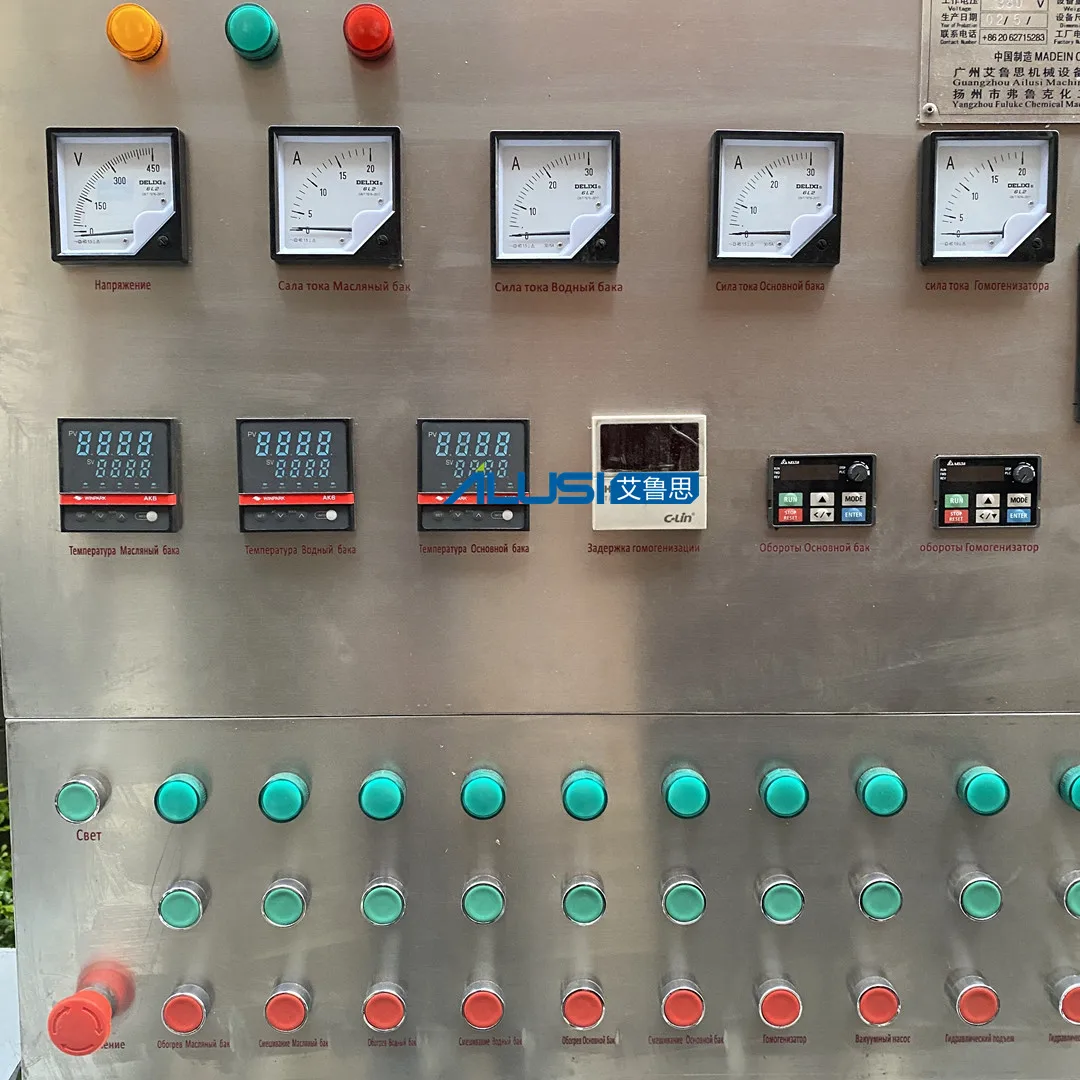

Meter: thermometer, Time digital display met, Current voltmeter
Button: Each function switch control button or famous brand Siemens touch screen, Power indicator light, scram etc.
The electrical components：include various control relay
Stirrer paddle
Frame wall scrapping blender
Stirrer paddle: SUS316L,
Scraper blade: white PTFE material
Stirrer paddle: SUS316L,
Scraper blade: white PTFE material

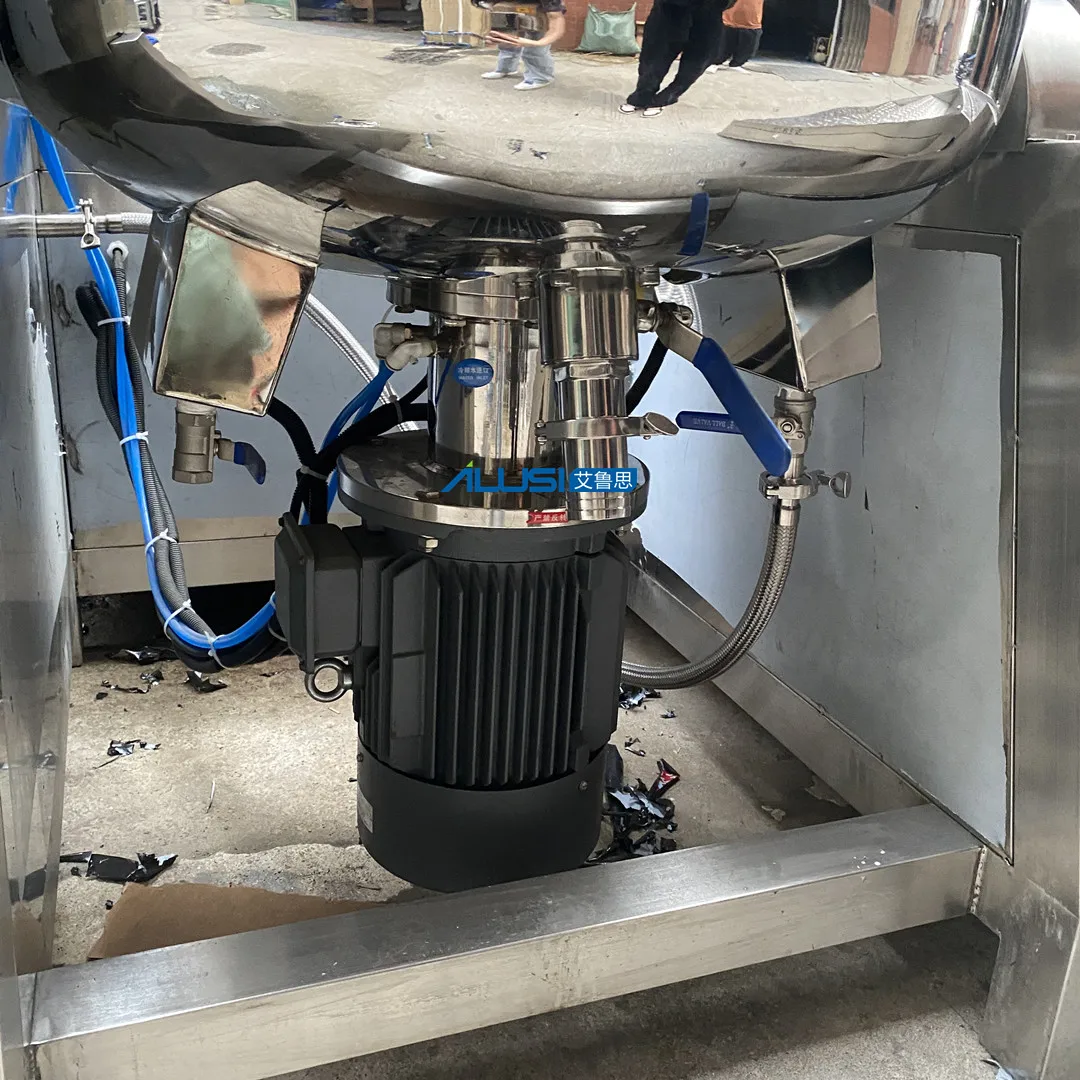

Homogenizer part:
Rotor and stator adopts wire-cutting finish machining high shearing homogenizer, smooth emulsion to 2μm.
Packing & Delivery
Packing | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2T | |
Packing details | The normal package of CE certification cosmetics vacuum emulsifying mixer, cream homogeneous mixer emulsifying machine is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Company Profile
Yangzhou Ailusi Chemical Machinery Factory is a manufacturerspecialized in the research, development, production and one-stop after sales service of Vacuum emulsifying machine, chemical mixer, RO water purified machine and filling production line, stainless steel products for Cosmetics, Food and Pharmaceutical industrial.We have strong backup factory to provide high quality machines and offer competitive prices, One-stop service from A-Z.
