Products Description

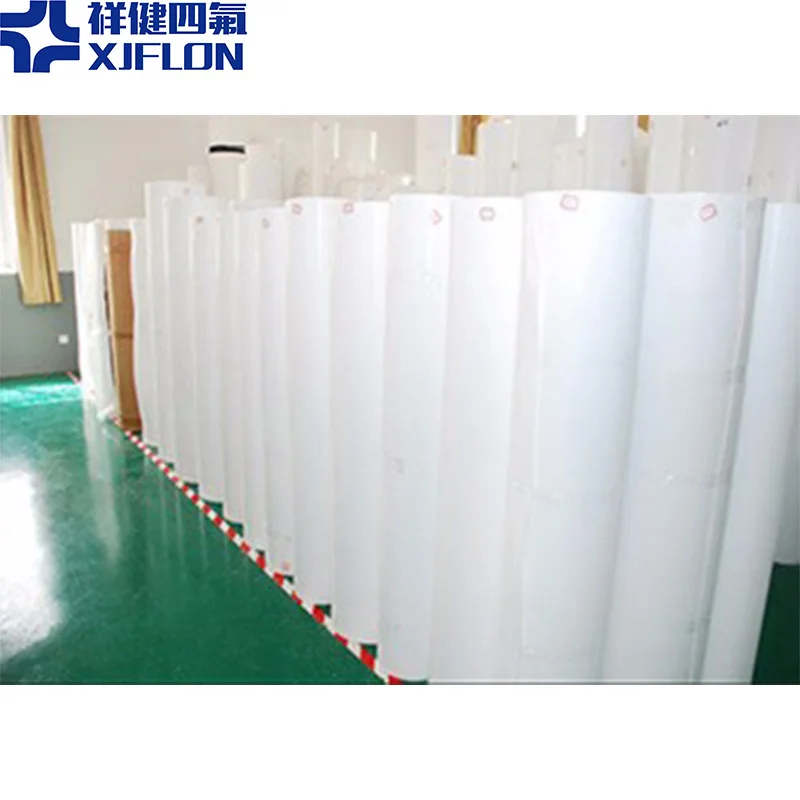

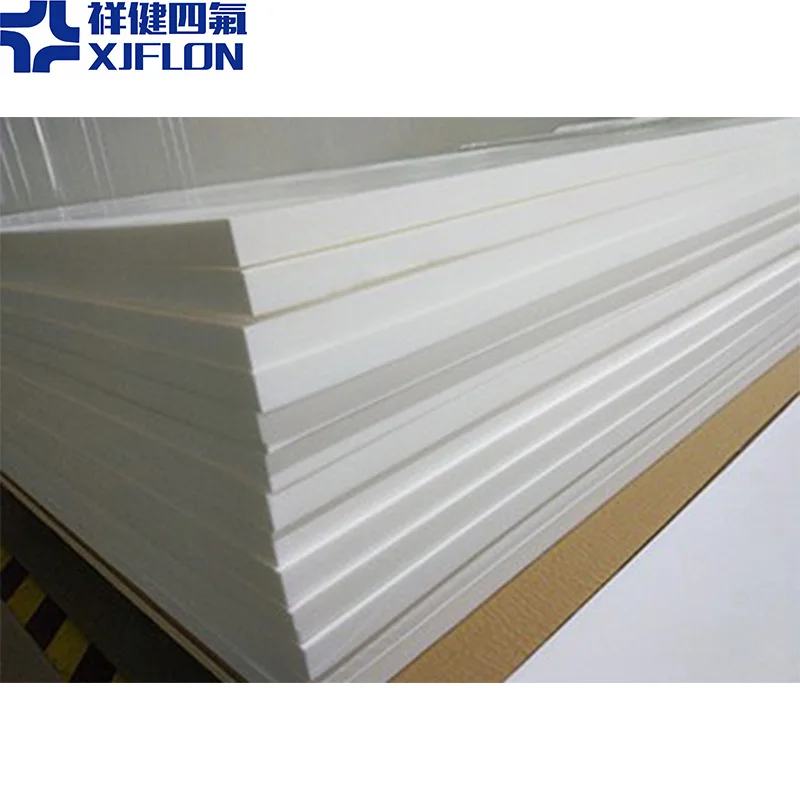

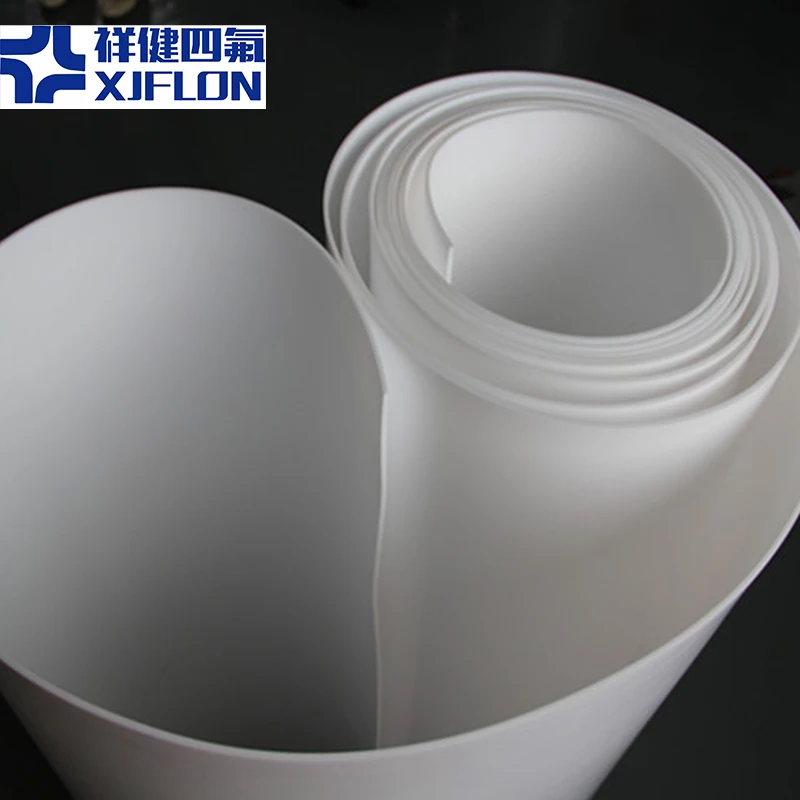

 PTFE  Skived Flat Sheet
PTFE skived Sheet is manufactured by technique of compacting,sintering,,rotary cutting with PTFE granular resin. It has good dielectric performance and non-aging,best anti chemistry corrosion ability and wide applying intension range.

PTFE molded sheet is manufactured by molding process with PTFE regular resin and sintering.It is very suitable for seals, lining,
diaphragm, spacer guide and bearing pad for bridge.





Product Paramenters


Regular specifications
Thickness(mm)
Width
1000mm
Width
1200mm
Width
1500mm
Width
2000mm
Width
2700mm
0.1, 0.2, 0.3, 0.4
0.5, 0.8
1, 1.5, 2, 2.5, 3, 4, 5, 6
7, 8
Custom specifications
Thickness
0.1mm ~ 10.0mm
Width
30mm ~ 1500mm for 0.1 ~ 0.4mm thick;
300 ~ 2700mm for 0.5 ~ 8mm thick
√ The sizes range can be processed


Technical datas of pure PTFE sheet


Item
ASTM
Data
Unit
Mechanical Properties
Density
D792
2.1~2.2
g/m3
Tensile strength
D638
≥15 about 20 ~ 45
MPa
Elongation at break
D638
≥150 about 200~ 350
%
Compression strength
D695
24
MPa
ShoreD Hardness
D636
50-60
-
Friction coefficient
on steel
0.01
-
Thermal Properties
Working Temp
-180 ~ 260
°C
Melting point
330
°C
Produce Max. Temp
390
°C
Fire Resistance
UL94
V-0
Brittle point temperature
-268
°C
Electrical properties
Dielectric strength
D149
>1400
kV/mm
Volume resistivity
D257
>1018
Ω·cm
Surface Resistivity
D257
>1016
Ω
Dielectric constant
D150
2.1
Conventional properties
Chemical solvent resistance
Excellent
Water absorption (25℃ )
D570
0.01
24h/%
limit oxygen index
D2963
>95


Company Profile








We specialize in the production of PTFE (polytetrafluoroethylene) based products. we are able to manufacture at a high volume and include such items as tubing, rods, sheets, film, cut plates and poly (perfluoropropene-ethylene) products. In addition, we have a range of PTFE tapes, packing materials and various rubber products available.

All our products are of a very high quality and our standards of production and quality management are conducted in accordance with ISO9001. We like to think of ourselves and the talented individuals we are fortunate to have on board as technically competent and a force for the future in our field. We have gained over two decades of experience in this line of production and can proudly state that our goods have been warmly accepted by buyers in the USA, Europe, Japan, the Middle East and Southeast Asia.

Our products have many uses and can be found in such industries as chemicals, machinery, electronics and automobile manufacture. We regard ourselves as an enterprise that is flexible and one that works closely with its clients in order to provide them with the best possible products, an excellent service and above all a reasonable pricing system.

We invite you to try our company and contact us for more details, as we are more than willing to discuss your needs and requirements. With our most trusted overseas clients, we look to build strong credible partnerships and do business that gives benefits to both sides. Contact us today.

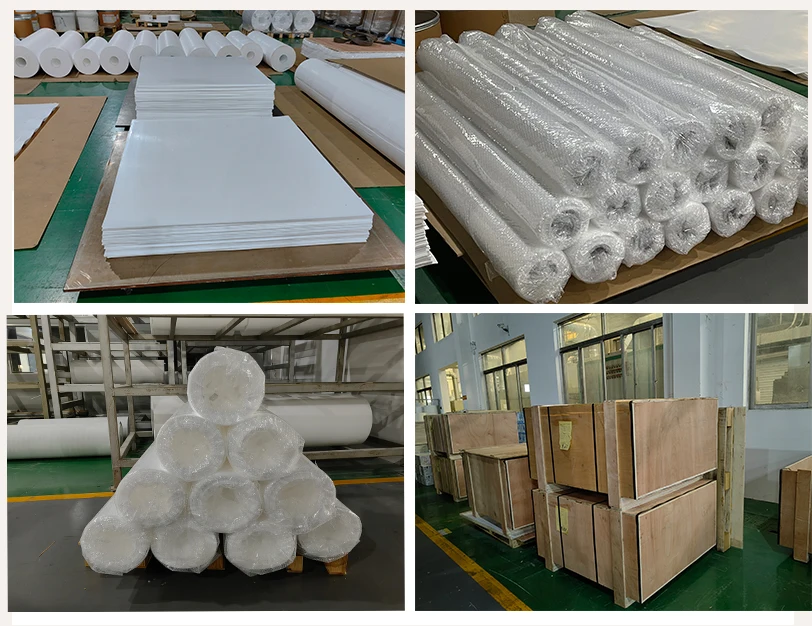

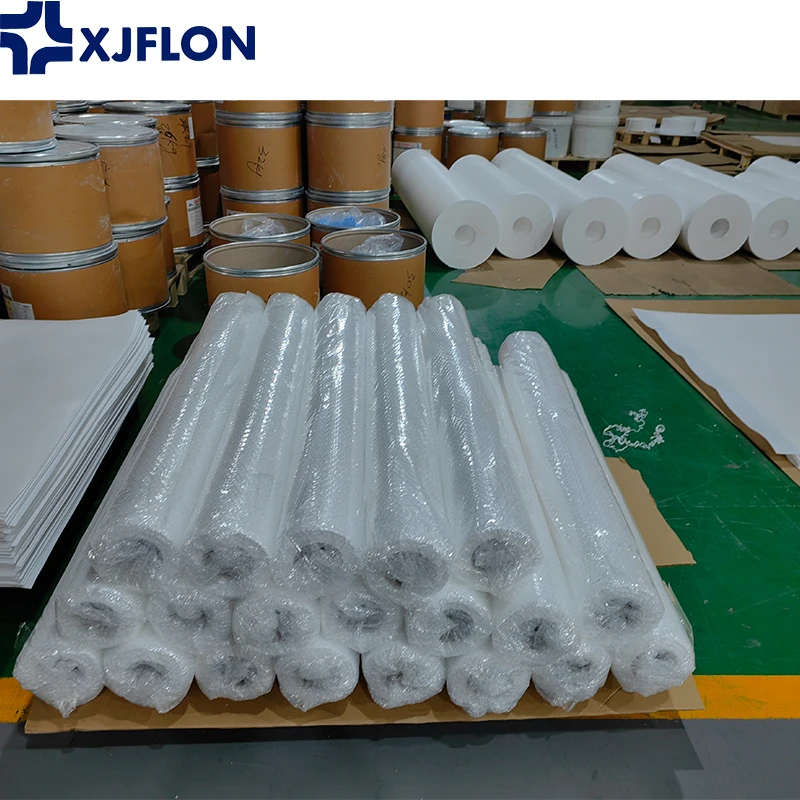

Packing & Delivery




PTFE sheets are packed by plywood cases that don't need fumigation. Other packing is customized according to client's
requirements.


FAQ


Q1: How can I get a sample?
A1: Small size of sample are free, you only need pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier
to us. Customized size of sample should be charged.

Q2: What is your payment term?
A2: Small order ,we accept by T/T,western union, paypal, .Bulk quantity order ,30% T/T in advance, 70% balance before
shipment.Other terms negotiable.

Q3:Can we purchase a small part of plastic sheet / rod?
A3: Yes, if we have the size you require in stock.

Q4:Can you manufacture the plastics products as per drawing?
A4: Yes,we can.Products can be customized. Please contact us for any further information.

Q5:What kinds of processing machine do you have?
A5: CNC machining center,CNC lathes,Milling,Laser engraving machine.
