Product Description

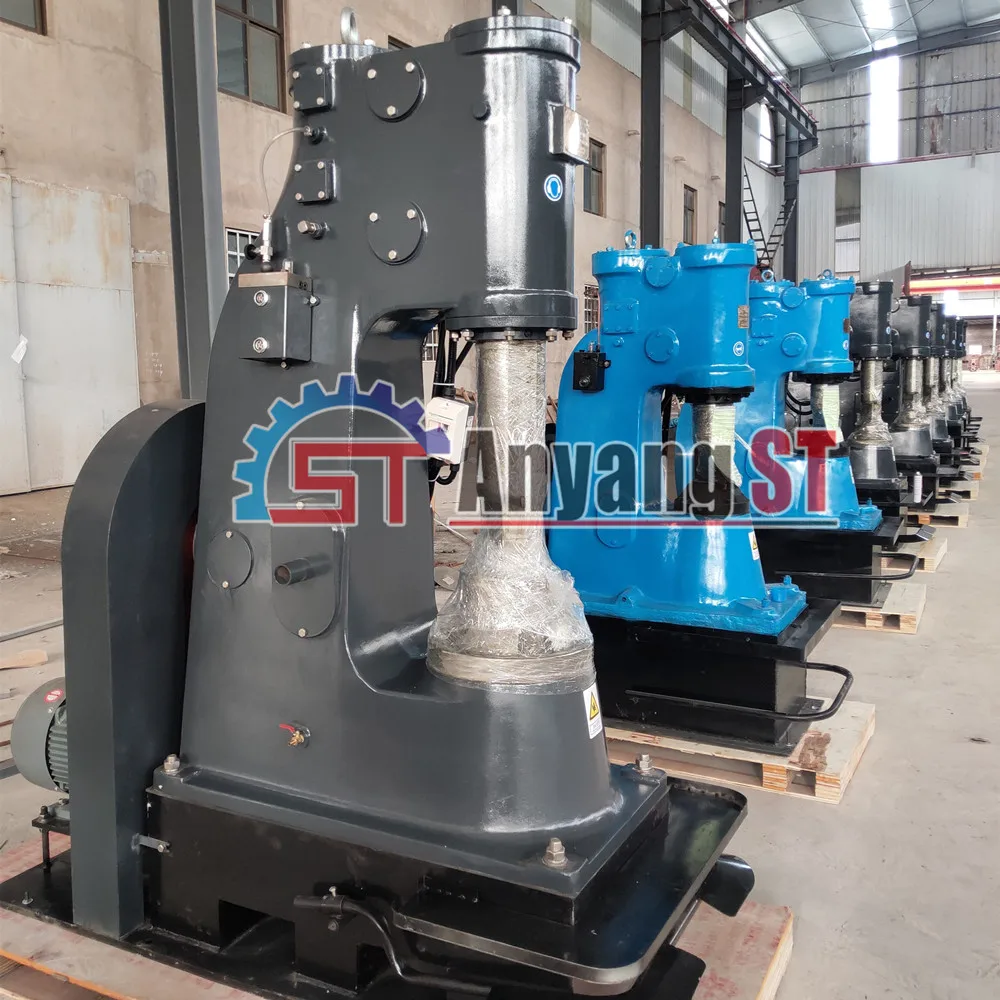

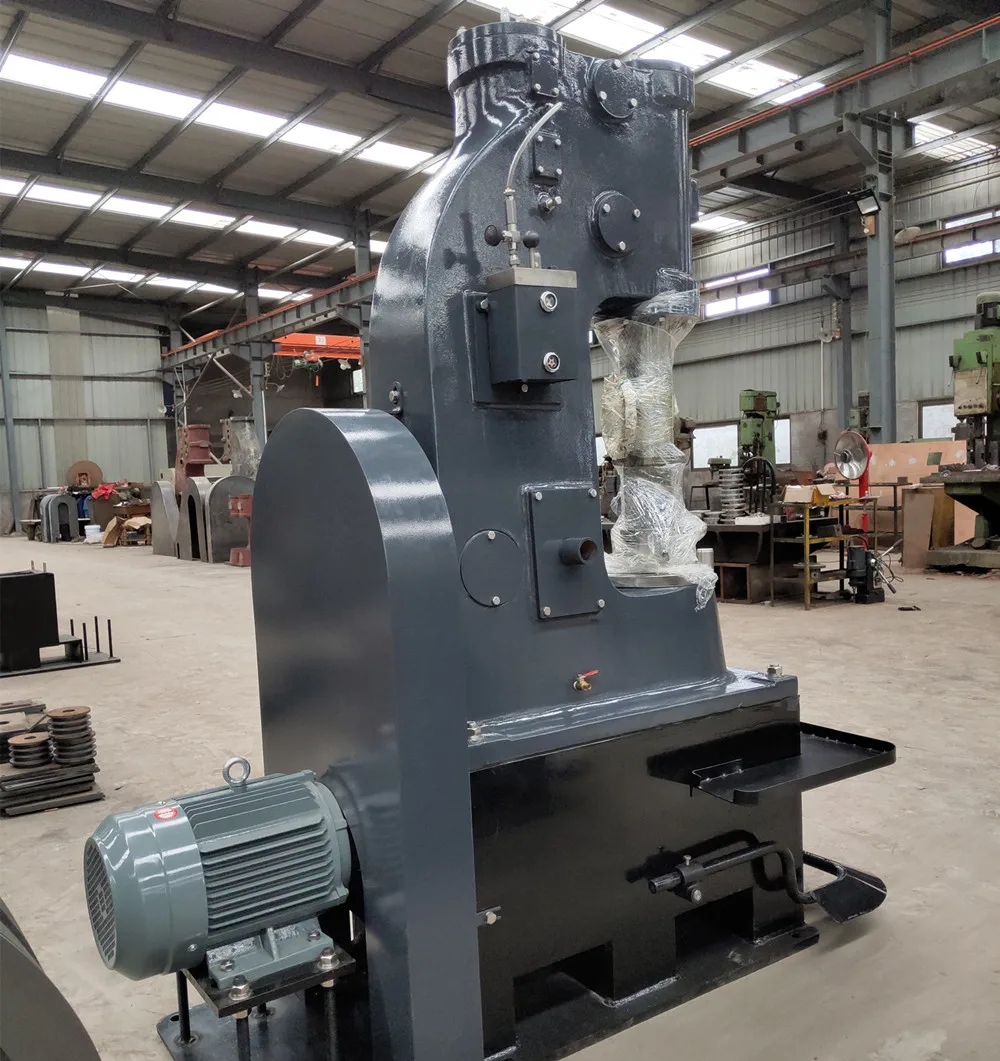

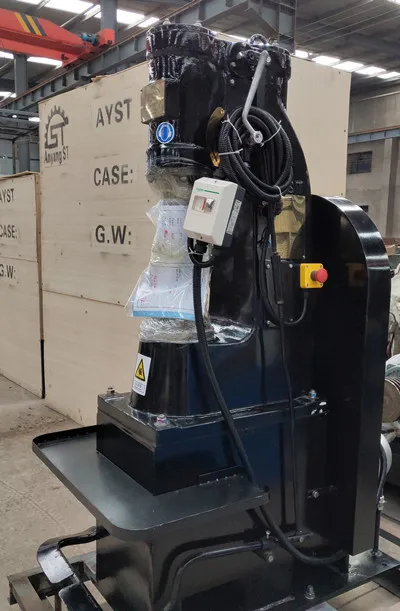

Anyang ST Power Hammer.
Anyang ST power hammer is a self-contained hammer no need for extra compressor air supply, more solid
casting frame integrated air channel, longer ram design than top die not to retract into the cylinder, all function
realize through press pedal, more powerful and low noisy, world-famous electronic and easy to be maintained by
users. There are hundreds of blacksmiths from 40 countries had enjoyed their excellent performance.
casting frame integrated air channel, longer ram design than top die not to retract into the cylinder, all function
realize through press pedal, more powerful and low noisy, world-famous electronic and easy to be maintained by
users. There are hundreds of blacksmiths from 40 countries had enjoyed their excellent performance.
Advantages of Anyang ST hammer.
LONGER RAM DESIGN. Longer ram design prevents the top die from retracting into the cylinder. This allows time
for changing dies faster and easier.
The flat dies come with holes that allow to install DIY dies to improve working efficiency and reduce die cost.
for changing dies faster and easier.
The flat dies come with holes that allow to install DIY dies to improve working efficiency and reduce die cost.
Longer key design to help change dies quickly.
New oiler will sure lubricating to reduce hammer wearing.
Air filter can reduce noisy and clean working air.
..... more details please send inquiry to us.

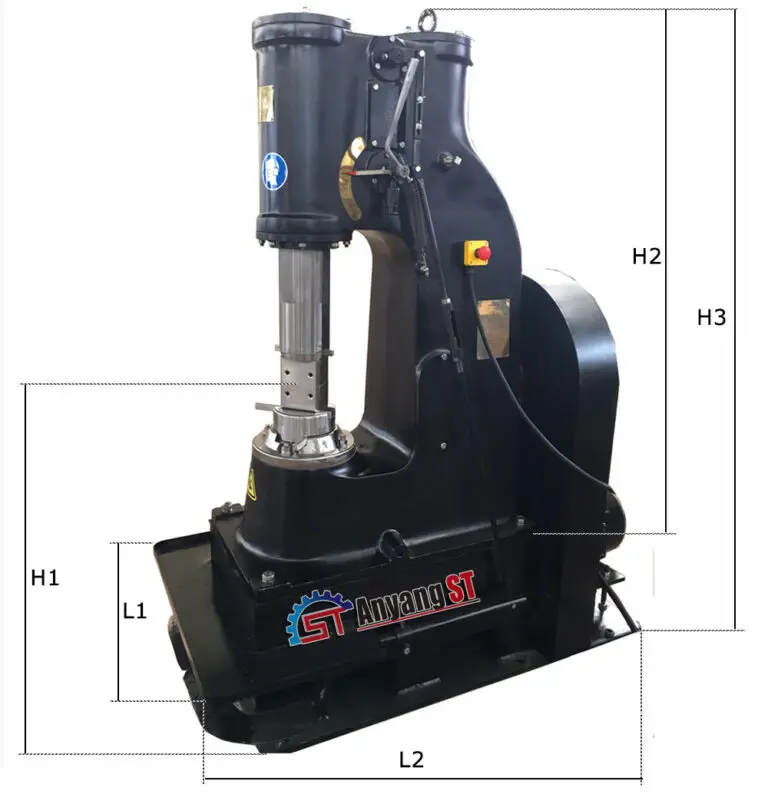

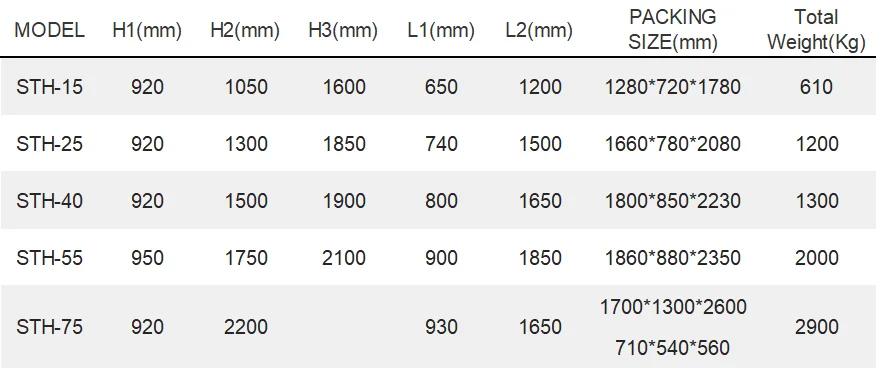

Technical Parameter
Anyang ST can produce power hammers includes 15kg, 25kg, 40kg, 55kg, 75kg, 150kg, 250kg, 400kg etc models.
Anyang ST Power Hammers have one year warranty and whole service-life warranty on the hammer body.
Anyang ST Power Hammers have one year warranty and whole service-life warranty on the hammer body.
The wear parts can be delivered to you within one week, they are ready in stock.
7*24 free service online support.
Model | Ram Weight | Below Frequency | Motor Power | Total Weight |
STH-15 | 15KG/33lbs | 300 Times/m | 2.2KW | 540 KG |
STH-25 | 31KG/68lbs | 250 Times/m | 3.0KW | 1050KG |
STH-40 | 48KG/105lbs | 245 Times/m | 4.0KW | 1300KG |
STH-55 | 60KG/132lbs | 230 Times/m | 7.5KW | 1950KG |
STH-75 | 82KG/180lbs | 210 Times/m | 7.5KW | 2900KG |

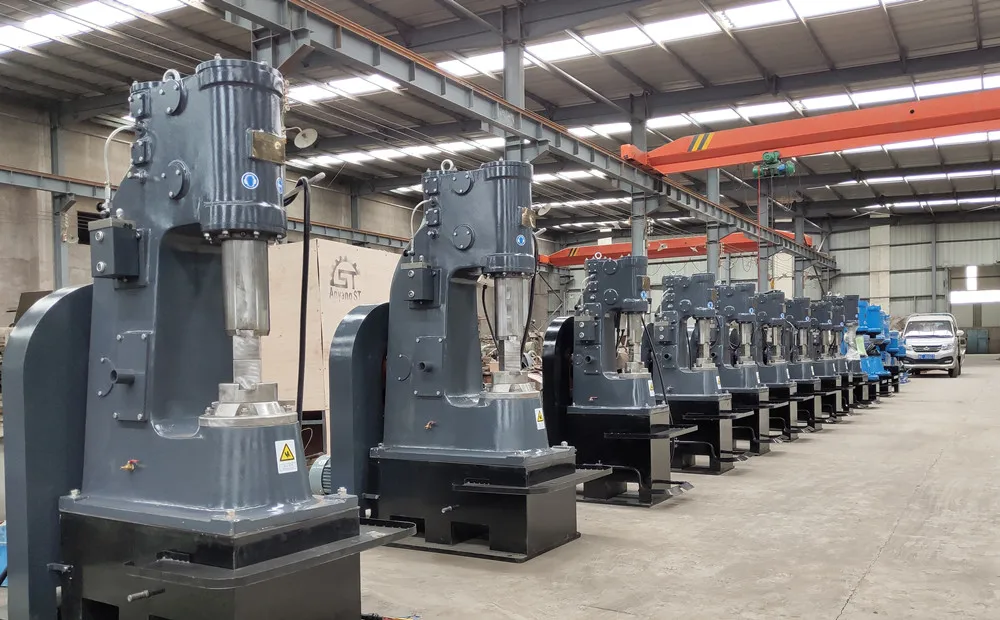

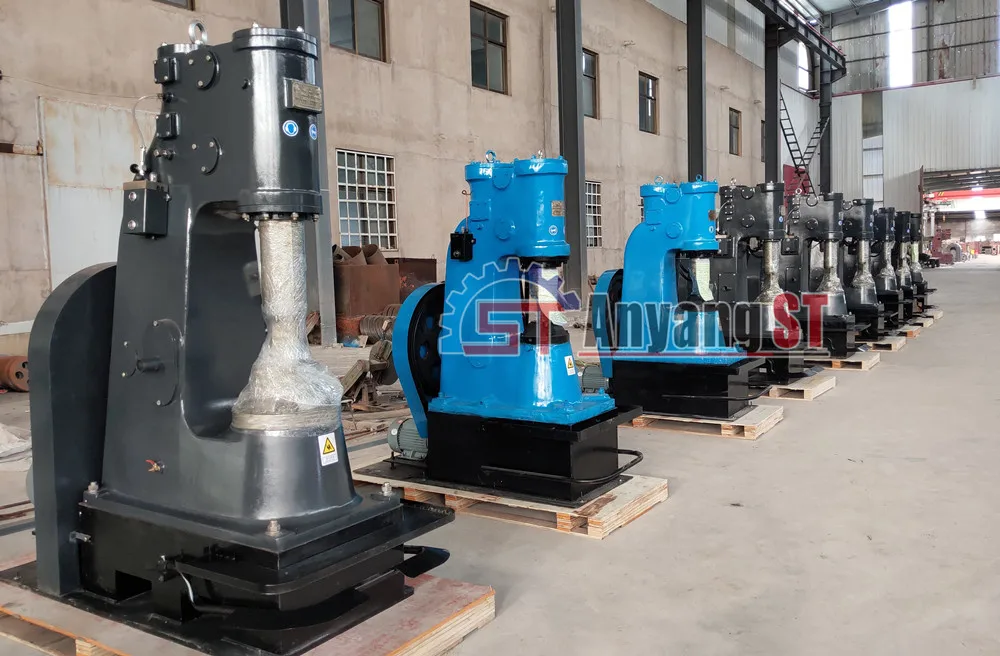

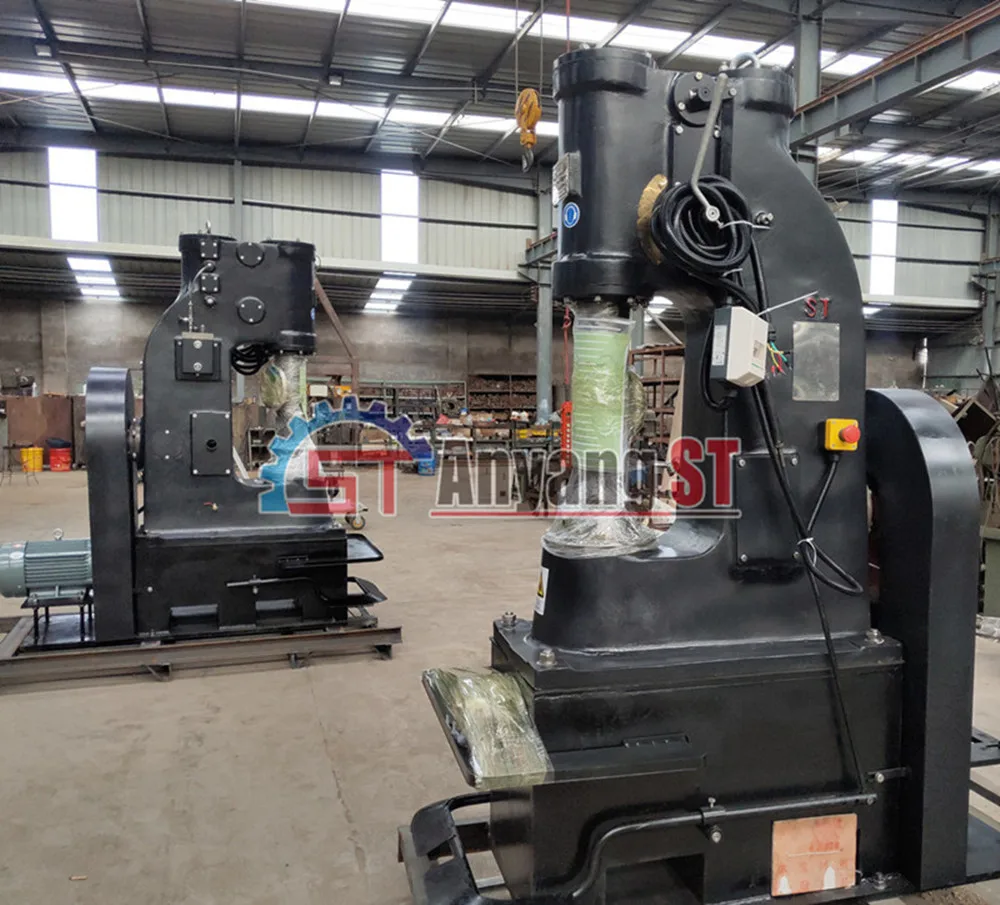

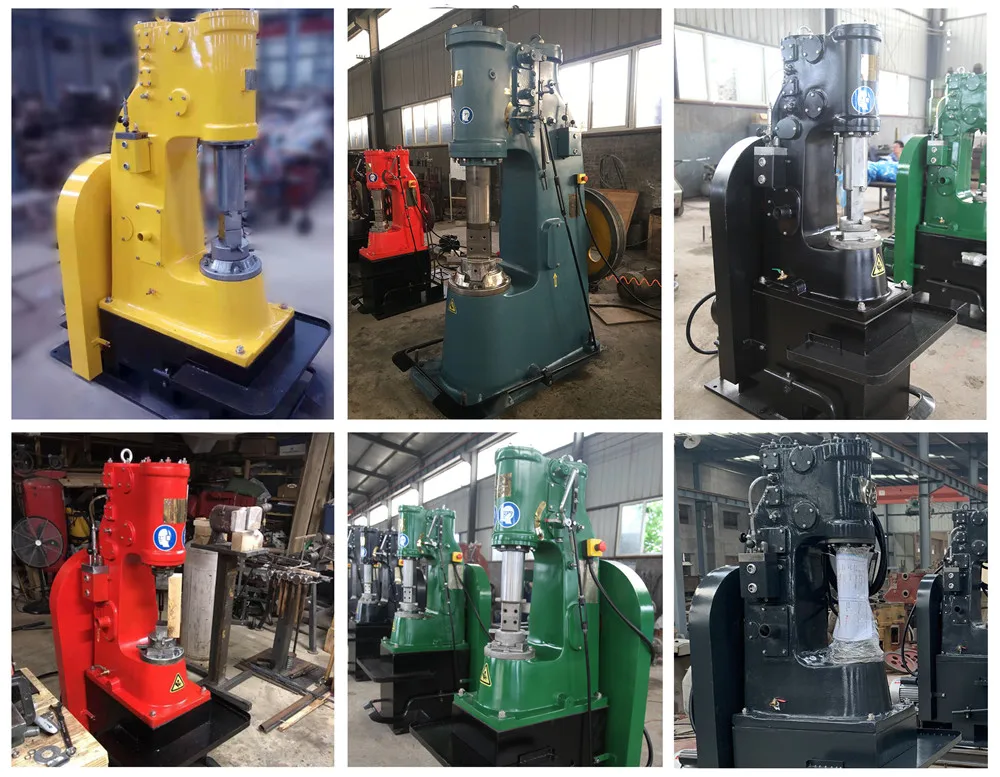

Product Photos

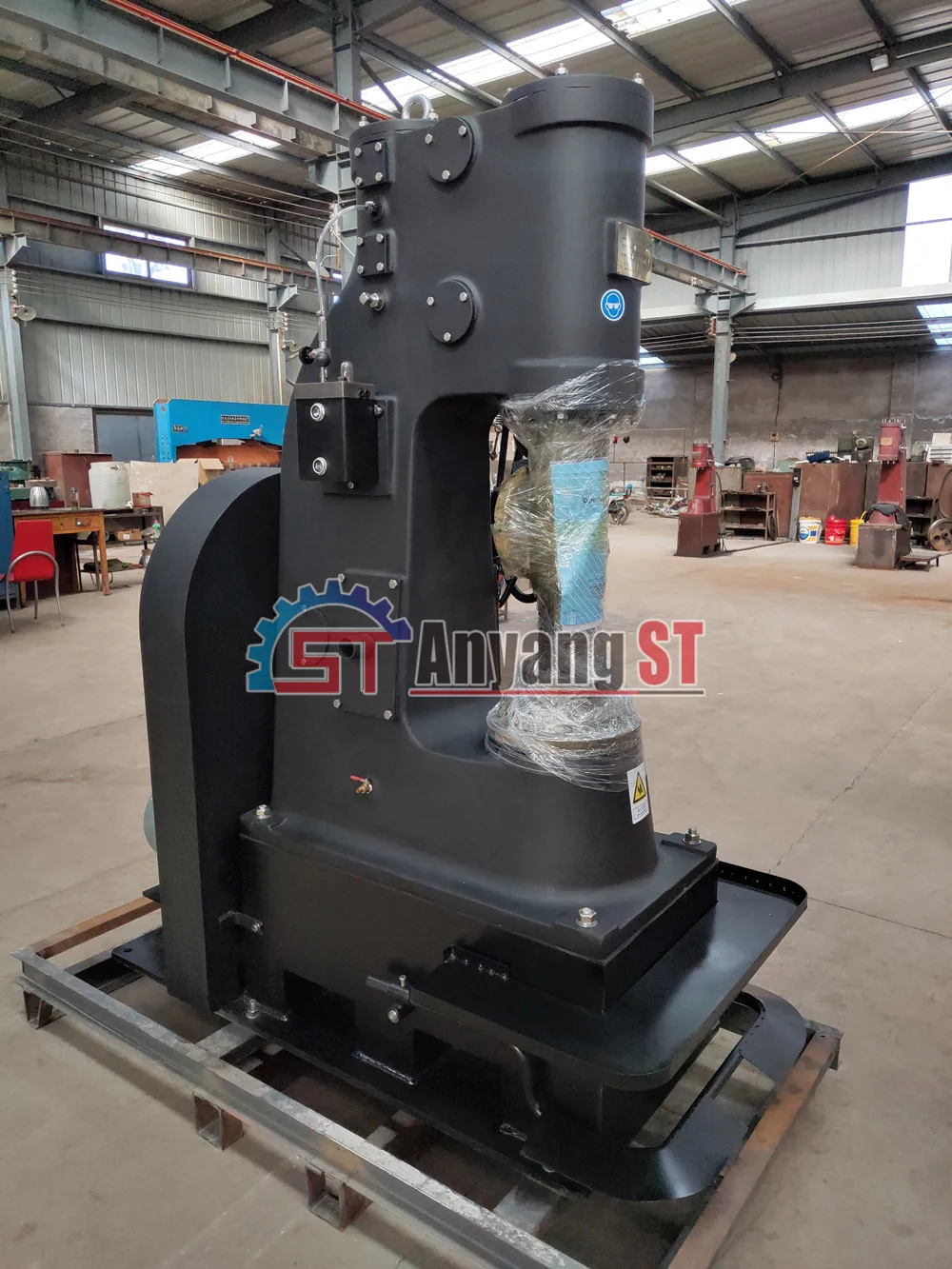

Detailed Photos

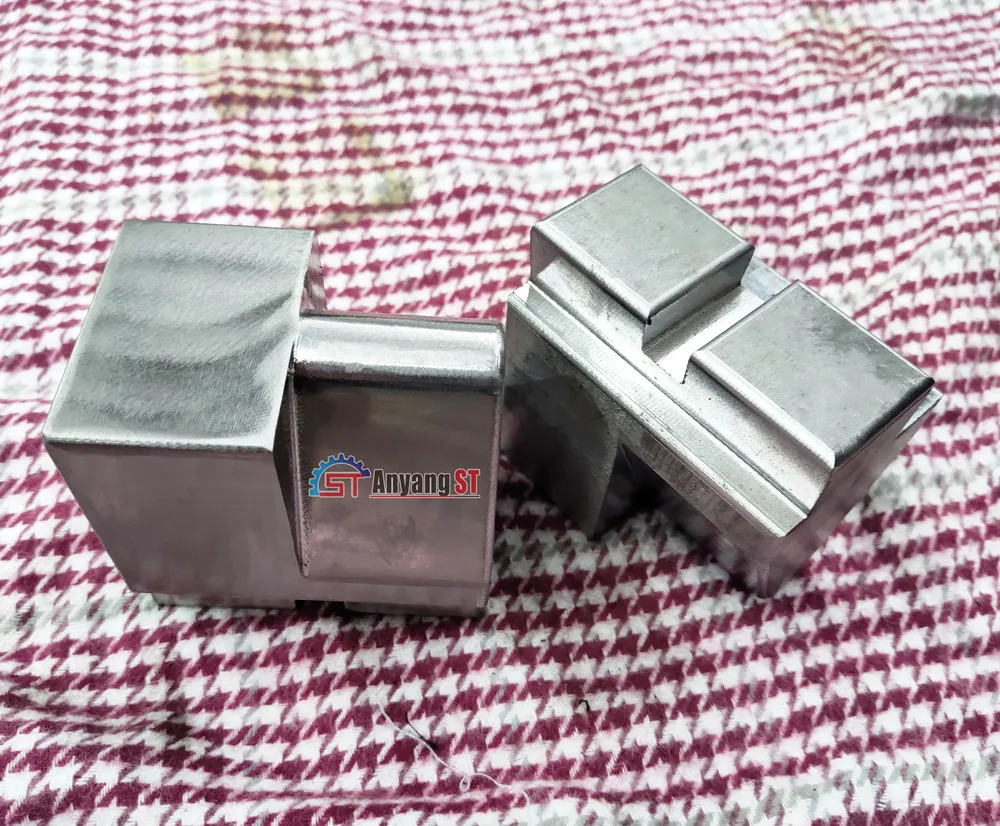

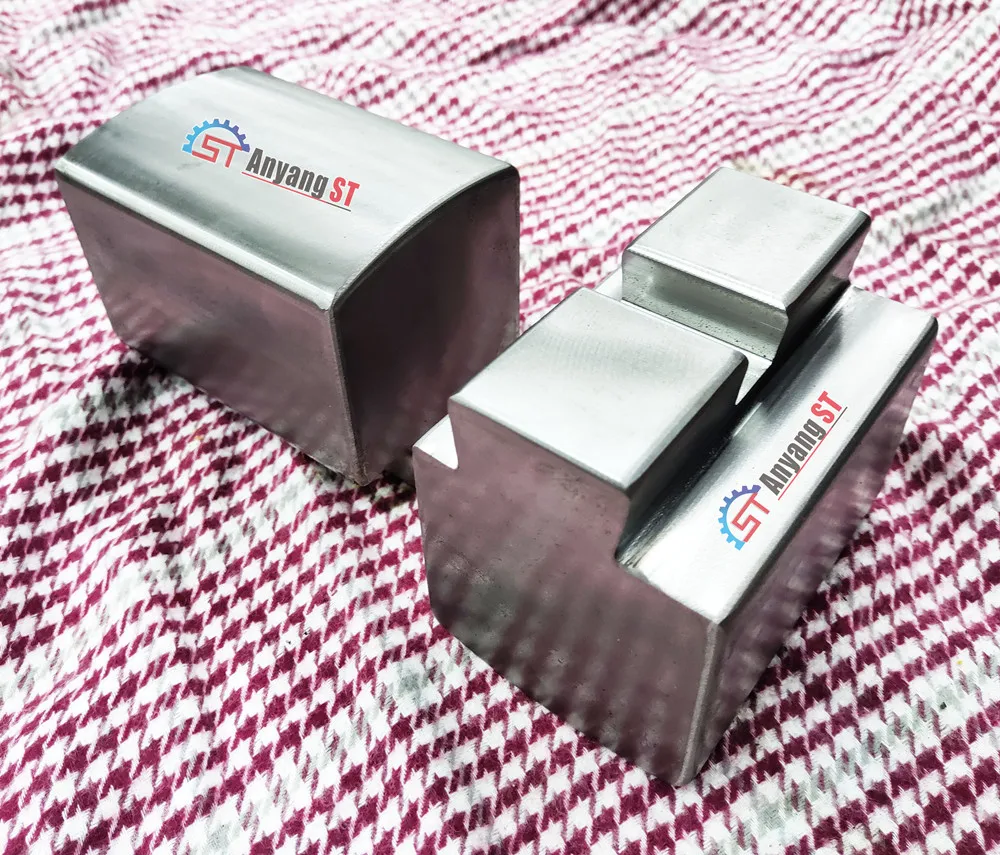

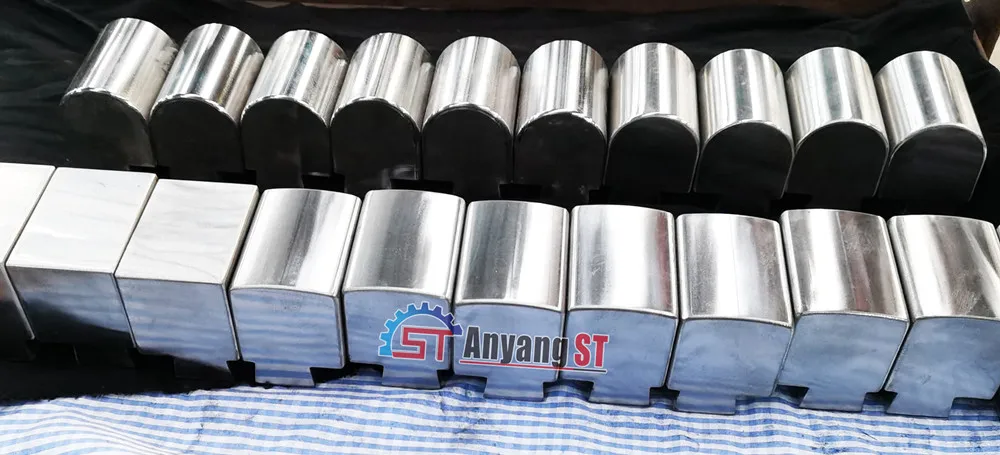

Power Hammer Dies.
Anyang ST can supply six kinds of optional dies beside the flat one. All the dies are made from molding steel, hardness HRC45-48.

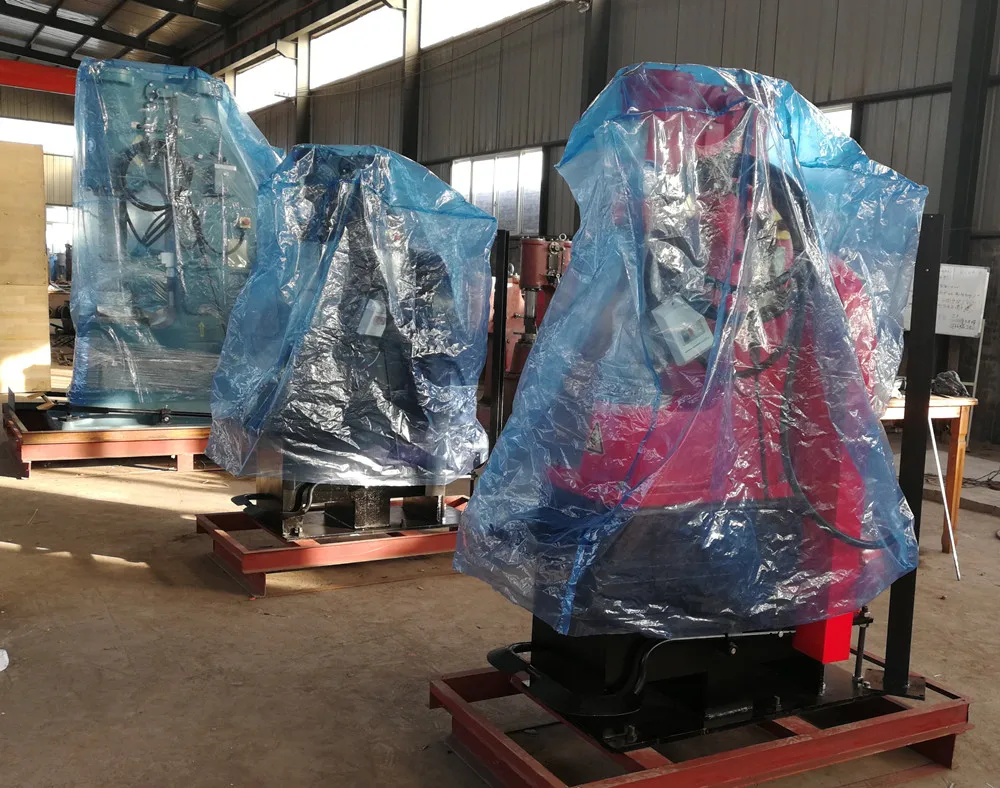

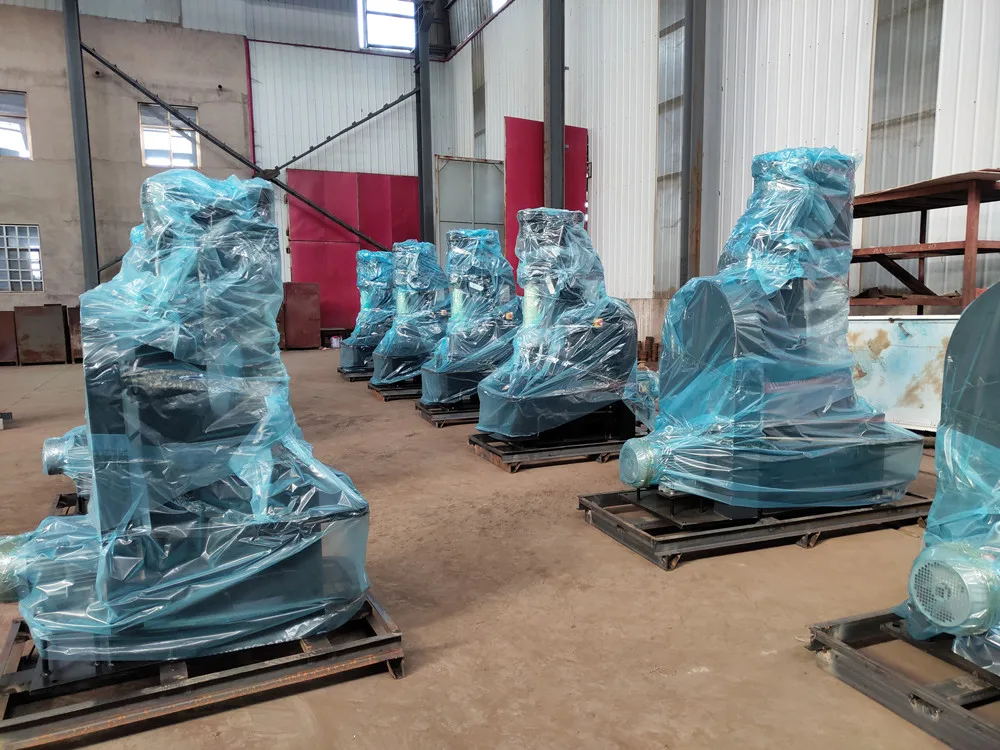

Packing and Shipping
all hammers will be bolted on a steel pallet and be covered by steel frame with plywood.
