Product Description
PCT high-voltage accelerated aging test equipment is suitable for the sealing performance of defense, aerospace, automotive parts, electronic parts, plastics, magnet industries, pharmaceuticals, circuit boards, multilayer circuit boards, IC, LCD, magnets, lighting, lighting products and other products Testing, related products for accelerated life test, used in the product design stage, used to quickly expose product defects and weaknesses. Test the wear resistance and air tightness of its products.
Features
1.Adopt double circuit structure of imported high temperature resistant solenoid valve,The failure rate is reduced to the maximum extent
2.Independent steam generator room,avoid steam direct impact on the product，avoid causing partial damage to the product
3.Door lock energy saving structure,Solve the first generation of products disc handle locking difficult shortcomings
4.Discharge cold air before test;Discharge cold air in test design(The air is discharged from the test barrel)Improve pressure stability、reproducibility.
5.Overlong experiment operating time,run long time for 1000 hour.
6.Water- level protection，sensor detector protection through test room water level.
7.Tank pressure resistance design,chamber pressure resistance(140℃)2.65kg,Comply with water pressure test 6kg.
8.Two-stage pressure safety protection device,Adopt two - stage combination controller and mechanical pressure protection device.
9.Safety protection push button,Two - stage automatic pressure relief button for emergency safety device.
10.Full touch controller,Support USB drive export history.
2.Independent steam generator room,avoid steam direct impact on the product，avoid causing partial damage to the product
3.Door lock energy saving structure,Solve the first generation of products disc handle locking difficult shortcomings
4.Discharge cold air before test;Discharge cold air in test design(The air is discharged from the test barrel)Improve pressure stability、reproducibility.
5.Overlong experiment operating time,run long time for 1000 hour.
6.Water- level protection，sensor detector protection through test room water level.
7.Tank pressure resistance design,chamber pressure resistance(140℃)2.65kg,Comply with water pressure test 6kg.
8.Two-stage pressure safety protection device,Adopt two - stage combination controller and mechanical pressure protection device.
9.Safety protection push button,Two - stage automatic pressure relief button for emergency safety device.
10.Full touch controller,Support USB drive export history.
Product Paramenters
Model | PCT-30 | PCT-35 | PCT-35 | ||
Internal dimensions (WxHxD) mm | 300x500 | 340x500 | 400×500 | ||
Operating temperature | 121°C; 132°C; (143°C special selection) | ||||
Use vapor pressure (absolute pressure) | 1 ambient atmospheric pressure +0.0Kg/cm2-2.0Kg/cm2; (3.0Kg/cm2ffl in special specifications) | ||||
Circulation method | Natural convection circulation of water vapor | ||||

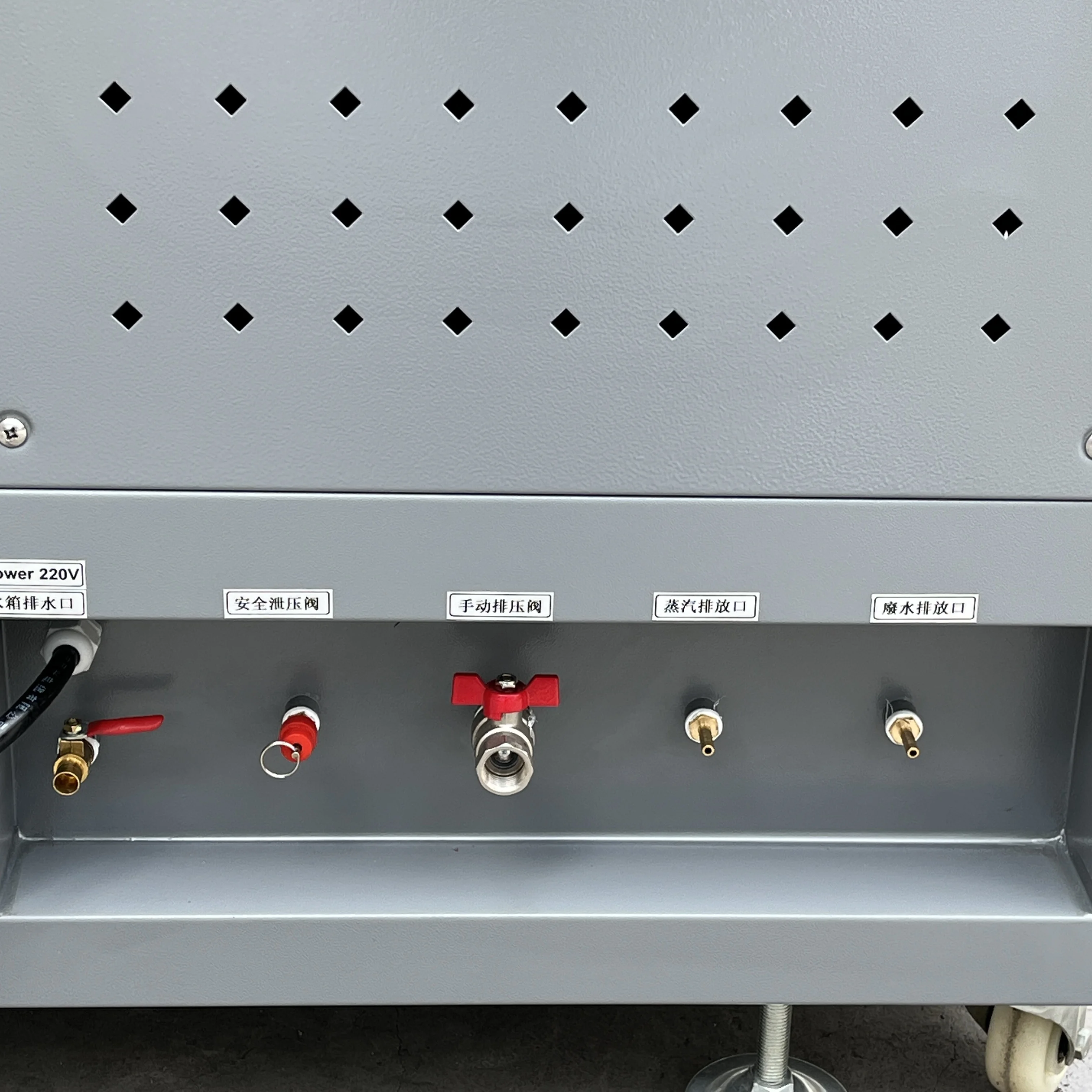

Safety protection device | Water shortage protection, overpressure protection, (with automatic/manual water replenishment function, automatic pressure relief function) | ||||

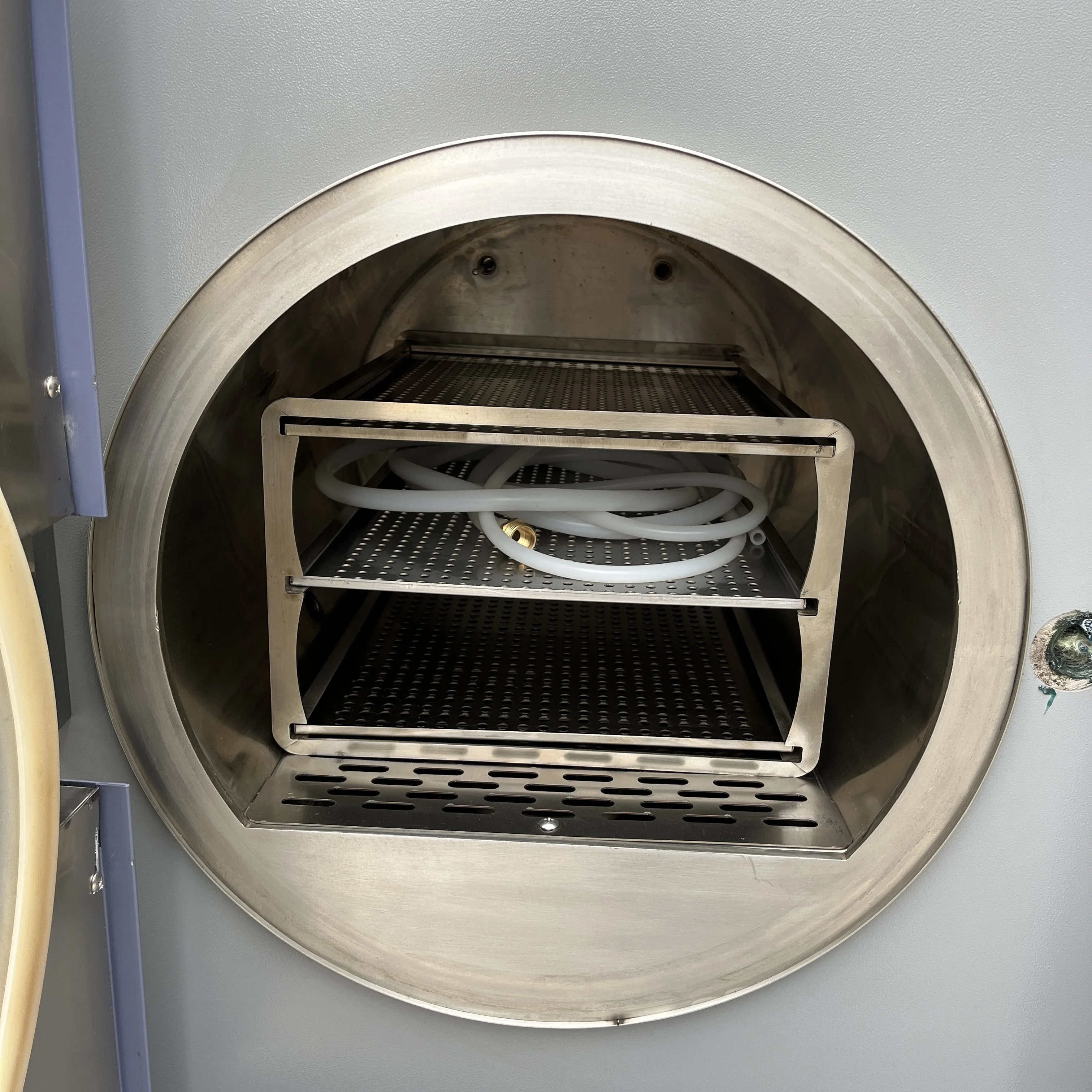

Accessories | Three layers of stainless steel clapboard | ||||
Operating humidity | 100%RH saturated steam humidity | ||||
Power supply | AC220V, 50/60Hz/ | ||||

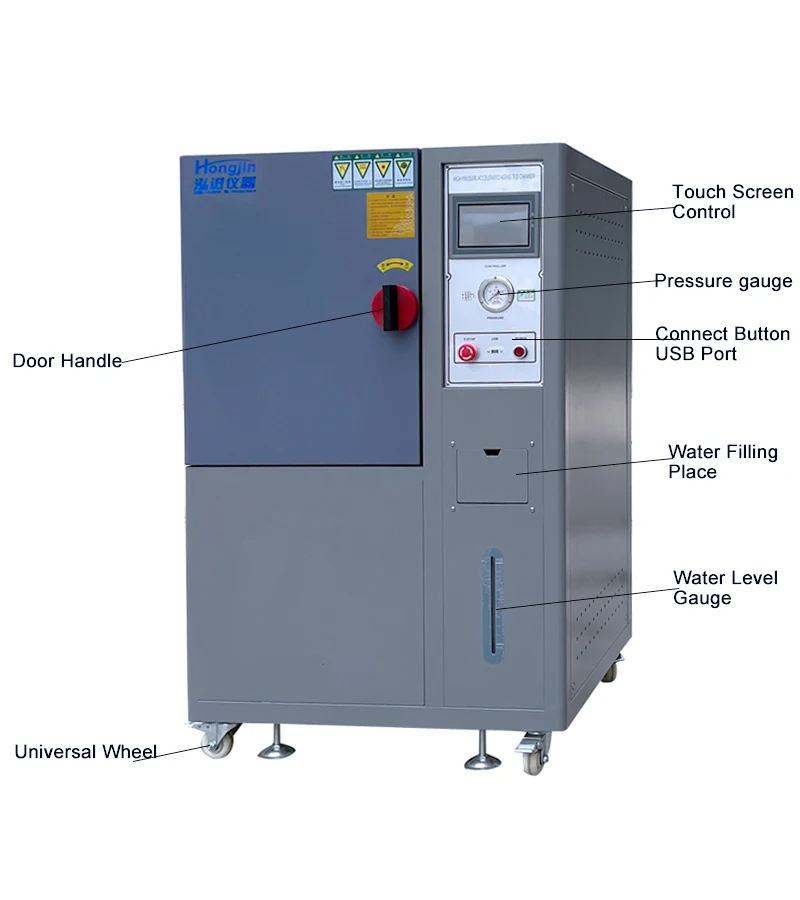

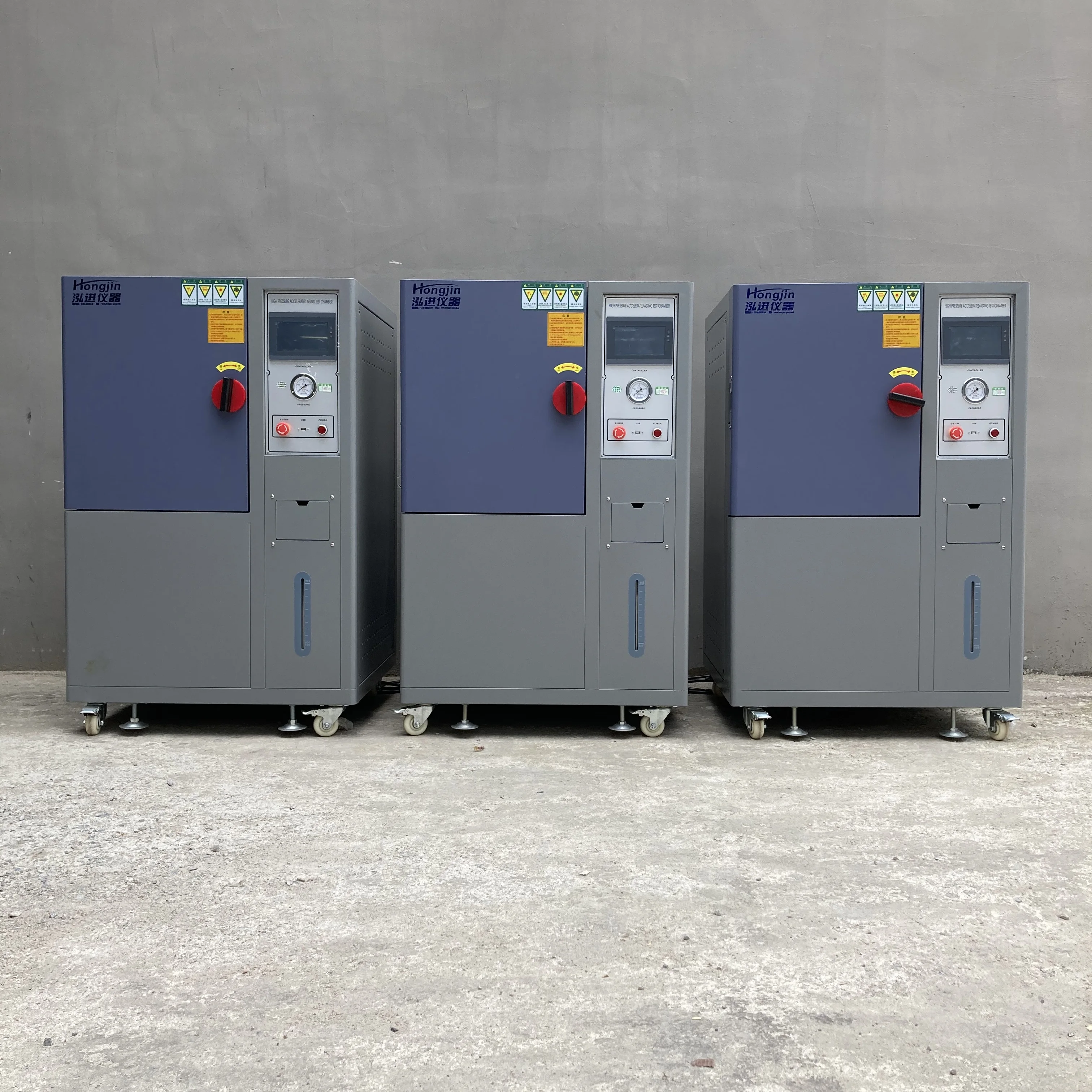

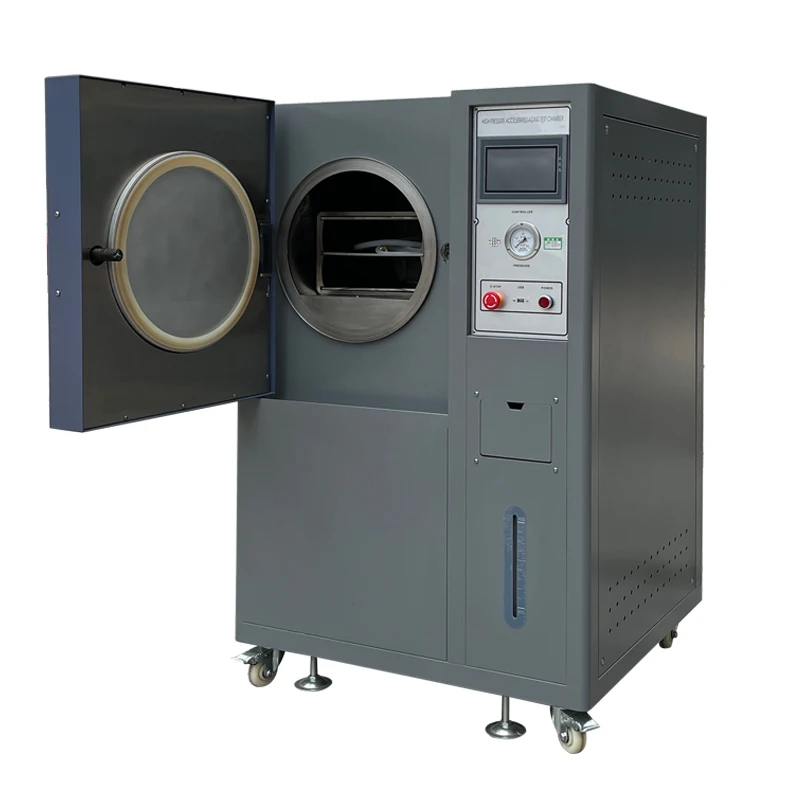

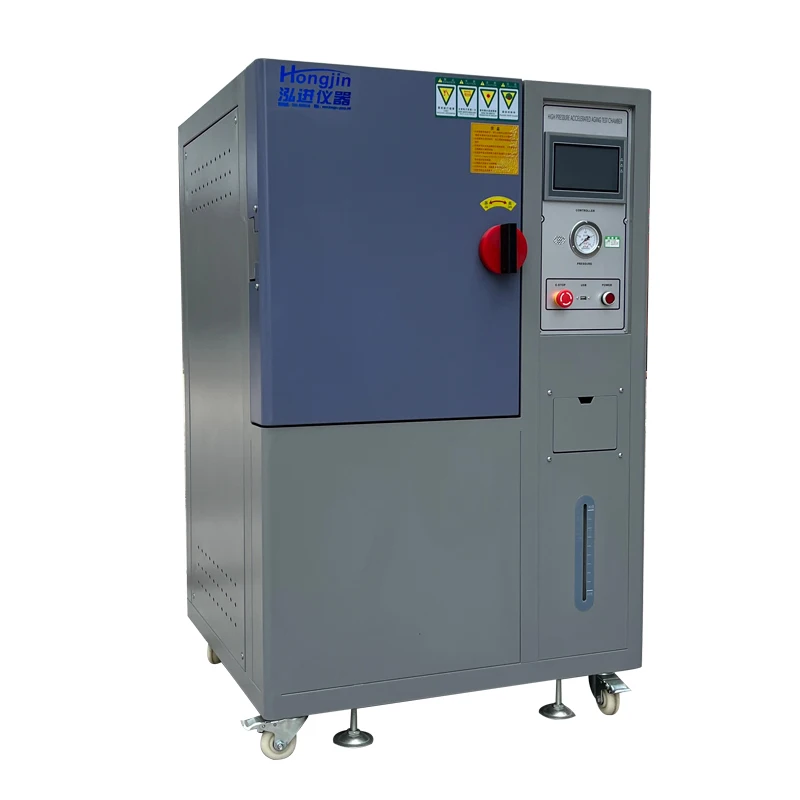

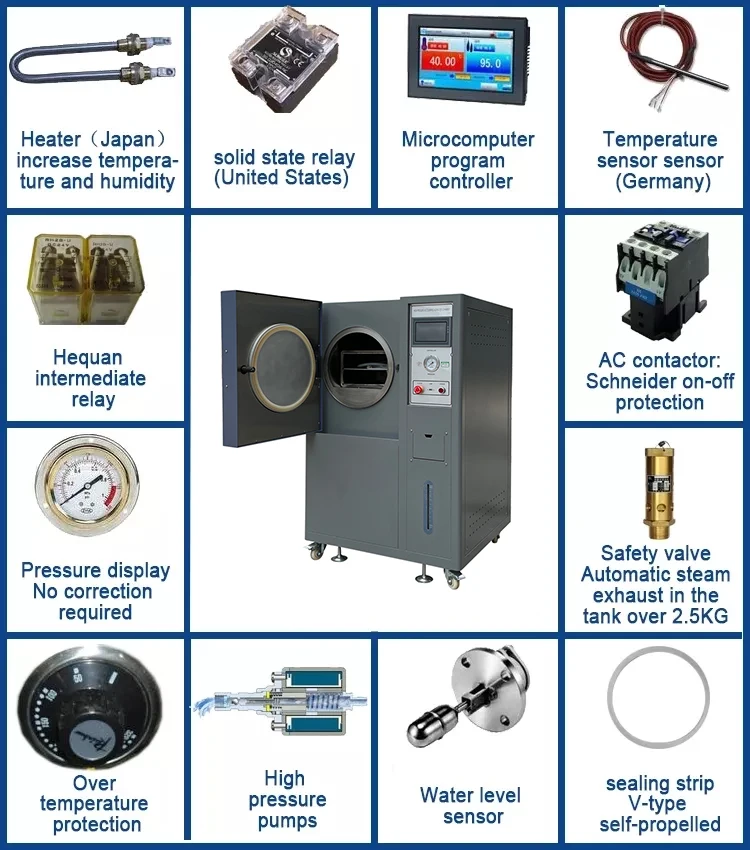

Product Show
