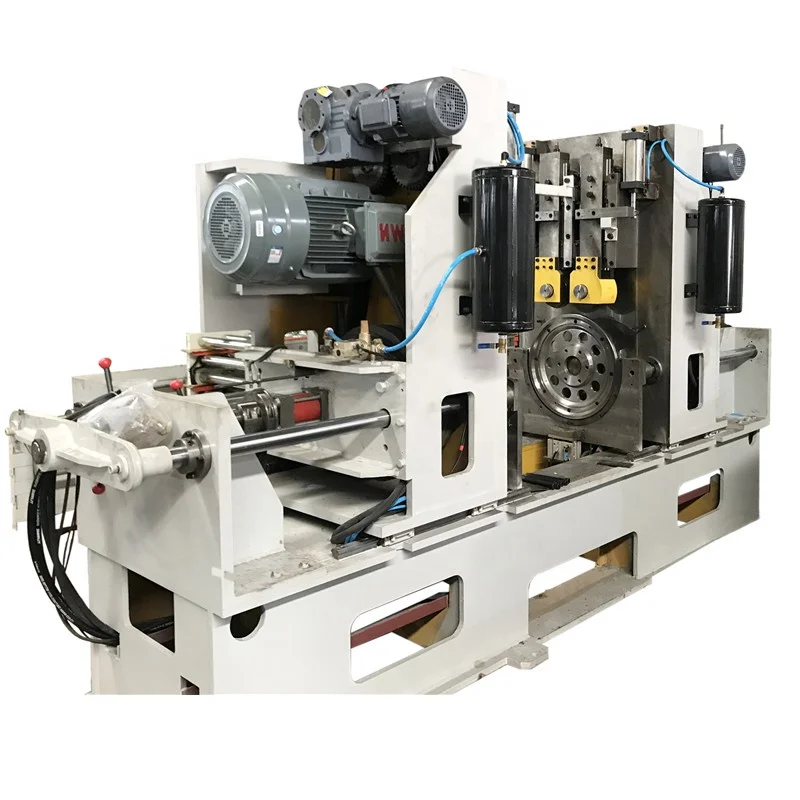

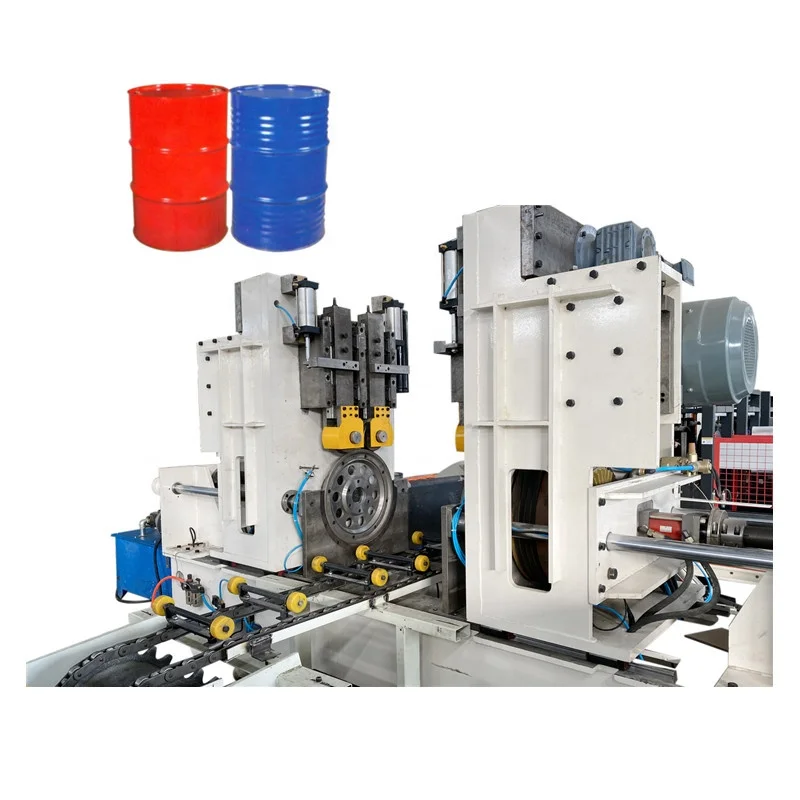

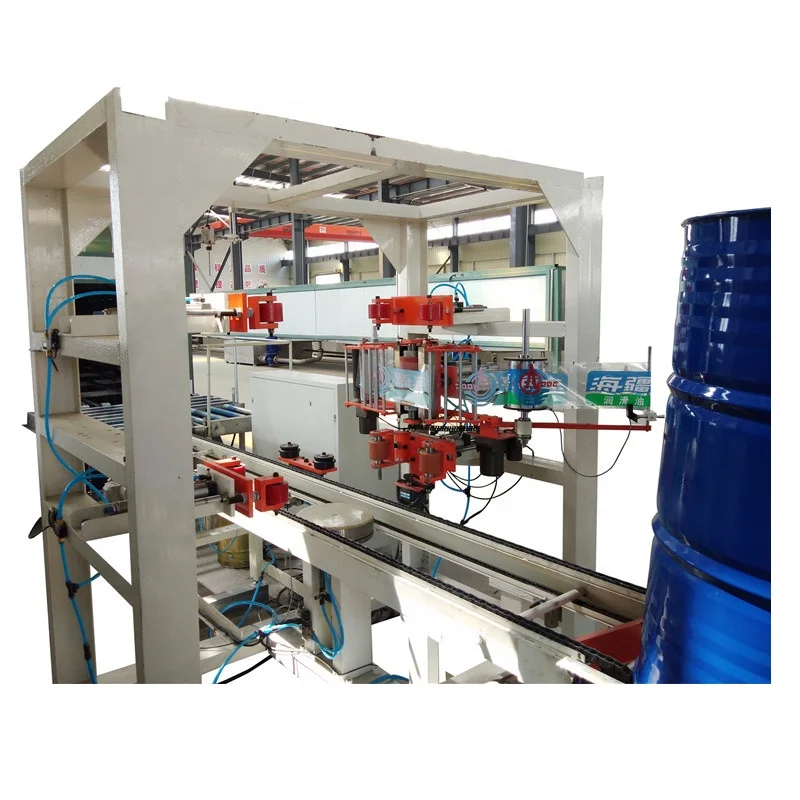

Стальная барабанная машина 208L или оборудование для производства барабанов производственная
- Категория товара: Packaging Machines >>>
- Поставщик (Оптовый магазин): Wuxi,Longterm,Machinery,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Fully Automatic Explosion Proof Bitumen Drum Steel Barrel Filling Line for 150L 200L 210L Metal Drum^
Product Overview
Introduction to Design Scheme
According to the characteristics of viscosity, temperature and density of customer materials, our technical research and
development department suggests to use the GZM-YCS series automatic flow quantitative filling machine (designed with 2 sub-loading heads) developed and produced by our company to complete the quantitative packing work. The contact material is made of 304 stainless steel, the other parts are made of high quality carbon steel, and all the materials pass through the pipeline with fast loading joints, which fully conforms to the requirements of chemical and oily liquid materials. At the same time, select well-known brand electronic, pneumatic components, PLC touch screen control man-machine interface, high measurement accuracy, beautiful appearance, exquisite processing, easy operation, low maintenance cost, The whole production line is equipped with bucket platform / vertical clamping channel / automatic filling / manual cover / pneumatic cover/automatic separation / forklift handling / automatic transportation production line.
According to the characteristics of viscosity, temperature and density of customer materials, our technical research and
development department suggests to use the GZM-YCS series automatic flow quantitative filling machine (designed with 2 sub-loading heads) developed and produced by our company to complete the quantitative packing work. The contact material is made of 304 stainless steel, the other parts are made of high quality carbon steel, and all the materials pass through the pipeline with fast loading joints, which fully conforms to the requirements of chemical and oily liquid materials. At the same time, select well-known brand electronic, pneumatic components, PLC touch screen control man-machine interface, high measurement accuracy, beautiful appearance, exquisite processing, easy operation, low maintenance cost, The whole production line is equipped with bucket platform / vertical clamping channel / automatic filling / manual cover / pneumatic cover/automatic separation / forklift handling / automatic transportation production line.
FEATURES AT A GLANCE

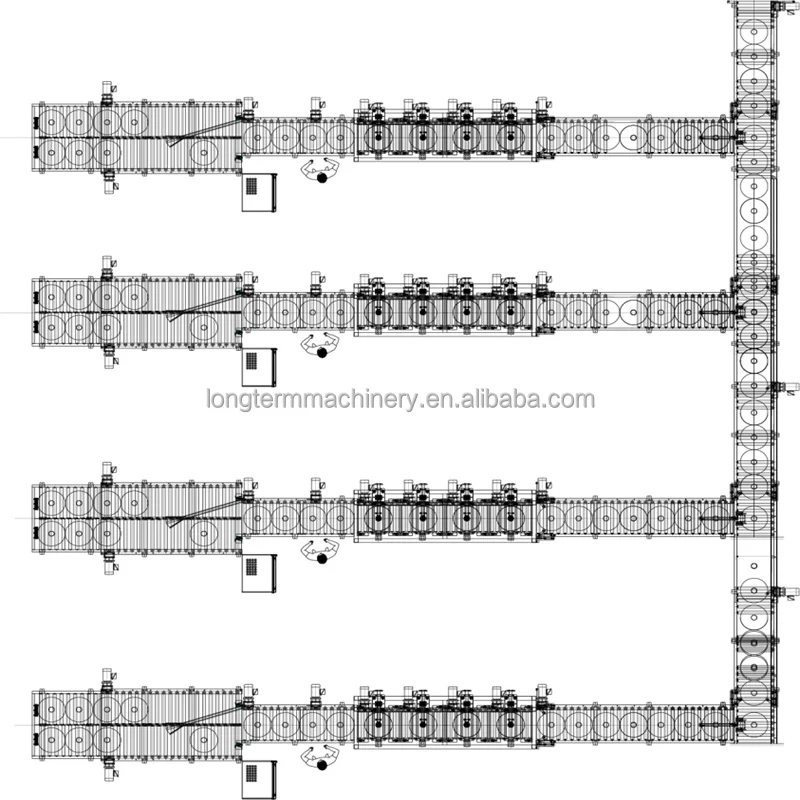

Design Index of Filling Production Line
* Packaging container: 150 and 180KG chemical iron drums.
* Filling nozzles：16 nozzles
* Filling range :150 and 180KG Drum
* Production capacity :60-70 drum per hour/per nozzle.
* Filling accuracy : ±0.2% repeat filling accuracy
* Packaging Material: Chemical Resin
* Packaging container: 150 and 180KG chemical iron drums.
* Filling nozzles：16 nozzles
* Filling range :150 and 180KG Drum
* Production capacity :60-70 drum per hour/per nozzle.
* Filling accuracy : ±0.2% repeat filling accuracy
PRODUCT SPECIFICATIONS
No. | Name | Part Name | Specification Type | Unit | Quantity (single set of equipment) | Manufacturers |
1 | Drum loading conveyor | Roller conveyor | 700-60-2 | pcs | 5 | Shanghai |
2 | Filling machine | Photoelectric sensor | E3Z-T61A | set | 5 | Omron |
3 | Air switch | Schneider | OSMC32N | set | 3 | Schneider |
4 | Relay | Schneider | RXM2LB2BD | set | 5 | Schneider |
5 | Proximity switch | Proximity switch | set | 3 | Omron | |
6 | Solenoid valve | Solenoid valve | TGX08 | set | 5 |
PRODUCT CONFIGURATION
Explosion Proof Device
Control System:
Industrial computer PLC control system, electronic, pneumatic integration, intelligent color touch screen man-machine
Industrial computer PLC control system, electronic, pneumatic integration, intelligent color touch screen man-machine
interface, simple and fast.

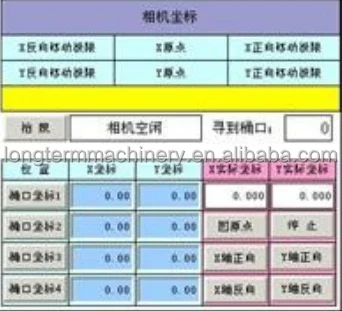

SMART LINE Touch Screen
The SIMATIC SMART LINE panel accurately provides the standard functions of the man-machine interface, is economical and
applicable, and has a high cost performance. Now, the function of a new generation of wonderful series of panels-SMART LINE V3 has been greatly improved, and it forms a perfect automation control and human-computer interaction platform with PLC, which provides an ideal solution for your convenient control.
applicable, and has a high cost performance. Now, the function of a new generation of wonderful series of panels-SMART LINE V3 has been greatly improved, and it forms a perfect automation control and human-computer interaction platform with PLC, which provides an ideal solution for your convenient control.

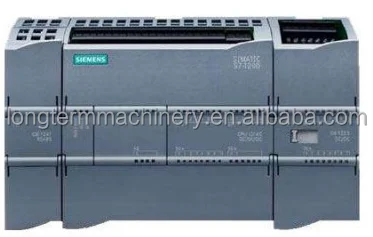

SIMATIC S7-1200
SIMATIC S7-1200 is a compact, modular PLC that can complete tasks such as simple logic control, advanced logic control, HMI and network communication. The perfect solution for stand-alone small automation system. It is easy to design and implement automationsystems that require network communication functions and single-screen or multi-screen HMI. It has advanced application functions supporting small motion control systems and process control systems. Simple but highly accurate automation tasks can be realized.
It has realized a modular and compact design with powerful functions. The design with strong scalability and high flexibility can realize the communication interface of the highest standard industrial communication and a set of powerful integrated technical functions, making the controller an important part of a complete and comprehensive automation solution.
It has realized a modular and compact design with powerful functions. The design with strong scalability and high flexibility can realize the communication interface of the highest standard industrial communication and a set of powerful integrated technical functions, making the controller an important part of a complete and comprehensive automation solution.

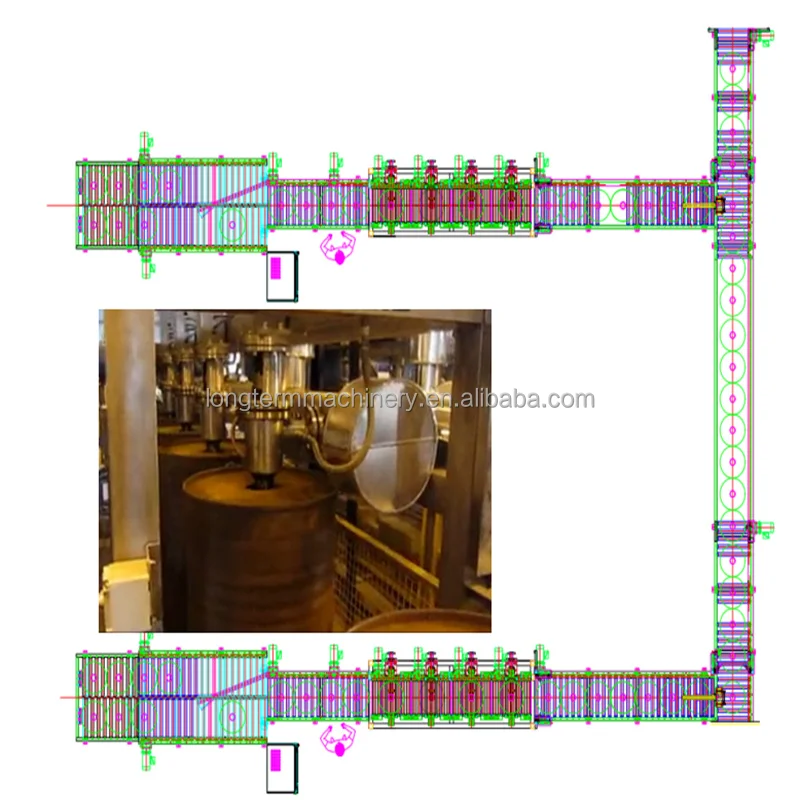

GZ-YCS-1501 automatic single-row quantitative filling machine
Configuration software system
It is a new type of industrial automatic control system that replaces the traditional closed system with an integrated system composed of standard industrial computer software and hardware platforms. It has the advantages of strong adaptability, good openness, easy expansion, economy, and short development cycle.

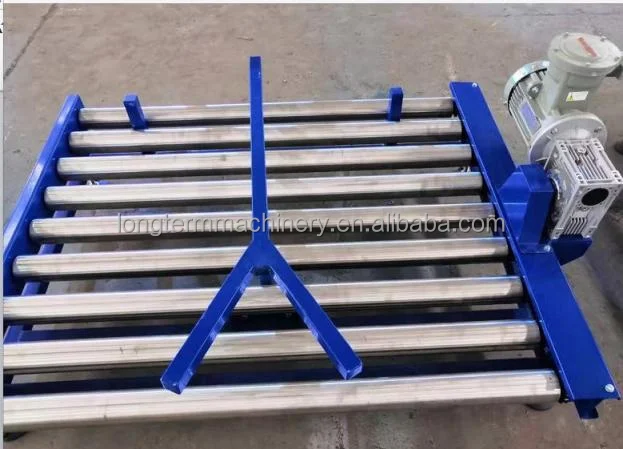

Drum outlet conveyor
According to the filling quantity, the drum conveyer meets the filling continuous drum. Conveyor adopts roller, effectively reduce
running resistance, noise, easy to transport. According to the process requirements, the conveyor passes through the filling room
The photoelectric detection filling drum stops, waits for the rotary cover according to the set time, reaches the waiting time of the rotary cover, the conveyor starts automatically, and the filling drum is fed into the sub-drum position.
running resistance, noise, easy to transport. According to the process requirements, the conveyor passes through the filling room
The photoelectric detection filling drum stops, waits for the rotary cover according to the set time, reaches the waiting time of the rotary cover, the conveyor starts automatically, and the filling drum is fed into the sub-drum position.
Material: Carbon steel spray
Dimensions :1.5 m*1.4m*0.4m
Ø76 double-stranded galvanized roller
Velocity :10 m/min
Dimensions :1.5 m*1.4m*0.4m
Ø76 double-stranded galvanized roller
Velocity :10 m/min
SALES AND SERVICE NETWORK

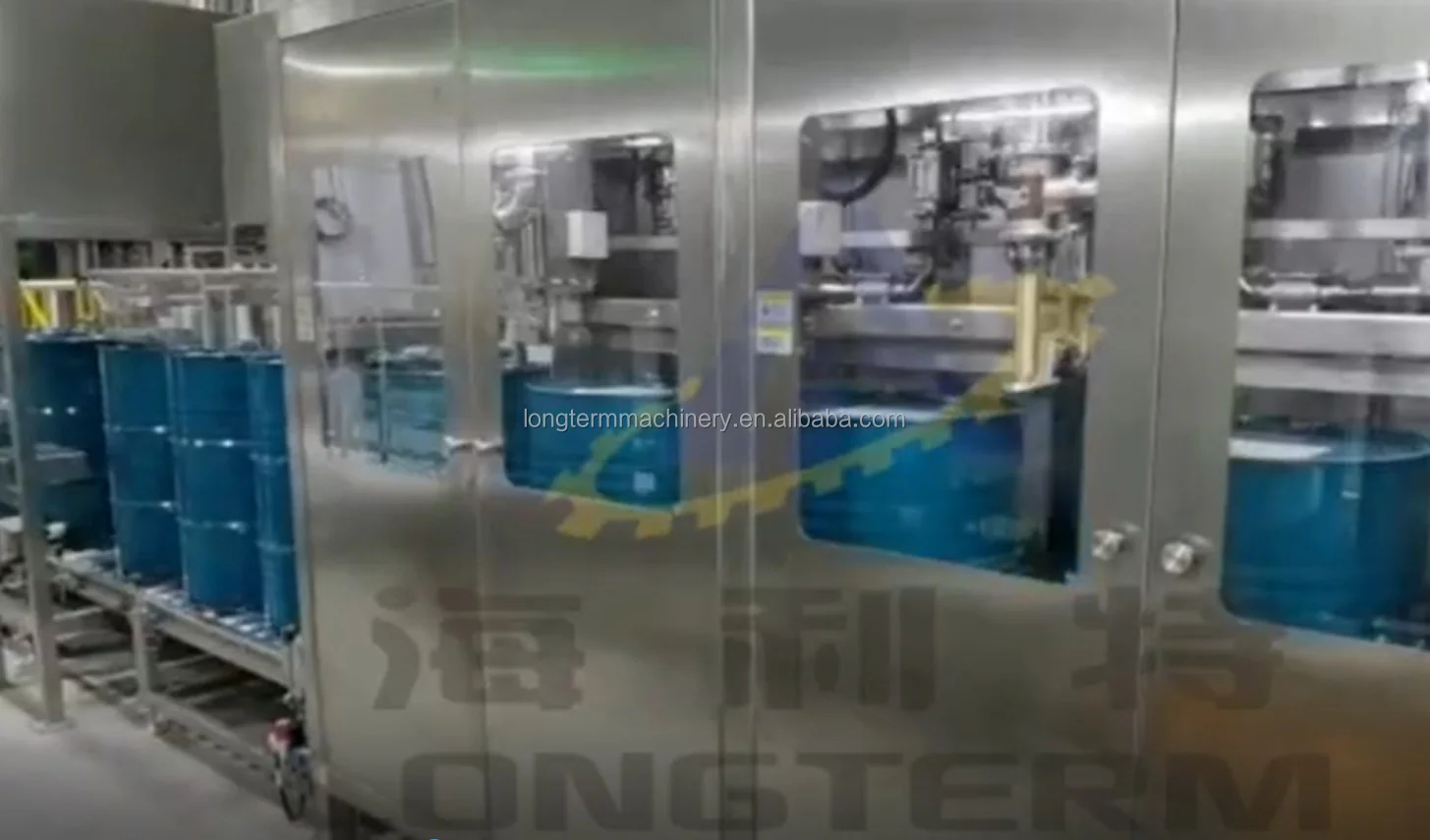

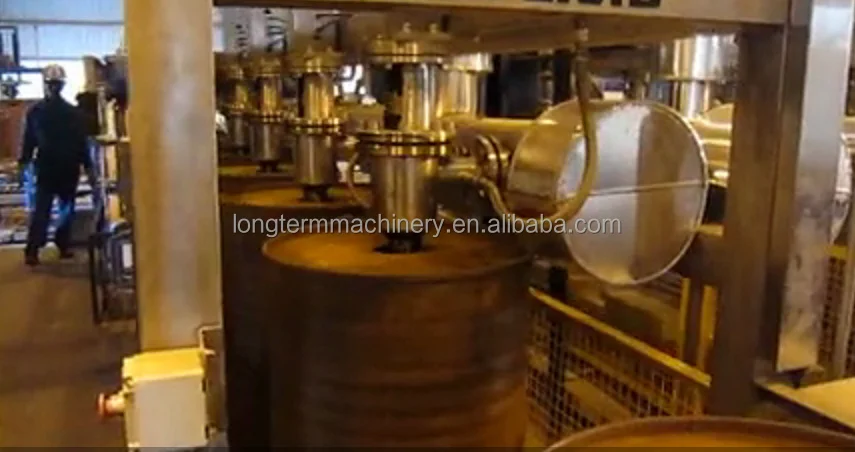

Successful Project

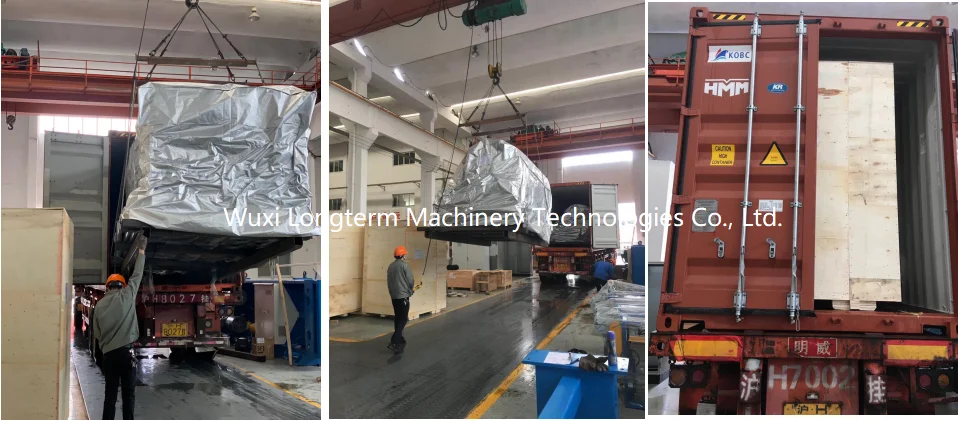

Package
FAQ
Q1: Are you a Manufacturer or Trading company?
A1: We are the manufacturer from Jiang Su,so we can offer the best quality and price of the machine to you.
Q2: How can I install this Bitumen Filling Machine when it arrives?
A2:We will send the instruction manual and some video to help you install the machine.You can talk with our engineer by video chat or we will arrange site engineers to install and commissioning machine.
Q3: What is the cost to send installation/training staff? How many staff do you need to send?
A3: Whole installation/traning process needs 3 engineers. Around 15 days. Round-air ticket, local
transpotation, accomodation, food, and 100USD/day/person.
A1: We are the manufacturer from Jiang Su,so we can offer the best quality and price of the machine to you.
Q2: How can I install this Bitumen Filling Machine when it arrives?
A2:We will send the instruction manual and some video to help you install the machine.You can talk with our engineer by video chat or we will arrange site engineers to install and commissioning machine.
Q3: What is the cost to send installation/training staff? How many staff do you need to send?
A3: Whole installation/traning process needs 3 engineers. Around 15 days. Round-air ticket, local
transpotation, accomodation, food, and 100USD/day/person.
