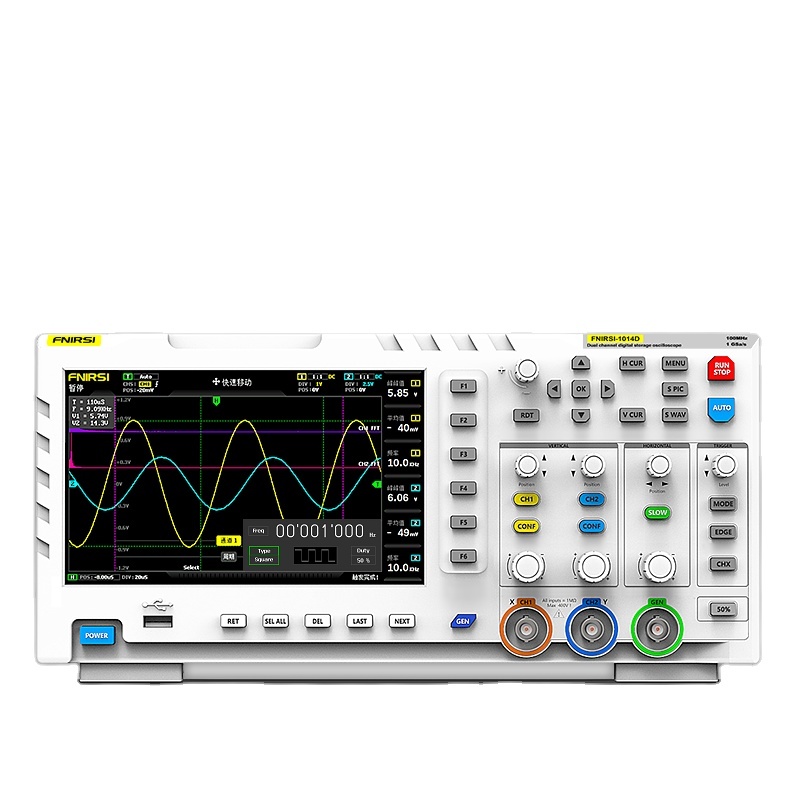

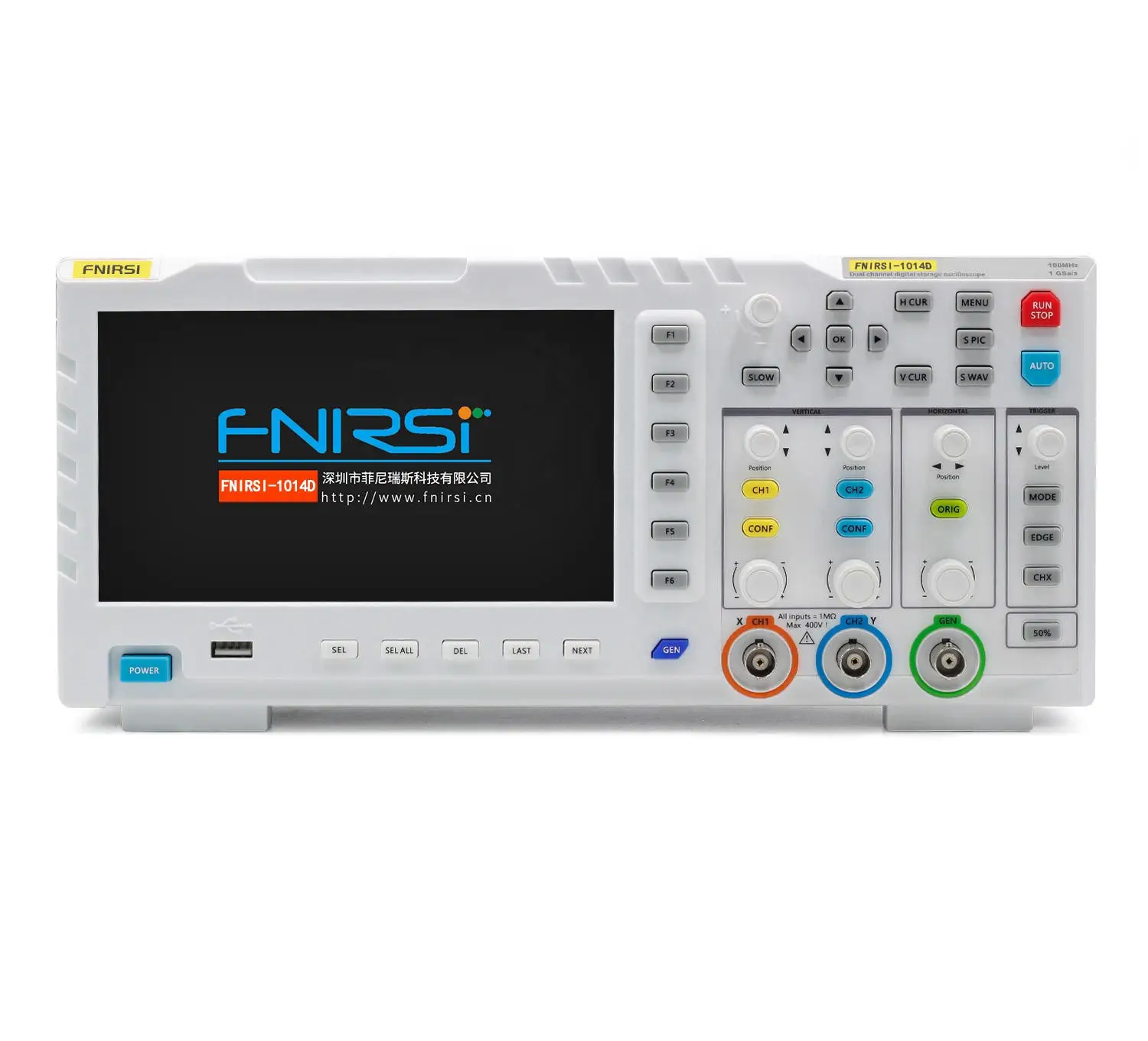

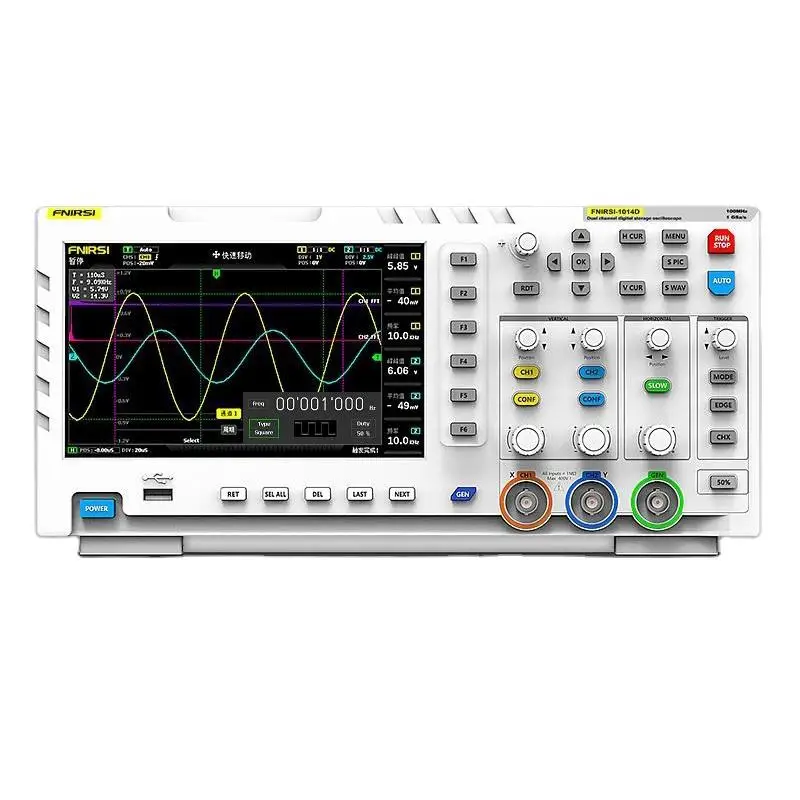

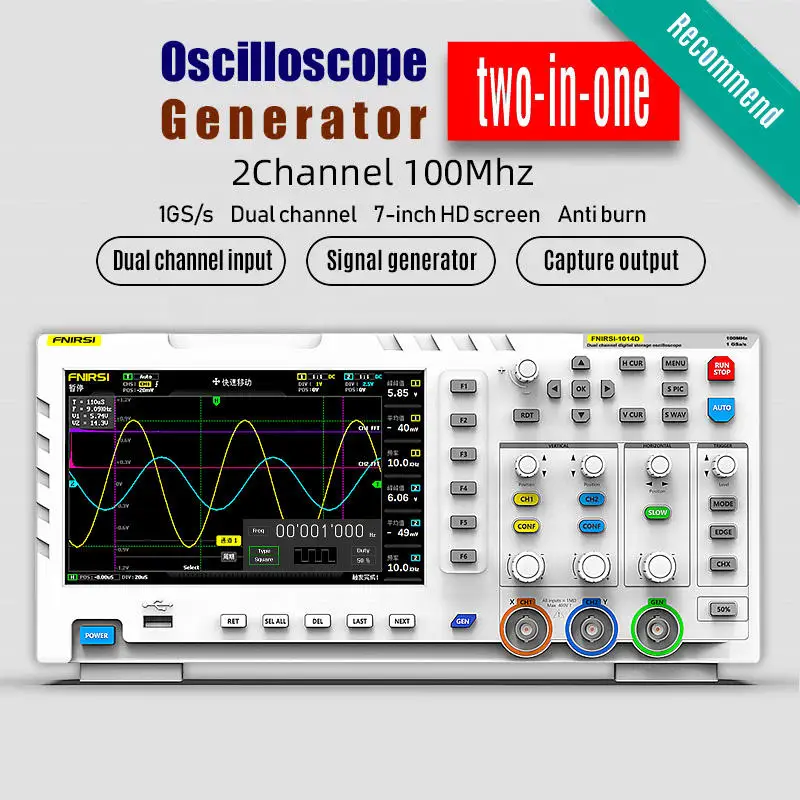

1014D Real Time Sample Rate 100MHz 2 Channels 1GSa/s USB Host Device Connectivity 7 Inch Signal Generator Digital Oscilloscope
Key features:
1:Built in DDS signal generator, support 12 kinds of function signal
2:Industry's original [Capture output signal]function,can store up to 1000 capture signals
3:Targeted high intelligent decoding algorithm, the encoder life is infinite

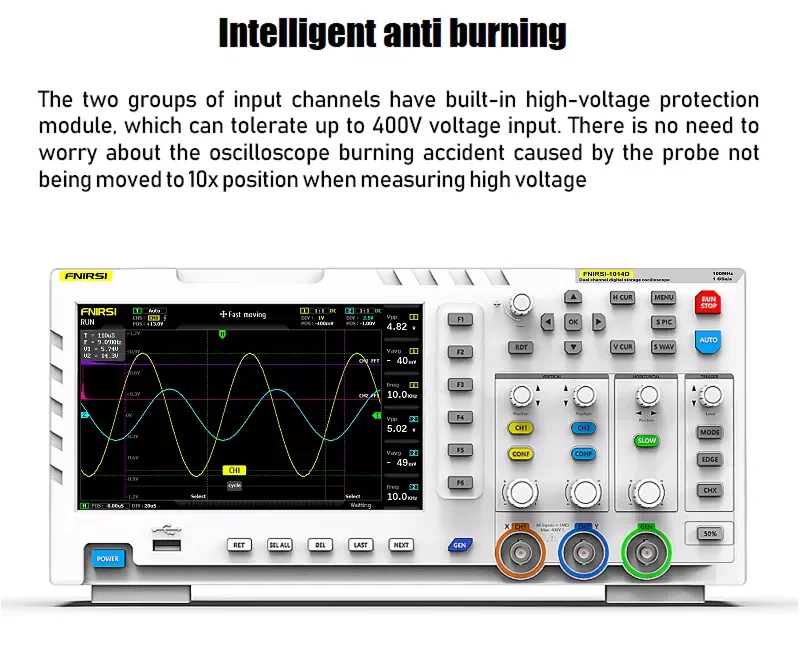

4:Intelligent anti-burn,1X Can withstand up to 400V withstand voltage
4:Intelligent anti-burn,1X Can withstand up to 400V withstand voltage
5:100MHz analog bandwidth @ 1GSa/s sampling rate(1X =5MHz,10X = 100MHz)
6:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
6:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
7:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V,100X can measure 0 ~ 4000V
8:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Period
9:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage
10:Complete triggering function (single, normal, automatic)
11:At any time, the waveform display (pause function) is frozen
12:Equipped with high efficiency One-button AUTO
13:One-button waveform storage and screenshot
14:Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
15:Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
16:Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis
17:Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
18:FFT display function, can analyze the spectral characteristics of the signal
19:Memory compression technology, waveform refresh screen does not flicker
20:Screen brightness adjustment
21:Background grid brightness adjustment 22:Ultra thin, easy to carry
21:Background grid brightness adjustment 22:Ultra thin, easy to carry
