Products Description

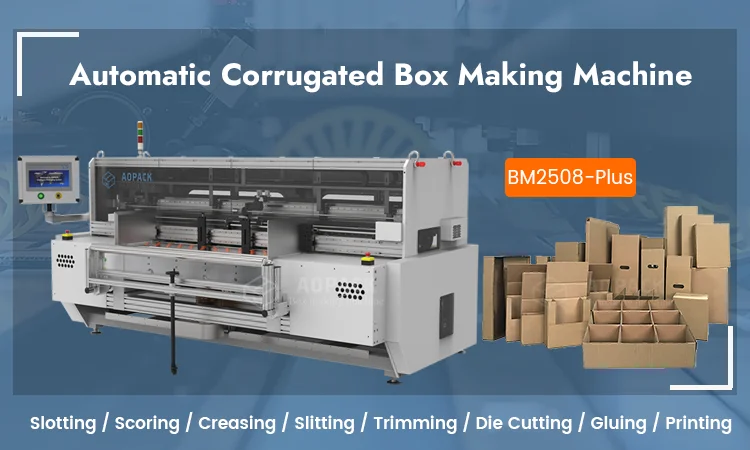

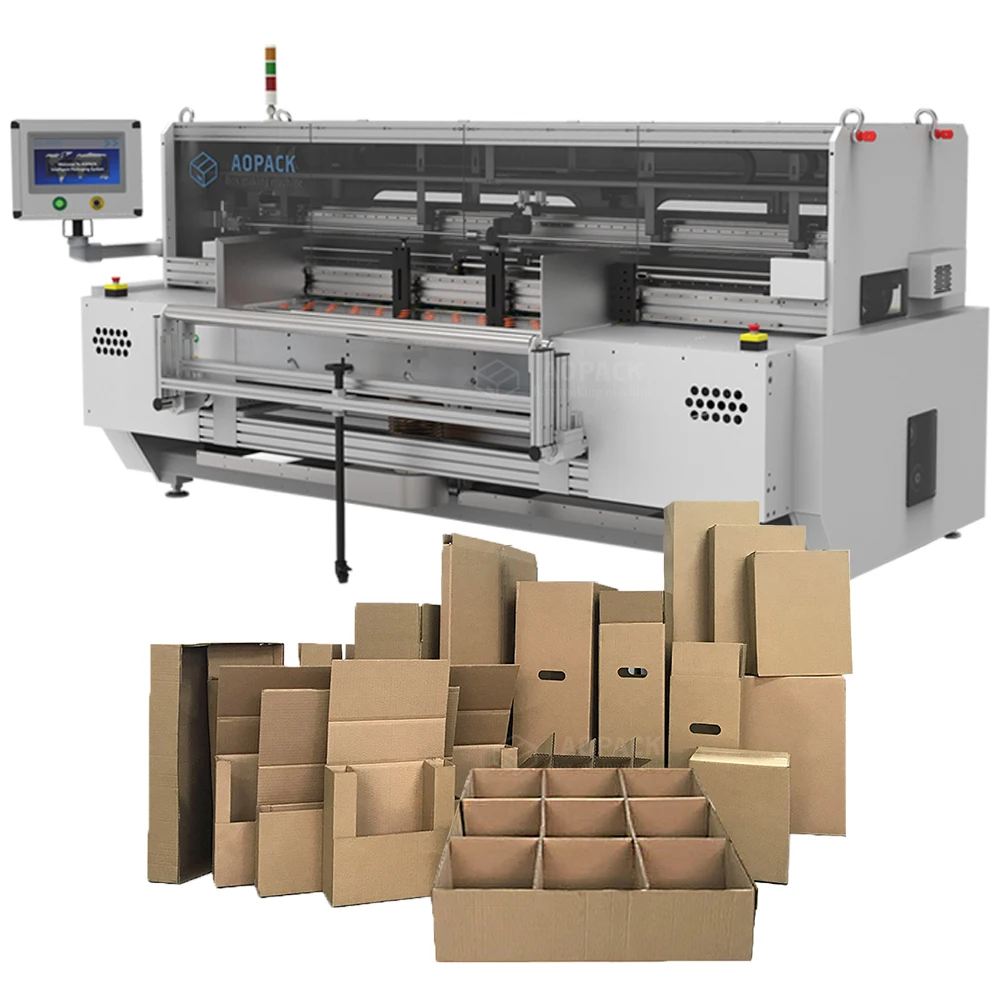

Aopack Slitting Slotting Gluing Printing Short Run Compact Maker Machine Fully Automatic Corrugated Cardboard Box Making Machine
Technical Specification
BM2508 Plus | BM2508 SE | BM3000 | ||||
Corrugated Board Type | Sheets or fanfold (Single , Double wall) | Sheets (Single , Double wall) | Sheets Or Fanfold (Single , Double wall) | |||
Cardboard Thickness | 2-10mm | 2-10mm | 2-10mm | |||
Cardboard Density Range | Up to 1200g/m² | Up to 1200g/m² | Up to 1200g/m² | |||
Max. Board Size | 2500mm width x unlimited length | 2500mm width x unlimited length | 3000mm width x unlimited length | |||
Production Capacity | Appr.7-10 pcs/minute Depends on size and box style. | Appr.7-10 pcs/minute Depends on size and box style. | Appr.8-12 pcs/minute Depends on size and box style. | |||

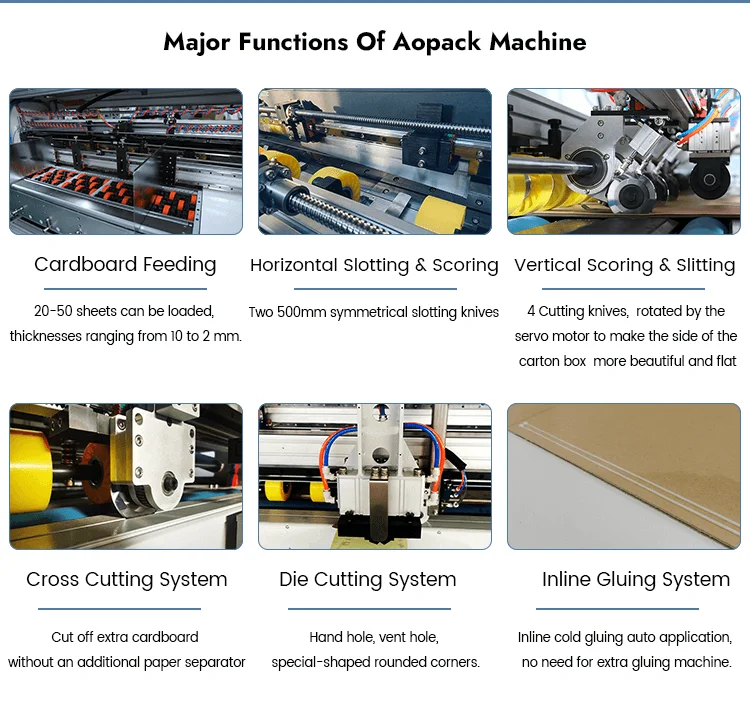

Slotting Knife | 2 pcs *500mm Length | 2 pcs *500mm Length | 2 pcs *500mm Length | |||
Vertical Cutting knife | 4 | 4 | 4 | |||
Scoring / Creasing Wheel | 4 | 2 (Option 4) | 4 | |||
Horizontal Cutting knife | 1 | 1 | 1 | |||
Power Supply | BM2508-Plus 380V±10%，Max. 7kW, 50/60 Hz | BM2508-SE 380V±10%，Max. 6.2kW, 50/60 Hz | BM3000 380V±10%，Max. 7.7kW, 50/60 Hz | |||
Air Pressure | 0.6-0.7MPa | 0.6-0.7MPa | 0.6-0.7MPa | |||
Dimension | 3540(W) * 2050（L）* 2090mm(H) | 3370(W) * 1800（L）* 2000mm(H) | 3650(W) * 1950（L）* 2090mm(H) | |||
Gross Weight | Appr.3300Kg | Appr.2800Kg | Appr.3500Kg | |||
Automatic Paper Feeding | Lead edge feeder 1400mm | Lead edge feeder 900mm | Lead edge feeder 1400mm | |||
Handhole on Box Sides | Hand hole module size (120*120mm) | No | Hand hole module size (120*120mm) | |||
Air Consumption | 75L/Min | 40L/Min | 75L/Min | |||

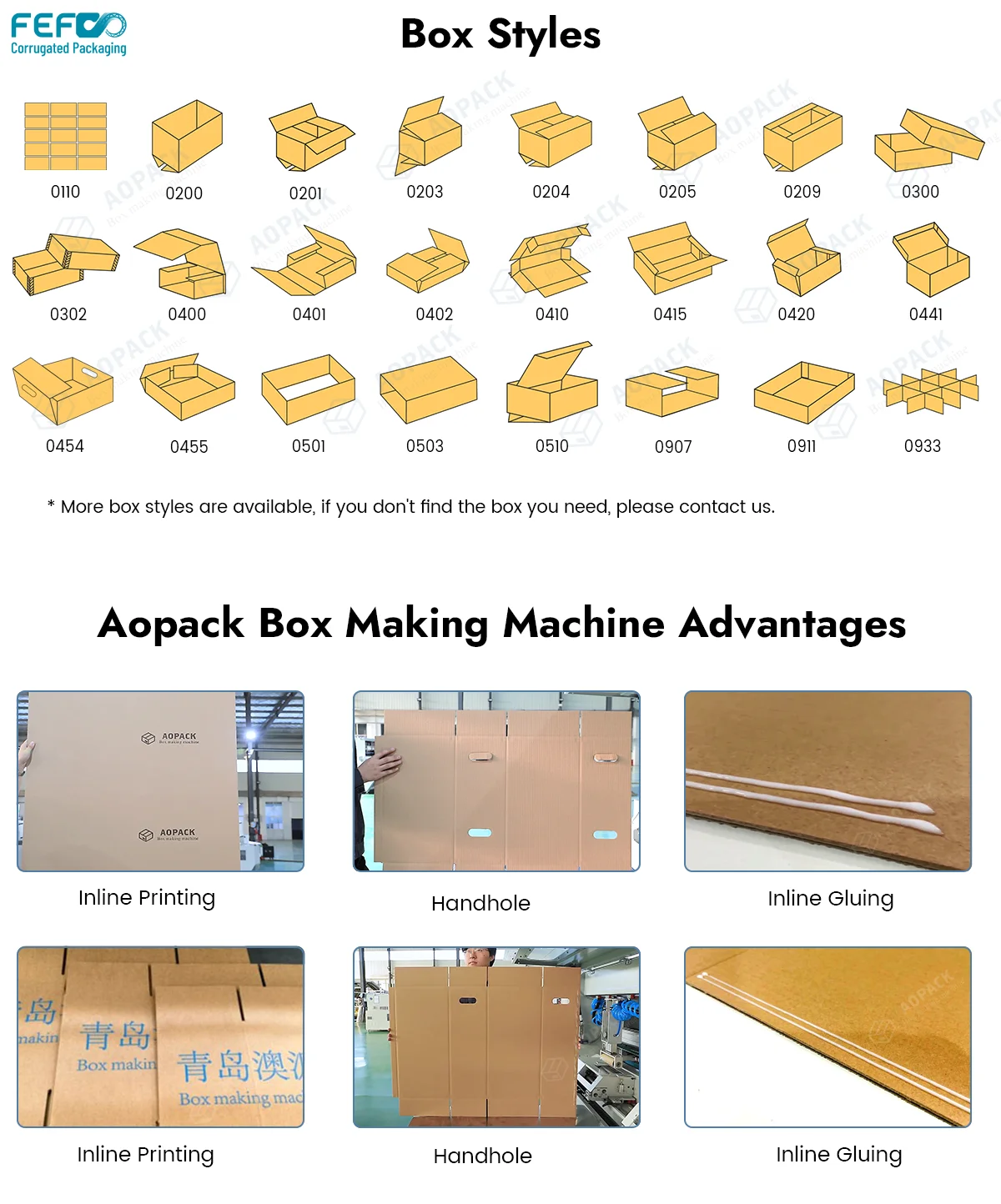

Box Styles | More than 60 Fefco codes | About 27 （36）Fefco codes | More than 60 Fefco codes | |||
All the above specifications are for reference only. | ||||||
The final interpretation right belongs to Qingdao Aopack On Demand Packaging co., Ltd. | ||||||
Our Advantages
Packaging & Logistics
Related Product
Company Profile
Aopack is a professional box making machine manufacturer in China, which has been focusing on corrugated box making solutions since 2014.
Our main production BM2508–Plus is the most advanced and integrated box making machine, giving the solutions to the short-run and long-run production process of corrugated cardboard boxes.
Aopack provides packaging solutions throughout the world. More than 150 machines have been installed in 50+ countries all over the world, like Japan, America, the UK, India, and so on. Both machine performance and customer service have received tons of excellent reviews from our partners and customers.
Our main production BM2508–Plus is the most advanced and integrated box making machine, giving the solutions to the short-run and long-run production process of corrugated cardboard boxes.
Aopack provides packaging solutions throughout the world. More than 150 machines have been installed in 50+ countries all over the world, like Japan, America, the UK, India, and so on. Both machine performance and customer service have received tons of excellent reviews from our partners and customers.
FAQ
About Machine
1. What’s the price of your box making machine? The price is different with varied models, configurations and optional functions. Please contact us for a detailed quotation.
2. Do you sell box sticking machines?
Instead of box sticking machine, we provide another two solutions: Inline gluing module which is an optional function for all three models.
3. Does your machine have printing function?
We can offer the print option for a small area, single color. Please show us more about your printing requirements, to get you the most suitable printing solution.

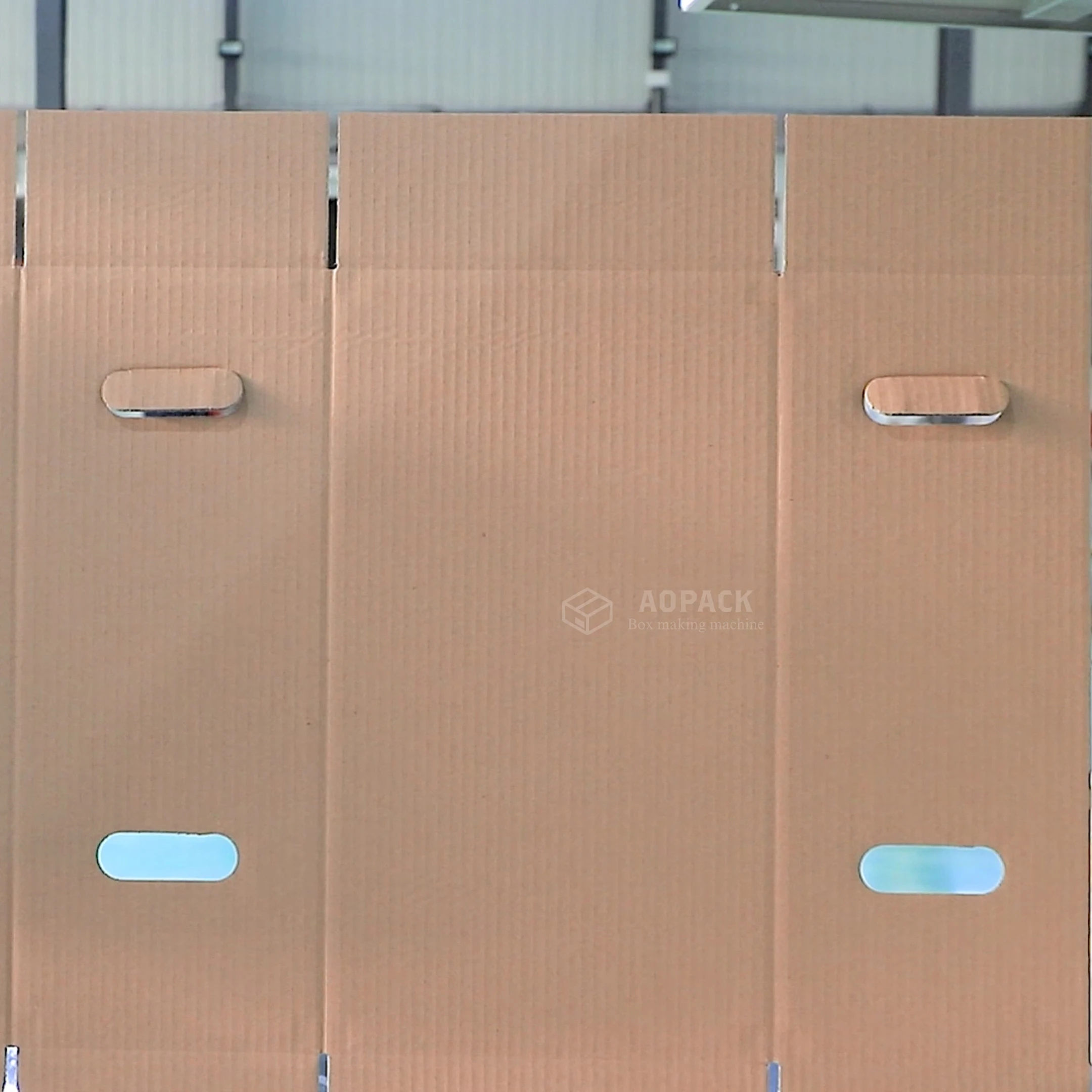

4. Is it possible to cut handle holes on carton?
Yes, both BM2508-Plus and BM3000 are equipped with a set of punching module witch can not only cut handle holes but also vent holes, special-shaped rounded corners, and other customized shapes. You can also add up to 2 sets of punching models as option.

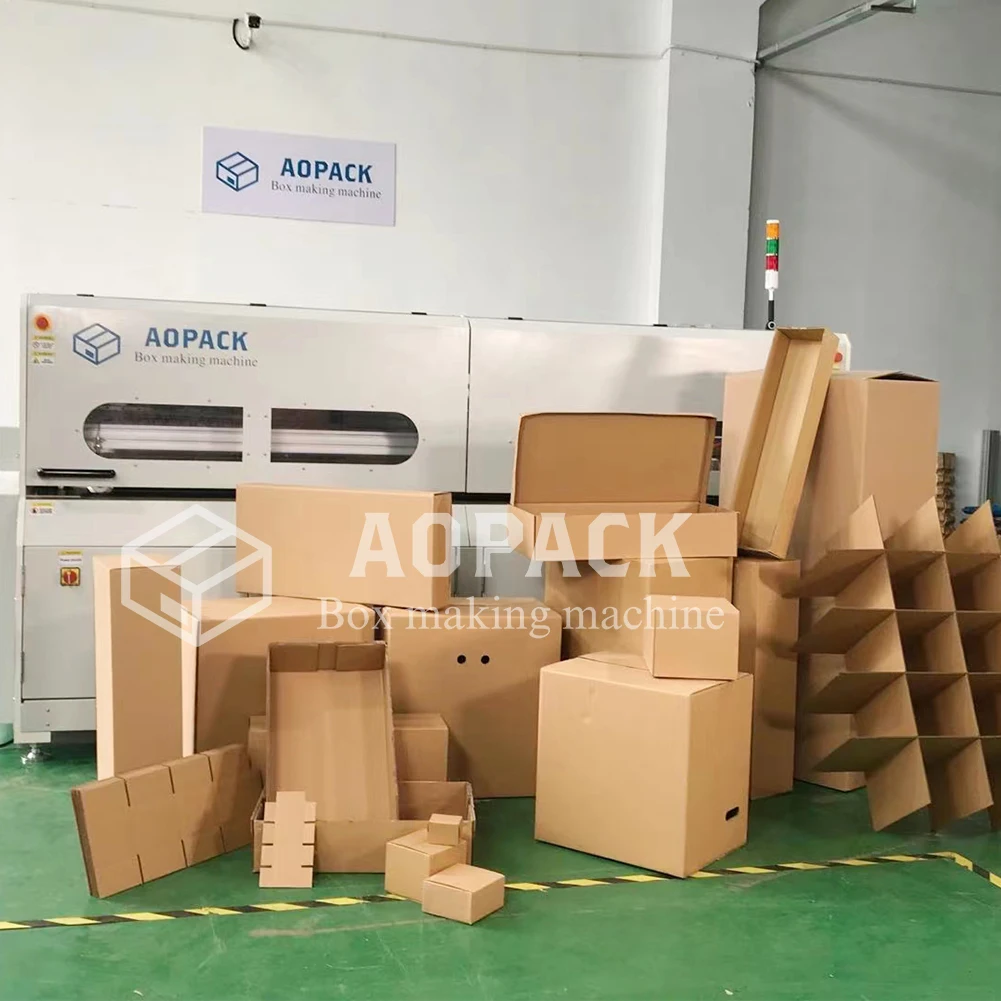

5. How many box styles can your box maker process?
More than 100 box styles can be processed by our box making machine, customized box style is also available.
6. Is there any certification for your equipment?
We have the CE certification, and the third-party inspection company and the third-party inspection company is TUV Rheinland.
7. Does the touch screen operating system software provide free updates?
Yes, when there is a program update, we will inform our customer of the programming update.
8. What are the consume parts of you equipment? Can you provide these parts free of charge?
Our machine almost has no consume parts, the only things you may concerned about is “slitting knife” and “slitting comb” . We canprovide some consume parts for BM2508-Plus and BM3000 for free.
About Aopack

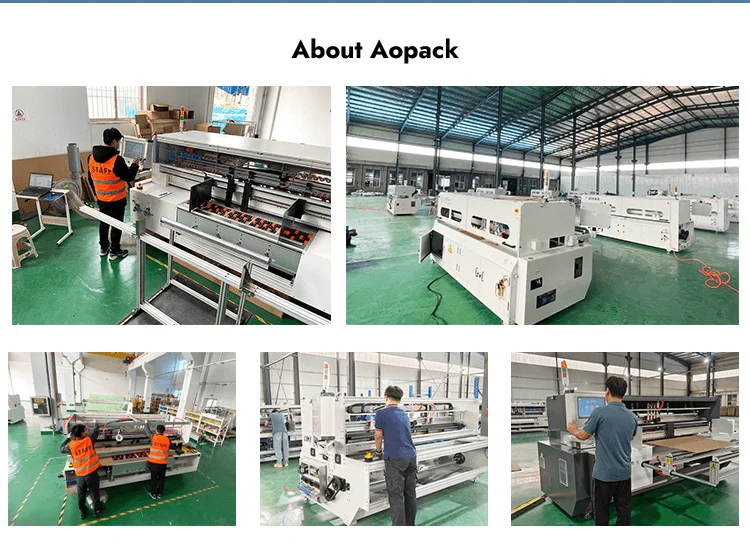

1. Are you a factory or a trading company?Aopack is a professional manufacturing and trading combo in China. We have our own product R&D team and factory.
2. Where is your factory located?
How can I visit there? Our factory is located in Qingdao City, Shandong, China. Customers can take a flight to QingdaoJiaodong International Airport, and we will pick up customers here.
3. Can your products be customized?
Yes, we can print your logo on the machine. OEM is accepted.
4. What’s your payment term?
PAY 50% DEPOSIT BY T/T before production. PAY 50% BALANCE BY T/T after passing the inspection of goods, before delivery.
5. How about the delivery time?
25 days after the deposit receiving date.
6. Can you provide overseas technical support?
Affected by the Covid Pandemic, overseas technical supports are mainly carried out online. Full sets of manuals, instructions, and guide videos are prepared for installation.
Our English-speaking engineer team can also provide online assistance for installation, and online training to operators. Worldwide on-site installation service is also available if condition permits.
Our English-speaking engineer team can also provide online assistance for installation, and online training to operators. Worldwide on-site installation service is also available if condition permits.
7. Is there any warranty and after-sales service?
Yes, a 12-month warranty will be provided since customers receive the machine and start using it. Also, lifetime maintenance and remote technical assistance can be available.
