Гомогенизатор 3HP SS316 гомогенизатор Миксер с высоким сдвигом для крема геля моющего
- Категория товара: Cosmetics Production Equipment >>>
- Поставщик (Оптовый магазин): Wenzhou,Ranking,Imp.&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
3HP high shear homogenizer for facial cream emulsifying
Emulsifying Mixer For Facial Cream
200liter Homogeneous Emulsifier
Emulsify Mixer For Batch Production
What will be inlcuded in the high shear homogenizer
A high shear homogenizer can be a stainless steel tank with a top mounted high shear mixer / homogenizer, a stainless steel tank with a bottom mounted high shear mixer / homogenizer, or it can be a high shear mixer / homogenizer without a tank..
The high shear mixer / homogenizer on this page is for the high shear mixer or high shear homogenizer it self.
here is the picture of the final product you will get under the listed price on this page.

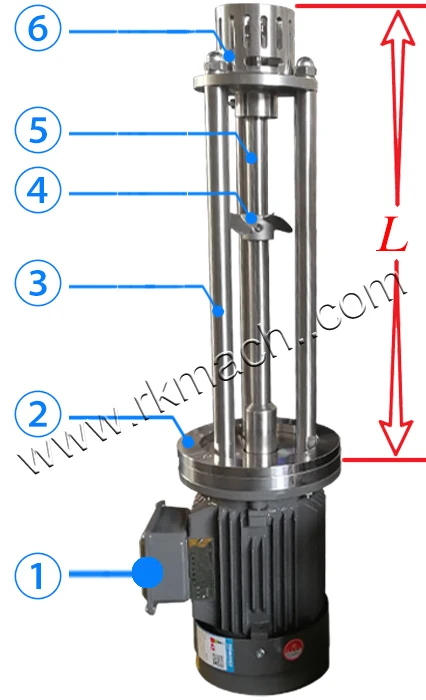

Main parts inlcuded in the high shear mixer / homogenizer

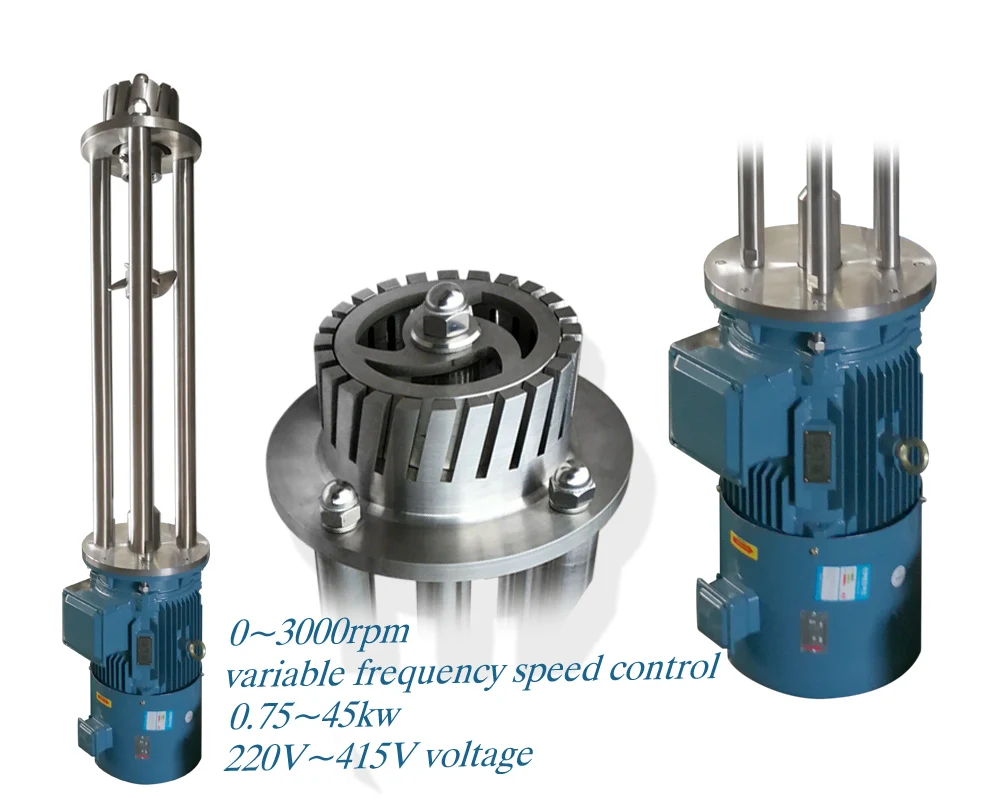

High shear homogenizer that you see in this page is a top-mounting homogenizer, or batch homogenizer for lotion, creram, gel, and emulsion. the main parts as below
① the driving motor, it can be 110V / 220V / 380V / 415V.
② the mounting flange. with this flange, user can mount and remove the high shear mixer to a tank easily.
③ the support shafts for rotor-stator assembly.

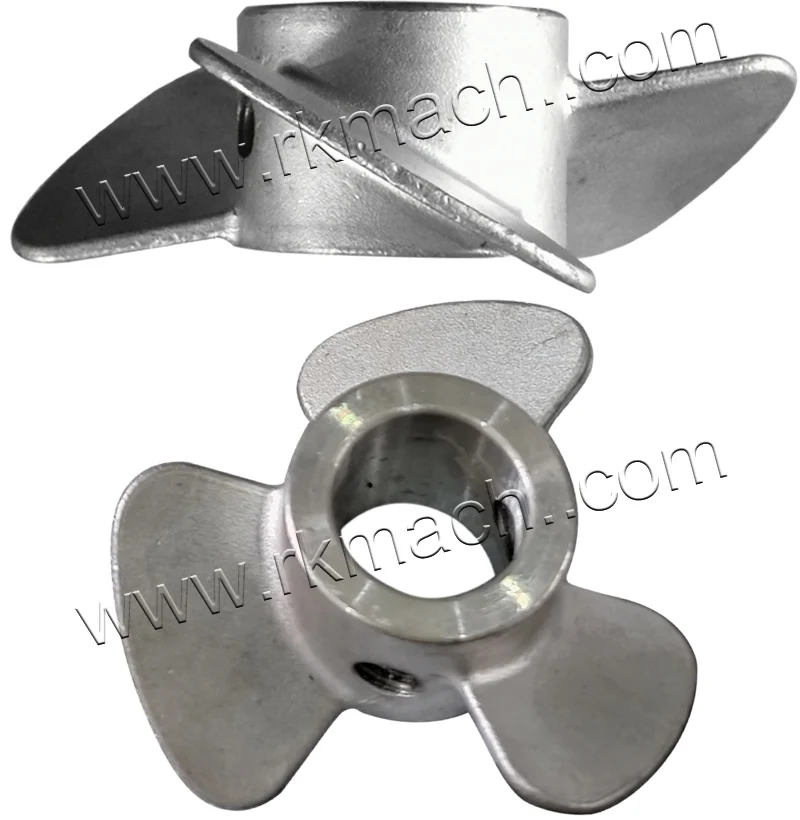

④ a left hand / down thrust propeller on the main rotation shaft
⑤ the rotation shaft, the core part of the high shear mixer / batch homogenizer

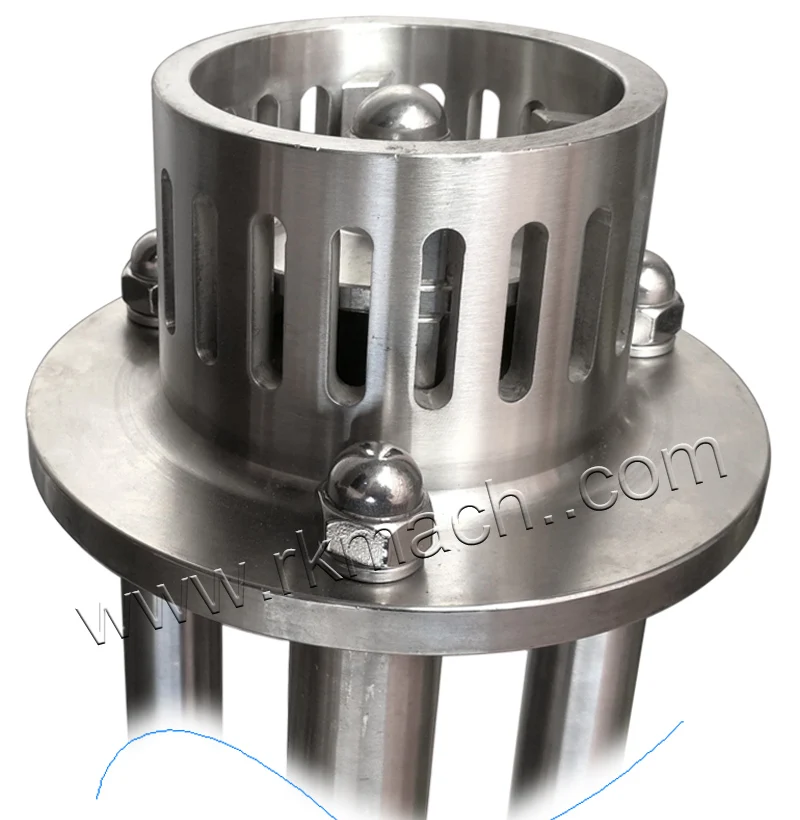

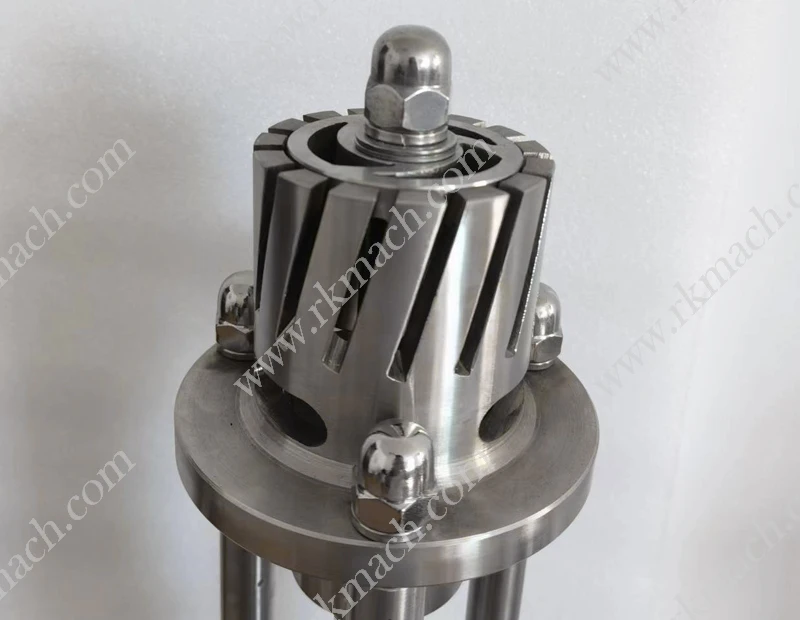

⑥ the rotor stator assembly of the high shear mixer, It is the working head of a batch homogenizer.
How to use the high shear homogenizer / mixer
Users can mount the high shear homogenizer / mixer on their own stainless steel tank, vessel, IBC tote, or any other container. wire the motor of the high shear mixer / homogenizer, pump water into the container to amke sure at least half of the high shear mixer shaft was under water, turn on the motor and start the homogenizing / emuslifying process.
High shear homogenizer specification
High shear homogenizer Main specification
Keywords : 100L batch homogenizer, 100L batch homogenizer / 200L batch homogenizer
0.75kw high shear homogenizer / 1.1kw high shear homogenizer / 1.5kw high shear homogenizer / 2.2kw high shear homogenizer / 3kw high shear homogenizer / 4kw high shear homogenizer
No. | A | B | C | D | E | |||
1 | Model | TRS-2.2 | TRS-2.2 | TRS-2.2 | TRS-2.2 | |||
2 | Motor power | 3HP | 2.2kw | 2200W | 2.2 KW | |||
3 | Voltage | 220V 60Hz 3phase | 380V 50HZ 3phase | 110V 60Hz 1Phase | 220V 50Hz 1phase | |||
4 | Motor Flange | φ200 | φ200 | φ200 | φ200 | |||
5 | Install type | Top mounting | Top mounting | Top mounting | Top mounting | |||
6 | Rotation speed | 3600rpm | 2980rpm | 3600rpm | 2900rpm | |||
7 | Shaft length | 650 mm | 650 mm | 650 mm | 650 mm | |||
8 | Contact material | stainless steel 304 | SS304 | SUS304 | 304 stainless steel | |||
9 | Process capacity | 50~100L / batch | 100L / batch | 100L / batch | 1000L / batch | |||
10 | Working mode | batch type | batch type | batch type | batch type | |||
11 | Suitable for | Water, oil, cream, gel, lotion, detergent, Laundry detergent, hand sanitizer, liquid soap, honey, ice cream, silicone emulsion, Non-alcoholic liquid | ||||||
12 | ||||||||
Offer high shear homogenizer for 50L 100L 150L 200L per batch
high shear mixer, high shear homogenizer, homo mixer, homogenizing mixer, high shear homogenizing mixer, highs hear emulsifying mixer, homogenizing emulsifier, emulsification mixer, wenzhou ranking machinery offer high shear mixer 200L homogenizing mixer high shea rmixer homogenizer WRL-70 WRL-80 WRL-90 WRL-100 WRL-120 WRL-140 WRL-160 WRL-170 WRL-180 WRL-200
You may also like
high shear mixer / homogenizer usually used together with some other equippment like a pneumatic lift stand, hydraulic lift stand, electric lift stand, manual lift stand, stainless steel tank, stainless steel mixing tank, vacuum mixing tank with or without bottom emulsifier. please click the picture below to find other products related to the high shear homogenizer high shear mixer. You can get help from our online service team any time whenever you need help.
bottom emulsify mixer / homogenizer
for emulsion making, suitable for tank bottom mounting, with mechanical seal flush device
vacuum homogenizing tank
ss himogenizing tank with vacuum pumping system and vacuum pressure controller
How to buy the high shear mixer
1. choose a suitable high shear mixer that can meet your high shear mixing process well, and place order directly.
after we get your highs hear mixer order, we will prepare the mixer for you within the delivery time.
2. if you can not find suitable high shear mixer on our website, you can visit www.rkmach.com and search "high shear mixer" "high shear homogenizer" "high speed mixer for cream" "xanthan gum mixer" "vacuum homogenizer" or any other keywards related to high shear mixing and mixer. you will find similar mixers on our website, talk to us and we will show you how to buy the high shear mixer.
3. you can also tell us your mixing request on the tank, or on the high shear mixer, via email, our high shear mixer sales manager will reply your mail within one working day.
What buyer need to prepare before buy a high shear homogenizing mixer on ranking machinery?
tell us the voltage for the high shear mixer, tell us your stainless steel tank capacity for the high shear mixer, tell us the mixing volume every batch. our high shear mixer sales team will offer you the most professional high shear mixer to fit your mixing and homogenizing process.
