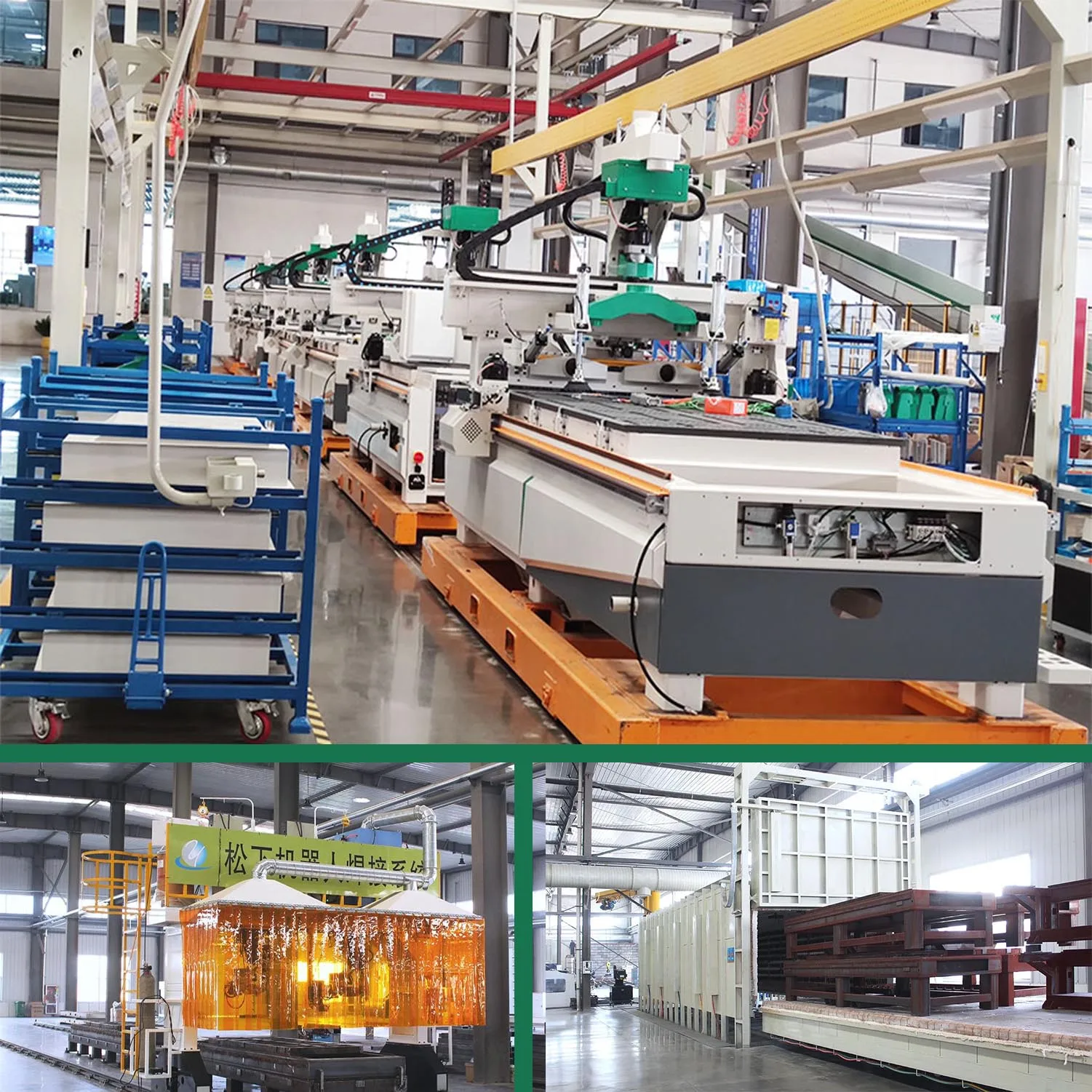

Полностью автоматический двухголовочный фрезерный станок с ЧПУ для изготовления мебели 1325 5
- Категория товара: Woodworking Machinery >>>
- Поставщик (Оптовый магазин): Jinan,Pinmai,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Our september expo deals start now
Activity time: September 1 - September 30
Give Back To New And Old Customers（10%off）
Welcome To Be Our Overseas Agent.（30%off）
Free Replacement Parts (Within 3 Years)（100%off）
And so on....

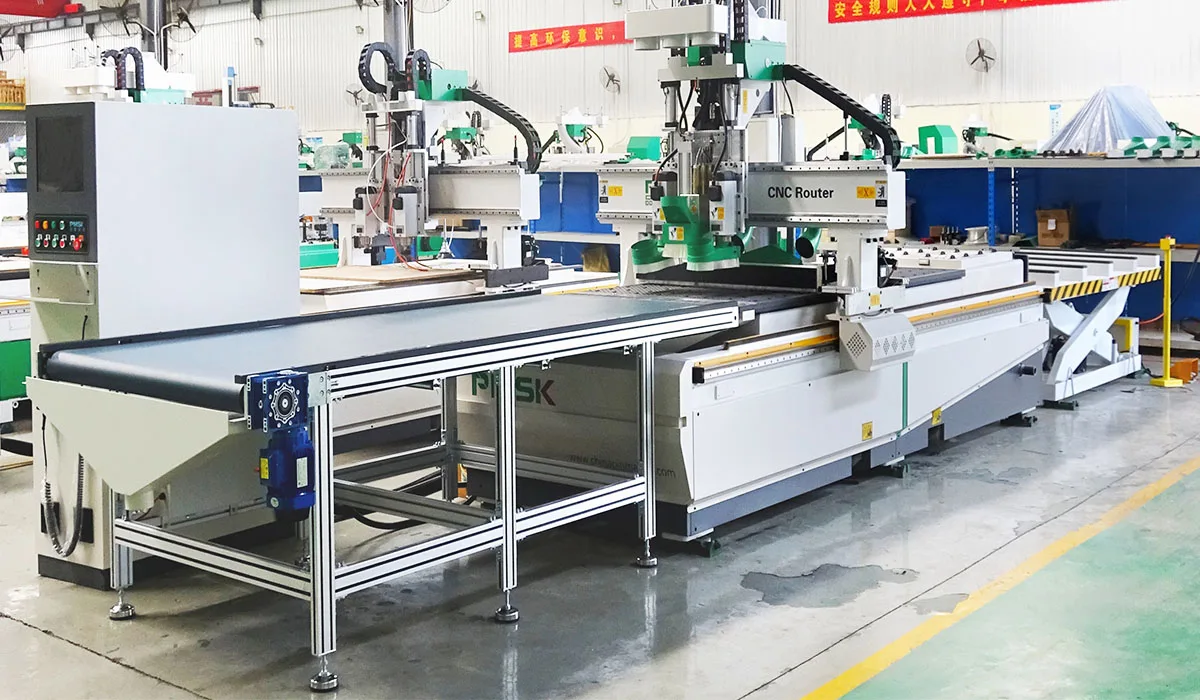

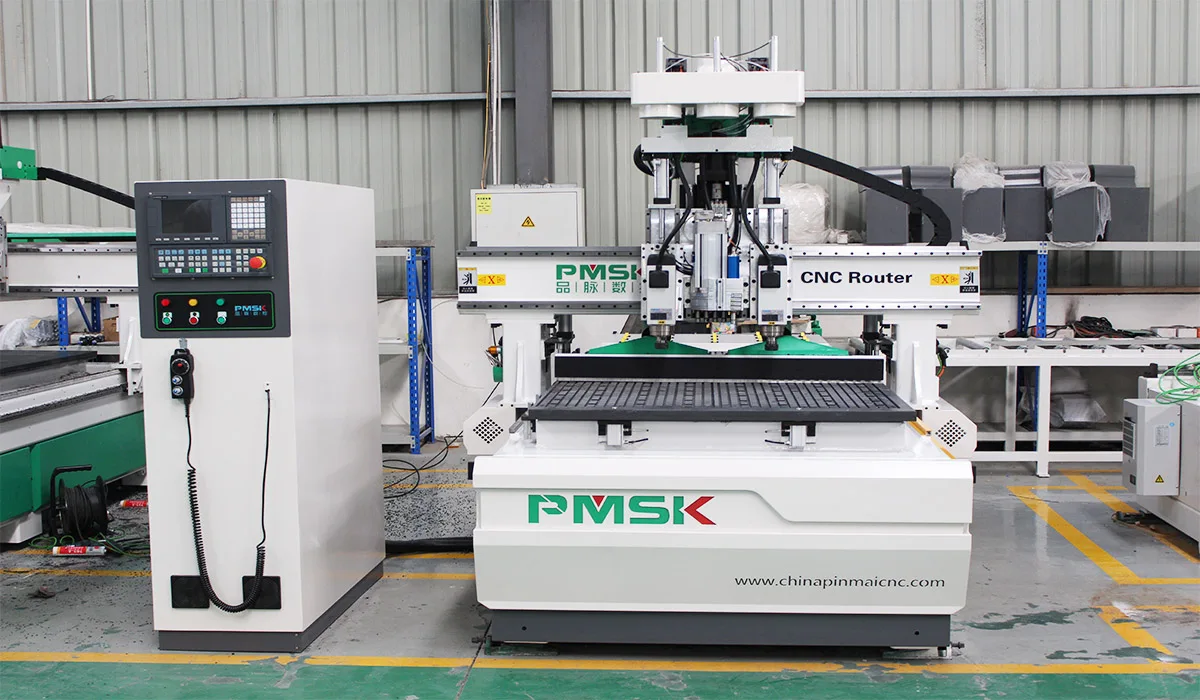

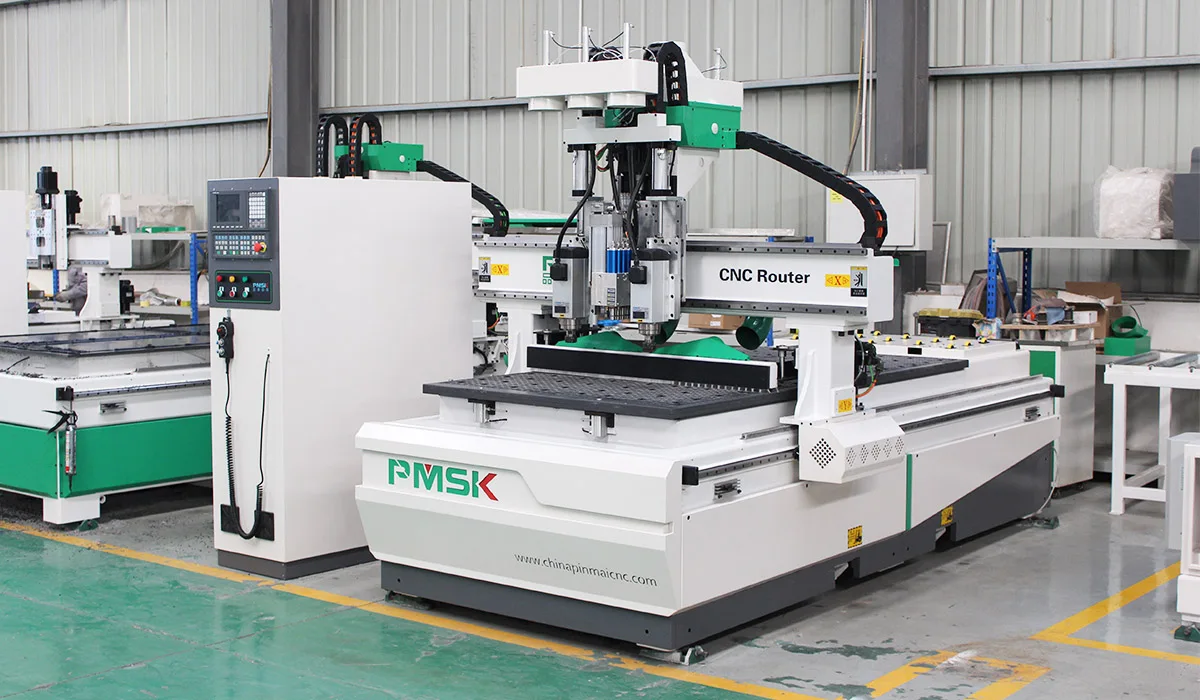

PMSK M6 Wood Furniture Cutting Drilling CNC Router 1325 Price Automatic Nesting Router Machine
1,M6 Double Spindles and 9V Drill CNC machine is an economical processing center specialized in cutting, drilling, slotting and other processes of panel furniture.
2,This model not only greatly improves the production and processing accuracy and efficiency of panel furniture, but also saves production costs.
3,The machine is equipped with a 9V row drill set imported from Italy (5+4), which has fast drilling speed. It is also equipped with two 6KW spindles for grooving and cutting the plates.
4,At present, this model is used with CNC side hole machine to produce panel furniture, and the processing output can reach 60- 70 panels in eight hours.
Product Paramenters
Model | M6 |
Max. working size | 1300x2800mm or customized |

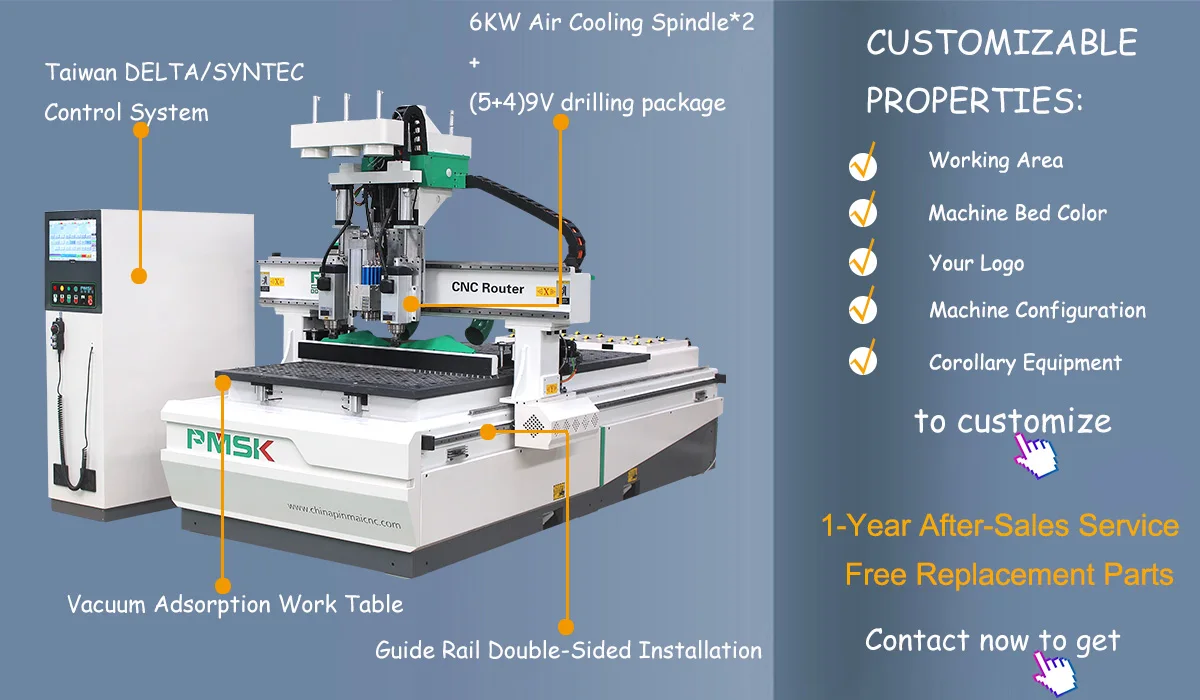

Spindle | 6.0KW Air cooling ATC spindle*2+(5+4)9V drilling package |
Quantity of tool holder | 4/6/8/12/16 PCS |
Motor and driver | Delta servo motors and drivers (Yaskawa is optional) |
Working table | Double layers A+ PVC board grid vacuum working table |
Control system | SYNTEC or Delta |
Vacuum pump | yes |
Dust collector | yes |
Max. moving speed | 80m/minute |
Max. working speed | 25m/minute |
Type of transmission | X/Y axis rack, Z-axis ball screw. X/Y/Z axis both adopt ball screws is optional |

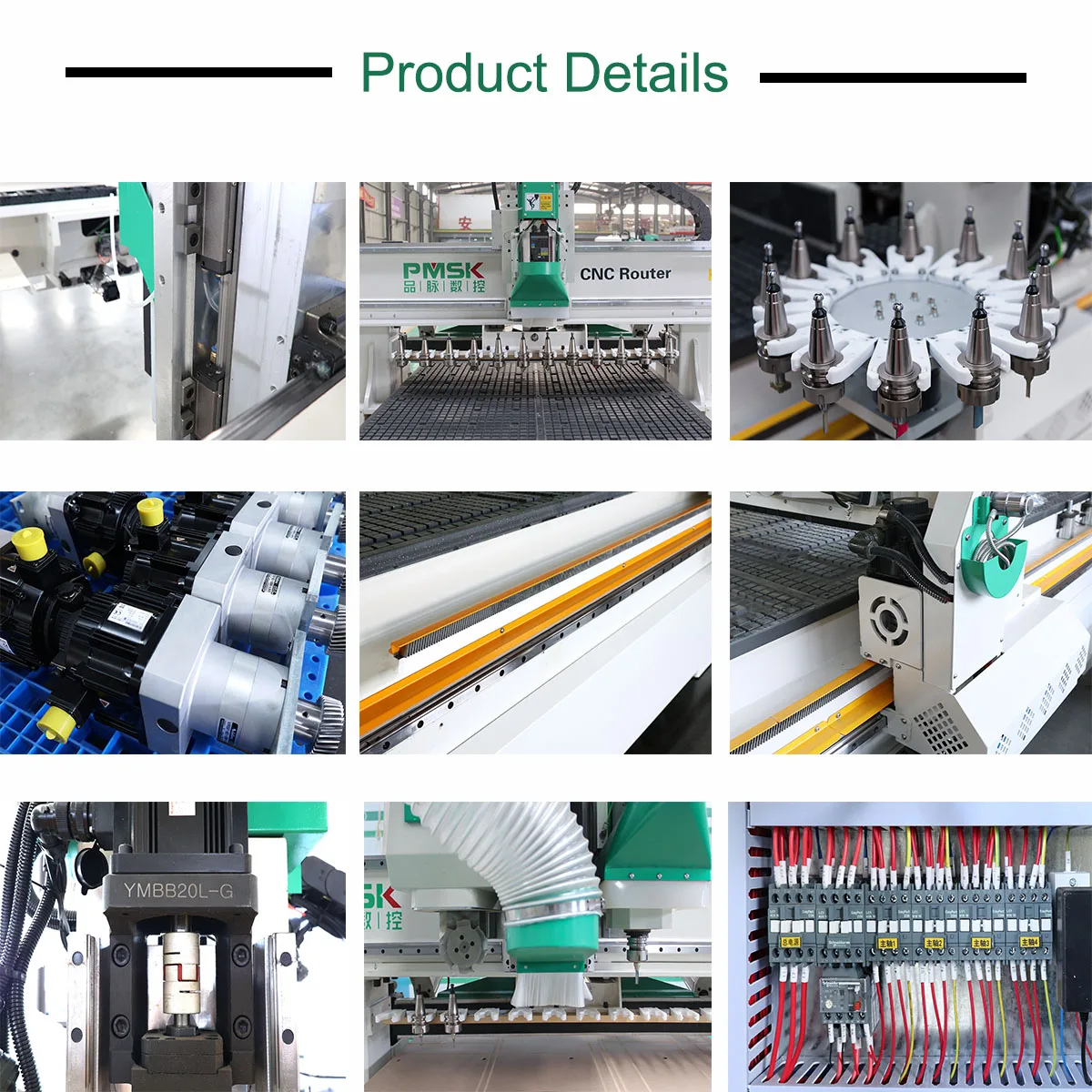

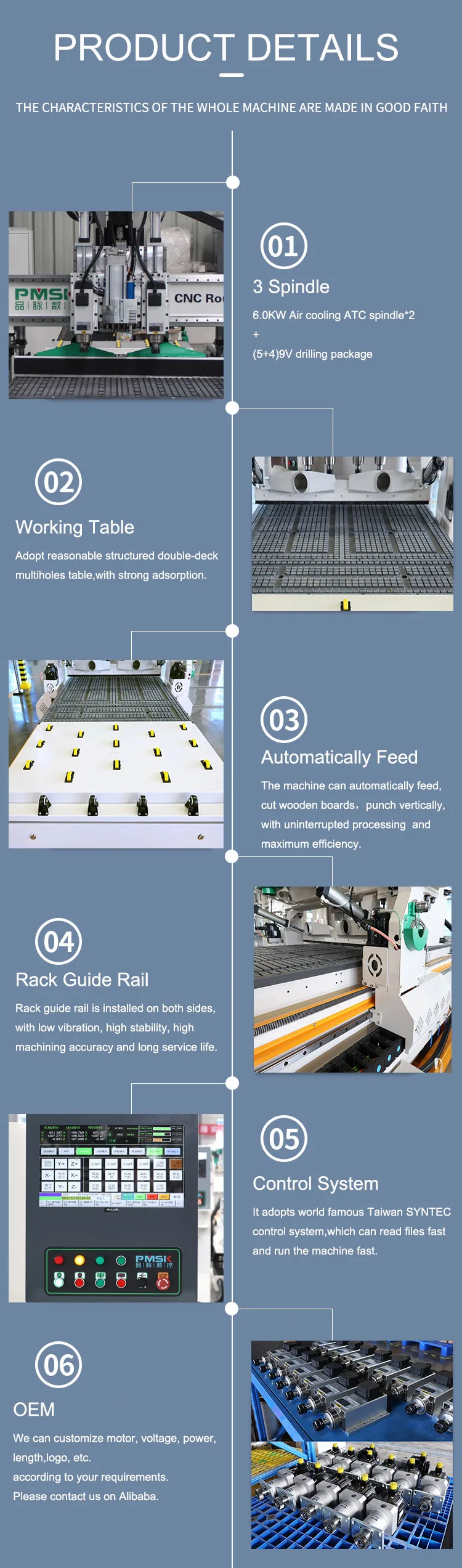

Details Images
ASolvable Processing
1. Drilling: Adopts different diameter drills to drill different sizes hole on various boards.
2. Grooving: With suitable tools to do grooving or slotting, it also can finish Clamex joint slots for Lamello.
3. Cutting: Suitable for the regular shapes and irregular shapes cutting, also can do edging.
4. Milling: Adopts different shapes CNC milling tools to achieve beautiful designs.
5. Hollow-cutting: Solve production of the carved screens, separating boards, or other products that need to be hollowed cut.
6. Carving/engraving: 2D carving design on wooden, composite, or other soft raw materials. If you need to do 3D design, please
contact us to inquire about other 4/5 axis CNC machines for you.
1. Drilling: Adopts different diameter drills to drill different sizes hole on various boards.
2. Grooving: With suitable tools to do grooving or slotting, it also can finish Clamex joint slots for Lamello.
3. Cutting: Suitable for the regular shapes and irregular shapes cutting, also can do edging.
4. Milling: Adopts different shapes CNC milling tools to achieve beautiful designs.
5. Hollow-cutting: Solve production of the carved screens, separating boards, or other products that need to be hollowed cut.
6. Carving/engraving: 2D carving design on wooden, composite, or other soft raw materials. If you need to do 3D design, please
contact us to inquire about other 4/5 axis CNC machines for you.
Application Scenario
Company Profile
Exhibition
FAQ
1,I need a CNC router,can you give me some suggestions?
A,Sure,we will give suggestions of the most suitable machine,Before that,we need to know some information,such as effective processing area,materials,etc.,to getermine the main parameters. in addition，Our machines can be customized according to buyers’ request.
2,Which kind of materials can be processed on this machine?
A:Wood,mdf,stone,acrylic,glass,plastic,foam,aluminium,copper,and almost all kinds of non-steel materials.We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
3,Are you a factory or trading company?
A:We are the manufacturer and we have 15 years factory experience.As only the machine made by ourself,the quality can be tursted,and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,so welcome to visit to our factory.
4,How should i pay for my order?
A:You need to pay 30% as prepayment at first,then we will start to make production.When the machine is completed,we will send pictures or videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5,How long is the delivery time?
A:For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client' specific requirements,it will be 10 to 15 days.
A,Sure,we will give suggestions of the most suitable machine,Before that,we need to know some information,such as effective processing area,materials,etc.,to getermine the main parameters. in addition，Our machines can be customized according to buyers’ request.
2,Which kind of materials can be processed on this machine?
A:Wood,mdf,stone,acrylic,glass,plastic,foam,aluminium,copper,and almost all kinds of non-steel materials.We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
3,Are you a factory or trading company?
A:We are the manufacturer and we have 15 years factory experience.As only the machine made by ourself,the quality can be tursted,and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,so welcome to visit to our factory.
4,How should i pay for my order?
A:You need to pay 30% as prepayment at first,then we will start to make production.When the machine is completed,we will send pictures or videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5,How long is the delivery time?
A:For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client' specific requirements,it will be 10 to 15 days.
