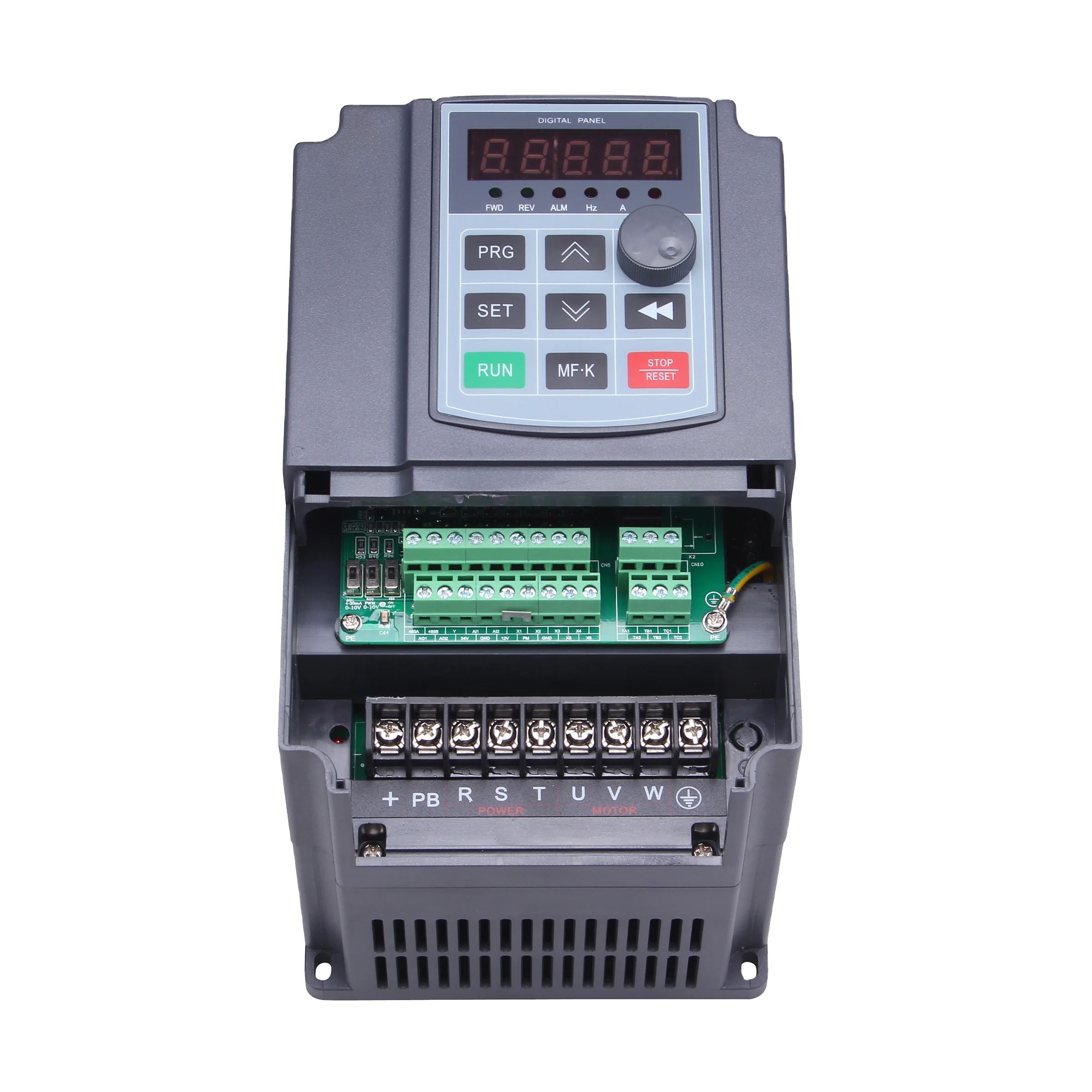

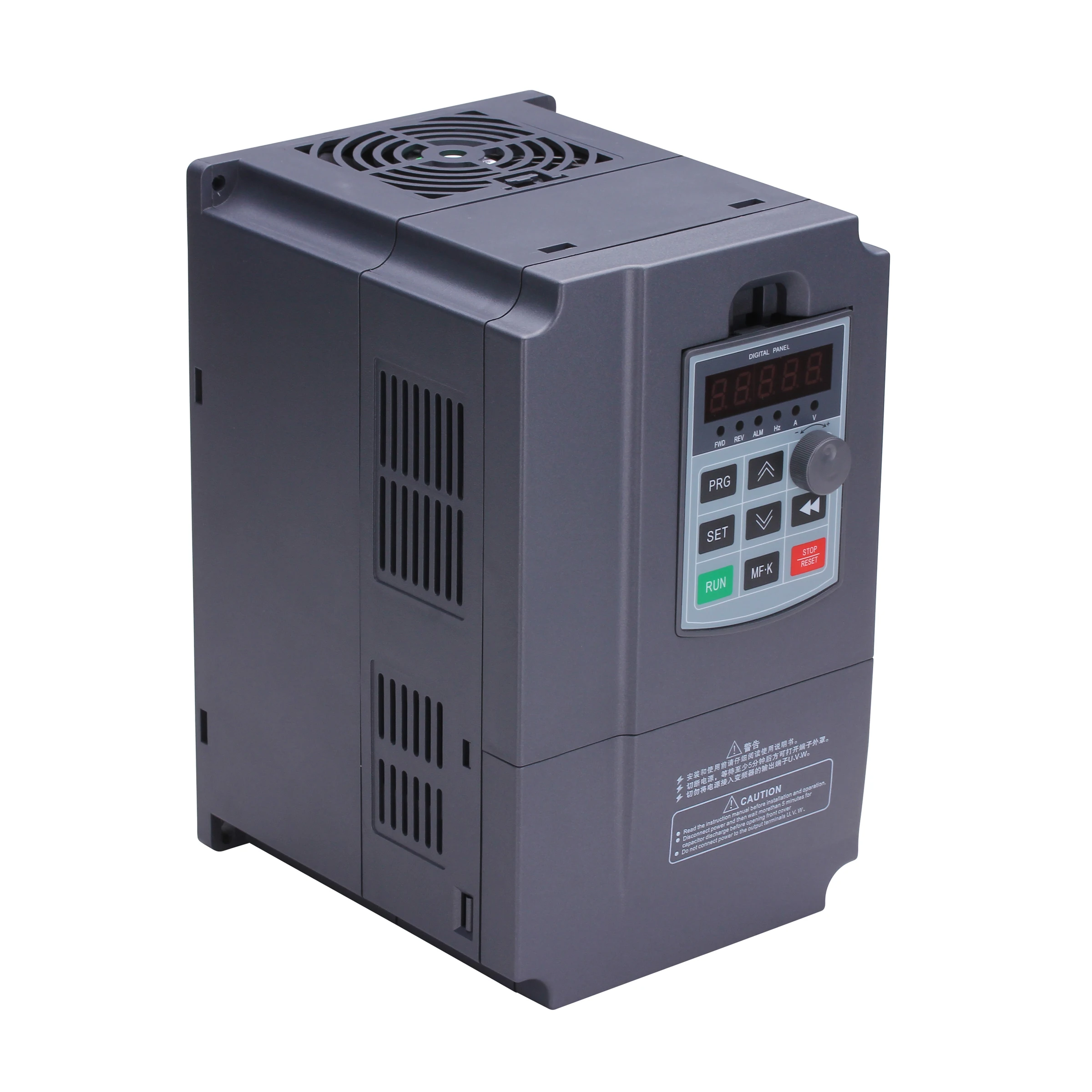

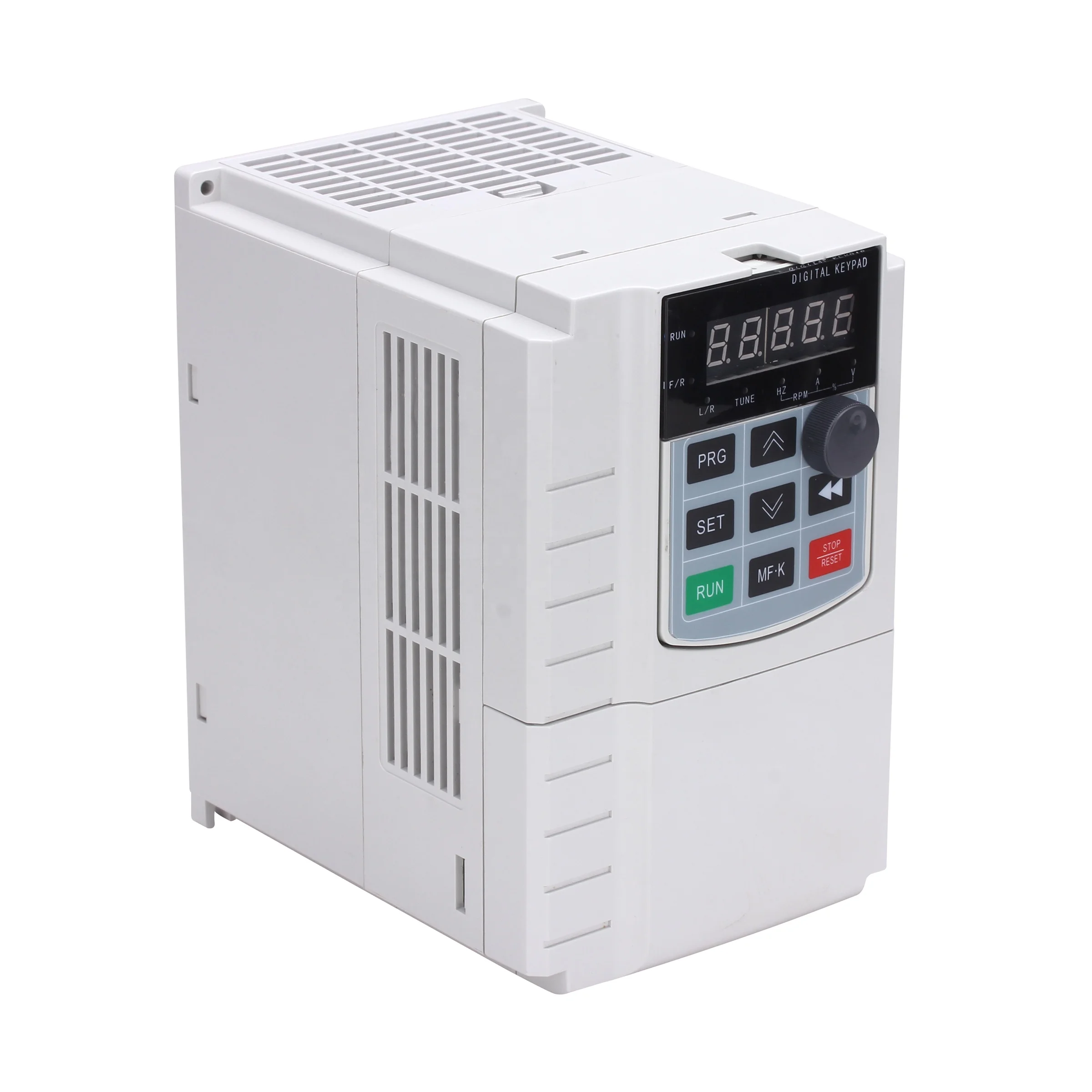

37kw VFD инвертор солнечного насоса Встроенный MPPT с высокочастотным солнечным инвертором для системы солнечной

Поделиться:


Цена:452,00 $ - 461,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Description


SPD660 Solar Pump Inverter
------With MPPT, flow/generated energy measurement

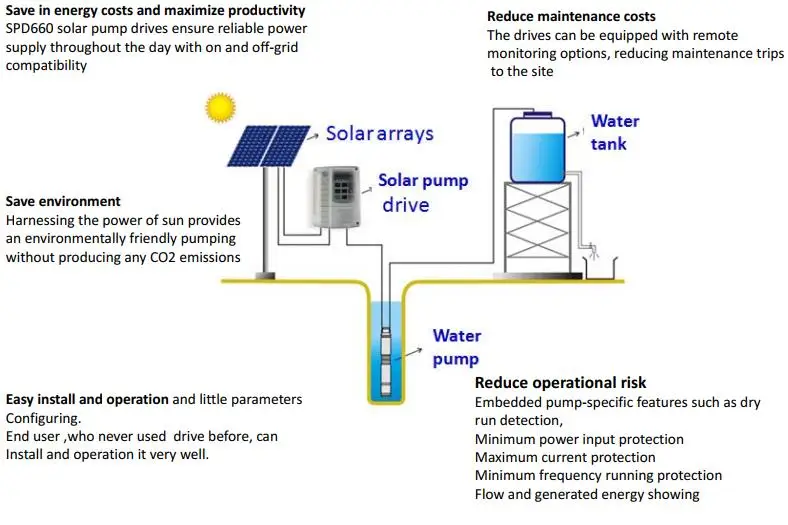

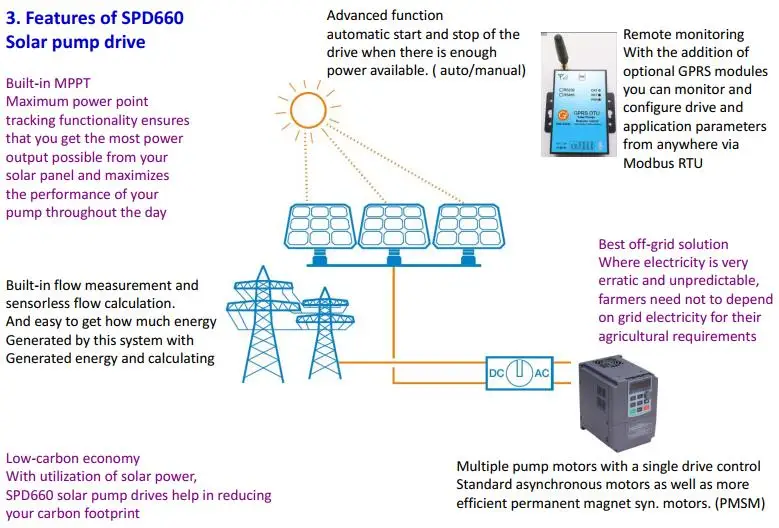

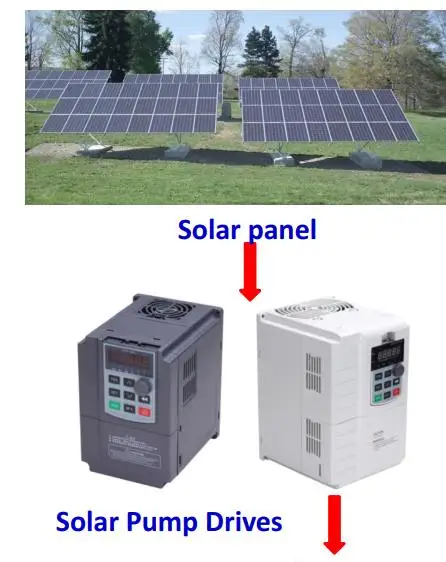

1.Main Features of Solar System
●Low carbon economy
In-built MPPT with high efficiency
Pump specific protection
Best off-grid solution
Perfect stable frequency output

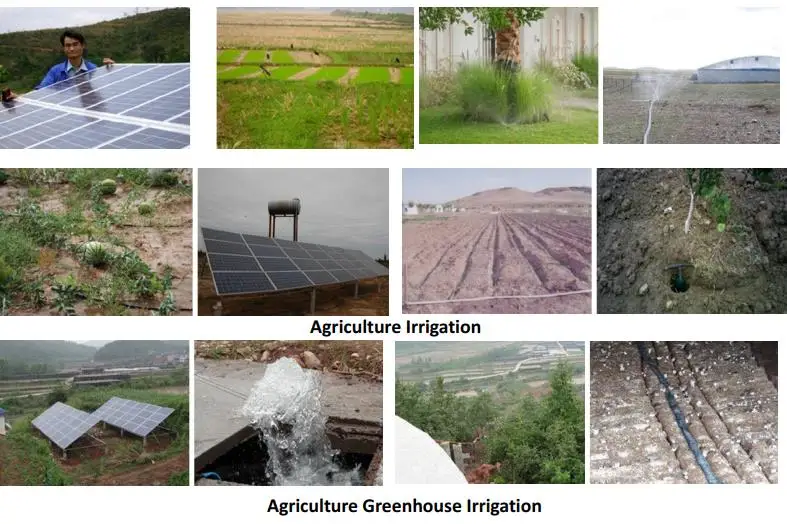

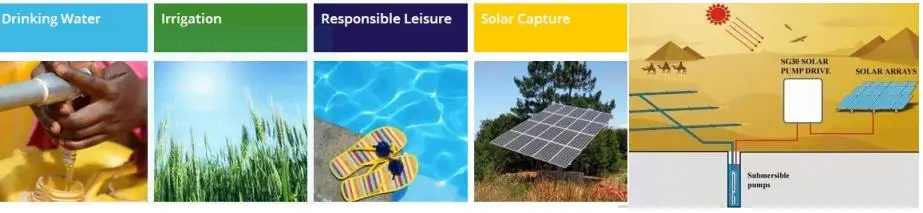

2.Applications
Ground water lowering
Irrigation system
Industrial Application
Drip irrigation & sprinkler
Tank/cistern filling
Wildlife refuge
Rural water supply for ranches, cabins, and cottages
Fountains













Product specifications


Model
Voltage(V)
Rated Power(KW)
Output rated current(A)
Outline dimensions(mm)
SPD660-0K75GB-2S-M
2S/220V
0.75KW
4.0A
143*86*114
SPD660-1K5GB-2S-M
2S/220V
1.5KW
7.5A
143*86*114
SPD660-2K2GB-2S-M
2S/220V
2.2KW
10A
143*86*114
SPD660-4K0GB-2S
2S/220V
4.0KW
24.6A
185*125*159
SPD660-0K7GB--4T-M
4T/380V
0.75KW
2.3A
143*86*114
SPD660-1K5GB--4T-M
4T/380V
1.5KW
3.7A
143*86*114
SPD660-2K2GB--4T-M
4T/380V
2.2KW
5A
143*86*114
SPD660-4K0GB--4T
4T/380V
4.0KW
10A
185*125*159
SPD660-5K5GB--4T
4T/380V
5.5KW
13A
245*150*177
SPD660-7K5GB--4T
4T/380V
7.5KW
17A
245*150*177
SPD660-011GB--4T
4T/380V
11KW
25A
247*160*178
SPD660-015GB--4T
4T/380V
15KW
33A
247*160*178
SPD660-018GB--4T
4T/380V
18KW
38A
247*160*178
SPD660-022GB--4T
4T/380V
22KW
45A
323*217*140
SPD660-030GB--4T
4T/380V
30KW
60A
432*285*225
SPD660-037GB--4T
4T/380V
37KW
75A
432*285*225
SPD660-045GB--4T
4T/380V
45KW
91A
600*385*270
SPD660-055GB--4T
4T/380V
55KW
110A
600*385*270
SPD660-075GB--4T
4T/380V
75KW
150A
600*385*270
SPD660-090GB--4T
4T/380V
90KW
180A
700*473*307
SPD660-110GB--4T
4T/380V
110KW
210A
700*473*307
SPD660-132GB--4T
4T/380V
132KW
250A
930*579*375
SPD660-160GB--4T
4T/380V
160KW
310A
930*579*375


Recommend MPPT voltage range
90~350V DC input for 110V/160V/220V pumps,0.75kw to 1.5kw
200~400VDC for 220VAC/240V pumps with 0.75 Kw to 4kw
250~800VDC, for 380VAC pumps with1.5kw to 45kw
Recommended input voltage
170 Vmp DC for 110V AC pumps. 260Vmp DC for 160V AC pumps.
350Vmp DC for 220V AC pumps, 620Vmp DC for 380V AC pumps
Motor type
Control for permanent magnet servo motor and asynchronous motor pumps.
Maximum DC power input
400VDC for 220AC output /800VDC for 380V AC output
Rated output voltage
3-phase , 110V/160V/220V. 3-phase, 220V/380V/480V
Output frequency range
0~50/60Hz
MPPT efficiency
97%
Ambient temperature range
(G-type inverter with submersible pumps, and P type for general pumps.
Solar pump control special performance
MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation,
dry run protection, low stop frequency protection, minimum power input, motor maximum
current protection, flow calculating, energy generated calculating.
Protection function
Phase loss protection, phase short circuit protection , ground to phase circuit protection , input
and output short circuit protection. Stall protection
Protection degree
IP20, Air force cooling
Running mode
MPPT or CVT
Altitude
Below 1000m; above 1000m, derated 1% for every additional 100m
Standard
CE


item
value
Place of Origin
China
Brand Name
FMZ
Model Number
SPD660-037GB-4T
Type
DC/AC Inverters
Output Type
THREE
Output Current
75A
Output Frequency
50Hz or 60Hz
Size
463*285*225mm
Weight
25KG
Application
Solar System
Warranty
12 Months
Rated power
37KW
Product name
Solar Pump Inverter
Package
Carton Box
Input voltage range
380v
Color
Black White
Phase
Three Phase Power Inverter
MPPT efficiency
97%

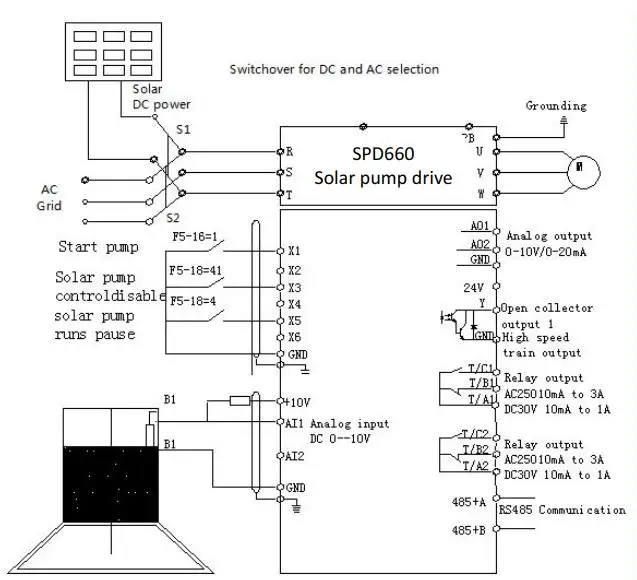

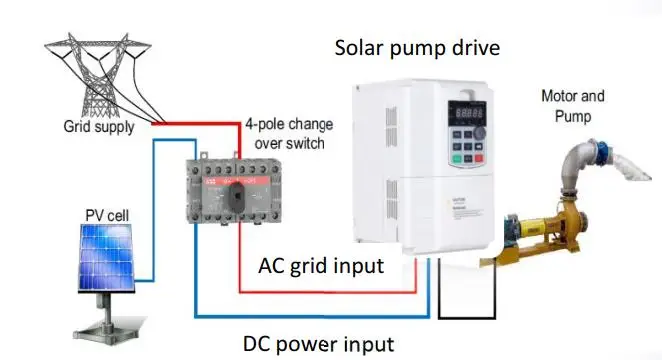

Wiring diagram

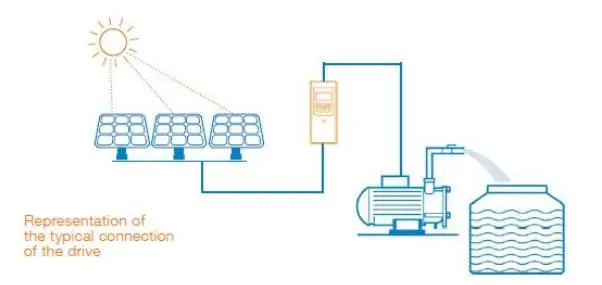

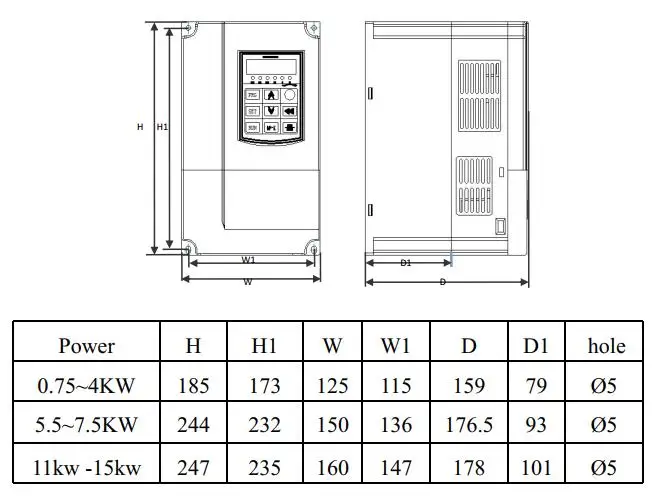

Installation Instructions

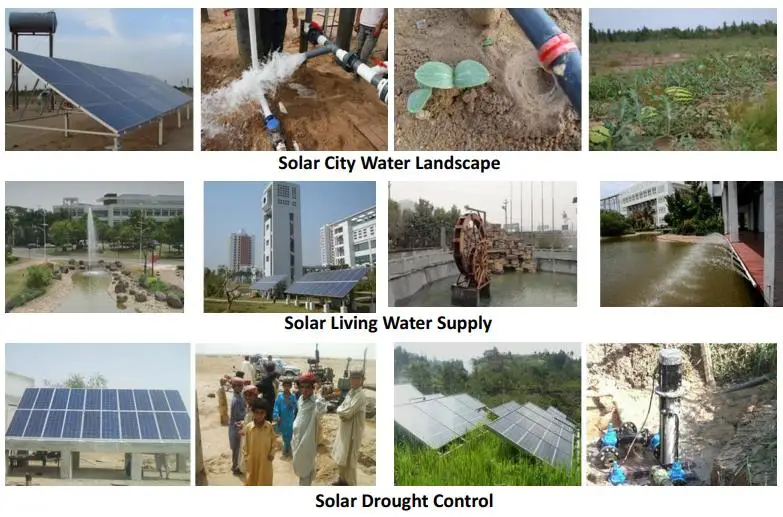

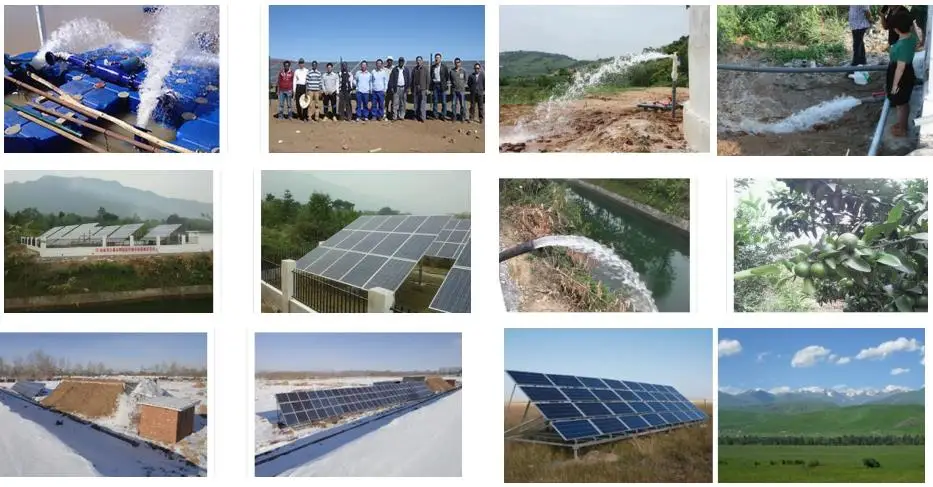

Application

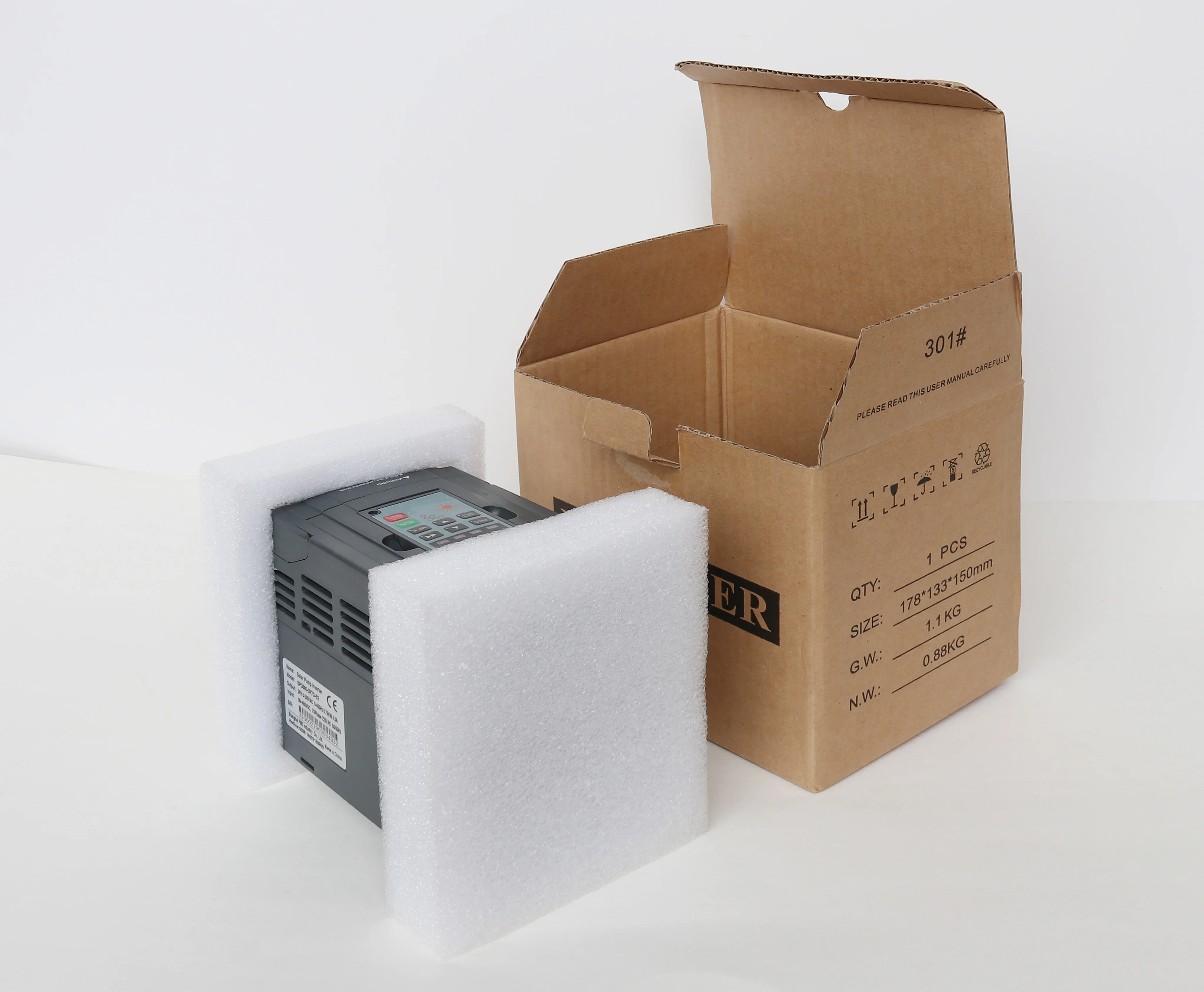

Packing & Delivery




Standard Export Carton


Company Profile




Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.

Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil, plastics, chemicals, municipal project and other industries.

We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.

About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.

Our business philosophy is to 'Always be with you and enjoy success together


FAQ


1. who are we?
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter

4. why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market.
Own software to offer customized service.
We accept OEM service with technical support.
CE &TUV, ISO9001,

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
