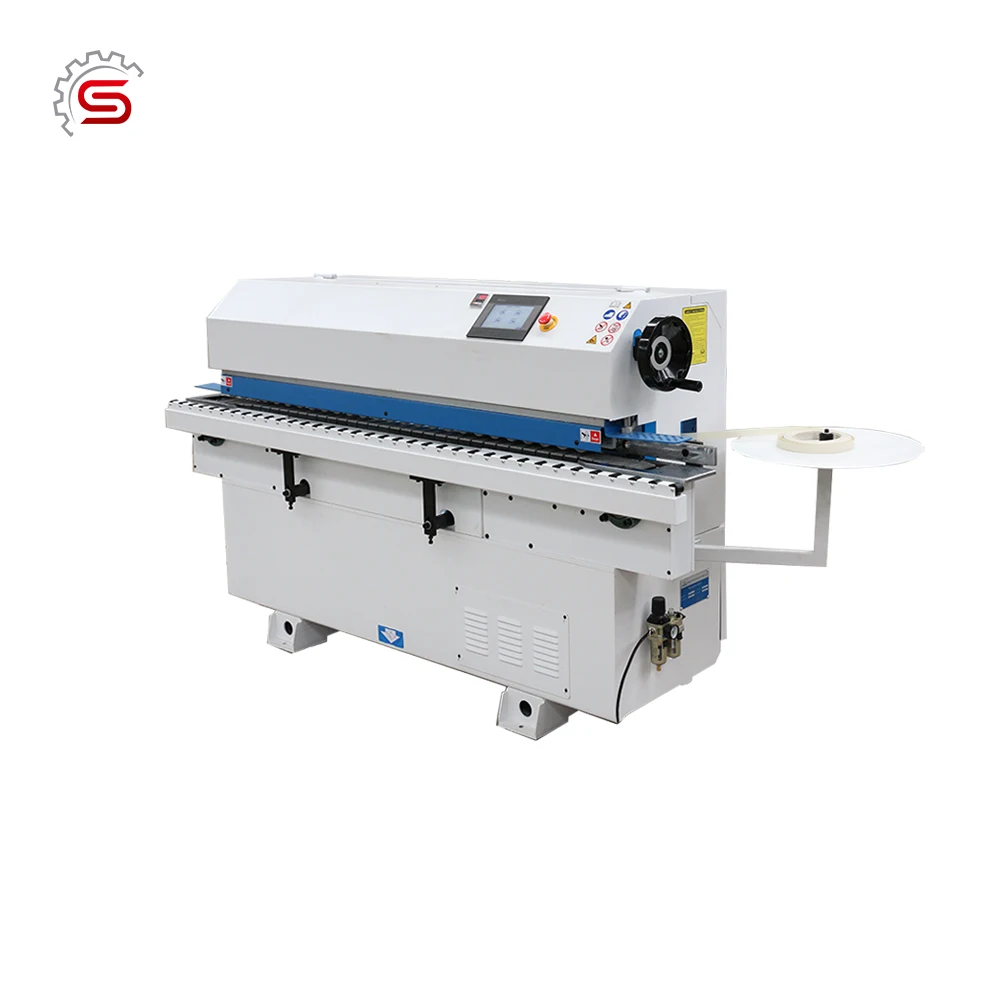

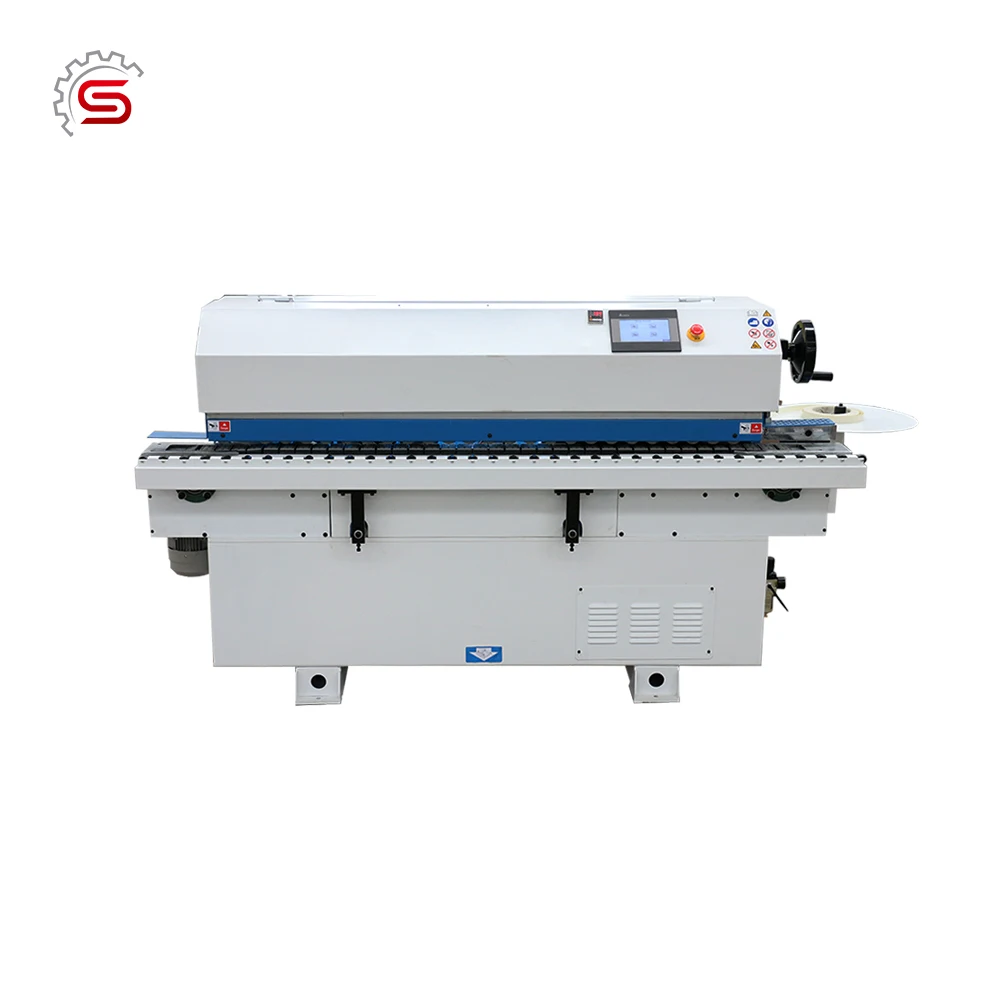

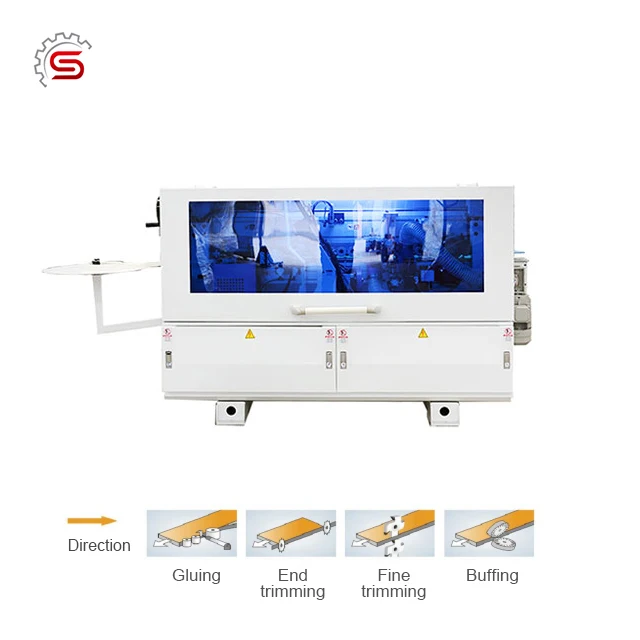

MFZ605 автоматический кромкооблицовочный станок криволинейных для облицовывания
- Категория товара: Wood Based Panels Machinery >>>
- Поставщик (Оптовый магазин): Qingdao,Steeler,Woodworking,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT SPECIFICATIONS
model | MFZ620 | MFZ690 | MFZ680 |
function | Gluing,End trimming Fine trimming Buffing | GluingEnd trimming Fine trimming Scraping Buffing | Pre-miling GluingEnd trimming Fine trimming Scraping Buffing |
Gluing motor power | 0.75kw | 0.75kw | 0.75kw |
Heating power | 1.5kw | 1.5kw | 1.5kw |
Ending trimming motor power | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 |
Fine trimming motor power | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 |
Buffing motor power | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 |
Belt motor power | 1.5kw | 1.5kw | 1.5kw |
Working speed | 12 m/min | 12 m/min | 12 m/min |
Max edge height | 45mm | 45mm | 45mm |
Panel thickness | 10-45mm | 10-45mm | 10-45mm |
Edge banding tape thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm |
Panel width | 80mm | 80mm | 80mm |
Working air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Packing size | 2400*650*1400mm | 3000*650*1400mm | 3500*650*1400mm |
PRODUCTS DESCRIPTION
01.

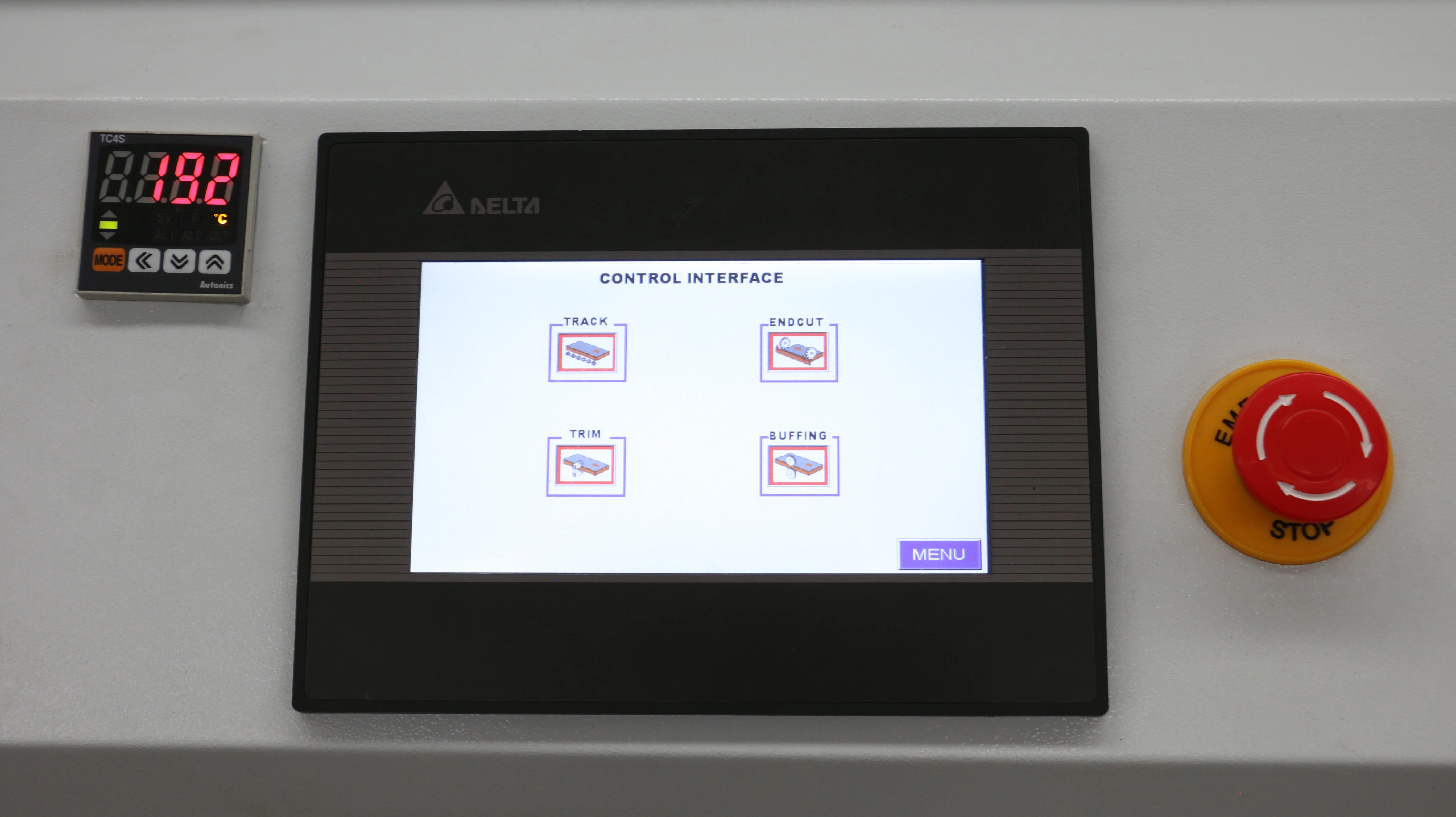

PLC Control Panel
Easily control and maintain the machine. Problems of the machine are visible in the panel.
Easily control and maintain the machine. Problems of the machine are visible in the panel.
02.

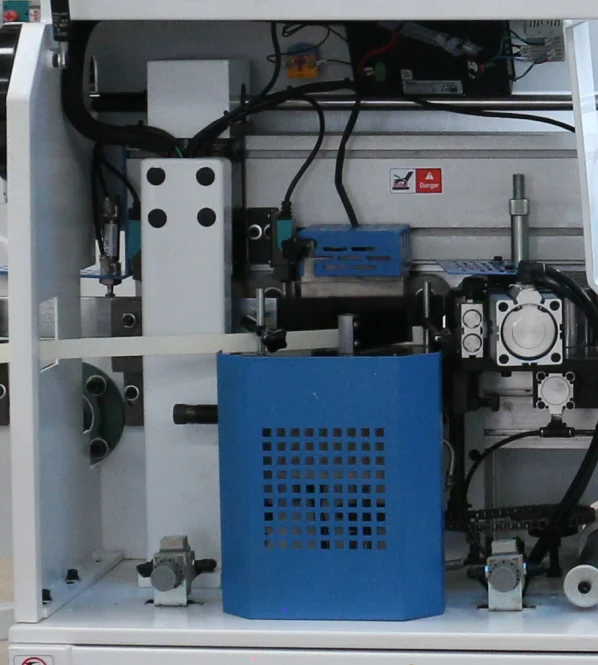

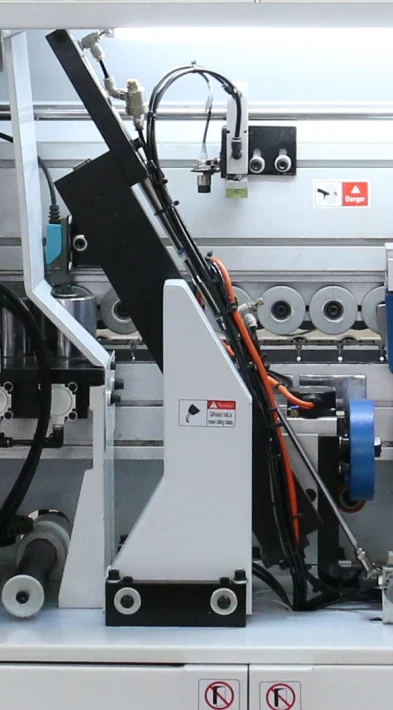

Gluming
The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid
conglutination
The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid
conglutination
03.

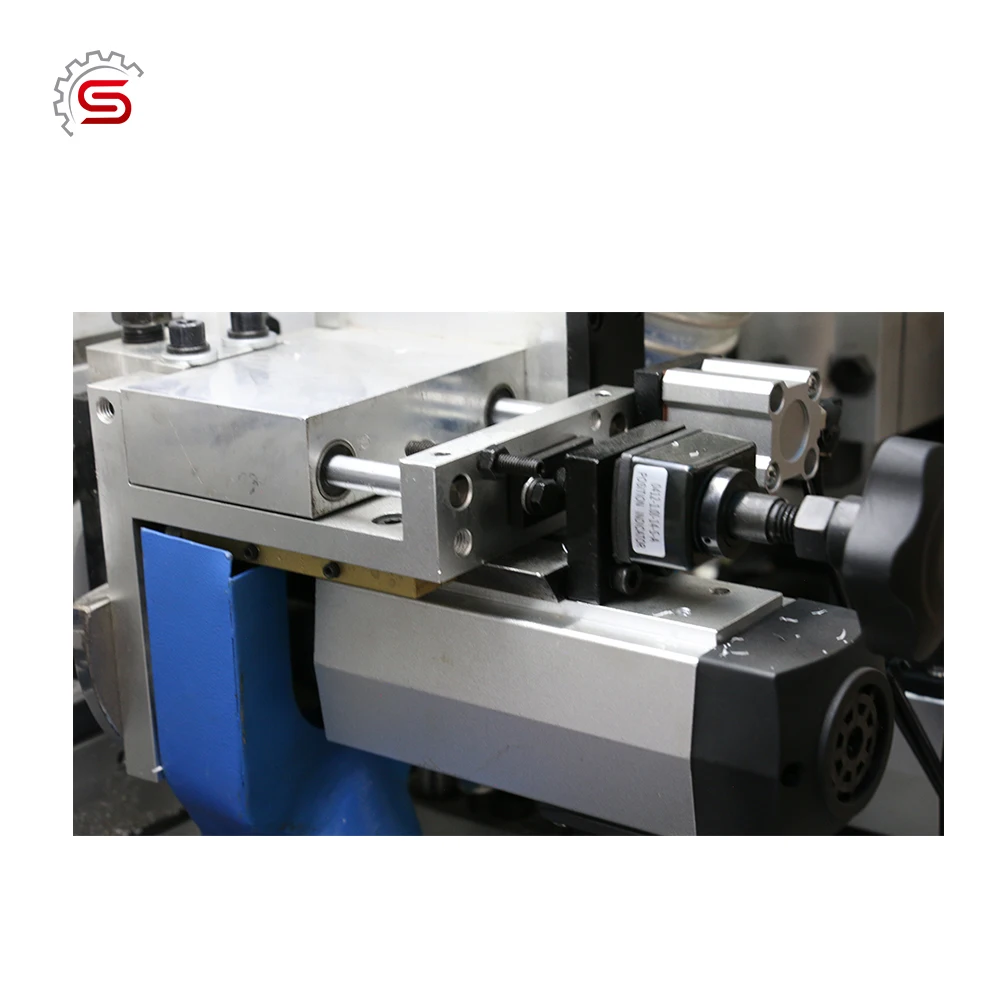

End trimming
End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting
structure to ensure the cutting surface smoothly.
End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting
structure to ensure the cutting surface smoothly.
04.

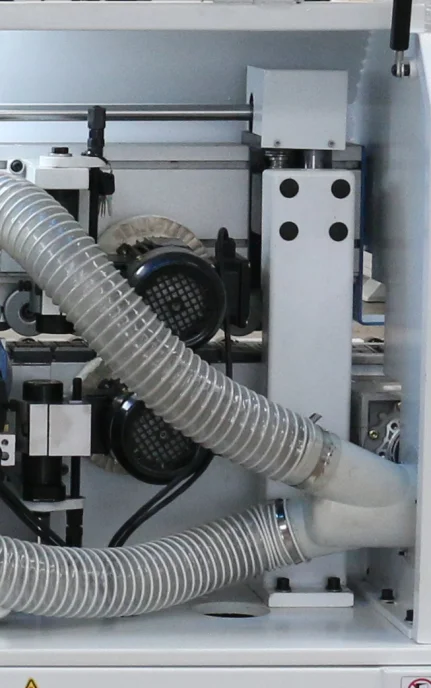

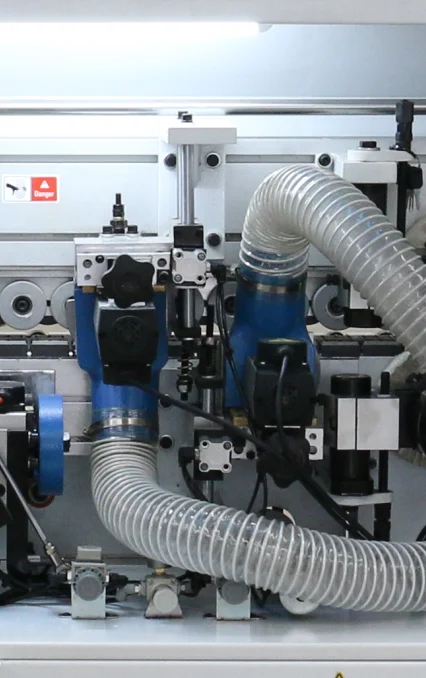

Fine trimming
Fine trimming Unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the pane,
ensure the top and bottom side of the edge smooth and even.
Fine trimming Unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the pane,
ensure the top and bottom side of the edge smooth and even.
05.
Buffing
The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface.
The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface.
06.

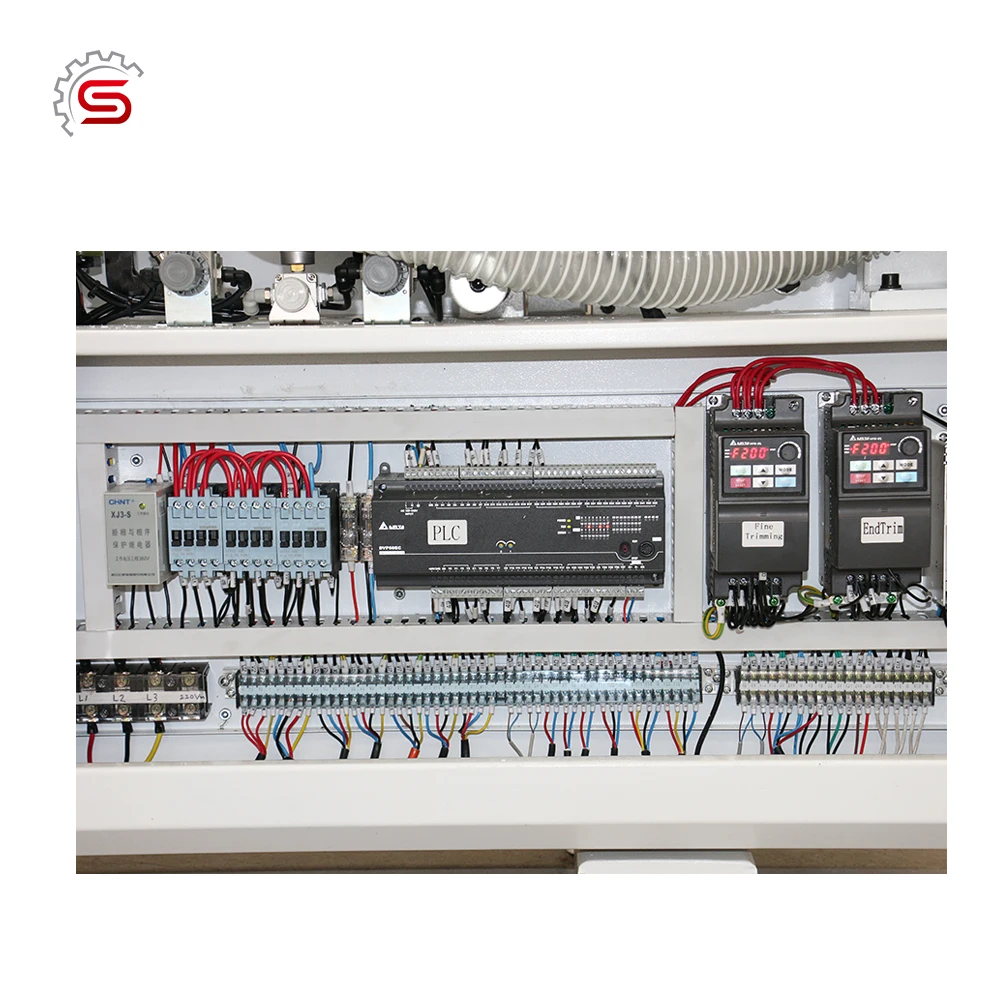

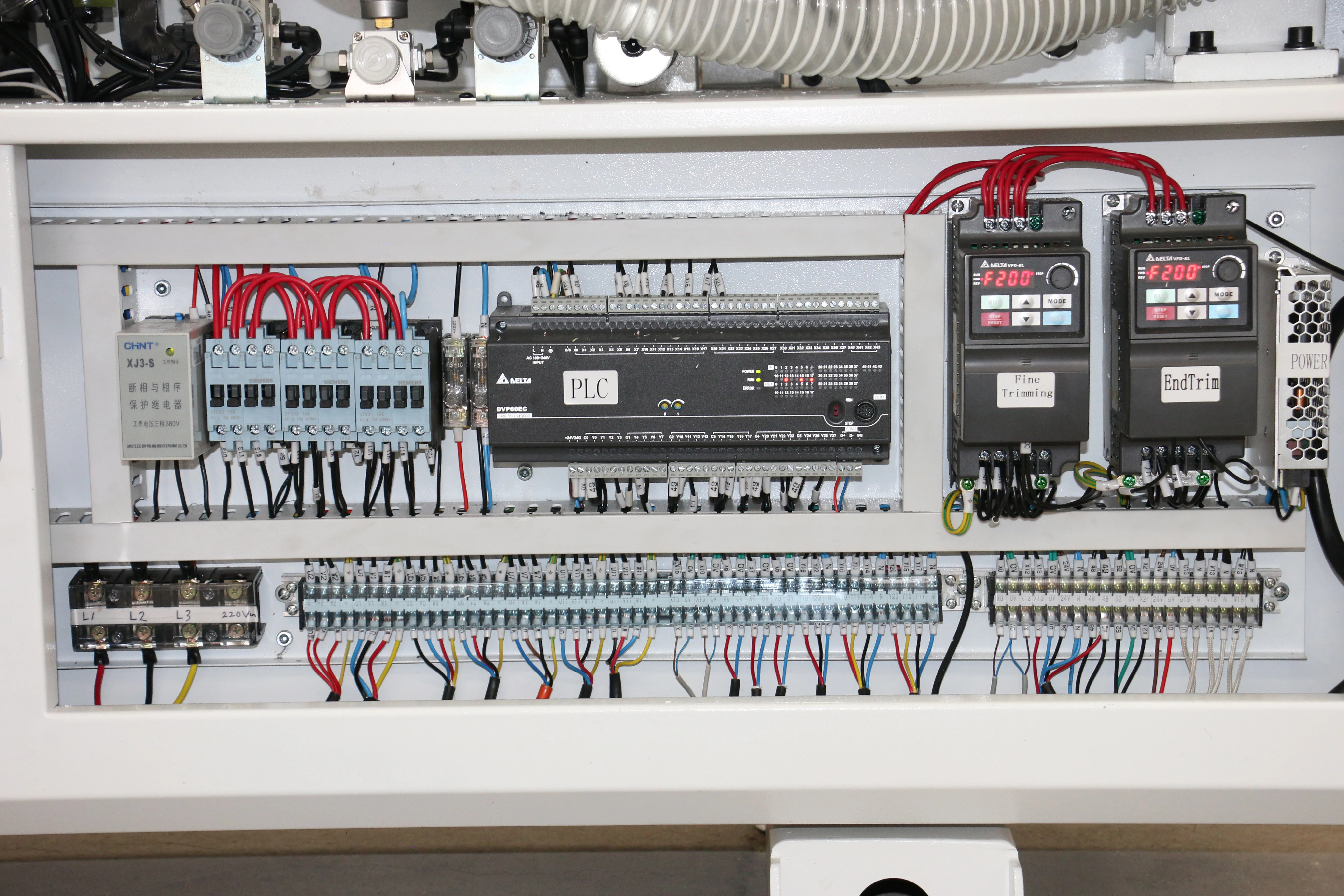

Electrical equipment
Delta brand appliances, can be used for a long time.
Delta brand appliances, can be used for a long time.
Features:
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done
at the rear side of the machine.

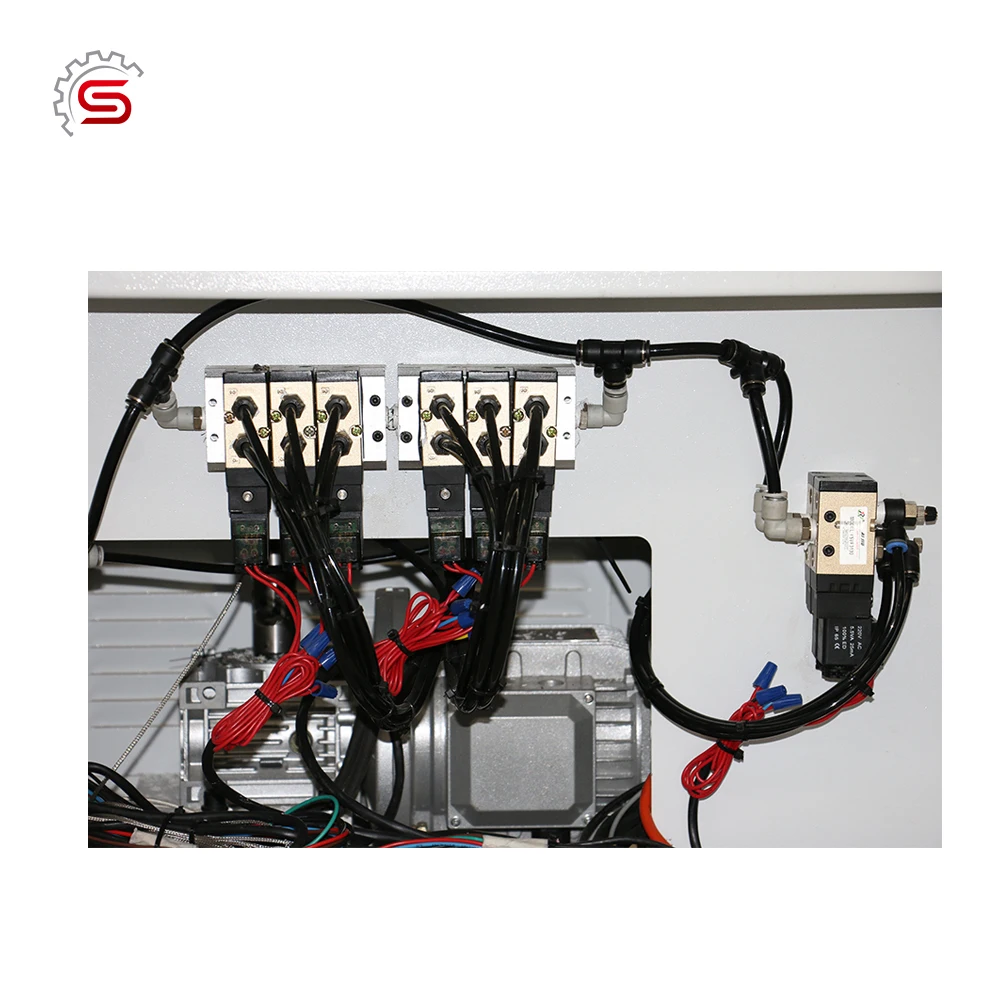

7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing
accuracy in a very high level.
3.Touch-tone dust cover to reduce air pollution in the working environment.
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done
at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing
accuracy in a very high level.
3.Touch-tone dust cover to reduce air pollution in the working environment.
FINISHED PRODUCTS
WHY CHOOSE US
PACKING&SERVICE
1.Delivery and Package:
We will take care of your machinery packages well like picture show.
·Our workers will make sure your machine clean before package.
·We will add stretchy film for the whole machine and spare parts for delicate protection.
·We will make export standard strong Wooden box case package as your request.
2.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem
,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical
support and service all the time.
3. Technical support:
·Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.
·We provide English version manual.
·Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.
If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still
have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
We will take care of your machinery packages well like picture show.
·Our workers will make sure your machine clean before package.
·We will add stretchy film for the whole machine and spare parts for delicate protection.
·We will make export standard strong Wooden box case package as your request.
2.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem
,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical
support and service all the time.
3. Technical support:
·Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.
·We provide English version manual.
·Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.
If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still
have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
