Products Description

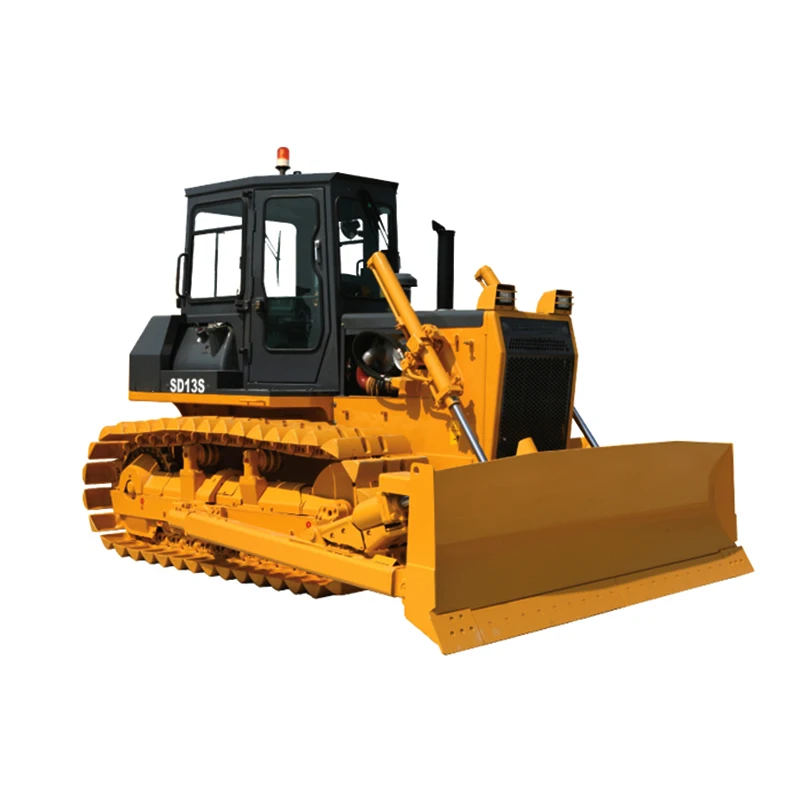

SD13S Mining Dozer 130hp Brand New Bulldozer Manufacturer Price
SD13S wetland bulldozer is designed and developed especially in response to the characteristics of wetland working conditions, featuring advanced technologies and high reliability, and can work normally in the soft and muddy soil conditions inaccessible by conventional machine models.
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the rapid and flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions for roads, farms, water conservancy projects, municipal projects, and energy projects.
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the rapid and flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions for roads, farms, water conservancy projects, municipal projects, and energy projects.
FEATURES AT A GLANCE
Right elevation
Left elevation
Rear elevation
PRODUCT SPECIFICATIONS
Name | SD13(Standard) | SD13S(wetlands) | SD13R(Sanitation Edition) | SD13C(Coal Edition) |
Performance parameter | ||||
Operating weight(kg) | 13700 | 14900 | 15200 | 13900 |
Ground pressure (kPa) | 53.8 | 38.4 | 39.2 | 44.8 |
Engine | ||||
Engine mode | SC8DK | SC8DK | SC8DK | SC8DK |
Power/Rated speed(kW/rpm) | 105/1900 | 105/1900 | 105/1900 | 105/1900 |
Dimensions | ||||
Machine Dimensions(mm) | 4492*3185*2950 | 4492*3510*3000 | 4492*3510*3000 | 4492*3700*2950 |
Walking performance | ||||
Forward speed(km/h) | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 |
Backward speed(km/h) | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 |
Undercarriage | ||||
Track center distance(mm) | 1880 | 1880 | 1880 | 1880 |
Track crawler width(mm) | 460 | 700 | 700 | 560 |
track length on ground(mm) | 2365 | 2365 | 2365 | 2365 |
Fuel tank capacity | ||||
Fuel tank(L) | 280 | 280 | 280 | 280 |
Working equipment | ||||
Blade type | Straight | Straight | Sanitation shovel | Push coal shovel |
Shovel depth(mm) | 590 | 590 | 590 | 590 |
Ripper type | Three-teeth | —— | —— | —— |
Soil loosening depth(mm) | 567 | —— | —— | —— |
PRODUCT CONFIGURATION
Chinese high power engine
Imported control valve
Japan imported hydraulic motor

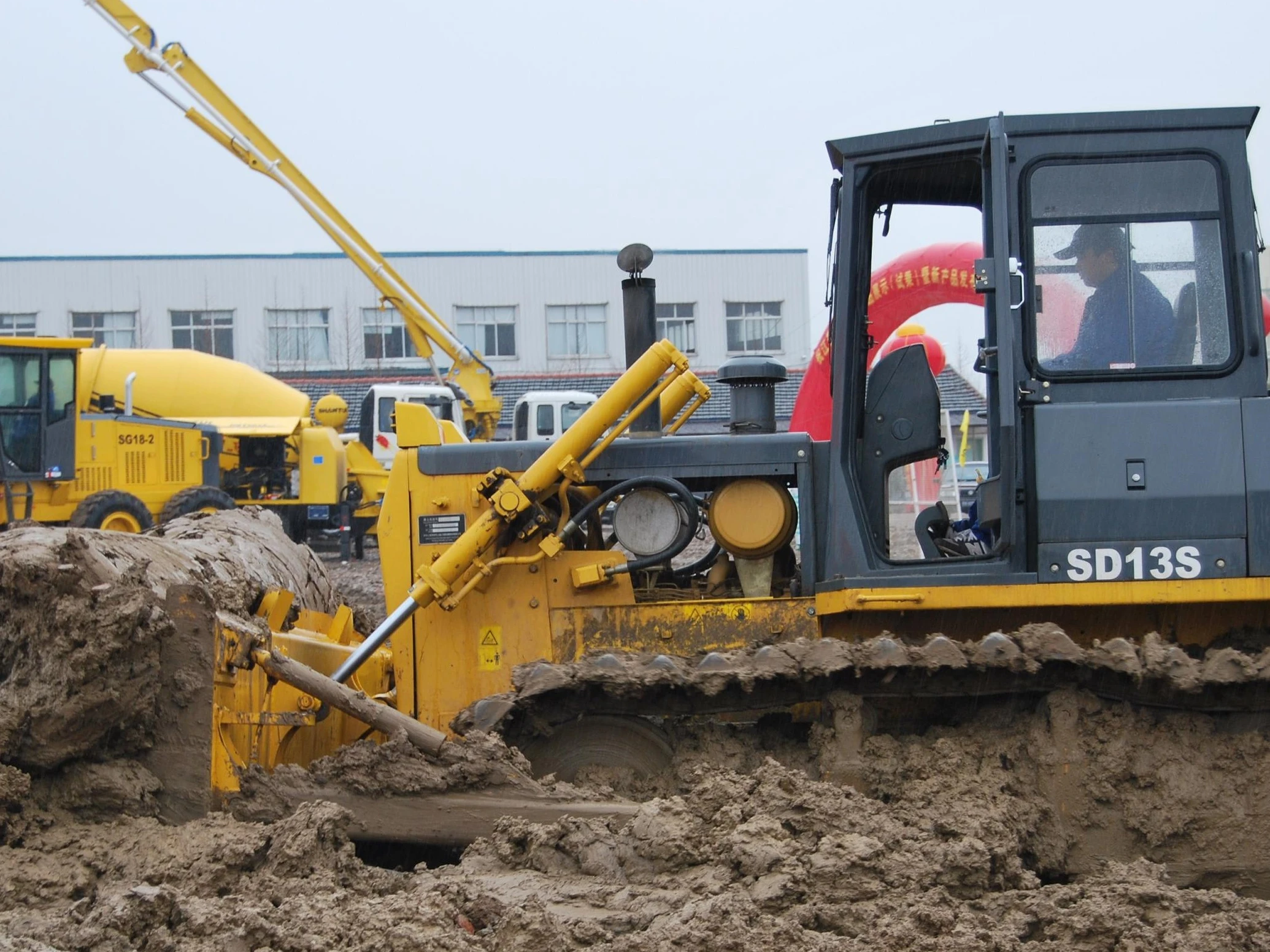

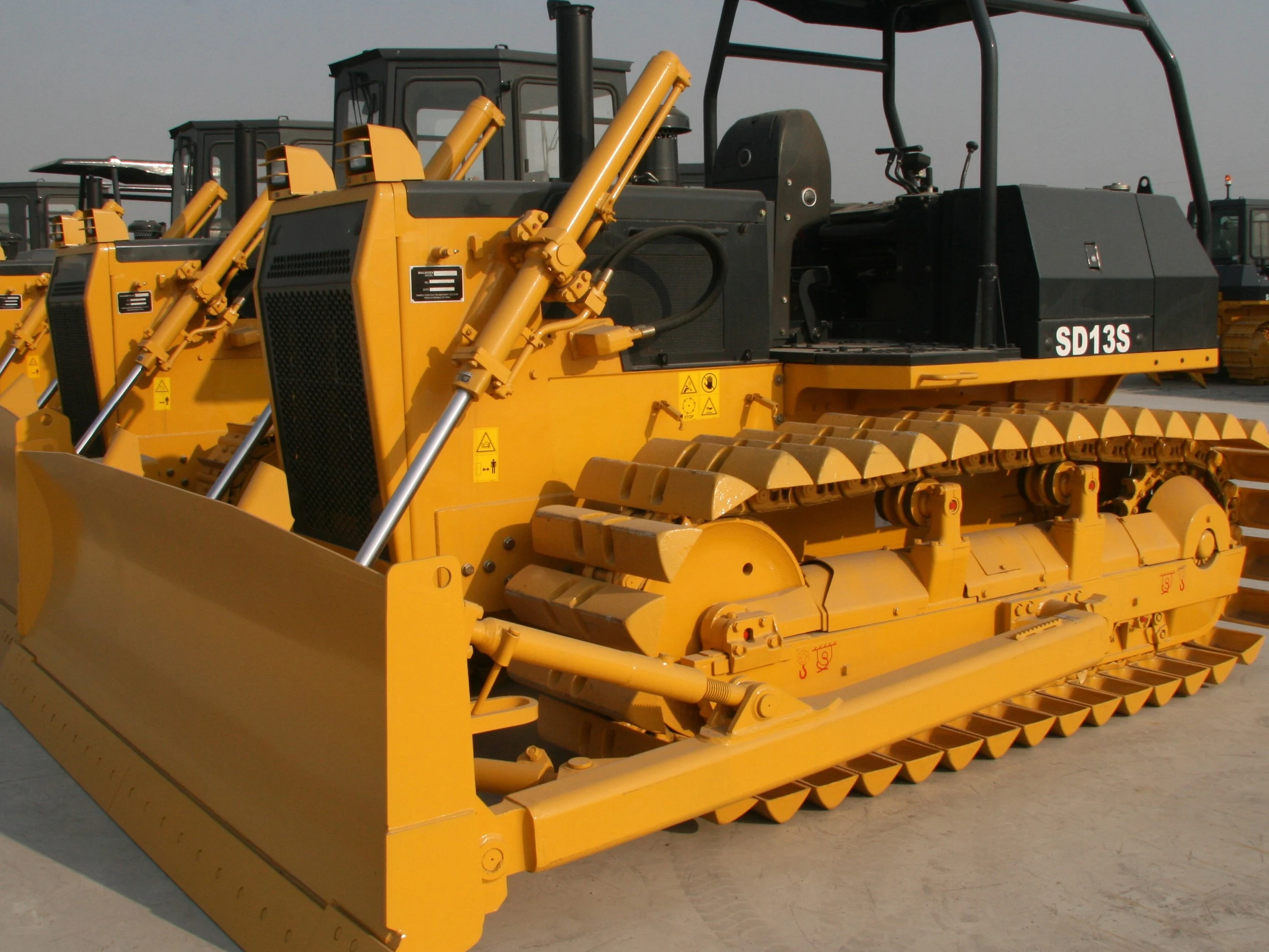

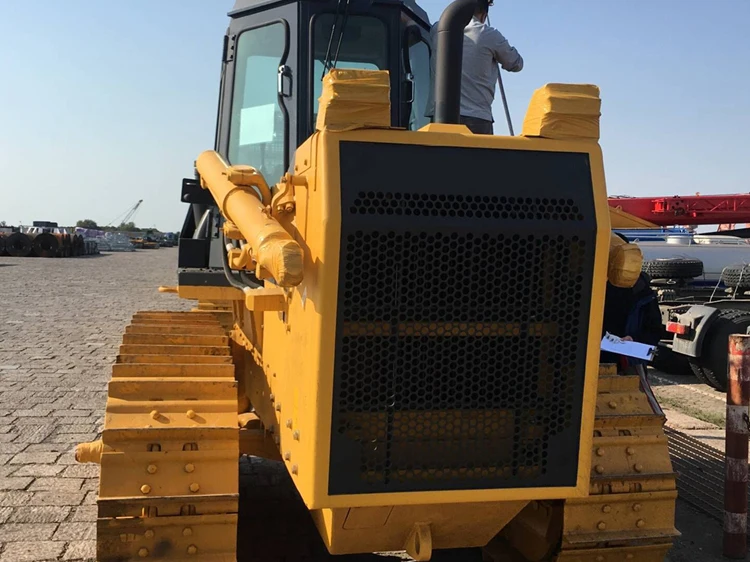

Product Show
Successful Project
Project in Chile
Project in Nigeria
Project in Zimbabwe
