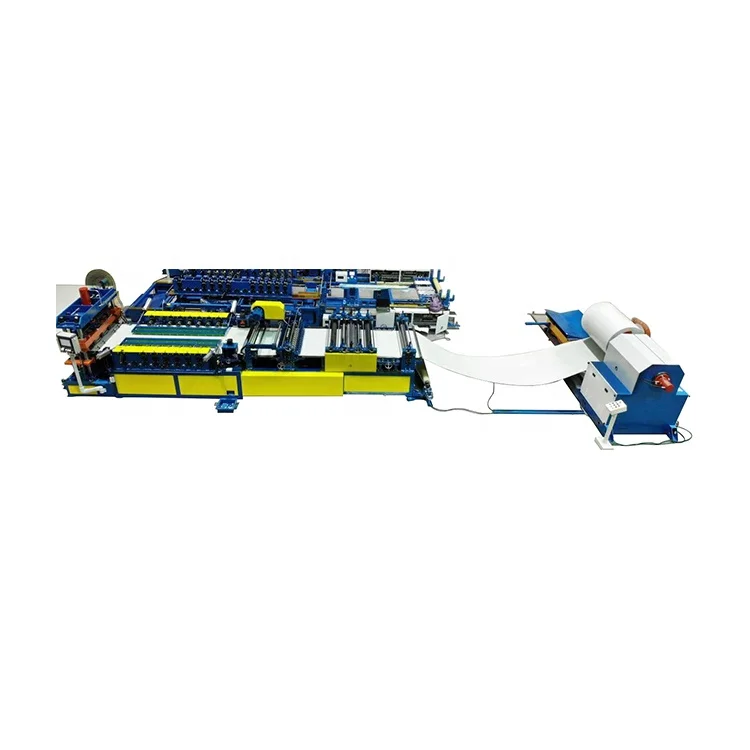

Модульная линия по производству сэндвич-панелей для очистки каменной ваты

Модульная линия по производству сэндвич-панелей для очистки каменной ваты

Категория товара: >>>
Поставщик (Оптовый магазин): Zhejiang,Jinggong,Integration,Technology,Co.,LtdZhejiang,Ltd

Цена:300 000,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Paramenters

Rock wool purification box panel production line

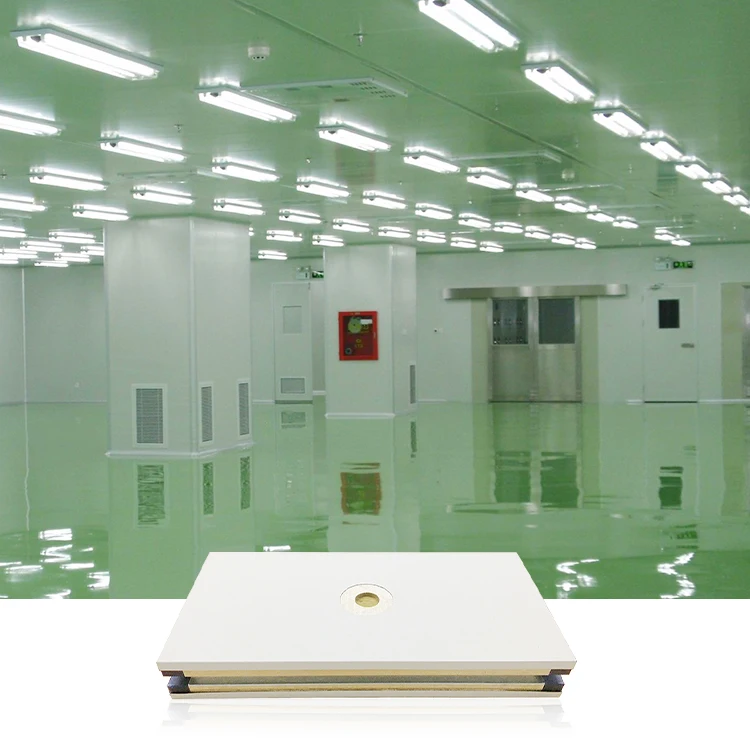

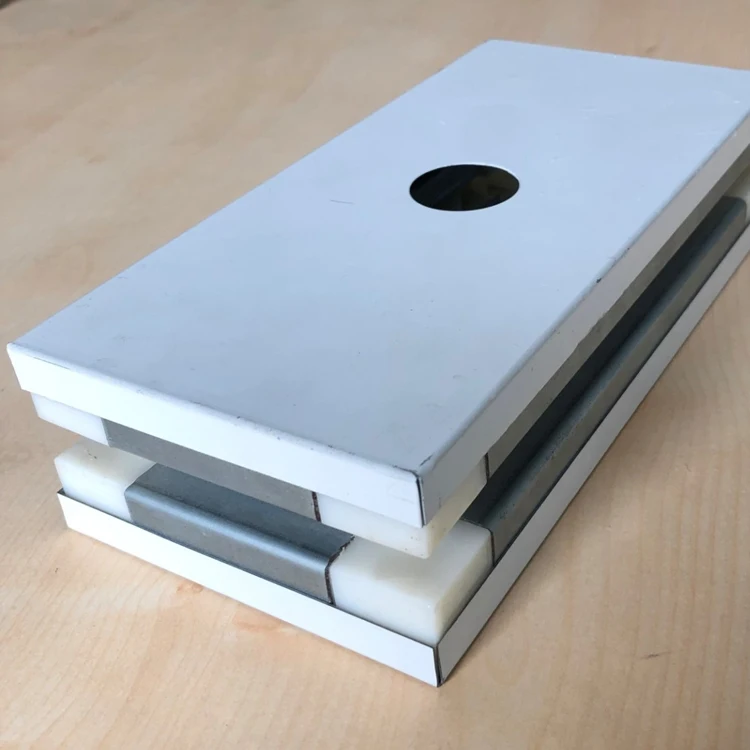

Rock wool purification box panel is a new generation of decorative wall enclosure material and thermal insulation material. It is the most popular new generation of building materials. It not only has the functions of enclosure, flame retardant, sound insulation and heat preservation, but also can prevent dust and bacteria, has the function of decoration. It is a new wall building material that can integrate enclosure, decoration and heat preservation.

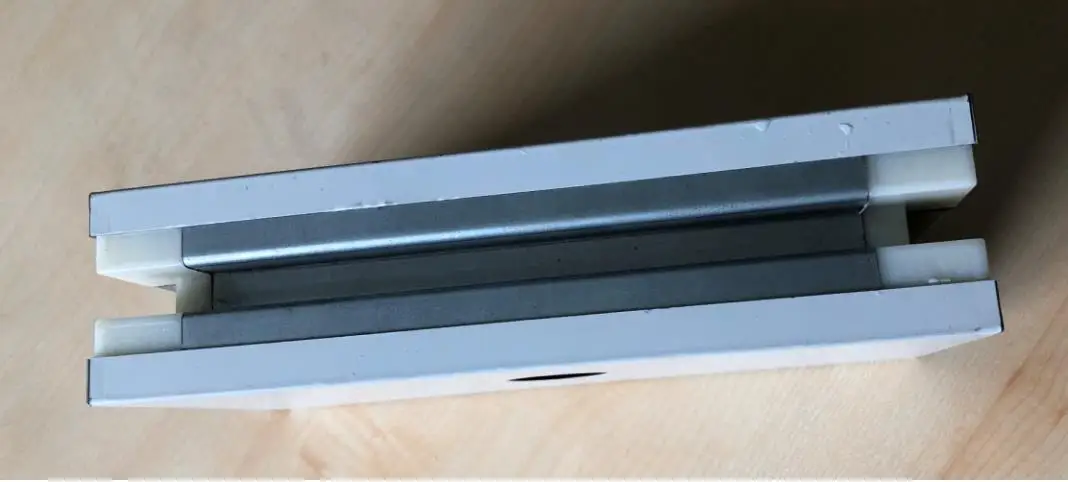

Sandwich panel specification：

Length：	2000--10000 mm
PU sandwich panel width：	1198/1178/978 mm
Purification box panel thickness：	50mm/75mm/100mm

Composition of continuous production line of rock wool purification box panel

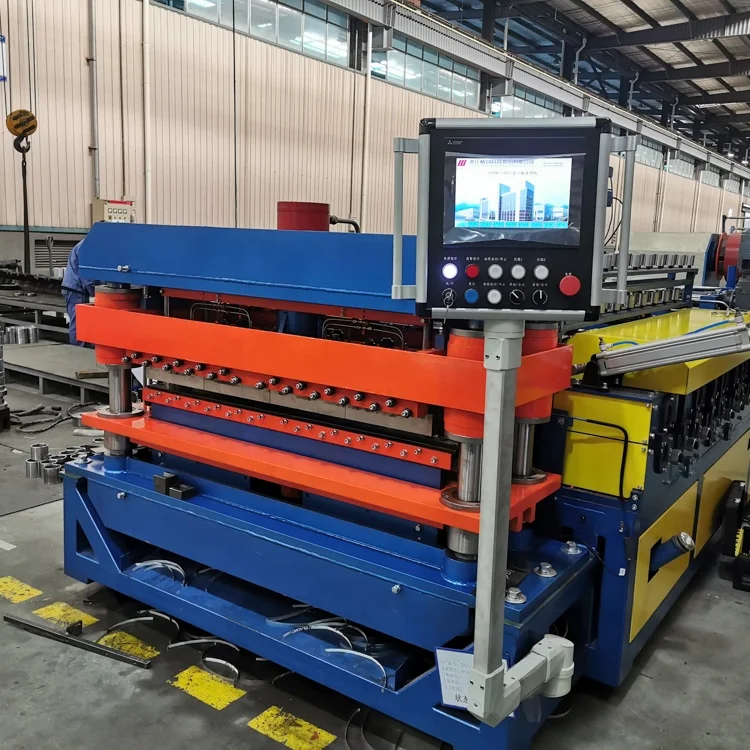

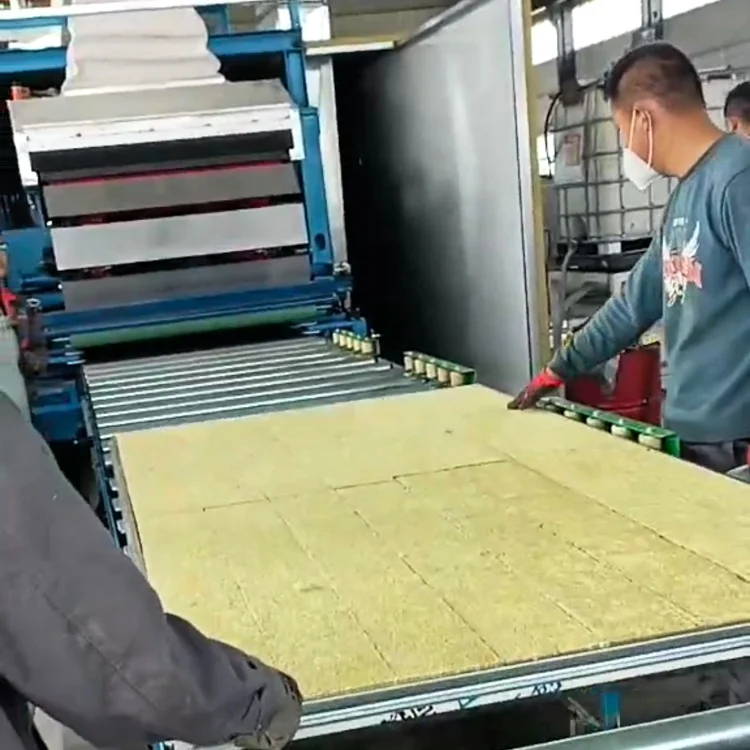

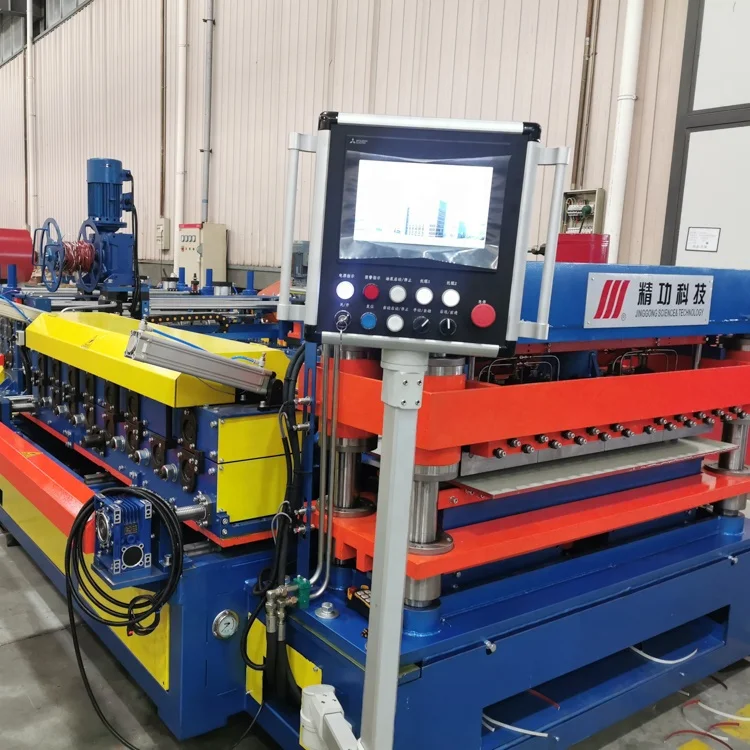

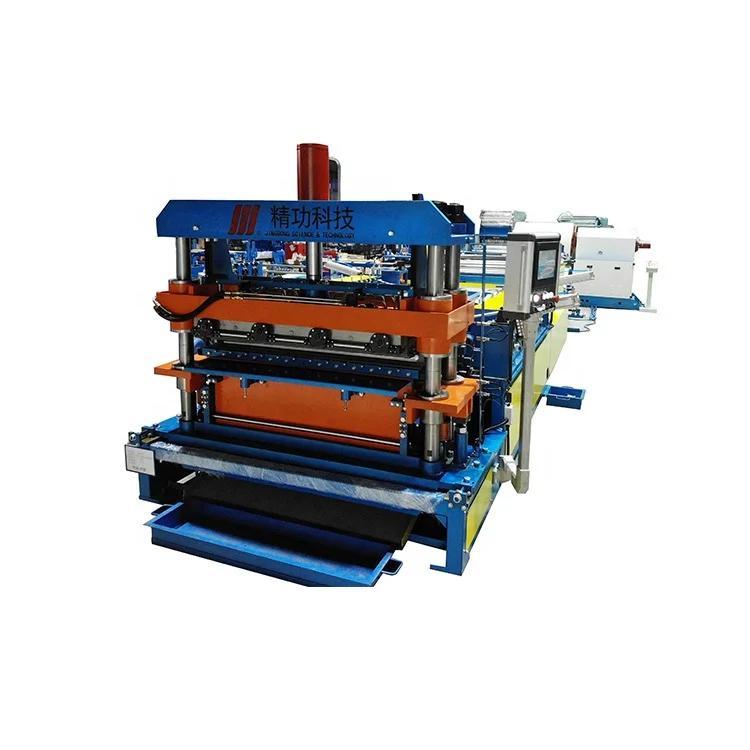

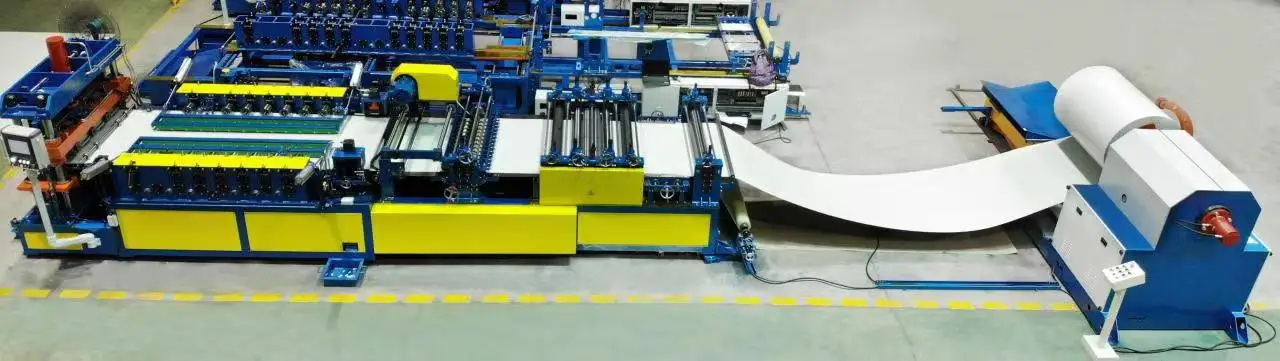

The continuous production line of rock wool purified box panel mainly consists of steel plate hard surface decoiler, forming machine (with filming, front and rear bending and cutting device), box panel conveying system, box panel glue spraying system, glass magnesium panel feeding system, glass magnesium panel cutting system, glass magnesium panel glue spraying system, glass magnesium panel conveying system, box panel turnover system, horizontal traverse, (box panel) feeding deviation prevention device, double belt, double belt heating system, stacking system and other equipments.

Production line specification
Line speed:	3 -- 6 m / min (adjustable)
Total length of production line:	About 75 m
Working height:	1200 mm (plate height)

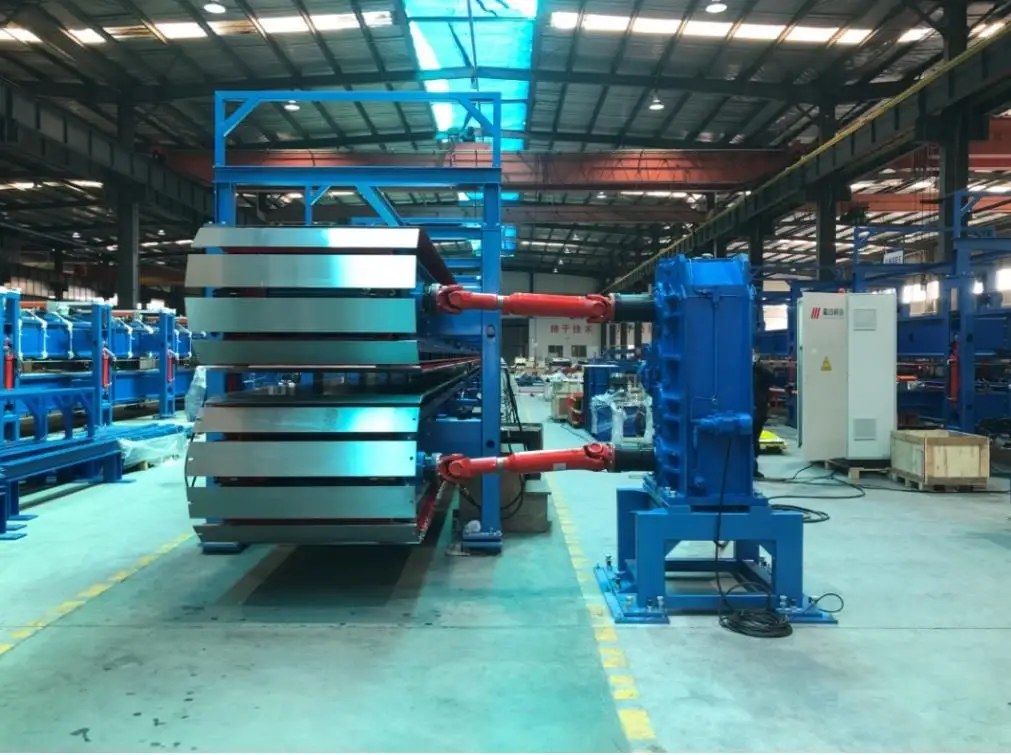

Effective length of double belt:	24 m (total length 25 m)
Control mode:	Imported PLC control is adopted
Total installed power:	About 100 kW (excluding electric heating power of 300 kW)
Power Supply:	380V / 3Ph / 50Hz
Control voltage:	24 V/220 V
Air supply pressure:	0.7 MPa (prepared by the Buyer)
Advantage	1.High degree of automation 2. High production efficiency 3. The forming edges and corners of box plate shape are small 4. The upper and lower belts adopts the form of chain plate (length 1300mm * width 200mm).5. The upper and lower belts adopt a main drive motor to mechanically ensure the synchronous walking of the upper and lower belts 6. It is easy to operate

Details Images

Filming device

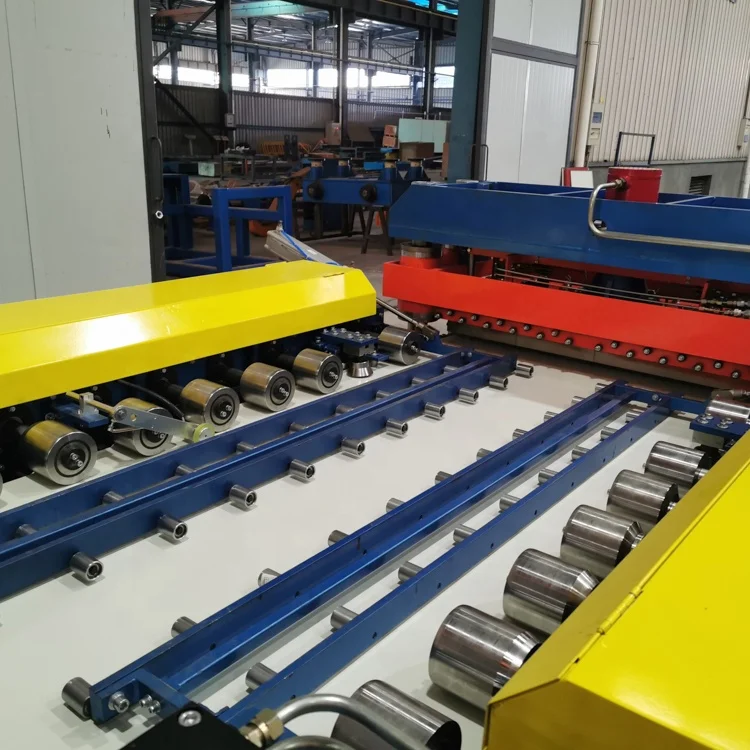

Feeding guide platform

Slitting device

Waste edge winding device

Heating system

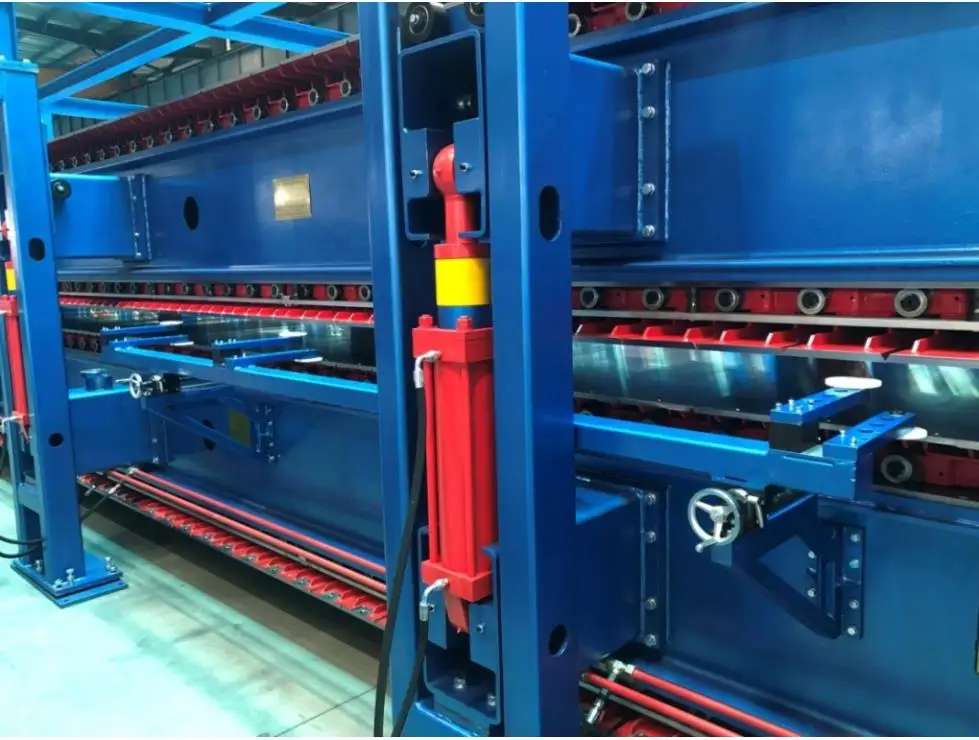

Double belt temperature control

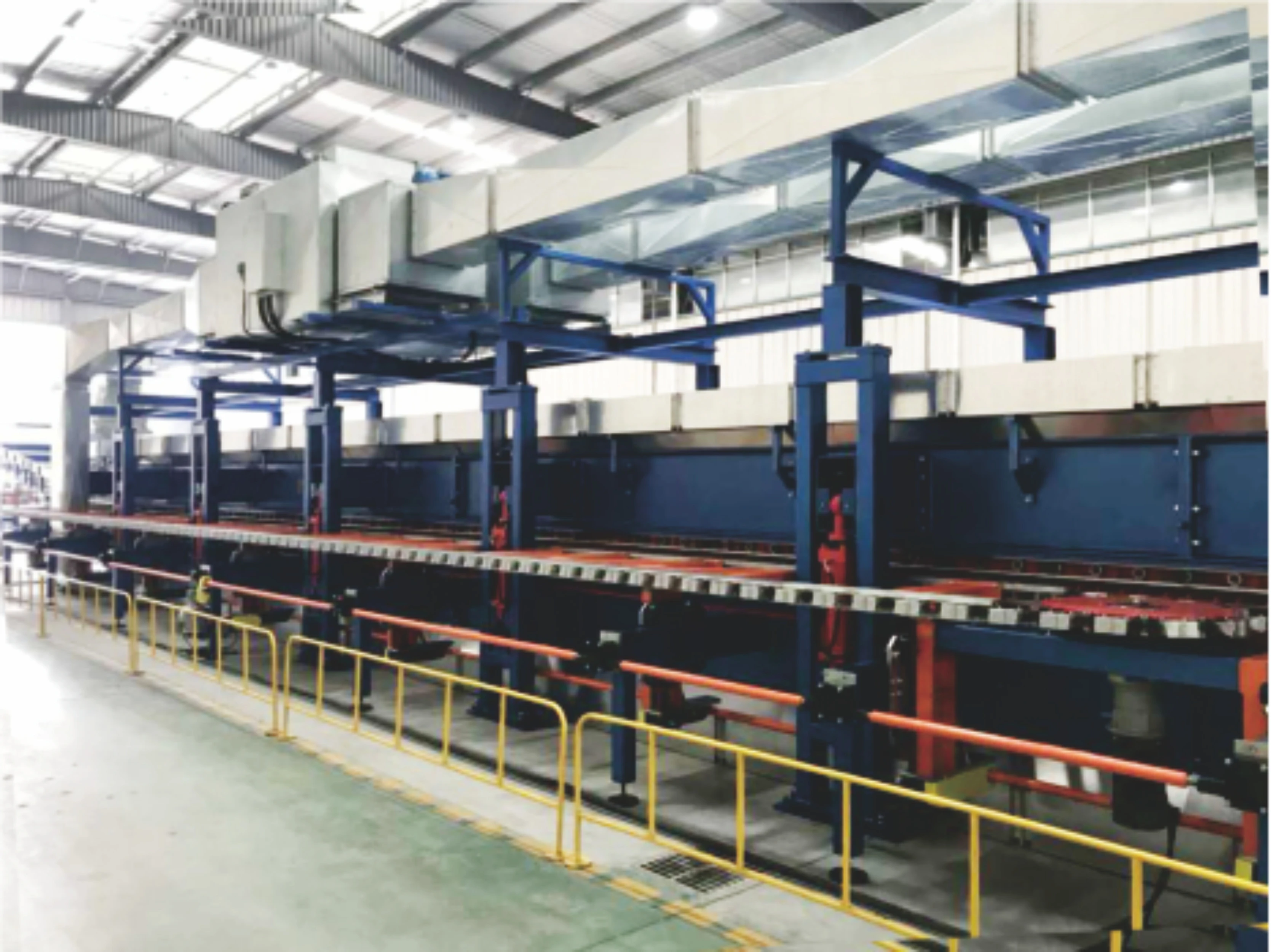

The double track temperature control system adopts hot air circulation heating. After the circulating air is heated by the heating device, it is sent to the heating air duct by the fan to heat the upper and lower track panels moving forward at a uniform speed.

Company Profile

FAQ

1、Does one machine can only produce one size?

Not exactly, it depends on the machine.

2、Do you have after sales support?

Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.

3、How to visit your company?

We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.

4、What can you do if the machine broken?

Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

5、Can you be responsible for transport?

Yes,please tell us the destination port or address. we have rich experience in transport.

6、You are trade company or factory?

We are Manufacturer.

7、Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

8、Do you have overseas engineers?

Yes, we not only provide overseas engineers, but also provide technical training.

9、Do you provide customized?

Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
