Бетонная Лазерная стяжка (тип стрелы) для
- Категория товара: Concrete Machinery >>>
- Поставщик (Оптовый магазин): Shandong,Vanse,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
1, Concrete laser screeds are used in concrete floor works, including flat floor works, slop works and double slops works. Such as factory, workshop, park, plaza, super market, exhibition hall, container yards, wharf, play ground, square and so on.
2, It has three important functions: Paving the concrete, Leveling the concrete floor, Compacting the concrete floor. It improves the quality of floor.
3, It can level the concrete floor automatically by microcomputer laser scanning.
4, It can improve the flatness of the concrete floor. The height deviation of all concrete floor is below 1.5mm.
5, It can save about 70% of manpower. So it can increase the profit greatly.
6, It can shorten the construction period. It can work quickly and well.
7,Operation is very easy.
8, The drive system is hydraulic drive fully.

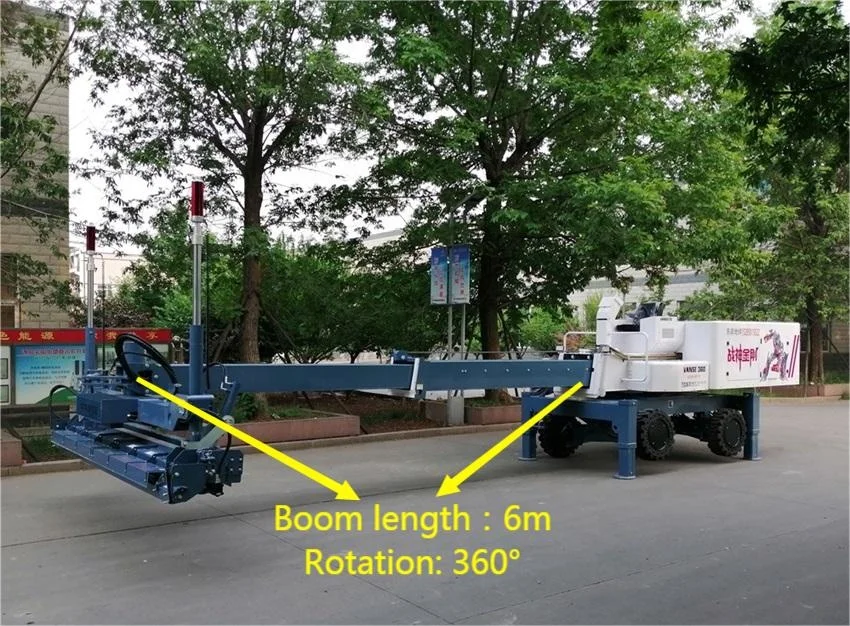

9, The telescopic boom is 6m long, 360 degrees rotary.
2, It has three important functions: Paving the concrete, Leveling the concrete floor, Compacting the concrete floor. It improves the quality of floor.
3, It can level the concrete floor automatically by microcomputer laser scanning.
4, It can improve the flatness of the concrete floor. The height deviation of all concrete floor is below 1.5mm.
5, It can save about 70% of manpower. So it can increase the profit greatly.
6, It can shorten the construction period. It can work quickly and well.
7,Operation is very easy.
8, The drive system is hydraulic drive fully.
9, The telescopic boom is 6m long, 360 degrees rotary.

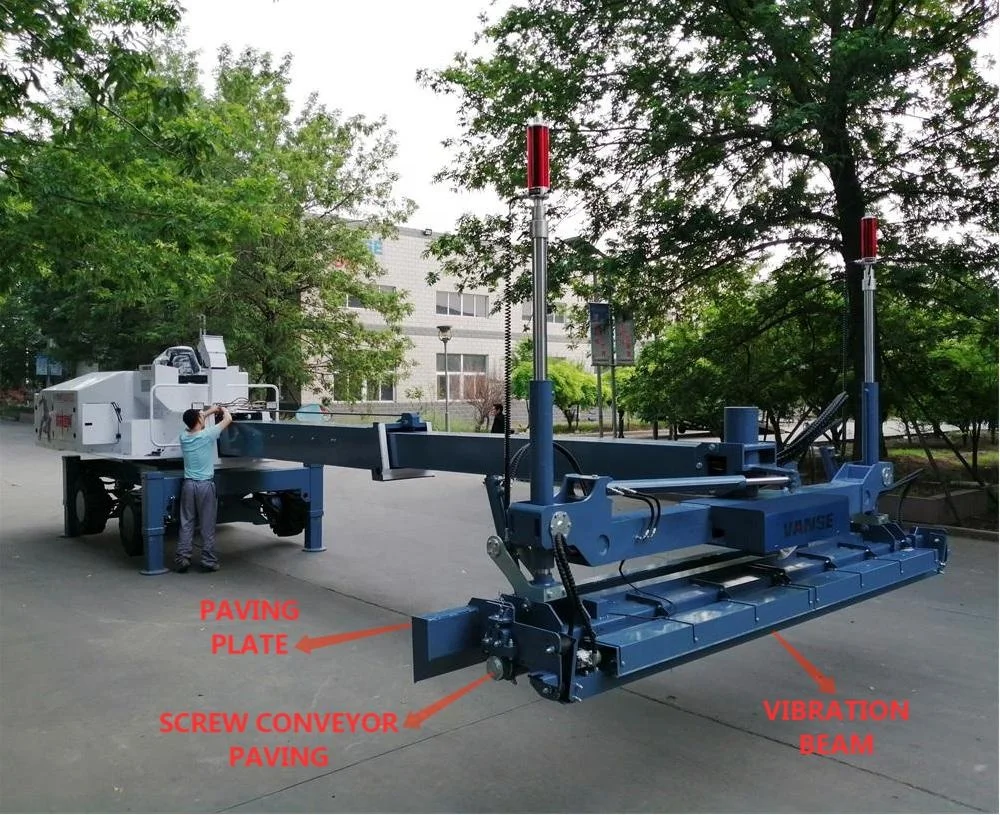

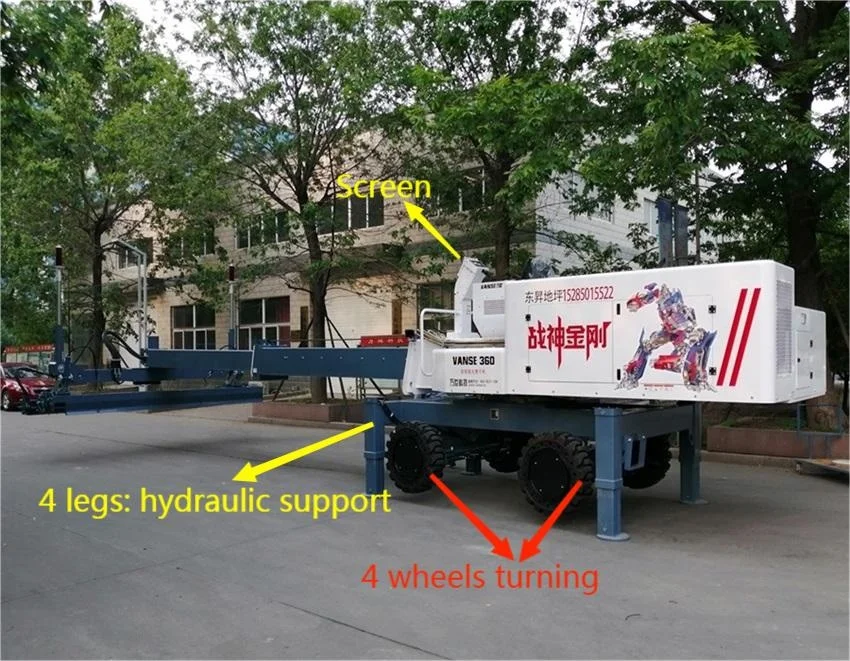

Details Images
Specification
Name | Concrete Laser Screed |
Type | YZ40-4E |
Engine Type | YANMAR 4TNV98T |
Characteristic | Water-cooled Diesel, 4 Stroke,4 Cylinder |
Cooling System | Closed Cooling Liquid |
Power | 63KW / 2500Rpm |
Fuel Consumption | <=254g/kw.h |
Fuel Tank Volume | 140L |
Engine Oil Volume | 8.9-10.6L |
Screed Width | 4M |
Telescopic Boom | 6M Long, 360° Rotation |
Screed Swing Angle | 120 Degrees. |

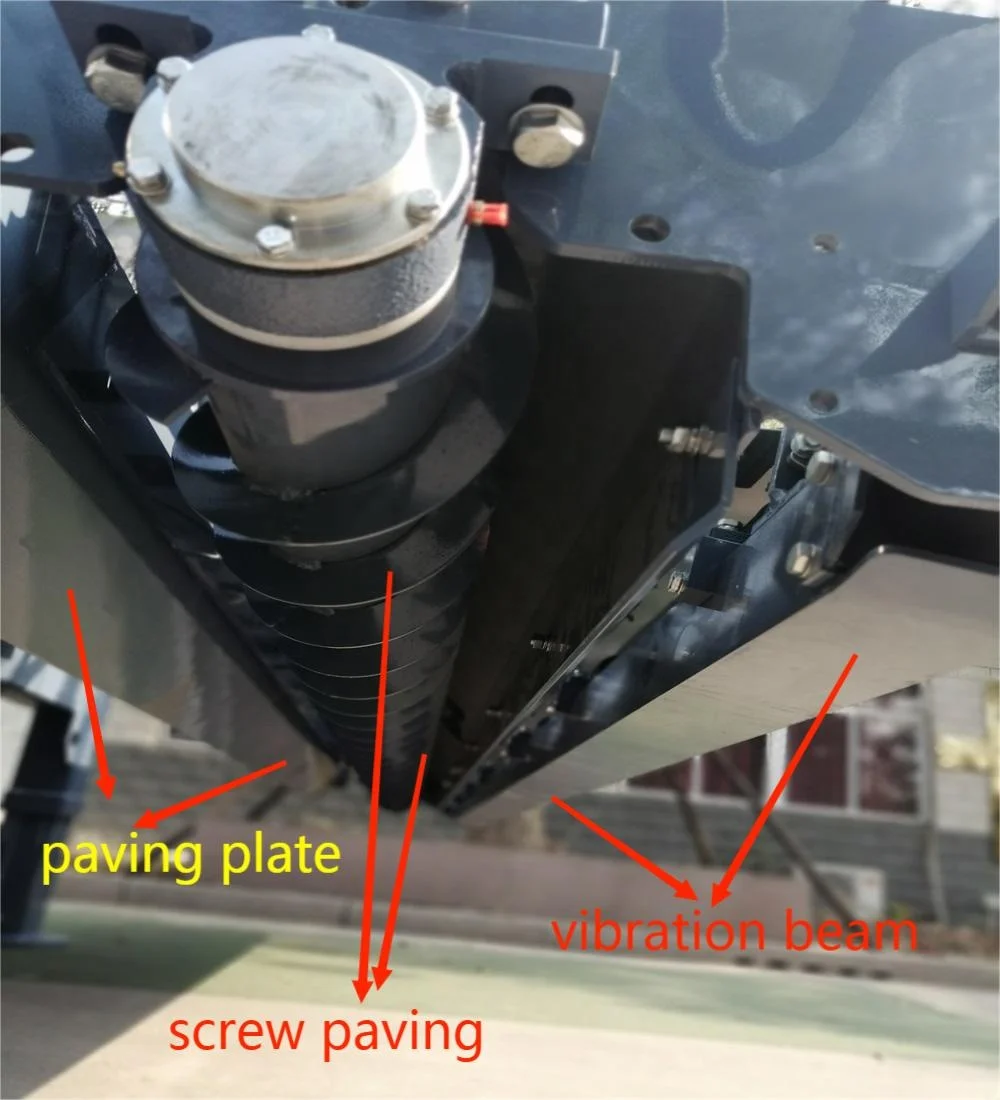

Paving Mode | Hydraulic Screw Conveyor Paving |
Paving Thickness | 5-45CM |
Leveling Precision | 1.5MM |
Vibrating System | Hydraulic Eccentric Vibrating Beam |
Excitation Force | 3000N |
Vibration Frequency | 60HZ |

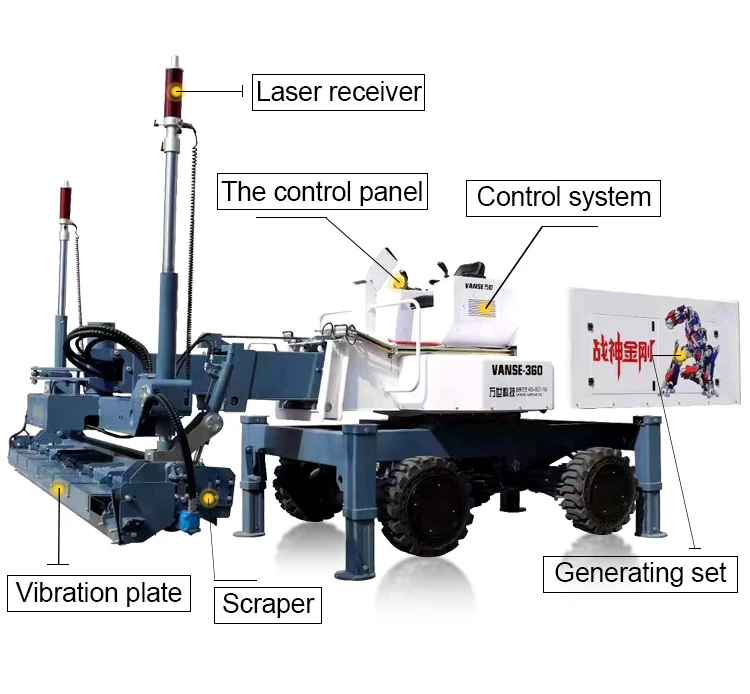

Configuration | Laser Emitter, Laser Receiver, Tripod |
Laser Control System | Microcomputer Laser Scanning |
Applicable Scope | Flat Surface、Slope/Double Slope （three-dimensional） |

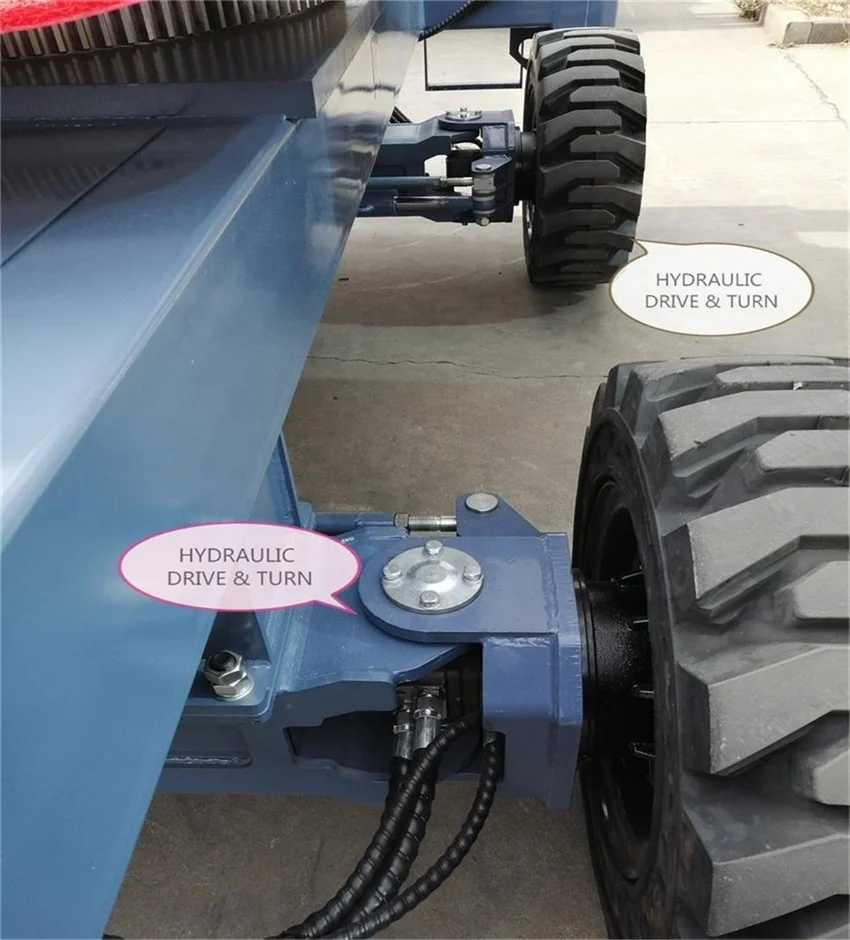

Drive Type | Full Hydraulic 4 Wheels Drive |
Mini turning radius | 2.9M |
Hydraulic Oil Tank | 200L |
Tyre | Solid Puncture-proof &Antiskid Tyre |
Walking Speed | 0-10 KM/H (Double speeds switch) |
Working Speed | 24㎡/Min |
Speed Control | Stepless Speed Change. |
Turning Mode | 2 Wheels/ 4 Wheels/ Crab Turn. |
Power | External Motor |
Theoretical Flow | 20m³/h |
Rated Pressure | 7kgs/c㎡ |
Outline Dimension | 5835*4470*2630 mm |
Net Weight | 8500Kgs |

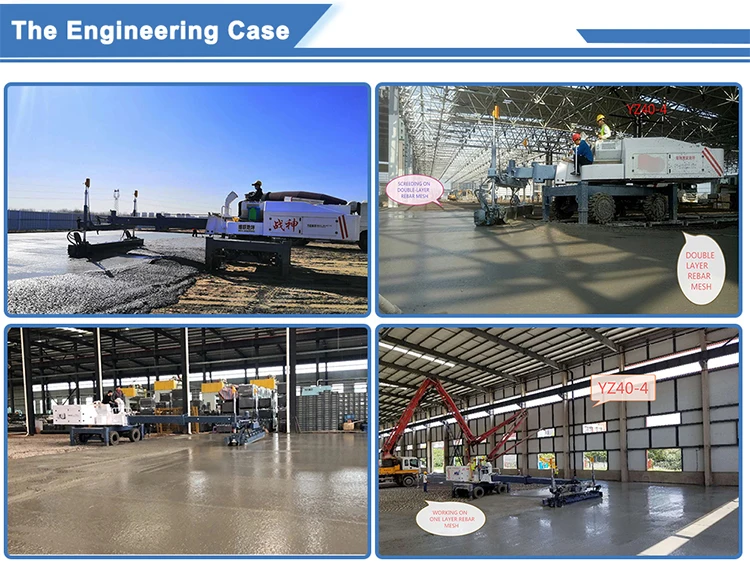

Application
Our Product Advantages:
A. Famous brand engine, brand quality assurance, superior performance, start easily.
B. Gearbox large module design, aluminum alloy enclosure, free maintenance, long service life.
C. Wipe the line-structure-light bracket, choose the strict heat treatment of large diameter carbon structural steel, strong and durable.
D. Scientific design of the centrifugal clutch driving mechanism, transmission torque, long service life, maintenance is very convenient.
E. Surface coating, rust corrosion.
A. Famous brand engine, brand quality assurance, superior performance, start easily.
B. Gearbox large module design, aluminum alloy enclosure, free maintenance, long service life.
C. Wipe the line-structure-light bracket, choose the strict heat treatment of large diameter carbon structural steel, strong and durable.
D. Scientific design of the centrifugal clutch driving mechanism, transmission torque, long service life, maintenance is very convenient.
E. Surface coating, rust corrosion.
Related Products
Company Information
Our Service
Packing & Delivery
FAQ
1. What is the delivery time ?
Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok , then send to port .
2. How about the warranty ?
We supply 12 months warranty .
3. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
4. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
5. Can the machine use the trademark of our own company?
Yes ,sir ,of course .
6. Can we customize the product according to our requirements?
Yes ,sir ,no problem .
7. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .Or we can also use Iron Frame to pack them . If machine is big, we use iron frame much more .
Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok , then send to port .
2. How about the warranty ?
We supply 12 months warranty .
3. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
4. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
5. Can the machine use the trademark of our own company?
Yes ,sir ,of course .
6. Can we customize the product according to our requirements?
Yes ,sir ,no problem .
7. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .Or we can also use Iron Frame to pack them . If machine is big, we use iron frame much more .
