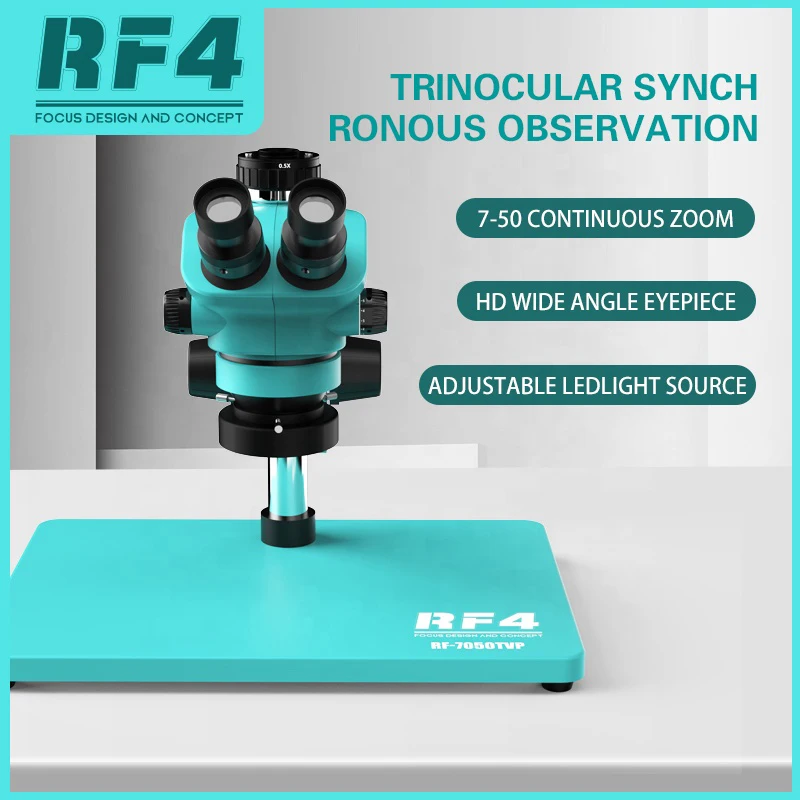

Высококачественный Тринокулярный стереомикроскоп Rf7050tvp, медицинский студенческий учебный микроскоп
- Категория товара: Optical Instruments >>>
- Поставщик (Оптовый магазин): Shenzhen,Guste,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

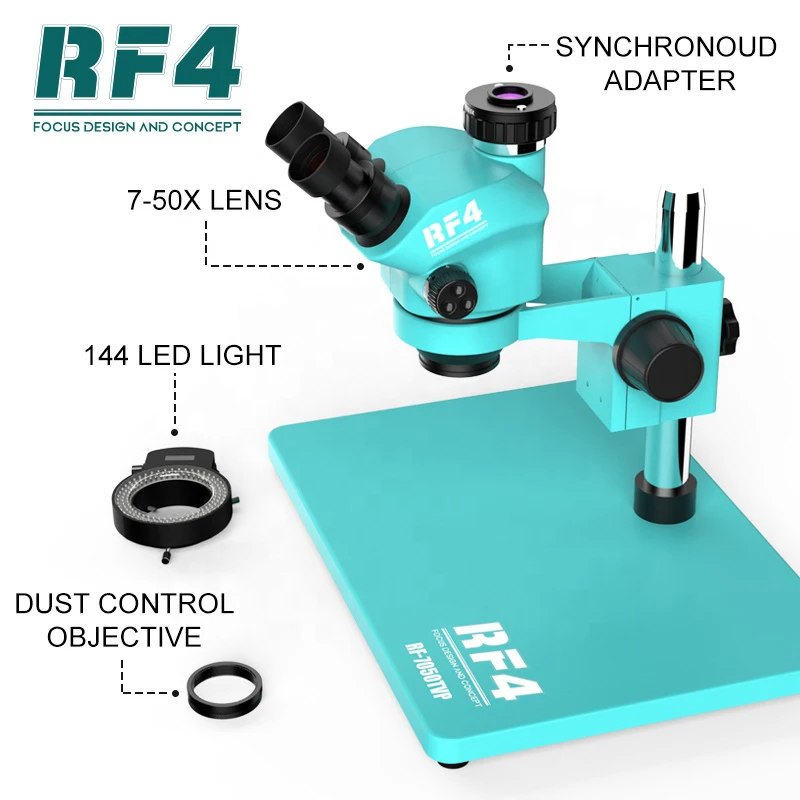

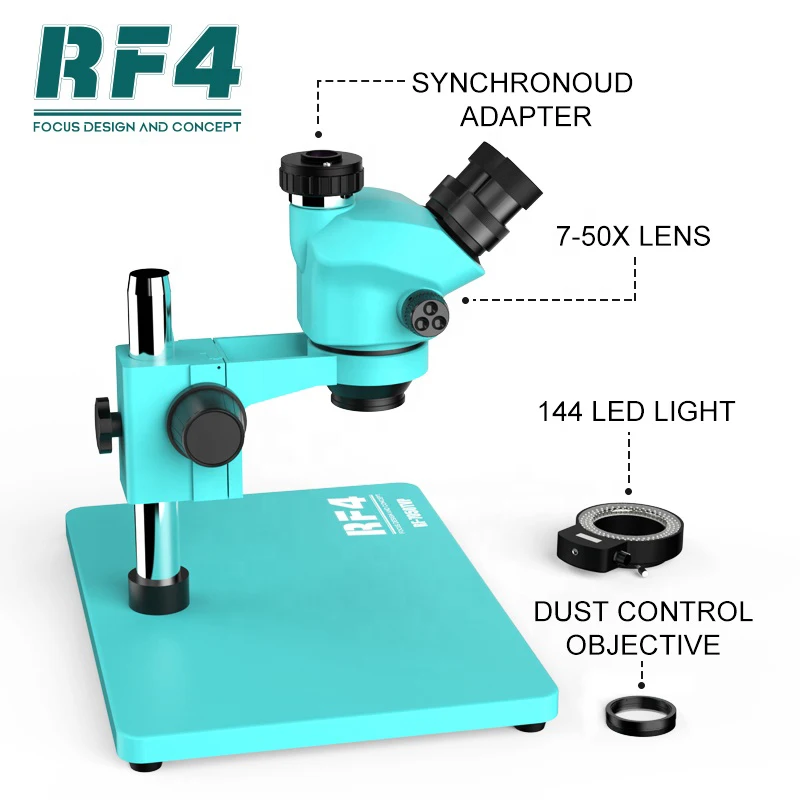

RF7050TVP Big Base 7-50X Synchronous Zoom Gems Microscope Mobile Phone Repair Trinocular Stereo Microscope Repair tools
Features:

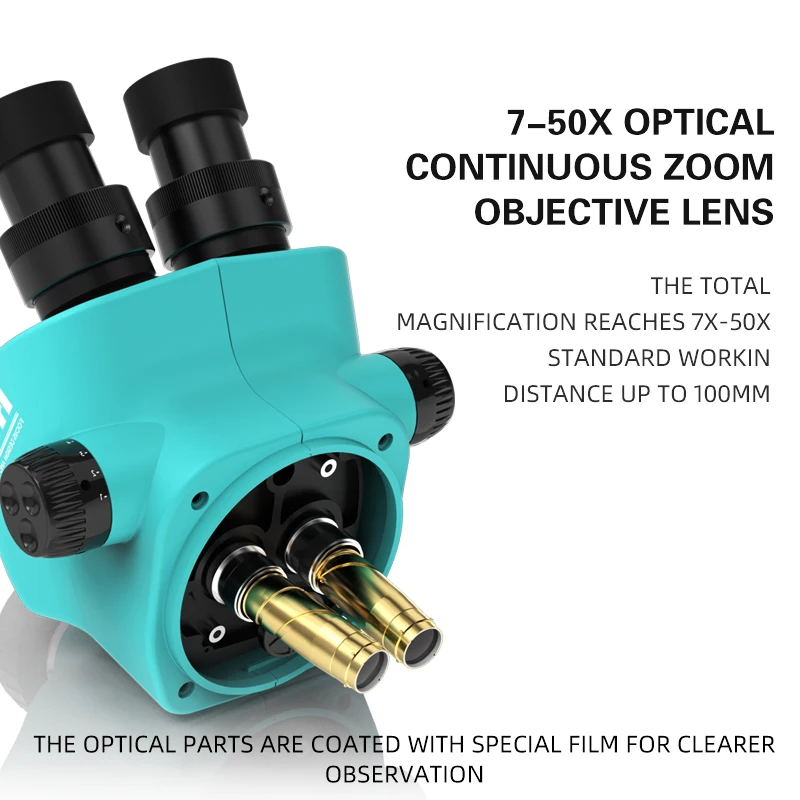

Magnification:continuous zoom 7X to 50X

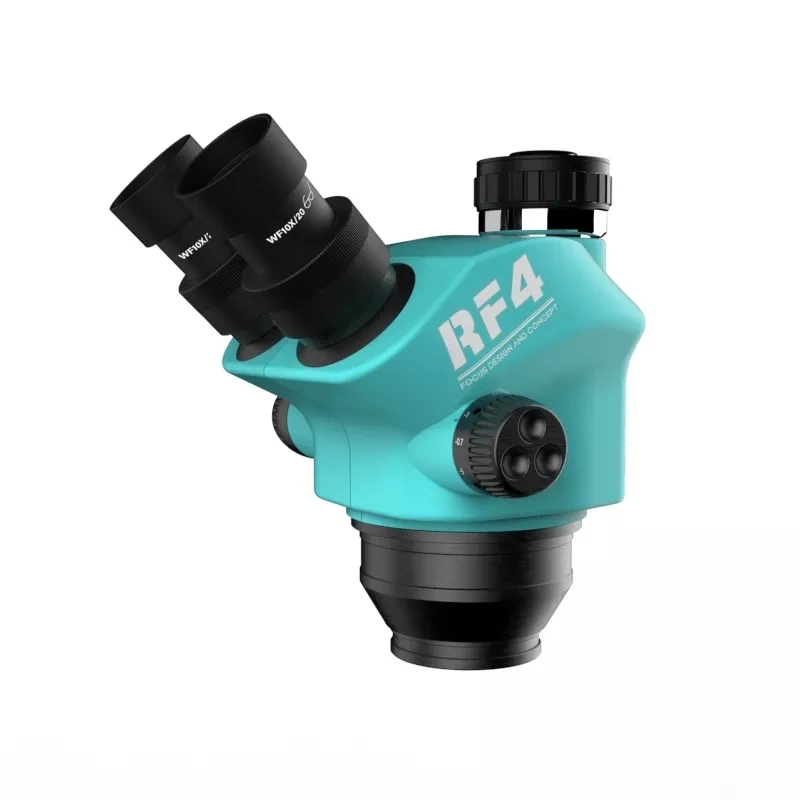

Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens:0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector:1/2ctv
Monitor and eyepiece. Synchronous zoom Camera:Different models optional

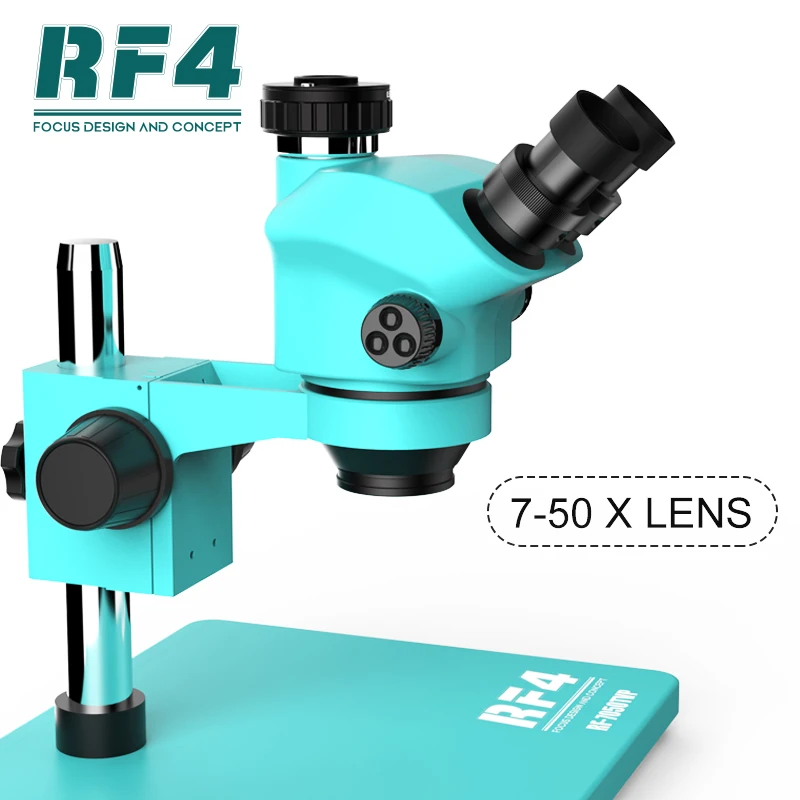

Boom Stand: 250mm φ32mm pillar, 380mm*260mm base

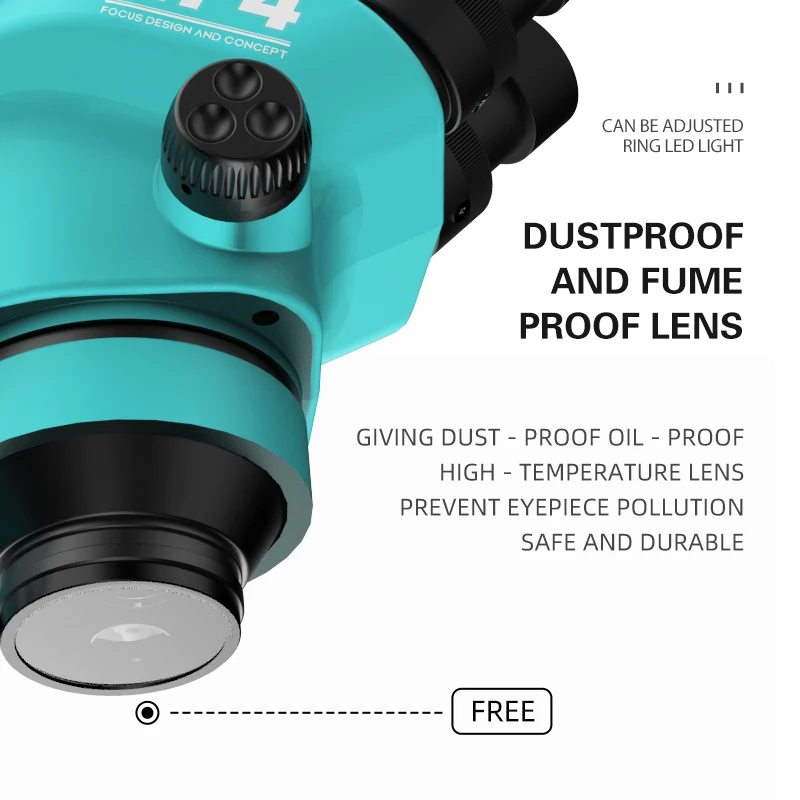

Accessories: 144 adjustable led light & dust proof Lens

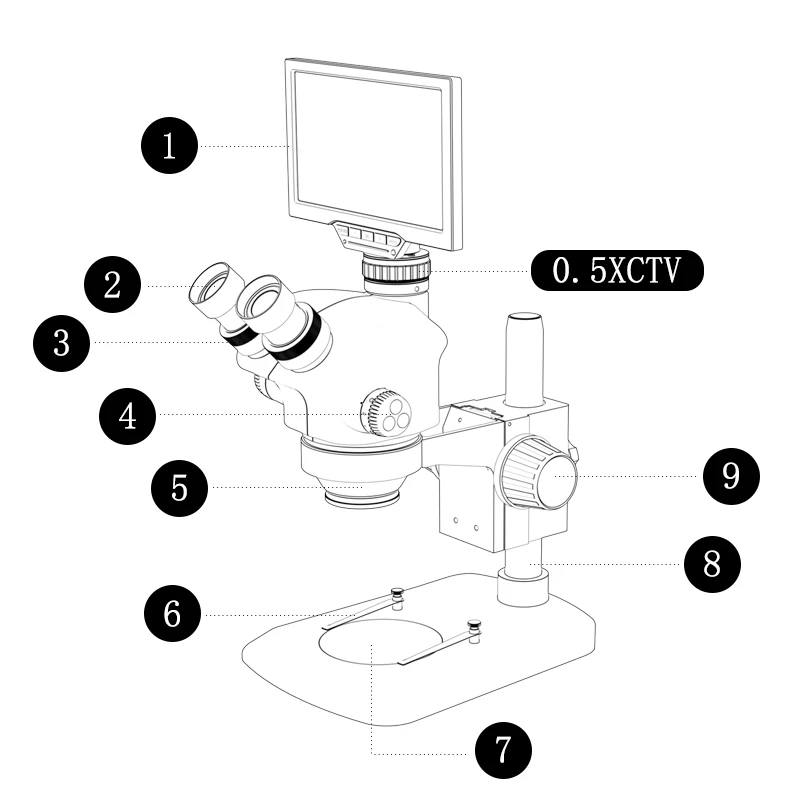

Microscopic structure
1 16MP Wifi 10inch Display 2 Eye shields
3 Eyepieces
4 Zoom Control Knob
5 Objective Lens
6 clip
7 black and white plate
8 Round Column
9 Focusing knob
1 16MP Wifi 10inch Display 2 Eye shields
3 Eyepieces
4 Zoom Control Knob
5 Objective Lens
6 clip
7 black and white plate
8 Round Column
9 Focusing knob

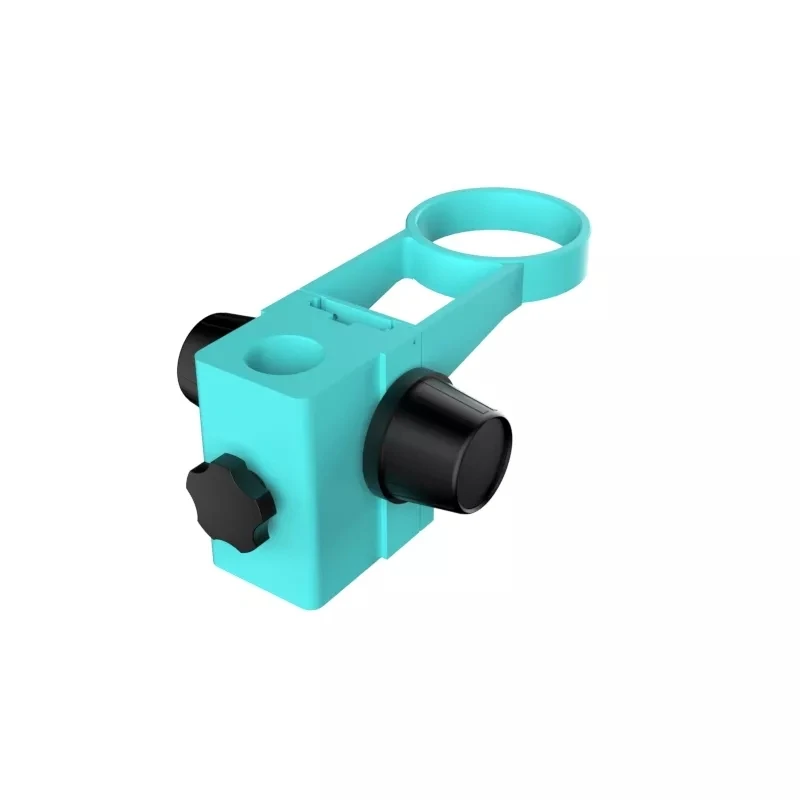

Support parameters
Column aperture: Φ32mm
Lens aperture: Φ76mm
Column aperture: Φ32mm
Lens aperture: Φ76mm
Center distance: 155mm
Lifting range: 50mm
Lifting range: 50mm

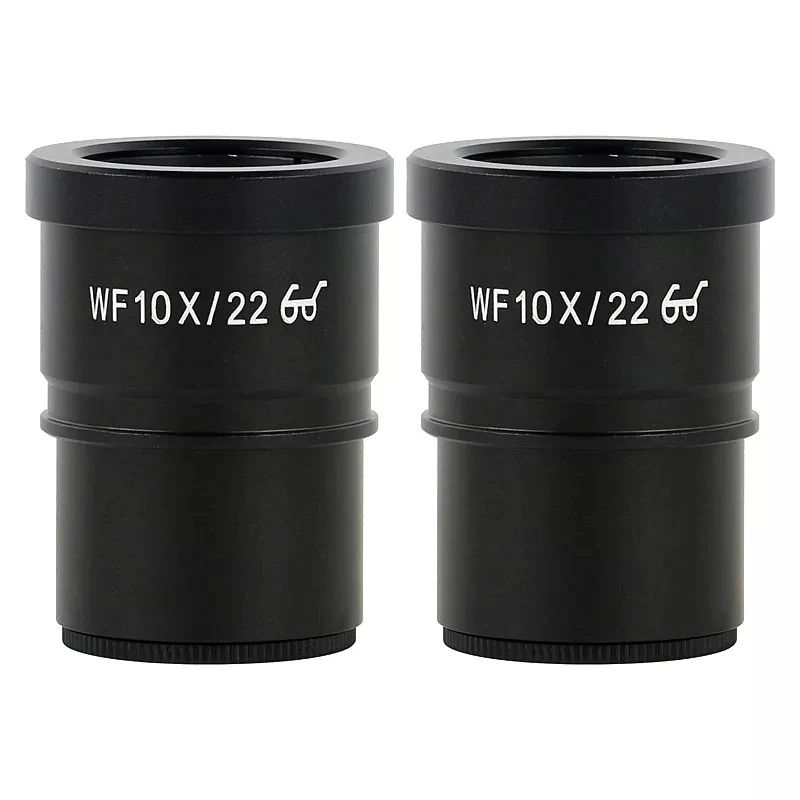

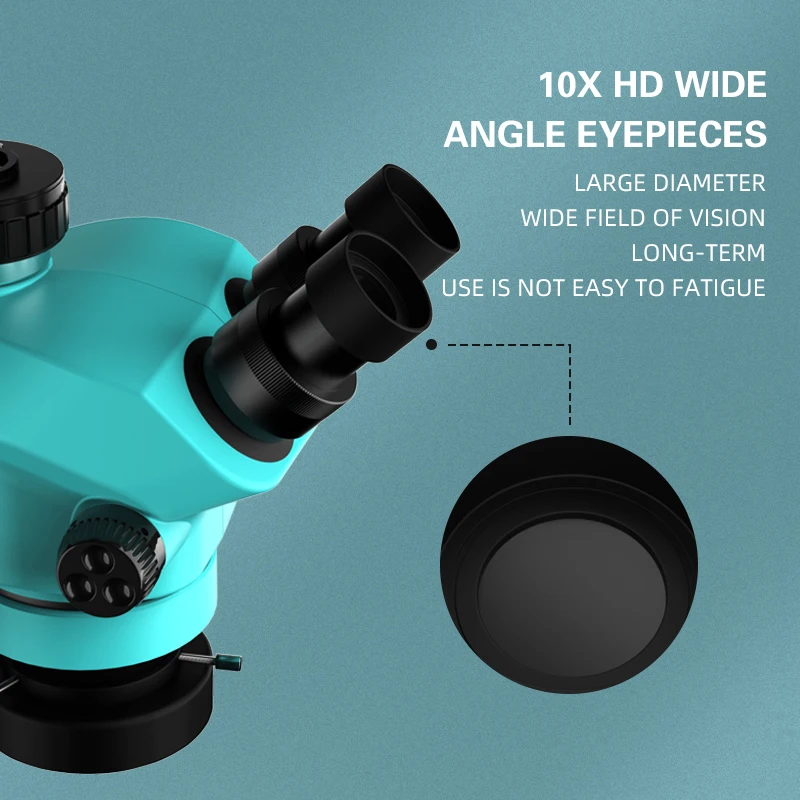

Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes

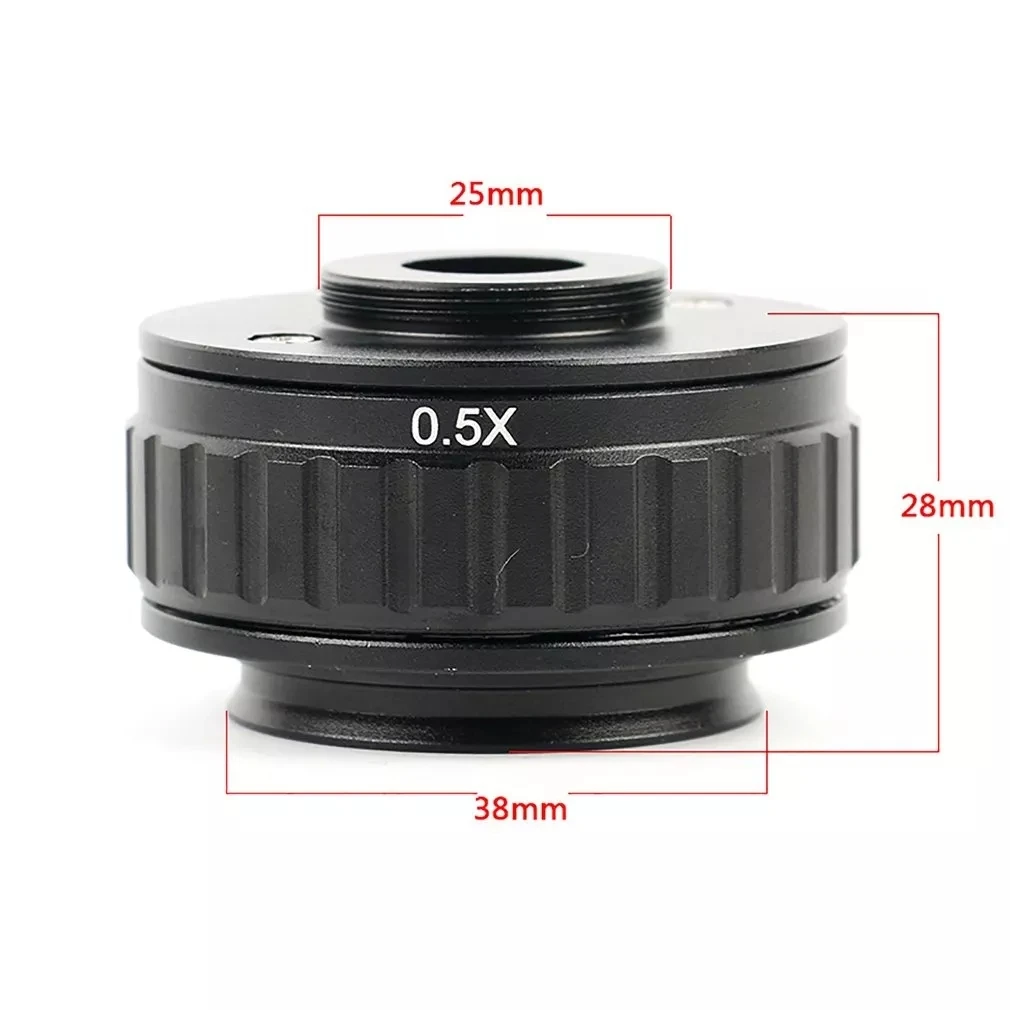

0.5X CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet. 2The adapter
ring can use LCD to focus, this kind of focus method is manual focus. 3 The adapter has a transparent mirror inside, which can
help the microscope display and the other display to achieve synchronous zooming. 4 Weight: 0.09kg.
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet. 2The adapter
ring can use LCD to focus, this kind of focus method is manual focus. 3 The adapter has a transparent mirror inside, which can
help the microscope display and the other display to achieve synchronous zooming. 4 Weight: 0.09kg.

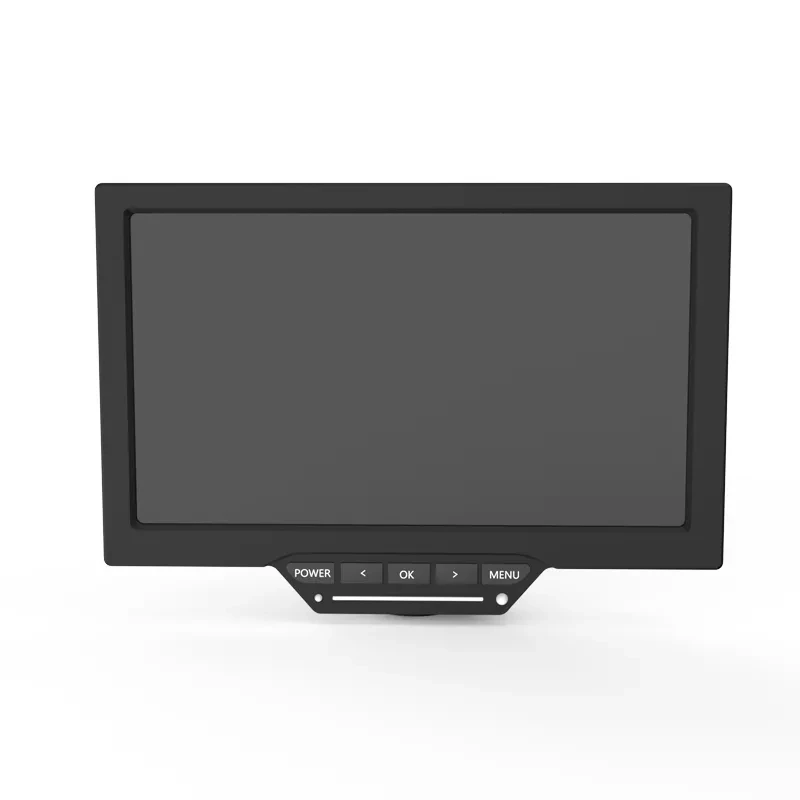

Microscope Display Parameters
Size : 10 inch
The microscope is equipped with a wireless WiFi connection function, and you can store and process data through the wireless
connection. WiFi output supports Android and IOS systems
Size : 10 inch
The microscope is equipped with a wireless WiFi connection function, and you can store and process data through the wireless
connection. WiFi output supports Android and IOS systems

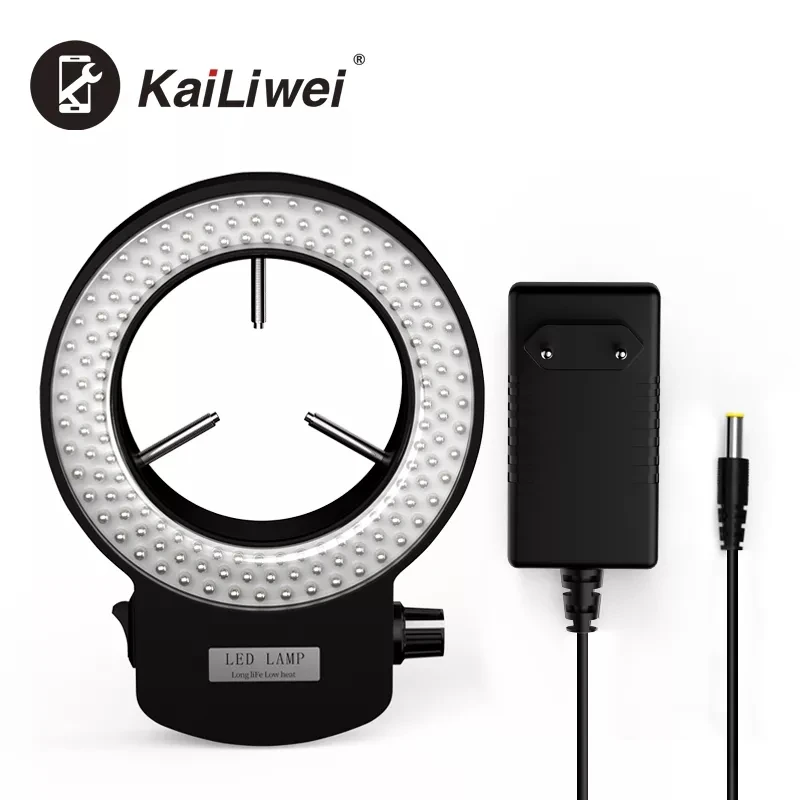

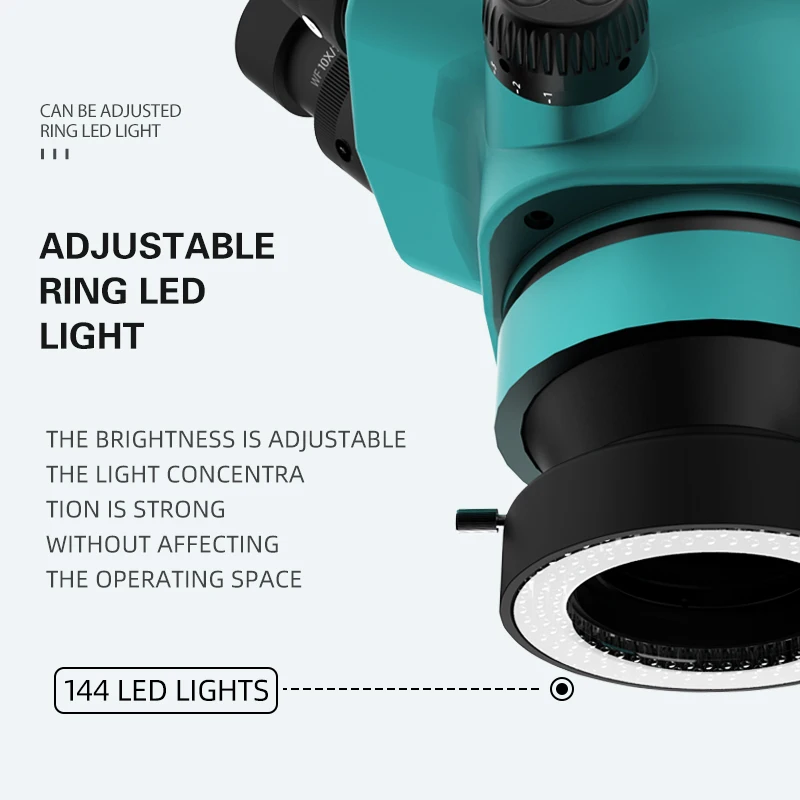

144 LED Ring Light
Input:AC 100-240V , 50/60Hz
Output:DC 12V , max 700mA
Light color:White
Number of lights:144 LEDs
Inside diameter 60mm
Input:AC 100-240V , 50/60Hz
Output:DC 12V , max 700mA
Light color:White
Number of lights:144 LEDs
Inside diameter 60mm

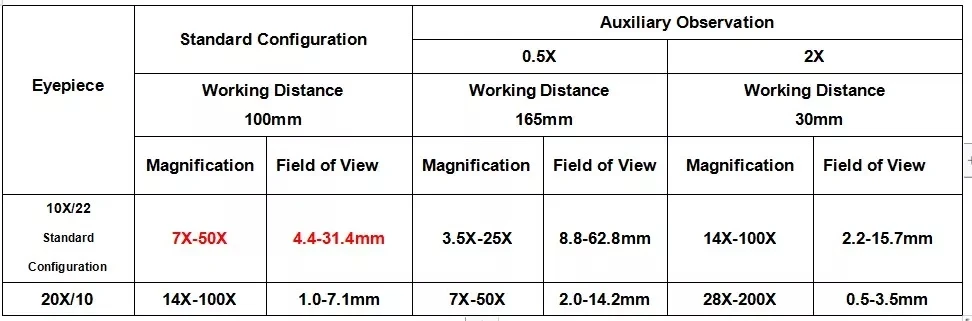

Different eyepieces match different magnifications of the same objective lens
Company Profile
Payment & Shipping
FAQ
Q1: What is your delivery time?
A1: For products in stock, the delivery time is 3~7days. For products without stock, the delivery time is 20 days.
Q2: How long does it take to execute my order?
A2: This depends on the size and complexity of the order. Please let us know the quantity of the item and your special requirements so that we can recommend the production schedule.
Q3: What is the shipping cost?
A3: This will depend on your shipping volume and shipping method. When you check the shipping costs, please let us know your preferred shipping method (air or sea) and destination.
Q4: How to pay us ?
A4:We accecpt the most payments such as TT, Paypal, Alipay, VISA, etc.
Q5: Can the product sample be offered?
A5:Yes, after receiving your inquiry , we will arrange to send the sample within 3 days.
Q6. Why I choose you?
A.We are manufacturer of kinds of tools related to electronics maintenance.You can buy what you need here at very reasonable price.
B. With 14 years experience in this filed,we have the ability to provide good service and products in low cost.
C. Adequate inventory to make sure that our clients can obtain goods in a short period.
For other questions, please contact us freely.
