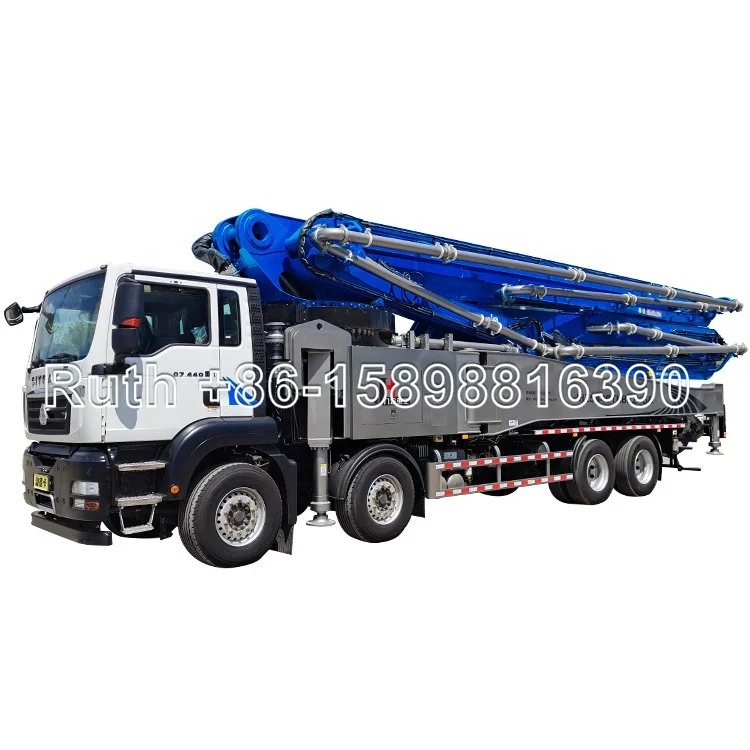

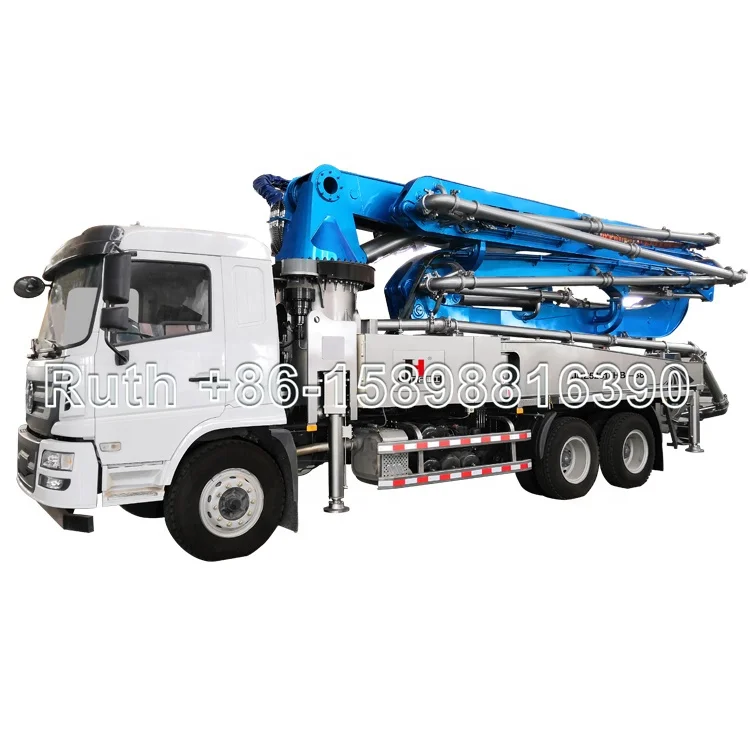

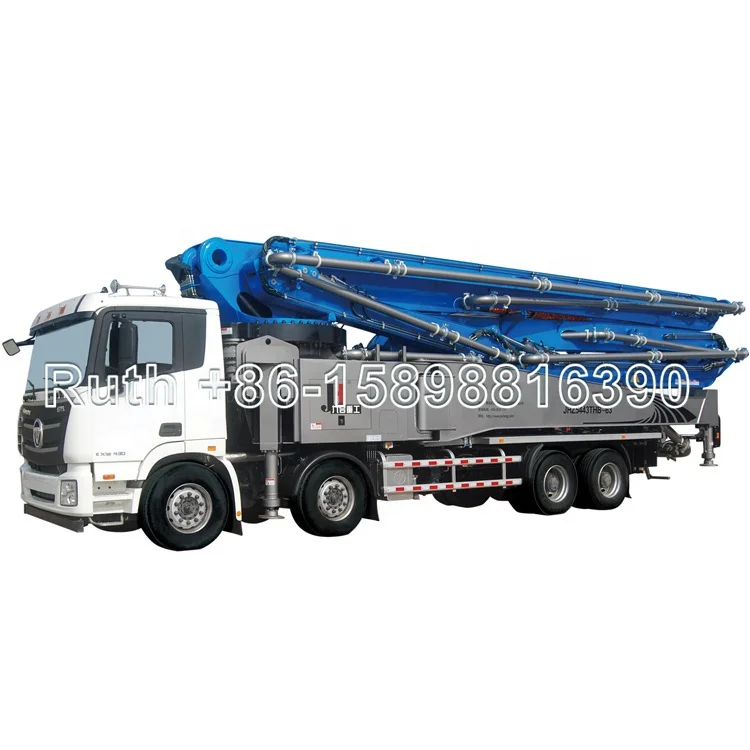

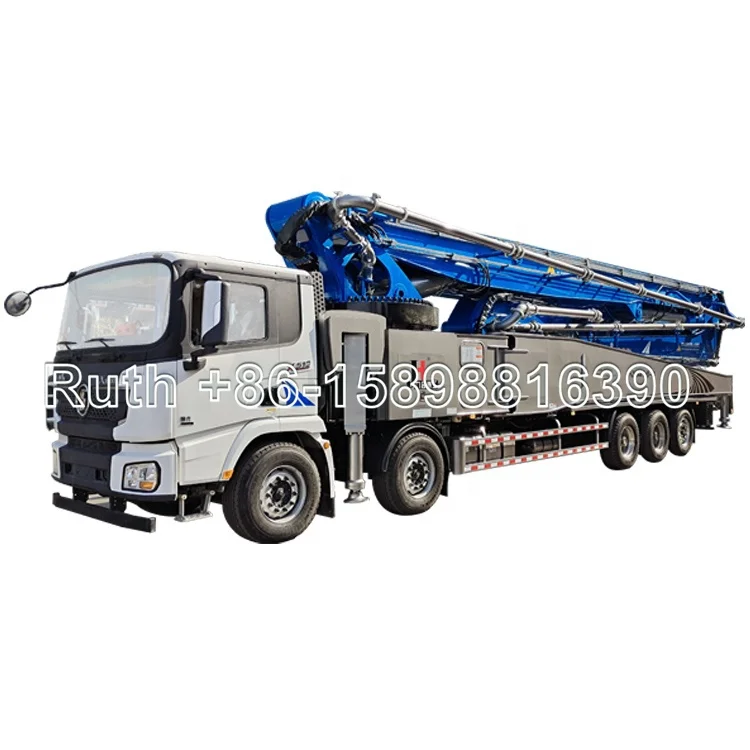

Бетононасос JIUHE, бетононасос для грузовиков 30 м 38 м 52 м 58 м 62 м 70 м, Китай

Бетононасос JIUHE, бетононасос для грузовиков 30 м 38 м 52 м 58 м 62 м 70 м, Китай

Категория товара: Concrete Pumps >>>
Поставщик (Оптовый магазин): Qingdao,Jiuhe,Heavy,Industry,Machinery,Co.,Ltd.

Цена:230 000,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

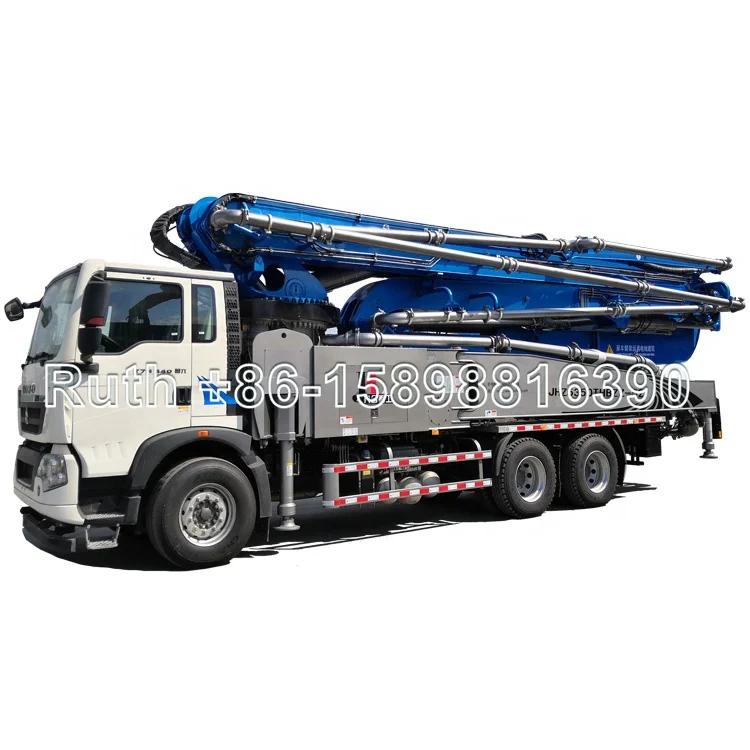

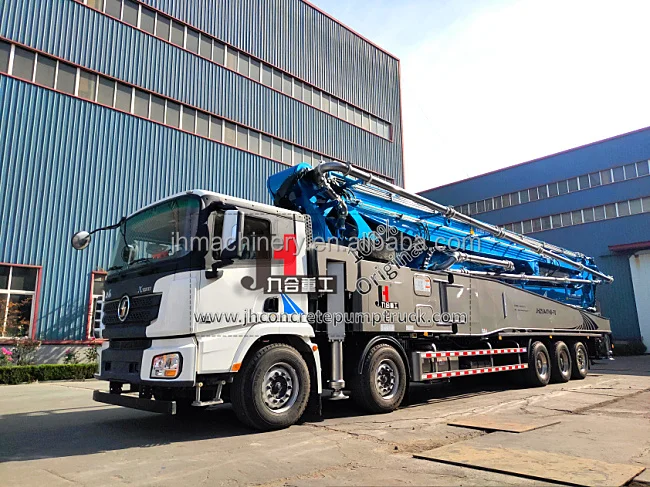

China truck concrete pump factory JIUHE boom pump truck 30m 38m 52m 58m 62m 70m concrete pump truck

JH concrete pump trucks are competitive products designed by JIUHE MACHINERY.it is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumpingsystem. Jib structures are flexible, the trucks move easily, safe and stable.

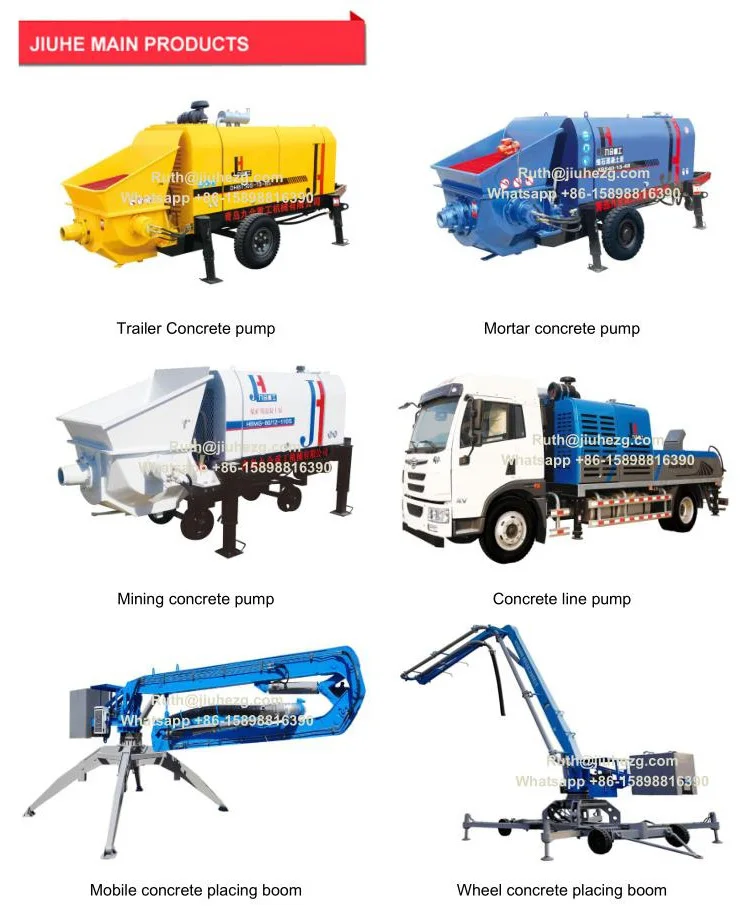

JIUHE is specialized in researching, manufacturing, sale and after sale for construction machinery, main products:trailer concrete pump, concrete line pump, concrete pump truck, concrete placing boom, wet shotcrete machine, ladder lift truck, high altitude working truck and so on.

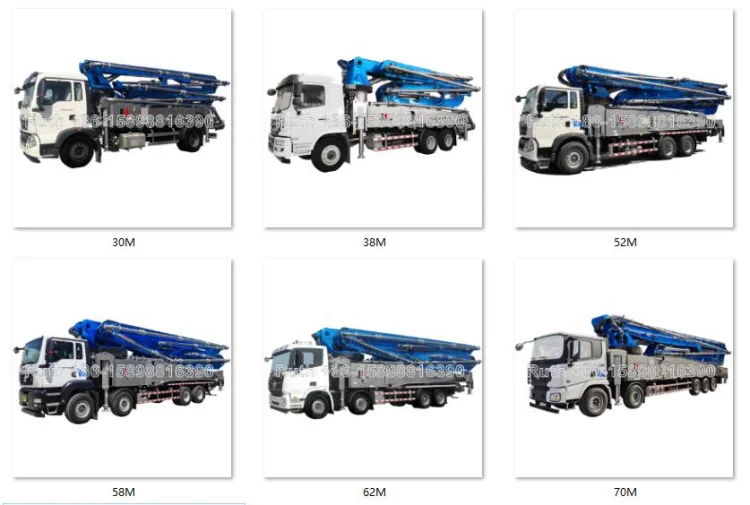

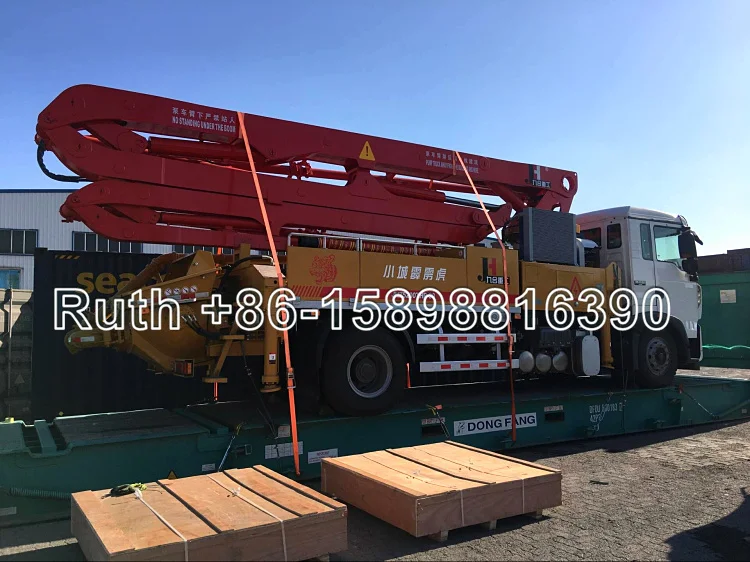

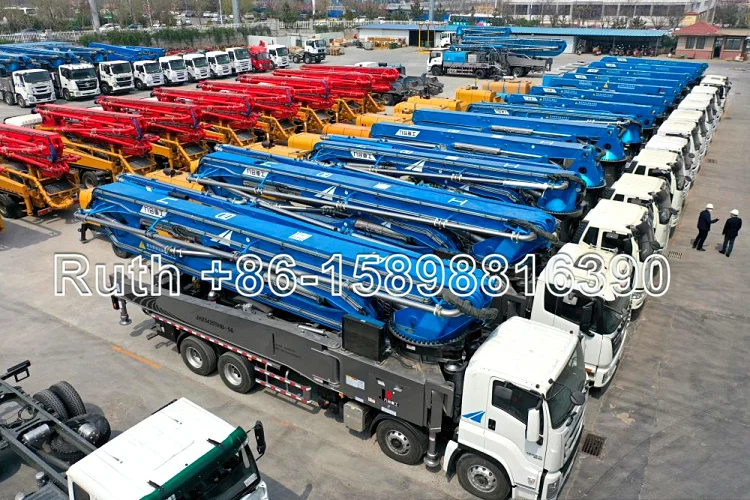

JIUHE Produce 30m\\38m\\52m\\58m\\62m\\70m concrete pump truck, full range pumping capacity and boom length to meet different meet in concrete pumping projects.CE, ISO, CCC all authorized certificates, excellent quality with favorable price, below just our 70m specification, any meters you interested,welcome contact me for detailed infomration

I. Chassis
1	Chassis Brand	Shacman
2	Driving type	10*4
3	Power	510HP
II. Boom system
1	Max. Vertical height(M)	69.3
2	Max. Horizontal Concrete Placing radius (M)	65.3
3	Concrete placing depth(M)	51.8
4	Boom control mode	Electricity proportion
5	Boom Number	6
6	Fold mode	RZ
7	tower rotation angle(°)	±270
8	Legs mode	X-R
9	Rubber hose length(MM)	3000
4	Concrete delivery pipe dia. (MM)	125
III. Electric Control System
1	Working voltage(V):	24
2	Remote control	HBC
IV. Hydraulic transmission system
1	Type of hydraulic system	Open type
2	System working pressure (Mpa)	32
3	Hydraulic fuel tank capacity (l)	880
4	Cooling mode of hydraulic oil	Forced-air Cooling
VI. Pumping system
1	Form of concrete distribution valve	S Valve
2	Feeding height (mm)	1500
3	Concrete cylinder	260
4	Hopper capacity (M3 )	0.6
5	Slump of pumped concrete	160-220
6	Dimension of allowable maximum aggregate (MM)	40
7	Lubricating method	Centralized lubrication
