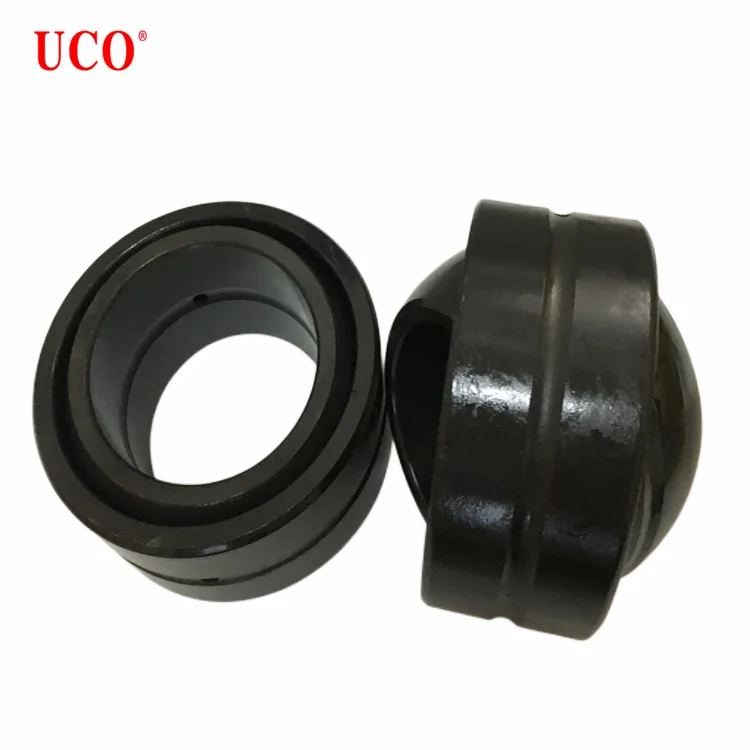

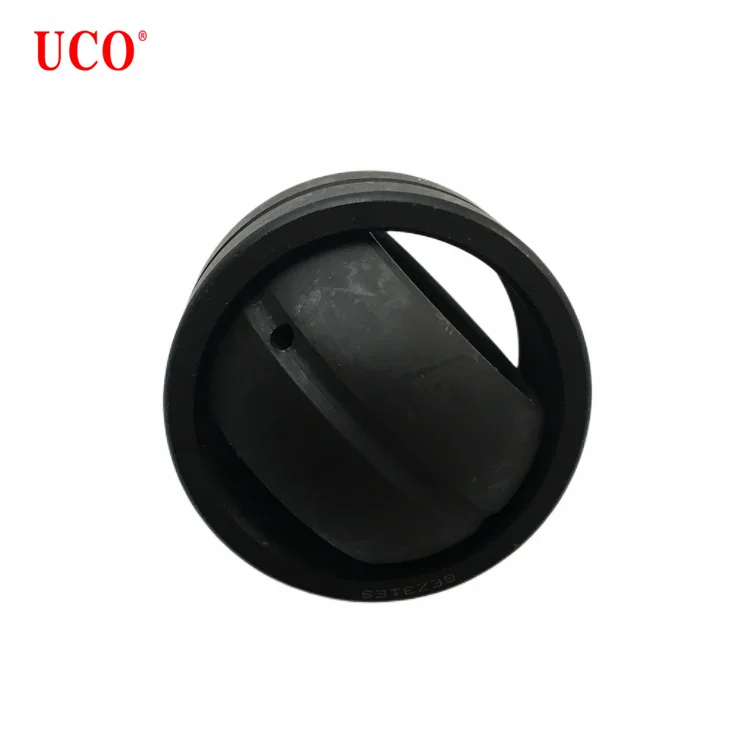

Коррозионно-стойкие SA4-20B SA4-22B SA4-25B SA4-30B SA4-35B SA4-40B SA4-45B SA4-50B дюймовый подшипник поворотного
- Категория товара: Bearings >>>
- Поставщик (Оптовый магазин): Shandong,Zhouyou,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Number:
GE... E - 4 ~ 12
GE... ES 15 ~ 300
GE... ES 15 - to 300-2 rs
Sliding friction pair: steel/steel
Product features: The outer ring has an axial seam, inner and outer ring materials are bearing steel, quenched, phosphating,
sliding surface coated with molybdenum disulfide. Except FOR THE REAR CODE E of the model, the inner and outer rings of the other
models have lubrication groove oil holes, and the rear code -2RS is the outer ring with sealing rings at both ends.
Operating temperature range: GE... E -- -- 50 ℃ ~ + 150 ℃
GE... ES - 50 ℃ ~ + 150 ℃
GE... ES - 2 rs - 30 ℃ ~ + 130 ℃
GE... ES 15 ~ 300
GE... ES 15 - to 300-2 rs
Sliding friction pair: steel/steel
Product features: The outer ring has an axial seam, inner and outer ring materials are bearing steel, quenched, phosphating,
sliding surface coated with molybdenum disulfide. Except FOR THE REAR CODE E of the model, the inner and outer rings of the other
models have lubrication groove oil holes, and the rear code -2RS is the outer ring with sealing rings at both ends.
Operating temperature range: GE... E -- -- 50 ℃ ~ + 150 ℃
GE... ES - 50 ℃ ~ + 150 ℃
GE... ES - 2 rs - 30 ℃ ~ + 130 ℃

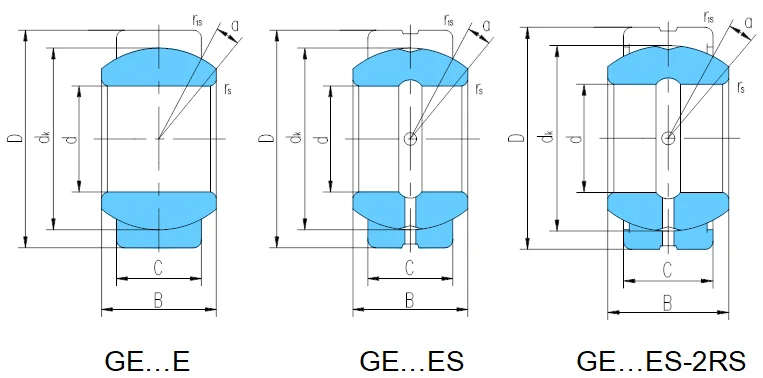

Bearing number | Bearing number | d | D | B | C | dk | Weight ≈kg |
GE4E | 4 | 12 | 5 | 3 | 8 | 0.003 | |
GE5E | 5 | 14 | 6 | 4 | 10 | 0.005 | |
GE6E | 6 | 14 | 6 | 4 | 10 | 0.004 | |
GE8E | 8 | 16 | 8 | 5 | 13 | 0.007 | |
GE10E | 10 | 19 | 9 | 6 | 16 | 0.011 | |
GE12E | 12 | 22 | 10 | 7 | 18 | 0.017 | |
GE15ES | GE15ES-2RS | 15 | 26 | 12 | 9 | 22 | 0.026 |
GE17ES | GE17ES-2RS | 17 | 30 | 14 | 10 | 25 | 0.040 |
GE20ES | GE20ES-2RS | 20 | 35 | 16 | 12 | 29 | 0.064 |
GE25ES | GE25ES-2RS | 25 | 42 | 20 | 16 | 35.5 | 0.115 |
GE30ES | GE30ES-2RS | 30 | 47 | 22 | 18 | 40.7 | 0.149 |
GE35ES | GE35ES-2RS | 35 | 55 | 25 | 20 | 47 | 0.228 |
GE40ES | GE40ES-2RS | 40 | 62 | 28 | 22 | 53 | 0.318 |
GE45ES | GE45ES-2RS | 45 | 68 | 32 | 25 | 60 | 0.421 |
GE50ES | GE50ES-2RS | 50 | 75 | 35 | 28 | 66 | 0.562 |
GE55ES | GE55ES-2RS | 55 | 85 | 40 | 32 | 74 | 0.864 |
GE60ES | GE60ES-2RS | 60 | 90 | 44 | 36 | 80 | 1.03 |
GE70ES | GE70ES-2RS | 70 | 105 | 49 | 40 | 92 | 1.57 |
GE80ES | GE80ES-2RS | 80 | 120 | 55 | 45 | 105 | 2.32 |
GE90ES | GE90ES-2RS | 90 | 130 | 60 | 50 | 115 | 2.79 |
GE100ES | GE100ES-2RS | 100 | 150 | 70 | 55 | 130 | 4.44 |
GE110ES | GE110ES-2RS | 110 | 160 | 70 | 55 | 140 | 4.83 |
GE120ES | GE120ES-2RS | 120 | 180 | 85 | 70 | 160 | 8.11 |
GE140ES | GE140ES-2RS | 140 | 210 | 90 | 70 | 180 | 11.2 |
GE160ES | GE160ES-2RS | 160 | 230 | 105 | 80 | 200 | 14.1 |
GE180ES | GE180ES-2RS | 180 | 260 | 105 | 80 | 225 | 18.5 |
GE200ES | GE200ES-2RS | 200 | 290 | 130 | 100 | 250 | 28.4 |
GE220ES | GE220ES-2RS | 220 | 320 | 135 | 100 | 275 | 35.7 |
GE240ES | GE240ES-2RS | 240 | 340 | 140 | 100 | 300 | 39.7 |
GE260ES | GE260ES-2RS | 260 | 370 | 150 | 110 | 325 | 51.5 |
GE280ES | GE280ES-2RS | 280 | 400 | 155 | 120 | 350 | 64.9 |
GE300ES | GE300ES-2RS | 300 | 430 | 165 | 120 | 375 | 77.6 |

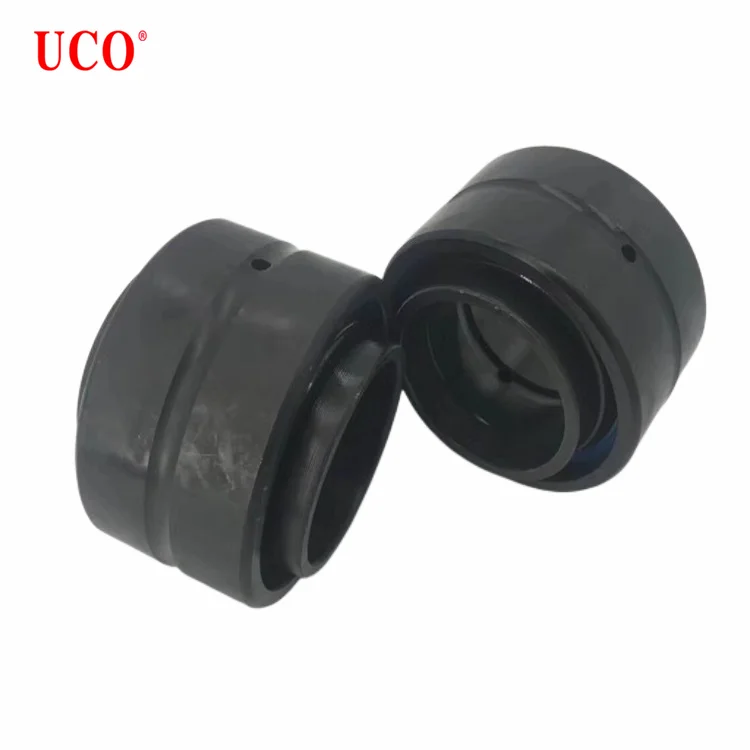

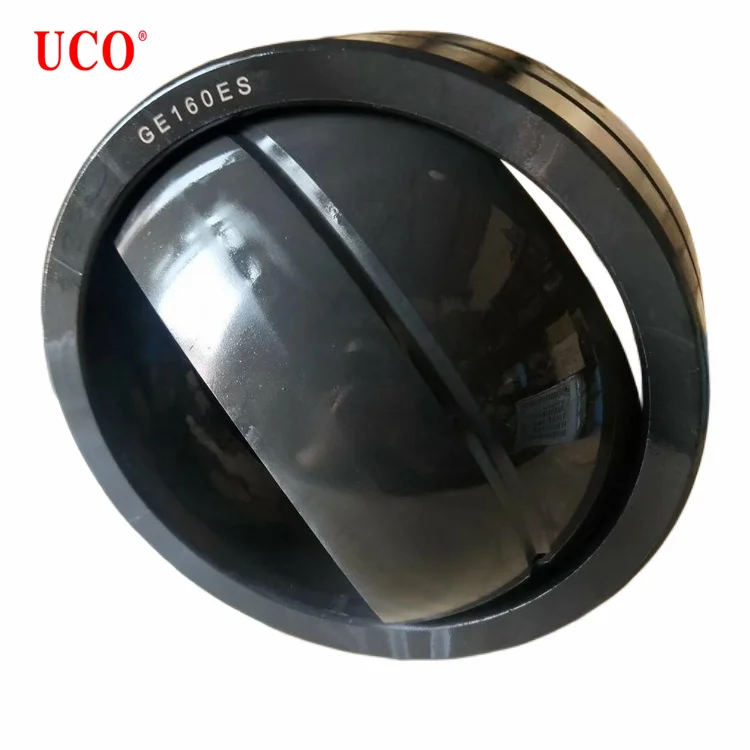

Products Show

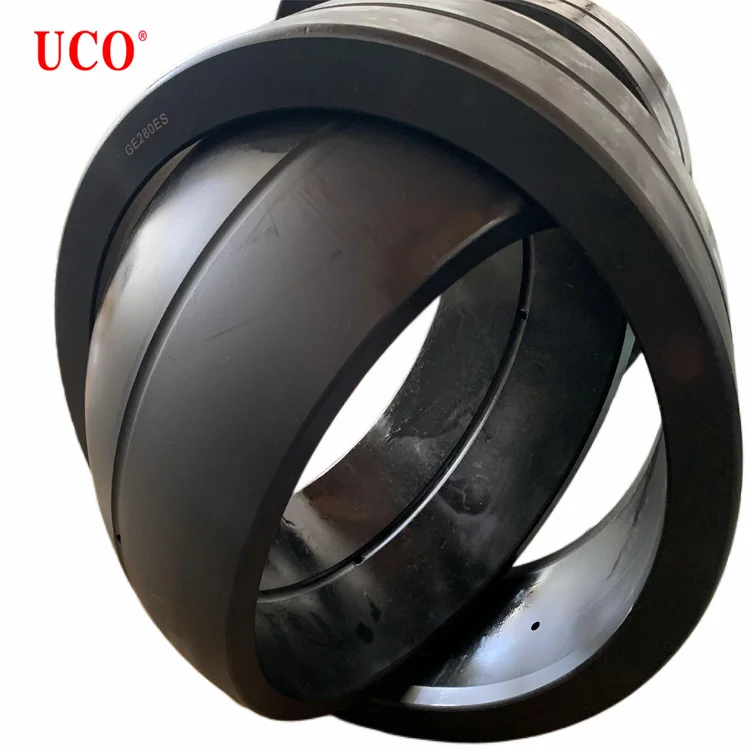

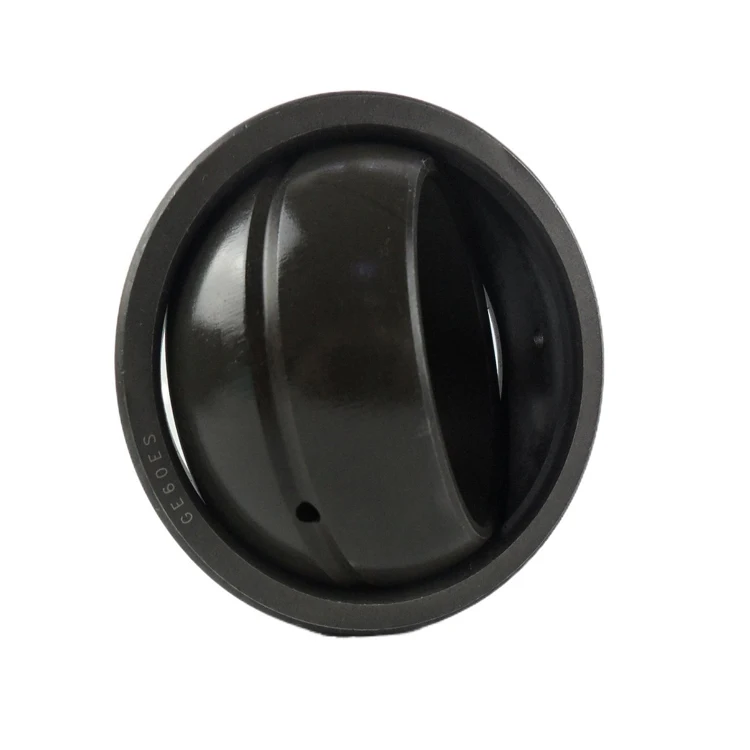

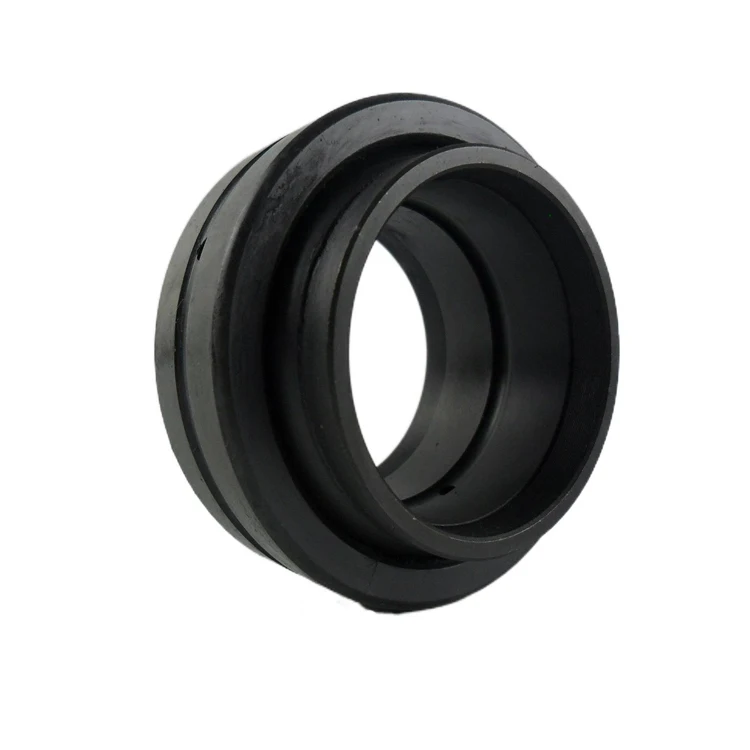

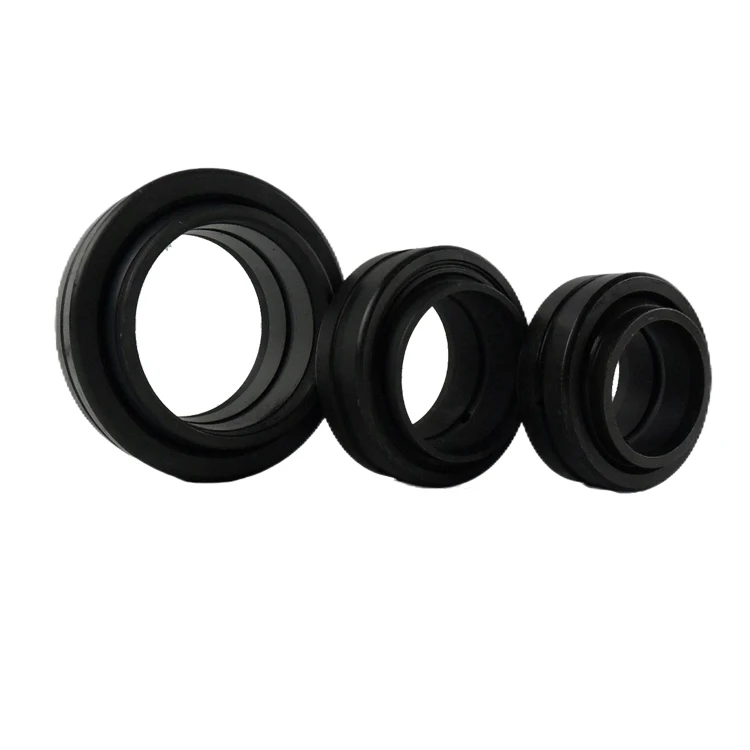

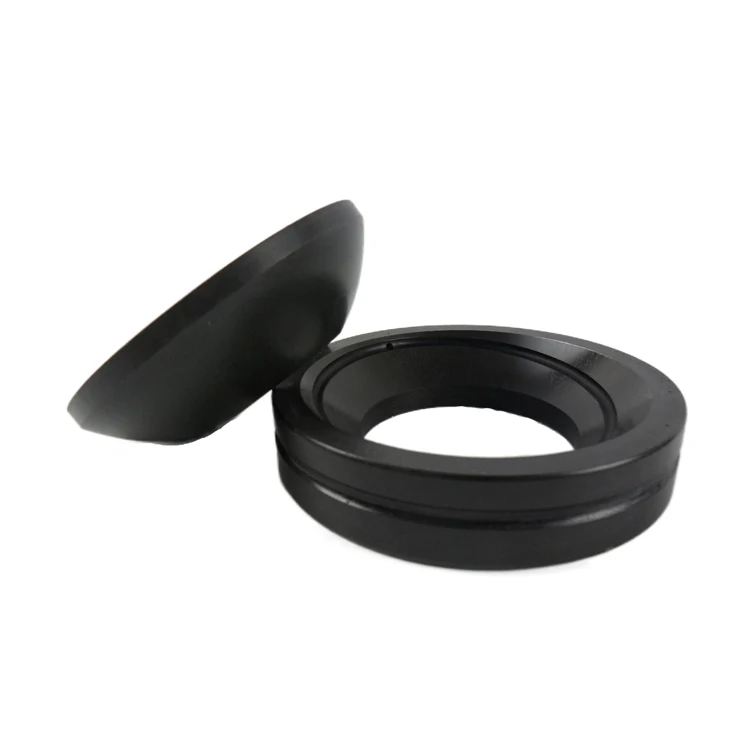

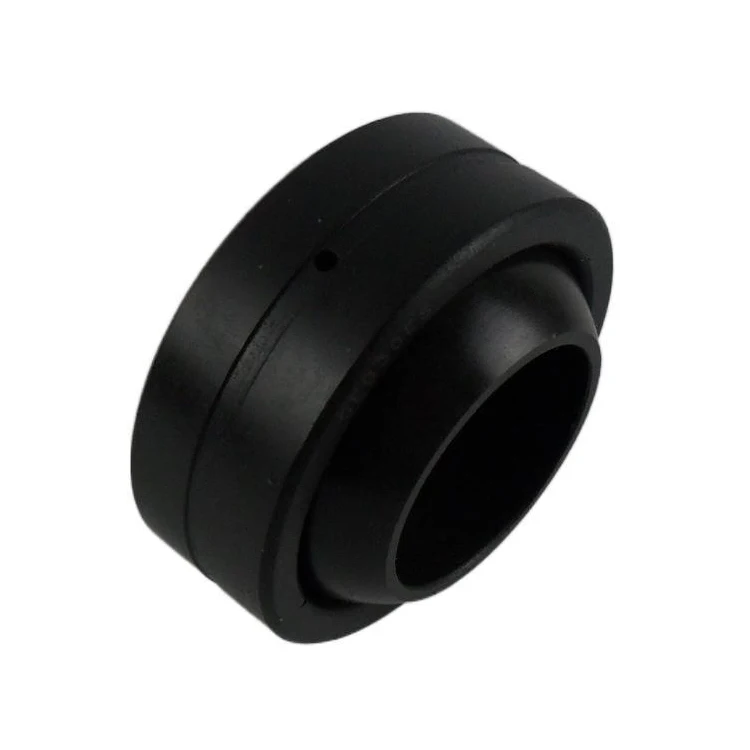

spherical plain bearing
Joint bearing is a kind of spherical sliding bearing, the sliding contact surface is an inner spherical surface and an outer
sphere, rotary oscillation motion can be in any Angle, it USES the surface phosphating, Fried, padded, spraying and other special
craft processing method.The joint bearing has the characteristics of high loading capacity, impact resistance, corrosion
resistance, wear resistance, self-aligning and lubrication.
sphere, rotary oscillation motion can be in any Angle, it USES the surface phosphating, Fried, padded, spraying and other special
craft processing method.The joint bearing has the characteristics of high loading capacity, impact resistance, corrosion
resistance, wear resistance, self-aligning and lubrication.

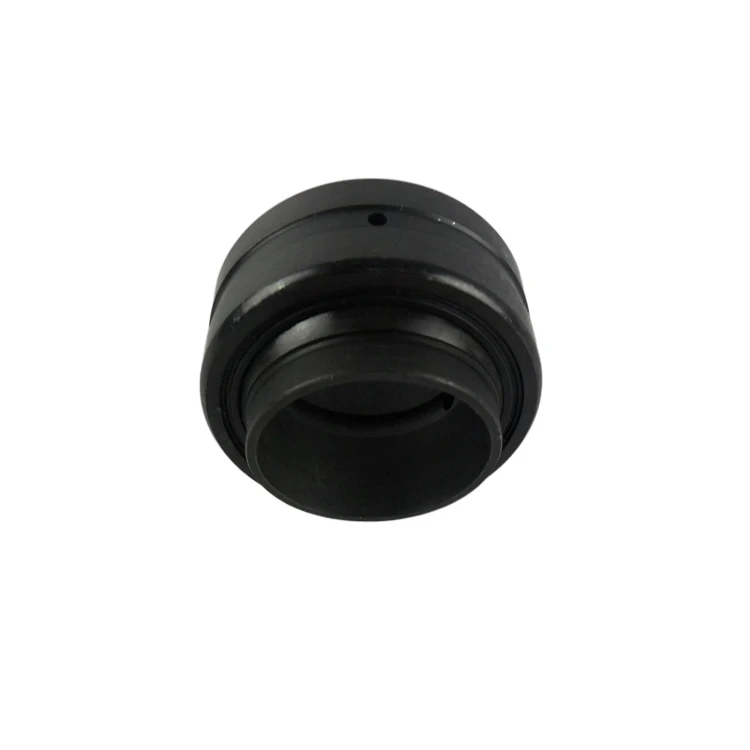

Products Details
Company Profile
Shandong Zhouyou Machinery Co., Ltd. has more than 15 years experience In the machinery scope, congratulation we become a group company subsidiary in 2020. we own advanced production line and inspecting sets, we professional on ball bearing, roller bearings, joint bearings, linear guide , ball screw, linear motion series, shaft and support units, cnc machining. At the same time the production of hydraulic cylinder, automatic mechanical equipment. Experienced team, advanced production and precision inspect instrument let us sure the quality first. We are committed to long-term output business. we meet you in time. At present our products sale to Asia, Europe, the Americas, Africa and parts of the Middle East mainly. "stable quality and competitive price, good service, timely after-sale”we are sticking. honesty,sincere each other, what we can ,what we can’t, how we can offer, we show you real. Business long time. We are here. We are pleasure to meet you. Trust and honesty is the key to open our cooperation. Thanks very much for you believe and support. We give you hand, how about you..

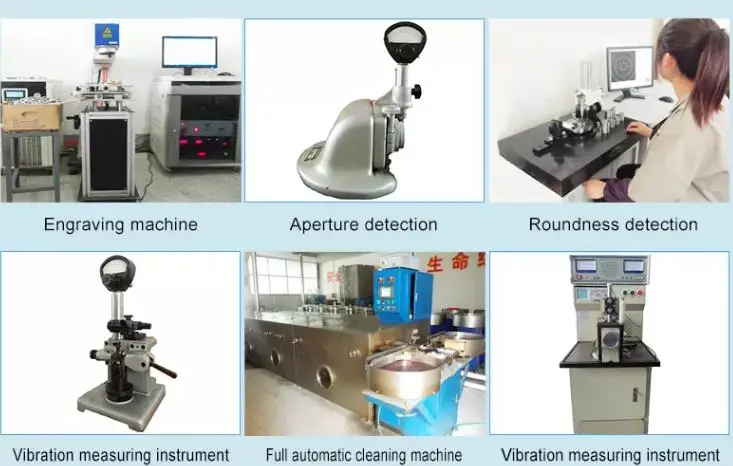

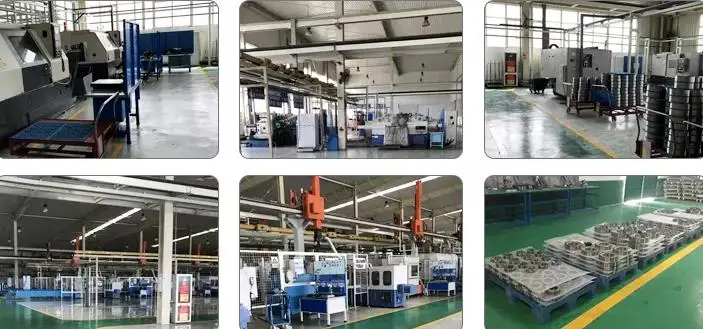

Testing Equipment
