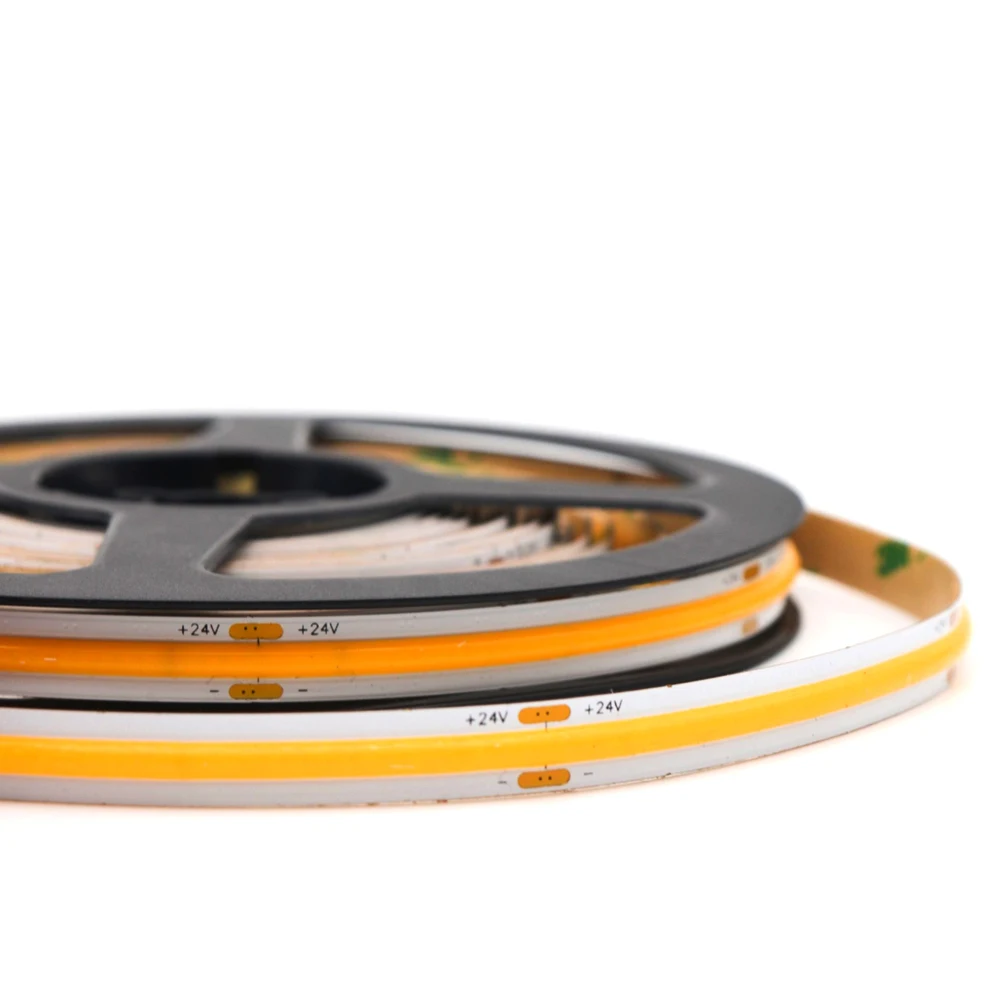

Гибкая светодиодная лента Cob 3 года гарантии 12 В белый 2700k/3000k/4000k/6000k Ra90 бесконтактная высокая плотность 24 cob
- Категория товара: Landscape Lighting >>>
- Поставщик (Оптовый магазин): Gaungzhou,Yuexiu,District,Onsun,Electronic,Firm
Поделиться:
Описание и отзывы
Характеристики

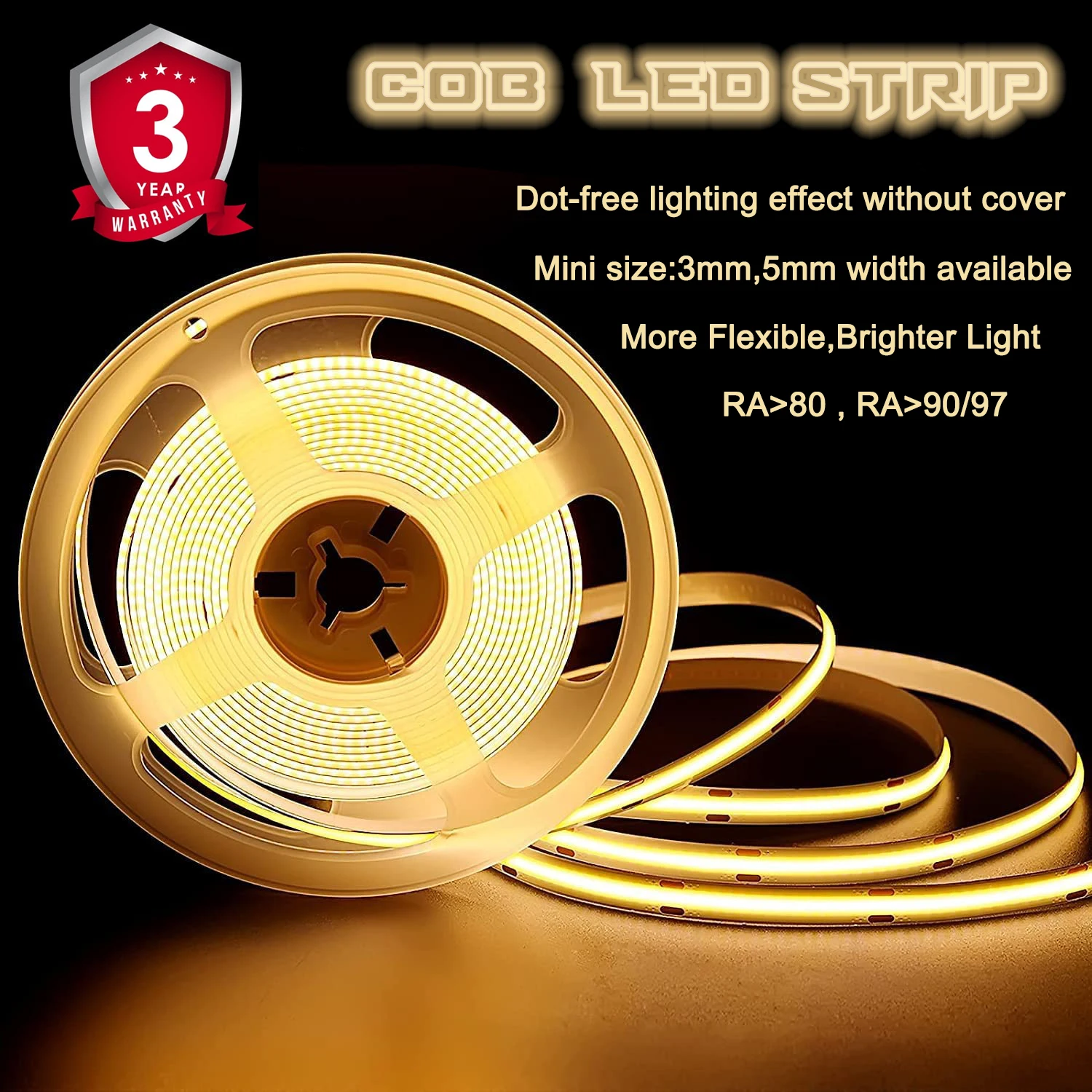

COB Flexible Led strip light

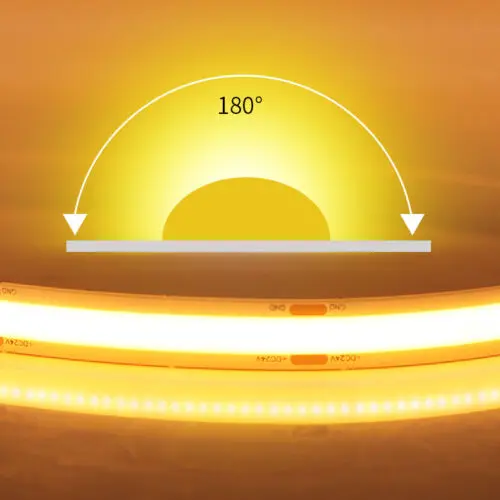

180° view angle and high color efficiency.
Better bending performance with flip chips
More efficient heat transfer with chips direct on pcb.
Invisible resistors make a clear appearance and good consistency
Better bending performance with flip chips
More efficient heat transfer with chips direct on pcb.
Invisible resistors make a clear appearance and good consistency
Product Description
Model | OSL-STCOB-810K-24V-480 |
Product Name | COB LED Strip light |
LED Density | 480 LEDs/M |
Voltage | DC12V/24V |
Power | 10W/M |
LED Brightness | 9600LM/10M |
PCB Width | 3mm,5mm,8mm,10mm,12mm |
PCB Thickness | 2 OZ |
CRI | >90 |
Cuttable segments | 25mm(12V) 50mm(24V) |
IP Rate | IP20/IP65/IP67/IP68 |
Model No. | LED Density | Color | Cuttable Unit | PCB/Size | Peak/Power |
STCOB-810K-24V-65K-R90-480 | Ccool white 6000k | 25MM(12V) 50MM(24V) | 8mm*5000mm 8mm*10000mm | 10W/M | |
STCOB-810K-24V-4K-R90-480 | Neutral White 4000k | ||||
STCOB-810K-24V-3K-R90-480 | Warm White 3000k | ||||
STCOB-810K-24V-B/R/A/G/PK/PP-480 | blue/red/amber/green/pink/purple |

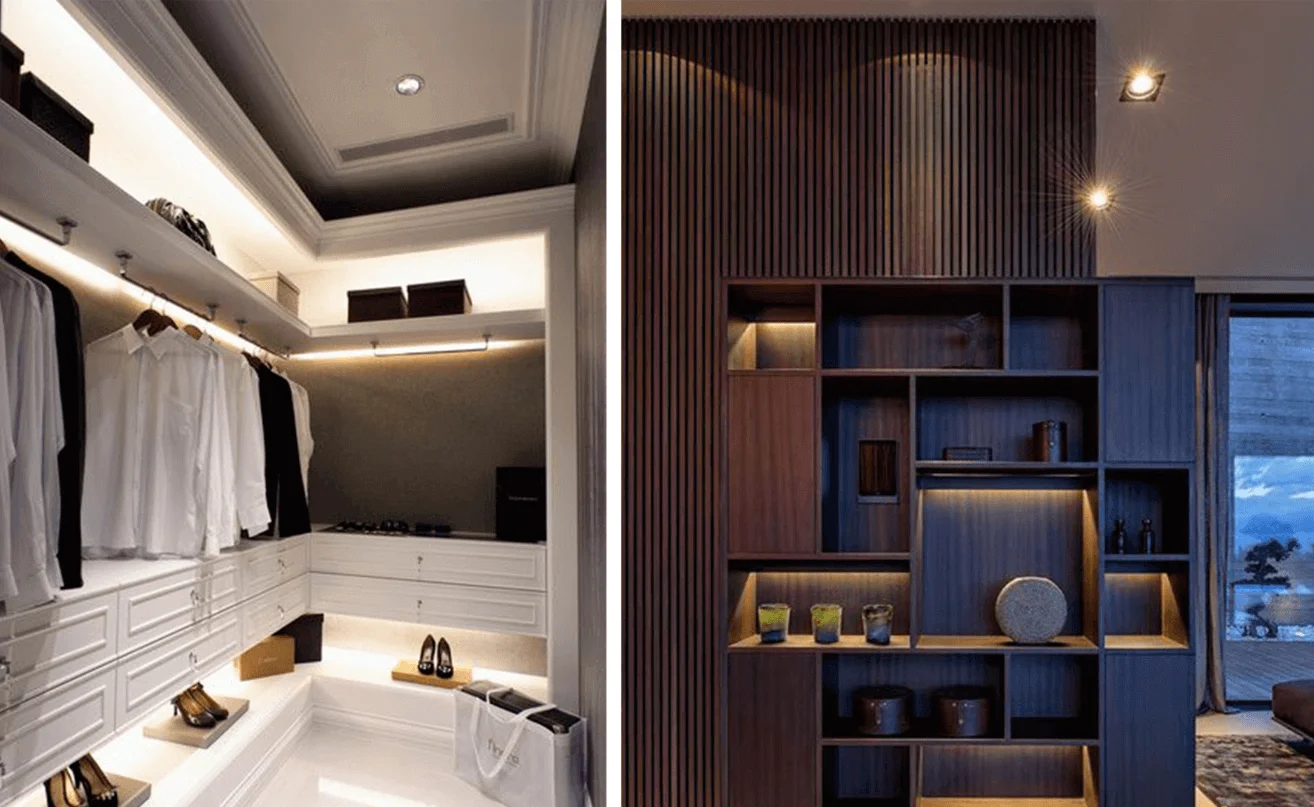

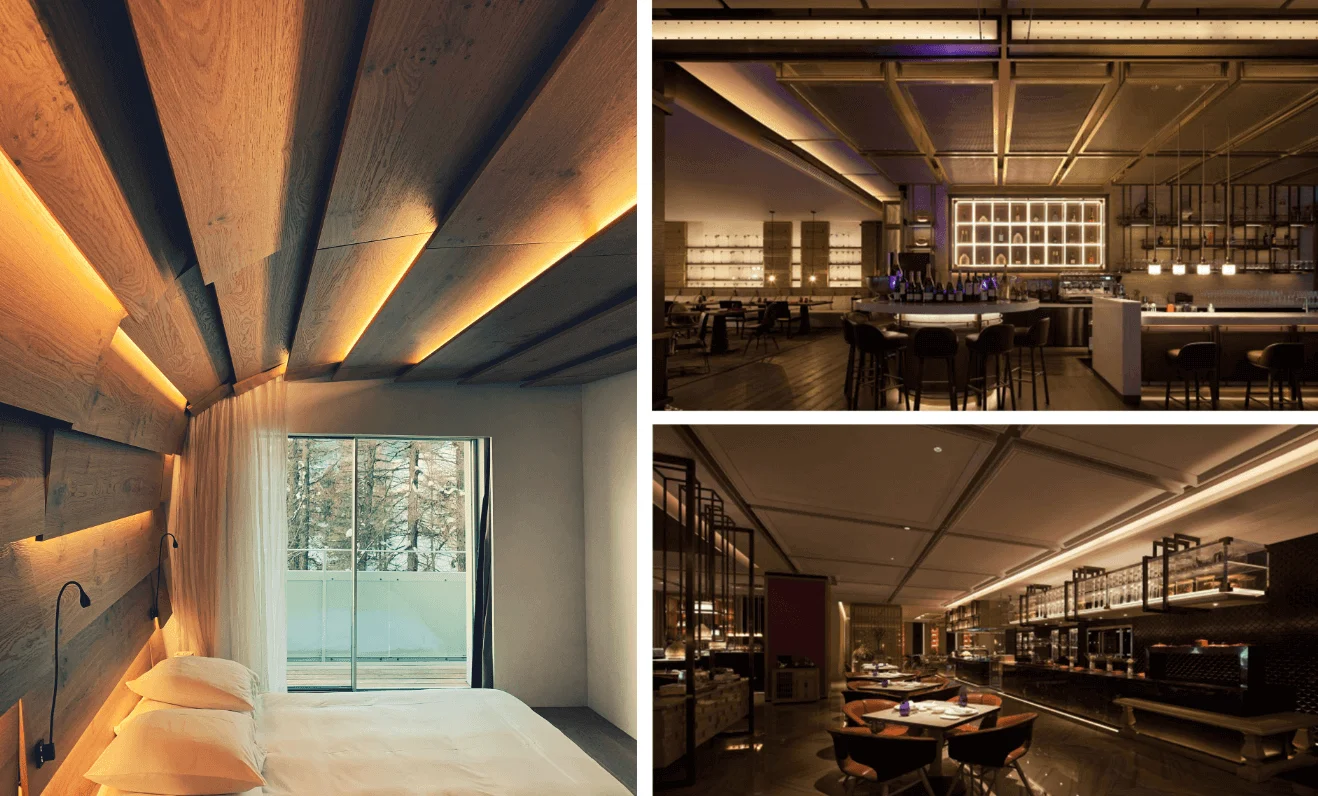

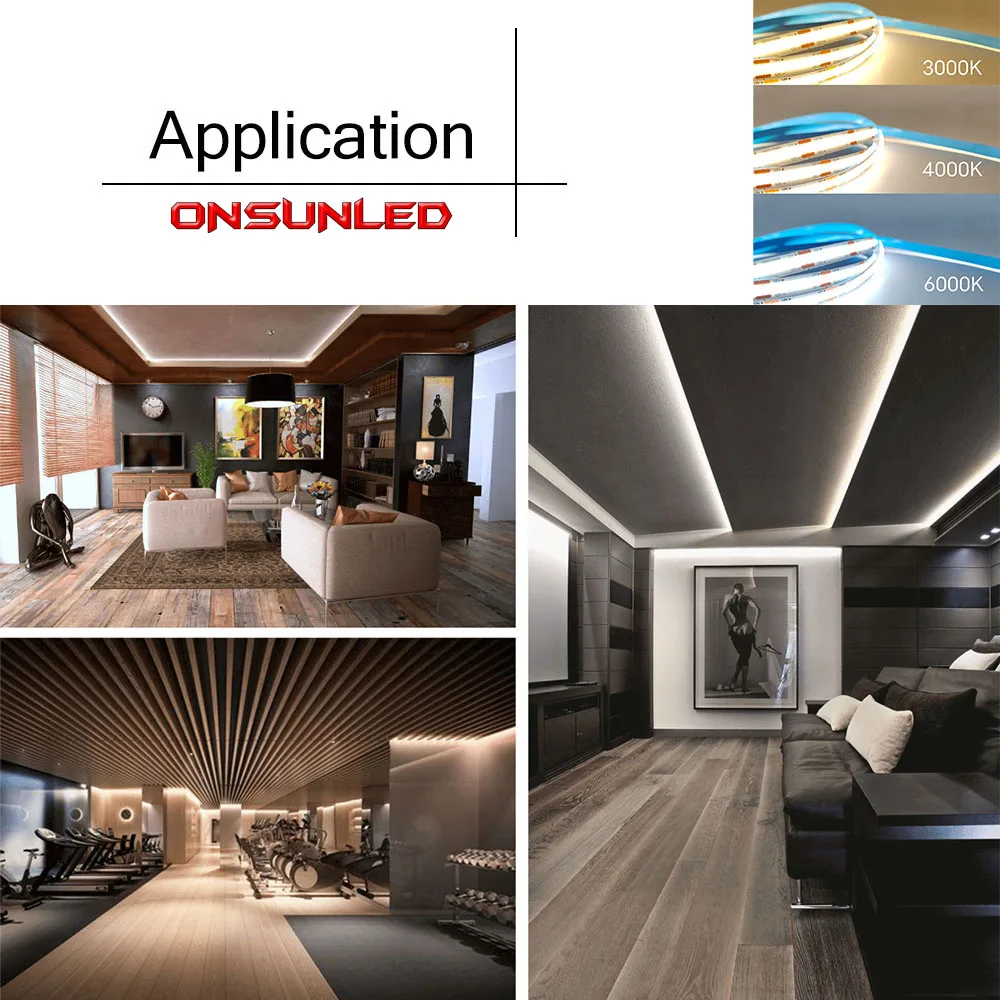

Cob led strip led fits for indoor decoration
With 180 degree light beam, create a more comfortable atmosphere
Cabinet Bedroom
Detailed Images

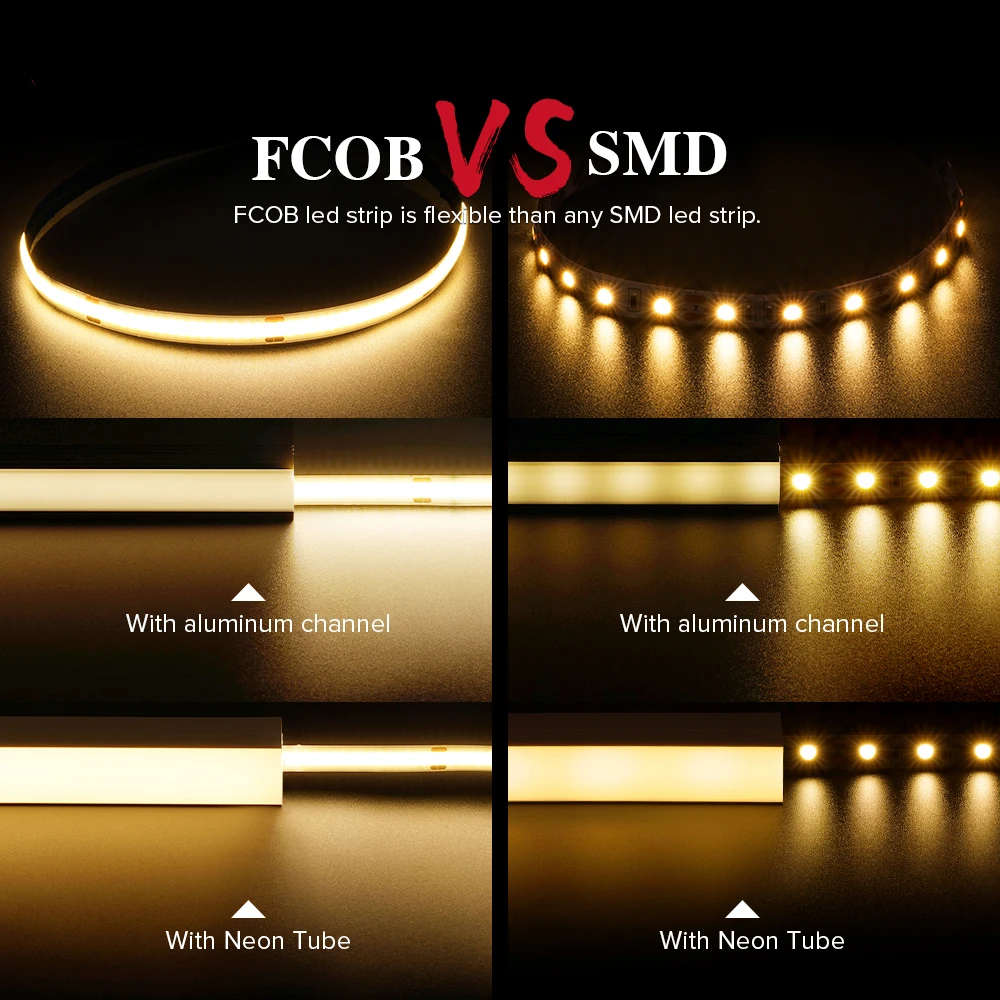

NO Spot，Uniform Light
It would be pretty hard to see any light spots on the COB Flex Strips. The strip illuminates a smooth, consistent light from start to finish. The uniform light has no dark spots and is much more friendly to the human eyes. It can provide a neat and elegant light in narrow place.

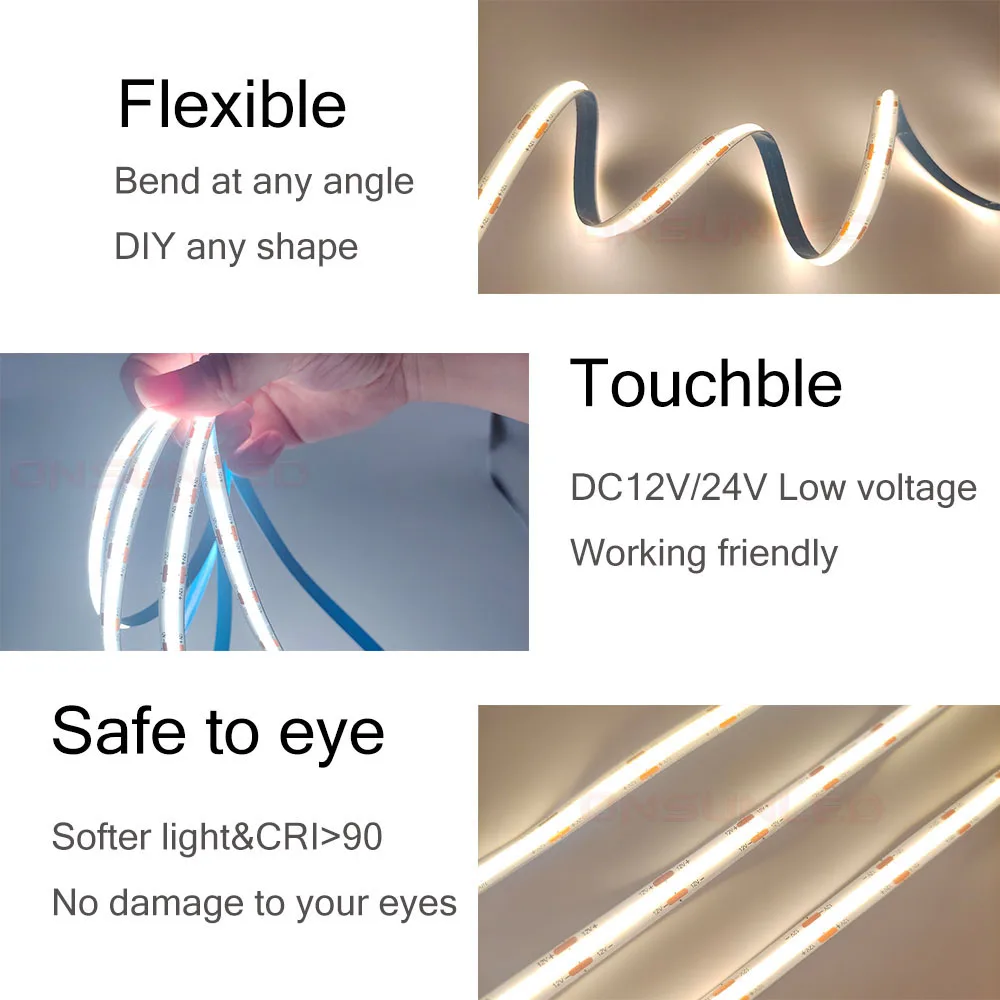

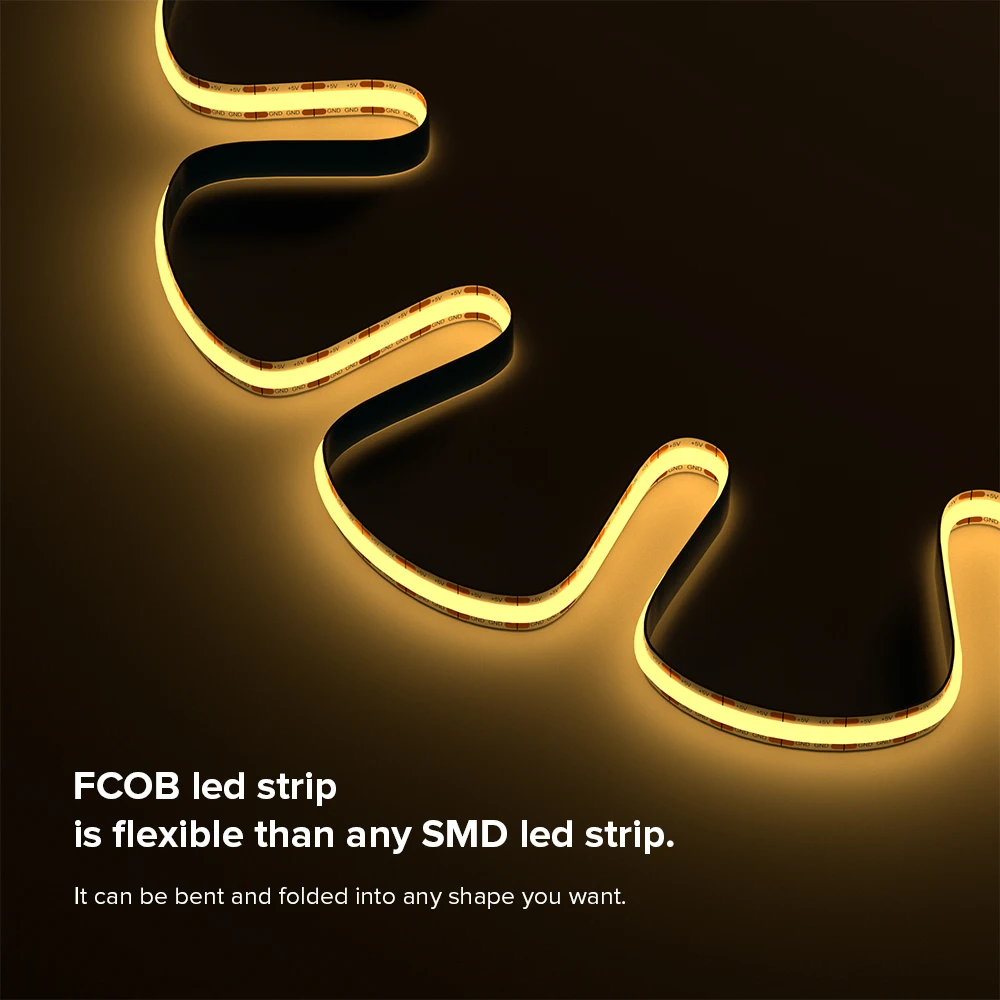

More Flexible
The flexibility of these strips is much better than other flexible SMD strips. The diodes are very small and tightly spaced, so that any point of the strip is the same as the remaining parts. This COB flexible LED strip can be easily fit into tight areas and corners in your application.
The basic colors we offer are as follows:
2700K Warm White；
3000K Warm White,
4000K Neutral White，
6000K Cool White.
* Customized service available, customized MOQ>1000M, 3 Years Warranty.
This flexible COB led strip is non-waterproof, however, we can also provide different waterproof types as you required.

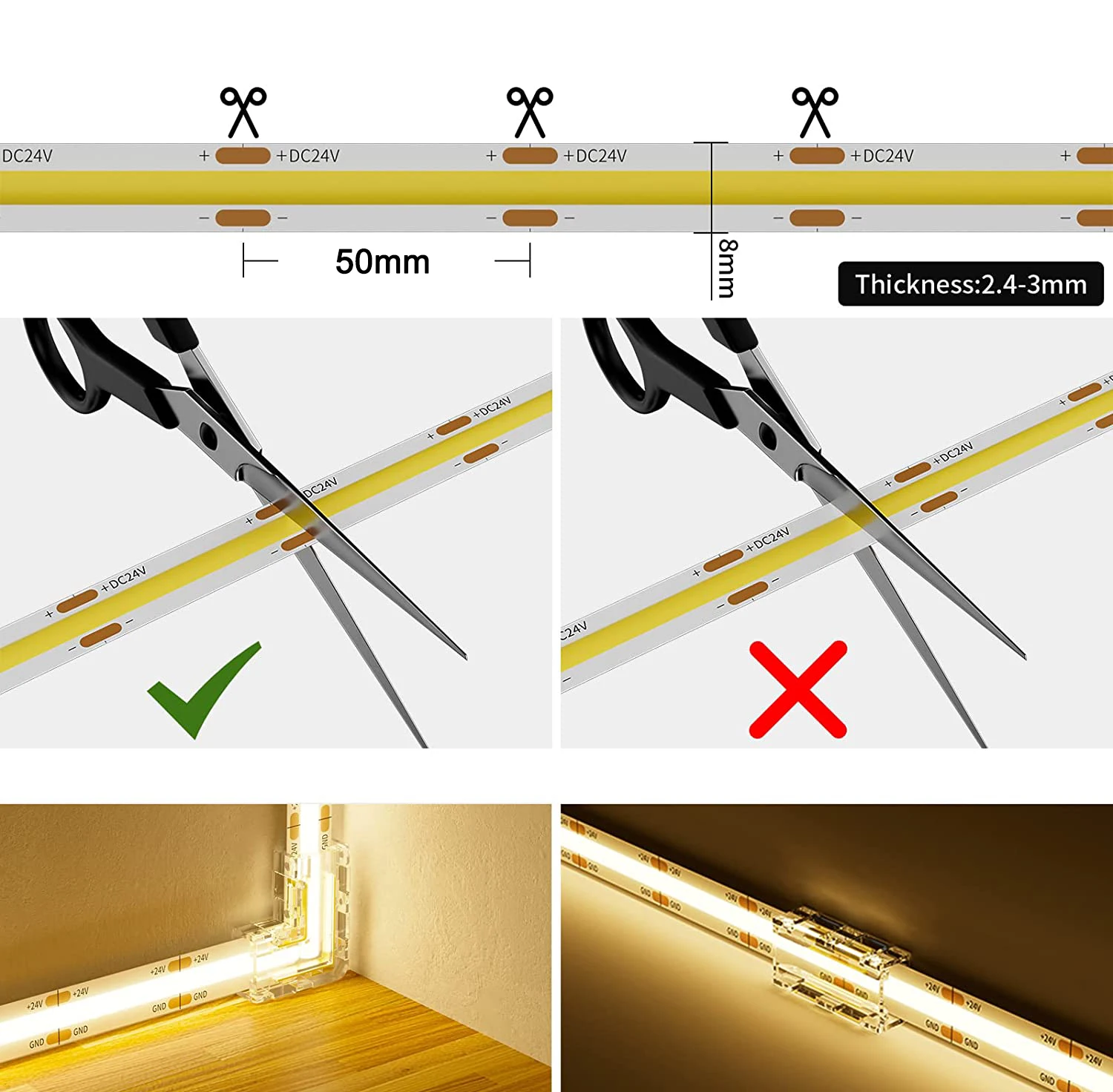

Cuttable & Connectable

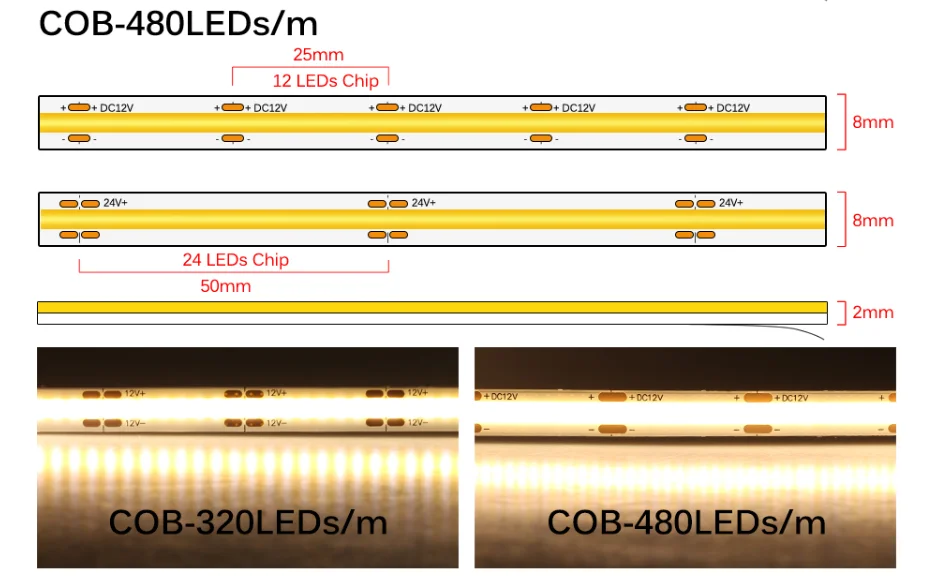

This flexible COB led strip can be cut along the soldering plate, 12V can be cut every 25MM an the 24V can be cut every 50MM. The strips can still be used after being cut, you can either solder wire or use our professional quick connector to conect the led strips.

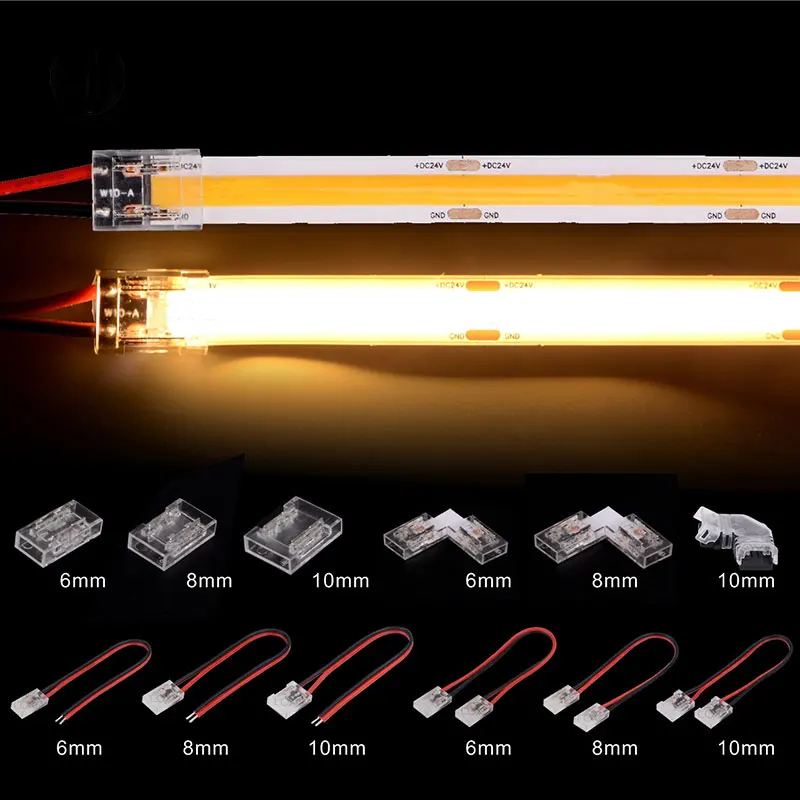

Solderless Transparent LED Connector ,
Good partner to work with COB Led strips
*Seamless connection, continuous light
*100% Transparent, no shade, keeping original color temperature

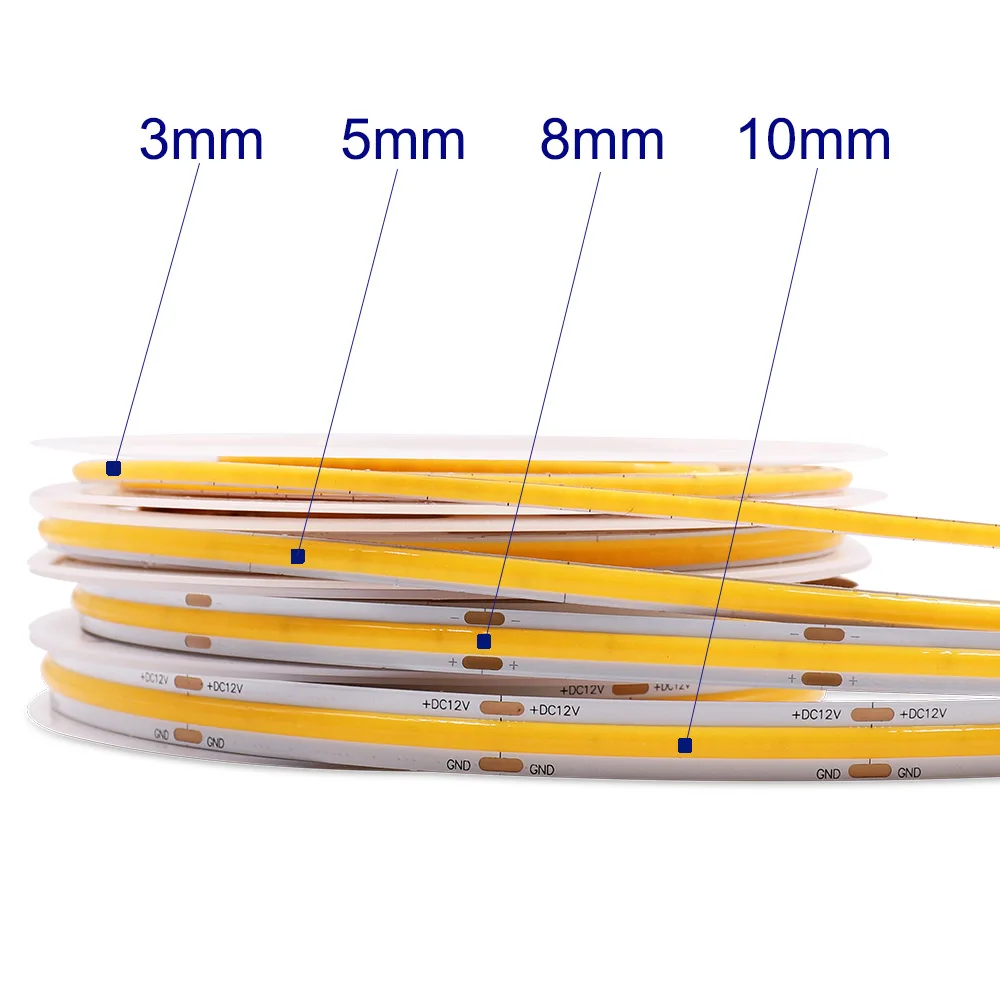

We can provide various width for this COB LED strip ,
3MM 5MM 8MM 10MM 12MM to meet various applications.

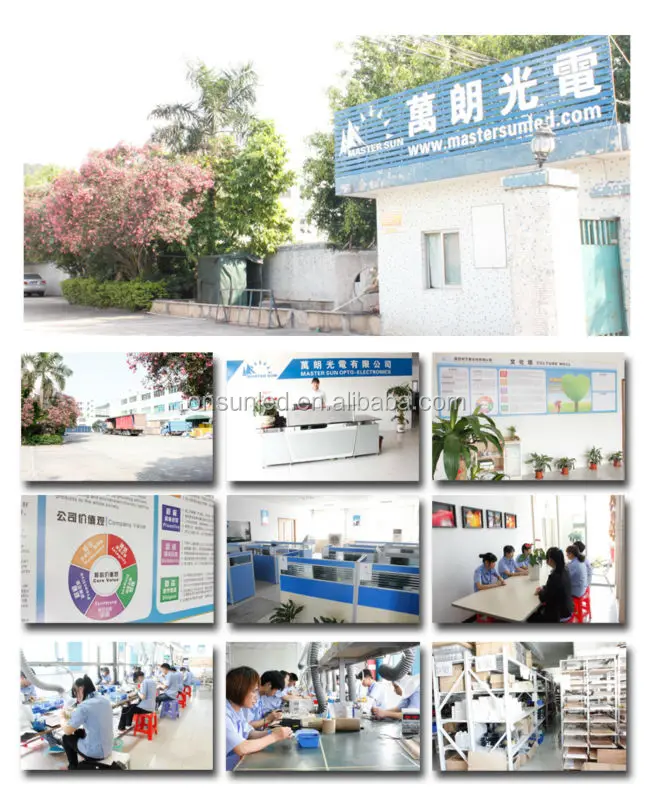

Company Introduction
Master Sun Opto-Electronics Co., Ltd. is founded in 2009, located in LongGang District, Shen Zhen. It is a company specialized in the design, R&D, producing and marketing of LED products. Our product range includes led automotive lamps, commercial and residential led lights and led strip lights.
Experienced R & D staff
Engineers with more than 15 years professional R&D experience can ensure our product a scientific design and reliable quality. At the same time, we can design and develop products according to customer requirement.

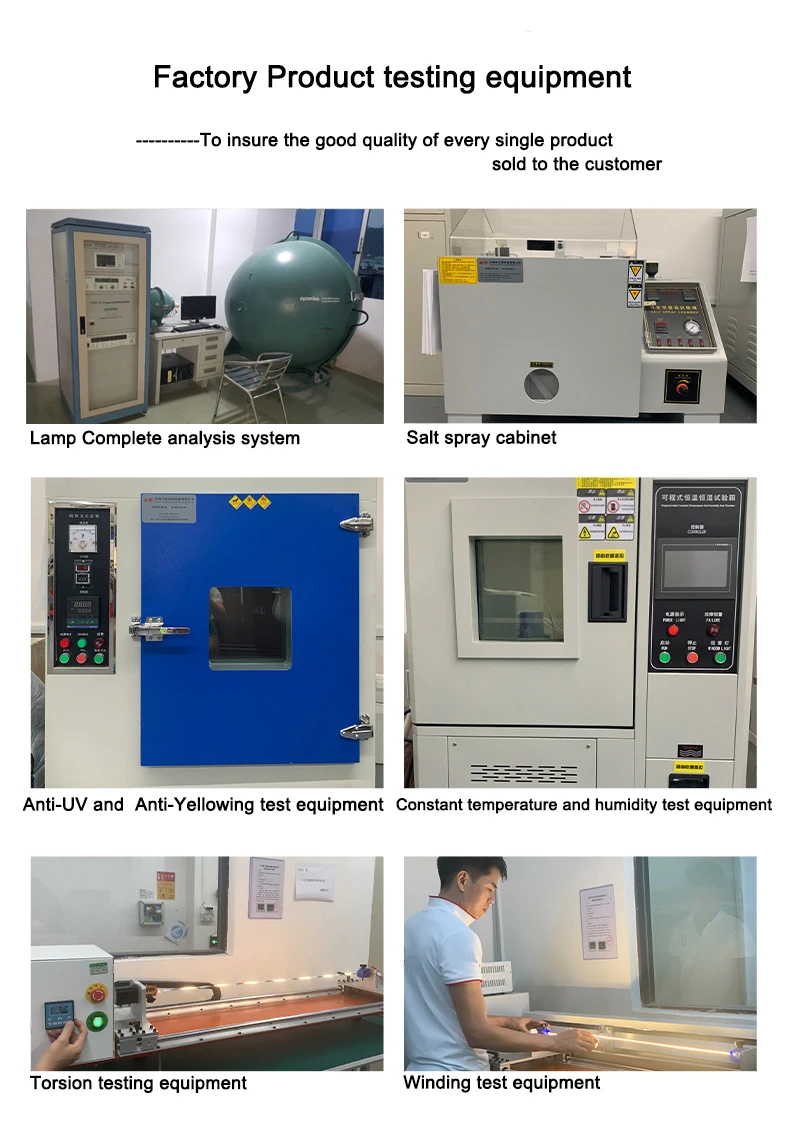

Professional and reliable equipment
We import the latest brand new JUKI SMT machine from Japan, a full set of Spectral analysis system,vibration test
equipment,Oscilloscope, electronic load, 8 meter long automatic waterproof coating machine, lead-free reflow machine with 16 temperature zones, blister packaging machine. These can ensure us a high efficient and stable production.
Scientific and rigorous management Idea
The company is running base on CRM and ERP system. We adopt the 5S management theory from Japan in order to enable the employees to become more professional with good manner.
Experienced R & D staff
Engineers with more than 15 years professional R&D experience can ensure our product a scientific design and reliable quality. At the same time, we can design and develop products according to customer requirement.
Professional and reliable equipment
We import the latest brand new JUKI SMT machine from Japan, a full set of Spectral analysis system,vibration test
equipment,Oscilloscope, electronic load, 8 meter long automatic waterproof coating machine, lead-free reflow machine with 16 temperature zones, blister packaging machine. These can ensure us a high efficient and stable production.
Scientific and rigorous management Idea
The company is running base on CRM and ERP system. We adopt the 5S management theory from Japan in order to enable the employees to become more professional with good manner.
Certificate
FAQ
1.Can I have a sample for testing?
Yes, sample cost will be returned when placing bulk order.
2.Can I have my logo on this product?
Yes, we provide OEM or ODM service, you can have your own designed packages and logo on it as you like .

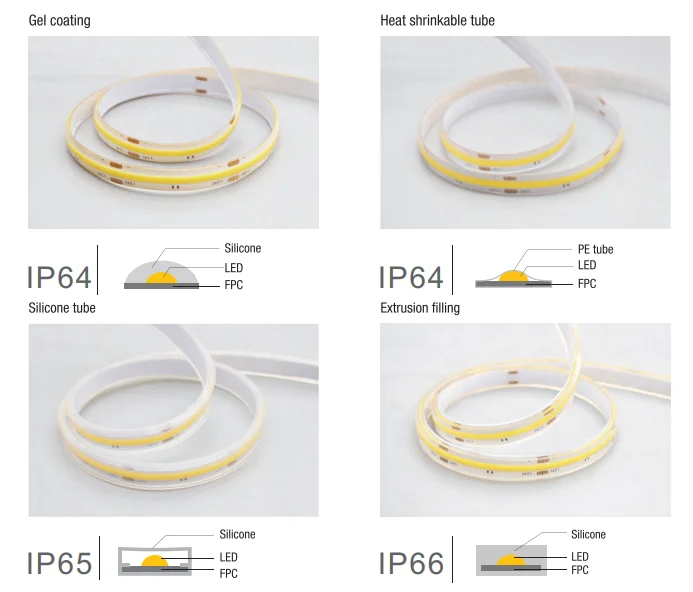

3.What kind of waterproof index can you offer?
IP20: PCB bare board
IP65: Silicon glue/PU glue
IP67: Silicon tube/Pu tube
IP68: Silicon tube with silicon glue inside fitting

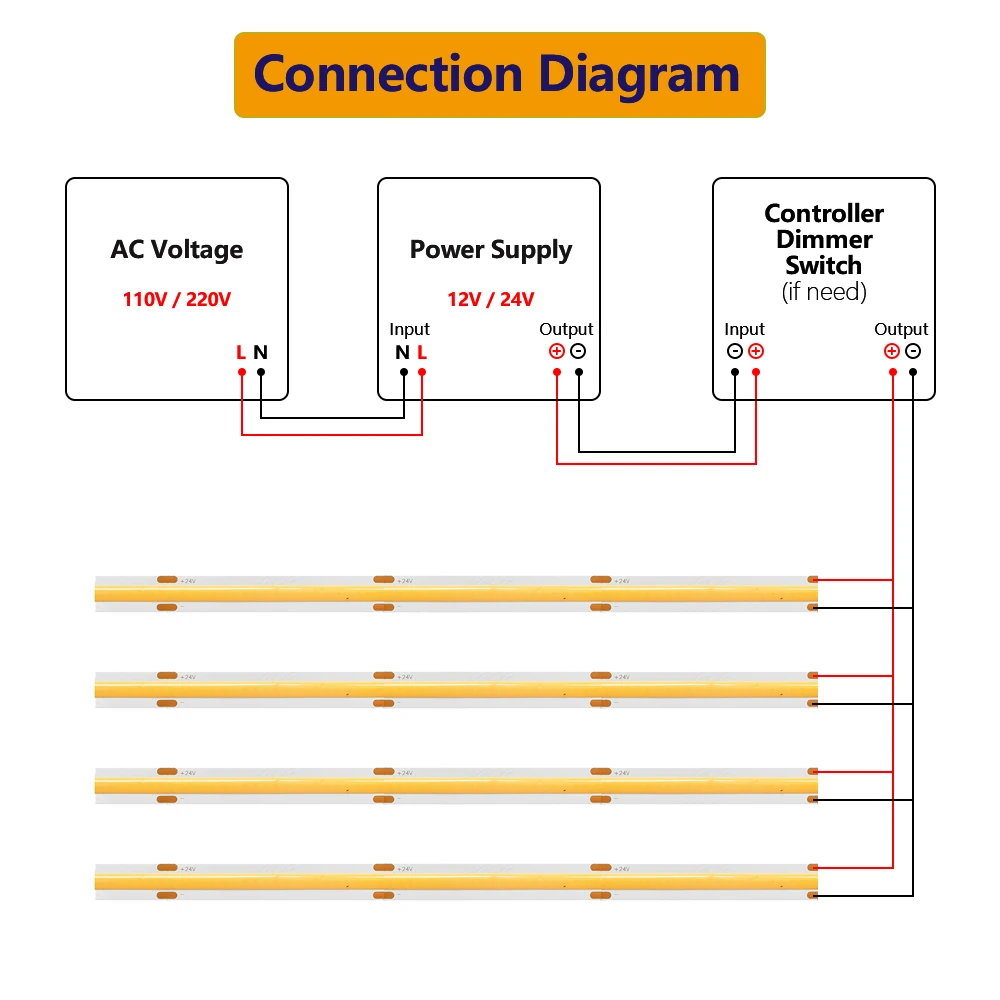

4. How do I choose correct power supply?
First,make sure which DC output of your power supply. DC12V power supply for DC12V led strip light, Same, DC24V power supply for DC24V led strip light. Second,calculate the total watts of the led strip light you use.Then the driver need more 20% of the total watts of the led strip light.
5.What certificates do you have?
If you need relevant certificates, please be sure to state in advance which certificates you need before placing an order.
6.What's your lead time for this product?
Stock order 5-10 days, custom order 15-20 days.
(Different products have different production cycle. We will follow up the production trend, Please keep in touch with us.)
7.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Air freight and sea transportation are
available as well.
8.What methods of payment do you accept for the full-order?
Various payment methods are available, including via PayPal, Visa, MasterCard, Alibaba Trade Assurance, Western Union and T/T.
9.Why did our customers choose us?
Reply < 8 hours
Delivery time > 99%
Quality Control > 99%
After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
