Комплект для переоборудования электровелосипеда 36 В 250 Вт 350 500 48 1000 1500
- Категория товара: Electric Bicycle Part >>>
- Поставщик (Оптовый магазин): Guangxi,Bernee,Trading,Co.,Ltd.Guangxi,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Product Name | Electric Bicycle Conversion kit |
Wheel size | 20-29 Inch |
Motor | Brushless Hub Geared Motor |
Voltage | 36/48V |
Power | 250W 350W 500W 1000W 1500W |
Application | Electric Bicyle |
Controller | DC controller |
Display | LCD |
Throttle | Twist Throttle |
PAS | 8 Magnet |
Product Description

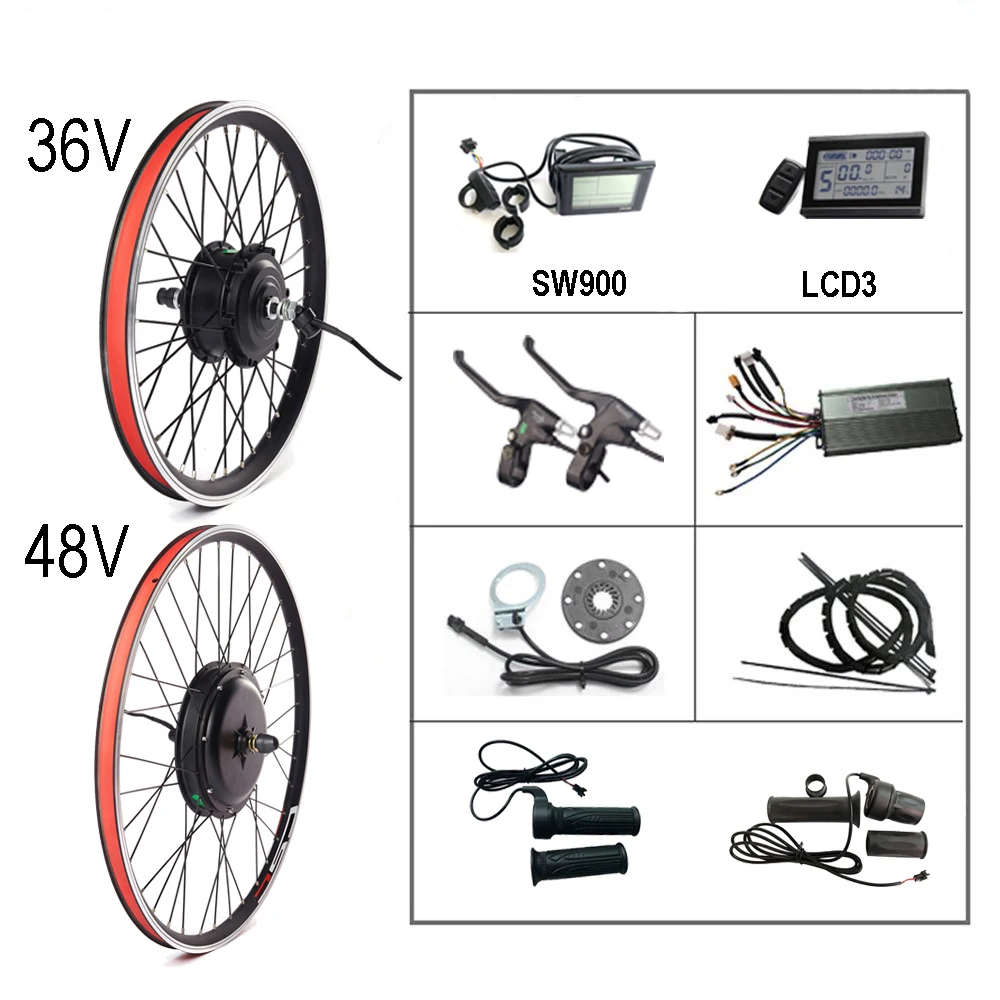

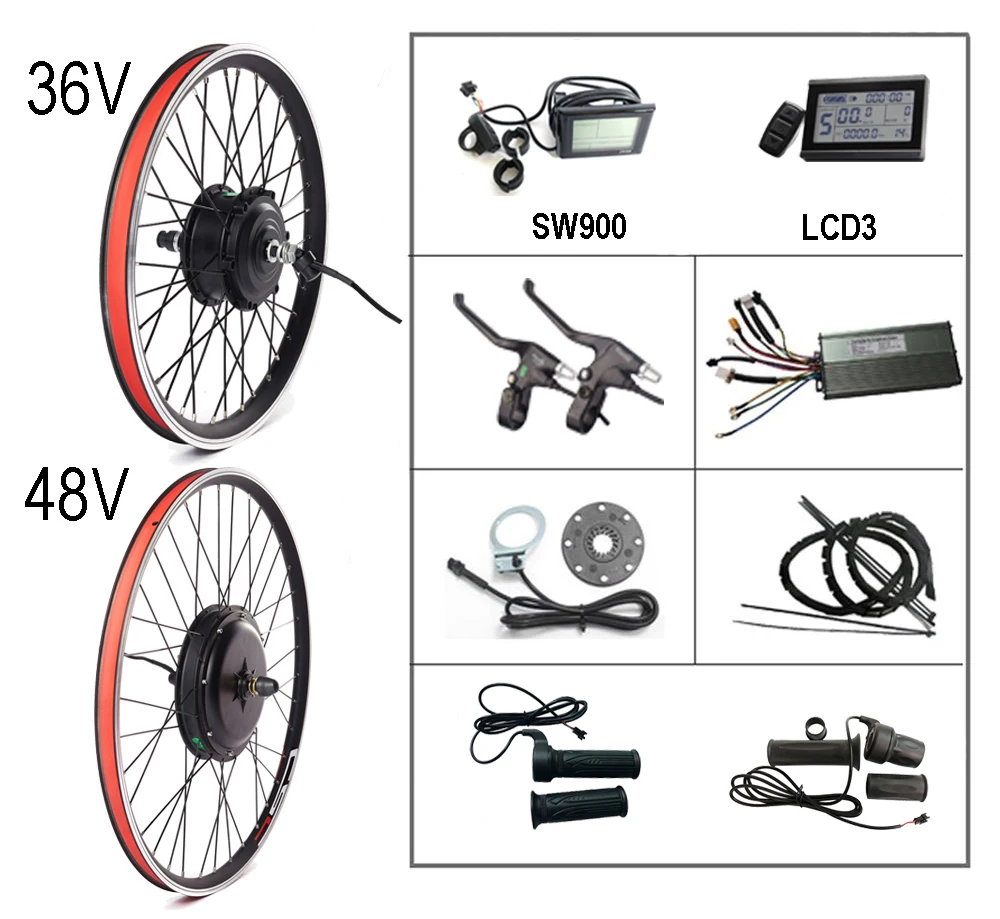

Packing List
Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please
contact us for an additional fee )
1 * Rear motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display LCD3 or sw900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Throttle (The LCD3 display uses Half Twist Throttle .The SW900 display uses Twist Throttle)
Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please
contact us for an additional fee )
1 * Rear motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display LCD3 or sw900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Throttle (The LCD3 display uses Half Twist Throttle .The SW900 display uses Twist Throttle)

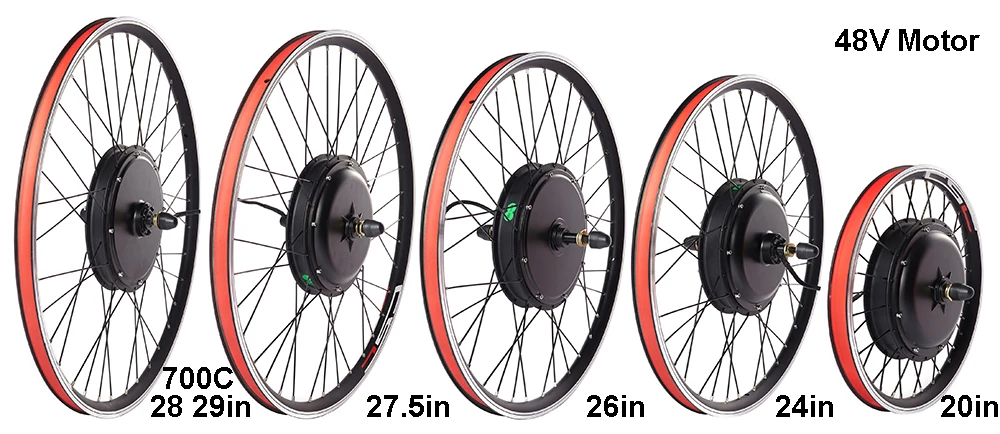

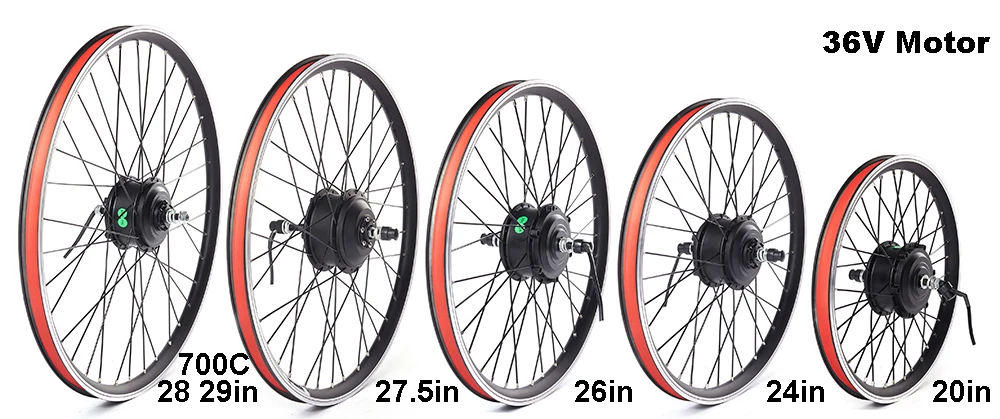

Motor Wheel
1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:Brushless gear Hub Motor for 36V
Brushless Non-gear Hub Motor for 48V

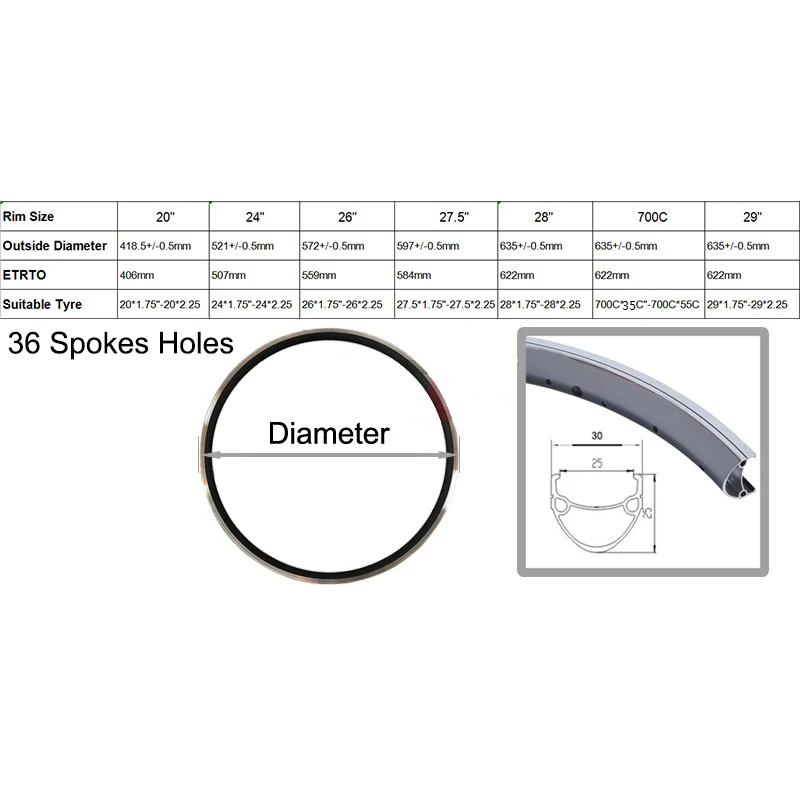

3. Rim: Double-wall Aluminium Alloy Rim

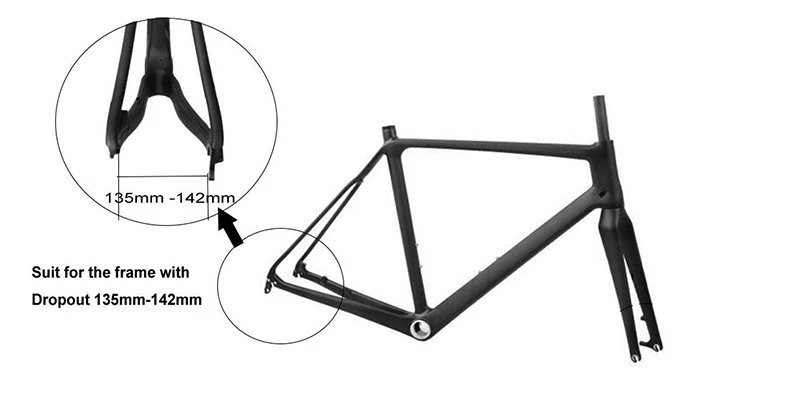

4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:25-35NM for 36v 250W 350W 500W
30-40NM for 500W 1000W
35-45NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
470 for 48V 500W 1000W
540 for 48V 1500W

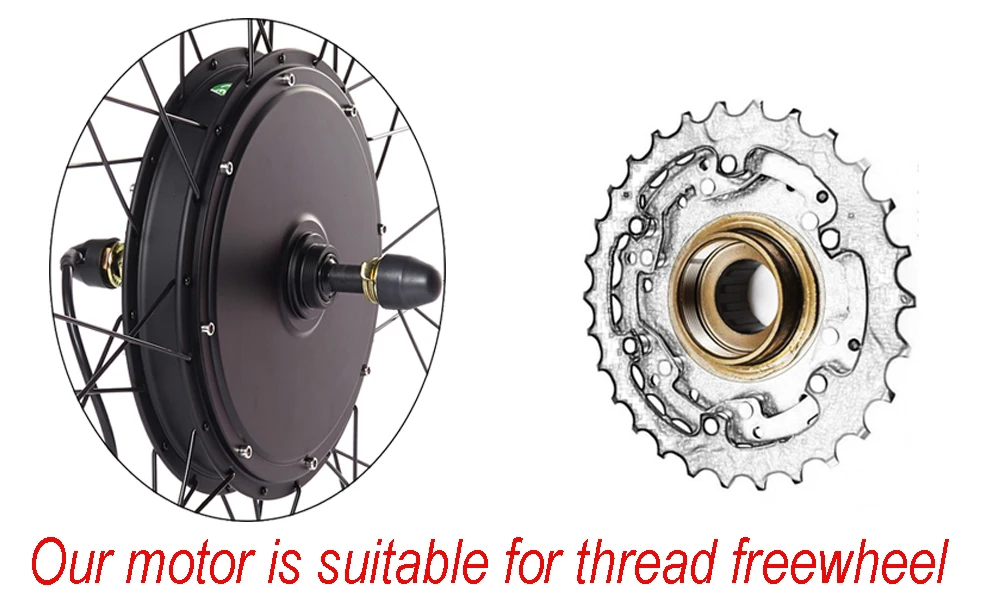

7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please
contact us
1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:Brushless gear Hub Motor for 36V
Brushless Non-gear Hub Motor for 48V
3. Rim: Double-wall Aluminium Alloy Rim
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:25-35NM for 36v 250W 350W 500W
30-40NM for 500W 1000W
35-45NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
470 for 48V 500W 1000W
540 for 48V 1500W
7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please
contact us

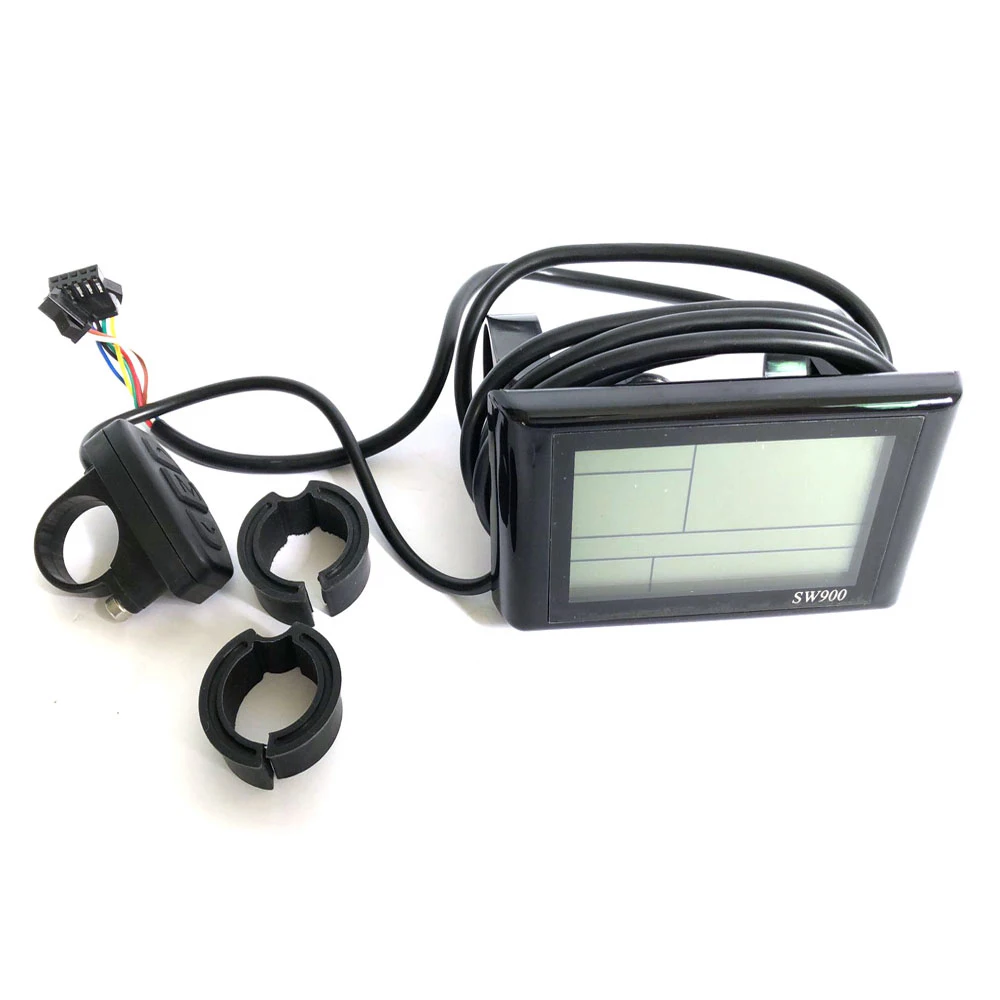

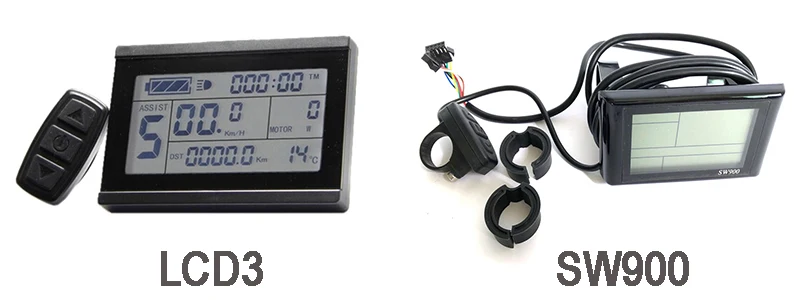

Display
LCD3 display which comes with Brake Regeneration Anti-Charge ,cruise Function
SW900 display which comes with cruise Function
LCD3 display which comes with Brake Regeneration Anti-Charge ,cruise Function
SW900 display which comes with cruise Function

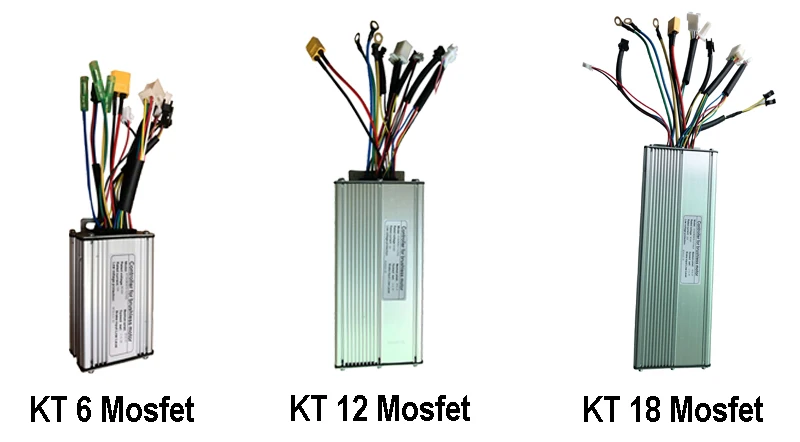

Controller
KT 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，LCD3 Display
Rated current: 10A ,Max current: 20±1A
Size: 100*61*35mm
KT 12 mosfet controller
Fit for: 48V 1000W motor wheel，LCD3 Display
Rated current: 15A , Max current: 30±1A
Size: 176*82*41mm
KT 18 mosfet controller
Fit for: 48V 1500W motor wheel ，LCD3 Display
Rated current: 22A , Max current: 45±1A
Size: 240*82*41mm
KT 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，LCD3 Display
Rated current: 10A ,Max current: 20±1A
Size: 100*61*35mm
KT 12 mosfet controller
Fit for: 48V 1000W motor wheel，LCD3 Display
Rated current: 15A , Max current: 30±1A
Size: 176*82*41mm
KT 18 mosfet controller
Fit for: 48V 1500W motor wheel ，LCD3 Display
Rated current: 22A , Max current: 45±1A
Size: 240*82*41mm

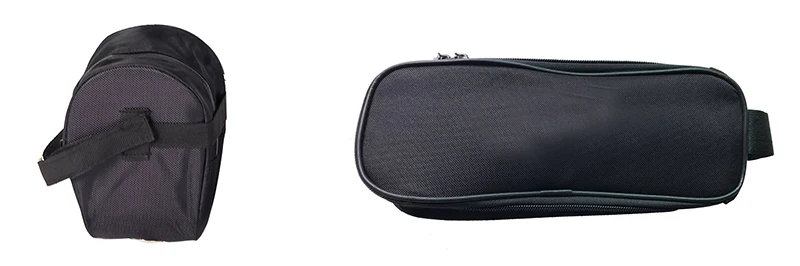

Controller Bag

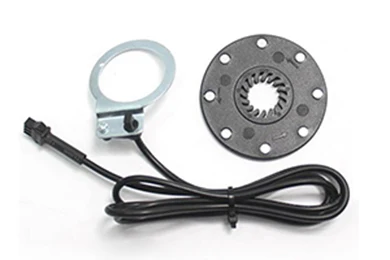

PAS
KT BZ-4(8) Magnet
KT BZ-4(8) Magnet
Throttle
LCD3 display uses half Twist Throttle
SW900 display uses Twist Throttle
LCD3 display uses half Twist Throttle
SW900 display uses Twist Throttle

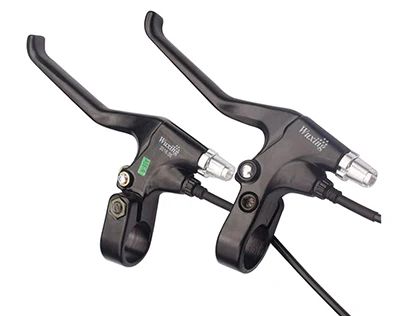

Power cut-off brake leaver
