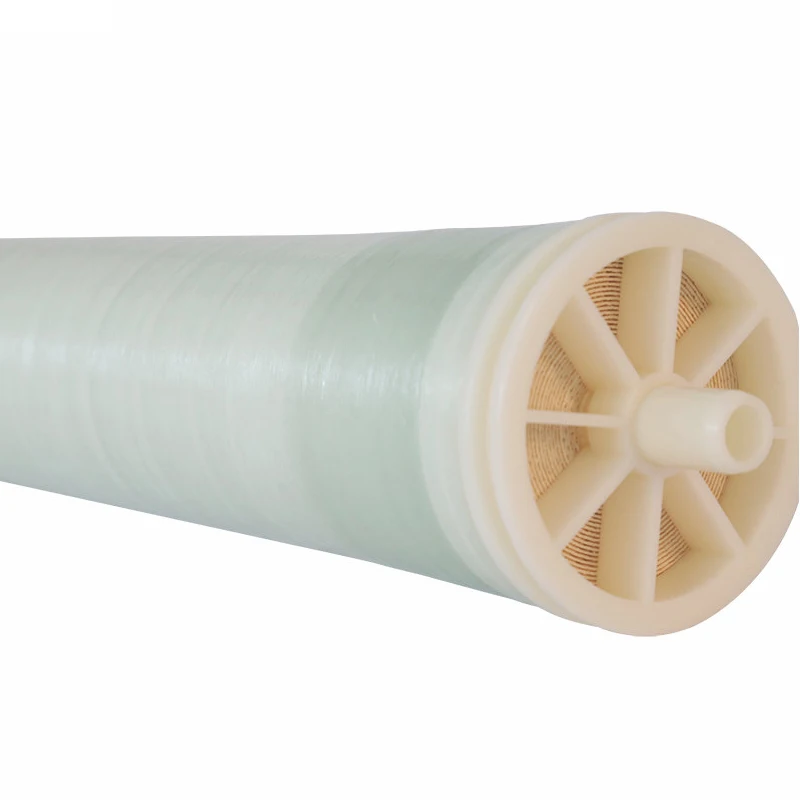

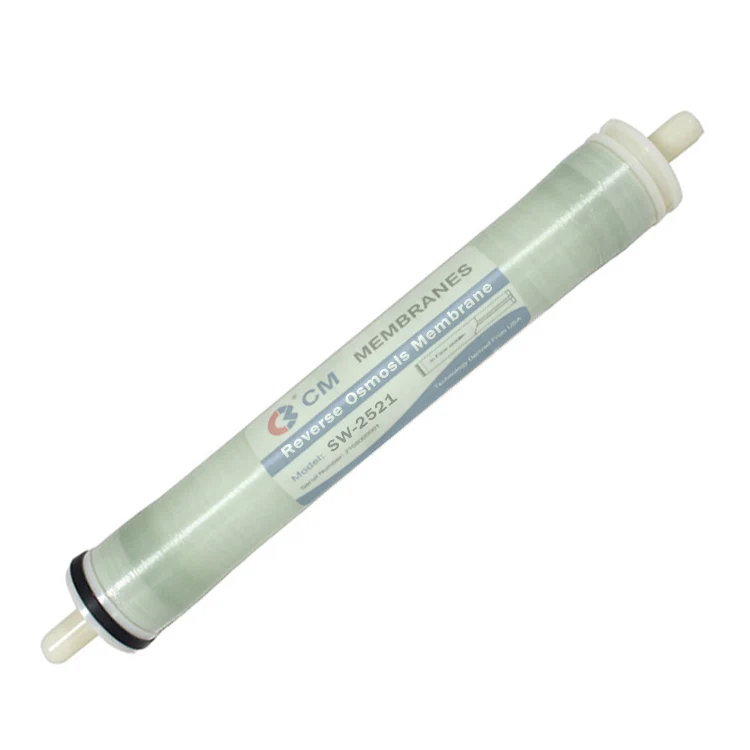

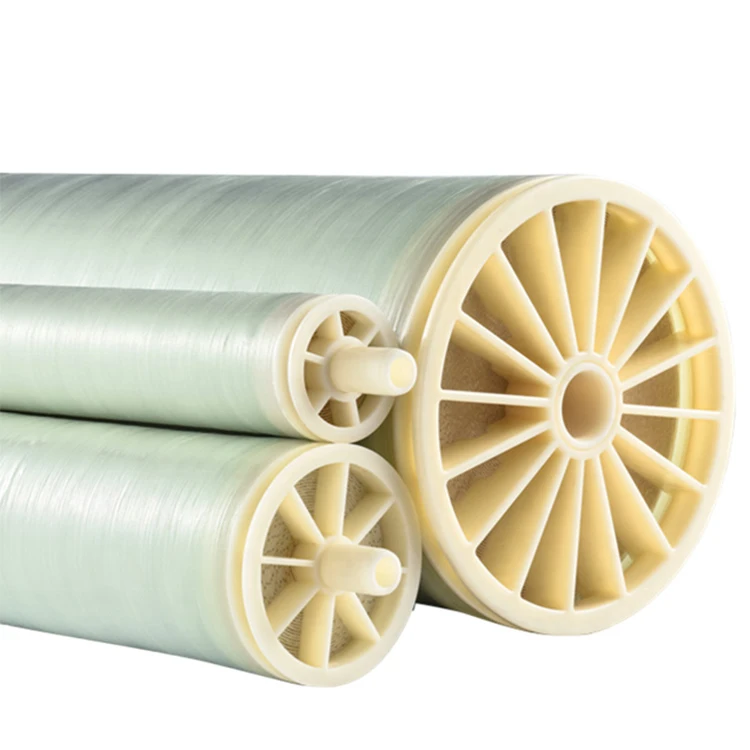

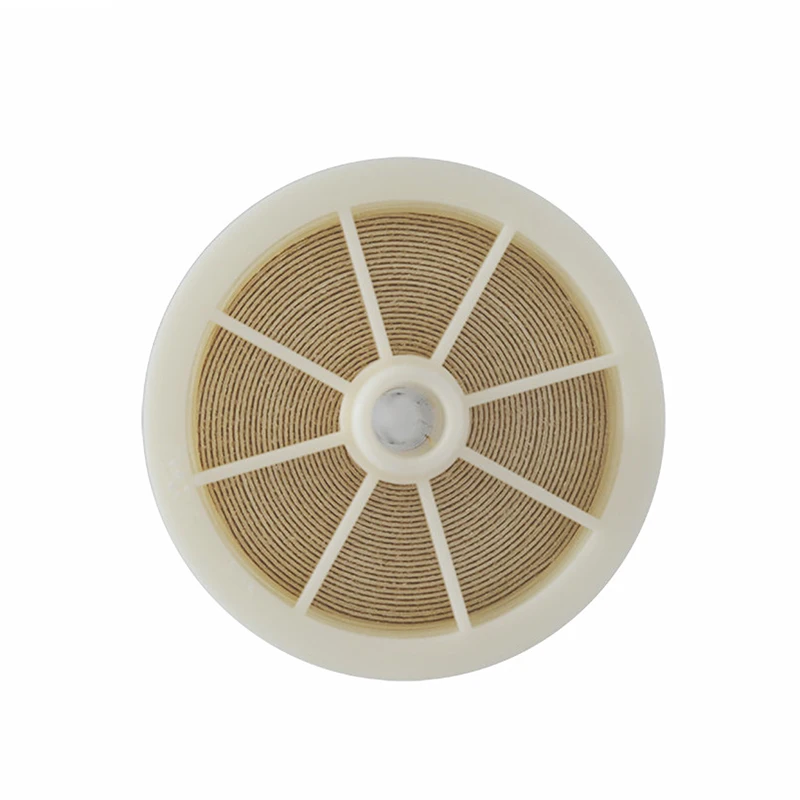

Мембраны для опреснения морской воды SW2521, мембрана для опреснения
- Категория товара: Environmental Machinery >>>
- Поставщик (Оптовый магазин): Shanghai,CM,Environmental,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

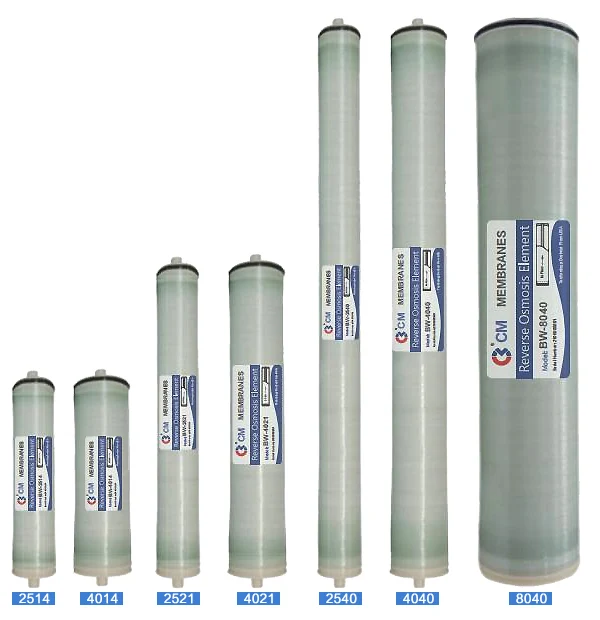

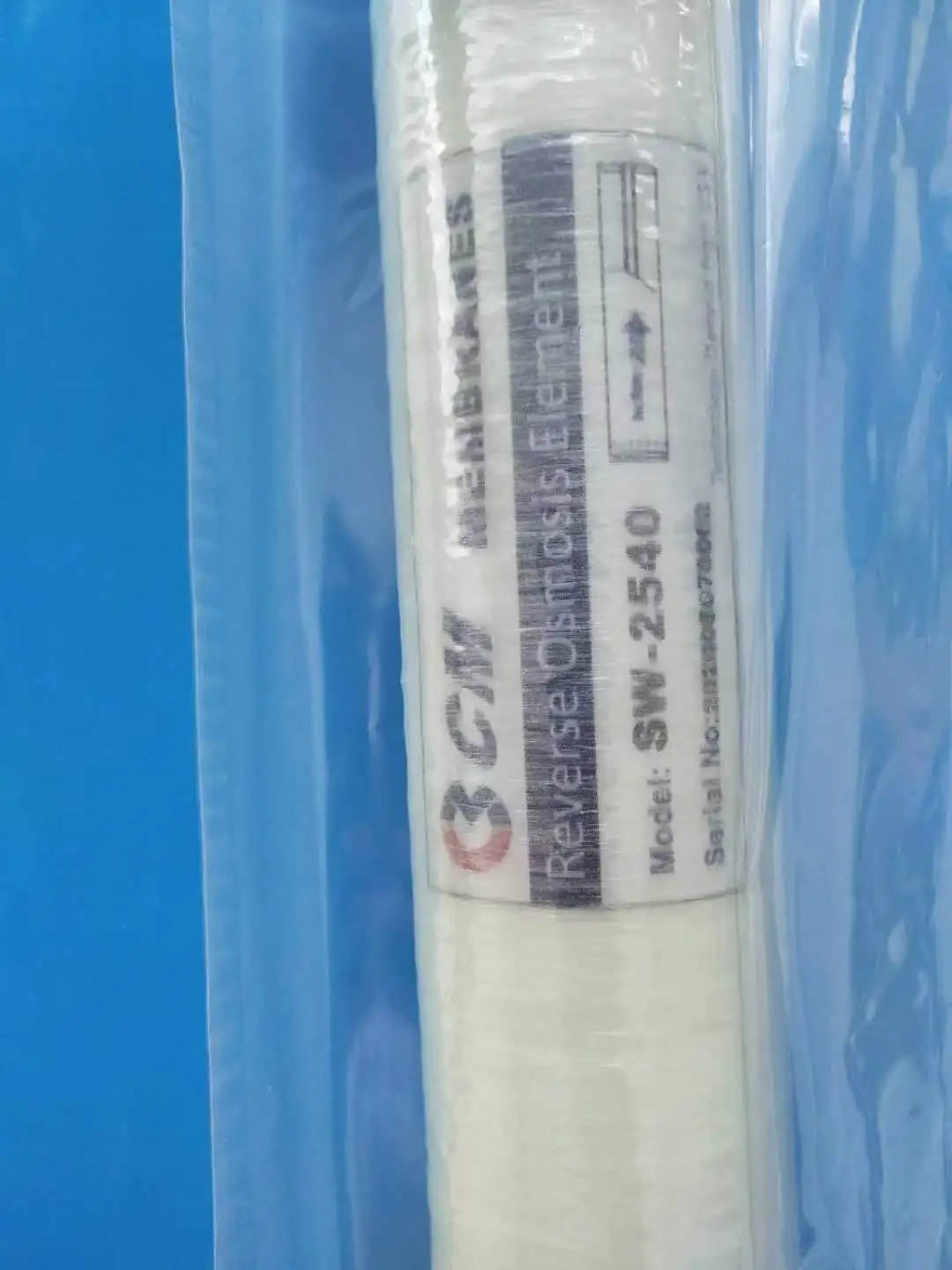

Details Images
Product Paramenters
Model | A/mm(inch) | B/mm(inch) | C/mm(inch) | D/mm(inch) | E/mm(inch) |
2514 | 356(14) | 63.5(2.5) | 19.1(0.75) | 26.7(1.05) | 302.6(11.9) |
2521 | 533.4(21) | 63.5(2.5) | 19.1(0.75) | 26.7(1.05) | 480(18.9) |
2540 | 1016(40) | 63.5(2.5) | 19.1(0.75) | 26.7(1.05) | 962.6(37.9) |
4014 | 356(14) | 101.6(4.0) | 19.1(0.75) | 26.7(1.05) | 302.6(11.9) |
4021 | 533.4(21) | 101.6(4.0) | 19.1(0.75) | 26.7(1.05) | 480(18.9) |
4040 | 1016(40) | 101.6(4.0) | 19.1(0.75) | 26.7(1.05) | 962.6(37.9) |
Model | A/mm(inch) | B/mm(inch) | C/mm(inch) |
8040 | 1016(40) | 203.2(8.0) | 29.1(1.15) |
Model | SW-2514 | SW-2521 | SW-2540 | SW-4014 | SW-4021 | SW-4040 | SW-8040 | ||||||
Effective membrane area ft2(m2) | 6.5(0.6) | 12(1.1) | 28(2.6) | 22(2.2) | 33(3.1) | 90(8.4) | 400(37) | ||||||
Average yield GPD(m3/d) | 150(0.6) | 270(1.0) | 600(2.3) | 500(1.9) | 750(2.8) | 1600(6.1) | 7500(28.4) | ||||||
Salt rejection(%) | 99.5 | 99.5 | 99.5 | 99.5 | 99.5 | 99.8 | 99.8 | ||||||
Recovery rate(%) | 4 | 4 | 8 | 4 | 4 | 8 | 8 | ||||||
Operating pressure psi(Mpa) | 800(5.5) | ||||||||||||
Max.operating pressure psi(Mpa) | 1200(8.2) | ||||||||||||
Max.inflow temperature(℃) | 45 | ||||||||||||
Max.inflow SDI | 5 | ||||||||||||
Free chlorine concentration | <0.1 | ||||||||||||
Continuous running water pH range | 3-10 | ||||||||||||
Chemical cleaning water pH range | 2-11 | ||||||||||||
Max.single membrane element pressure drop psi(Mpa) | 15(0.1) | ||||||||||||
