Product Description

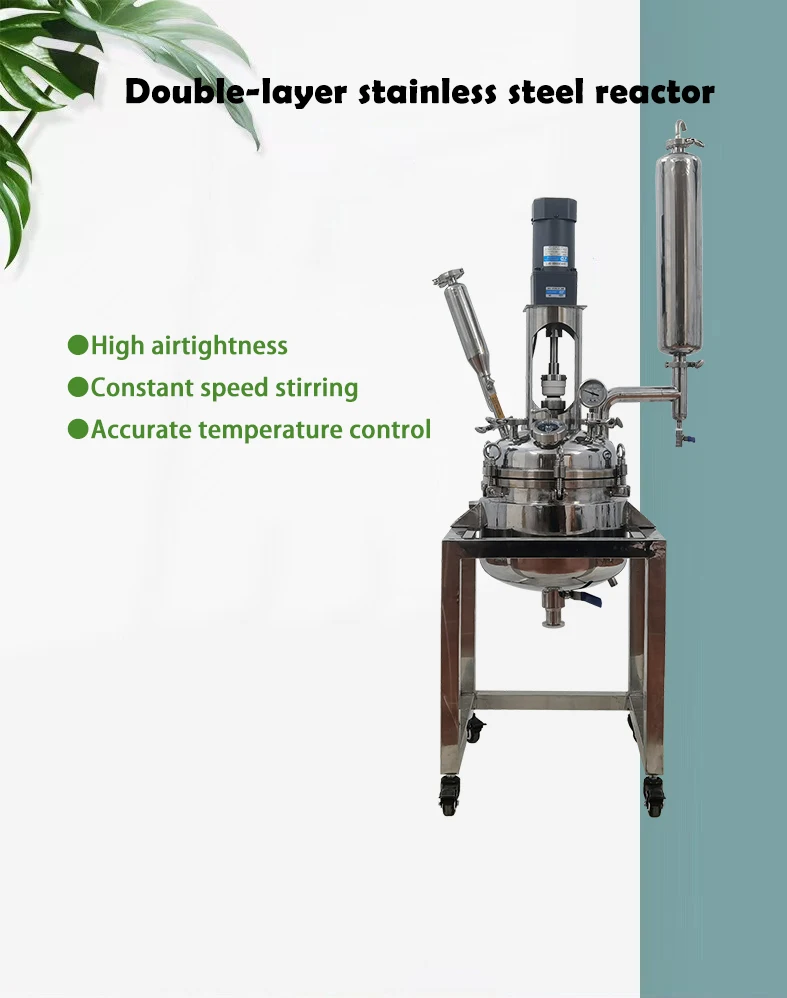

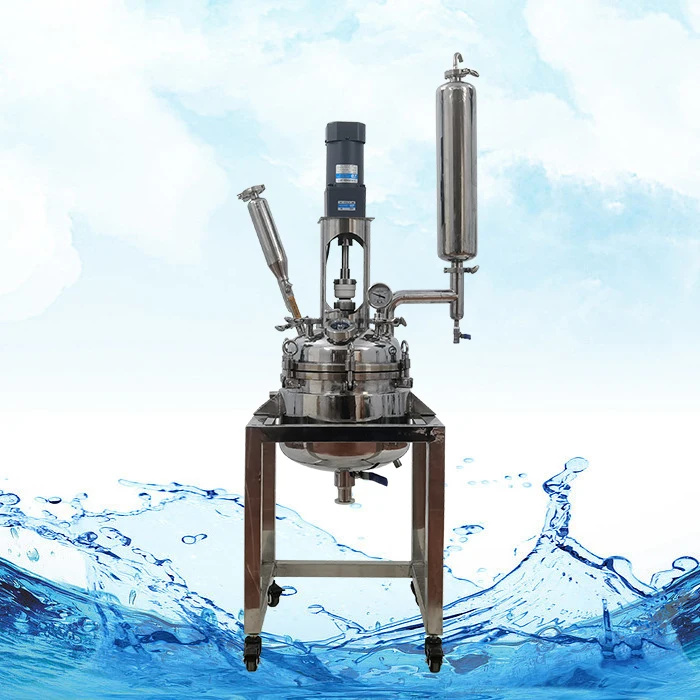

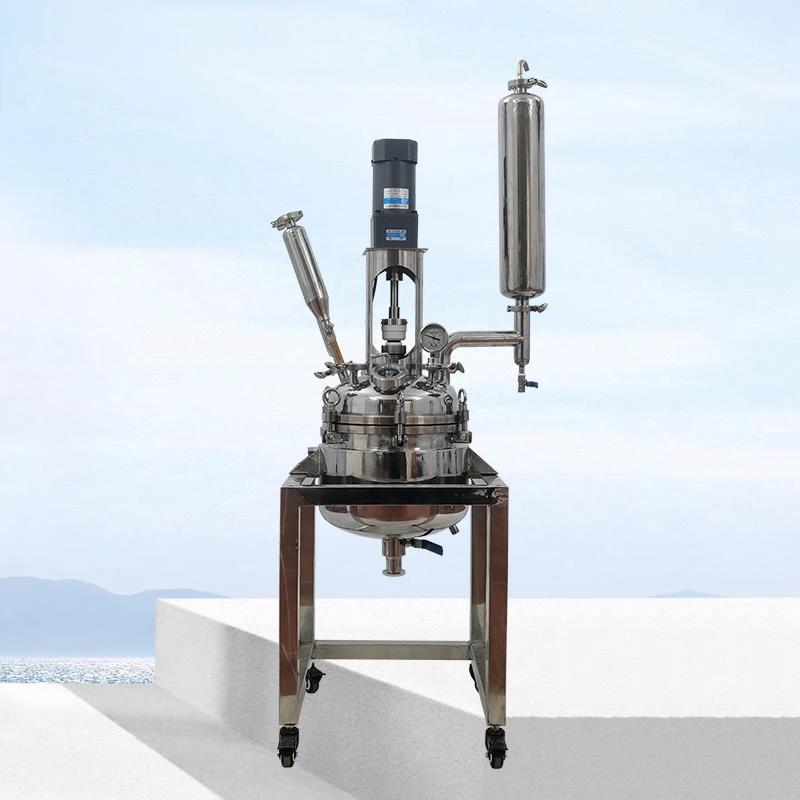

The double-layer stainless steel reaction kettle is designed with double-layer stainless steel. The inner layer can be stirred and reacted by putting the reaction solvent, and the interlayer can be connected to different cold and heat sources (refrigerated liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under the set constant temperature, in a closed stainless steel reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the requirements of use, and the reaction solution can be refluxed and distilled. It is a modern fine chemical factory, biopharmaceutical and Ideal pilot and production equipment for the synthesis of new materials.

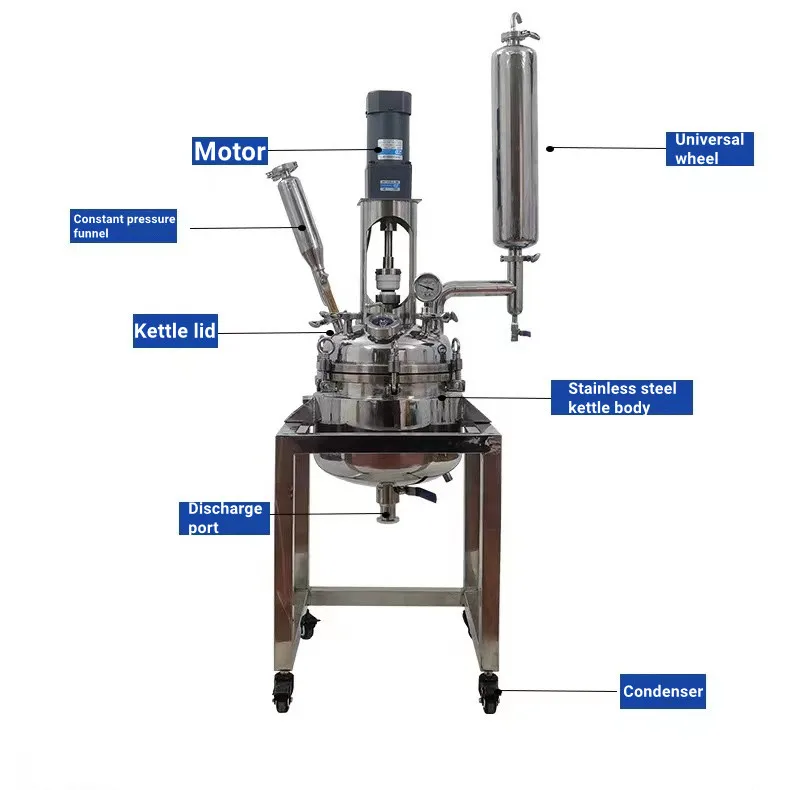

Product Structure
Product Characters
model | BSF-10L | BSF-20L | BSF-30L | BSF-50L | BSF-100L | ||||
Motor Power | 200W | ||||||||
Number of kettle lids | 8 | ||||||||
Dimensions | 480*480*1560 | 500*500*1850 | 530*530*1900 | 580*580*2100 | 1050*690*2350 | ||||
Temperature measuring hole | 50.5 chucks / 10 temperature measuring tubes | 50.5 chucks / 12 temperature measuring tubes | |||||||
Dropping hole | 50.5 chuck/1000ml funnel | 50.5 chuck/2000ml funnel | |||||||
Condensation hole | 50.5 chucks / 89 columns cold | 50. 5 chucks / 38 | |||||||
Return port | 50.5 chuck / 500ml elbow | 50. 5 chucks / 38 | |||||||
Scraper sight glass | 51 | 89 | |||||||
Illuminated sight glass | 32 | 89 | |||||||
Pressure gauge | 50.5 chuck/± integrated pressure gauge | ||||||||
Exhaust | 2 minute exhaust valve | ||||||||
Stirring | SUS316L propelling paddle 20 | ||||||||
High and low temperature resistance | -120~260℃ | ||||||||
Stainless steel thickness | 3mm | 4mm | |||||||
Discharge valve diameter | 35 | ||||||||
Features
1. Frequency conversion speed regulation, AC induction motor. Constant speed, no brushes, no sparks, safe and stable, and can work continuously.
2. The whole set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.
3. The interlayer interface is connected with hot oil and circulated, which can do heating reaction, and cooling liquid can be used for low temperature reaction.
4. It can be reacted at room temperature, and the reflected heat can be quickly taken away by running tap water.
5. The lower discharge port has a flange port and a PTFE valve, there is no dead angle in the container, and it can be disassembled to facilitate the discharge of solid materials.
6. Eight-port reactor cover, extra-large port design is easy to clean, standard port socket can choose to assemble reflux, distillation synthesis device.
2. The whole set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.
3. The interlayer interface is connected with hot oil and circulated, which can do heating reaction, and cooling liquid can be used for low temperature reaction.
4. It can be reacted at room temperature, and the reflected heat can be quickly taken away by running tap water.
5. The lower discharge port has a flange port and a PTFE valve, there is no dead angle in the container, and it can be disassembled to facilitate the discharge of solid materials.
6. Eight-port reactor cover, extra-large port design is easy to clean, standard port socket can choose to assemble reflux, distillation synthesis device.
Product Details
1.Easy to use
Frequency control, AC induction motor. Constant speed, no brushes, no sparks, stable and continuous work.
2.Strict selection of materials
The complete set of stainless steel instruments is produced with 316 stainless steel, which has good chemical and physical properties.

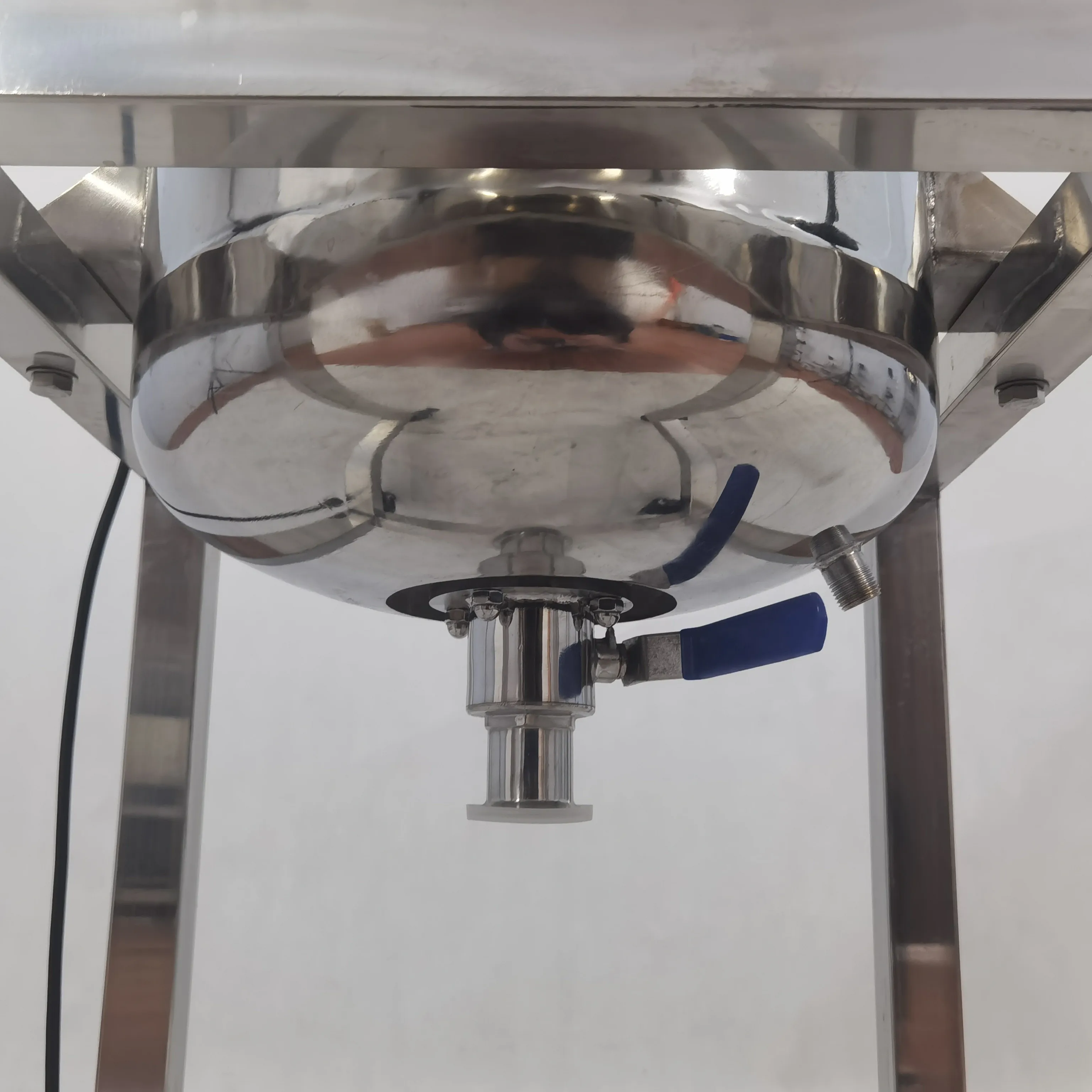

3.Lower discharge port
The lower material port, flange port and PTFE valve have no dead corners in the container, and can be disassembled to facilitate the discharge of solid materials.

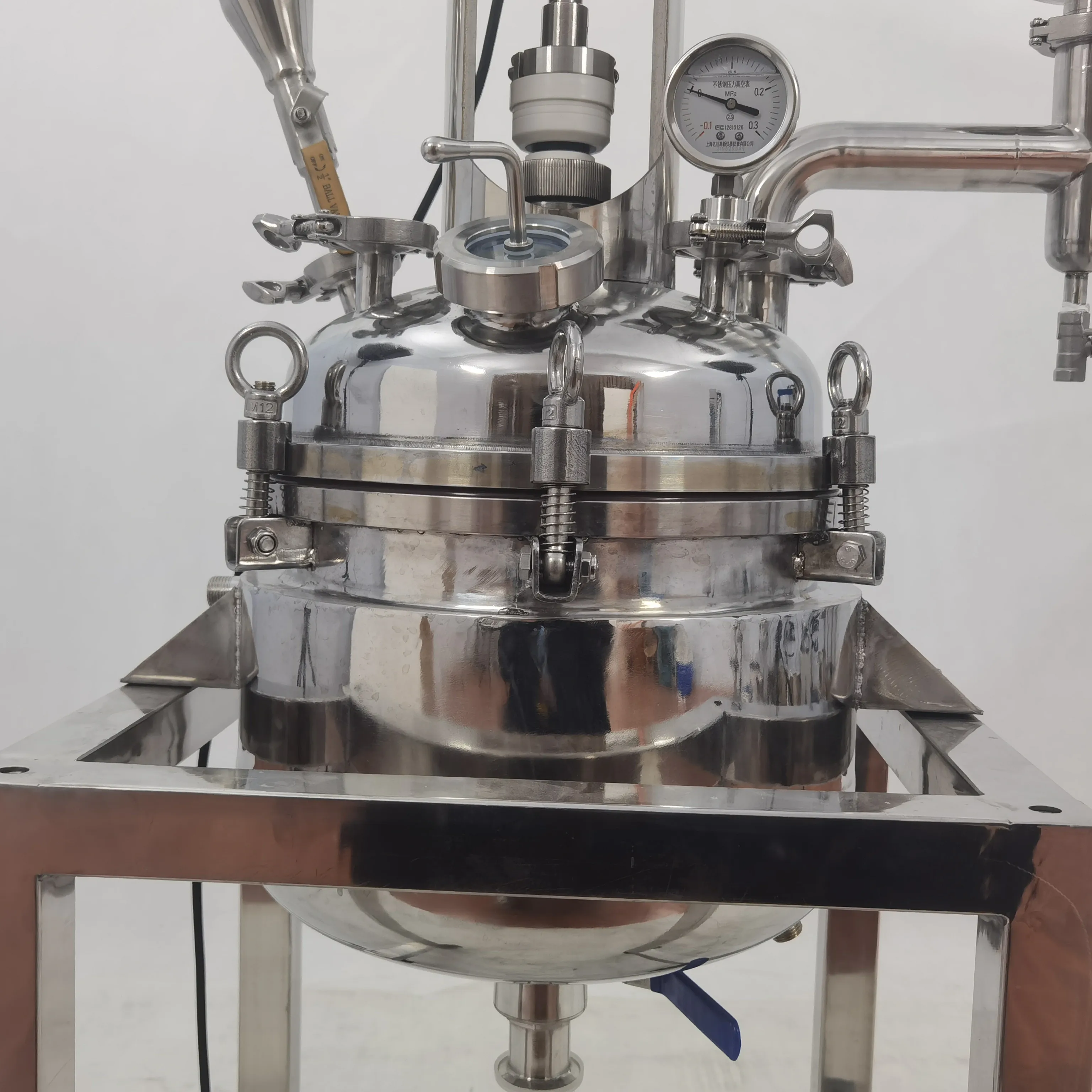

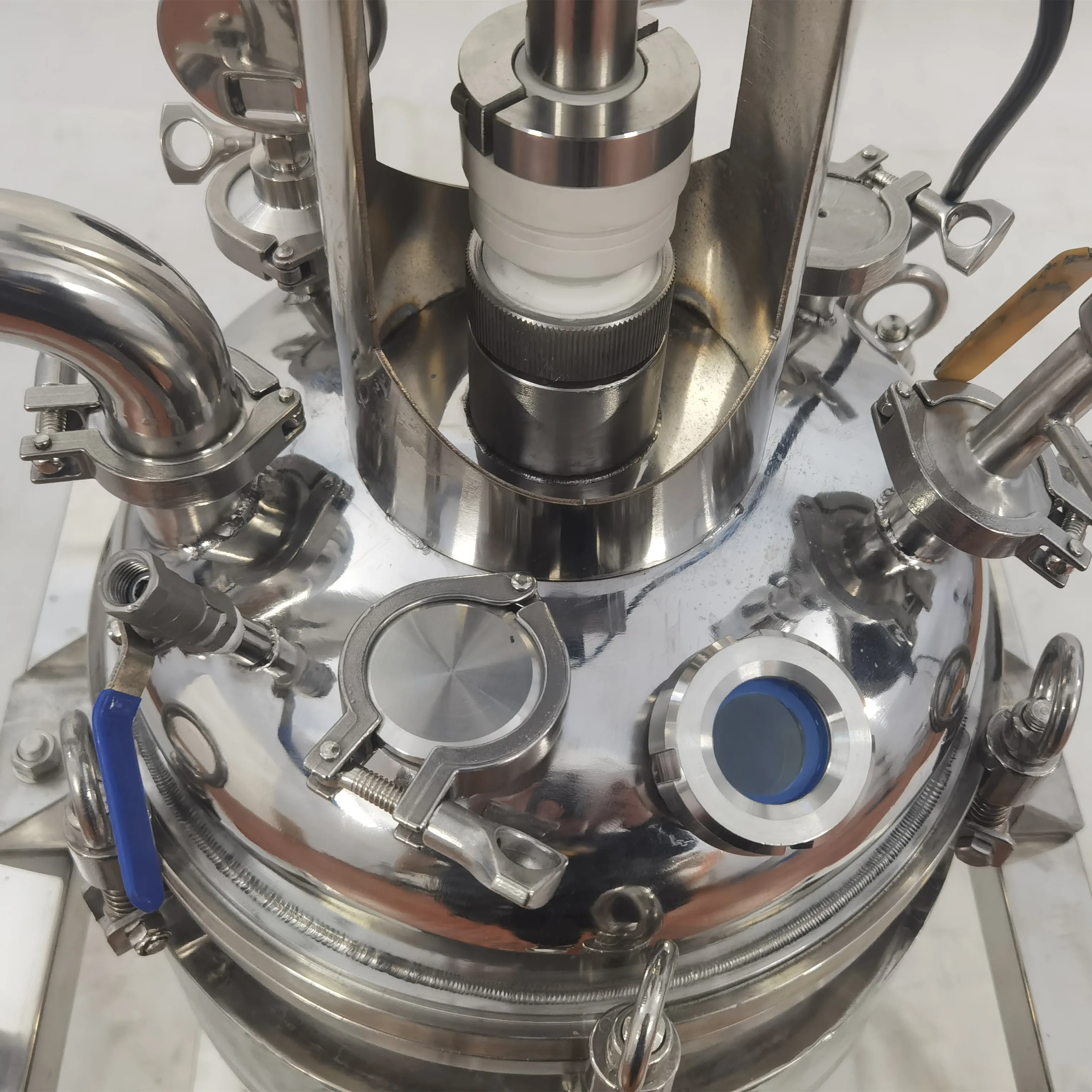

4.Multi-port multi-function kettle lid
Visual glass window, the situation in the kettle is clearly visible, easy to observe.
Application Industry

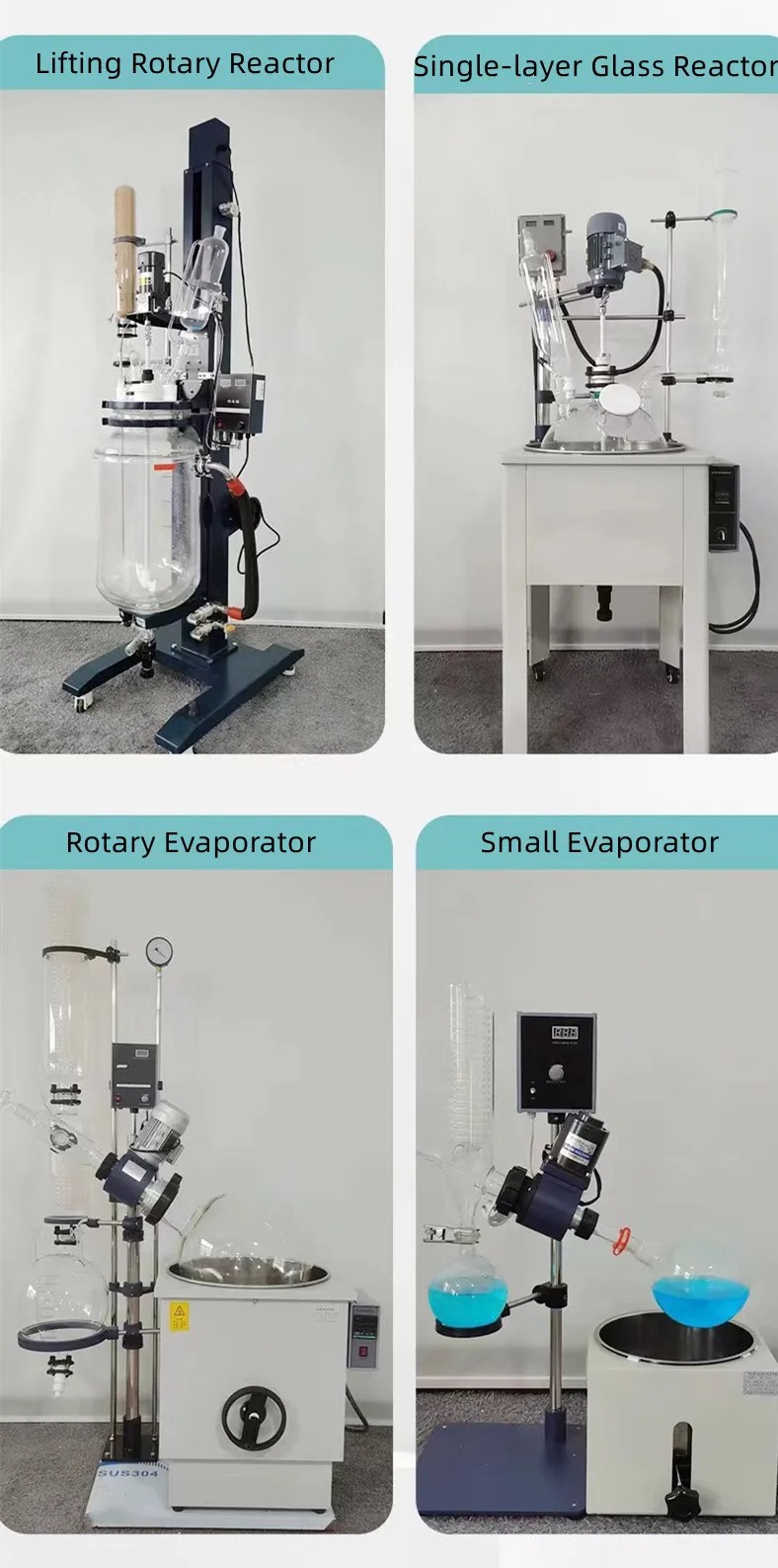

More Products Displays
For more detailed product information, click the picture above to contact us!
Company Profile
Henan Niefanchun Trading Co.,Ltd is a production entity company specializing in the production and supply teaching instruments.We
was main produced kinds of organic synthesis device,rotary evaporator,double and single glass reactor,high and low circulatingdevice,circulating chiller,vacuum pump,glass dryer,low temperature circulating pump,high temperature oil bath,microwave chemical
reactor,water bath,vacuum drying oven,heating magnetic stirrer and so on,including so many kinds of models of teaching
instruments.
-China Henan Niefanchun-

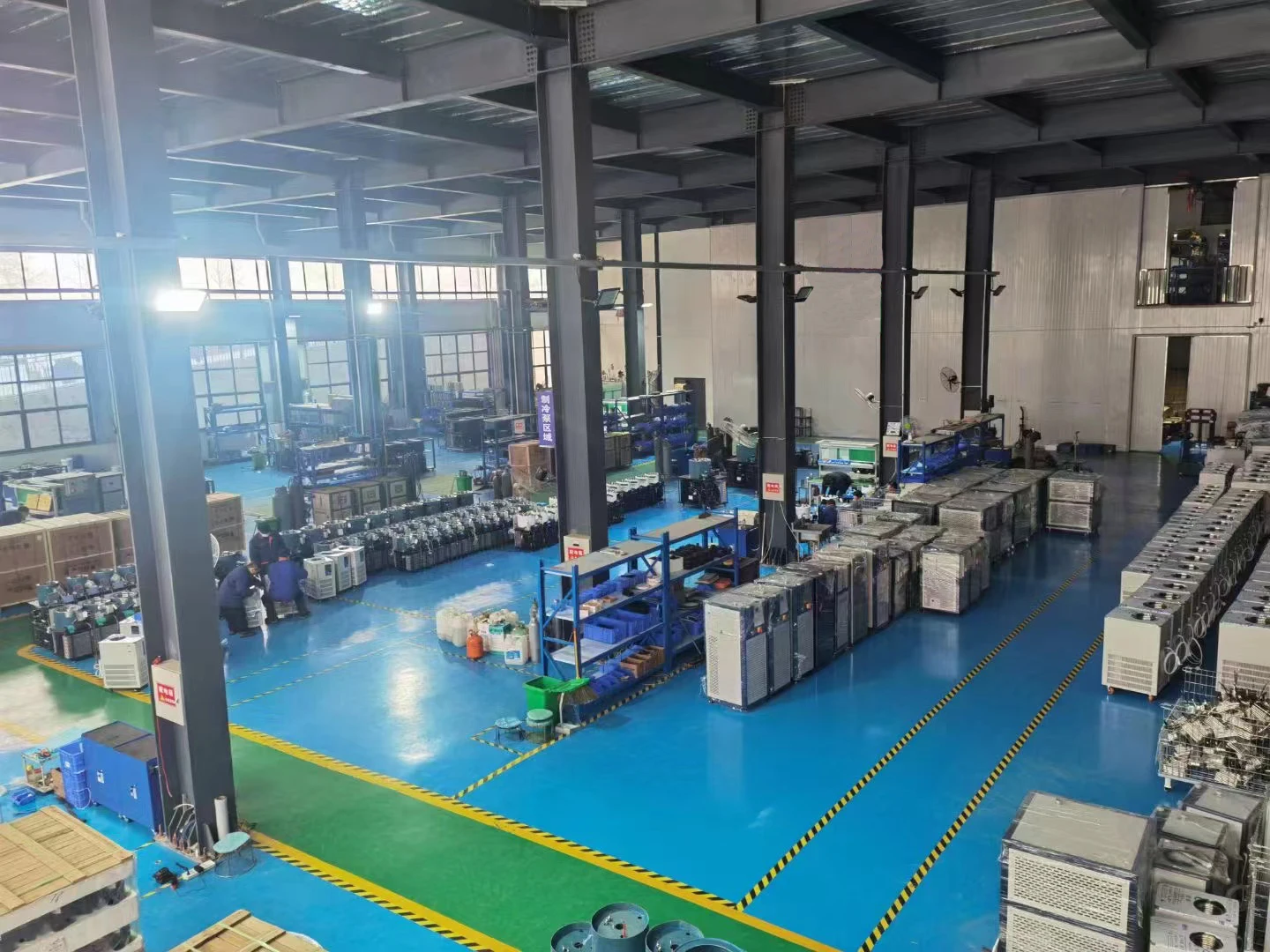

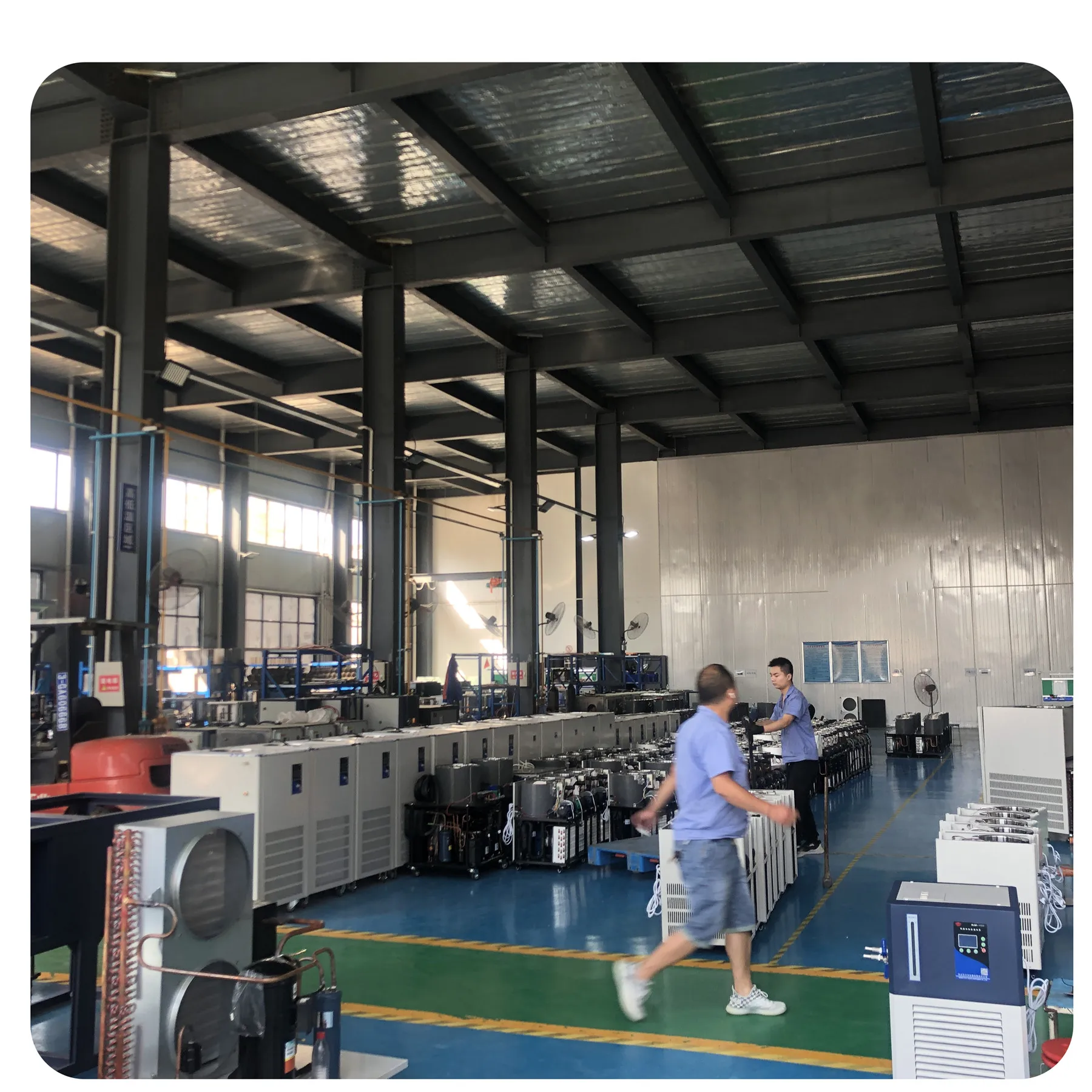

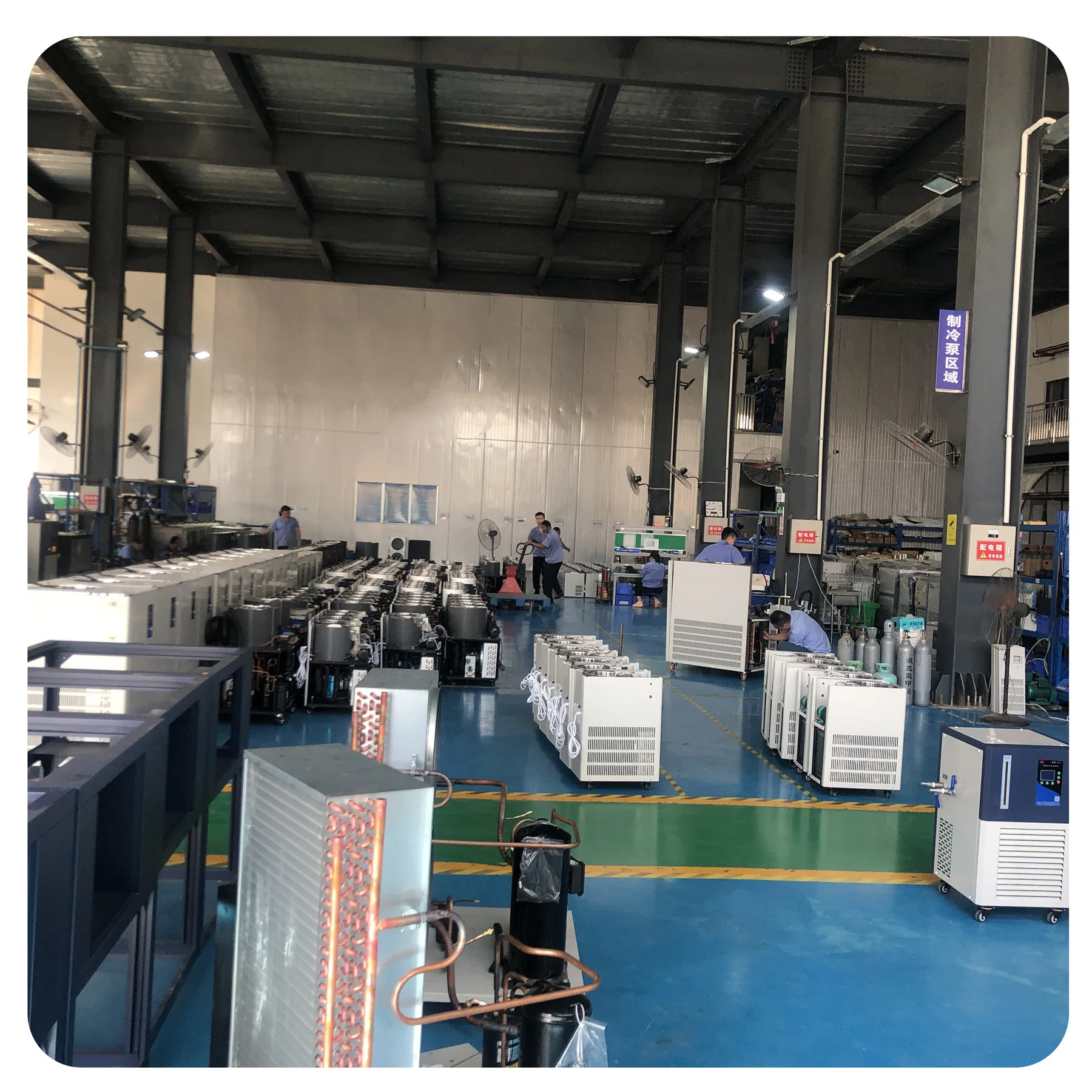

Our company has strong technical force,complete production equipment,stable product quality,attention to absorb advanced
technology for local and abroad,actively develop new models,new products in the domestic industry in the forefront.●Quality is guaranteed
Exhibition
-2019 CPHI Shanghai Exhibition-
Packaging & Delivery

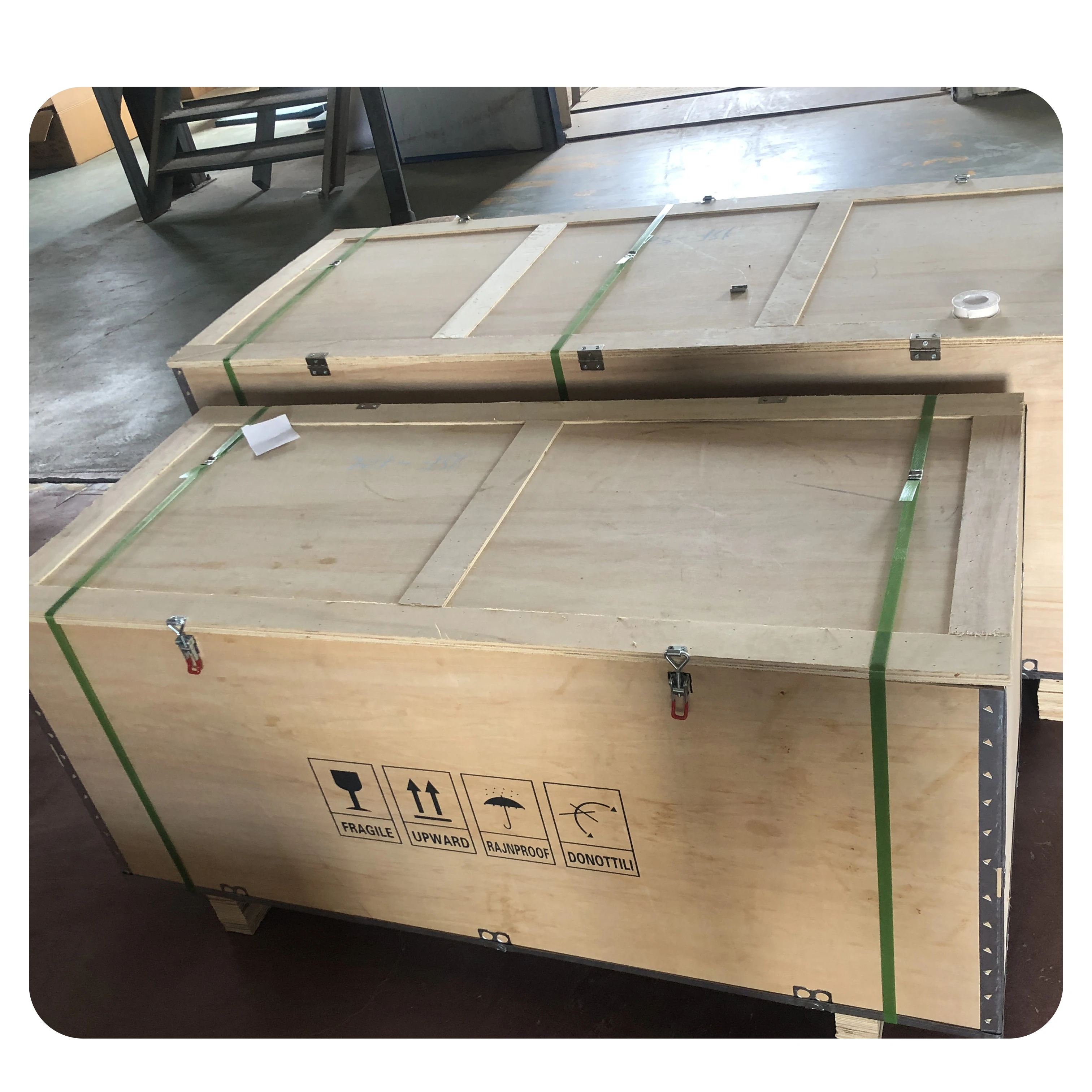

According to the export standard wooden box packaging (no fumigation), there is a sponge in the wooden box for double protection.And the wooden box is equipped with a button that is convenient for unpacking and inspection, which is easy to operate.
