Микрометр высоты Абсолютное измерение водонепроницаемый Под электронными цифровыми циферблатными индикаторами
- Категория товара: Other Measuring & Gauging Tools >>>
- Поставщик (Оптовый магазин): Shenzhen,Pengjie,Precision,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
* Absolute capacitive gate measuring system
* IP54 protection level
* 3V lithium battery CR2032, battery life >1 year
* With SPC data output (built-in wireless transmission model, SPC output port is only used as external power supply input port)
* Built-in wireless transmission (optional)
* Absolute origin can be set at any position
* Tolerance can be set and GO/NG judgment can be made
* Can set the "+", "-" display direction
* IP54 protection level
* 3V lithium battery CR2032, battery life >1 year
* With SPC data output (built-in wireless transmission model, SPC output port is only used as external power supply input port)
* Built-in wireless transmission (optional)
* Absolute origin can be set at any position
* Tolerance can be set and GO/NG judgment can be made
* Can set the "+", "-" display direction
item No. | SPEC | Resolution | Accuracy | |
CDE110-150 | 0-150mm | 0.01mm | 0.02mm | 0.005mm or 1/128"resolution |
CDE110W-150 | Built-in wireless transmission | |||
CDE110-300 | 0-300mm | 0.03mm | 0.005mm or 1/128"resolution | |
CDE110W-300 | Built-in wireless transmission | |||

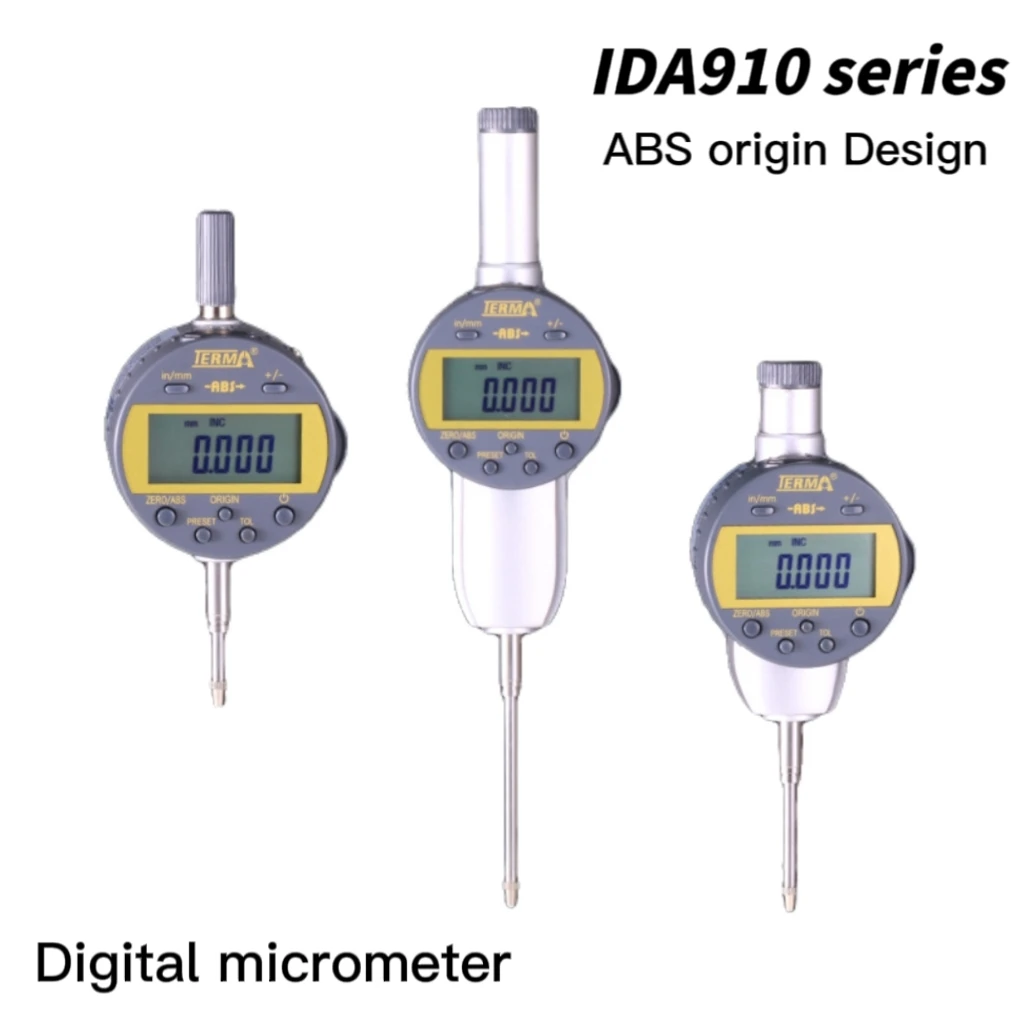

IDA910-10 | 0-12.7mm | 0,001mm | 0.004mm | Outlet with data |
IDA910-25 | 0-25.4mm | |||
MDA910-25 | 0-25mm | 0.001mm | 0.003mm | Outlet with data |
MDA910W-75 | Outlet with data, built-in wireless transmission | |||
MDA910-75 | 50-75mm | 0.004mm | Outlet with data |
