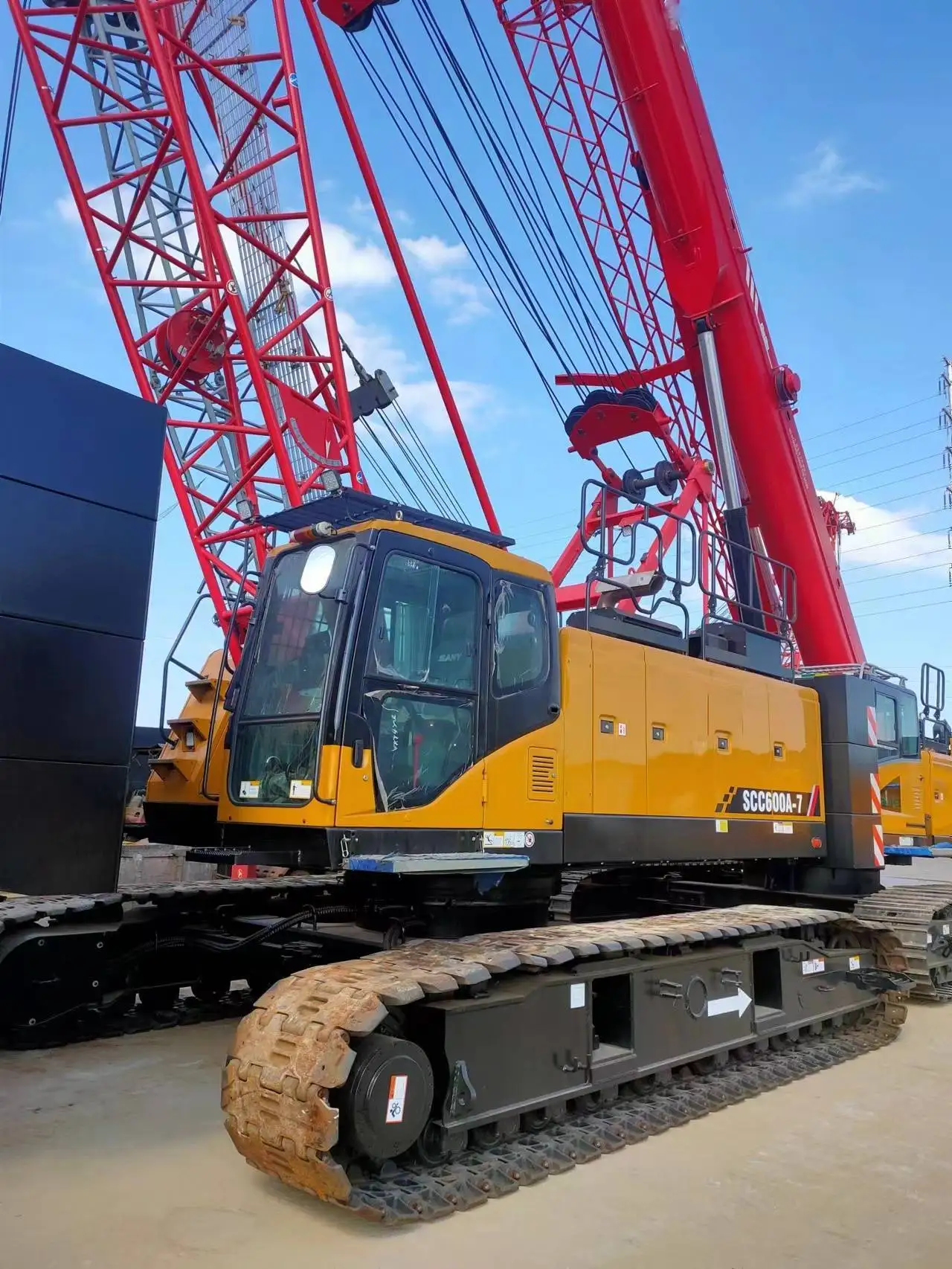

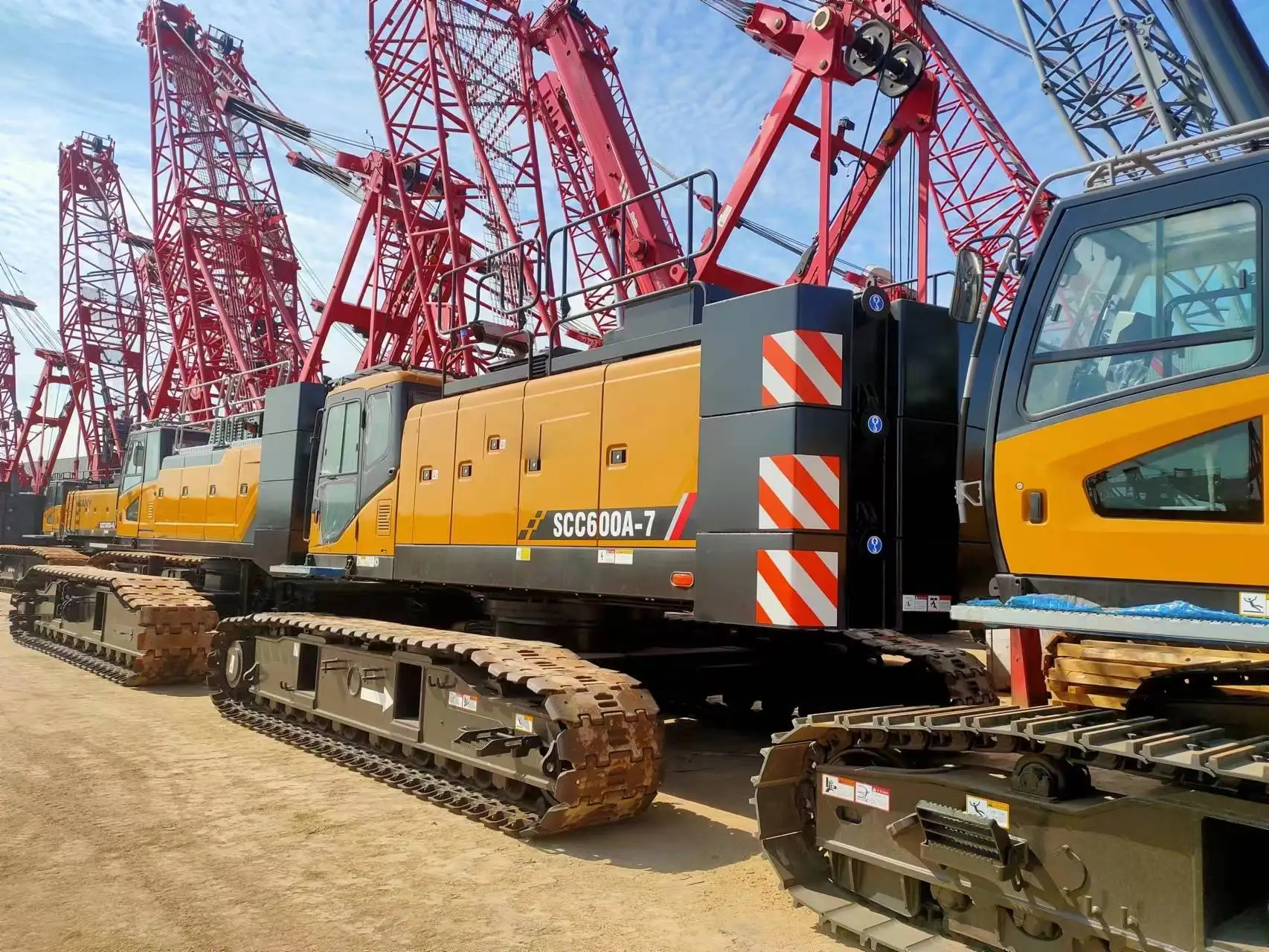

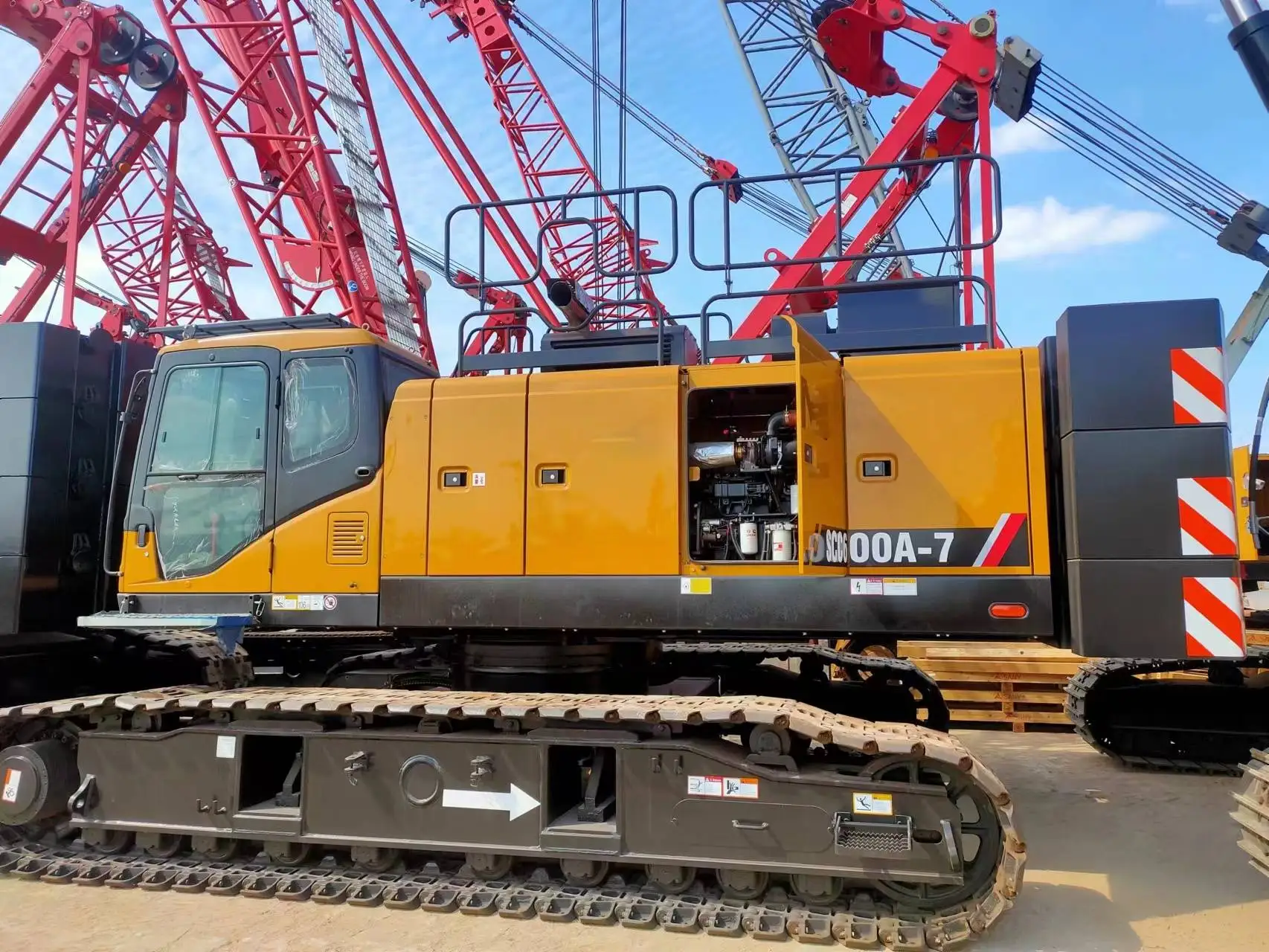

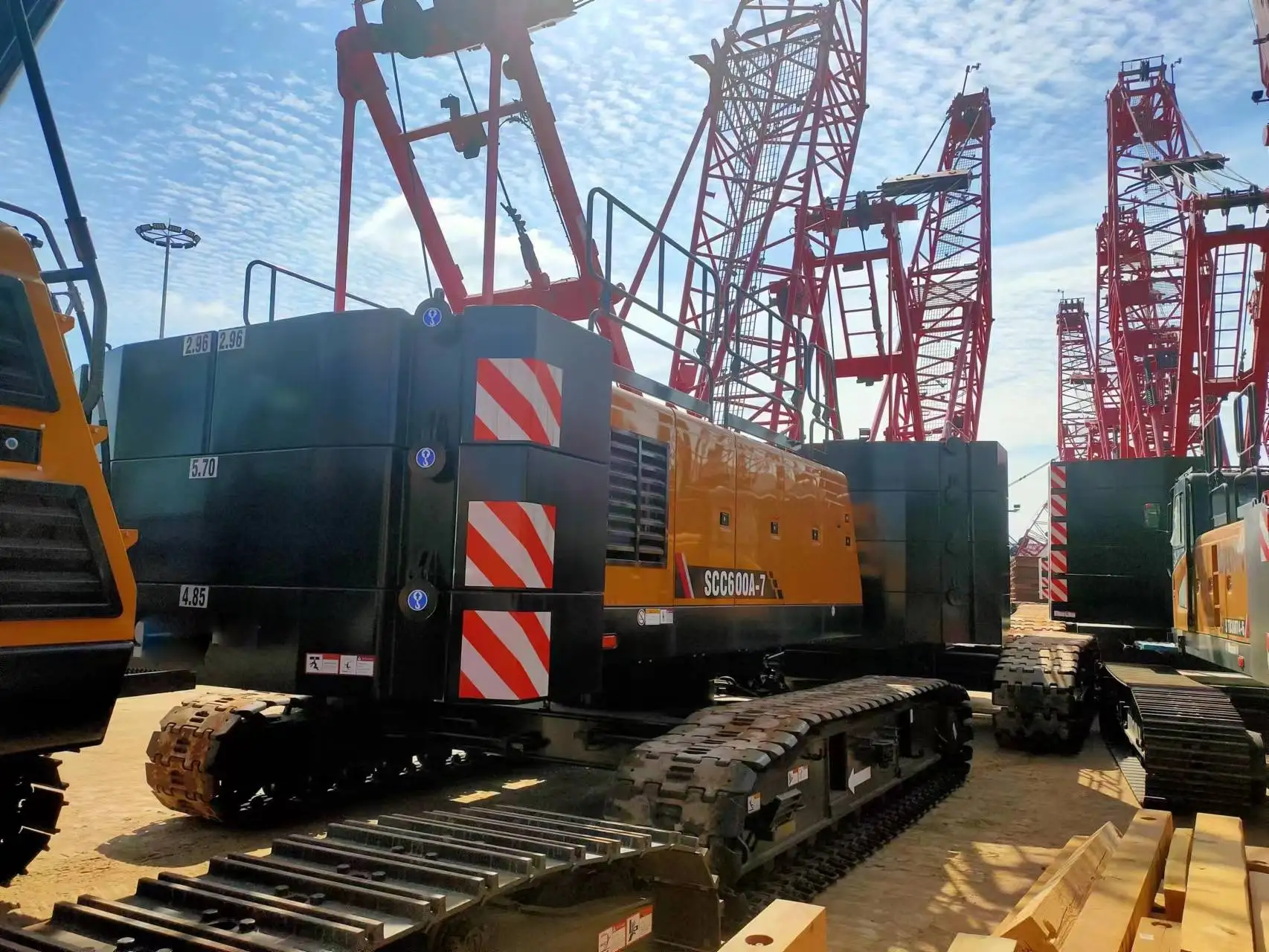

Китайский бренд 60t гидравлический гусеничный кран SCC600A-8 гусеничный кран с стрелой 52 м
- Категория товара: Construction & Building Machinery >>>
- Поставщик (Оптовый магазин): Evangel,Industrial,(Shanghai),Co.,Ltd.Evangel,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Nissa Tang Whatsapp/Wechat/Mobile: +86-15093290380
E-mail: nissa@evangelchina.comSCC600A-8 60t Crawler Crane
Engine ▪ Model: QSB5.9-C210 Diesel engine;
Engine ▪ Model: QSB5.9-C210 Diesel engine;
▪ Type: 4-stroke, water-cooled,6 cylinders vertical in-line, direct injection,
turbo-charger, intercooler, complied with Chinese Nonroad Tier III Emission Standard; ▪ Displacement: 5.9L;
turbo-charger, intercooler, complied with Chinese Nonroad Tier III Emission Standard; ▪ Displacement: 5.9L;
▪ Rated power:
147kW/1800rpm;
147kW/1800rpm;
▪ Max. Torque: 820N·m/1500rpm;
▪ Starter: 24V-6.0kW;
▪ Batteries: Two 12V capacity batteries, connected in series;
▪ Fuel tank capacity: 400L.Boom
▪ Fuel tank capacity: 400L.Boom
▪ Lattice structure. The chord adopts high-strength structural tube and each section is connected through pins;
▪ Basic boom:
6.5m boom top+6.5m boom base;
6.5m boom top+6.5m boom base;
▪ Insert: 3m×1,6m×3,9m×2;
▪ Boom length: 13m~52m.
Maximum rated lifting weight | 60t |
Maximum lifting moment | 222t·m |
Main boom length | 13~52m |
Rope speed of main and auxiliary winch (layer 1) | 120m/min |
Rope speed of main luffing winch (working layer) | 95m/min |
Swing speed | 0~3.5rpm |
Walking speed | 0~2.0km/h |
Basic arm weight | 50t |
Rear counterweight weight | 16t |
Transport weight of main engine (with crawler frame, lower boom) | 32.3t |
Main machine transportation size (with crawler frame, lower section arm) length × width × height | 12200×3000×3200mm |
Model/Displacement | 6HK1\\7.79\\L |
Rated power/speed | 212/2000kW/ rpm |
Maximum rated lifting weight | 7t |
Jib length | 6.1~15.25m |
Longest main boom + jib | 43+15.25m |
Main hoisting wire rope: diameter × length | 22×180φmm×m |
Secondary hoisting wire rope: diameter × length | 22×130φmm×m |
Rated single rope pulling force of main and auxiliary lifting | 7t |
Average ground pressure (basic arm) | 0.065MPa |
Gradeability | 40% |
