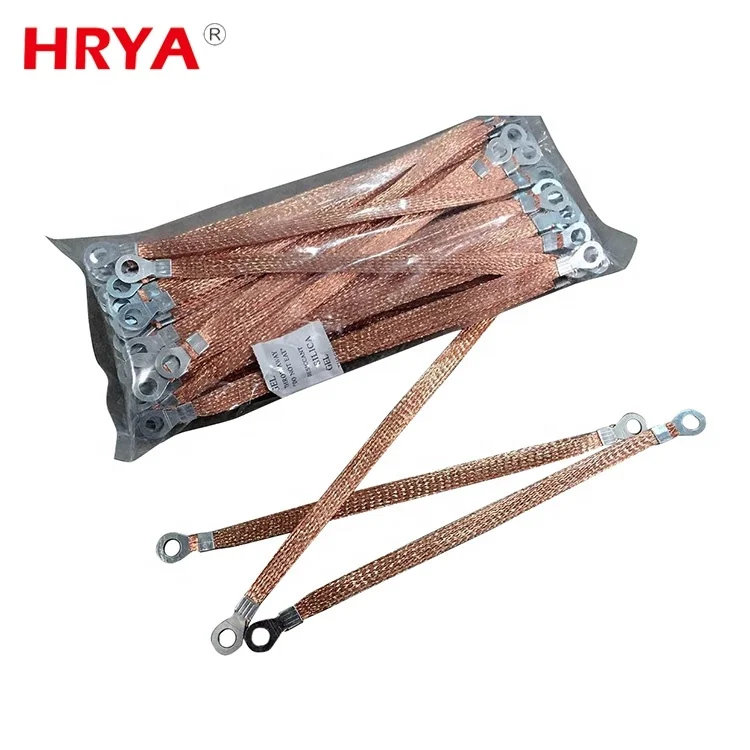

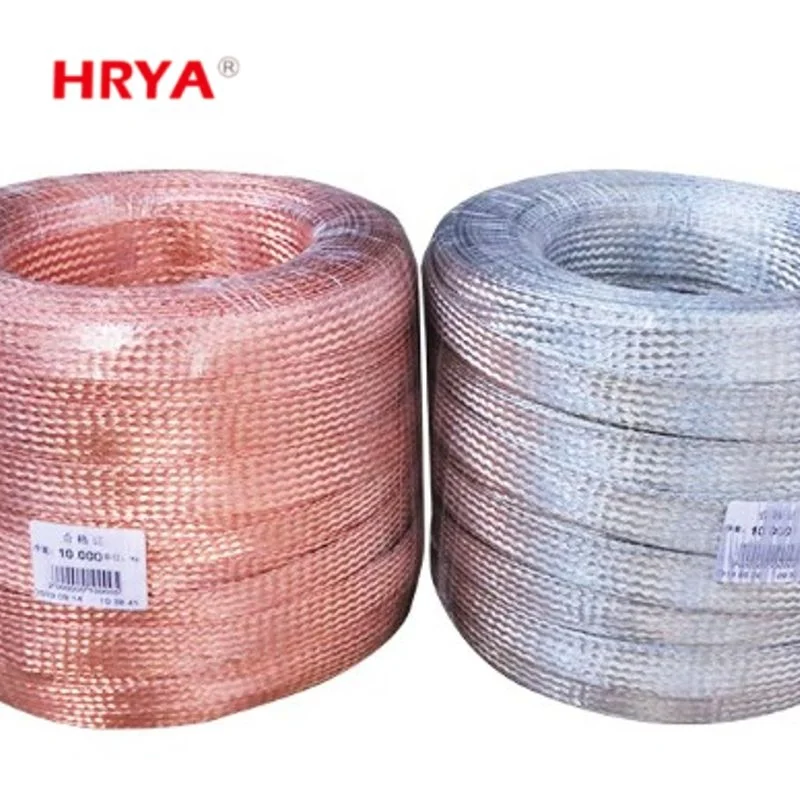

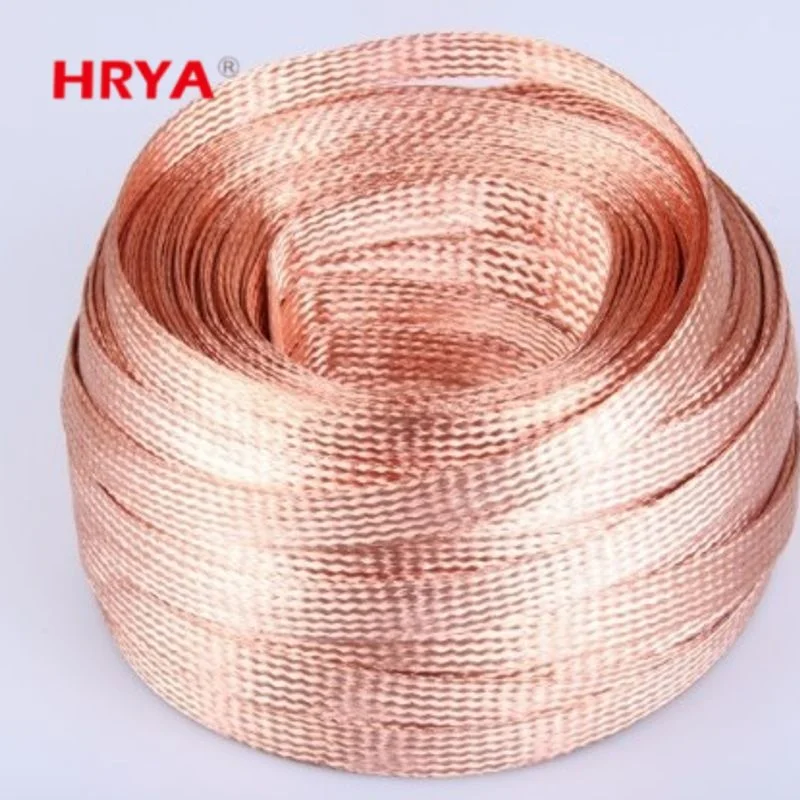

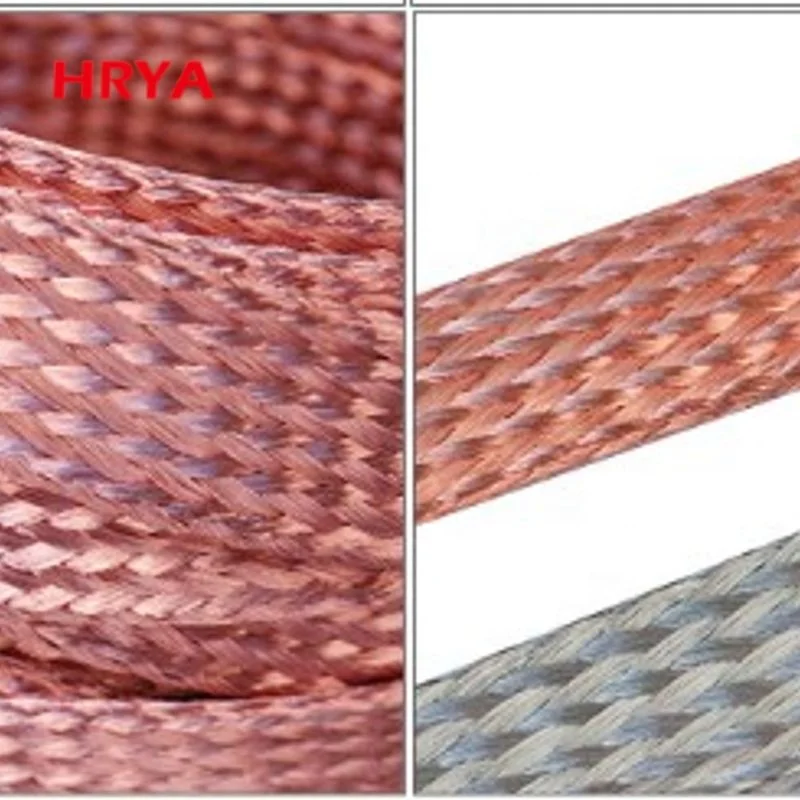

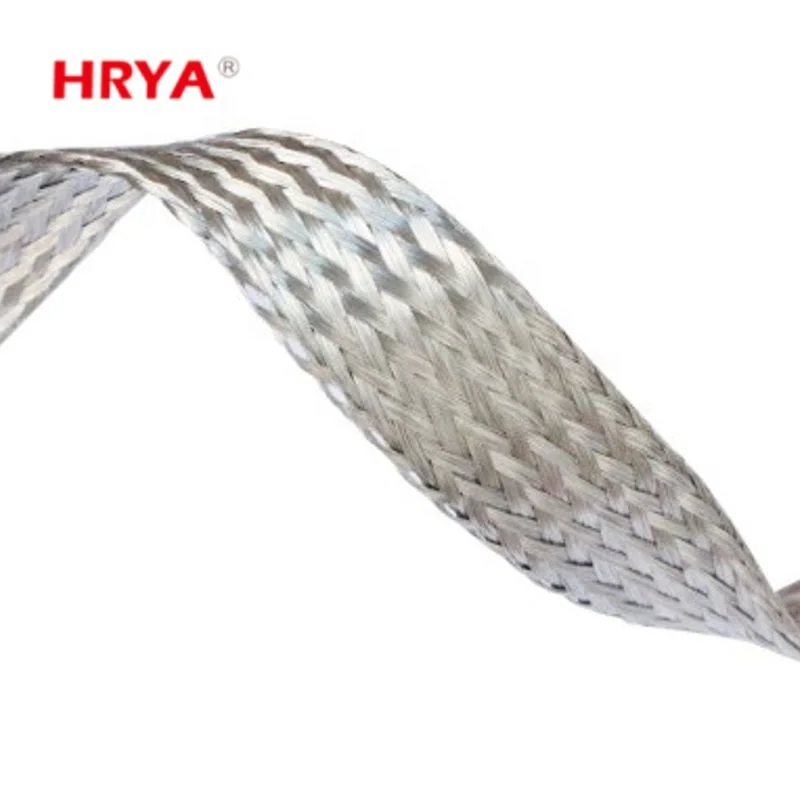

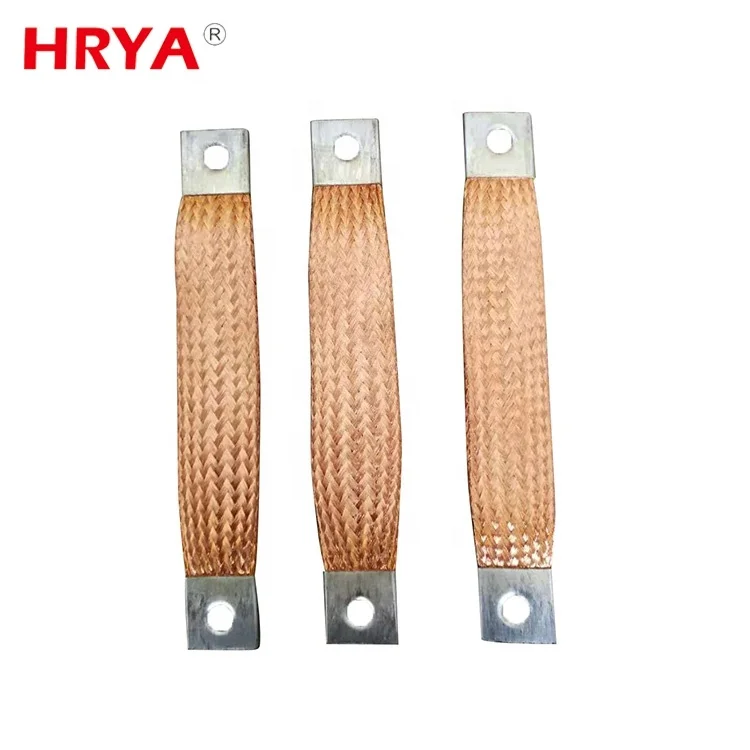

Высококачественный электрический медный заземляющий плоский
- Категория товара: Electrical Wires >>>
- Поставщик (Оптовый магазин): Yueqing,Hrya,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Chinese Factory Flexible Electrical Cable Insulated Copper Wire
1. Excellent electrical conductivity.
2. High bonding strength.
3. Pure T2 copper.
4.Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction.
5.Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.
matetrial | copper | Conductivity | > 100 IACS |
busbar thickness | 1mm,2mm,3mm or other | length | up to 3m |
other dimension | as to confirmed drawing | plating | tin/nickle/silver/others |
Delivery | 5-7days | MOQ | 100m |
OEM | custom all types of bus bars | Application | electric vehicle battery,power distribution equipment |
Product specifications |
Area (mm²) | Size (mm) | Max wide (mm) | Max thickness (mm) | Weight (kg/km) |
| TZ(X)-15/10 | 10.60 | 40×15×1/0.15 | 15.0 | 2.0 | 106 |
| TZ(X)-15/10 | 10.18 | 48×12×1/0.15 | 16.0 | 1.5 | 102 |
| TZ(X)-15/12 | 12.72 | 48×15×1/0.15 | 18.0 | 1.8 | 128 |
| TZ(X)-15/16 | 16.96 | 48×20×1/0.15 | 22.0 | 2.0 | 170 |
| TZ(X)-15/20 | 21.20 | 48×25×1/0.15 | 25.0 | 2.0 | 212.5 |
| TZ(X)-15/25 | 25.45 | 48×30×1/0.15 | 28.0 | 3.0 | 254 |
| TZ(X)-15/25 | 25.45 | 48×15×2/0.15 | 20.0 | 3.5 | 254 |
| TZ(X)-15/35 | 33.93 | 64×30×1/0.15 | 40.0 | 2.2 | 340 |
| TZ(X)-15/35 | 33.93 | 48×20×2/0.15 | 26.0 | 3.2 | 340 |
| TZ(X)-15/50 | 50.87 | 64×45×1/0.15 | 50.0 | 3.0 | 510 |
| TZ(X)-15/50 | 50.87 | 48×30×2/0.15 | 30.0 | 3.2 | 510 |
| TZ(X)-15/50 | 50.89 | 48×20×3/0.15 | 28.0 | 4.8 | 510 |
| TZ(X)-15/75 | 76.34 | 80×54×1/0.15 | 32.0 | 3.5 | 765 |
| TZ(X)-15/75 | 76.34 | 48×30×3/0.15 | 36.0 | 5.0 | 765 |
| TZ(X)-15/95 | 95.00 | 48×28×4/0.15 | 35.0 | 6.0 | 950 |
| TZ(X)-15/100 | 100.09 | 96×59×1/0.15 | 80.0 | 4.0 | 1000 |
| TZ(X)-15/120 | 127.23 | 48×30×5/0.15 | 42.0 | 7.0 | 1271.80 |
Product Display
Company Information
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You wi
be charged a sample price plus all related shipping costs. Express delivery charge depends
on the quantity of the samples
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies
