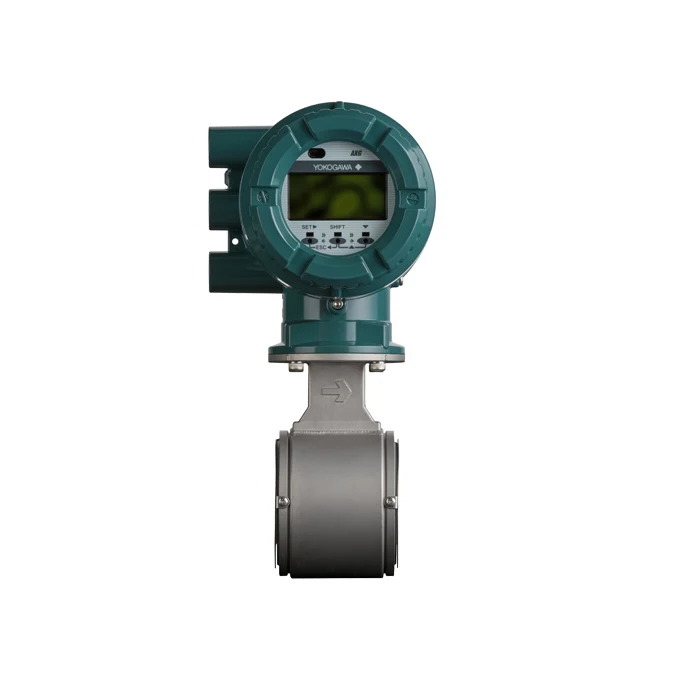

Yokogawa электромагнетический расходомер модель AXG150-GA000BE2AL214B-1JA11 150 мм (6

Поделиться:


Цена:1 053,00 $ - 1 063,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Description


DESCRIPTION

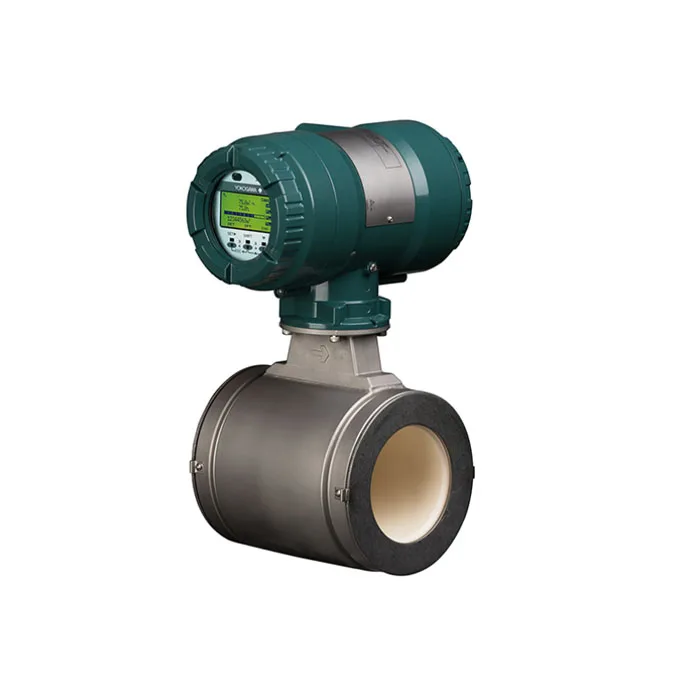

The ADMAG TI (Total Insight) series AXG magnetic fl owmeter is a high-quality and highly reliable product developed based on years of experience and achievement, such as enhancement of application by our proprietary dual frequency excitation method. The AXG magnetic fl owmeter is ideal for industrial process lines like oil & gas, chemical, pulp & paper, food & beverage, or metal & mining applications. With outstanding reliability and ease of operation and maintenance, developed on decades of fi eld-proven experience, the AXG will increase user benefi ts while reducing total cost of ownership.
• Size: 2.5 to 500 mm (0.1 to 20 in.)
•Lining: Fluorocarbon PFA, Ceramics tube
• Process connection: ASME, EN, AS, and JIS
Note: For AXG1A remote transmitter, read general specification(GS 01E22C01-01EN).
For AXFA11G remote transmitter, read general specifi cations (GS 01E20C01-01E.


Technical Parameters


Liner Material
[Sensor Combination]
- AXG: Ceramics, PFA
- AXW: PTFE, Polyurethane,
Natural Soft Rubber,
Natural Hard Rubber


Ceramics, PFA
Communication Protocols
HART 7, BRAIN
HART 7, BRAIN, Modbus
FOUNDATION Fieldbus
PROFIBUS PA
EtherNet / IP
Signal Cable Length
200 m
100 m
-
Main Function
- Easy Setup Wizard, Trend Graph Display Function
- Data Logging Function (with microSD card)
- Parameter Backup / Restore / Duplication Function (with microSD card)
- Zero Adjustment
- Display Test Function
- Input/Output Test Function







Diagnostic Function
[Application Diagnostics]
- Electrode Adhesion Detection
- Sensor Empty Check
- Wiring Connection Diagnosis
- Flow Noise Diagnosis
- Low Conductivity Diagnosis
- Electrode Insulation Deterioration Diagnosis
[Verification Function]
- Built-in Verification
- Standard Verification (with FSA130 ADMAG TI Verification Tool)
- Enhanced Verification (with FSA130 ADMAG TI Verification Tool)
Current Signal
Input: 1 ch (Active)
Output: 2 ch (Active)
Input: 1 ch (Active)
Output: 2 ch (Active / Passive)
Pulse/Status Signal
Output: 2 ch (Active [With / Without Internal Resister] / Passive)
Status Signal
Input: 2 ch (Dry Contact)
Output: 2 ch (Passive)
Input: 1 ch (Dry Contact)
Output: 1 ch (Passive)
Alarm Signal
Output: 1 ch (Passive)
Multiple Languages
English, French, German, Italian, Spanish, Portuguese, Russian and Japanese.
Safety Integrity Level
SIL2
Others
[AXG1A/AXG4A Transmitter, AXG Integral Type]
- LCD with improved environmental resistance
- Equipped with temperature input terminal for Density correction and Calolie calculation

[AXG Flow sensor、AXG Integral Type]
- Expand Lining flare diameter, improve Seal reliability
- Compatible with high pressure specifications ASME Class 600
- Selectable built-in grounding electrodes


Applications


The product is ideal for industrial processes such as petrochemicals, chemicals, pulp and paper, food and beverages, metals and mining. A lining material with excellent wear resistance, corrosion resistance, and permeation resistance is available to provide high precision and stable flow measurement.
