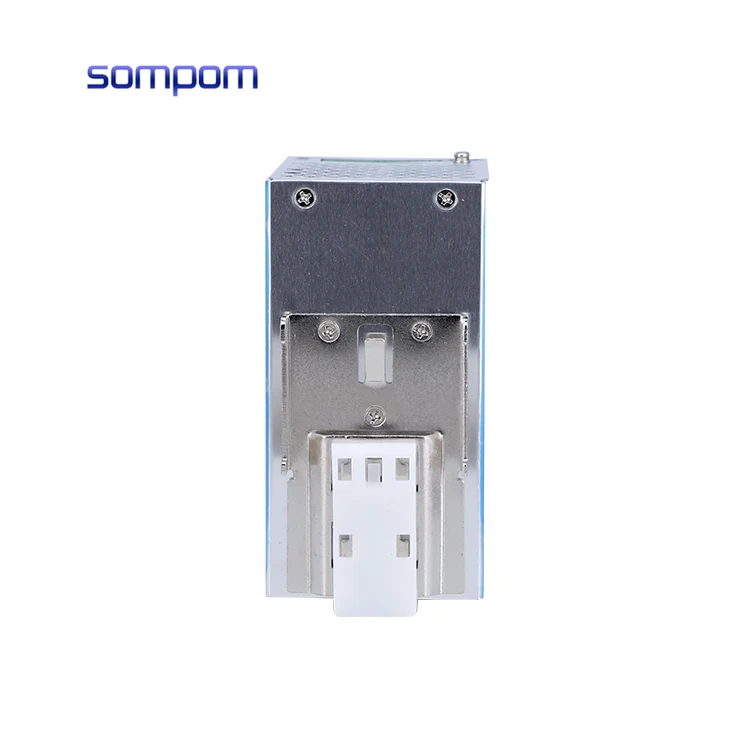

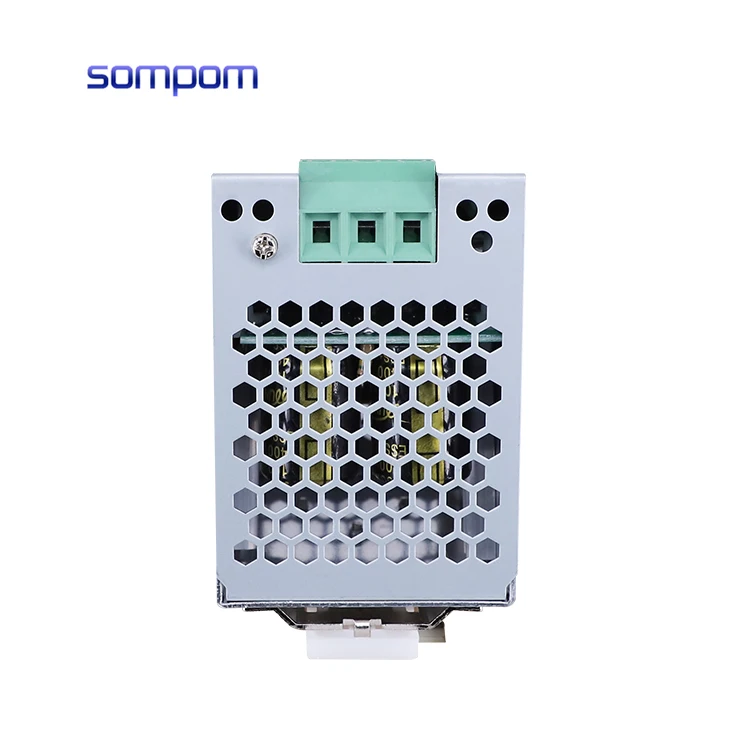

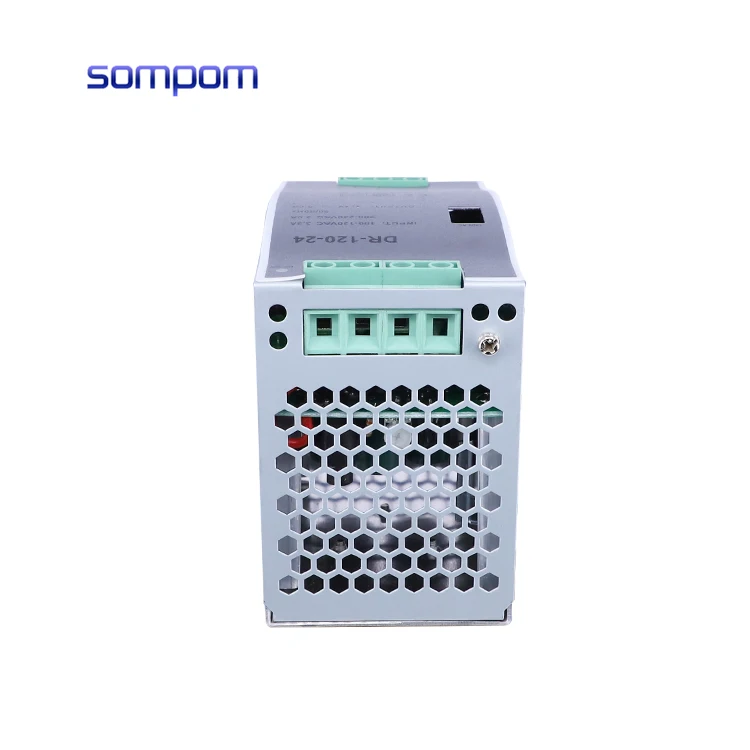

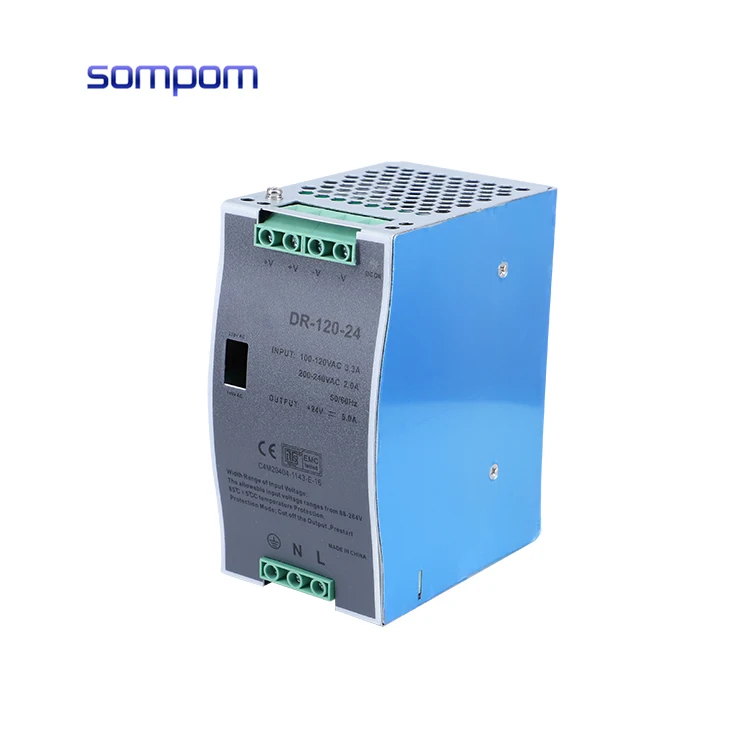

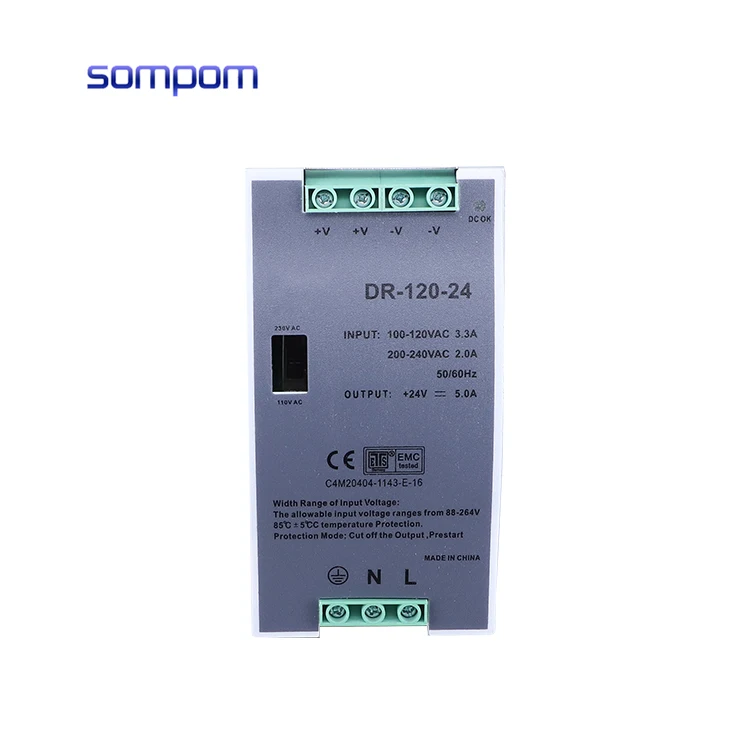

Промышленный импульсный источник питания DR 120 Вт 12 В/24 В/48 В с Din-рейкой переменного тока в постоянный
Промышленный импульсный источник питания DR 120 Вт 12 В/24 В/48 В с Din-рейкой переменного тока в постоянный
Промышленный импульсный источник питания DR 120 Вт 12 В/24 В/48 В с Din-рейкой переменного тока в постоянный
Промышленный импульсный источник питания DR 120 Вт 12 В/24 В/48 В с Din-рейкой переменного тока в постоянный
Промышленный импульсный источник питания DR 120 Вт 12 В/24 В/48 В с Din-рейкой переменного тока в постоянный
Промышленный импульсный источник питания DR 120 Вт 12 В/24 В/48 В с Din-рейкой переменного тока в постоянный
Промышленный импульсный источник питания DR 120 Вт 12 В/24 В/48 В с Din-рейкой переменного тока в постоянный

Промышленный импульсный источник питания DR 120 Вт 12 В/24 В/48 В с Din-рейкой переменного тока в постоянный

Поделиться:


Цена:13,12 $ - 13,72 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Products Description


Model
DR-15-5
DR-15-12
DR-15-24


OUTPUT
DC Voltage
5V
12V
24V
Rated Current
2.4A
1.25A
0.63A
Current Range
0-2.4A
0-1.25A
0-0.63A
Rated Power
15W
15W
15W
Ripple & Noise (max.) Note.2
80mVp-p
120mVp-p
150mVp-p
Voltage Adj. Range
±10%
±10%
±10%
Voltage Tolerance Note.3
±2%
±1%
±1%
LINE REGULATION
±1%
±1%
±1%
LOAD REGULATION
±1%
±1%
±1%
Setup, Rise Time
1000ms,50ms/230VAC 1000ms,50ms/115VAC at full load
Hold Up Time
36ms/230VAC 32ms/115VAC at full load


INPUT
Voltage Range
88~132VAC/176~264VAC selected by switch 248~370VDC
FREQUENCY RANGE
47~63Hz
AC Current
0.88A/115V 0.48A/230V
Efficiency
78%
83%
85%
Inrush Current
COLD START 35A/115VAC 65A/230VAC

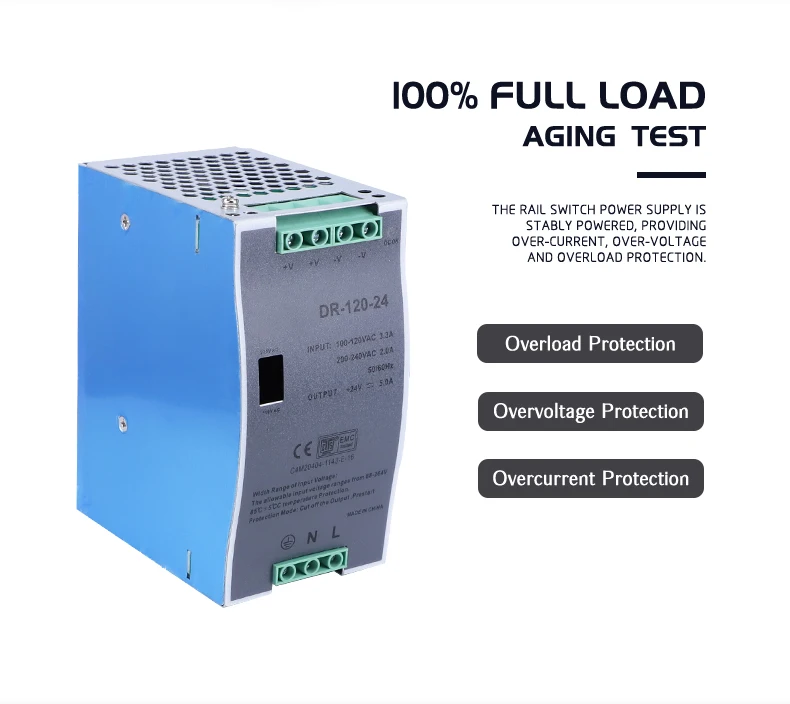

PROTECTION
Over Load
105%~150% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
5.75 ~ 6.75V
13.8 ~ 16.2V
27.6 ~ 32.4V
Protection type : Shut down o/p voltage, re-power on to recover
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down


ENVIRONMENT
Working Temp.,
-10°C~+60°C; (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
Storage Temp., Humidity
-20°C~+85°C; 10%~95%RH
Temp. Coefficient
±0.03%/°C(0~50°C)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes


SAFETY
Withstand Voltage
I/P-O/P:3KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSION
Compliance to EN55032, EN55035 Class B, EN61000-3-2,-3
DIMENSION
25*93*56 mm (W*H*D)










Related products




About Us




SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.


Exhibition




Our Certification










FAQ


1、Q: What is your MOQ of switch power?
A: Our MOQ is 1 piece

2、Q:How many year warranty of your Led driver?
A: Two years

3、Q: Do you offer sample of power?
A: Yes, We offer free sample, but you need pay the shippment.

4、Q: Do you have switch power factory?
A: Yes, we are OEM & ODM manufacturer in Donguan.

5、Q: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.

6、Q: Do you have any certification?
A: Yes, we have CE, RoHS, FCC and ISO9001 right now. If you need other certification with large order, We can apply for it.


Applications




Our Factory






Contact Us

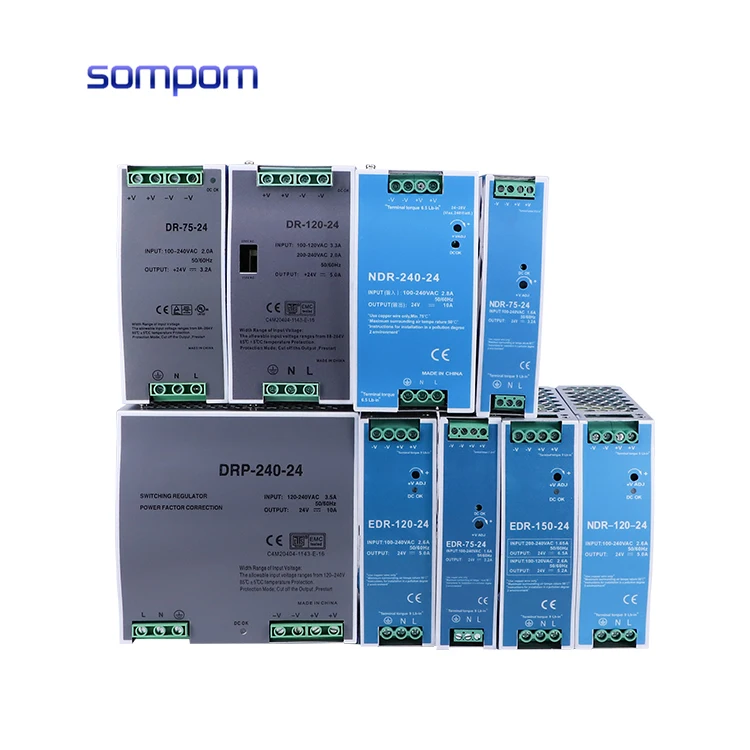

Похожие товары
