Удлинительный кабель для электродвигателя EBike разъем «Мама-папа» 65 см 9 контактов кабели велосипеда аксессуары

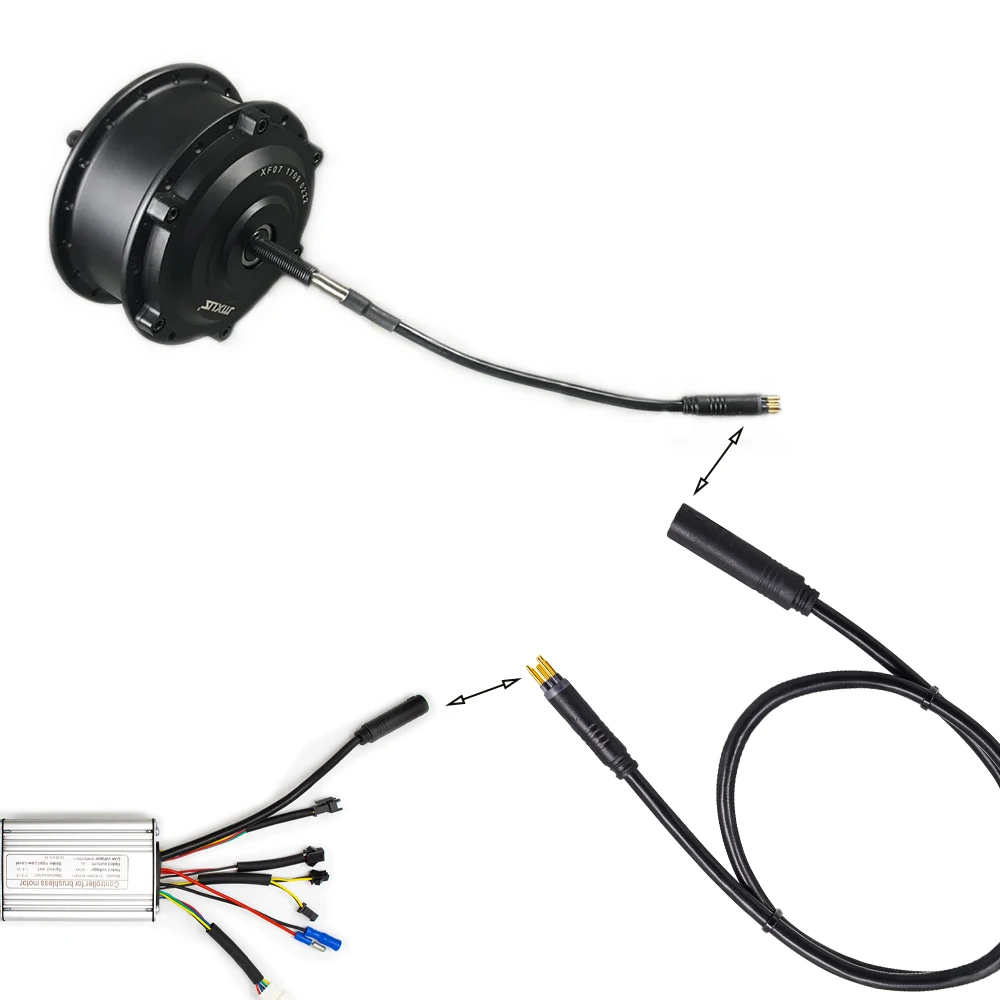

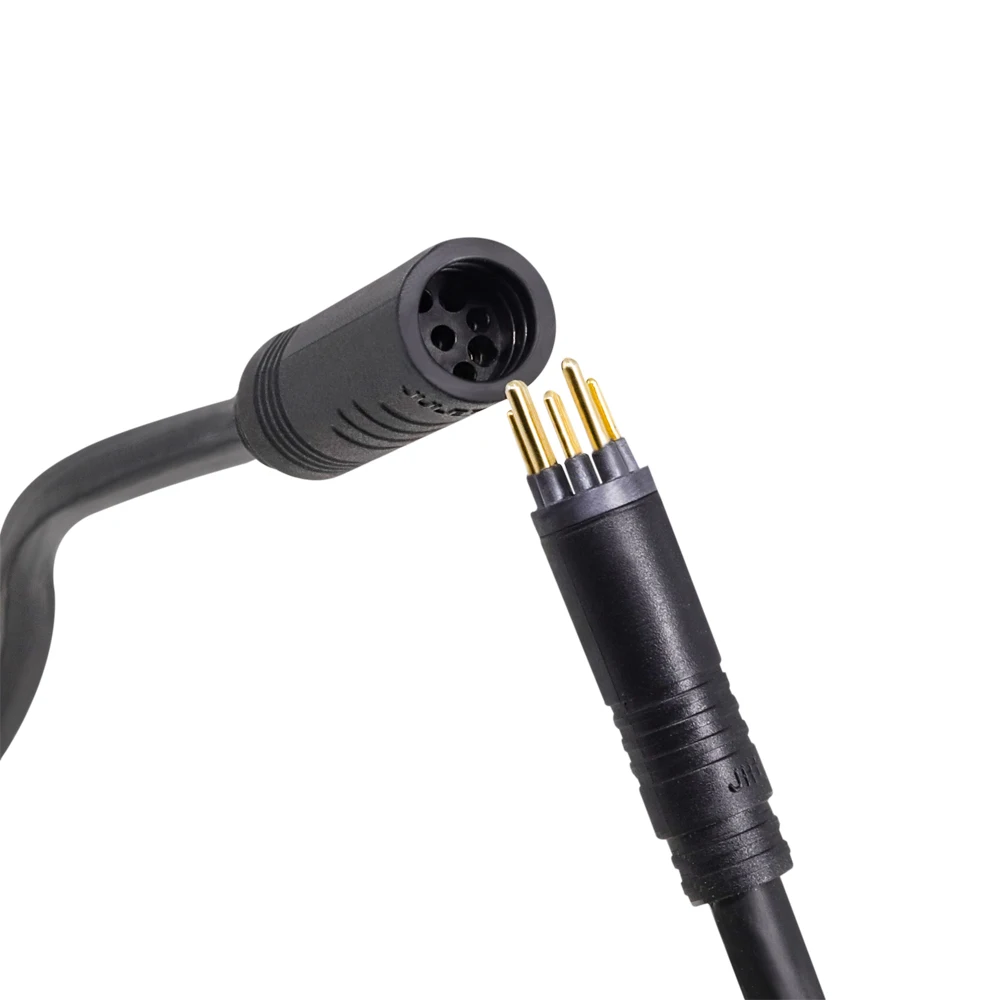

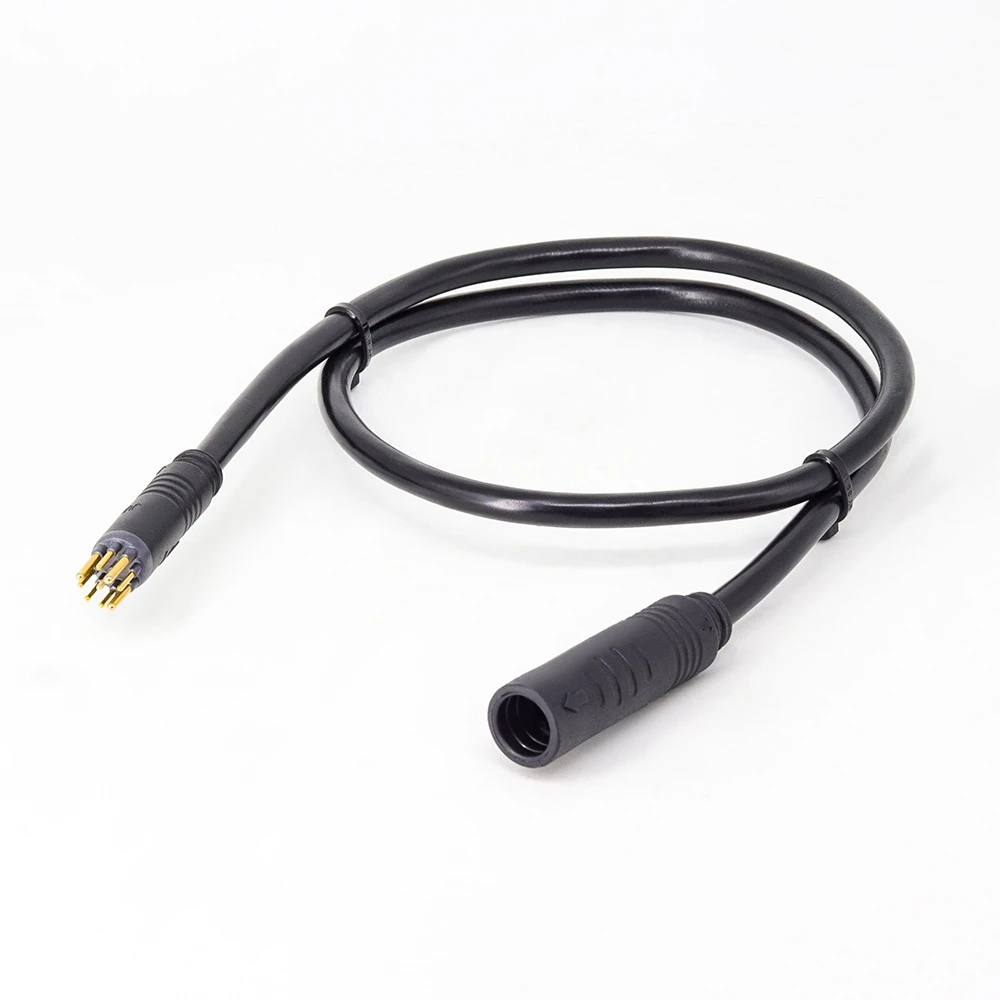

Choice 1:Female to male,waterproof connector

Specifications: 9pin waterproof motor cable male to female

Rated voltage: 500VAC

Rated current 15A for 1-3 terminals 5A for 4-9 terminals

Contact resistance: ≤10mΩ

Temperature range: -40℃-+105℃

Insulation resistance: should be ≥100mΩ under normal conditions and humid conditions

Withstand voltage: AC1000V 50HZ for 1 minute without breakdown or flashover

Contacts: Copper alloy nickel/gold plated

Mechanical life: 500 times

Sheath: PVC

Pin diameter: 3²x1.5 6²X1.0

Maximum outer diameter: plug 10mm socket 14mm

Line length: 0.65m

Use wire specification: 1.2mm²

Production process: injection molding

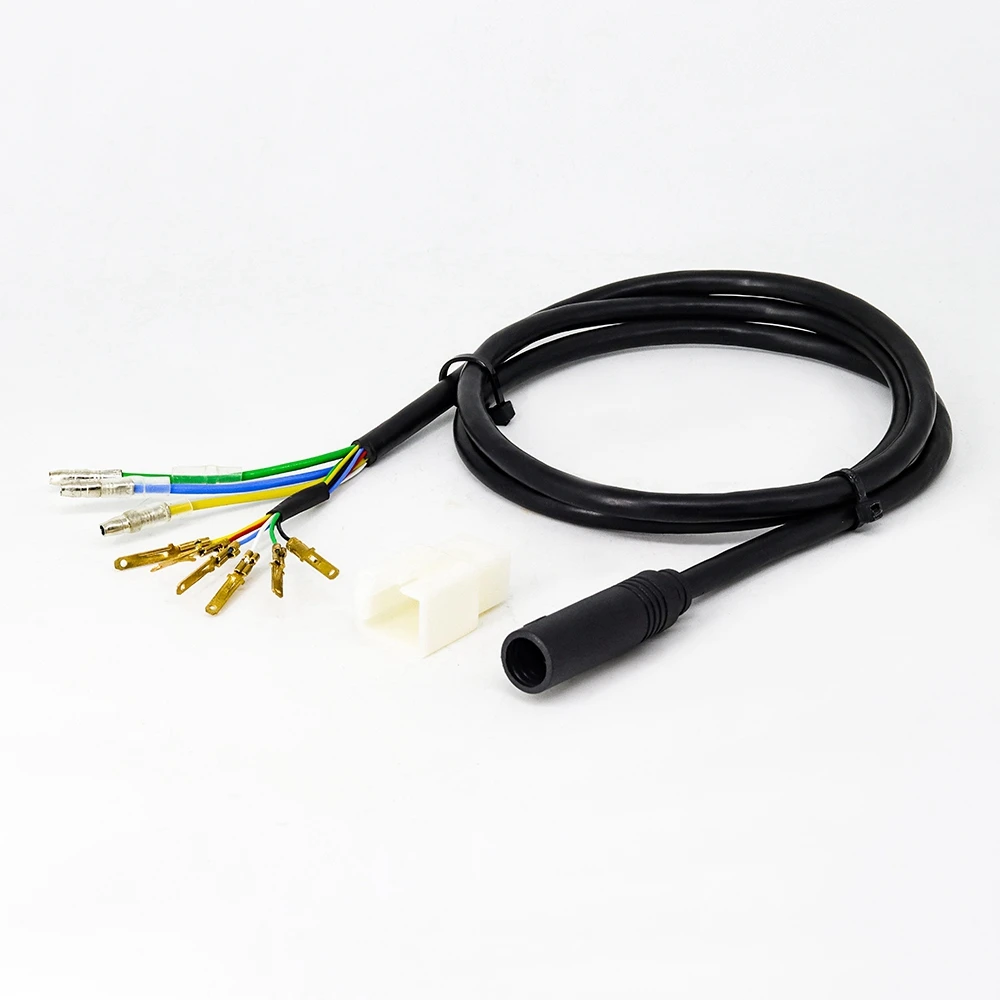

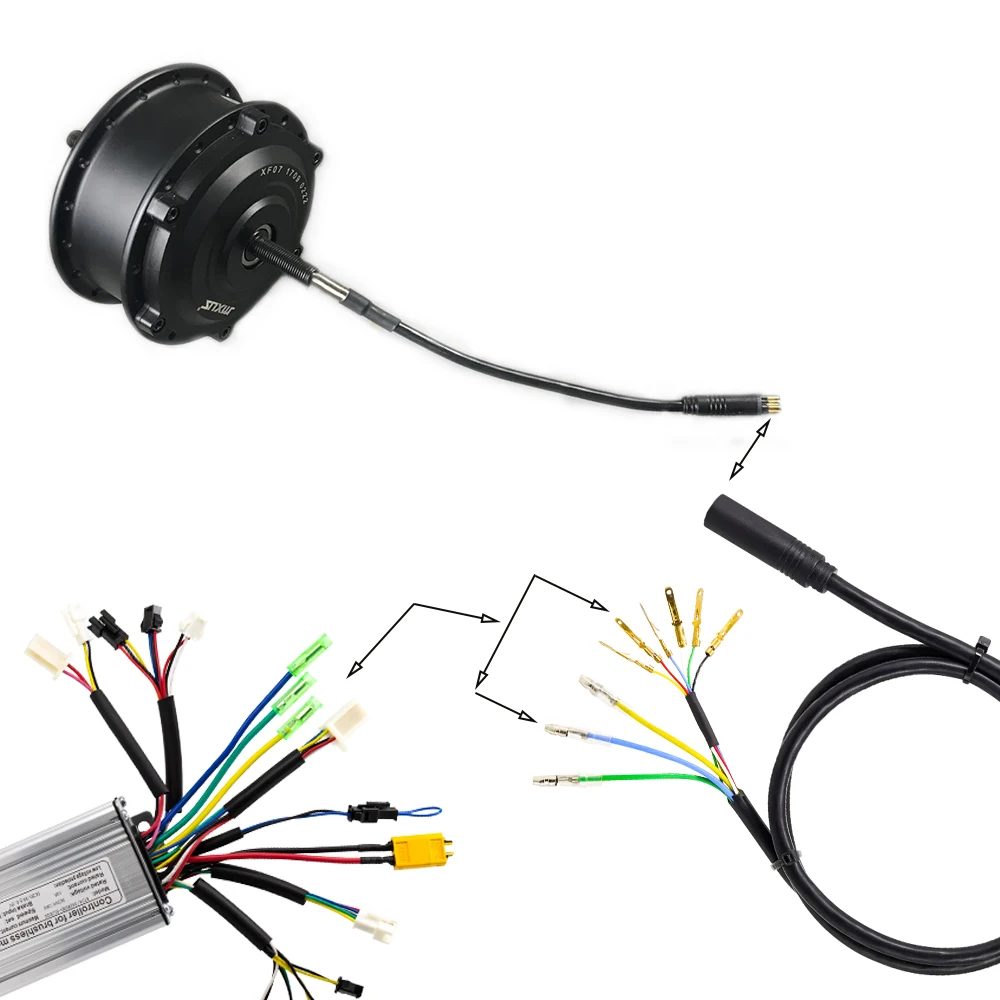

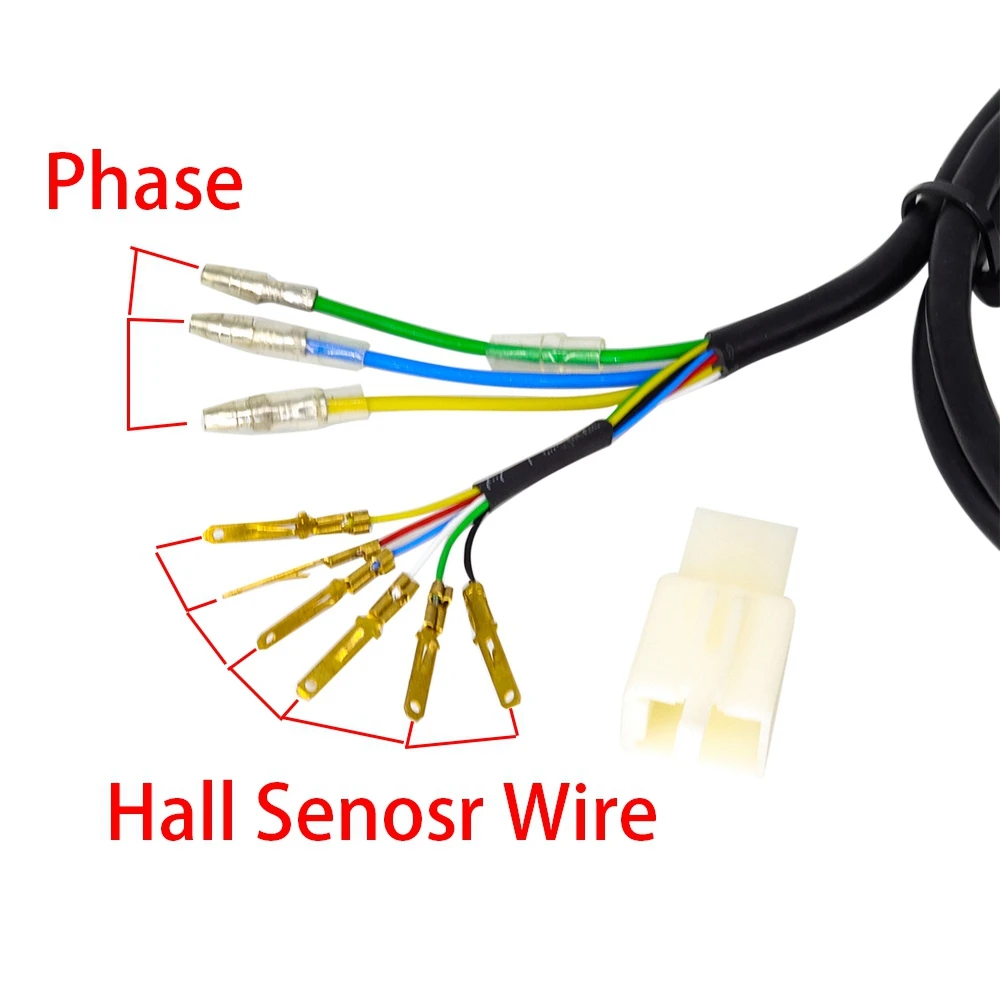

Choice 2:Female to 9 cables(3 phase cable,6 hall sensor cables)

Specifications: 9pin female waterproof motor extension conversion cable

Rated voltage: 500VAC

Rated current 15A for 1-3 terminals 5A for 4-9 terminals

Contact resistance: ≤10mΩ

Temperature range: -40℃-+105℃

Insulation resistance: should be ≥100mΩ under normal conditions and humid conditions

Withstand voltage: AC1000V 50HZ for 1 minute without breakdown or flashover

Contacts: Copper alloy nickel/gold plated

Mechanical life: 500 times

Sheath: PVC

Pin diameter: 3²x1.5 6²X1.0

Maximum outer diameter: plug 10mm socket 14mm

Line length: 80cm

Use wire specification: 1.2mm²

Production process: injection molding
