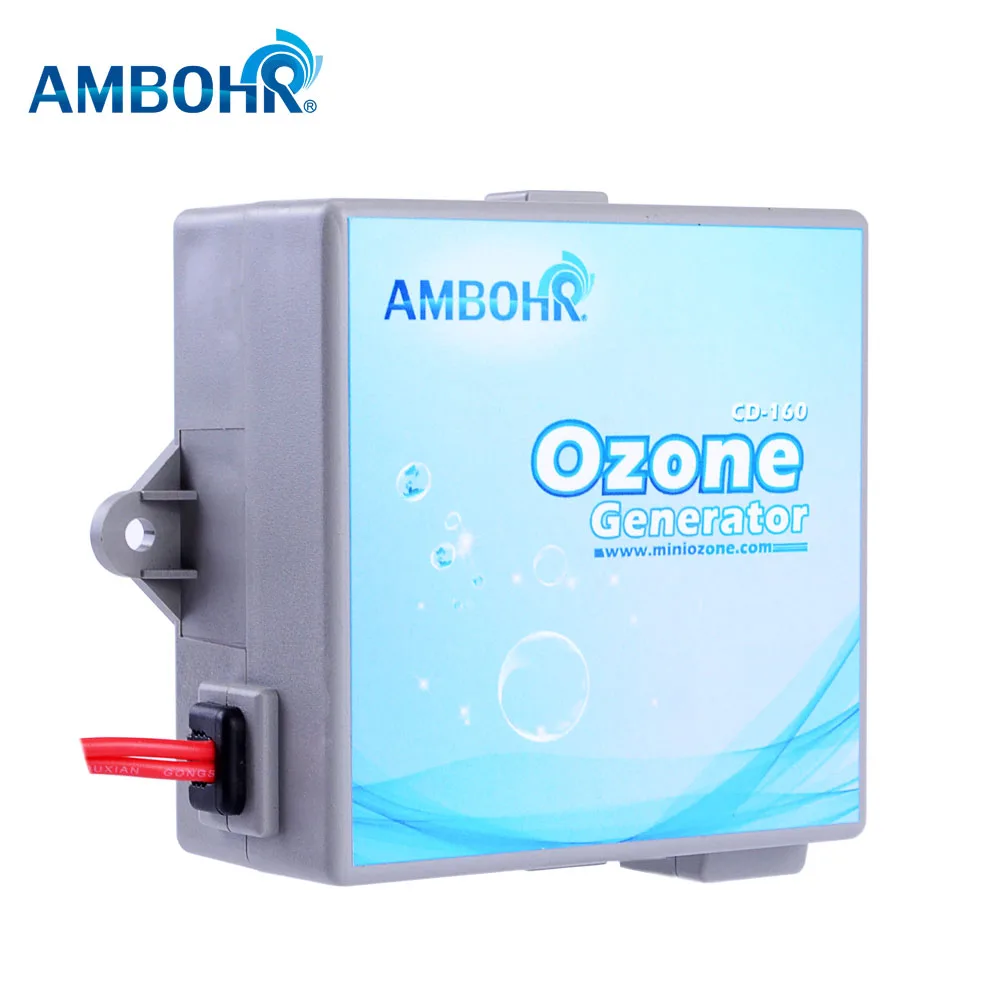

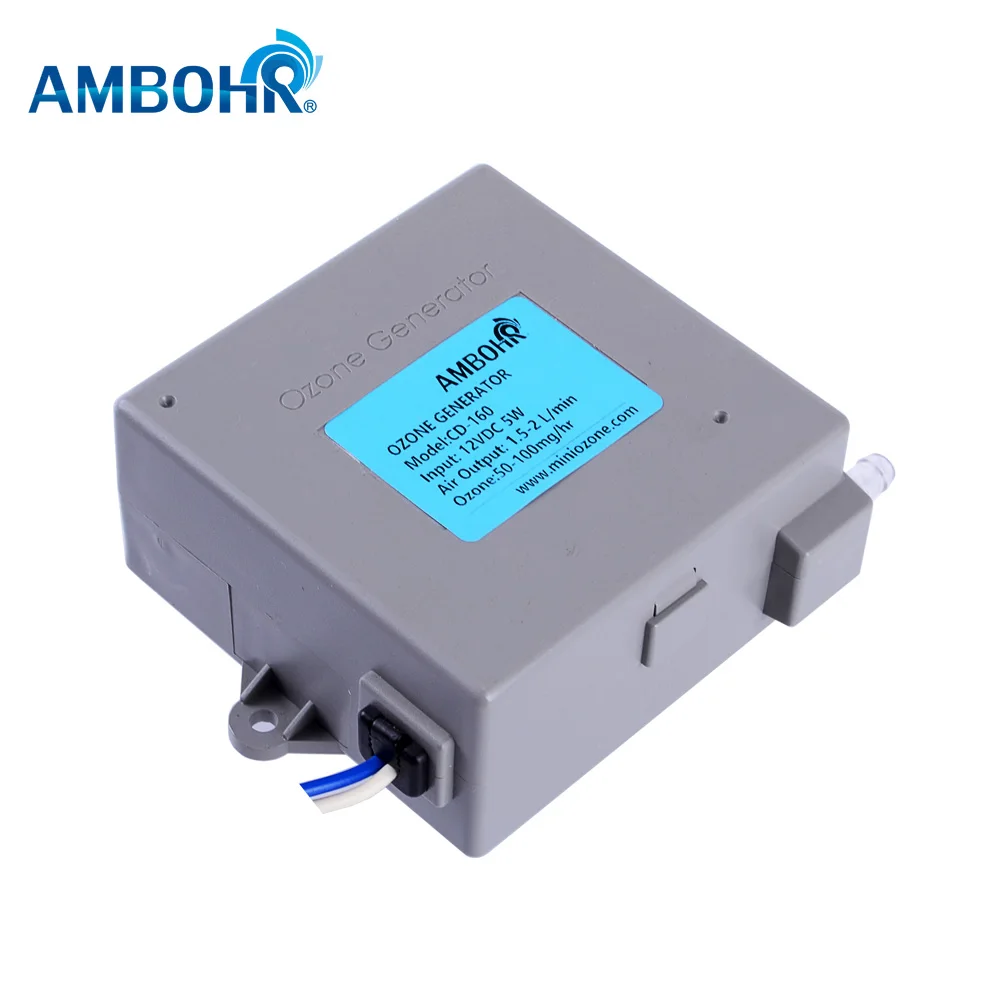

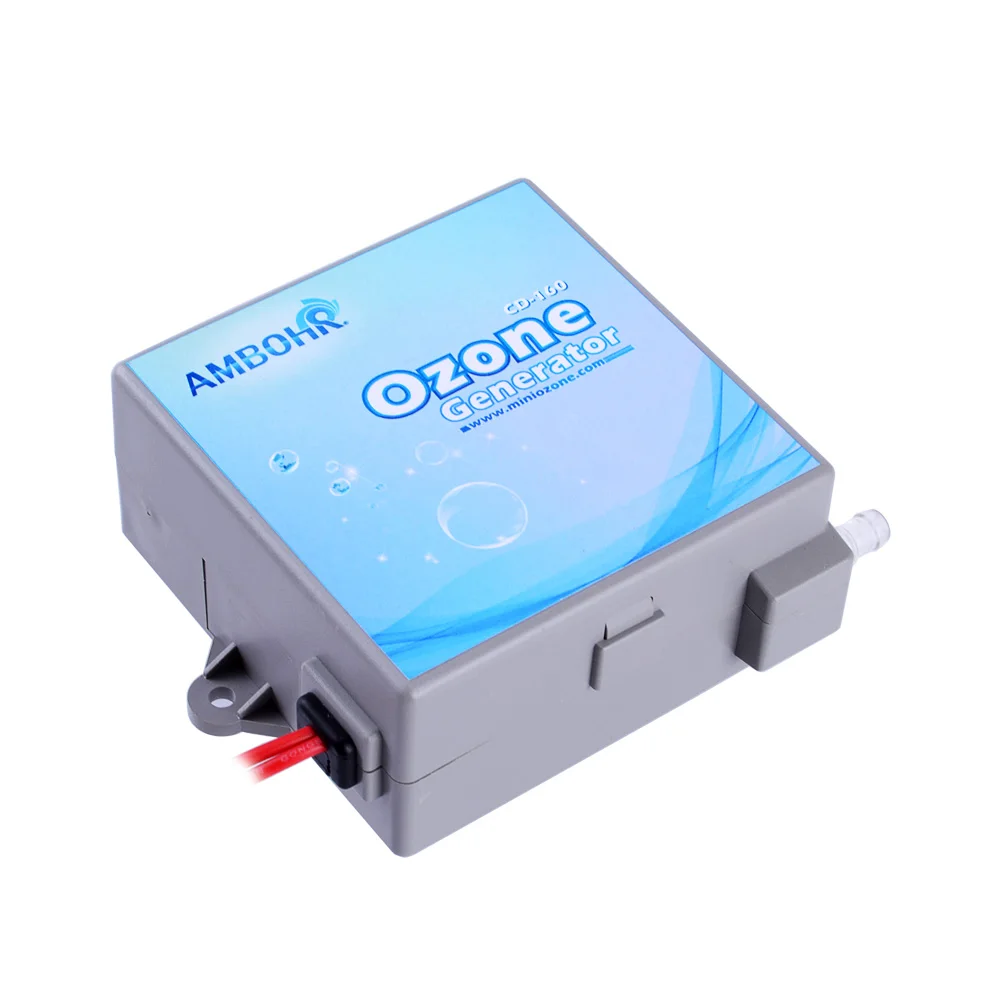

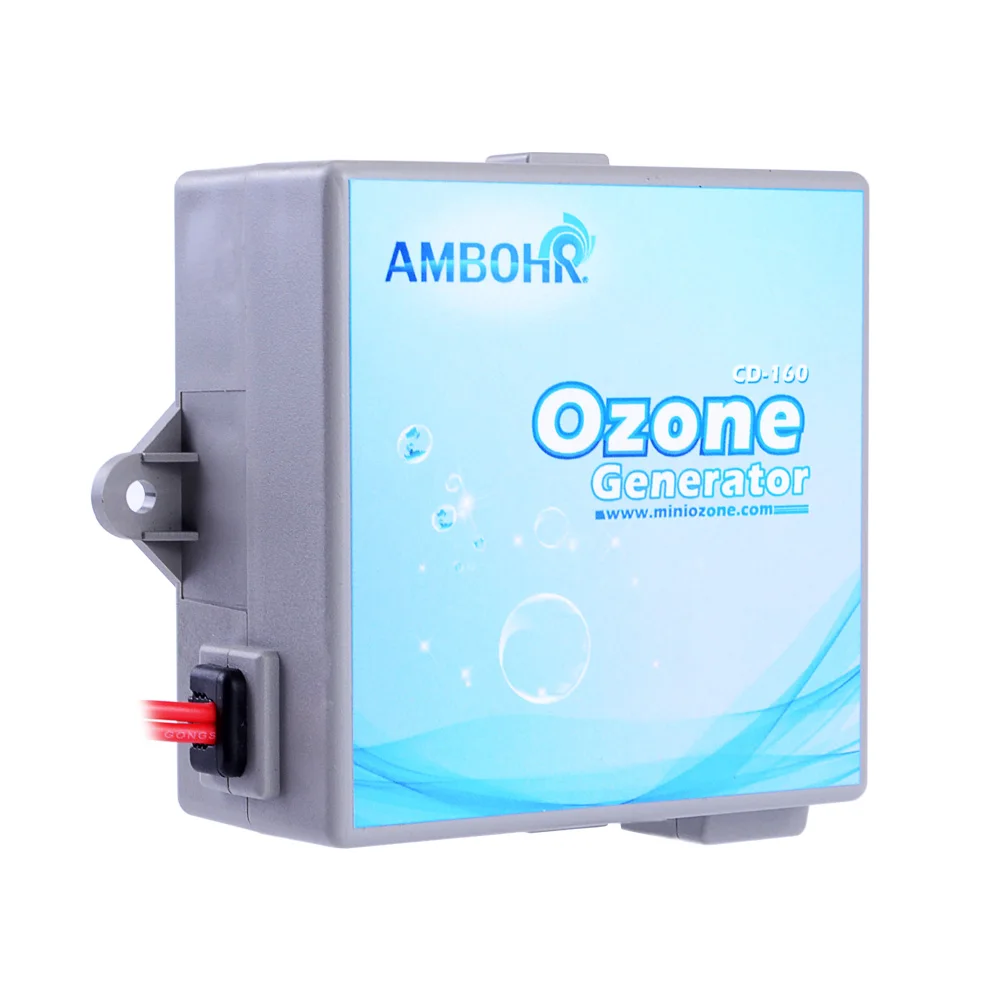

AMBOHR CD Integrated Ozone Generator Module
These compact ozone generators were created specifically to withstand the demanding environment of the any machine. Powerful ozone generators are designed for any equipment
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>

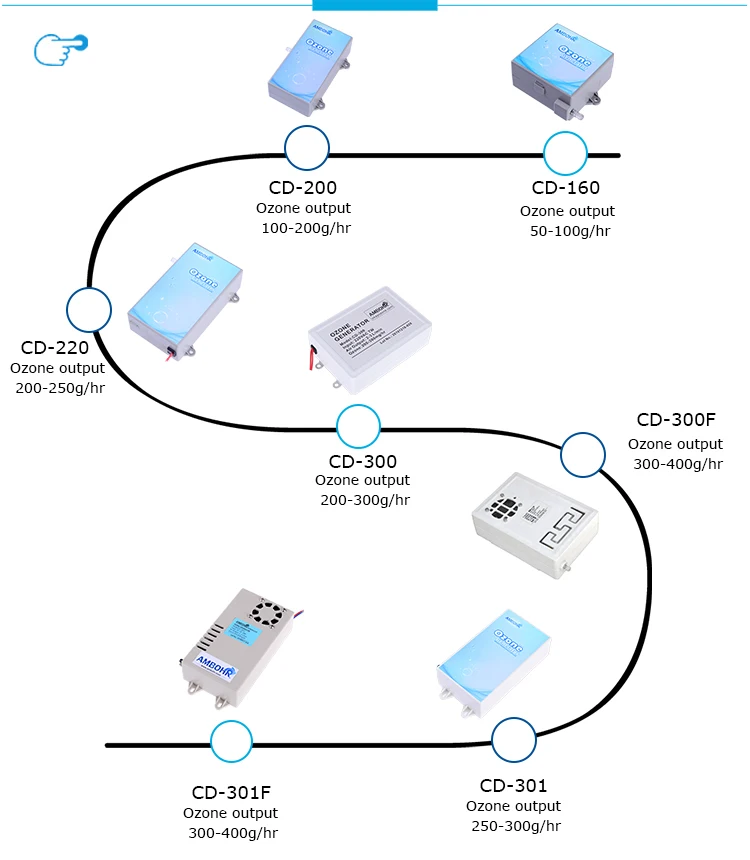

Model | CD-160 | CD-200 | CD-220 | CD-300 | CD-300F | CD-301 | CD-301F | ||||||
Ozone Output (mg/hr) | 50-100 | 100-200 | 200-250 | 200-300 | 300-400 | 250-300 | 300-400 | ||||||
Pump Output (L/min) | 1-2 | 1-2 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | ||||||
Ozone Generating Method | Corona Discharge | ||||||||||||
Electrical | AC110-120V, AC220-240V, AC24V, AC12V, DC24V, DC12V | ||||||||||||
Power | 6W | 6W | 6W | 7W | 10W | 6W | 10W | ||||||
Outlet Connection | Ф 6mm pagoda joint (1/4” barb) | ||||||||||||
Case | ABS | ||||||||||||
Accessory | Hose +Air stone (Optional) | ||||||||||||
Net Weight | 0.25kg | 0.28kg | 0.35kg | 0.5kg | 0.5kg | 0.41kg | 0.43kg | ||||||
Product Description
The CD family of ozone generators were designed by AMBOHR, the leader in reliability in ozone generator controls for over 20 years. AMBOHR Ozone generator cells use ozone core discharge of invention patent, including the integration design of ozone generator tube, ozone driving circuit, and air pump, they can provide stable and efficient output, easy to install and maintain. Our compact ozone generators have a smaller footprint and save energy as well. The electrical packs of AMBOHR ozone generators are epoxy potted protecting them from harsh corroding environments and they produce stable ozone output over a wide range of temperatures.
OVERVIEW
● Produces powerful oxidant.
● Disinfects water & air by killing viruses and biological contaminants.
● Reduces the use of chemical levels which means it saves you money.
● Low power consumption.
● Designed & tested specially for Water and Air.
● Available in AC110-120V, 220-240V, AC24V, AC12V, DC24V, DC12V, 6W.
● Small and compact unit.
● CE, & CQC certified.
● Disinfects water & air by killing viruses and biological contaminants.
● Reduces the use of chemical levels which means it saves you money.
● Low power consumption.
● Designed & tested specially for Water and Air.
● Available in AC110-120V, 220-240V, AC24V, AC12V, DC24V, DC12V, 6W.
● Small and compact unit.
● CE, & CQC certified.
OUTSTANDING TECHNICAL PROPERTIES

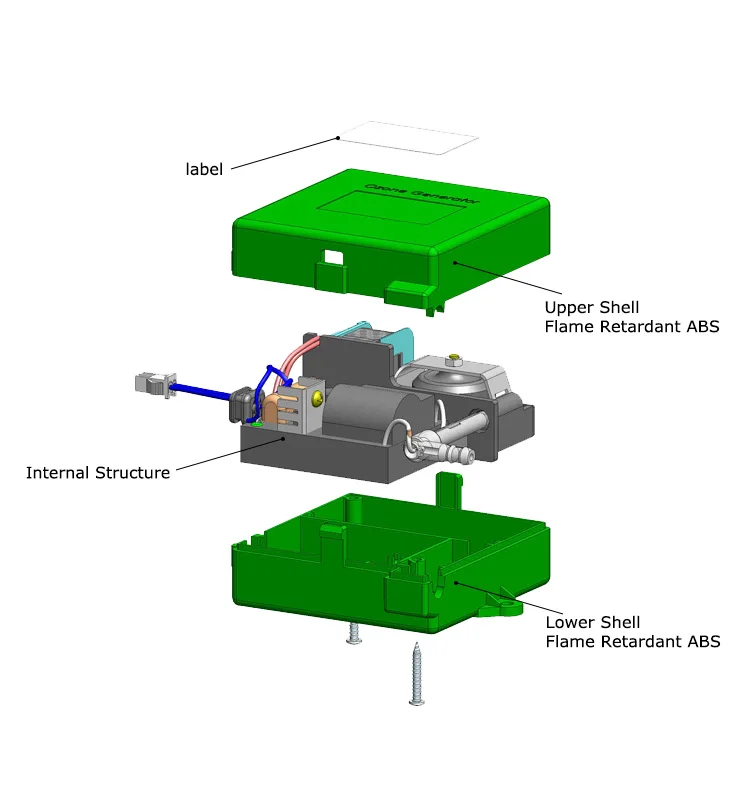

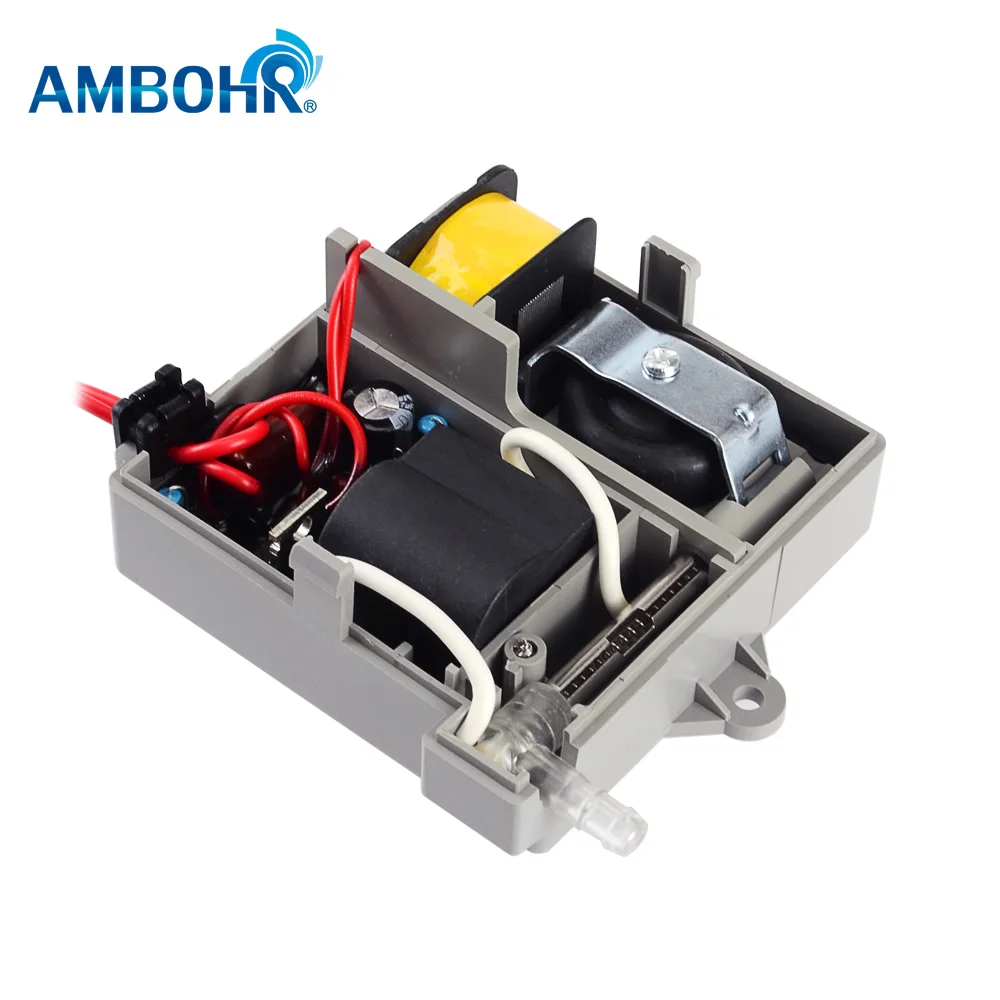

● Integrated design three in one unit with driving circuit, ozone generator tube, and air pump
● Stable& efficient output
● Low noise
● Long working life
● Ozone generator electrical pack epoxy potted
● Extra thick inlet/outlet barb to prevent breakage
● No air gaps, no exposed contacts & no corrosion.
● Stable& efficient output
● Low noise
● Long working life
● Ozone generator electrical pack epoxy potted
● Extra thick inlet/outlet barb to prevent breakage
● No air gaps, no exposed contacts & no corrosion.
WHY AMBOHR OZONE GENERATORS ARE SUPERIOR
● Powerful ozone generators are designed for any machine.
● Unique design CD Ozone Cell with solid High shock, vibration and drop resistant stainless-steel electrode for exceptional
longevity.
● Thick, built-in mounting tabs for easy installations.
● Compact and smaller footprint.
● Double Insulation rated.
● High shock, vibration and drop resistant.
● Cool operation with low heat generation.
● Super low production & field failure rates.
● Enclosure & inlet/outlet barbs are made with UV /Ozone resistant plastics.
● Unique design CD Ozone Cell with solid High shock, vibration and drop resistant stainless-steel electrode for exceptional
longevity.
● Thick, built-in mounting tabs for easy installations.
● Compact and smaller footprint.
● Double Insulation rated.
● High shock, vibration and drop resistant.
● Cool operation with low heat generation.
● Super low production & field failure rates.
● Enclosure & inlet/outlet barbs are made with UV /Ozone resistant plastics.
Product Application
HEALTH IS OUR COMMON NEED
AMBOHR ozone generator - your best health assistant! Every one of us needs clean water, pure air and non-toxic food, because only in this way can we live healthily and happily.
AMBOHR ozone generator cell is small in size and easy to install, suitable for many devices. Such as washing machine, Refrigerator, Disinfection Cabinet, Dishwasher, Sterilizer, Aquarium, Water Purifier, Water Machine, Water Purification Machines, Coin-operated Sale Water, Fruit and Vegetable Detoxification Machines, Aquatic Animals, the Spa Machine, Aurfing Bathtub, Slimmer, Medical Apparatus and Instruments, Air Purifier, Dryer, Shoe Ark, Wardrobe, Beauty Equipment, Oxygen Machine, Toilet, Incubator, Car, etc.
