Top Sale 550W Small Metal Lathe Tools Machine Precision Benchtop Wood CNC Lathe Machine
Product Description

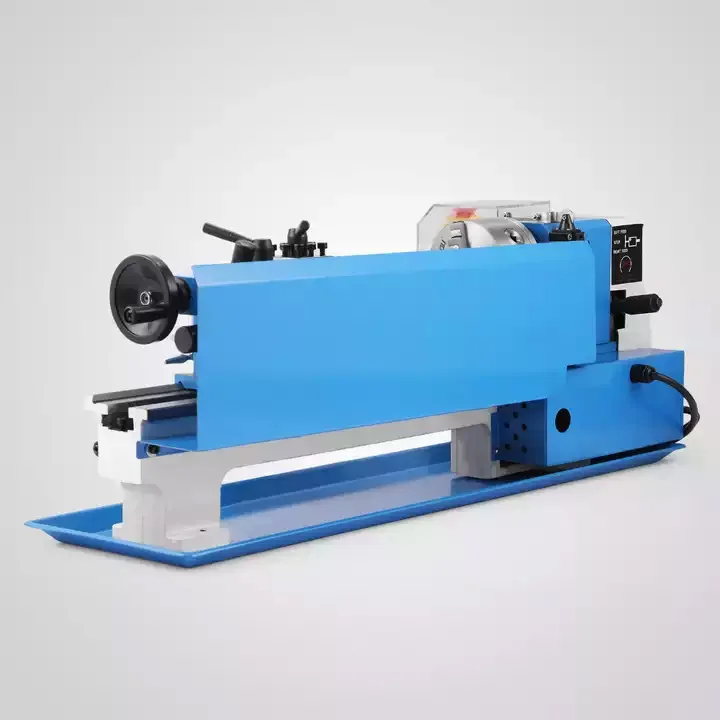

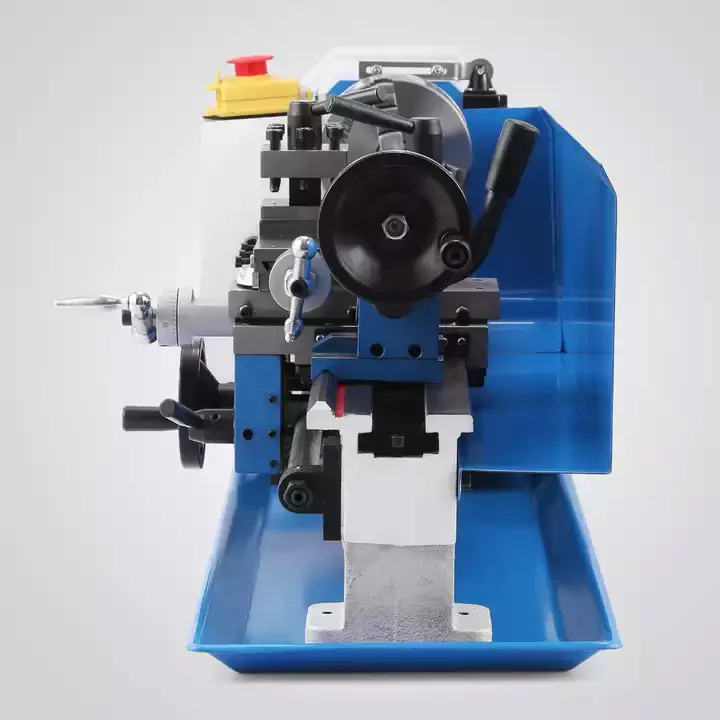

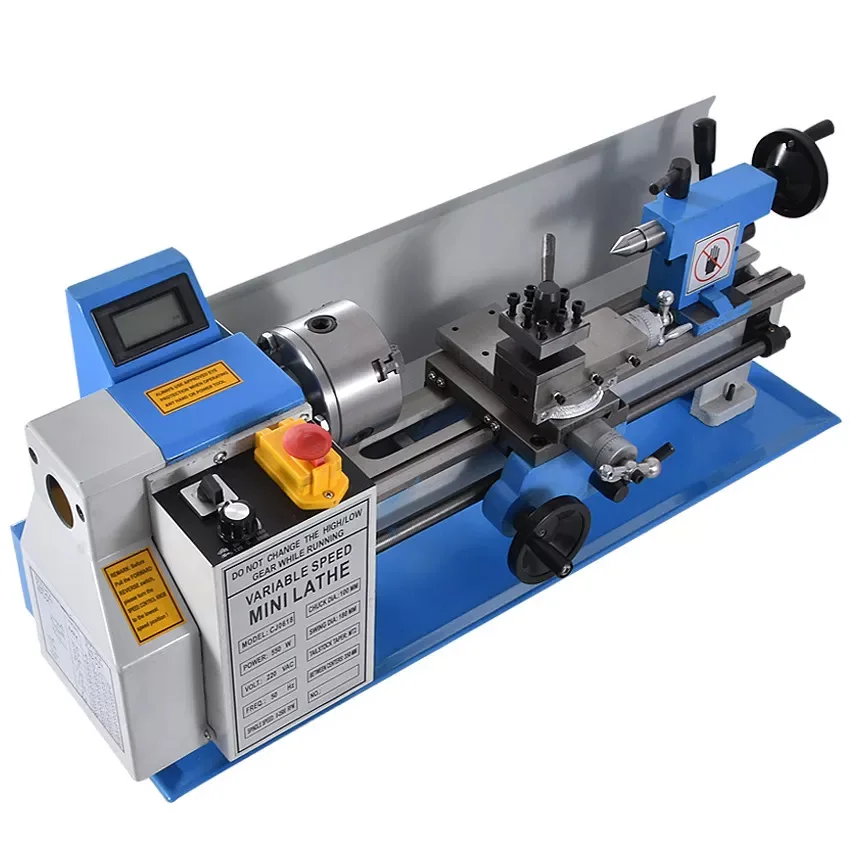

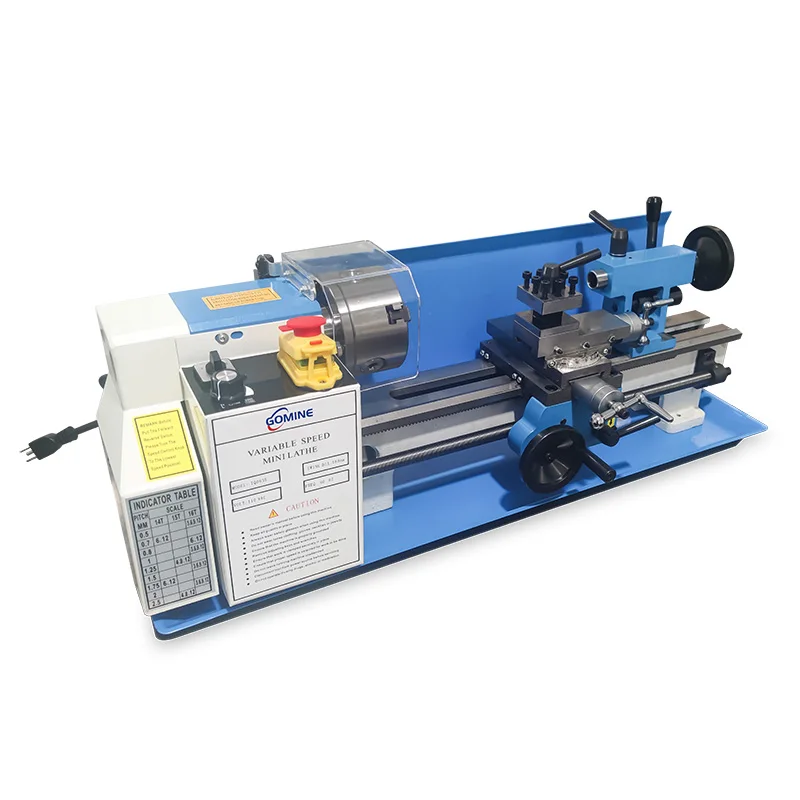

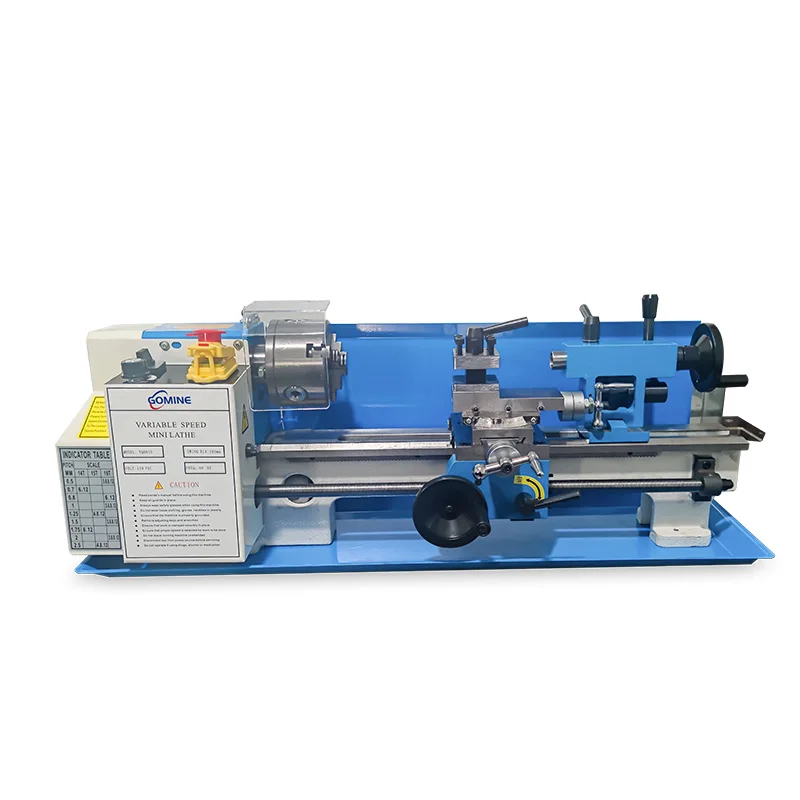

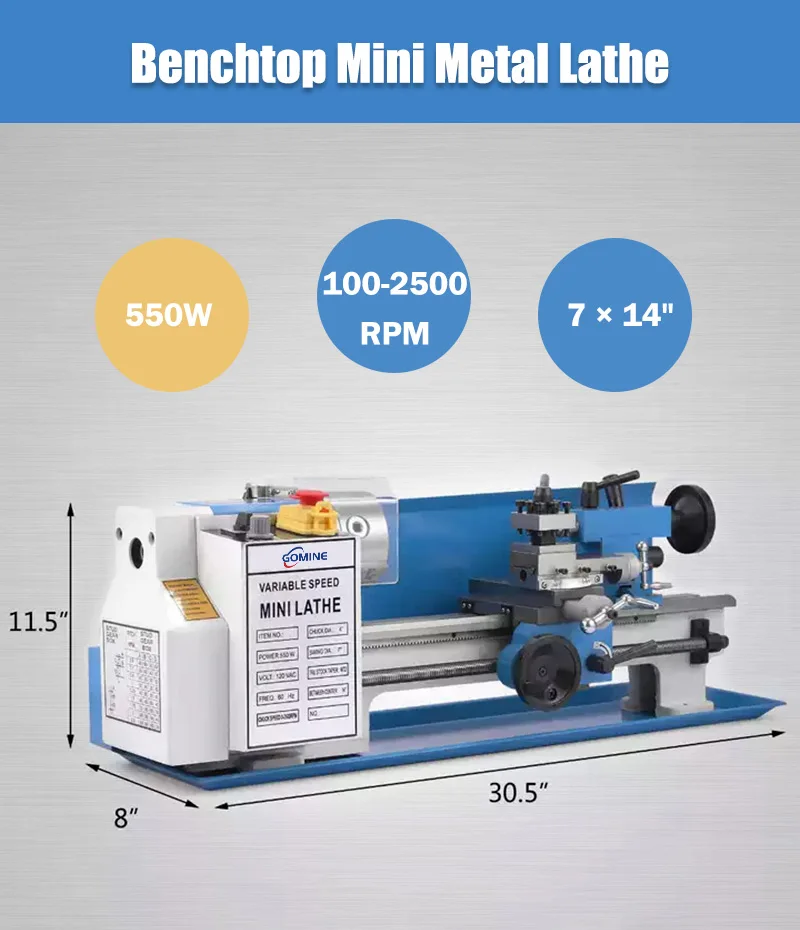

550W Mini Benchtop Precision Metal Lathe
GM-0618 precision mini metal lathe is designed to perform various types of metal turning. This machine can be used in areas such as mini precision parts processing, sample processing and modeling works. The precision mini lathe is perfect for the hobbyist or modeler who is looking to add finite detail to their construction project. Whether you’re turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge! With 18 threads, automatic feed and a chuck guard with micro switch, this mini lathe is ideal for use in labs, workshops, engineering and educational settings.
Product Advantage
1. Emergency shutdown, Worry free about security risks.
2. Telescopic sets with scale for precise control.
3. Variable speed from 100 to 2500 RPM.
4. Equipped with all-metal gears, power strong, wear-resistant, durable, more accurate rotation.
5. Four-way rotary turret for four-way ordinary turning.
6. Accurate operation and professional performance.
2. Telescopic sets with scale for precise control.
3. Variable speed from 100 to 2500 RPM.
4. Equipped with all-metal gears, power strong, wear-resistant, durable, more accurate rotation.
5. Four-way rotary turret for four-way ordinary turning.
6. Accurate operation and professional performance.
Specifications
Benchtop Mini Metal Lathe Machine | ||
Distance between centers | 350MM | |
Swing over bed | 180MM | |
Taper of spindle bore | MT3 | |
Spindle bore | 20MM | |
Step of spindle speeds | Variable speed | |
Range of spindle speeds | 50-2500rpm | |

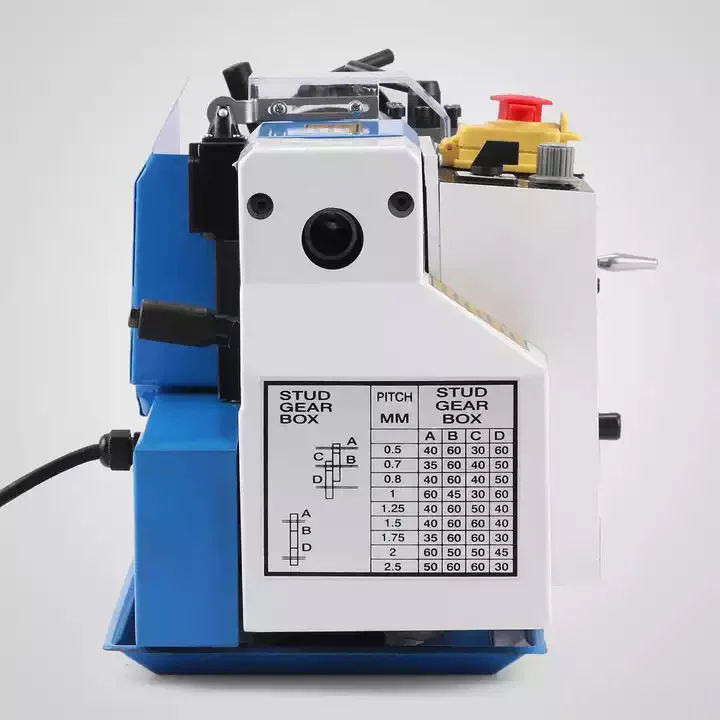

Range of inch threads | 12-52 T.P.I | |
Range of metric threads | 0.5-2.5MM | |
Travel of cross slide | 65MM | |
Taper of tailstock quill | MT2 | |
Main motor | 550W | |
Packaging size | 810X310X370MM | |
N.W. | 40KGS | |
G.W. | 45KGS | |

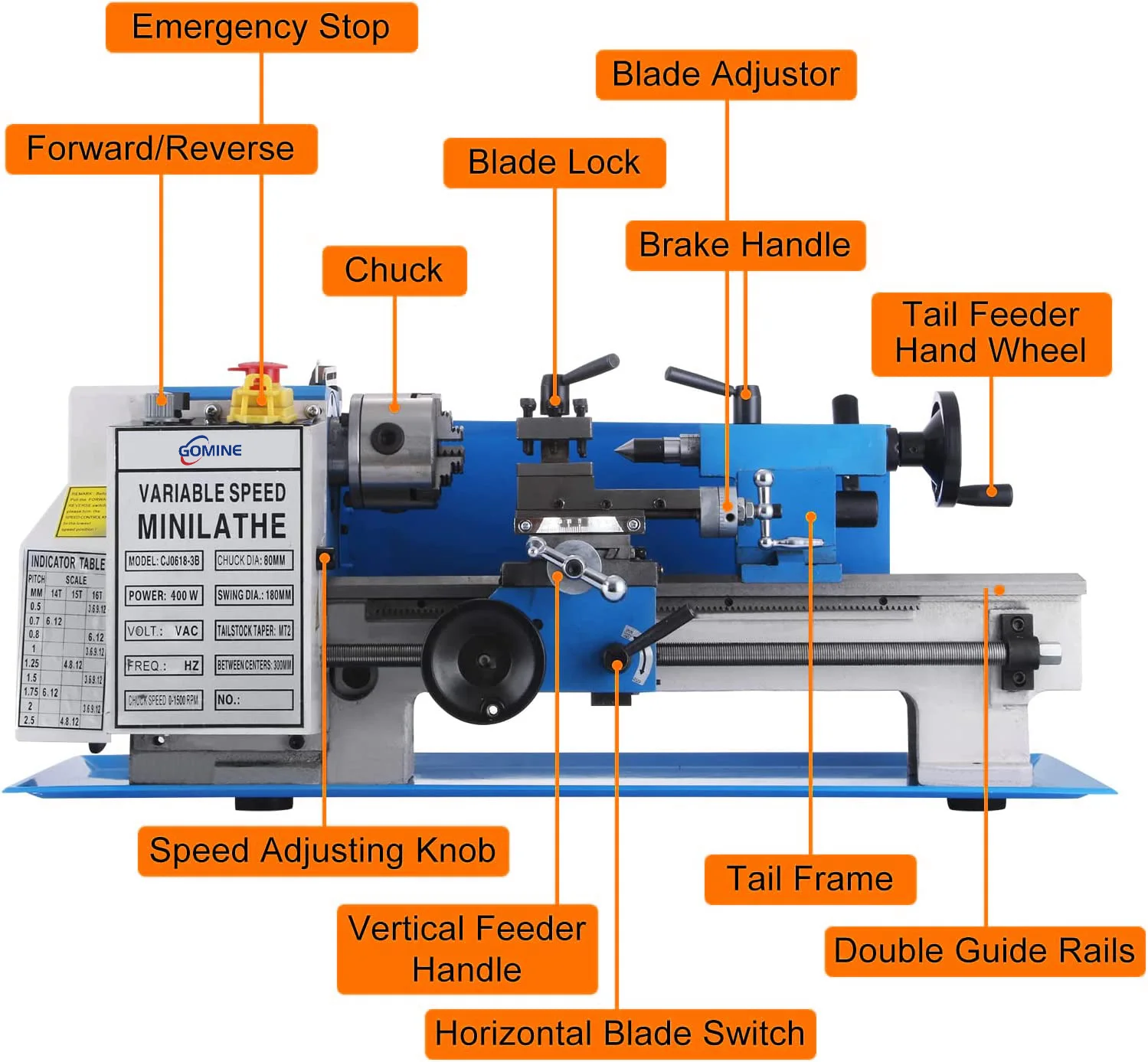

Product Details
Infinitely Variable Speeds
Variable speed from 0-2500 Rpm. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate.
The feed speed can be adjusted according to the requirements of different workpieces.
The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard
included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.
included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by
adjusting the angle of the compound rest with the lever.
adjusting the angle of the compound rest with the lever.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance
between center: 350mm(13.78").
between center: 350mm(13.78").

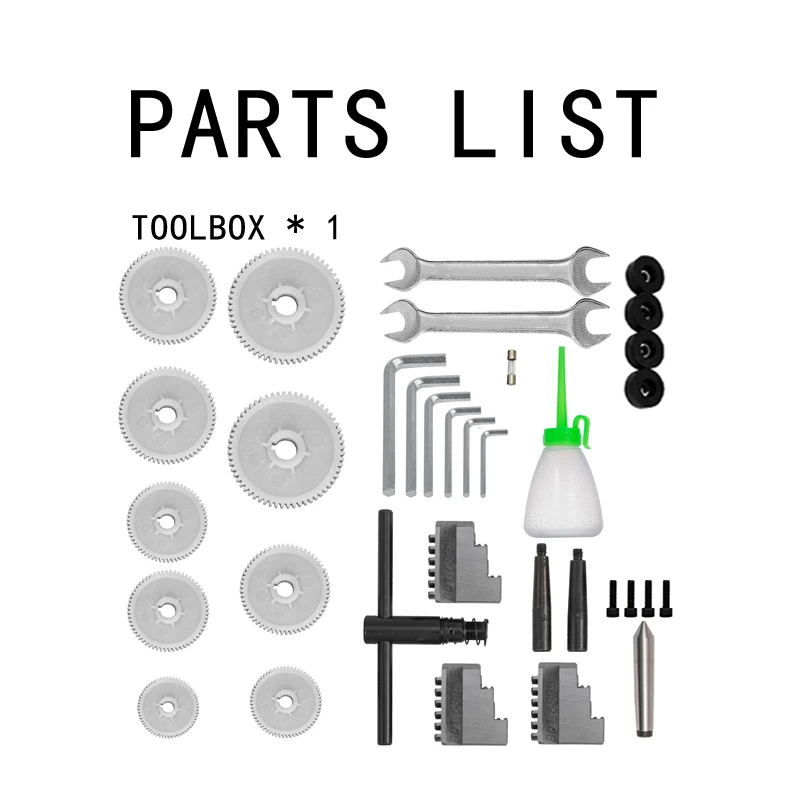

Accessories
