Product Description
Aluminum honeycomb core production line include gluing machine , hot press machine, sawing machine, expanding machine-manual type and automatic type expanding machine.
Detailed Images

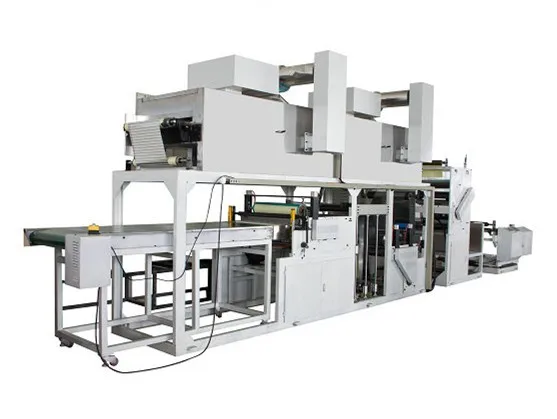

Gluing machine
Automatic cutting
Maxium speed is 30m/min
Stable performance
Gluing machine parameters | Unit | BHM-GP-A600 |
Type | Automatic | |
Foil speed during gluing | m/min | ≤30 |
Oven temperature | Room tem ~180℃ | |
Max glue roll width | mm | 600 |
Rubber roll width | mm | 600 |
Gluing printing roll circumference | mm | 480 |
Cutting precision (sheets length) | mm | ±2 |
Length | mm | Max 2600 |
Width | mm | 600 |
Foil thickness range | mm | 0.035~0.2 |
Cell size | mm | ≥3.2 |
Power | KW | 30 |
Voltage | KW/V | 380/50 |

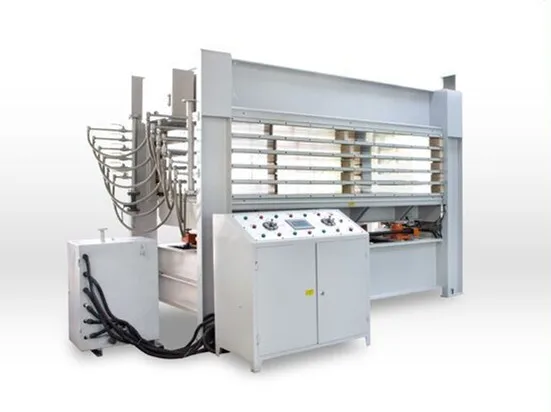

Hot press machine
4 layers hot pressing
Electrical heating,quick heating-up
Pressure & temperature is uniform
Hot press machine parameters | Unit | BHM-HP-A300T |
Press | T | 300 |
Pressure motor power/Voltage | KW/V | 11/380 |
Heating motor power/Voltage | KW/V | 100/380 |
Number of work layer | 4 | |
Hot plate spacing | mm | 200 |
Dimension of block heated (max) | mm | 2800*600*180 |
Dimension of working table | mm | 3000*700*52 |
Heating system | Heat -transfer oil | |
Temperature | ℃ | Room tem~250℃ |
Dimension | mm | 3200*1100*2800 |
Weight | KG | 15000 |
Voltage | V/HZ | 380/50 |

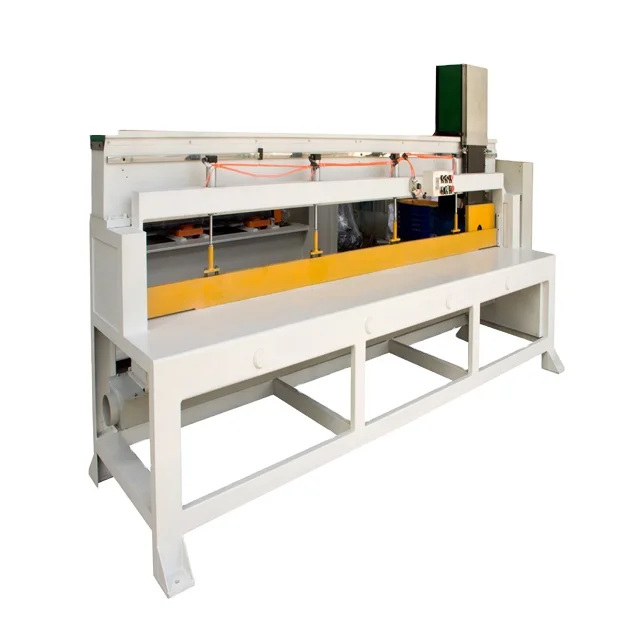

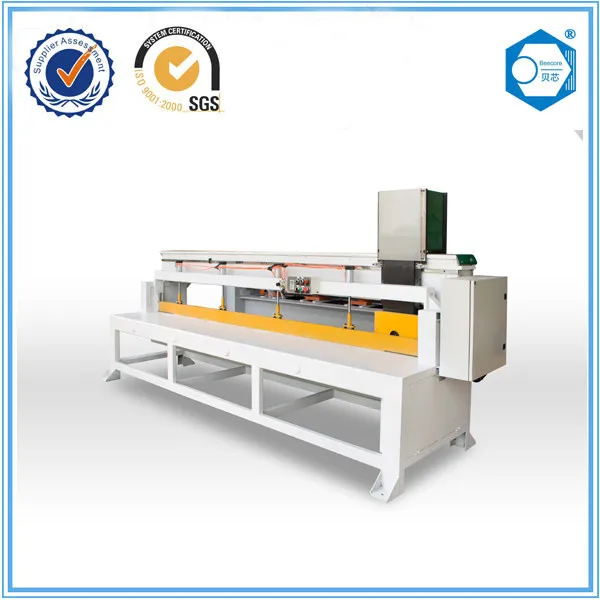

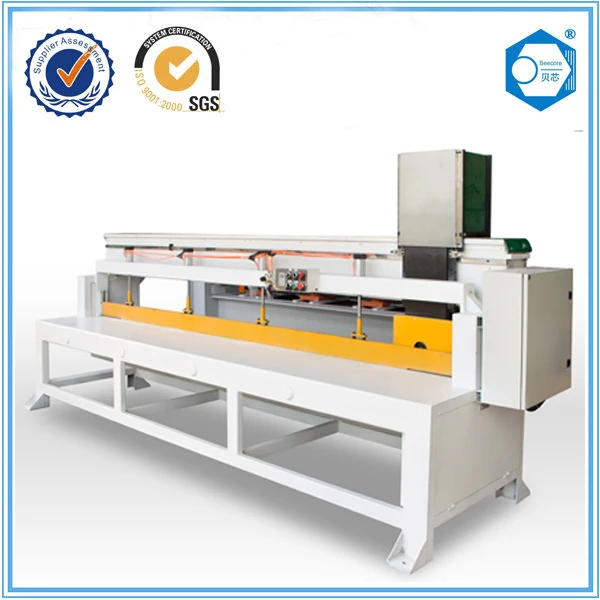

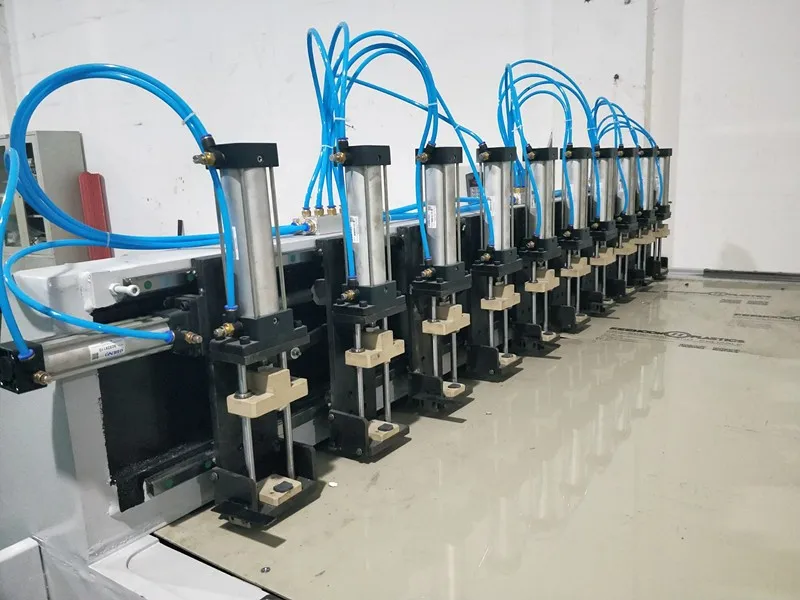

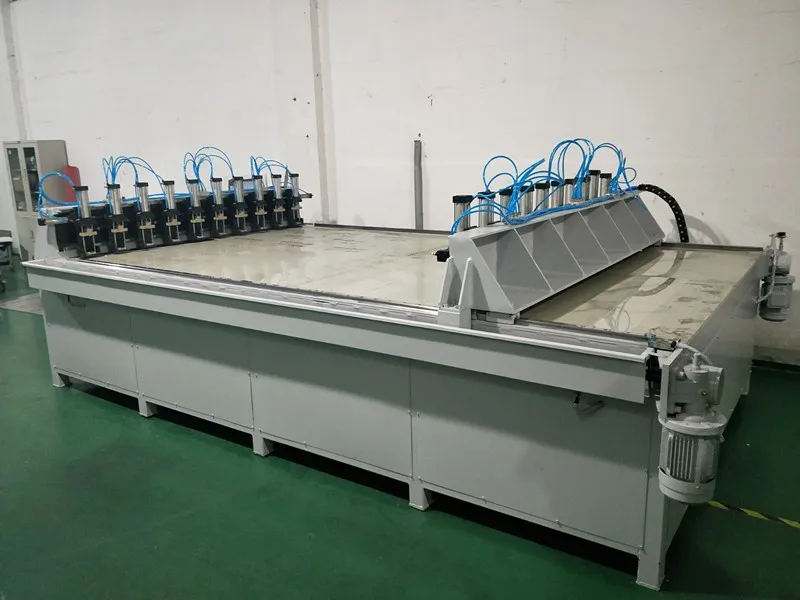

Sawing machine
Core height tolerance: ±0.2mm
Sawing surface is smooth,no burrs
Maximum sawing thickness is 70mm
Model –BHM-SM-SERIES
Series NO.: | BHM-SM-A2000 | BHM-SM-A2500 | BHM-SM-A3000 | BHM-SM-A3500 |
Saw blade diameter | 355(14'')mm | 355(14'')mm | 355(14'')mm | 355(14'')mm |
Inner diameter of saw blade | 30mm | 30mm | 30mm | 30mm |
Saw blade thickness | 3.2mm | 3.2mm | 3.2mm | 3.2mm |
Cutting tolerance | ±0.15mm | ±0.15mm | ±0.2mm | ±0.2mm |
Cutting speed | 1~4M/min | 1~4M/min | 1~4M/min | 1~4M/min |
Main motor power | 6KW | 6KW | 6KW | 6KW |
Saw blade maximum speed | 6000rmp | 6000rmp | 6000rmp | 6000rmp |
Running motor power | 0.4KW | 0.4KW | 0.75KW | 0.75KW |
Feed servo power | 3KW | 3KW | 3KW | 3KW |
Feed hand grasp | 6group | 6group | 6group | 6group |
Auxiliary vacuum power | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
Total power | 17KW | 17KW | 18KW | 18KW |
Sawing type | Automatic | Automatic | Automatic | Automatic |
Max length | 2000mm | 2500mm | 3000mm | 3500mm |
Manual type-expanding machine
Uniform expanding,regular cell size
Save labor and reduce costs
Improve production efficiency

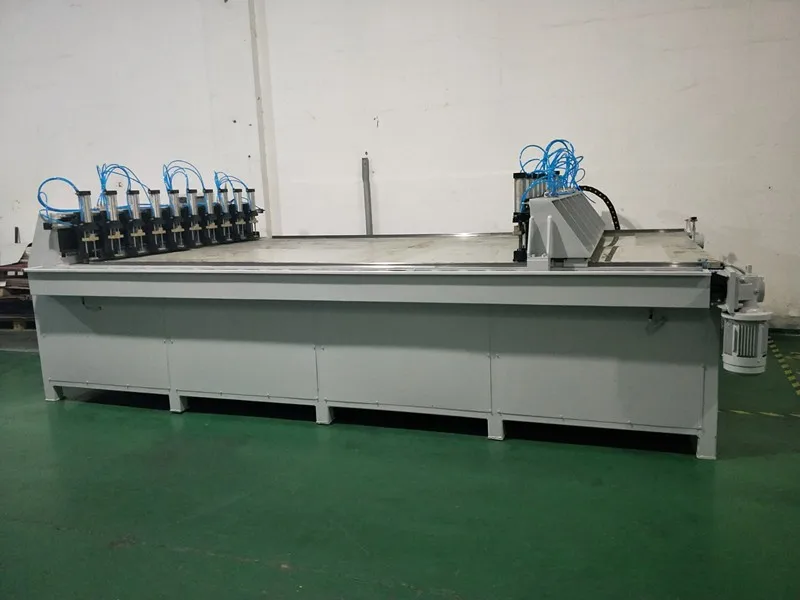

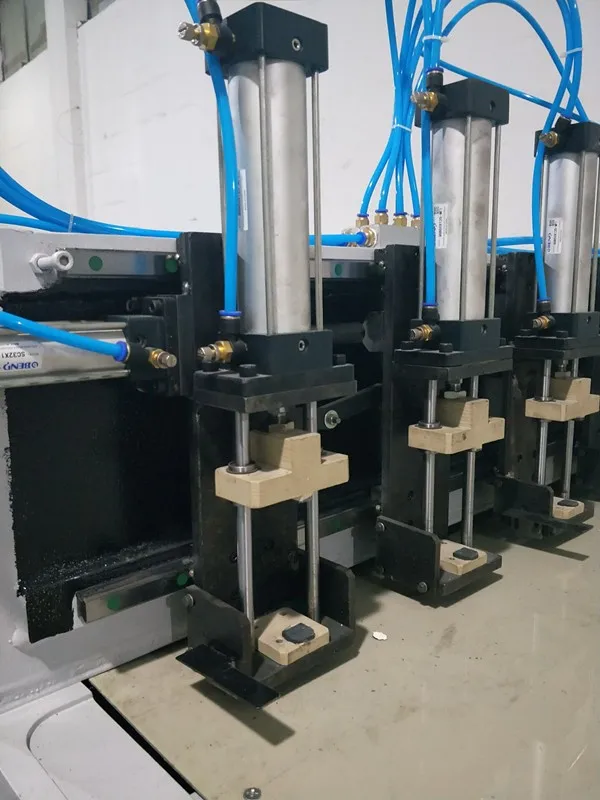

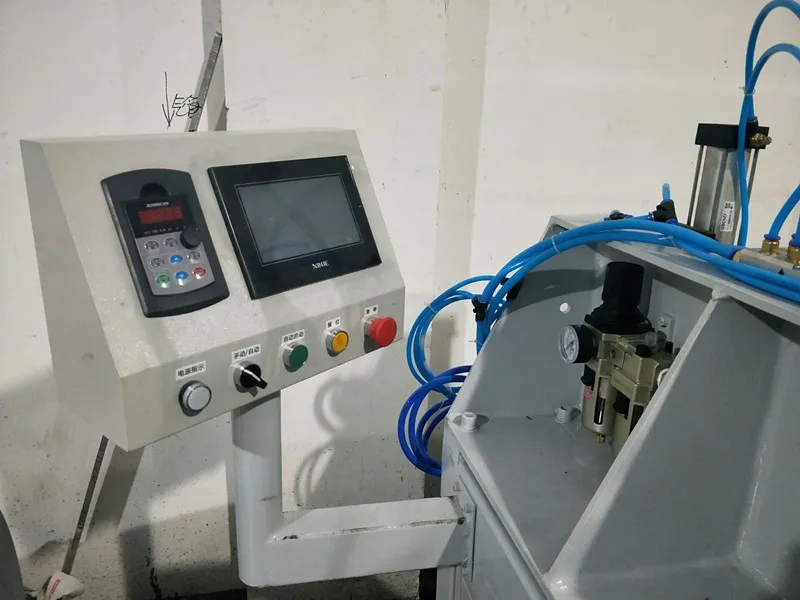

Automatic type-expanding machine
Uniform expanding,regular cell size
Save labor and reduce costs
Improve production efficiency
Save labor and reduce costs
Improve production efficiency
Automatic type-expanding machine parameters | Unit | BHM-EM-A2200 |
Expanding system | Automatic pin type | |
Max unexpanded width | mm | 2200 |
Max expanded width | mm | 1650 |
Max expanded length | mm | 4000 after rebound |
Expanded thickness | mm | 3-70 |
Max expand speed | m/min | 5~20 |
Total power | KW | 3 |
Frequency Inverter | KW | 1.5 |
Dimension | mm | 5000*2200*1200 |
Weight | KG | 2000 |
Voltage | 380V 50HZ | |
Motor(from TW) | As request | |
Driving | Chain |
