Product Description
UT200+ Series 400A/600A Digital Clamp Meters
UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection,
high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC
current, etc.
Models in UT200+ Series: UT201+, UT202+, UT202A+, UT203+, UT204+
high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC
current, etc.
Models in UT200+ Series: UT201+, UT202+, UT202A+, UT203+, UT204+
Specifications | Range | UT201+ | UT202+ | UT202A+ | UT203+ | UT204+ | ||||||
AC current (A) | 400A | ±(2%+10) | ±(2%+10) | ±(2.5%+5) | ||||||||
600A | ±(2%+10) | ±(2.5%+5) | ||||||||||
AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||||||||
DC current (A) | 400A | ±(2.5%+5) | ||||||||||
600A | ±(2.5%+5) | |||||||||||
AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ||||||
AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||||||||
10Hz~60kHz | ±(0.5%+2) | ±(0.5%+2) | ||||||||||
DC voltage (A) | 600V | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ||||||
Resistance (Ω) | 40MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) | ||||||||
60MΩ | ±(0.8%+2) | ±(0.8%+2) | ||||||||||
Capacitance (F) | 4mF | ±(4%+5) | ||||||||||
40mF | ±(4%+5) | |||||||||||
60mF | ±(4%+5) | ±(4%+5) | ||||||||||
Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | ±(1.5%+5) | |||||||||
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | ||||||||
Features | ||||||||||||
Display count | 4000 | 4000 | 6000 | 4000 | 6000 | |||||||
Auto range | √ | √ | √ | √ | √ | |||||||
Jaw opening | 28mm | 28mm | 28mm | 28mm | 28mm | |||||||
True RMS | √ | √ | √ | √ | √ | |||||||
NCV | √ | √ | √ | √ | √ | |||||||
Live wire test | √ | √ | ||||||||||
Continuity test | √ | √ | √ | √ | √ | |||||||
Diode | √ | √ | √ | √ | √ | |||||||
MAX/MIN | √ | √ | √ | √ | √ | |||||||
Relative mode | √ | √ | √ | √ | ||||||||
Zero mode | √ | √ | ||||||||||
Data hold | √ | √ | √ | √ | √ | |||||||
Low battery indication | √ | √ | √ | √ | √ | |||||||
Auto power off | √ | √ | √ | √ | √ | |||||||
General Characteristics | ||||||||||||
Power | 1.5V battery (R03) x 2 | |||||||||||
Display | 37mm x 25mm | |||||||||||
Product color | Red and grey | |||||||||||
Product net weight | UT201+/UT202+/UT202A+：248g; UT203+/UT204+:235g | |||||||||||
Product size | 215mm x 63mm x 36mm | |||||||||||

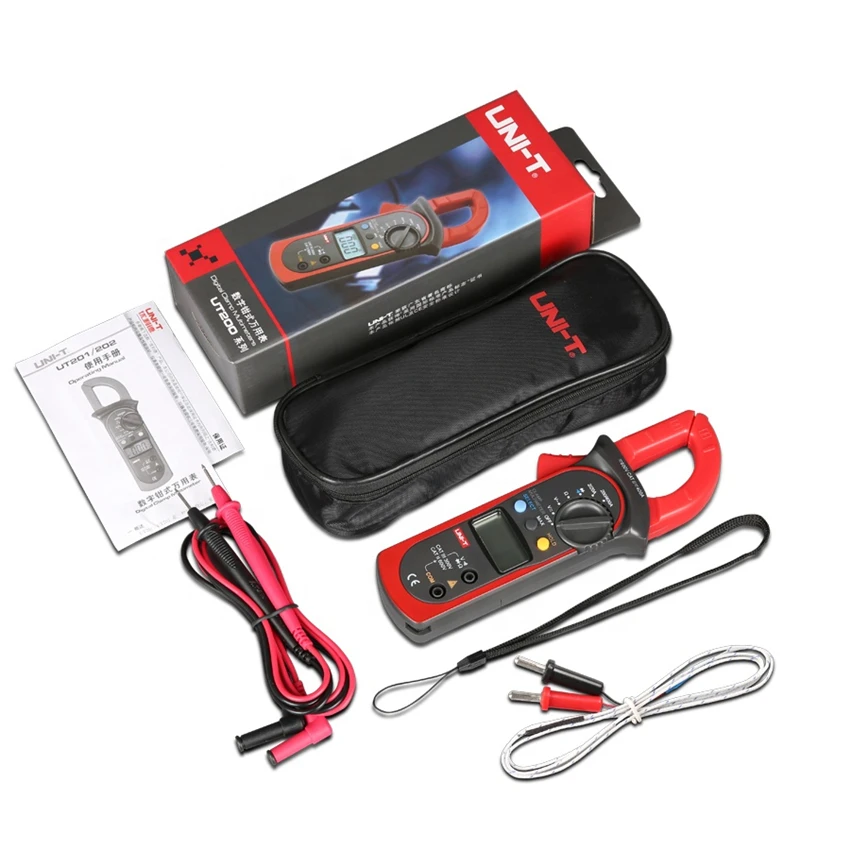

Standard accessories | Batteries, test leads, Themocouple (UT202+/UT204+) | |||||||||||
Standard individual packing | Gift box, Carring bag, English manual | |||||||||||
Standard quantity per carton | 40pcs | |||||||||||
Standard carton measurement | 485mm x 295mm x 385mm | |||||||||||
Standard carton gross weight | UT202A+: 17.8kg; UT203+: 16.8kg; UT201+/202+/204+: 17.3kg | |||||||||||
