BIOBASE GC газовой хроматограф Хроматография FID TCD рандомный и газовый хроматограф масс-спектрометр
- Категория товара: Other Optics Instruments >>>
- Поставщик (Оптовый магазин): Biobase,Biotech,(Jinan),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

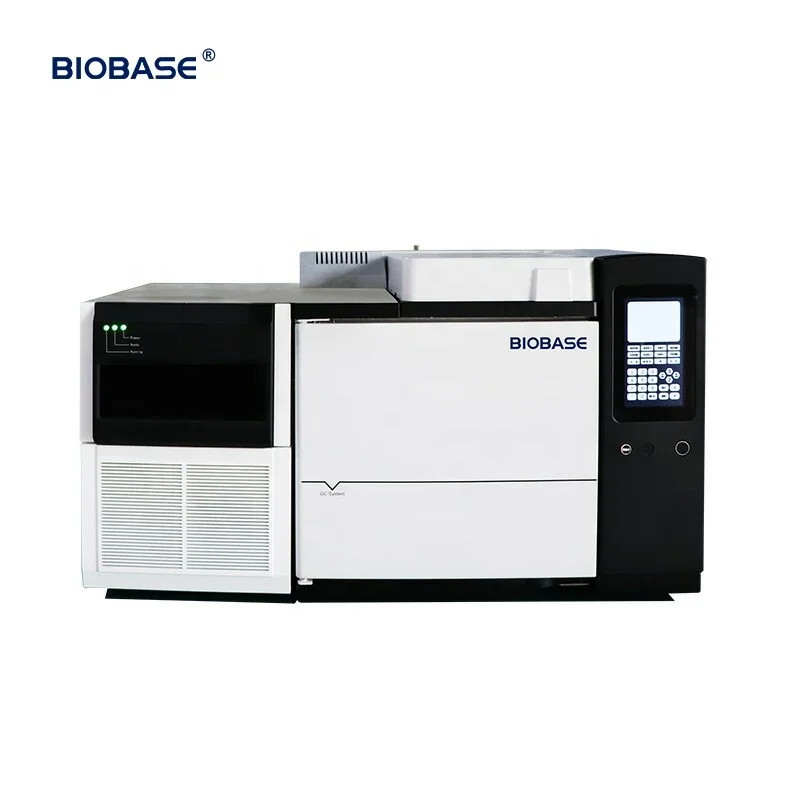

BIOBASE GC Gas Chromatograph Chromatography FID TCD ECD oil and gas chromatograph mass spectrometer
Product Description
Features:

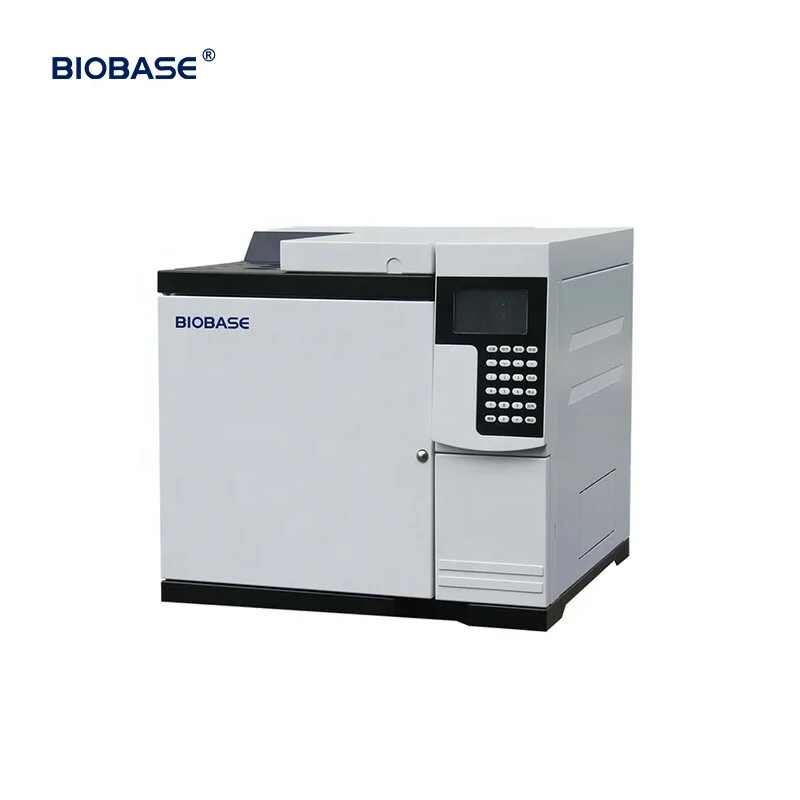

BK-GC900 gas chromatograph is a popular, high-performance, multi-functional series of chromatographic instruments. FID, TCD and
FPD detectors can be combined as needed to meet the needs of ordinary laboratories, daily production, routine detection and trace
quantities analysis requirements.
It can be widely used in many fields such as petroleum, chemical industry, environment, food safety, disease control, teaching and scientific research
Specification
Model | BK-GC901 | ||
Oven | Temp. Range | RT+5~450℃ | |
Temp. Accuracy | ≤±0.01℃ | ||
Temp. Program | 16-phase | ||
Max. Temp. Heating Rate | 40℃/min | ||
Time Range | 0-999.9min | ||
Detector | Hydrogen Flame Ionization Detector (FID) | Detection limit:≤5×10-12g/s (100ng/ul n-hexadecane-isooctane solution) | |
Temperature 450℃ | |||
Compatible with packed and capillary columns | |||
Baseline drift:≤2x10-13A/30min | |||
Baseline noise: 3×10-14A | |||
Linear range:≥107 | |||
Thermal Conductivity Detector (TCD) | Sensitivity: >5000mv.ml/mg (50mg/ml toluene-benzene solution) | ||
Temperature 400℃ | |||
Baseline drift:≤0.1mV/30min | |||
Baseline noise: 0.03mV | |||
Linear range:≥105(±10%) | |||
Electron Capture Detector (ECD) | Detection limit:≤1×10-14g/ml (Sample: n-hexadecane δ-666) | ||
Linear range: ≥104 | |||
Flame Photometric Detector (FPD) | Detection limit:≤5×10-12g/s(S of 10ng/uL methyl parathion-ethanol solution) Detection limit:≤4×10-12g/s(P of 10ng/uL methyl parathion-ethanol solution) | ||
Linear range (S): ≥103 Linear range (P): ≥104 | |||
Temperature 350℃ | |||
Nitrogen and Phosphorus Detector (NPD) | Detection limit:≤1×10-12g/s (Azobenzene) Detection limit:≤1×10-12g/s(Marla sulfur phosphorous) | ||
Linear range: ≥103 | |||
Injection Method | Capillary column split/splitless sampling (with diaphragm purging function), packed column sampling, valve sampling, gas/liquid automatic sampling system, etc. | ||
Inlet | 1~4, up to 3 capillary column inlets | ||
Injection Type | Packed column injection, capillary column injection. (Flow setting range: 0~1000ml/min) | ||
Control Accuracy | Pressure: 0.01KPa; Flow: 0.01ml/min | ||
Maximum Split Ratio | 1:999 | ||
Pressure Sensor | Accuracy: <2% of full scale; Repeatability: <± 0.05KPa; Range: 0~0.6MPa | ||
Flow Sensors | Accuracy: < 5% of full scale; Repeatability: 0.5K Pa (full scale); Output offset (accuracy): ±5% | ||
Sampling Valve | Can be equipped with multiple imported automatic control valves, which can run automatically in sequence | ||
Power Supply | AC220V±10%, 50/60Hz | ||
Standard Accessory | FID detector, Chromatography workstation software, Capillary sampler | ||
Optional Accessory | Sample injection system, TCD, ECD, FPD and NPD detector, Chromatographic column. | ||
Package Size (W*D*H) | 750*710*720 mm | ||
Gross Weight | 70kg | ||
