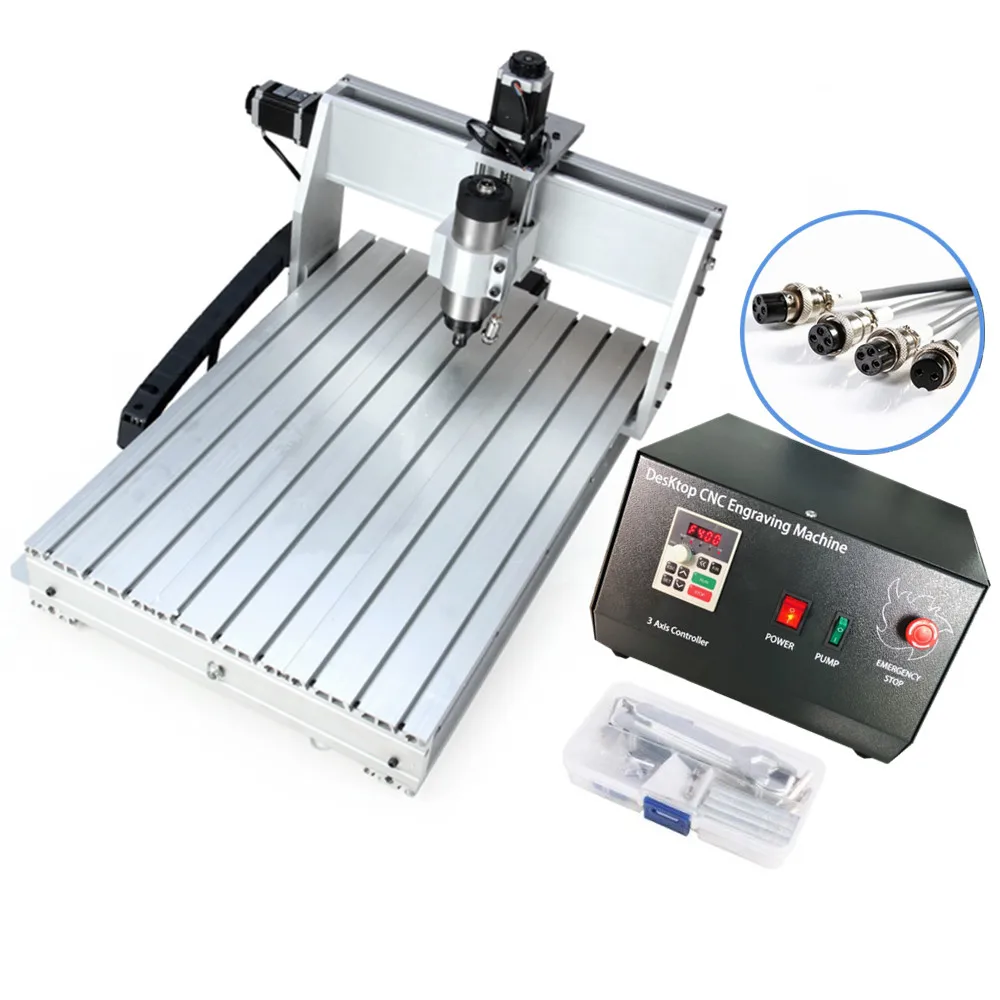

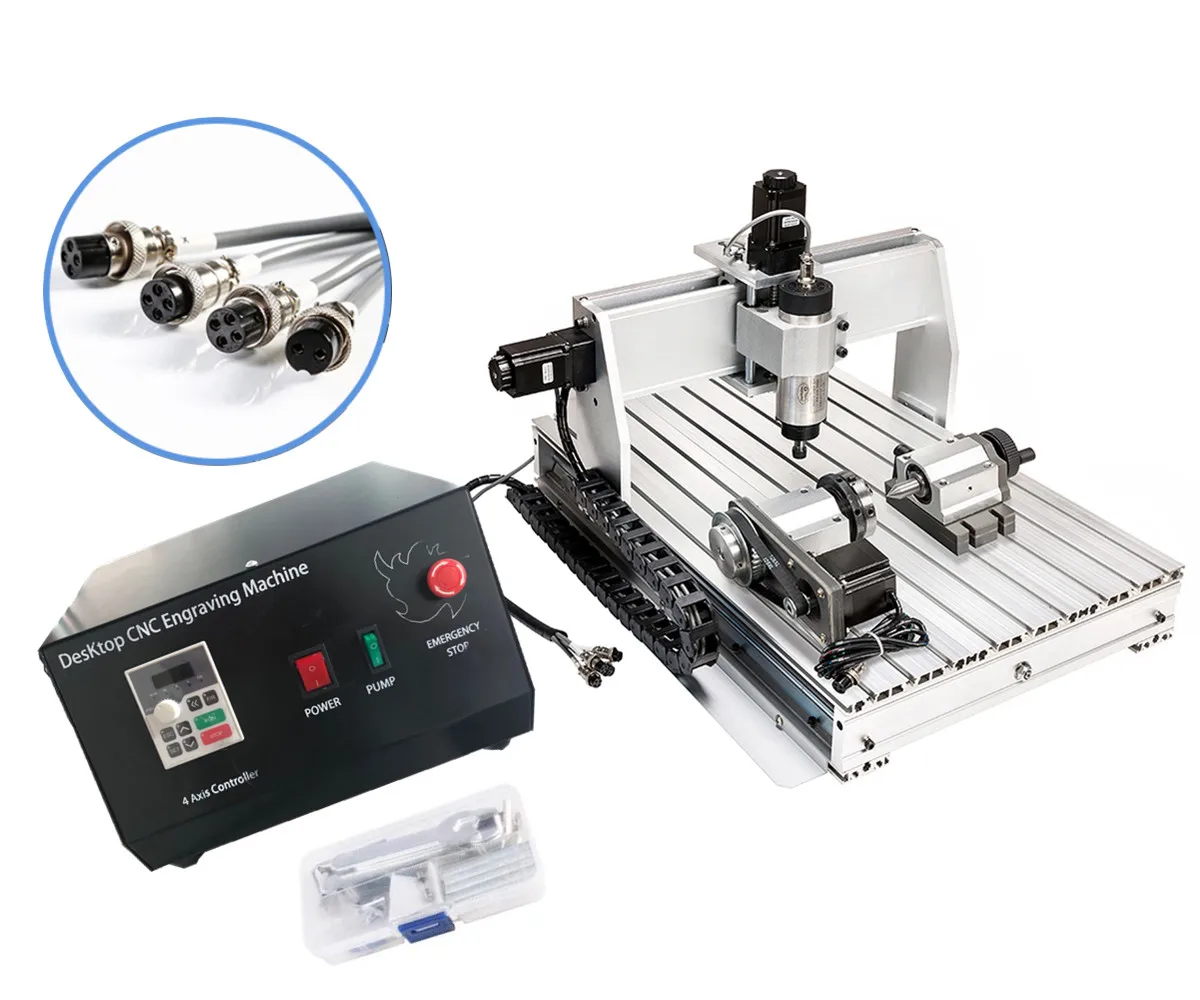

Хорошая фрезерный станок с ЧПУ цена настольный мини 6040 Маршрутизатор 4 оси 2.2kw воздушным охлаждением/водяным охлаждением Фрезерный Шпиндельный
- Категория товара: Woodworking Machinery >>>
- Поставщик (Оптовый магазин): Changzhou,Handi,Motor,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Good cnc router price mini desktop cnc 6040 router 4 axis with 2.2kw air cooled/water cooled spindle motor
Product Description
Technical parameter:
Max.stroke | XYZ=400*570*75mm |
Machinable material thickness | ≤100mm |
Outline dimension | 750*570*390mm |
Frame material | 6061-T5 aluminum alloy |
Rail type | Chrome plated shaft + linear bearing |
Screw type | Ball screw,diameter 16mm,Thread pitch 5mm |
Mechnical resolution | XYZ-shaft:0.0025mm/step |
Positioning accuracy | 0.05mm |

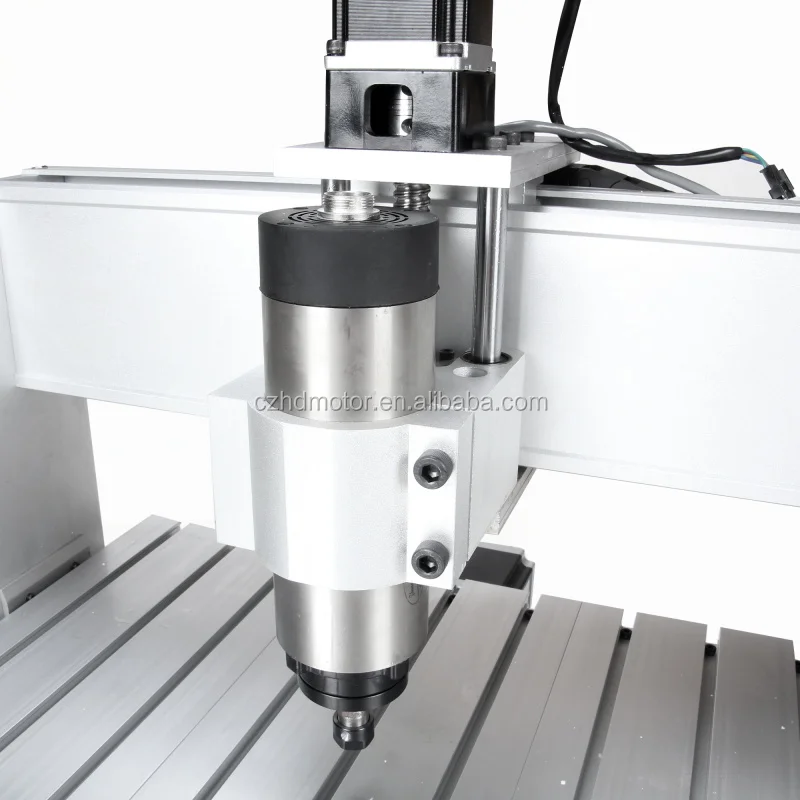

Spindle motor | Frequency conversion spindle motor,2.2KW |
RPM | 24000rpm/min |
Chuck type | ER20(3.175mm,12.7mm) |
XYZ motor | Stepper motor JK57HS76-4204B-01AF |
Stepper drive | High performance, each axis can independent drive |
Feed rate | 2000mm/min |
Communication interface | USB2.0 |
System requirement | WIN-XP or WIN-7 |
Order code | G code/.nc/.ncc/.tab/.txt |
Voltage | Input 85V-240VAC(400HZ) |
Operation environment | Temp.:5℃-40℃;Humidity:35%-80% |
Usage :
Mainly used in PVC, acrylic, plexiglass, color plates, engineering plastics, bakelite, wood and soft metal material carving milling, and also suitable for engraving the PCB, and wood model mold, crafts, can not exceed the limit size plastic boxes, aluminum chassis, the panel cutout hole and milling, but also at a low feed rate for aluminum, copper and other metal materials for three-dimensional carving and drilling and milling.
Note: when you got the softwear, pls don't upgarde it, thanks

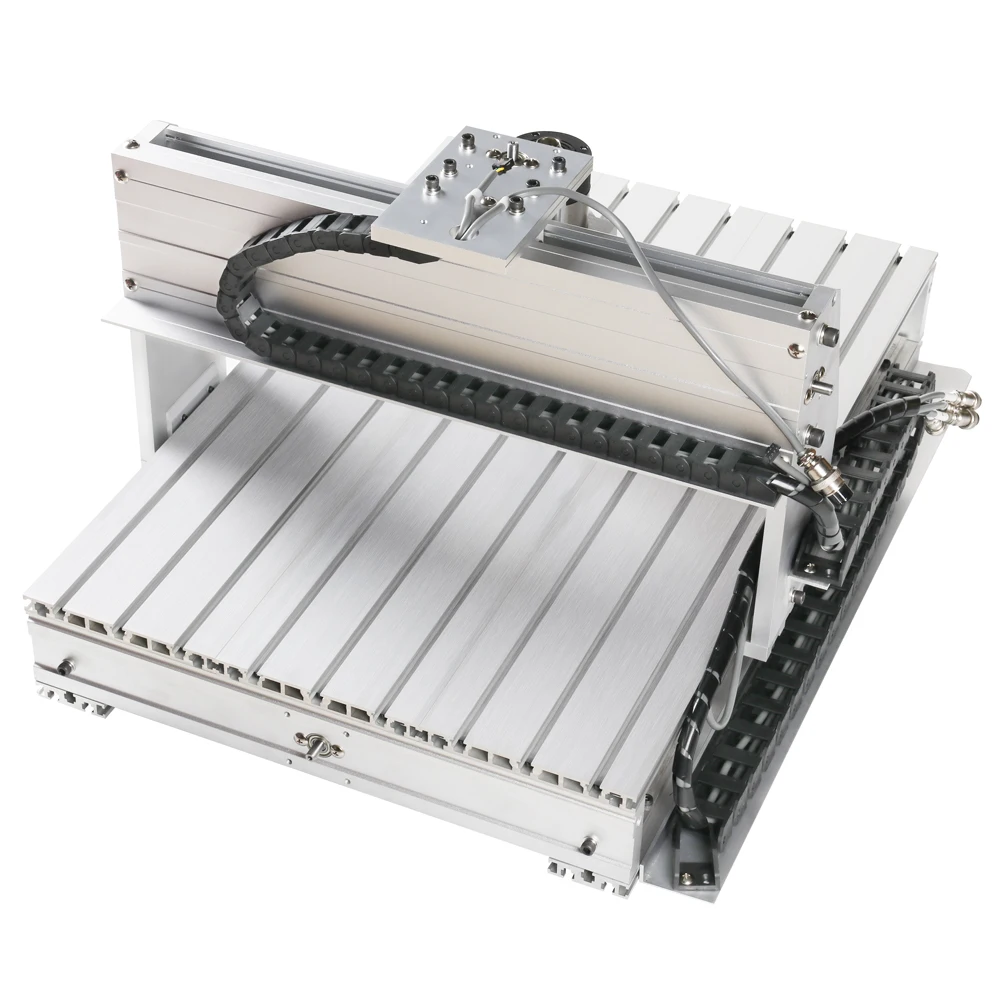

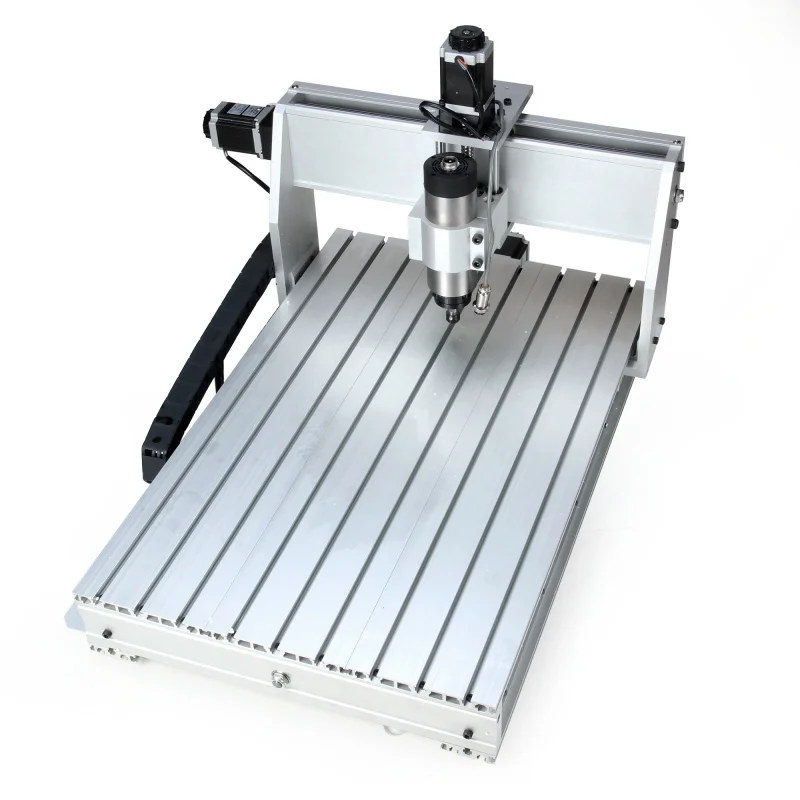

Detailed Images
Exhibition Show
Production process
Packaging & Shipping
Certifications
