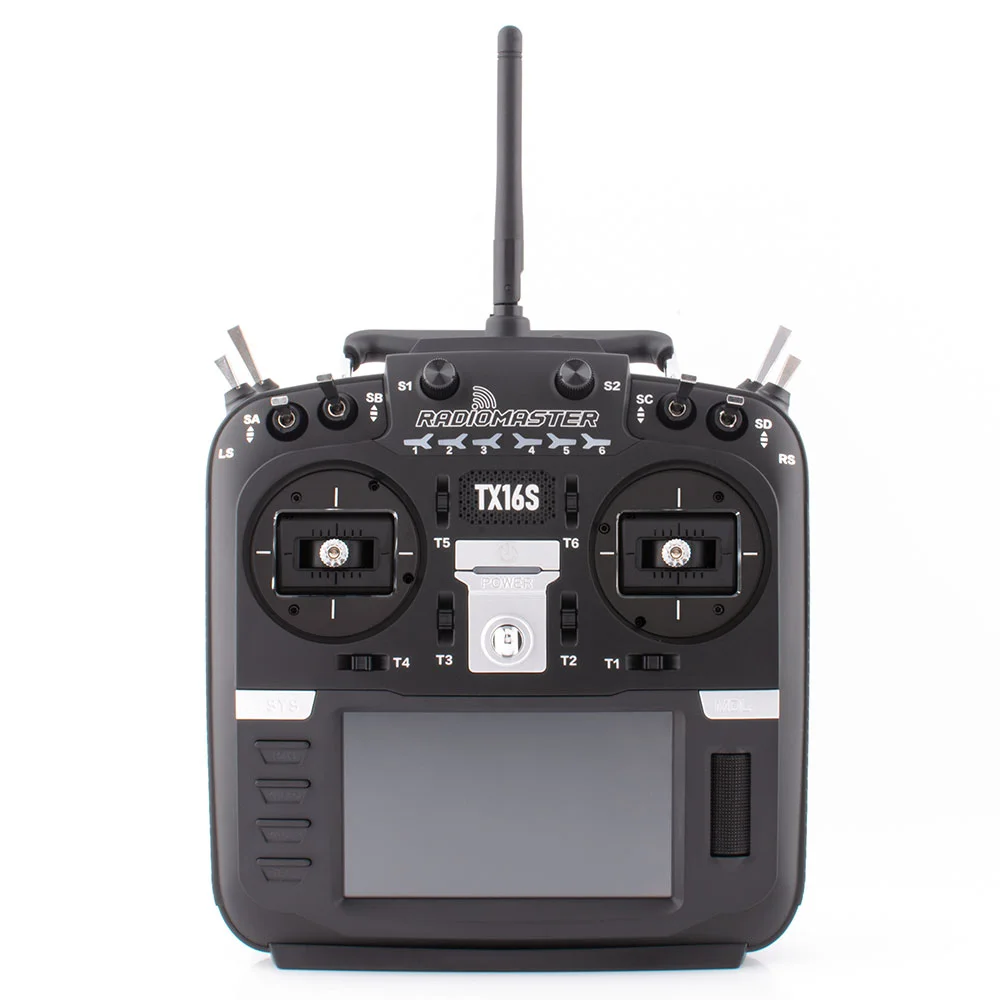

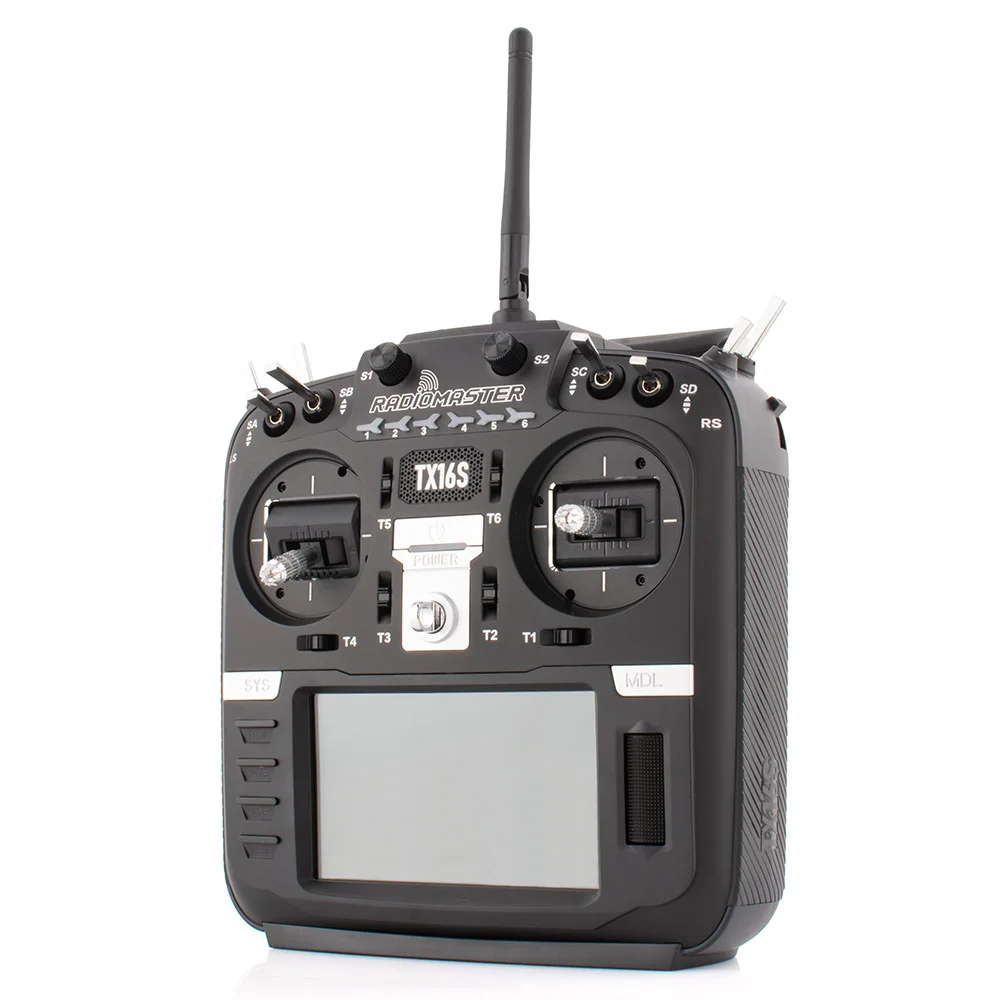

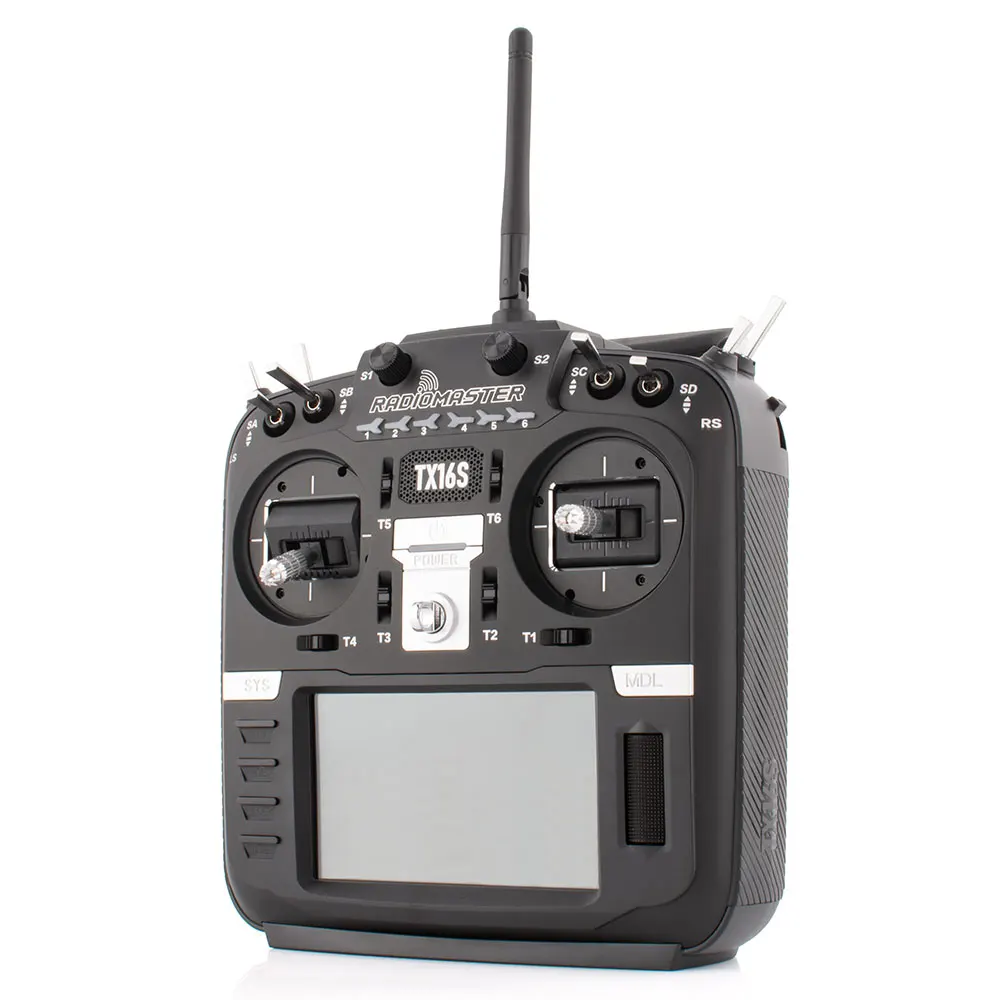

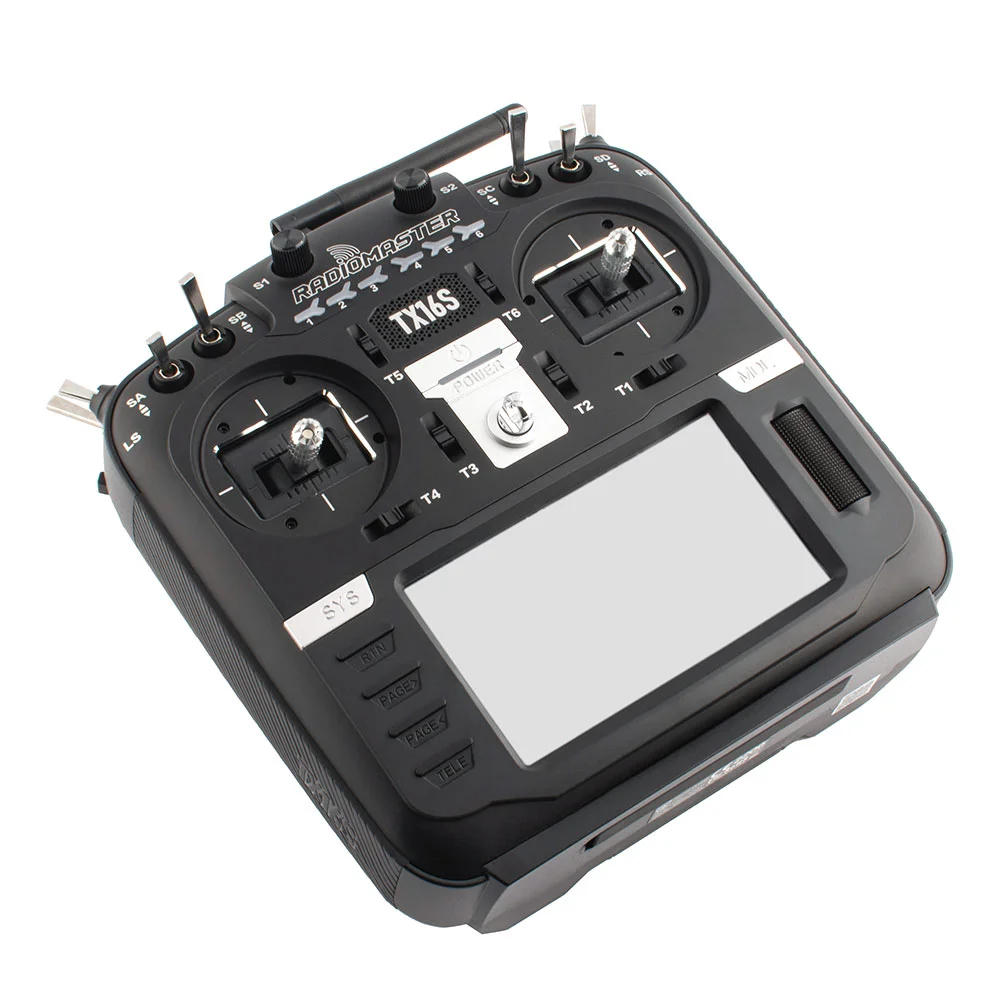

Радиомастер TX16S MKII V4.0 Hall Gimbal 2,4G 16CH ELRS 4 в 1 многопротокольный передатчик EDGETX OpenTX пульт дистанционного управления для радиоуправляемого дрона



Bullet Point
* Improved internal circuity and optimized power supply.

* New charge circuitry with integrated reverse-polarity protection.

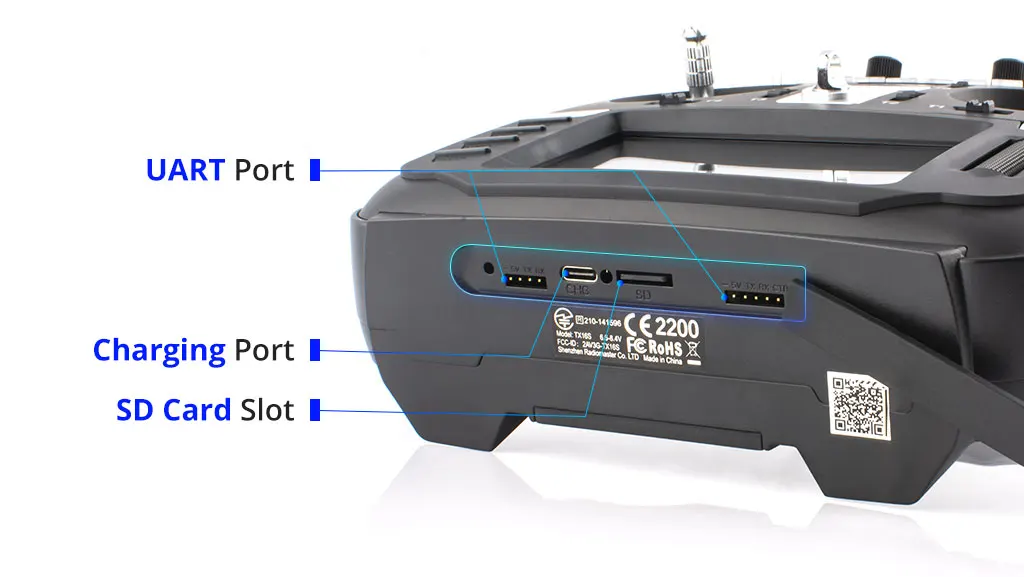

* Optimized charge now allows up to 2.2A internal USB-C charge current.

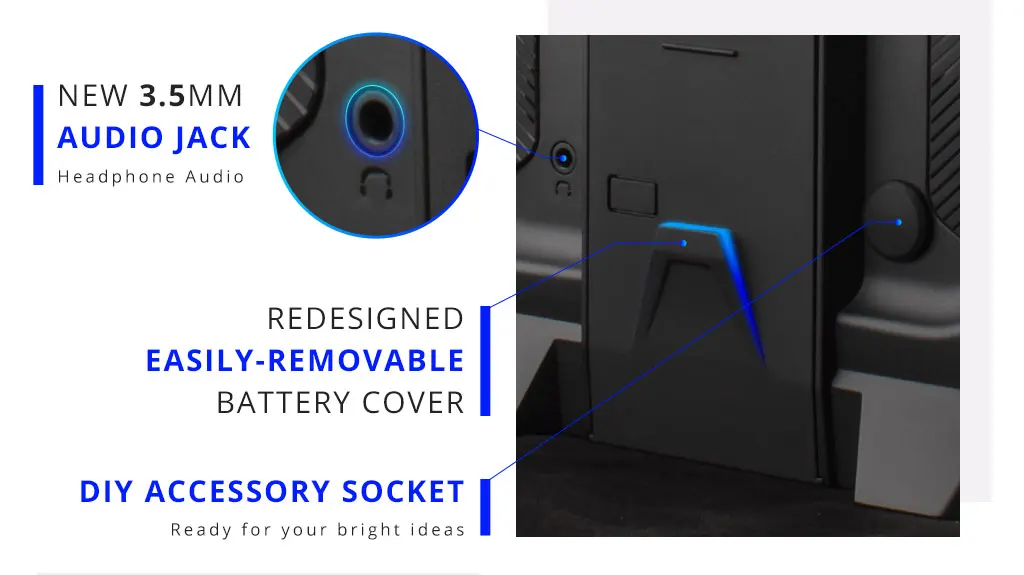

* Rear mounted audio jack provided headphone output.

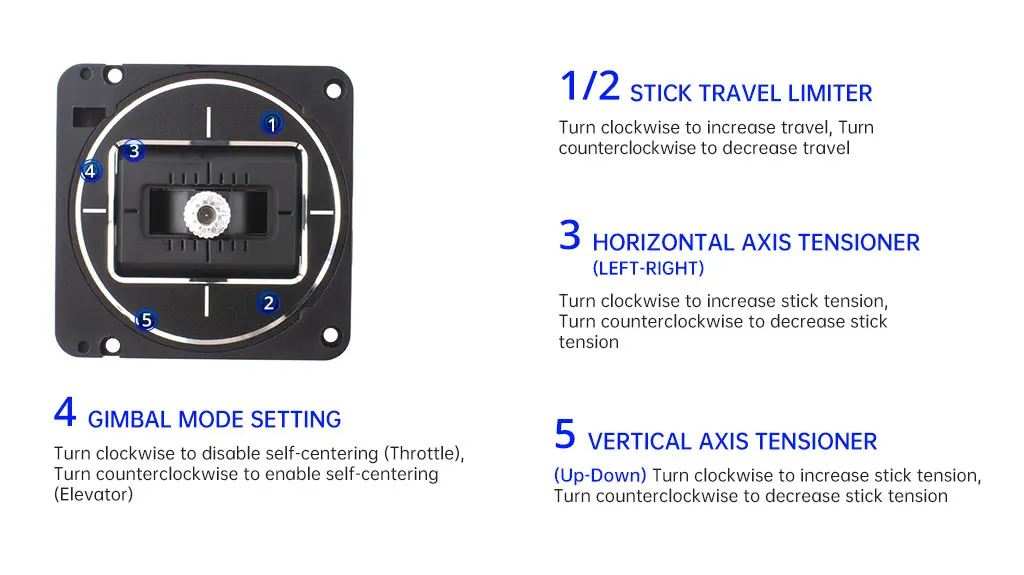

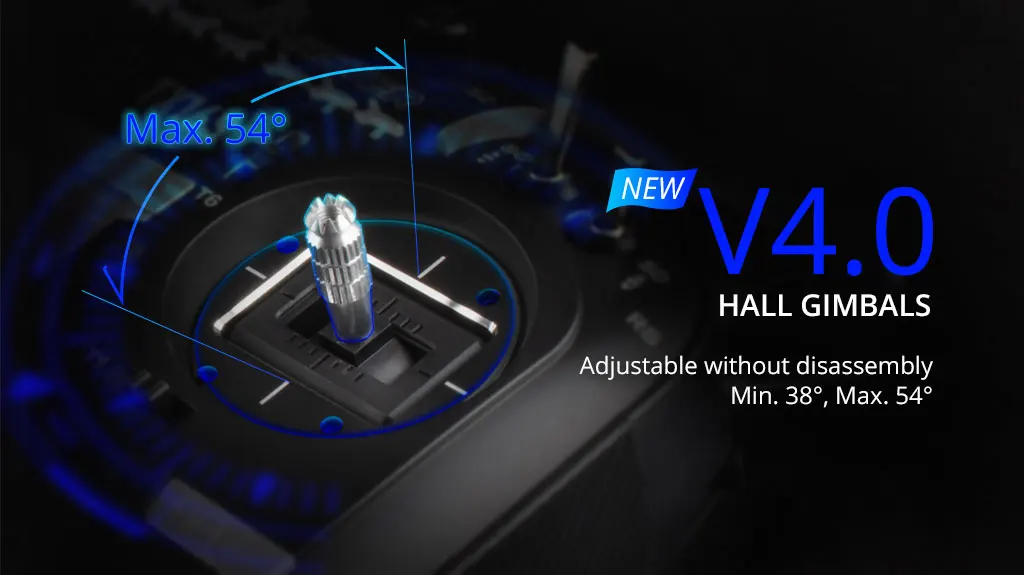

* V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).

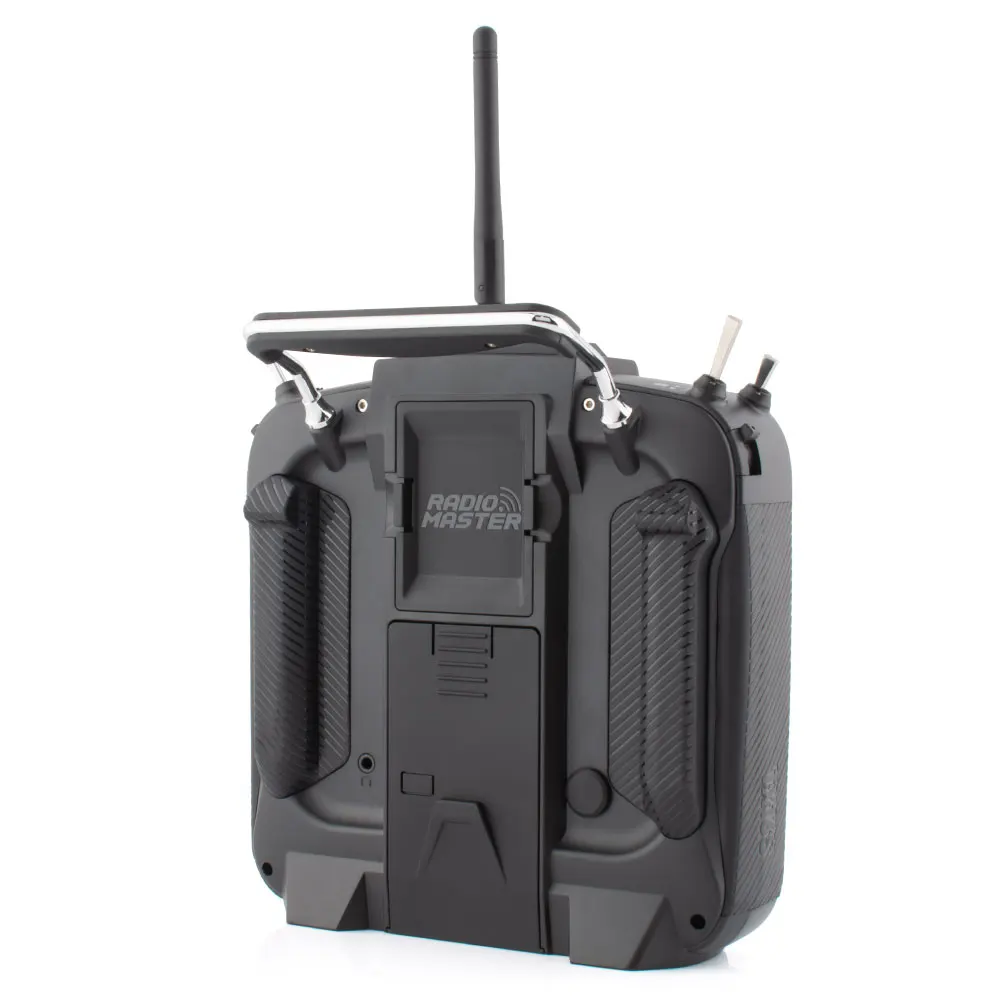

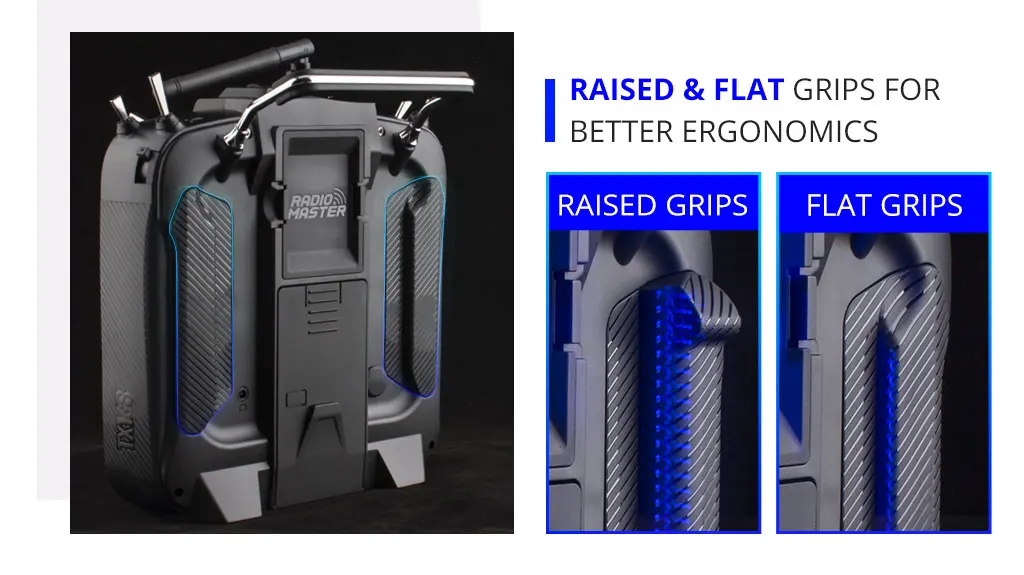

* Optional high/low rear grips included for improved ergonomics.

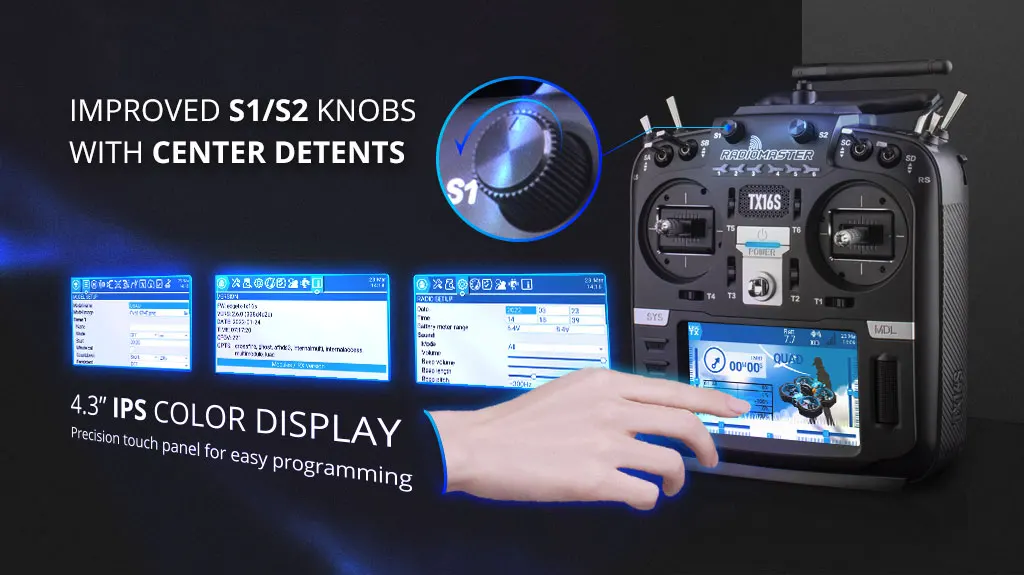

* Improved S1/S2 knobs with centre-detents.

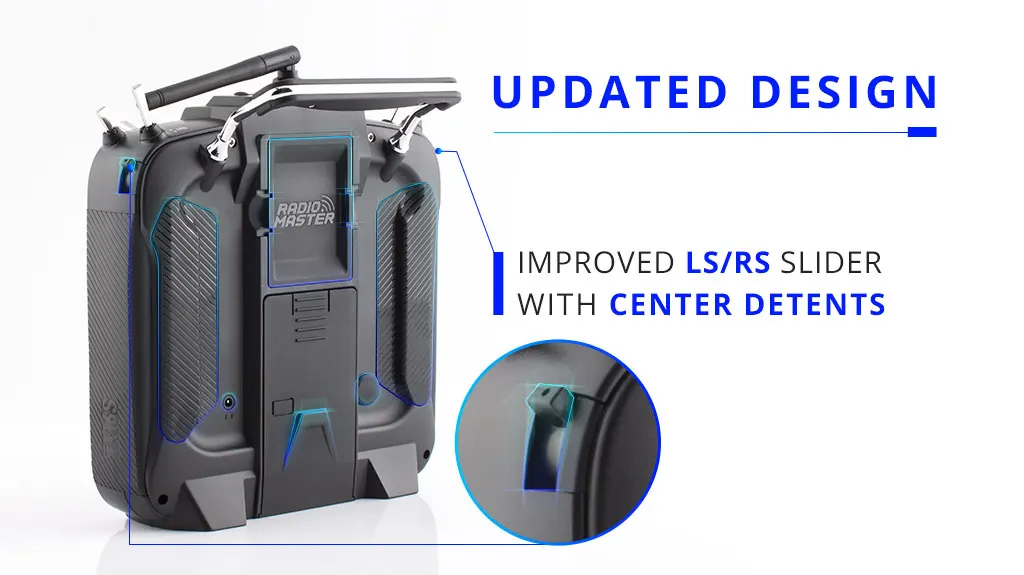

* Improved LS/RS Sliders with smoother feel and better centre-detents.

* Redesigned battery cover for improved battery access.

* Retooled body with improved fit and finish.

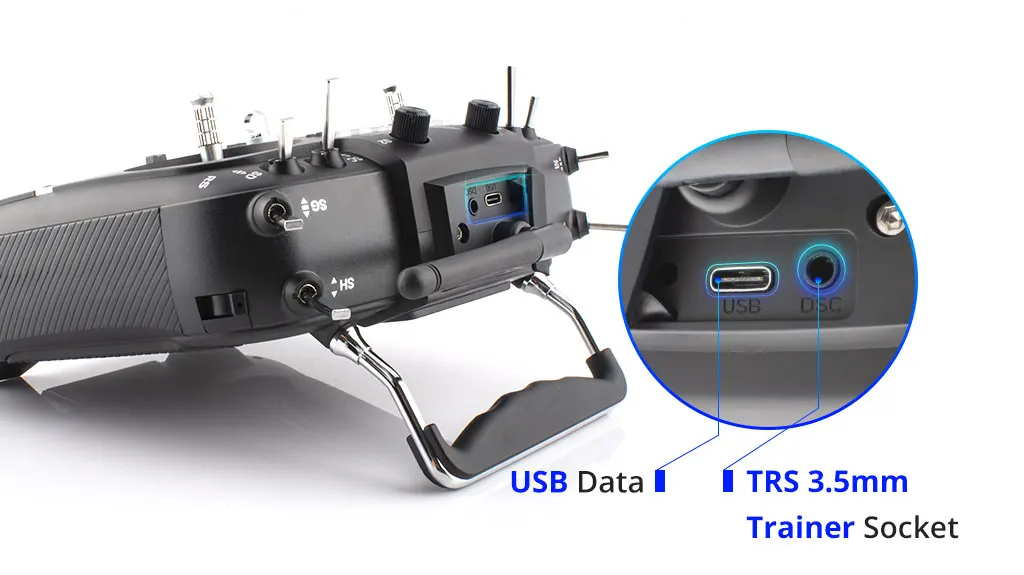

* Trainer socket changed to standard TRS 3.5mm socket.

* Rear DIY Socket added for personalised mods.

* Improved internal plastics for better longevity.

* Available ELRS and 4in1 versions.

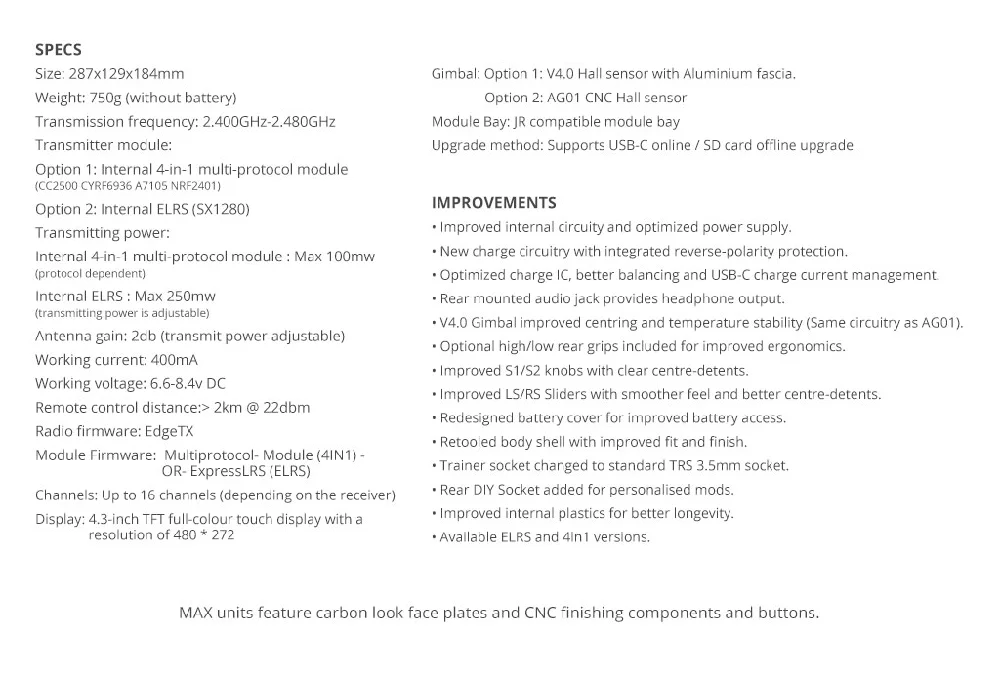

Specification

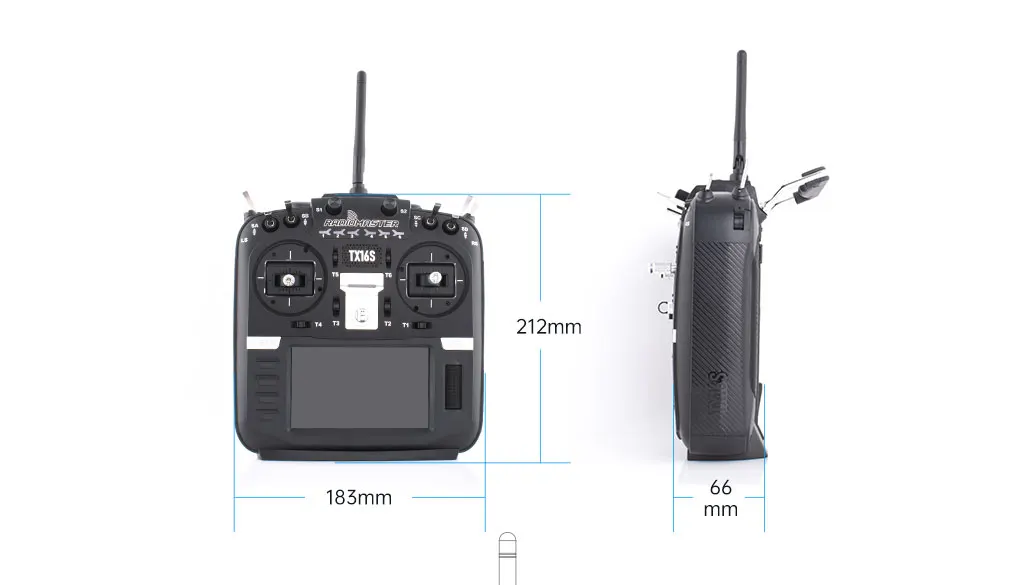

* Size: 287x129x184mm

* Weight: 750g (without battery)

* Transmission frequency: 2.400GHz-2.480GHz

* Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401) Option 2: Internal ELRS
(SX1280)

* Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw
(transmitting power is adjustable)

* Antenna gain: 2db (transmit power adjustable)

* Working current: 400mA

* Working voltage: 6.6-8.4v

* Remote control distance:> 2km @ 22dbm

* Radio firmware: EdgeTX

* Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)

* Channels: Up to 16 channels (depending on the receiver)

* Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272

* Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 Hall sensor

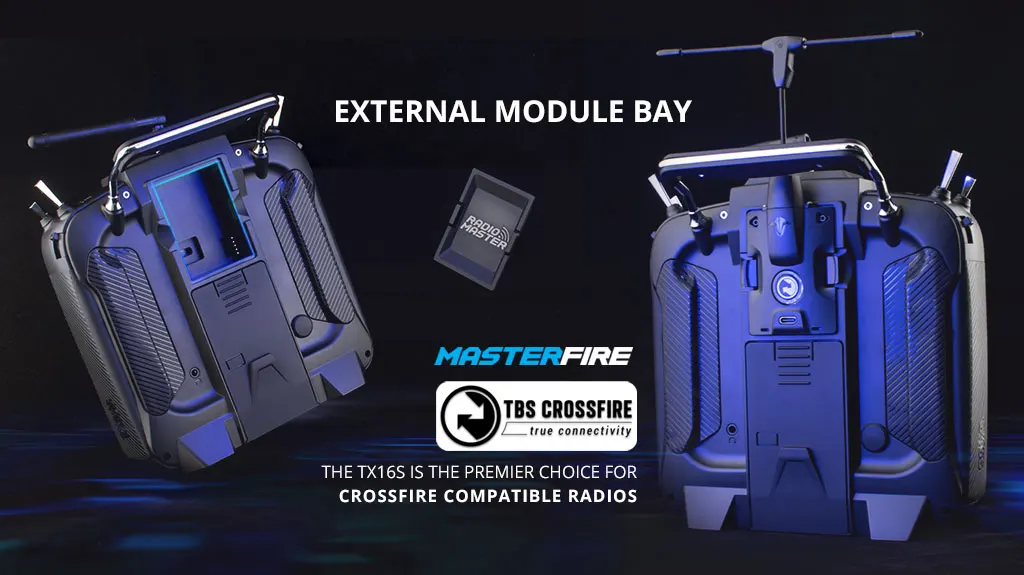

* Module Bay: JR compatible module bay

* Upgrade method: Supports USB-C online / card offline upgrade


Support EdgeTX and OpenTX
EdgeTX is installed by default (Touch screen enabled).
* Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.
