Product Description

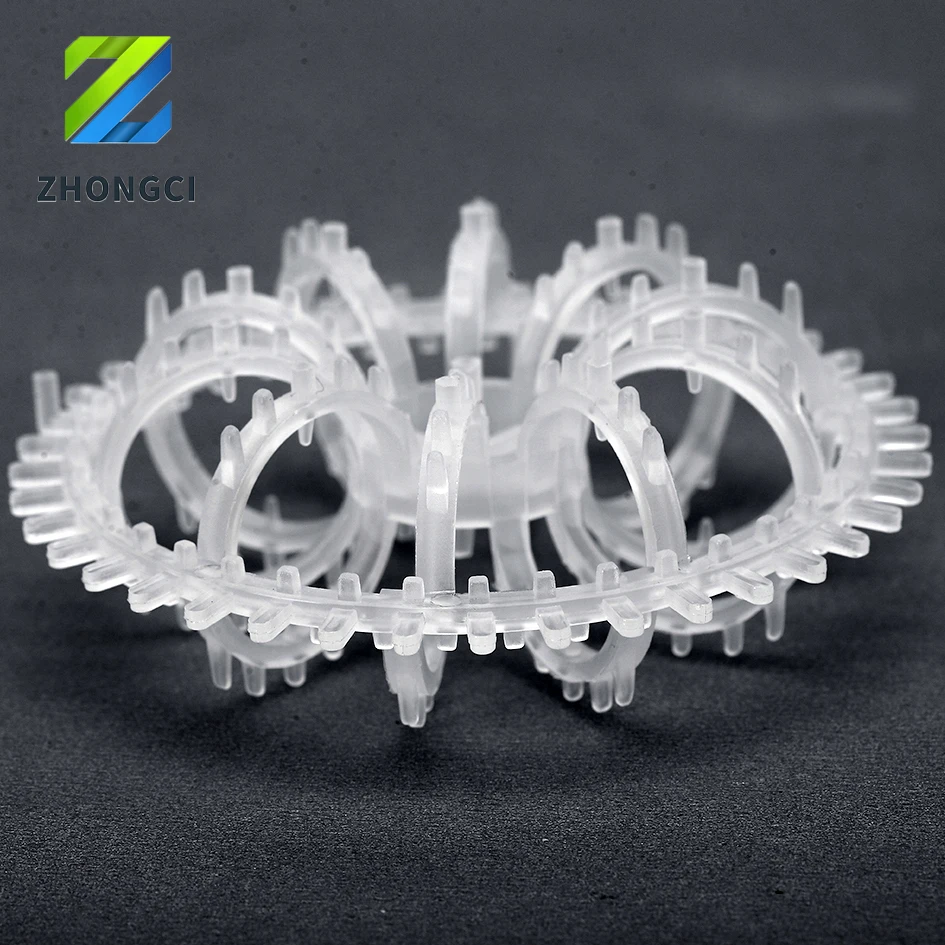

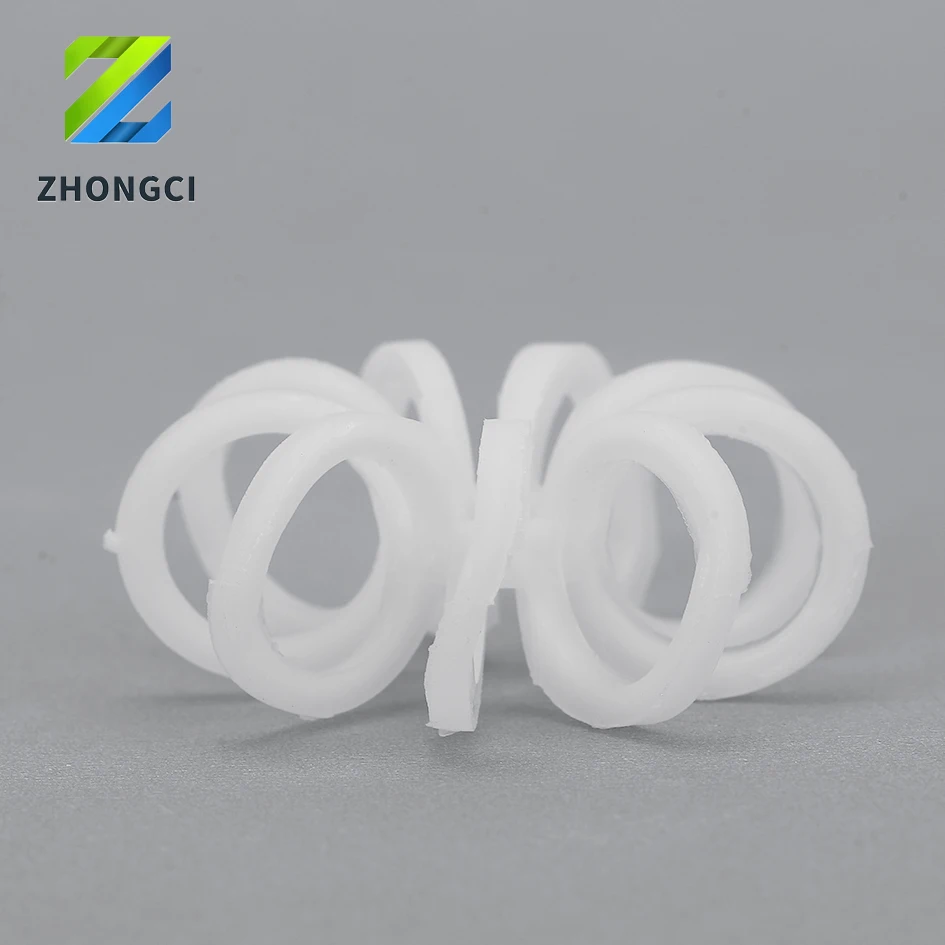

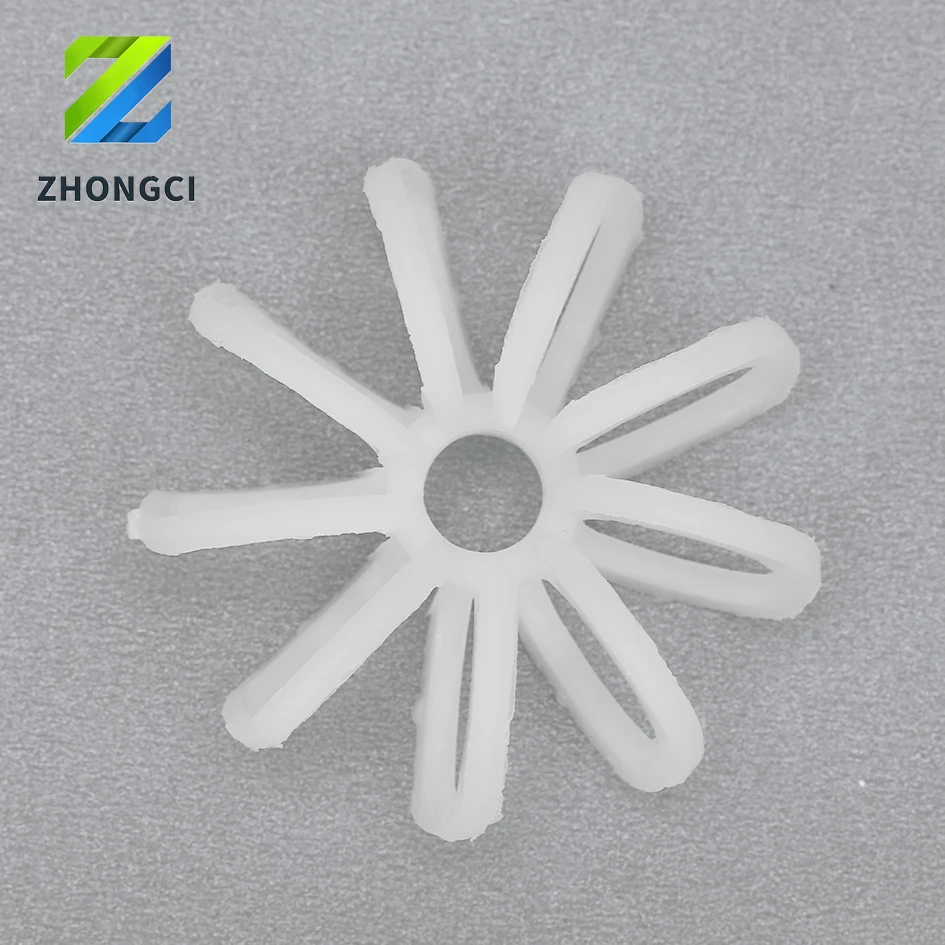

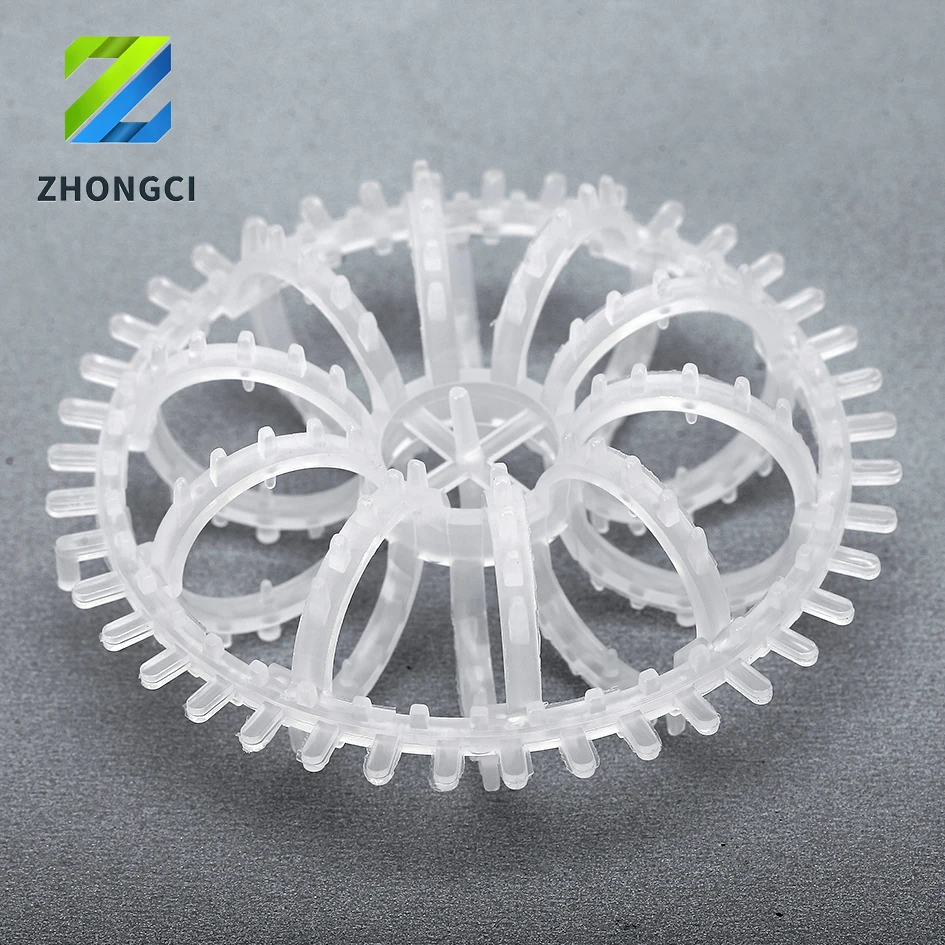

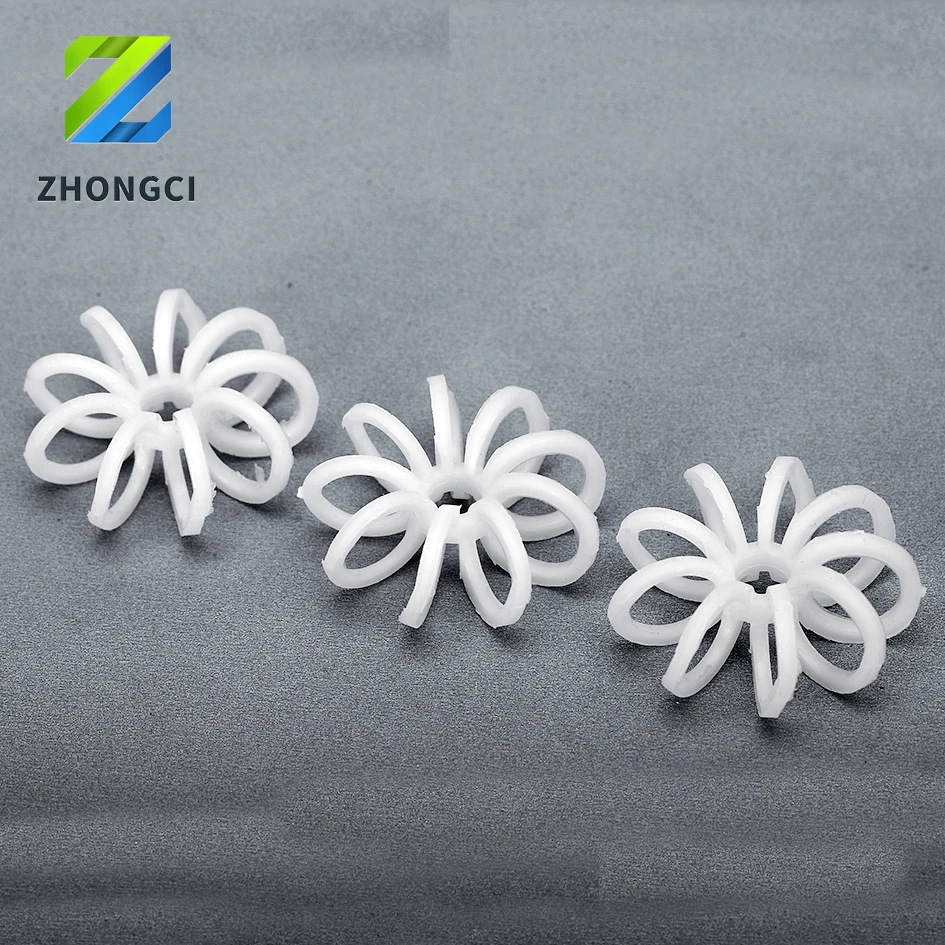

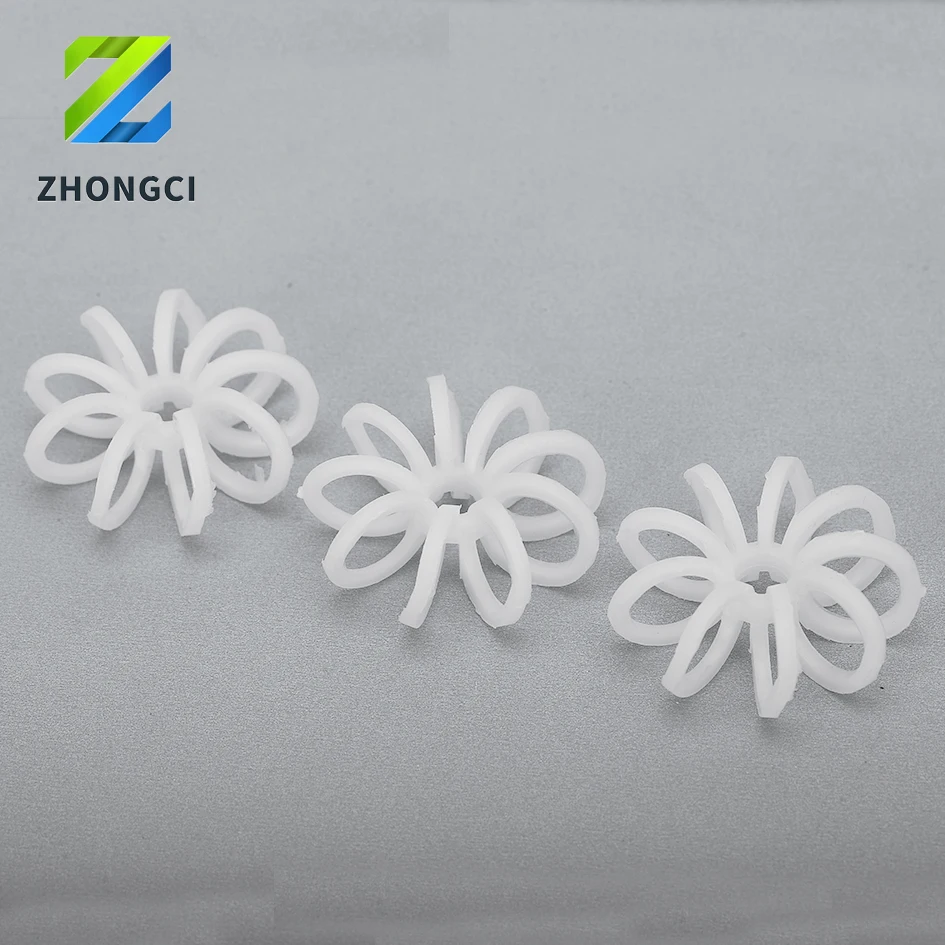

Annular Plastic Teller Rosette Ring for Water Treatment
Plastic teller rosette ring is also called plastic teller ring, plastic rosette ring. Plastic teller rosette ring has an annular
design. Many small rings are arranged in radial direction inside of its ring-shaped structure. These small plastic rings have many joint points, which can enlarge the gas-liquid contact surface and time. Due to its high void rate and large flux, plastic rosette ring is not easy to plug. It has good resistance to fouling and plugging. Therefore, plastic teller ring performs well in mass transfer applications.
Plastic rosette ring has light weight, low pressure drop, low mass transfer unit height and low cost. It's applicable working temperature ranges from 60℃ to 150℃. Plastic teller rosette ring is available in different materials, shapes and sizes. It is fit for gas absorption, water treatment and purification. This type tower packing is commonly used in purification towers, cooling towers, washing towers and rectifying columns.
design. Many small rings are arranged in radial direction inside of its ring-shaped structure. These small plastic rings have many joint points, which can enlarge the gas-liquid contact surface and time. Due to its high void rate and large flux, plastic rosette ring is not easy to plug. It has good resistance to fouling and plugging. Therefore, plastic teller ring performs well in mass transfer applications.
Plastic rosette ring has light weight, low pressure drop, low mass transfer unit height and low cost. It's applicable working temperature ranges from 60℃ to 150℃. Plastic teller rosette ring is available in different materials, shapes and sizes. It is fit for gas absorption, water treatment and purification. This type tower packing is commonly used in purification towers, cooling towers, washing towers and rectifying columns.
Available materials
· Polypropylene (PP).
· Polyethylene (PE).
· Polyvinyl chloride (PVC).
· Chlorinate polyvinyl chloride (CPVC).
· Polyvinylidene Fluoride (PVDF).
· Reinforced Polypropylene (RPP).
· Polypropylene (PP).
· Polyethylene (PE).
· Polyvinyl chloride (PVC).
· Chlorinate polyvinyl chloride (CPVC).
· Polyvinylidene Fluoride (PVDF).
· Reinforced Polypropylene (RPP).
The final price for Plastic Teller Rosette Ring depends on the quantity, delivery terms and form of payment.
Features:
* High void rate.
* Low pressure drop.
* Fouling and plugging resistance.
* Good corrosion resistance.
* High mass transfer efficiency.
* Energy saving.
Applications:
* Used in water treatment process.
* Used in absorption, extraction, scrubbing, stripping and heat transfer.
* Applied in purification towers, cooling towers, washing towers and rectifying columns.
* Applied in the packed towers of petroleum industries, chemistry industries, coal gas industries and environmental protection
industries.
Product Paramenters
Physical properties of Plastic Teller Rosette Ring:
Table 1: The Technical Parameter of Plastic Teller Rosette Ring | |||||||||||||
Item | Size (mm) | Ring Quantity | Surface Area (m2/m3) | Voidage | Bulk Number (n/m3) | Bulk Density (kg/m3) | Dry Packing Factor (m-1) | ||||||
PTRT-01 | 25 × 9 × (1.5 × 2) | 5 | 269 | 82% | 170000 | 85 | 488 | ||||||
PTRT-02 | 47 × 19 × (3 × 3) | 9 | 185 | 88% | 32500 | 58 | 271 | ||||||
PTRT-03 | 51 × 19 × (3 × 3) | 9 | 180 | 89% | 25000 | 57 | 255 | ||||||
PTRT-04 | 59 × 19 × (3 × 3) | 12 | 127 | 89% | 17500 | 48 | 213 | ||||||
Table 2: Physical & Chemical Properties of Different Materials of Plastic Teller Rosette Ring | |||||||||||||
Material/Performance | Density (After Injection Molding) (g/cm3) | Operation Temperature (°C) | Chemical Corrosion Resistance | Compression Strength (MPa) | |||||||||
PE | 0.98 | 90 | good | >6.0 | |||||||||
PP | 0.96 | >100 | good | >6.0 | |||||||||
RPP | 1.2 | >120 | good | >6.0 | |||||||||
PVC | 1.7 | >60 | good | >6.0 | |||||||||
CPVC | 1.8 | >90 | good | >6.0 | |||||||||
PVDF | 1.8 | >150 | good | >6.0 | |||||||||
