Product Overview

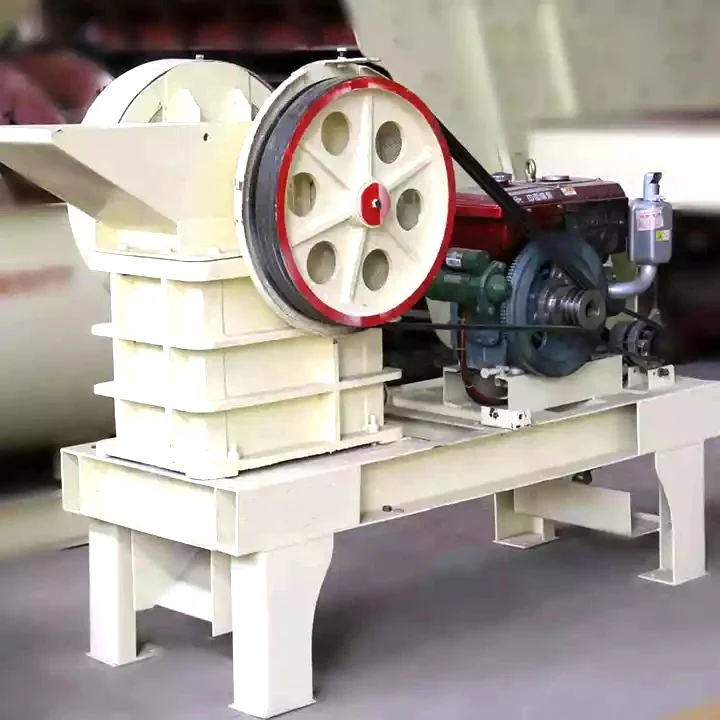

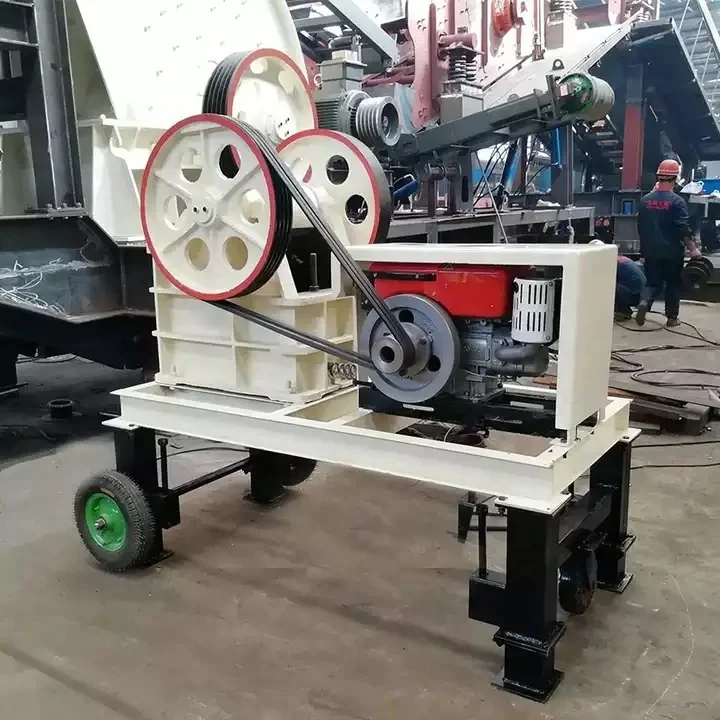

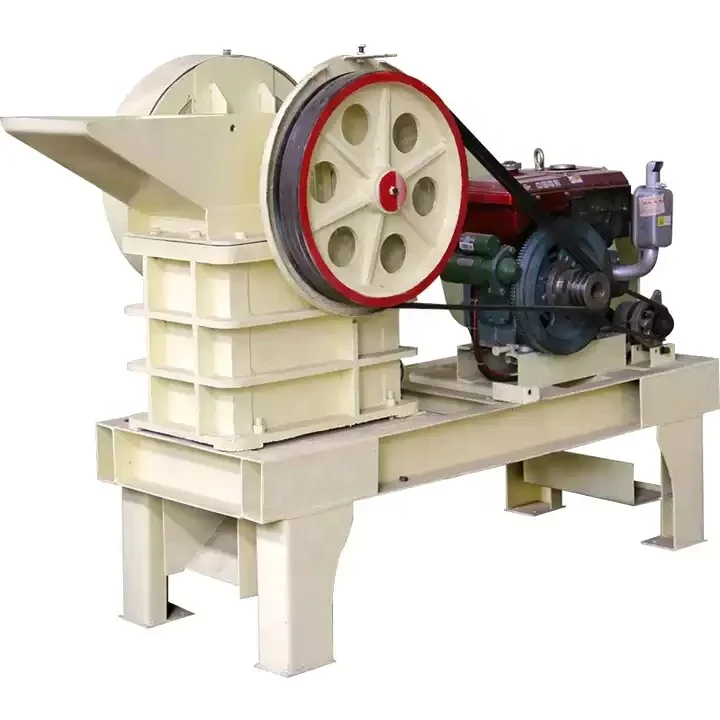

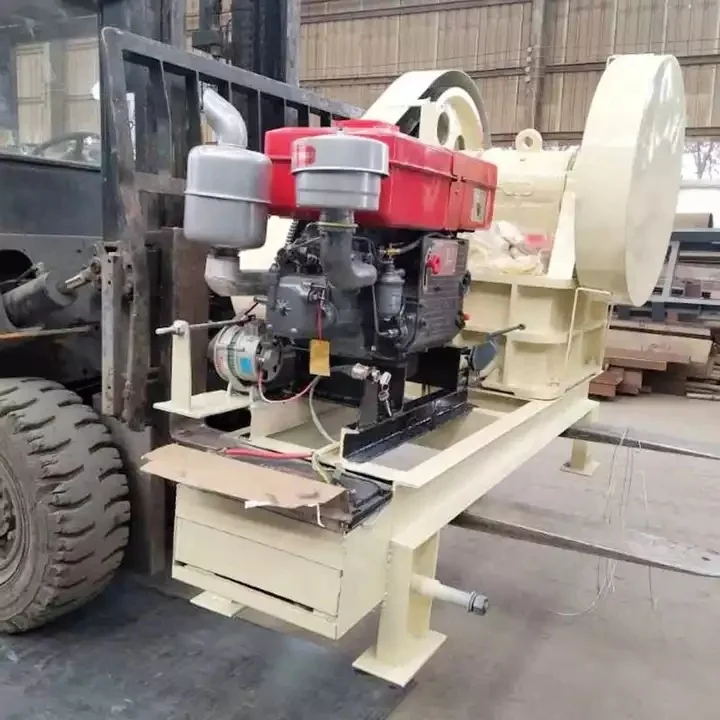

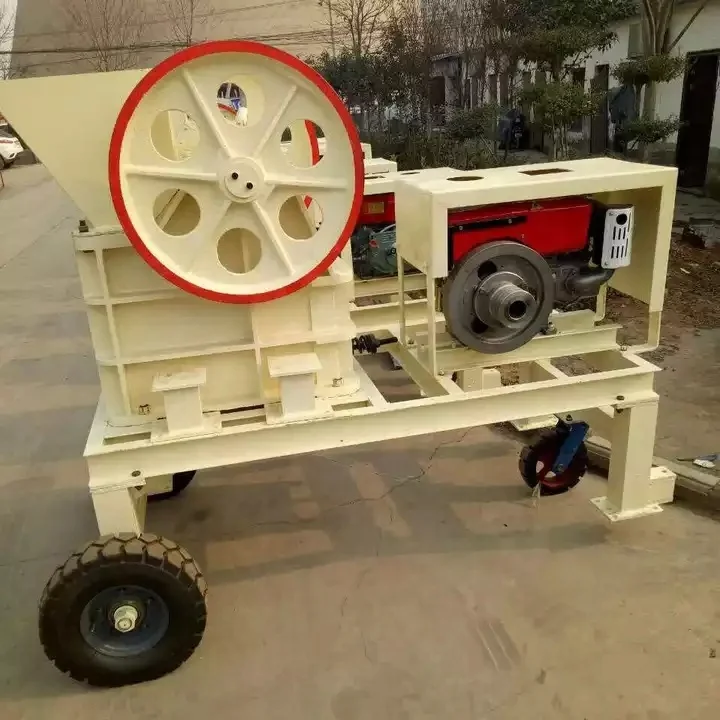

Mining Quarry Gold Ore Stone Jaw Crusher Machine Price, Portable Mobile Stone Crusher, Diesel Mobile Stone Rock Jaw Crusher
Features:
It has features like:simple structure,large crushing ratio,high output,even particles,convenient maintenance,low production cost and so on.
This small size PE series jaw crusher max. feeding size is 130-210mm, output size is 10-60mm, capacity is 1-20 tph. Mining crusher
crushing materials including granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, building
construction, construction wastes etc.
crushing materials including granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, building
construction, construction wastes etc.
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water
conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,
such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,
such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Application
This machine is suitable for mining, cement, building materials, road building, metallurgy and chemical industry departments, to be coarse and fine broken ore, rock, cement clinker and other materials, the compressive strength of the broken materials is not more than 320MPa, humidity is less than 15%.
The raw materials
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

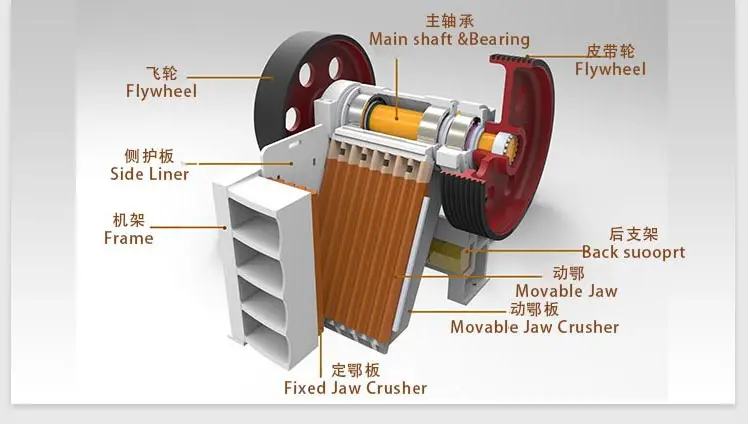

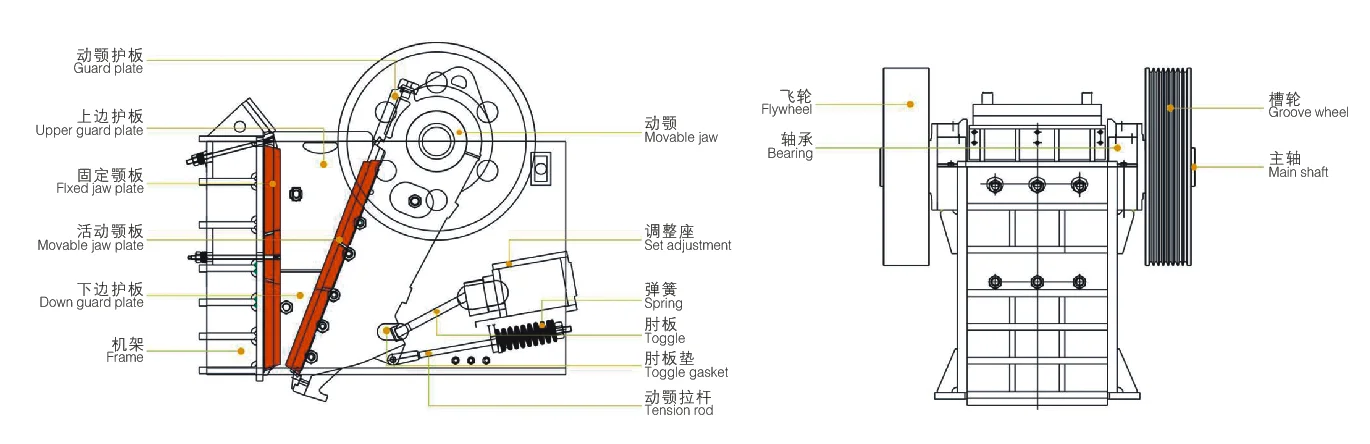

Operating principle
The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down,the angle between the fixed jaw and movable jaw gets smaller,and the materials can be crushed to reach the crushing target, when the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger, the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
PRODUCT SPECIFICATIONS
Model | Opening size(mm) | Max feeding size (mm) | Output adjustment range(mm) | Production capacity (t/h) | Power(kw) | Weight (t) | Overall dimension(mm) |
PE-250*400 | 250*400 | 210 | 20-60 | 5-21 | 6P 15 | 2.8 | 1300*1090*1270 |
PE-400*600 | 400*600 | 340 | 40-100 | 16-64 | 6P 30 | 7 | 1730*1730*1630 |
PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 6P 55 | 12 | 1980*2080*1870 |
PE-600*750 | 600*750 | 500 | 150-200 | 80-240 | 6P 55 | 15.8 | 2070*2000*1920 |
PE-600*900 | 600*900 | 500 | 65-160 | 50-160 | 6P 55 | 17 | 2190*2206*2300 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 8P 110 | 29 | 2660*2430*1800 |
PE-800*1060 | 800*1060 | 640 | 130-190 | 130-330 | 8P 110 | 29.8 | 2710*2430*2800 |
PE-830*1060 | 830*1060 | 650 | 160-220 | 150-336 | 8P 110 | 30.7 | 2740*2430*2800 |
PE-870*1060 | 870*1060 | 660 | 200-260 | 190-336 | 8P 110 | 31.5 | 2810*2430*2800 |
PE-900*1060 | 900*1060 | 685 | 230-290 | 230-390 | 8P 110 | 33 | 2870*2420*2940 |
PE-900*1200 | 900*1200 | 750 | 95-165 | 220-380 | 8P 110 | 52 | 3380*2870*3330 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 8P 110 | 55 | 3480*2876*3330 |
PE-1200*1500 | 1200*1500 | 1020 | 150-350 | 400-800 | 6P 160-220 | 100.9 | 4200*3300*3500 |
PE-1500*1800 | 1500*1800 | 1200 | 220-350 | 500-1000 | 8P 280-355 | 139 | 5160*3660*4248 |
PE-150*750 | 150*750 | 120 | 18-48 | 8-25 | 4P 15 | 3.8 | 1200*1530*1060 |
PE-250*750 | 250*750 | 210 | 25-60 | 13-35 | 6P 22 | 5.5 | 1380*1750*1540 |
PE-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 6P 30 | 7 | 560*1950*1390 |
PE-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 6P 37 | 9.7 | 2140*1660*1500 |
PE-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 6P 55 | 15.6 | 2720*1950*1600 |

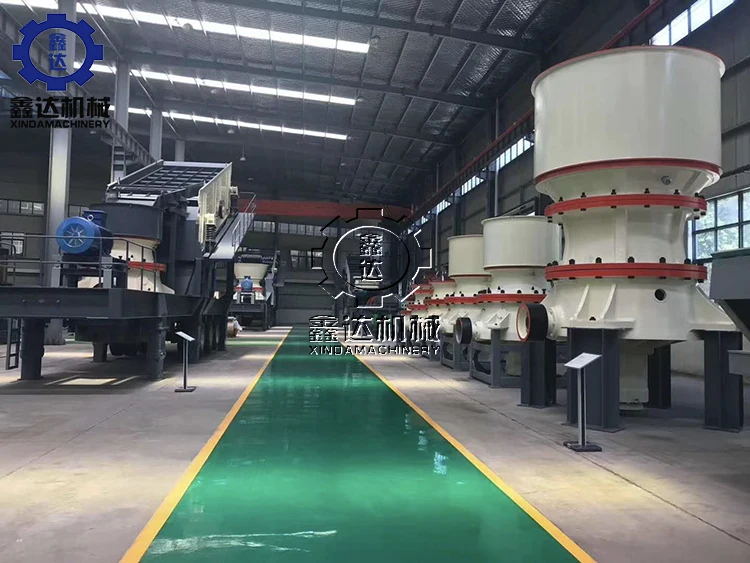

Company Introduction
Our factory has advanced information management, simple and efficient management mode. It has high level, high skill and high quality staff team. With the concept of “endless innovation”, our factory is expanding and forging ahead. We are actively engaged in the investment and introduction of advanced equipment. We have increased our cooperation in with domestic and foreign counterparts and scientific research institutions to keep our products in the leading position. The scale and strength of the enterprise have also increased year by year, which has won the recognition and trust of the majority of users.
Customer visiting
FAQ
1. Q: What is your terms of payment?
A: TT, Western Union. L/C, etc. 30% deposit and the rest will be paid before the machine leaves the factory.
2. Q:When will your side delivery the machine for me ?
A: The machine usually be shipped within 20days after the deposit, and it also depends on the other conditions.
3. Q:How is about the package ?
A: Nude packing, standard wooden box packing, or according to your needs.
4. Q:How about price?
A: we are factory and be able to give you the lowest price than market one, and we have a policy that "for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity".
A: TT, Western Union. L/C, etc. 30% deposit and the rest will be paid before the machine leaves the factory.
2. Q:When will your side delivery the machine for me ?
A: The machine usually be shipped within 20days after the deposit, and it also depends on the other conditions.
3. Q:How is about the package ?
A: Nude packing, standard wooden box packing, or according to your needs.
4. Q:How about price?
A: we are factory and be able to give you the lowest price than market one, and we have a policy that "for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity".
