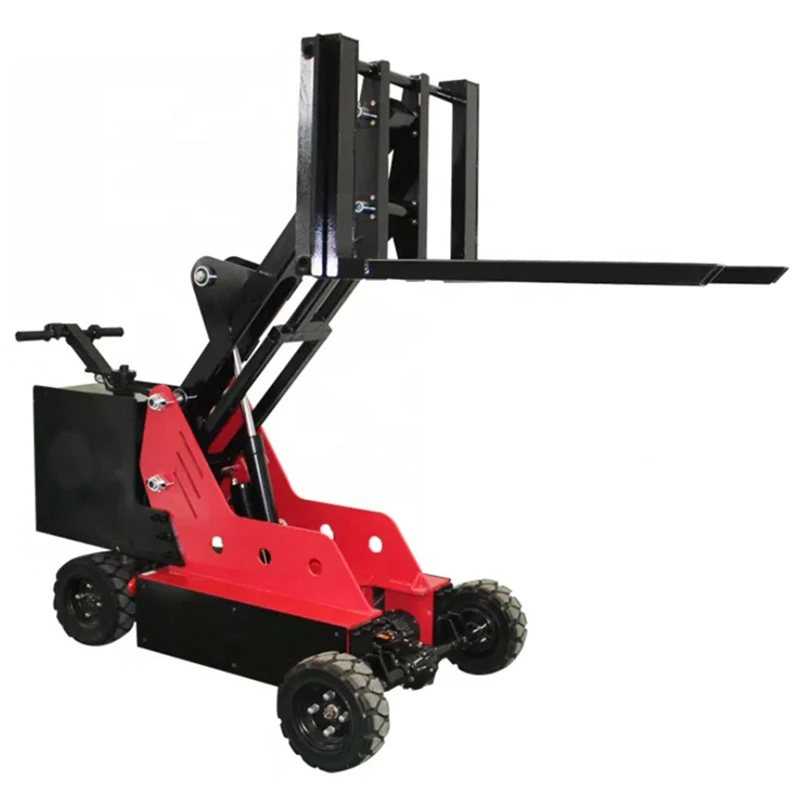

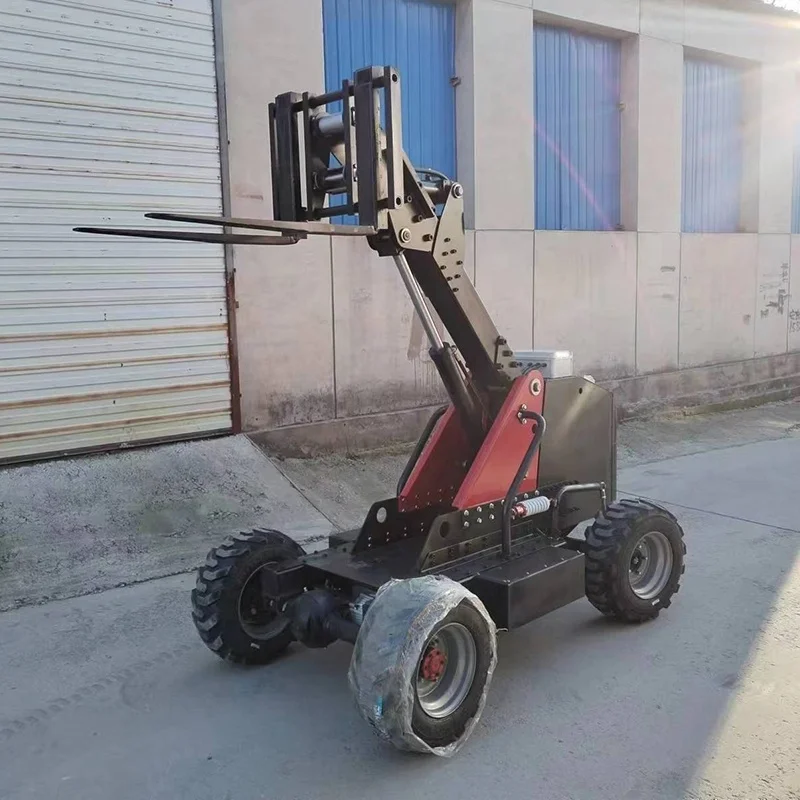

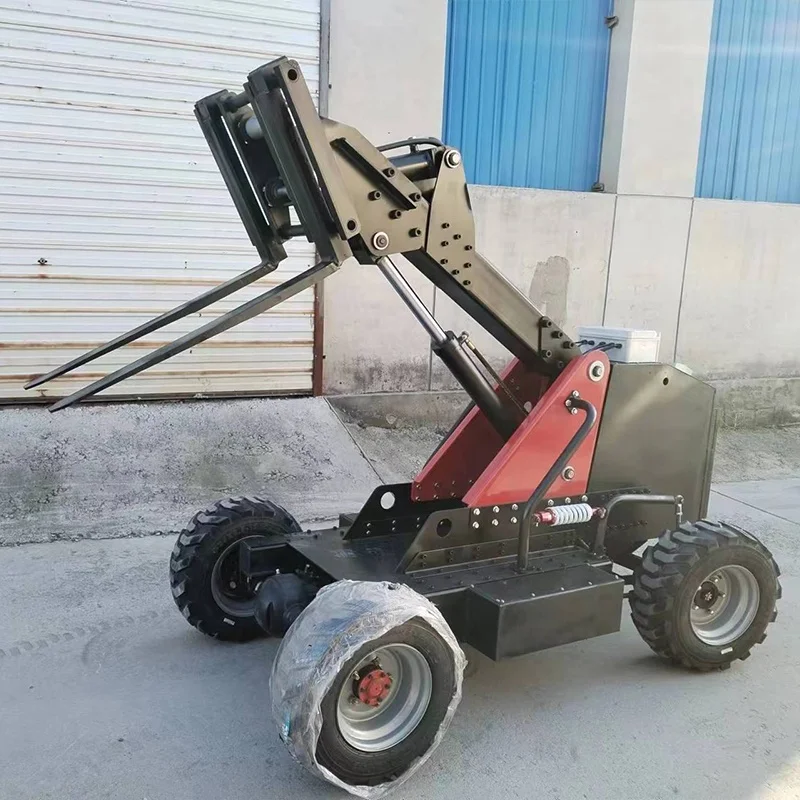

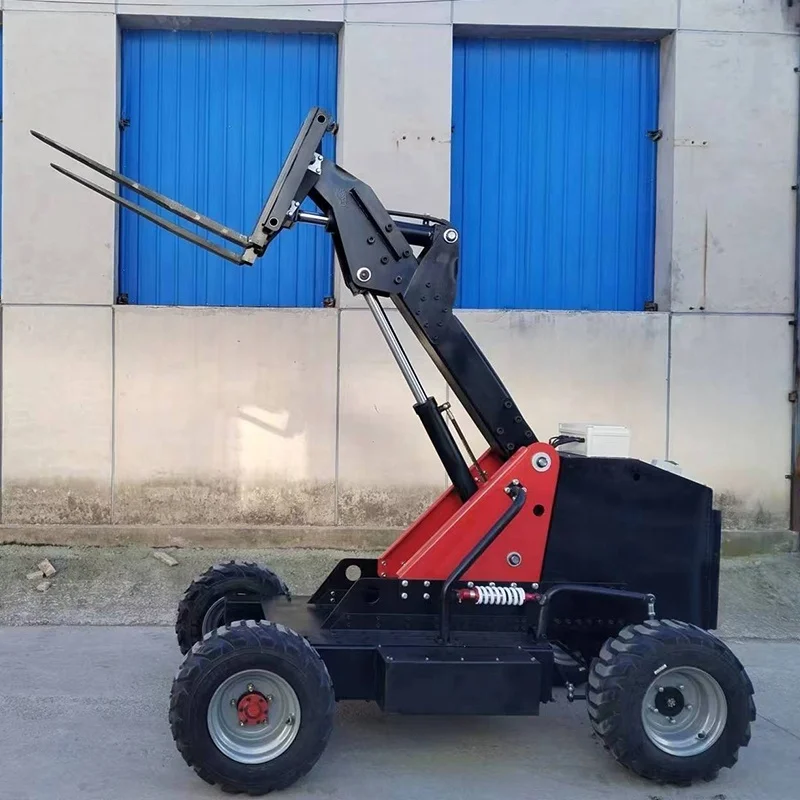

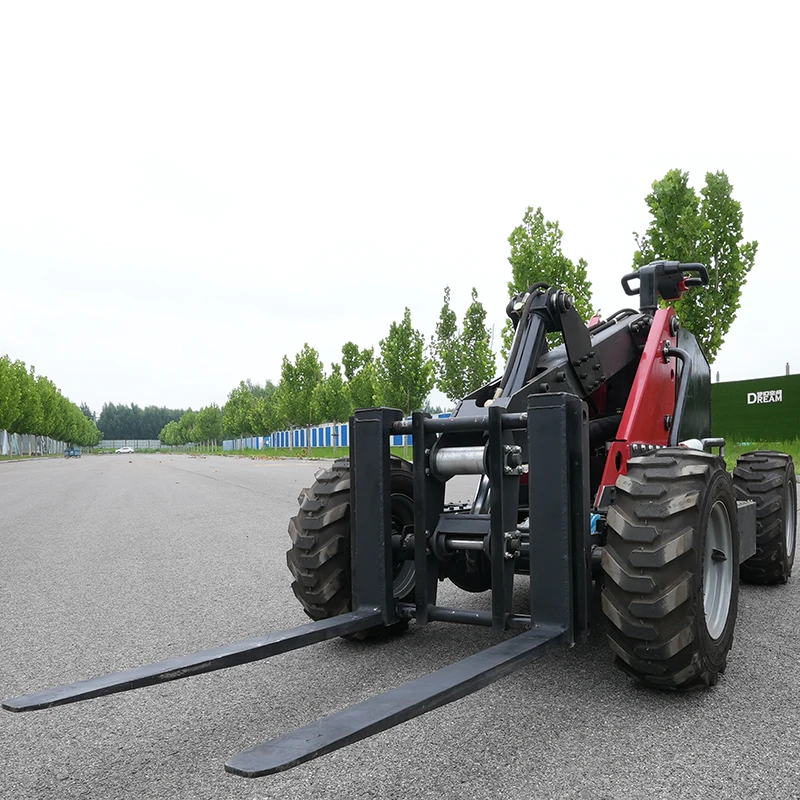

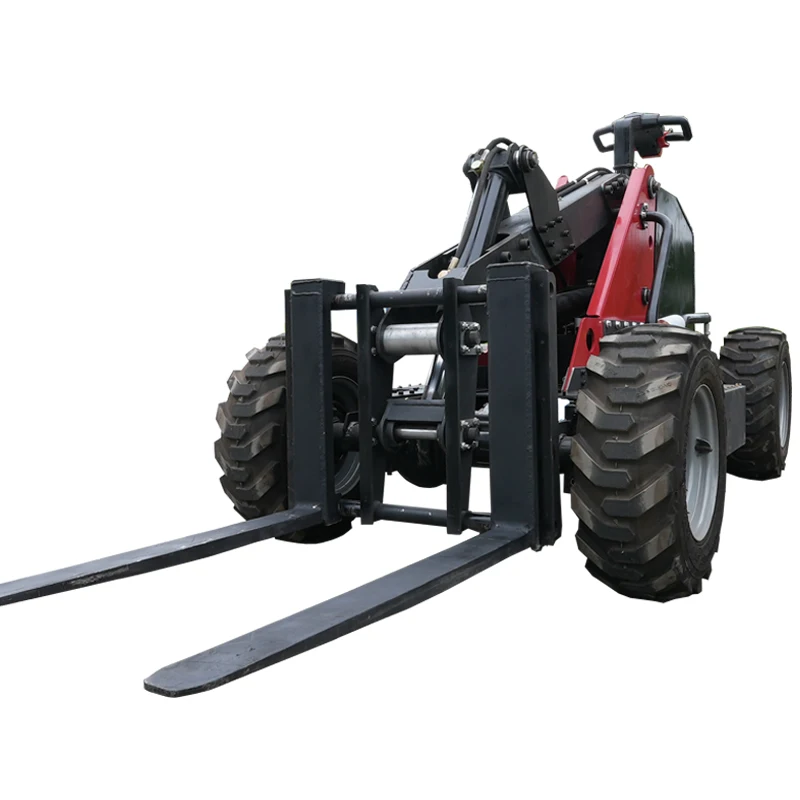

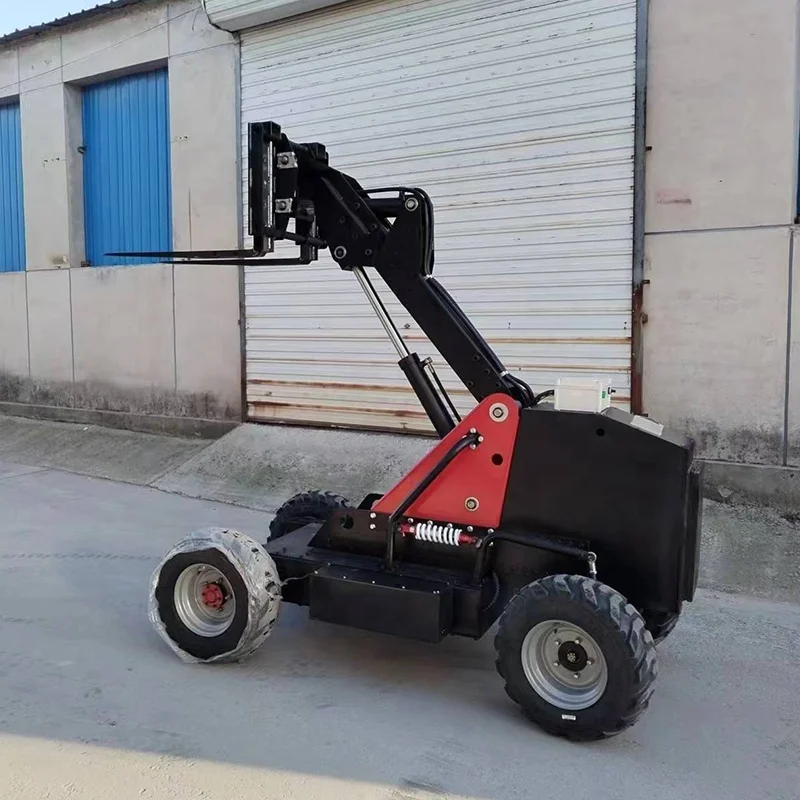

Многофункциональный Миниатюрный Электрический вилочный погрузчик с дистанционным управлением с максимальной нагрузкой 1 тонна
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shandong,Aiweiya,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Features :
1: Large capacity maintenance-free lead-acid battery, long battery life and high safety

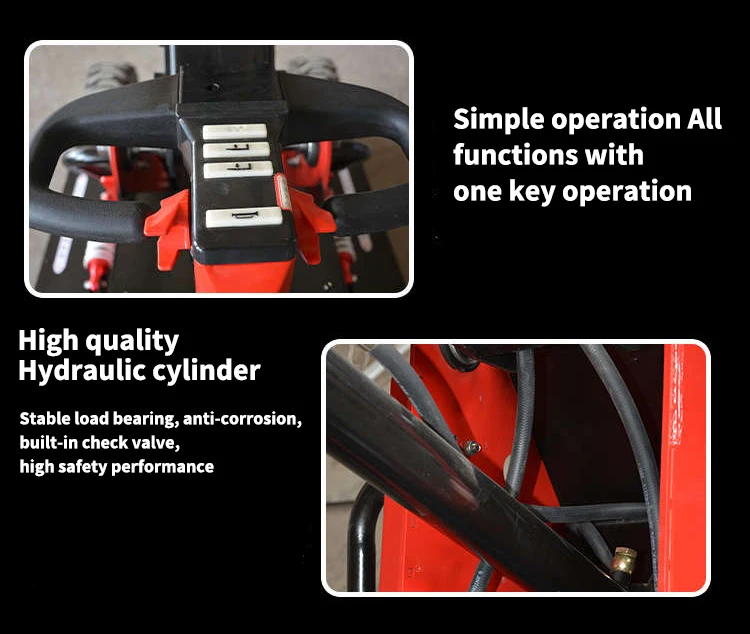

2: The fuselage adopts patented structure design + military-grade steel, which is sturdy and durable. The volume, weight and turning radius of the whole vehicle are small, which is suitable for use in various environments.3: Maintenance-free integrated hydraulic cylinder, fast lifting, heavy load and low noise

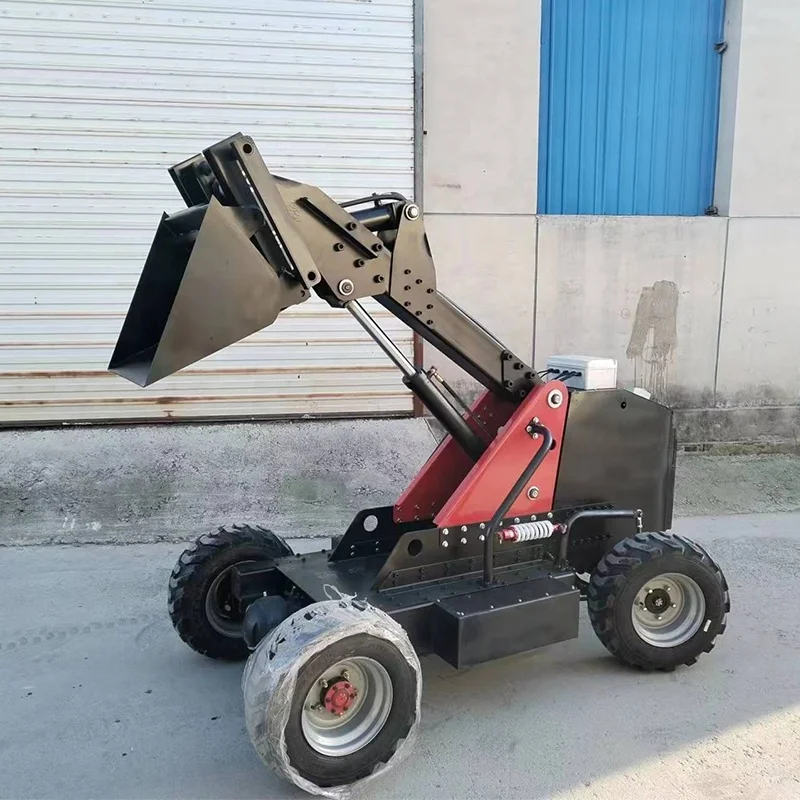

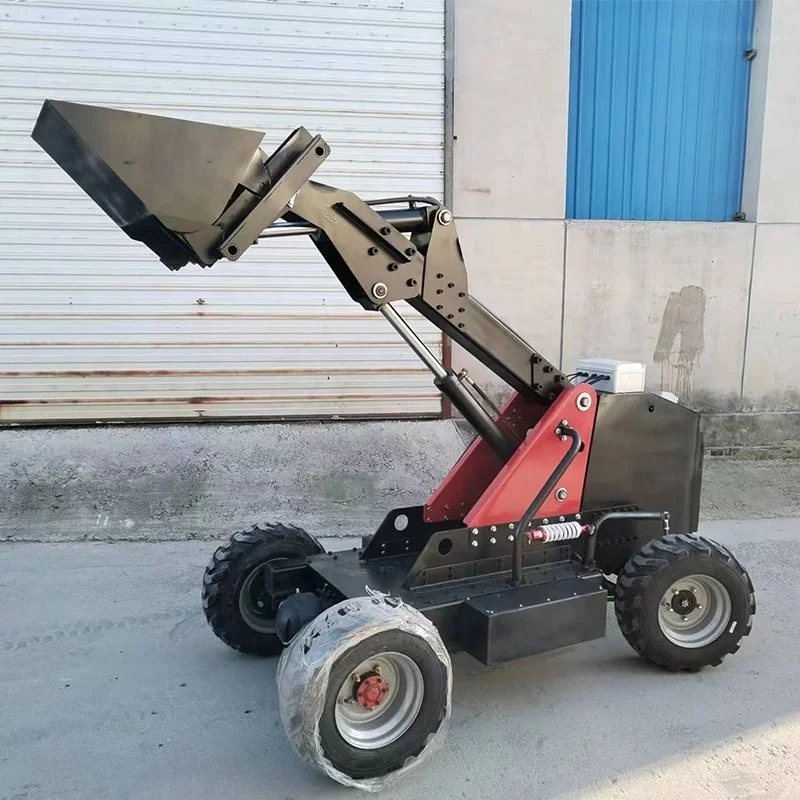

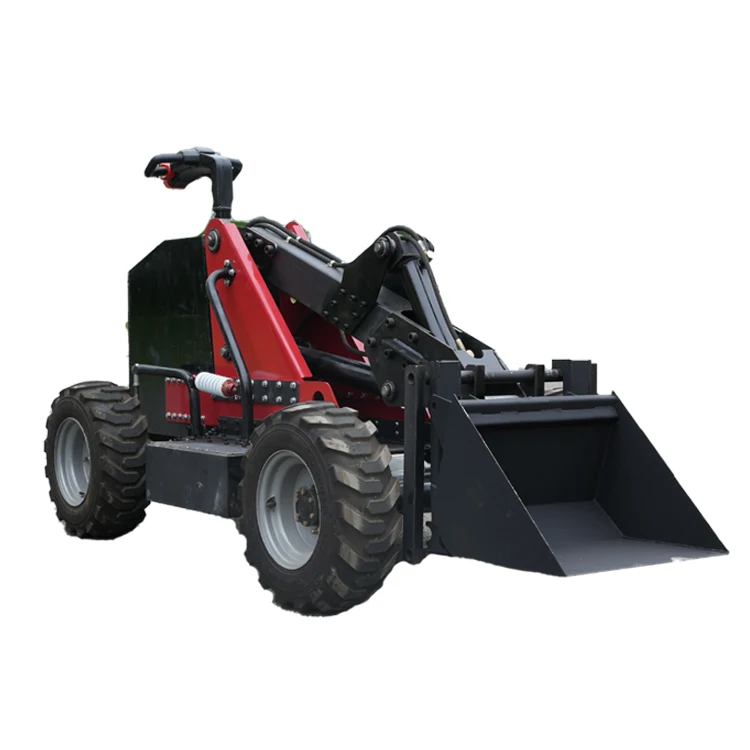

4: It is suitable for all standard pallets such as nine-section/chuanzi/tianzi, etc. The width of the fork can be adjusted, andother fixtures can be quickly replaced, and one machine can be used for multiple purposes.
5: Support on-demand customization

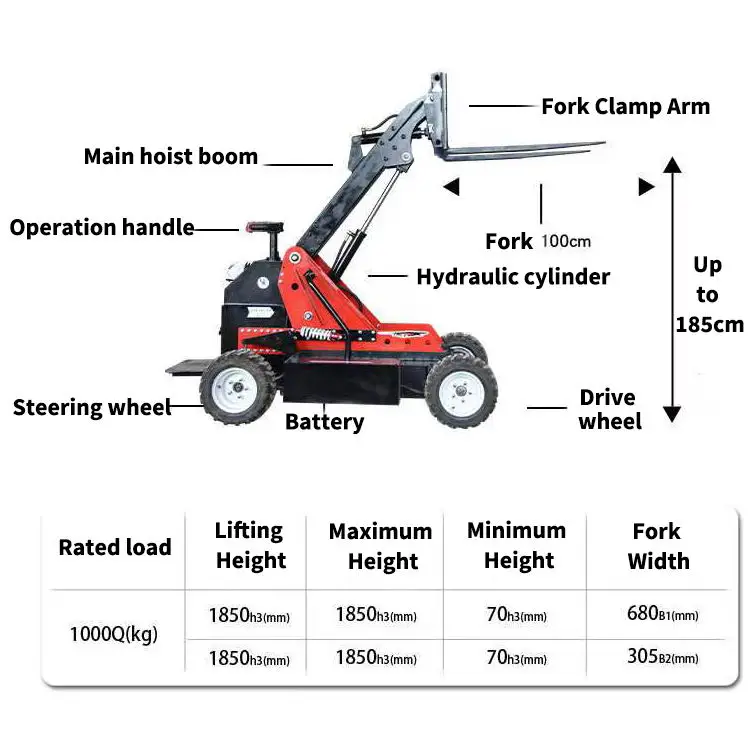

feature | 1.1 | Model | AWY-1000 | |||
1.2 | Drive Mode | Electric model | ||||
1.3 | driving Style | Stand Up | ||||

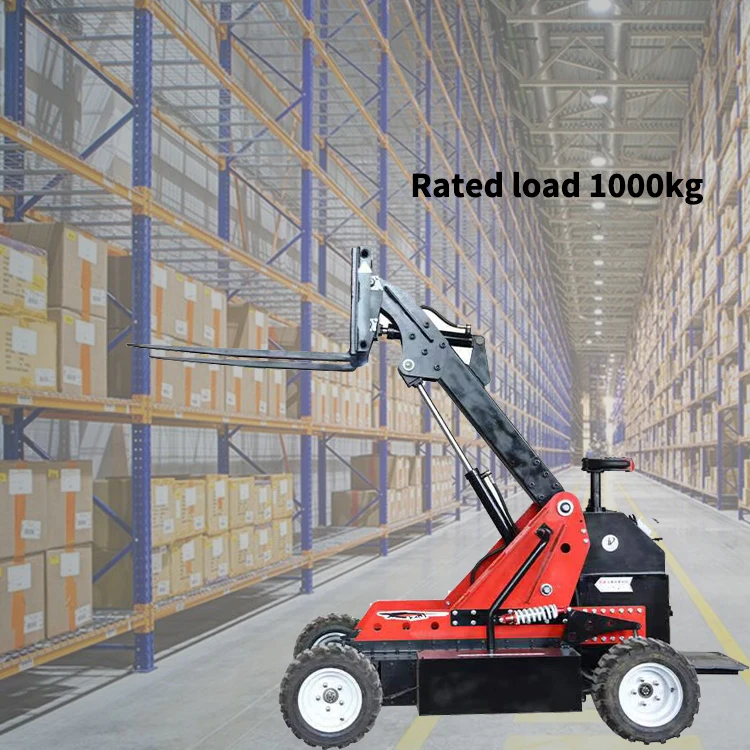

1.4 | Loading Lifting Capacity | Q(kg) | 1000kgs | |||
1.5 | Load Center Distance | C(mm) | 530mm | |||
Weight | 2.1 | Gross Weigth | AWY-1000 | |||
Gross Weight | AWY-600/AWY-800 | 950kg | ||||

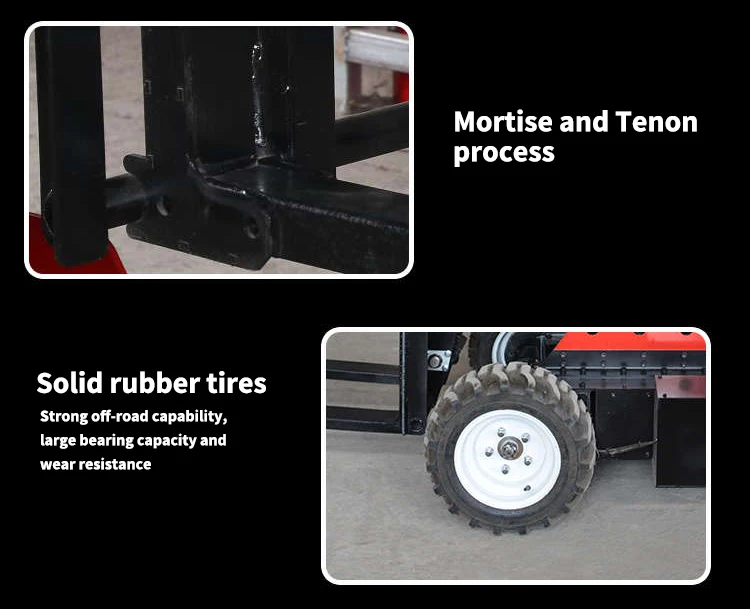

Tire | 3.1 | Tire | Rubber Tire | |||

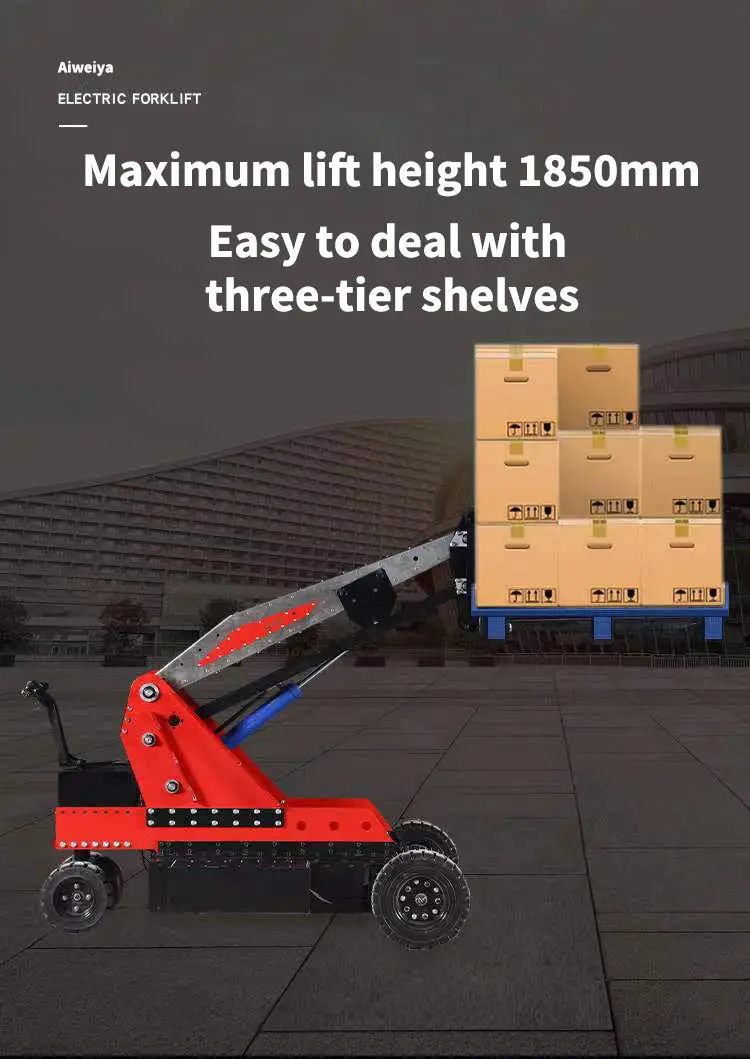

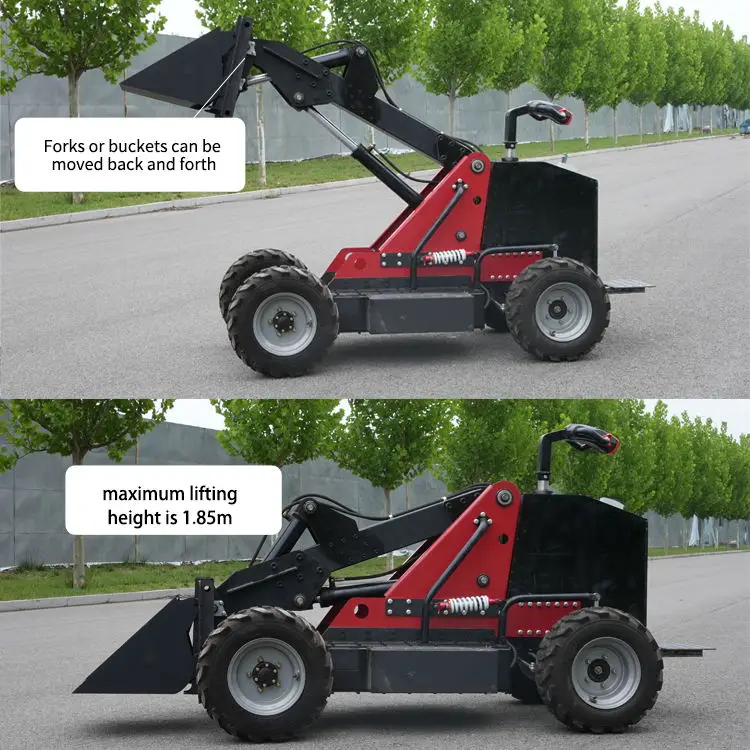

Size | 4.1 | Lifting Height | h3(mm) | 1850 | ||
4.4 | Height when the fork is lowered to the minimum | S(mm) | ≤70 | |||
4.5 | Vehicle Length | L(mm) | 3300mm （Contain forks） | |||
4.6 | Vehicle Width | B(mm) | 1150 | |||
4.7 | Fork Length | L1(mm) | 1000 | |||
4.8 | Wheelbase | Y(mm) | 1500 | |||
4.9 | Fork Outside Width | B1(mm) | 680 | |||
4.10 | Fork Inside Width | B2(mm) | 305 | |||
4.11 | Minimum Turning Radius | Wa(mm) | 1700 | |||
Performance | 5.1 | Travel speed, full load/no load | mm/s | 4.0/5.0 | ||
5.2 | Lifting speed, no load/full load | mm/s | 140/135 | |||
5.3 | Descent speed, no load/full load | mm/s | 150/155 | |||
5.4 | Maximum grade, no load/full load | % | 13/9 | |||
5.5 | Service brake | electric motor | Electromagnetic brake | |||
Electric Motor | 6.1 | Drive Motor Type | DC | |||
6.2 | Power | Kw | 1.2 | |||
6.3 | Lifting electric motor type | DC | ||||
6.4 | Power | Kw | 1.2 | |||
Battery | 7.1 | Voltage | V | DC48V | ||
7.2 | Capacity | Ah | 65 | |||
Others | 8.1 | The noise level at the driver's ear meets theDIN12053 | dB | < 68 | ||
8.2 | Continuous working time | H | 6-8h | |||
8.3 | Charging time | H | 6-8h (Automatic power off after full charge) | |||
