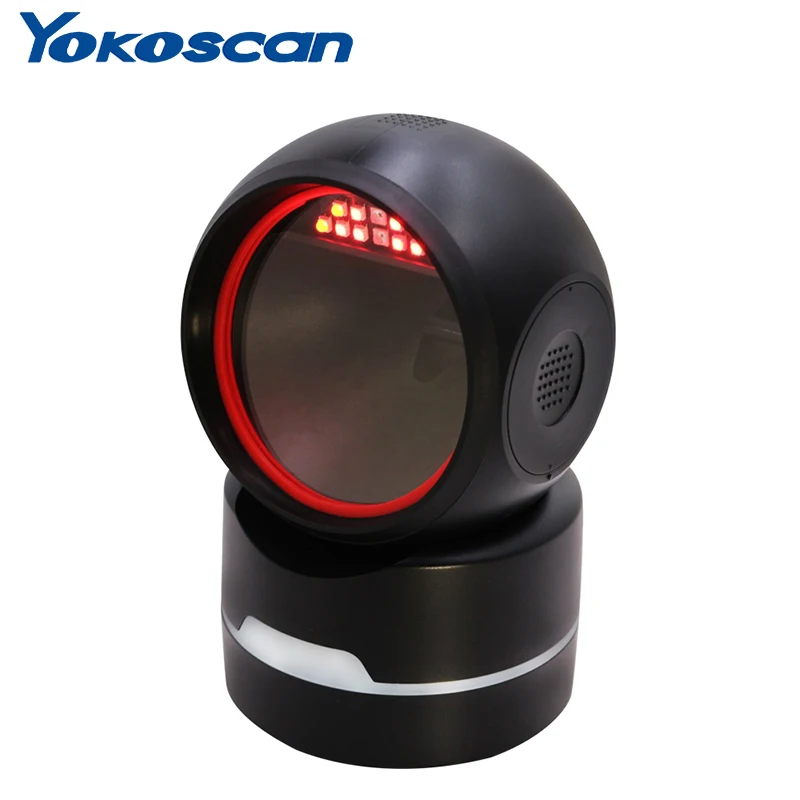

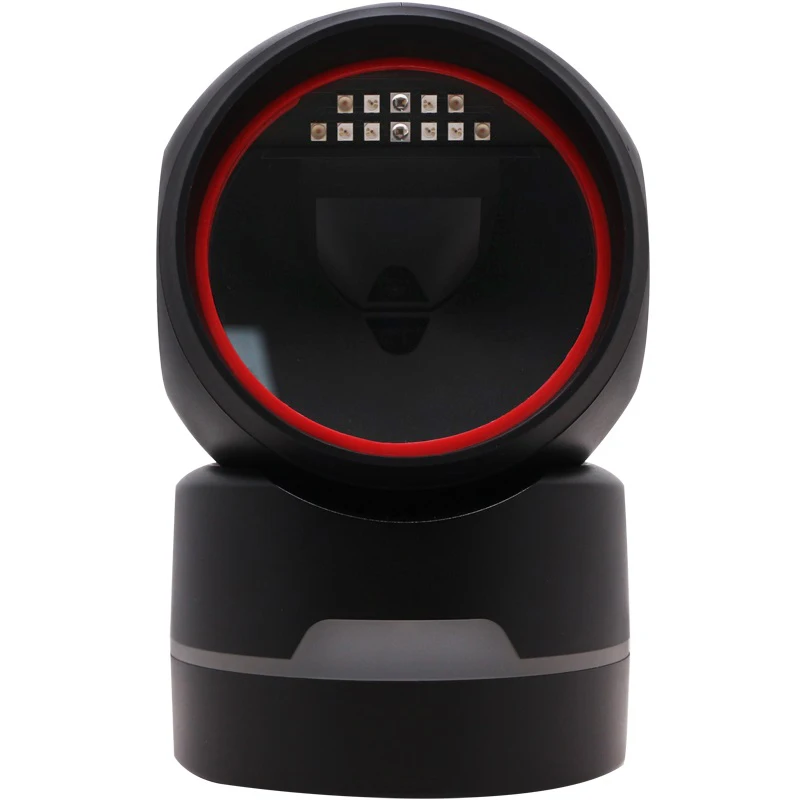

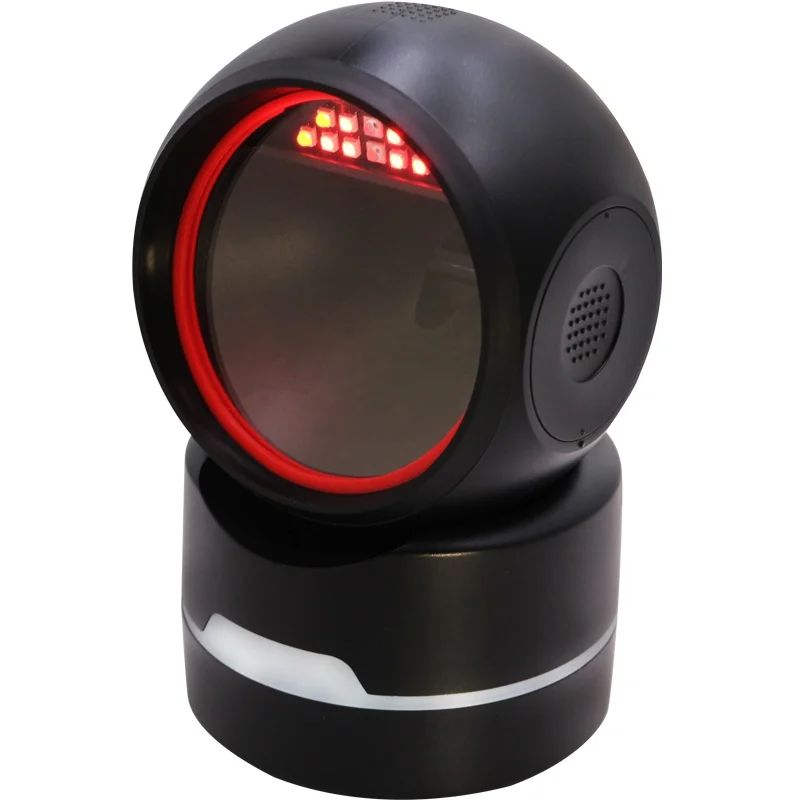

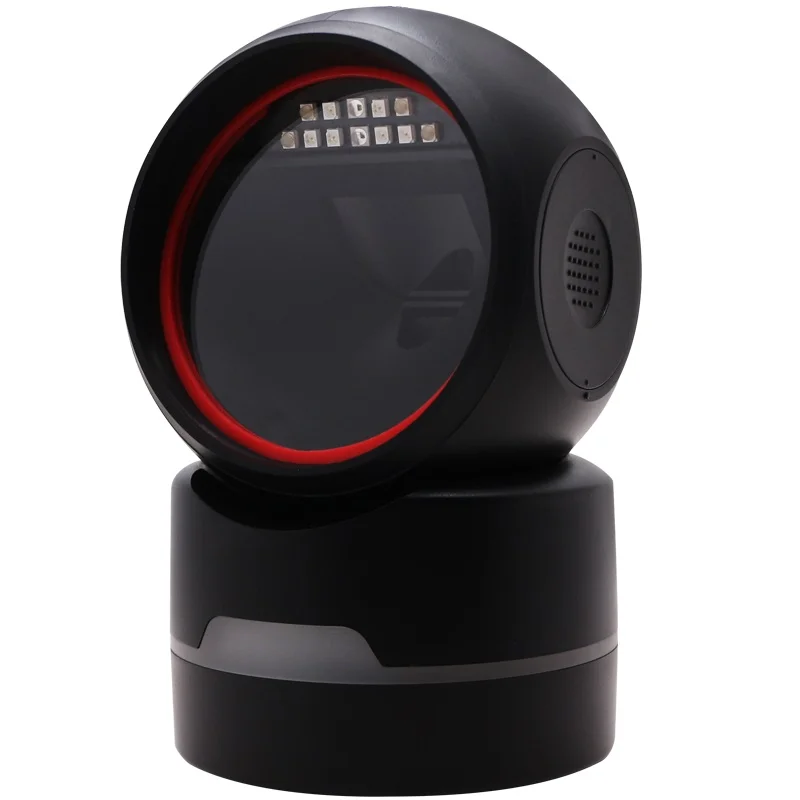

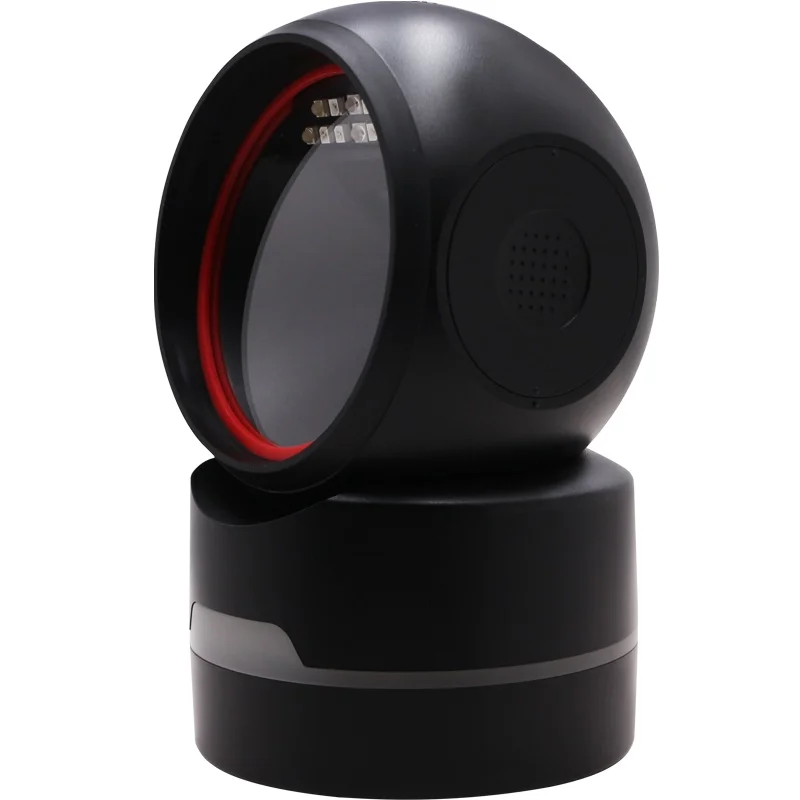

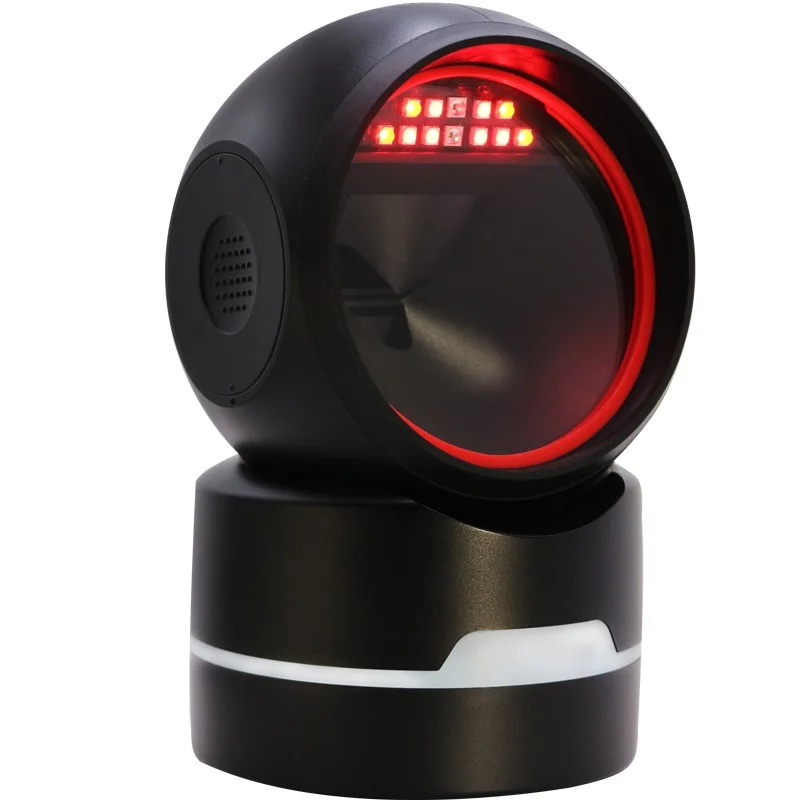

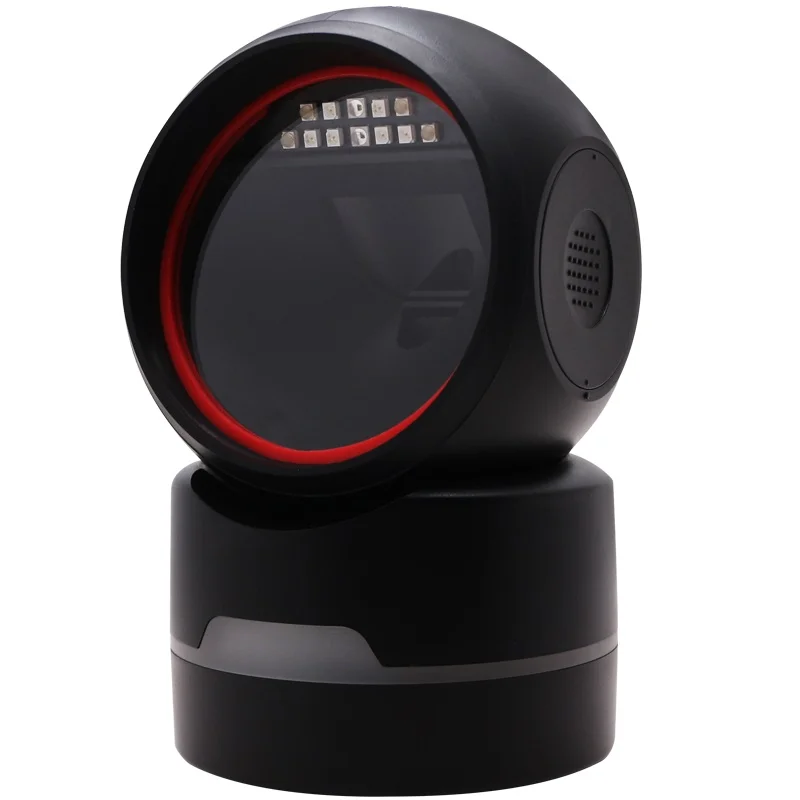

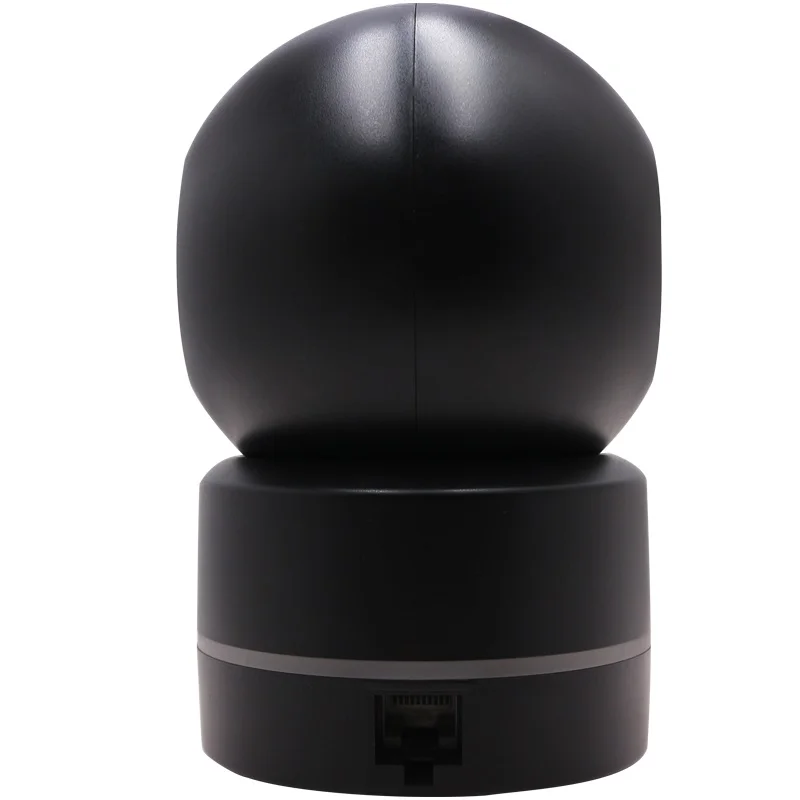

2D сканер громкой связи для обнаружения зон 1D PDF417 сканирование с ИК-триггером

Поделиться:


Цена:37,00 $ - 45,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Description


 FASTER SCANNING - With its Megapixel sensor , the MP6800's fast scanning will speed customers through the checkout line – even when presented with digital or damaged barcodes.
SIMPLIFIED SCANNER INTEGRATION - Simplify installations with OPOS/JPOS drivers that ensure scanner compatibility with various POSs
MODERN STYLING - The MP6800 provides retailers a scanner that can be displayed proudly at the checkout counter.
GREAT PRICE - Exceptional performance and design at an exceptional price.










Product parameters






























































Performance



Image Sensor



CMOS   640*480



Light Source



Red  LED + Infrared  LED



Scan Angle



Skew±60°   Pitch±60°   Roll 360°



FOV



D=56°   H =42°   V =33°



Resolution



≥3.9mil



Minimum Print Contrast



≥20%



Decode Capacity












1D



Codabar,Code 11,Code 128, Code 39,  Code 93,  EAN-8,     EAN-13,GS1 DataBar,  UPC-A, UPC-E,  Interleaved 2 of 5,        Industrial 2 of 5,  Matrix 2 of 5, Straight 2 of 5 IATA,  MSI Plessey









2D



Aztec Code,HANXIN,Maxicode, Codablock F,  Data Matrix Code     ( DPM) ,PDF417,Micro PDF417, QR Code,  Micro QR Code,  DOT Code,Grid Matrix Code



Typical Decode Range



Code39  ( 5mil)



0mm ~60mm


Barcode Size:  25mm*10mm



EAN-13  ( 13mil)



0mm ~230mm


Barcode Size:  31mm*17mm



QR  ( 15mil)



0mm ~160mm


Barcode Size:  8mm*8mm




































































































Physical



Interface



USB / RS232



Voltage



5 VDC± 5%



Current  (Typical)



270mA  ( 5 VDC)



Current  (Max)



320mA  ( 5 VDC)



Standby Current



170mA  ( 5 VDC)



Power Consumption(Typical)



1350mW



Dimension



88(W)×86(D)×139(H) mm



Color



Black /  White



Net Weight  (approx)



260g



Country Keyboard Layout



Multiple Country Keyboard Layout



Indicator



LED, Beeper



Environment



Operating Temperature



0 ℃  ~ 50



Storage Temperature



-20℃  ~ +70



Humidity



5% ~ 95%  (Non-Condensing)



Drop



withstands multiple 1.2m drops to concrete.



IP rating



IP50






ESD



 EN61000-4-2, ±15KV Air Discharge,± 8KV contact Discharge



Ambient Light



0 ~100,000LUX



LED Safety



IEC 62471



Accessories



USB Cable



Data Transfer& Power Supply



RS232+USB  ( DC)



Data Transfer& Power Supply






Company Information





Founded in 2009 in Guangzhou, China, Guangzhou Yoko Electron Co., Ltd is a worldwide manufacturer of AIDC products. We specialize in the technology research and development, the manufacturing and the product management of data collection and payment devices. We pay great attention to product quality management. All production and business management conform to ISO90001 standard and all products we produced meet CE and ROHS certification standard.


Yoko has set up a strong and stable R&D team, well-found services systems to deliver a wide variety of products, and it has always been a reliable business partner for customers from most of the provinces of China and most of the countries in Europe and South East Asia.


With over 10 years of experience in barcode scan technology industry area, Yoko has achieved important success by enormous effort. Our product range exists of OEM scan engines, stationary scanners, handheld scanners, and fixed mount scanners. All are based on our own Image technology and 2D decoder chip. The application domains are manufacturing, retailing, postage, logistic and medical services. In other words, we build our products from the ground up. We can create exactly what is needed for an operation and environment quickly and flexibly.




FAQ:


Q1: How about your company?

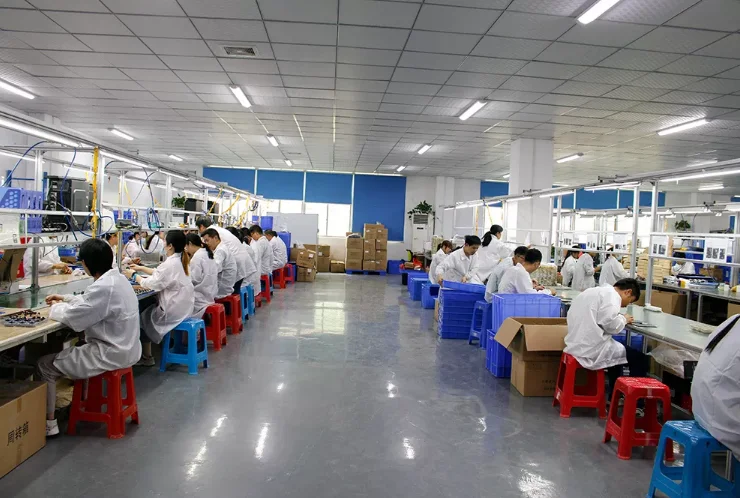

 A: 230 workers, 13000 m³ non-dust workshop, factory direct, OEM for Argox. Passed ISO9001:2008 quality system.Owned more than 30 technical and design patents. R&D Department 20 people.


 Q2: How is your quality control?


A: Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing). CE, FCC & ROHS certificated.


 Q3:How to control the performance stable?


   A: We take the floe line production in the whole processing. Every product will be tested 4 times before it delivery.


 Q4: How about your product warranty?


A: One years from the date of manufacturing under the normal use circumstance.


Q5:  How is the after sales service?


  A: China working hours 8:30-18:00 Monday-Friday online service to help buyers solving problem.


Q7: Can I come visit your office and factory?


A: 1) Welcome to visit our office and factory directly before establishing long-term business relationship. 2) We'd like to help you book the hotel and pick you up from the airport, or railway station. Please inform us if you have any schedule in China.
