Вешалка для гальванического покрытия Feiyide
US $50.00-$400.00
Стеллаж для выставки товаров никель-покрытие-машина застежка-молния слайдера электро-покрытие-машина пулер ограничитель молнии золотое покрытие машины с гальваническим
- Категория товара: Metal Electroplating Machinery >>>
- Поставщик (Оптовый магазин): Guangzhou,QLQ,Enterprise,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description

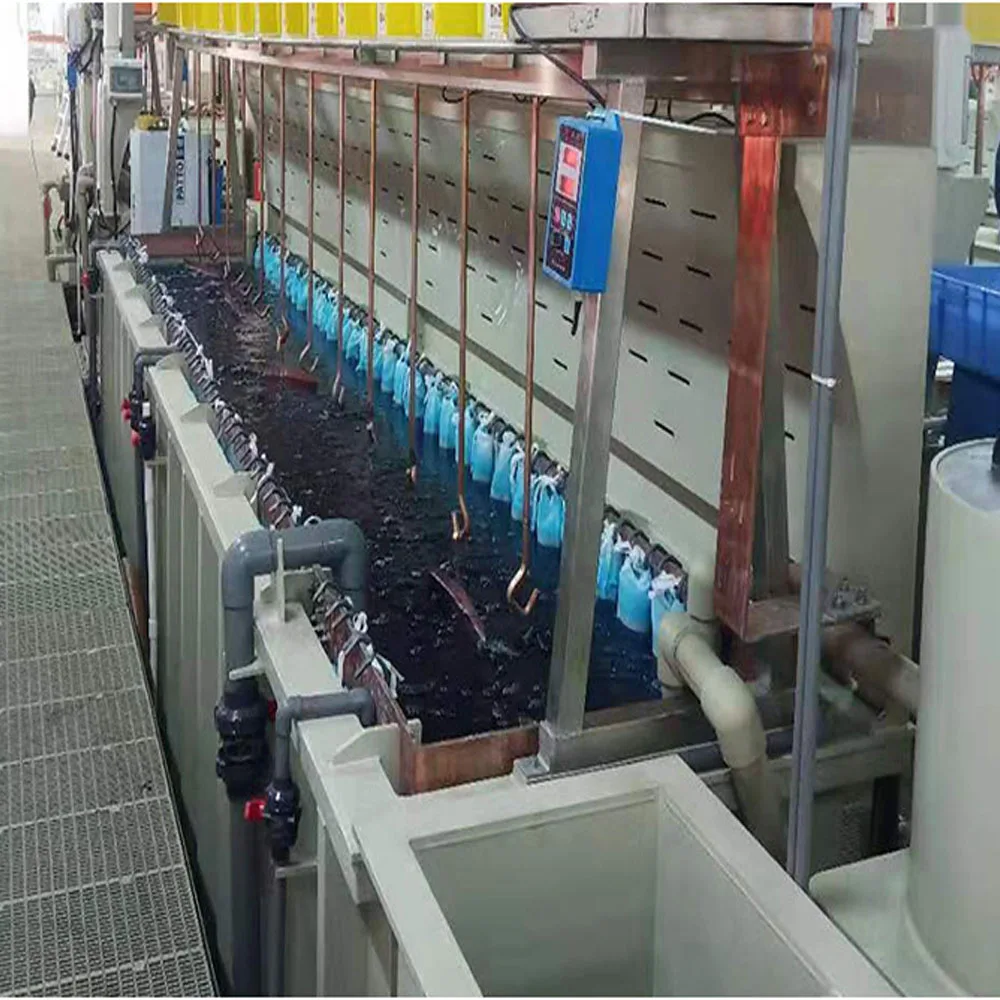

Slider Plating Machine
CUSOMIZE ANY COLORS MEET YOUR NEED
Specification
item | Slider Plating Machine |
Applicable Industries | Garment Shops, Manufacturing Plant, Machinery Repair Shops |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 2 years |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
Condition | New |
Place of Origin | China |
Voltage | 380V/440V |
Weight | 800KG |
Warranty | 1 Year |
Zipper Material | Steel |
Type | Coating Production Line |
Specification (L*W*H) | 3512 *800 *680mm |
Material: | PP plate |
Conductive part | copper bars for cathode |
Driving part | WD47 reducer drive |
Function | Stainless Steel Square Pipe 304 for Rail and Road# |
Machine Details
1. Stainless Steel Square Pipe 304 for Rail and Road#
2. Material: 12mm PP plate for side plate, 25mm PP plate for bottom plate, 80 *60 iron square pipe strengthened externally, 3mm PP plate sealed externally. (Titanium-free tube)

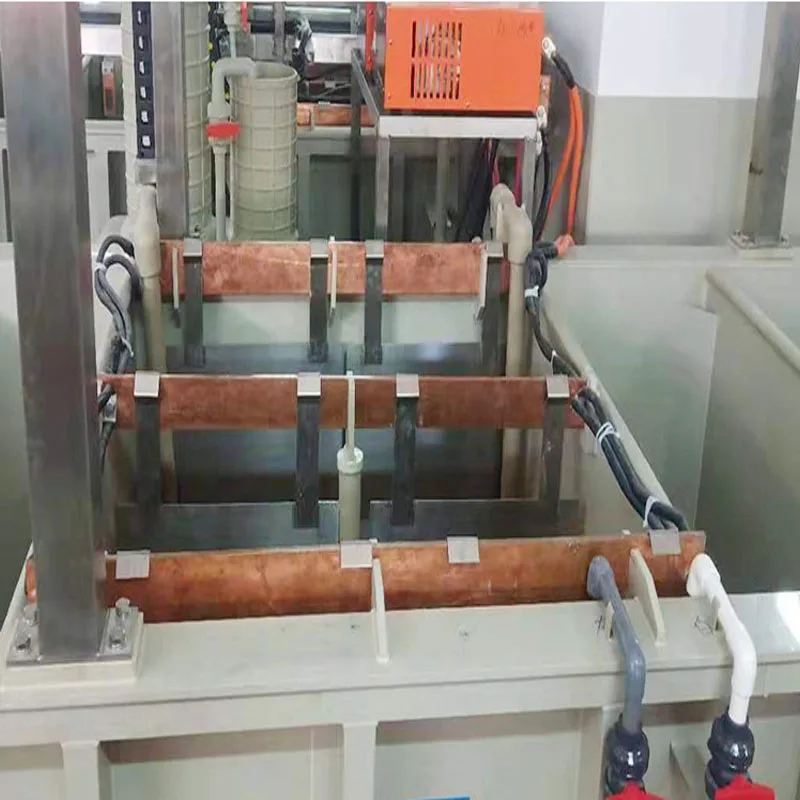

3. Conductive part: 5 *50 copper bars for cathode, 6 *60 copper bars for anode, 25 *2mm copper tube for anode hanging rod and U-type brass base for cathode conductive seat.
4. Driving part: Each barrel position is equipped with a WD47 reducer drive, and a 750W/440V domestic motor for production line transmission.
5. One stainless steel crane
6. Crane part: crane roof plate with 2.5 centimeter thick 304 # stainless steel plate, column with 1.5 centimeter thick 304 # stainless steel plate, crane wheel seat foot with 2.5 centimeter thick 304 # stainless steel plate, crane lifting motor with 750W/440V domestic motor and WD47 domestic reducer 1.
7. Barrel part: barrel specification 400*640mm (cladding teeth), 6 cm PP plate for barrel body, 20 cm PP plate for gear, 22 brass and 25*1.5mm stainless steel tube for conduction of barrel, 8 revolutions per minute (4 barrels in total), 2.5mm borehole for barrel.
Company Profile
FAQ
1. Can I do acid copper by barrel plating machine?
Normally, rack plating machine is more recommended to make the acid copper.
2. Would you advise the formula for rack painting for gun color？
We will send you the details when order confirmed, thanks.
3.We need the painting machine for the toy painting, do you have the machine?
yes, but please advise the material of your toy and the size of each part and the pic for our reference, then we can offer you more details, thanks.
4. How many kinds of Metal zipper plating machines can you supply?
We mainly sell 4 kinds of plating machines:
A.QLQ-HGPM auto metal zipper gold plating machine(have economic and reinforced model)
B. QLQ-CCPMS auto metal zipper chemical cold plating machine with one chemical tank(have economic and reinforced model)
C.QLQ-CCPMD auto metal zipper chemical cold plating machine with two chemical tanks(have economic and reinforced model)
D.QLQ-EHPM auto metal zipper electric hot plating machine(have 3 lines and 2 lines model)
5. What colors can be made on your QLQ-CCPMD metal zipper cold plating machine (with two chemical tanks)?
QLQ-CCPMD plating machine can plate the metal zippers in nickel color, antique brass color and antique silver color. If you want to make these colors very shiny, you need to buy our another set of golden color plating machine QLQ-HGPM, you need to get the zippers plated the golden color firstly, and then comes to this QLQ-CCPMD machine to get further color plating.
Normally, rack plating machine is more recommended to make the acid copper.
2. Would you advise the formula for rack painting for gun color？
We will send you the details when order confirmed, thanks.
3.We need the painting machine for the toy painting, do you have the machine?
yes, but please advise the material of your toy and the size of each part and the pic for our reference, then we can offer you more details, thanks.
4. How many kinds of Metal zipper plating machines can you supply?
We mainly sell 4 kinds of plating machines:
A.QLQ-HGPM auto metal zipper gold plating machine(have economic and reinforced model)
B. QLQ-CCPMS auto metal zipper chemical cold plating machine with one chemical tank(have economic and reinforced model)
C.QLQ-CCPMD auto metal zipper chemical cold plating machine with two chemical tanks(have economic and reinforced model)
D.QLQ-EHPM auto metal zipper electric hot plating machine(have 3 lines and 2 lines model)
5. What colors can be made on your QLQ-CCPMD metal zipper cold plating machine (with two chemical tanks)?
QLQ-CCPMD plating machine can plate the metal zippers in nickel color, antique brass color and antique silver color. If you want to make these colors very shiny, you need to buy our another set of golden color plating machine QLQ-HGPM, you need to get the zippers plated the golden color firstly, and then comes to this QLQ-CCPMD machine to get further color plating.
6. I want to buy plating machine, which model should I choose?
We have different models of plating machine, at first please advise what color you want to make, the color is shiny or not shiny? And what is the output you need? So that we can suggest the most suitable model for you. Thanks
