Waste Battery Recycle Machine Car lithium battery recycling equipment lead acid battery recycling machine plant | ||||||||
Product Description
BRIEF INTRODUCTION:
Lithium battery mainly consists of shell, positive electrode, negative electrode, electrolyte and diaphragm. The positive electrode is formed by coating lithium cobaltate powder on two sides of an aluminum foil current collector through PVDF which plays a bonding role; The negative electrode structure is similar to the positive electrode and consists of carbon powder bonded to both sides of the copper foil current collector.
The pretreatment process of lithium battery recycling machine mainly comprises the following steps: after discharging the recovered waste batteries, crushing, magnetic separation, air separation, crushing, gravity separation, screening and other processes are carried out by mechanical equipment.

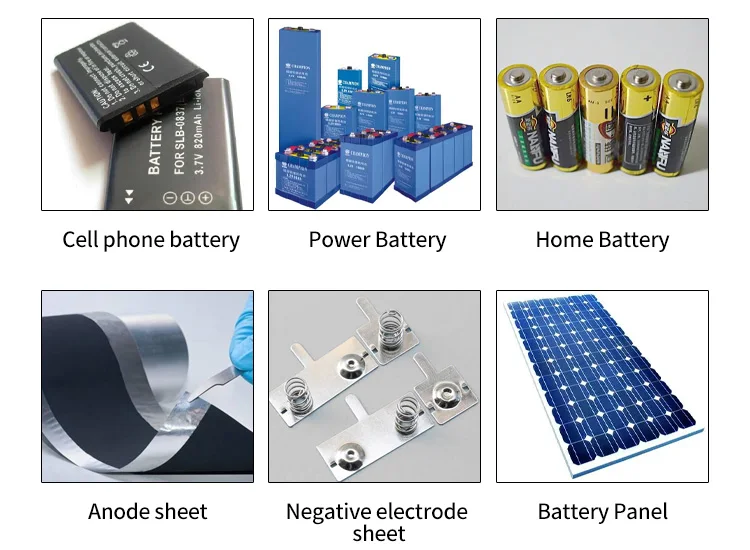

Raw Materials & Finished Products
The Lithium Ion Battery Recycling Machine is used for dismantling and recycling the soft package battery, cellphone battery, shell battery, cylindrical battery etc. Different types of lithium batteries have different recycling procedures.
The final products of Battery Lithium Ion Battery Recycling Machine is graphite powder, cobalt acid lithium,aluminum and copper.
Production Line
Lithium battery recycling separation process：
(1)The raw material shall be crushed by the first crushing machine. (30~100mm)
(1)The raw material shall be crushed by the first crushing machine. (30~100mm)
(2) Be delivered to the second crushing machine by the sealed conveyor. (2~5mm)
(3) The crushed material will be delivered into the air separator by high pressure air conveyor, it will be separated into rough powder and small powder and septum. The small powder enters the cyclone discharging device, the rough powder enters the vibrating screen.(air speed and air pressure precisely controlled by the transducer )
(4) The material which enters the cyclone discharging system will be delivered to the vibrating screen by the air conveyor, copper granule, aluminum granule, and lithium cobalt mixture powder will be separated from it, and as well as the septum powder.
(5) The rough powder contains more metal, it will be delivered to the vibrating screen via the high pressure air conveying system, the lithium cobalt mixture powder and copper/aluminum powder will be separated out.
(6) The final separating system is our air gravity separator, it can separate the lithium cobalt and copper and aluminum totally.
(7) The whole plant is running under the vacuum condition to avoid the dust pollution and leakage of the lithium cobalt.
Shredder -- Hammer Crusher -- Grinder -- Separation Machine -- Pulse Dust Collector -- Classifying Screen -- Magnetic Machine -- Gravity Separator -- High-pressure Blower
Specification
WORKING PERFORMANCE | ||
Raw Material | Lithium Battery | |
Final Product | Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder | |
Technical Parameters | ||
Mold | Capaticy | |
CJL-300 | 300 kg/h | |
CJL-500 | 500kg/h | |
CJL-800 | 800 kg/h | |
CJL-1000 | 1000 kg/h | |
CJL-1500 | 1500 kg/h | |
CJL-2000 | 2000kg/h | |
Working voltage:380±10V | 1 Year | |
Feature Item | Indicator Requirments |
Recovery Rate of Metallic Aluminum | >98% |
Content of Powder In Metal Aluminum | >98% |
Content of Metallic Aluminum In Powder | <2% |
Other | <2% |
Qualified Rate | Contain dust collecter with not pollute |
Failure Rate | 99% |
Failure Rate | <1% |
CMR | ≥1.67 |

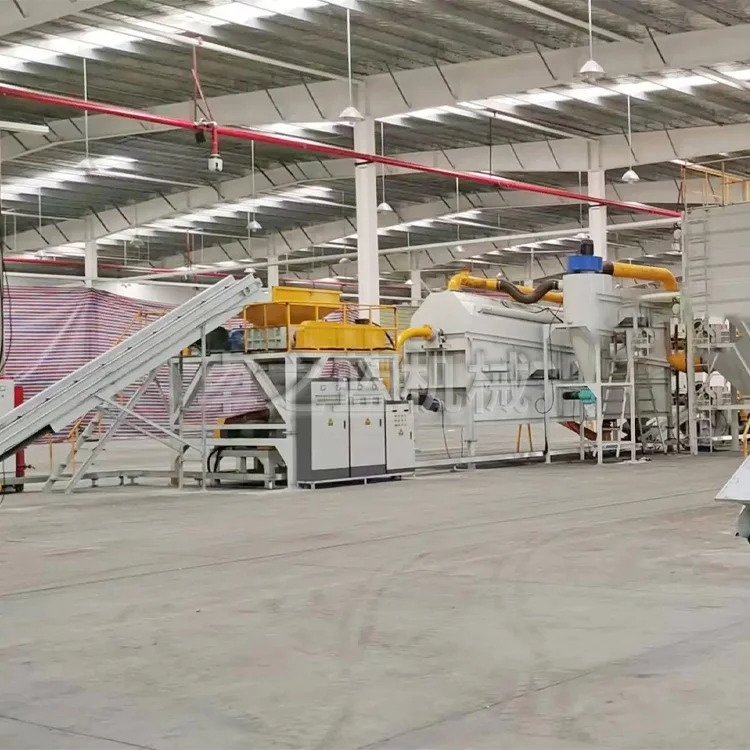

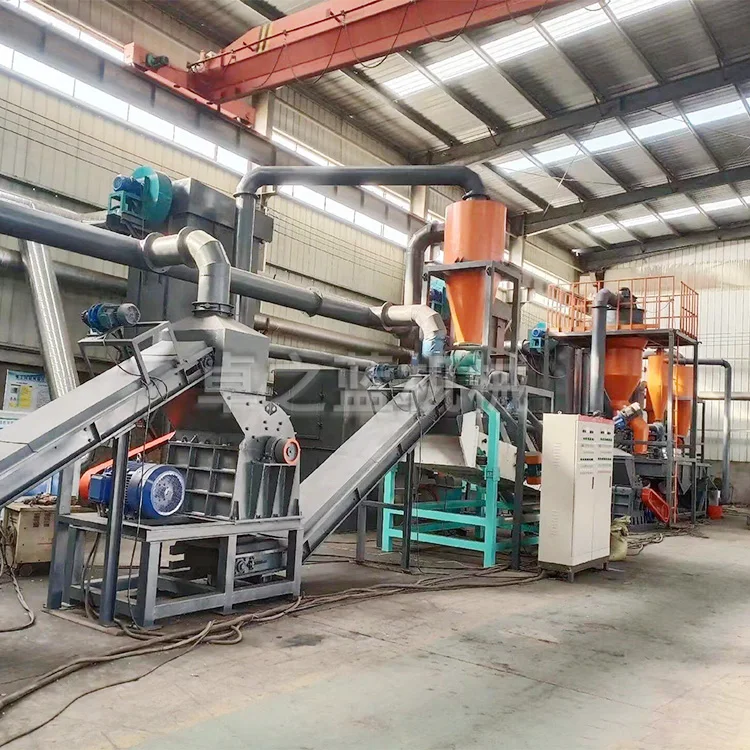

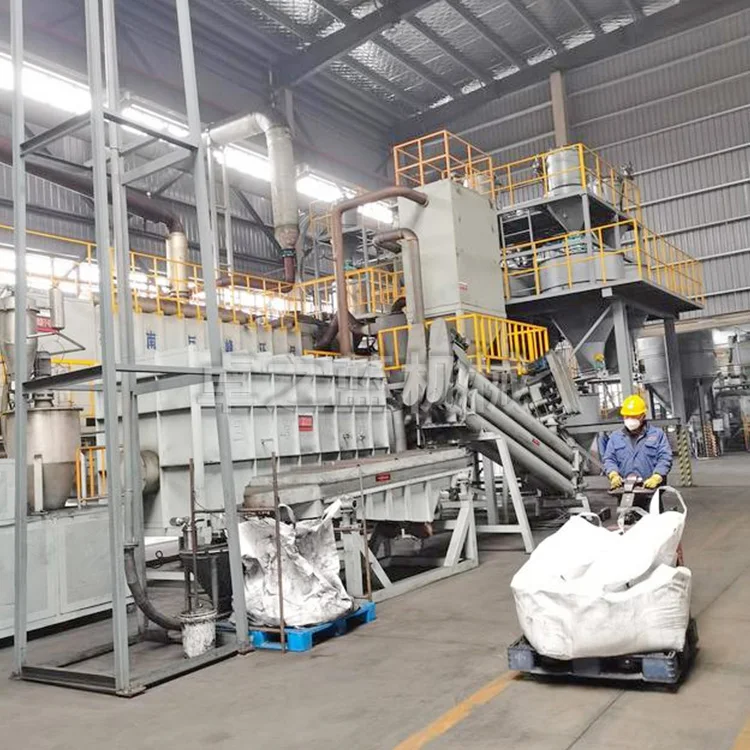

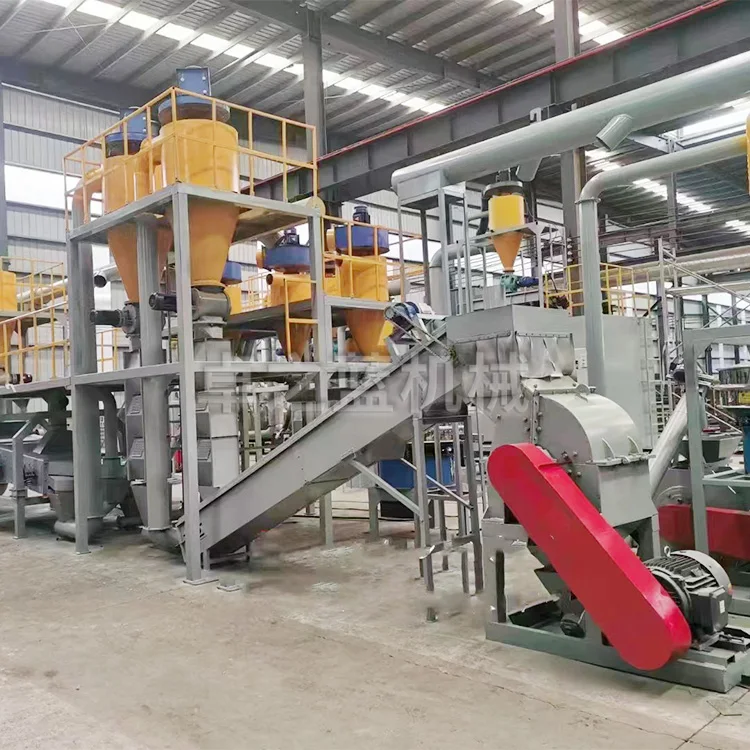

Real Shot Display
