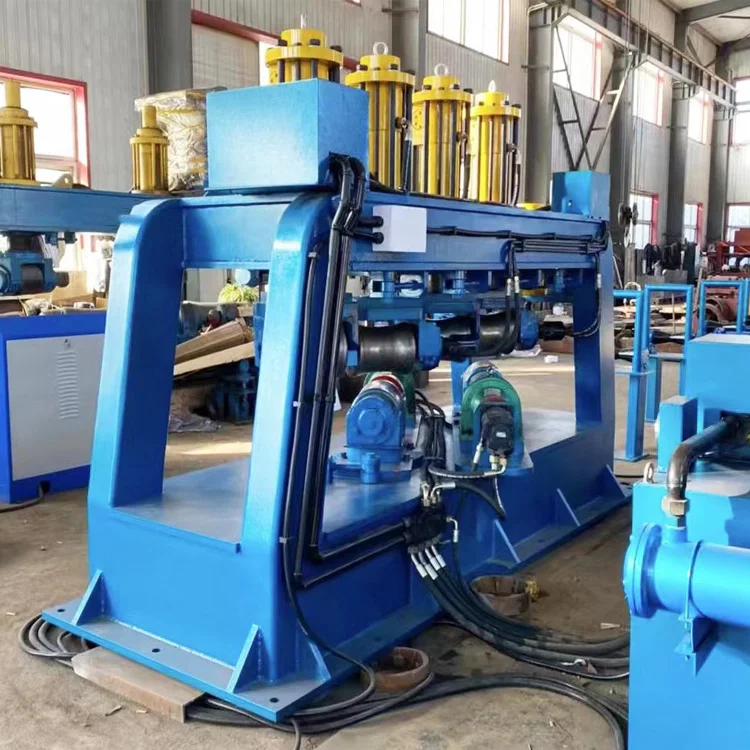

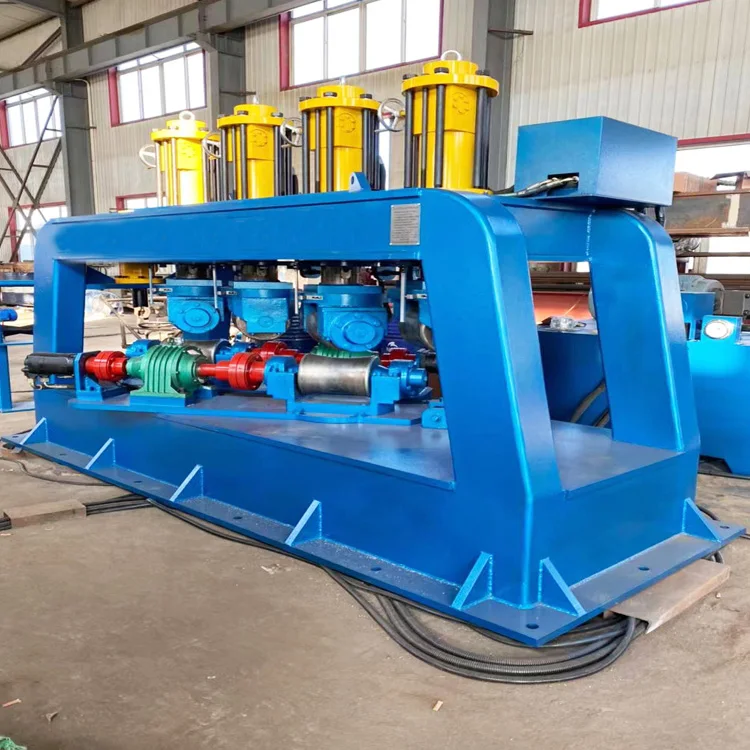

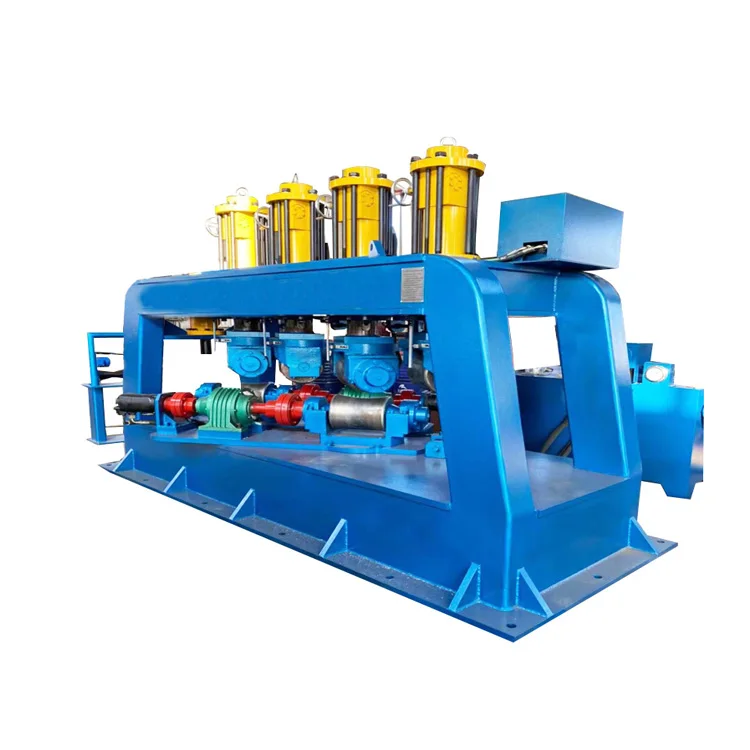

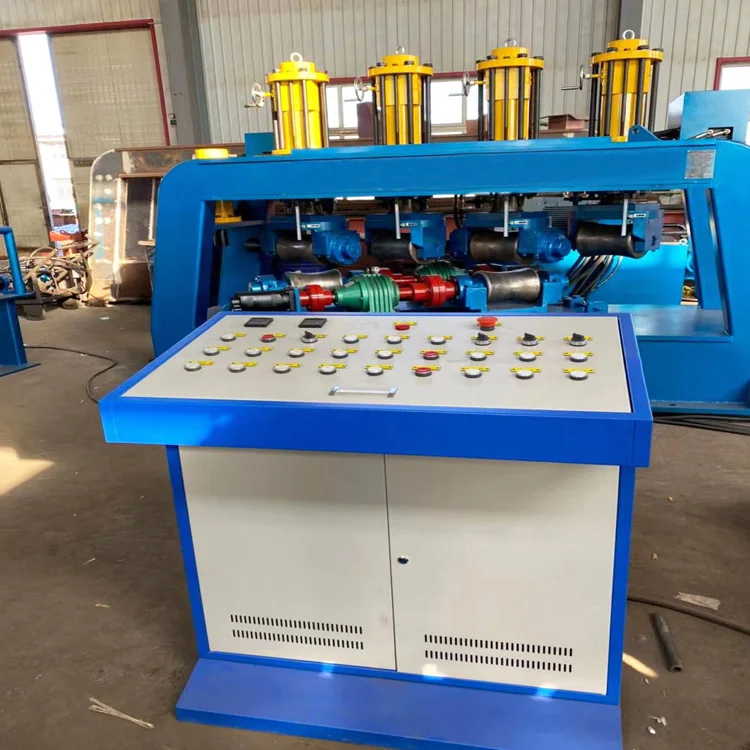

Hydraulic Used Drill Pipe Oil Pipe Tube Straighten Straightening Machine
★ Description

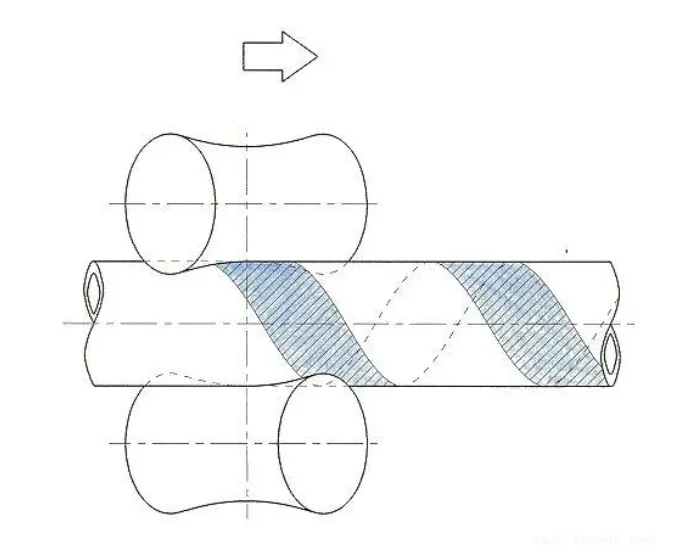

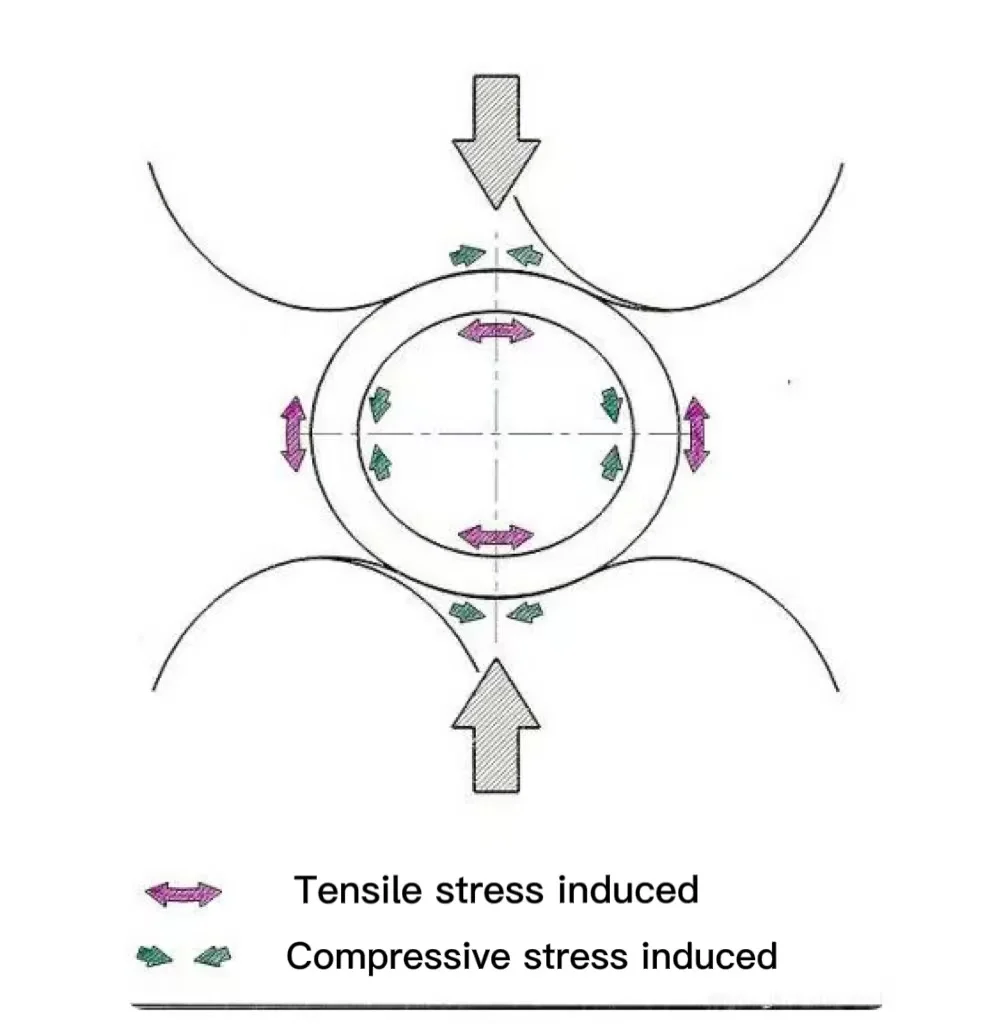

PS-120 pipe straightening machine is a special equipment for straightening bent seamless steel pipes and oil casing. The machine adopts 2:1:2:1 double curve inclined rollers to drive the rotating straightening, using large tonnage hydraulic cylinder to drive the inclined rollers radially to clamp the oil pipe, and using high torque speed reducer to make the inclined rollers rotate to drive the workpiece to straighten, so it can straighten the bent cylindrical workpiece with threaded end or equipped with hoop continuously, with fast straightening speed, high productivity, convenient operation and reliable work. It is the ideal equipment for the repair of bent oil pipes, casing, oil pumping rods and drilling rods.
★ Technical parameter
NO. | Item | Parameter |
1 | Model | PS-120 |
2 | Number of straightening rollers | 6 rollers (active rollers: 2 pairs of 4 rollers, passive rollers: 2 rollers) |
3 | Adjustment range of straightening inclination | 27°～33° |
4 | Hydraulic system power | 30Kw |
5 | Working pressure | 12Mpa |
6 | Straightening range | Ф40～Ф106(mm) |
7 | Tolerance of straightening before straightening | ≦50mm/m |
8 | Yield limit of pipe material | 550N/mm2mm |
9 | Straightening accuracy | ≦0.5mm/m |
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
