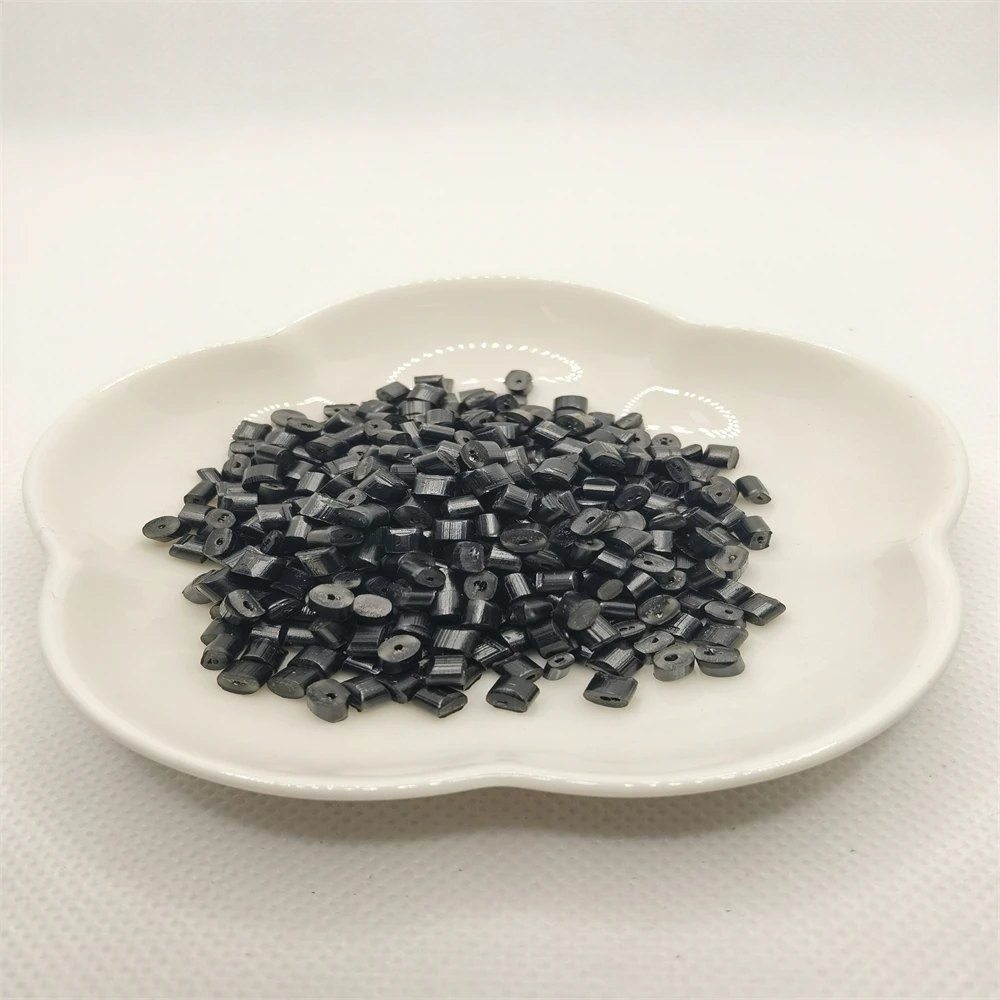

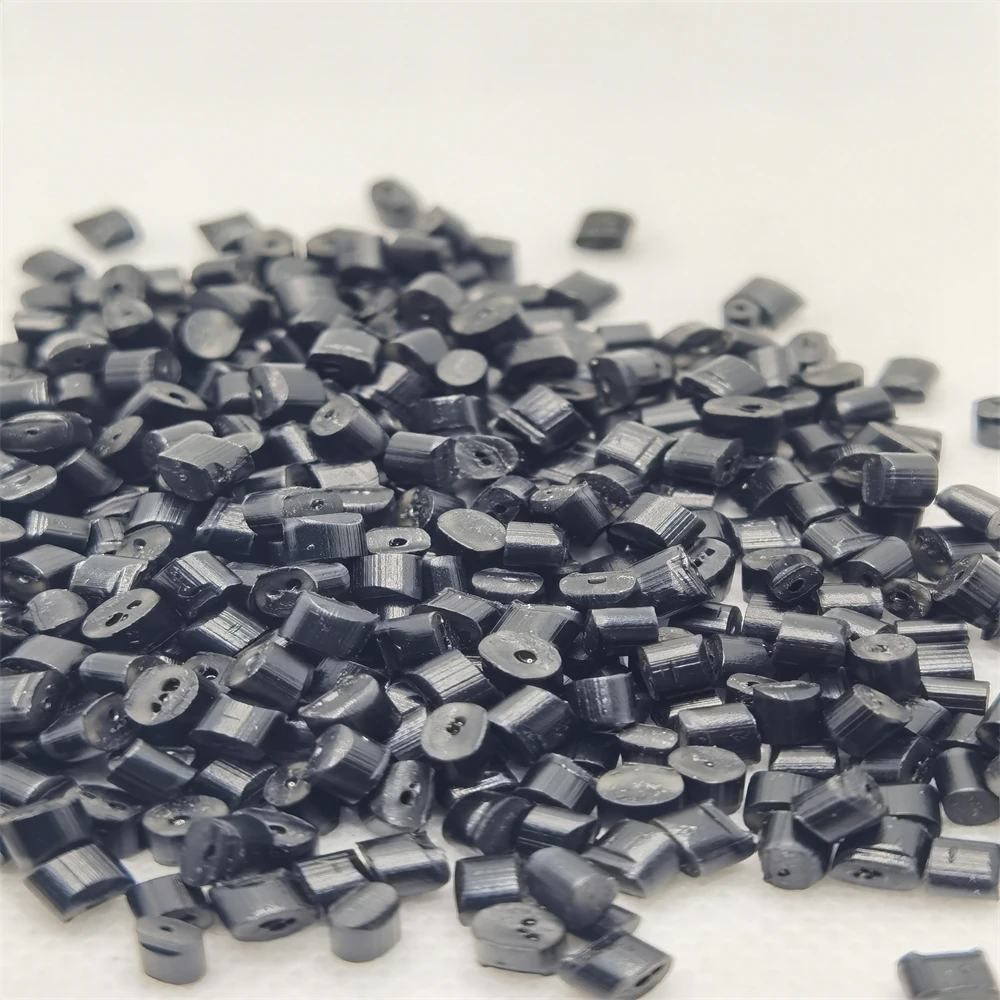

PPE + PS Noryl SE1X 10% GF UL94 V1 листинг смола для E/E
- Категория товара: PPO >>>
- Поставщик (Оптовый магазин): Shenzhen,Samtion,Chemical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
NoryL SE1X
PPE+PS blend. Unfilled. Non-brominated, non-chlorinated FR system. UL94 V1, UL746C F1. Dielectric strength. Suitable for E/E market indoor/outdoor applications.
Suitable for E/E applications.
Suitable for E/E applications.
Available Color:SE1X-701
"NORYL" for the queen Mary innovation development by oxidation of xylene resin, plastic company in PPO for basic, one of aromatic polyether, the excellent material, through 17 kinds of feature combination, more conducive to injection molding, blow molding,extrusion, vacuum forming, to meet the industry needs lightweight, high security and more durable product requirements. Because of its excellent fire resistance, heat resistance, mechanical strength, electrical characteristics and dimensional stability, coupled with low water absorption and easy processing, it is widely used in water treatment equipment, computers, transaction machines,electronic parts, household appliances, communication equipment, water transportation parts and automobiles and other industries.
Product Paramenters
MECHANICAL | Value | Unit | Standard |
Tensile Stress, brk, Type I, 5 mm/min | 74 | MPa | ASTM D 638 |
Tensile Strain, brk, Type I, 5 mm/min | 5 | % | ASTM D 638 |
Flexural Stress, brk, 1.3 mm/min, 50 mm span | 119 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 3990 | MPa | ASTM D 790 |
Hardness, Rockwell L | 104 | - | ASTM D 785 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 96 | J/m | ASTM D 256 |
Izod Impact, notched, -40°C | 69 | J/m | ASTM D 256 |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 147 | °C | ASTM D 1525 |
HDT, 1.82 MPa, 6.4 mm, unannealed | 131 | °C | ASTM D 648 |
Relative Temp Index, Elec | 110 | °C | UL 746B |
Relative Temp Index, Mech w/impact | 105 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 110 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.16 | - | ASTM D 792 |
Water Absorption, 24 hours | 0.07 | % | ASTM D 570 |
Water Absorption, equilibrium, 23C | 0.22 | % | ASTM D 570 |
Mold Shrinkage, flow, 3.2 mm | 0.3 - 0.5 | % | |
ELECTRICAL | Value | Unit | Standard |
Volume Resistivity | 1.E+15 | Ohm-cm | ASTM D 257 |
Relative Permittivity, 50/60 Hz | 3 | - | ASTM D 150 |
Relative Permittivity, 1 MHz | 3 | - | ASTM D 150 |
Dissipation Factor, 50/60 Hz | 0.0017 | - | ASTM D 150 |
Dissipation Factor, 1 MHz | 0.0016 | - | ASTM D 150 |
Hot Wire Ignition {PLC) | 1 | PLC Code | UL 746A |
High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 2 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 2 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94V-1 Flame Class Rating (3) | 1.47 | mm | UL 94 |
Oxygen Index (LOI) | 33.9 | % | ASTM D 2863 |
Relative Temp Index, Mech w/impact | 105 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 105 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.1 | - | ASTM D 792 |
Water Absorption, equilibrium, 23C | 0.06 | % | ASTM D 570 |
Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | |
Mold Shrinkage on Tensile Bar, xflow (2) | 0.5 - 0.7 | % | |
Melt Flow Rate, 280°C/5.0 kgf | 7.4 | g/10 min | ASTM D 1238 |
Melt Volume Rate, MVR at 280°C/5.0 kg | 7 | cm³/10 min | ISO 1133 |
ELECTRICAL | Value | Unit | Standard |
Volume Resistivity | 1.E+17 | Ohm-cm | ASTM D 257 |
Surface Resistivity | 1.E+17 | Ohm | ASTM D 257 |
Dielectric Strength, in oil, 3.2 mm | 19.4 | kV/mm | ASTM D 149 |
Relative Permittivity, 50/60 Hz | 2.68 | - | ASTM D 150 |
Relative Permittivity, 1 MHz | 2.63 | - | ASTM D 150 |
Dissipation Factor, 50/60 Hz | 0.0031 | - | ASTM D 150 |
Dissipation Factor, 1 MHz | 0.009 | - | ASTM D 150 |
Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
Hot Wire Ignition {PLC) | 0 | PLC Code | UL 746A |
High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 4 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94V-0 Flame Class Rating (3) | 1.47 | mm | UL 94 |
Company Profile
The Shenzhen Samtion Chemical Co., Ltd
Focus on the export and production support of engineering plastics and special modified materials
Focus on the export and production support of engineering plastics and special modified materials
15 Years Experience
We are a leading supplier of top end engineering plastics raw materials.
The company is formed by a group of senior teams engaged in the sales and production of engineering plastic materials for over 15 years.
More Than 1,000 Customers
Up to now, we have provided high-quality products and services to more than 1,000 customers in various industries, including: electronics and electrical appliances, medical, food, automotive electronics, optoelectronic communications, photovoltaic new energy, water treatment,transportation and other industries.
Quality Assurance
Every batch of our products is subject to strict quality inspection to ensure the original supply. All products have MSDS, ROHS,SGS, REACH,EU, UL, COC / COA certificates!
We are a leading supplier of top end engineering plastics raw materials.
The company is formed by a group of senior teams engaged in the sales and production of engineering plastic materials for over 15 years.
More Than 1,000 Customers
Up to now, we have provided high-quality products and services to more than 1,000 customers in various industries, including: electronics and electrical appliances, medical, food, automotive electronics, optoelectronic communications, photovoltaic new energy, water treatment,transportation and other industries.
Quality Assurance
Every batch of our products is subject to strict quality inspection to ensure the original supply. All products have MSDS, ROHS,SGS, REACH,EU, UL, COC / COA certificates!
Our Advantages
1.Professional focus:
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
2.Perfect service:
We have served many high-quality and excellent domestic and foreign enterprises, and We understand the customers'
purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
3. Inventory supporting:

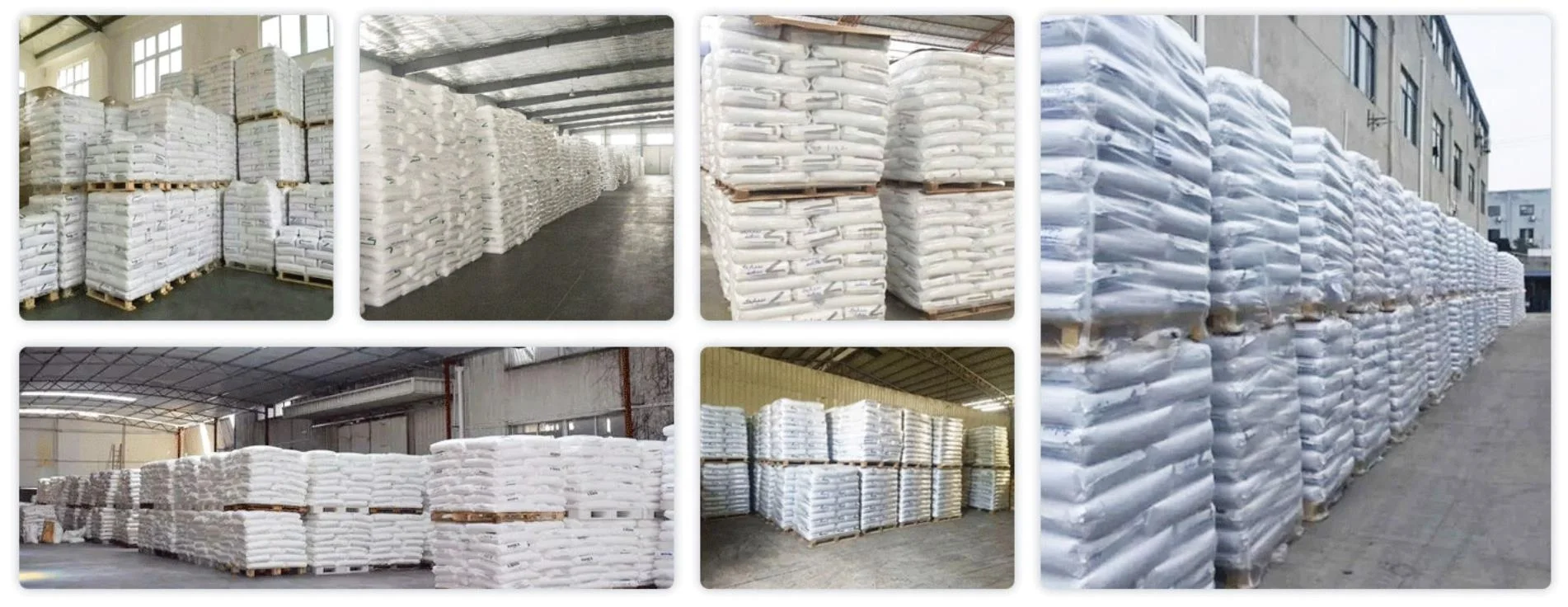

Abundant inventory supporting resources, which are located in Guangzhou, Dongguan, Shenzhen free trade zone and Hong Kong. It has set up warehouses to stock goods, with a standing stock of more than 1000 tons, which can meet the timely spot purchase demand of customers and ensure the reliability and stability of the customer's material supply chain.
