Лист прокладки выхлопных газов для промышленного
- Категория товара: Aluminum Composite Panels >>>
- Поставщик (Оптовый магазин): Hengshui,Aohong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

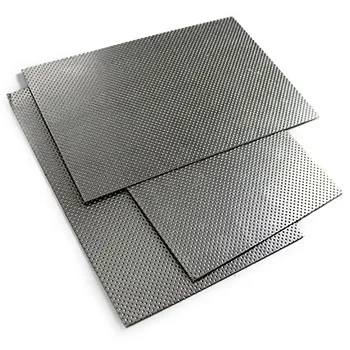

Reinforced tinplate composite sheet cylinder head
Product Properties
Item | Standard data | ||
Density g/cm³ | 1.3～1.5 | ||
working temperature ℃ | 150～300 | ||
Compressibility % | 10±5 | ||
Recovery ≥ % | 40 | ||
Sealing performance | |||
causticity | Cusp no rusty | ||
Tensile strength MPa ≥ | 12.7 | ||
Compressive Strength MPa ≥ | 80.0 | ||
Carbon content ≥ % | 98 | ||
1Ash content ＜% | 1 | ||
With the temperature of 150±2℃,Soaking 20# fluid oil for 5 hours, MPa≥ | oil absorption %≤ | 25 | |
Thickness-increasing %≤ | 0～10 | ||
Stripping performance No stripe | Stripping performance No stripe | ||
With the temperature of 15 to 30℃,Soaking 75# kerosene for 5 hours, MPa≥ | oil absorption %≤ | 15 | |
Thickness-increasing %≤ | 0-15 | ||
Stripping performance | No stripe | ||
With the temperature of 100℃,Soaking distilled water for 5 hours, MPa≥ | water absorption %≤ | 15 | |
Thickness-increasing %≤ | 0～15 | ||
Stripping performance | No strip | ||
Product introduction

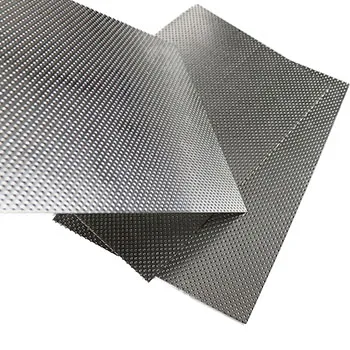

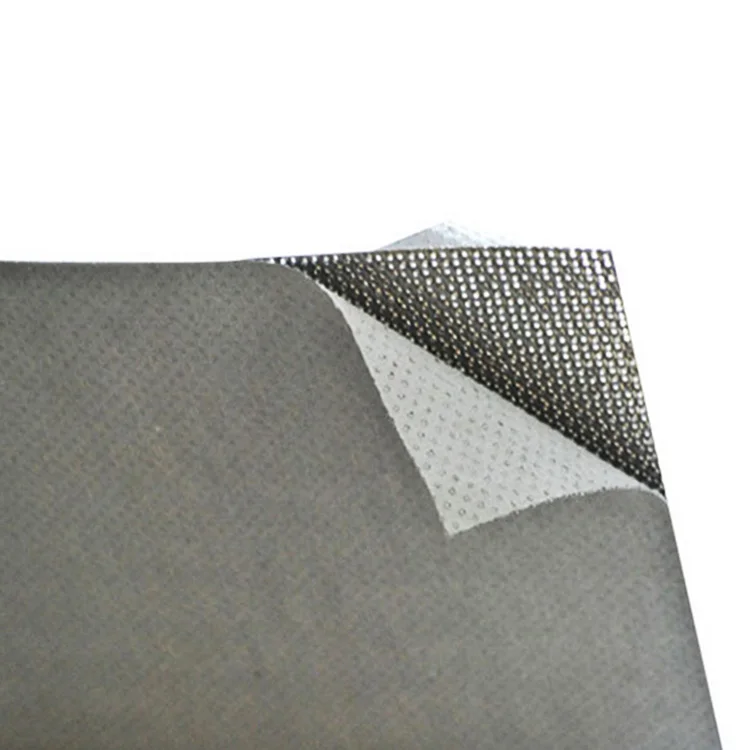

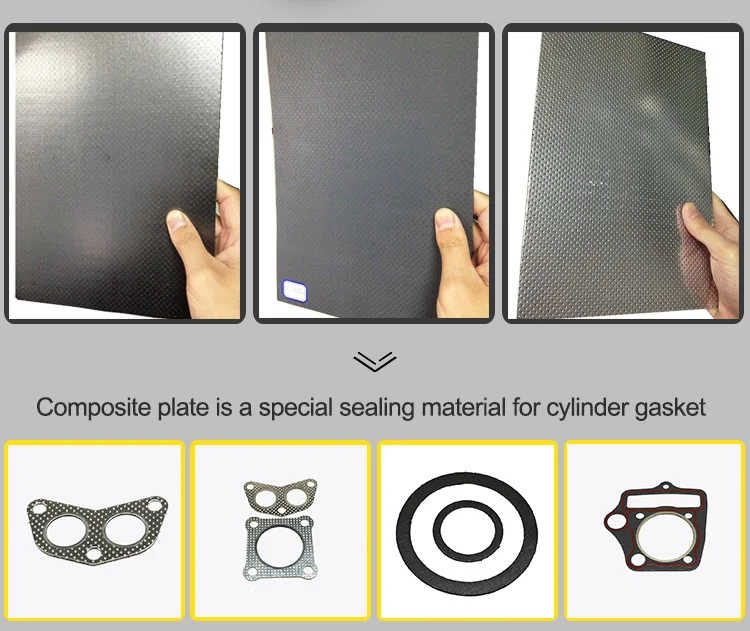

It is made of paper and 0.18-0.25mm tinned iron sheet, and is mainly used to make gaskets for various engines, water pumps and air conditioners. The product has good swelling, sealing and long life performance. Mainly used in automobiles, agricultural machinery, motorcycles, engines, water pumps and air conditioners, etc., but also in high-strength gaskets and cylinder gaskets.
Item | Composite gasket sheet |
Place of Origin | China |
Brand Name | Aohong |
Material Type | beater paper+tinplate+beater paper |

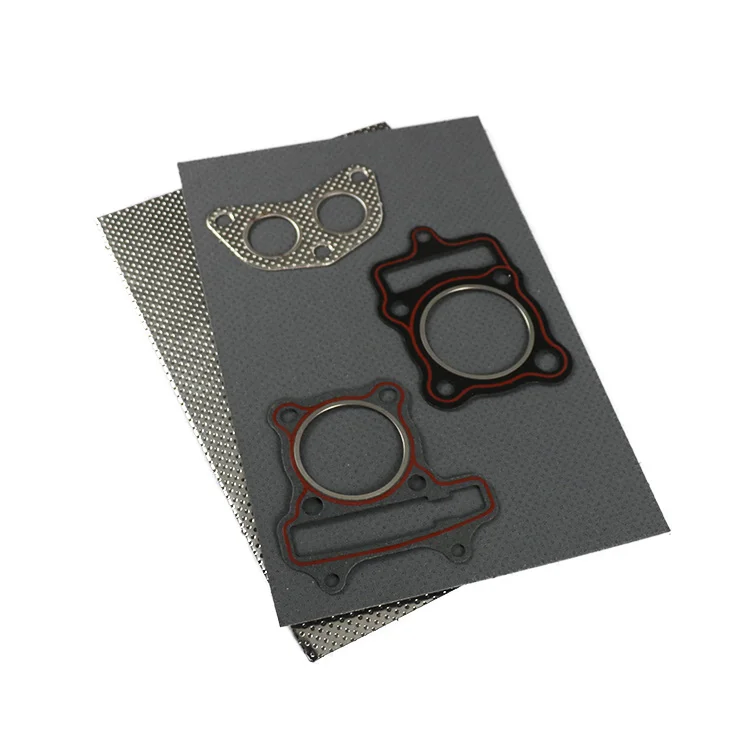

Application | Cylinder head gasket,compressor gasket |
Size | 500*1000mm,500*1500mm |
Thickness | 1mm-3mm |
Maximum width | 1000mm |
Color | black,grey |

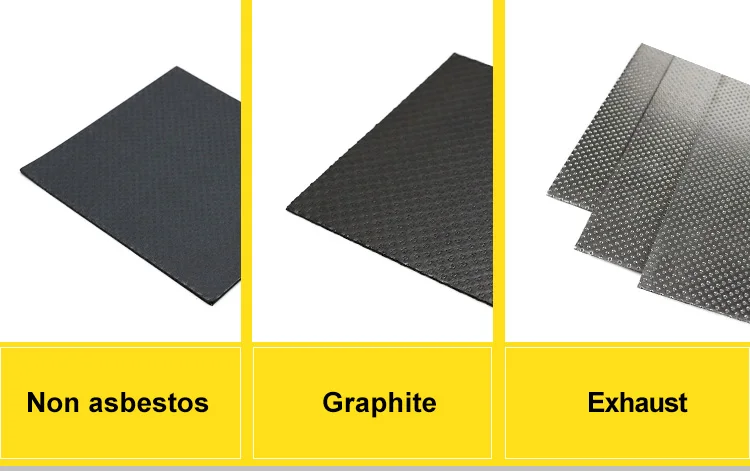

This series include:

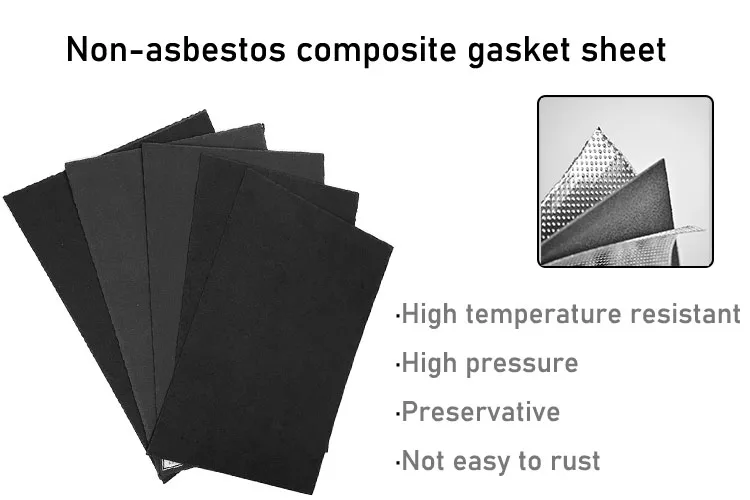

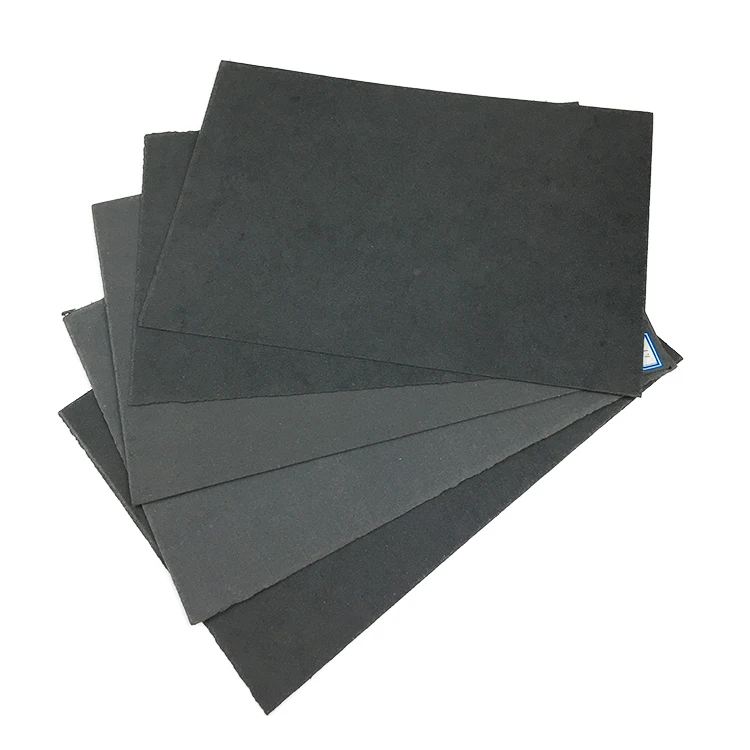

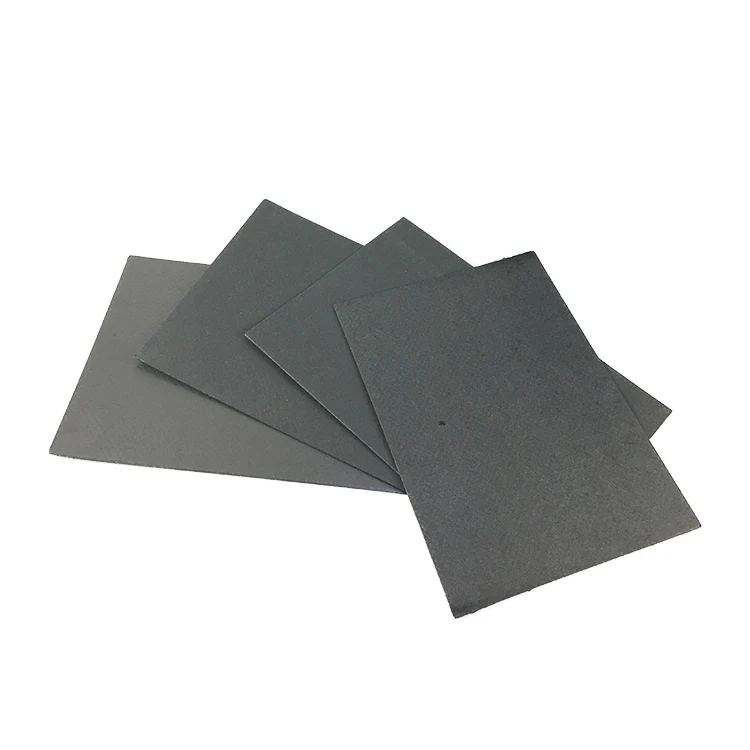

1) Reinforced non-asbestos Composite Sheet
2) Reinforced non-asbestos Composite Sheet with Both Size Coating Graphite
3) Two or more Layers Steel Inserted Reinforced Non-Asbestos Sheet
4) Reinforced Non-Asbestos Sheet With Both Size Coating Silicon Resin (anti stick)
2) Reinforced non-asbestos Composite Sheet with Both Size Coating Graphite
3) Two or more Layers Steel Inserted Reinforced Non-Asbestos Sheet
4) Reinforced Non-Asbestos Sheet With Both Size Coating Silicon Resin (anti stick)
Thickness:1.0mm ~ 3.0mm
400mm x 1000mm ,500mm x 1000mm ,
400mm x 1000mm ,500mm x 1000mm ,
500mm x 1200mm ,500mm x 1500mm
510mm x 1016mm ,510mm x 1530mm ,
1000mmx1000mm ,1000mmx1500mm.
Color: Gray, Black
The other size is optional or according to the requirements
The other size is optional or according to the requirements
We are a supplier factory, environmentally friendly products, customized sizes, and cheap prices.
Related Products
Why Choose Us

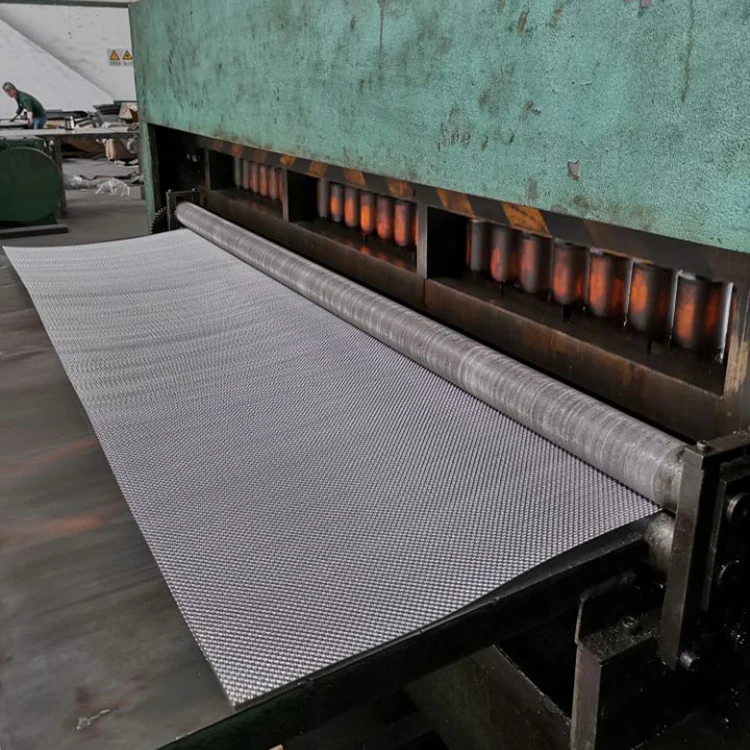

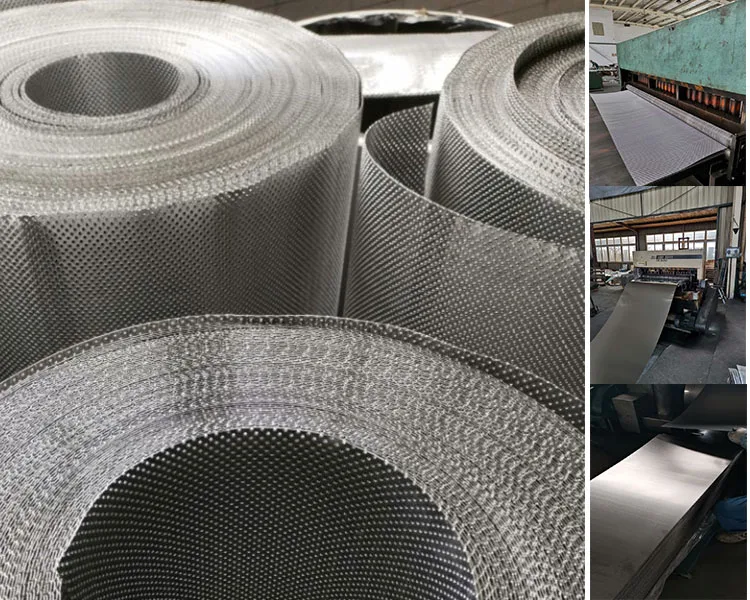

Process flow & Quality inspection
After the production is completed, we will conduct various tests (tensile test, aging test, oil seal test, compression rebound test) and other tests on the products to ensure that you receive qualified products.
Company Profile
Hengshui Aohong Technology Co., Ltd is a modern high-technology enterprise specialized in production and sales of sealing and heat insulation material with an experience of more than twenty years. We are equipped with the most advanced and complete machines and test facilities to produce high quality various kinds sealing material.
Our products are sealing material series products, mainly sealing gasket sheet, sealing braided packing, Heat Insulation cloth,tape, rope, etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.
Our products are sealing material series products, mainly sealing gasket sheet, sealing braided packing, Heat Insulation cloth,tape, rope, etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.
Our Client

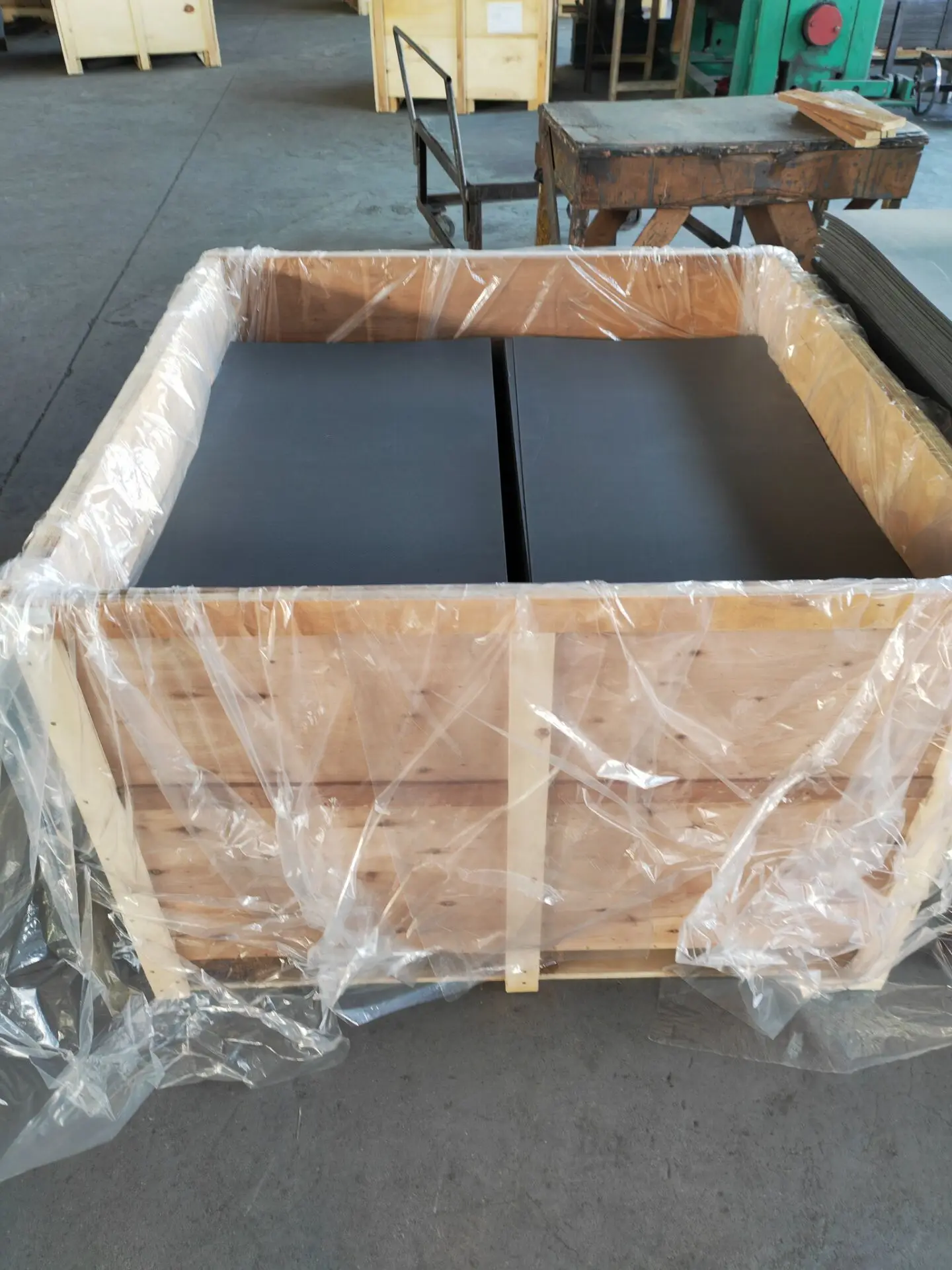

Packing and Delivery
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei.
Q:How does your factory do regarding quality control?
A:We do leak test for 3 times before packing.
A:We do leak test for 3 times before packing.
Q:Could I get some samples, and how?
A: Sure, free sample can be provided for testing quality. Please contact us for samples.
Q:Can we do printing or label printing on the gasket?
Q:Can we do printing or label printing on the gasket?
A:Yes, we provide OEM service, please inform us in advance if you need to print brand.
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
