Name: Датчик давления датчик передатчик для воды мазут газ air 1/8NPT 5VDC керамический датчик нержавеющей стали 5-300psi опционально
Brand: Shenzhen,Guangfasheng,Technology,Co.,Ltd.
Availability: InStock

Датчик давления датчик передатчик для воды мазут газ air 1/8NPT 5VDC керамический датчик нержавеющей стали 5-300psi опционально

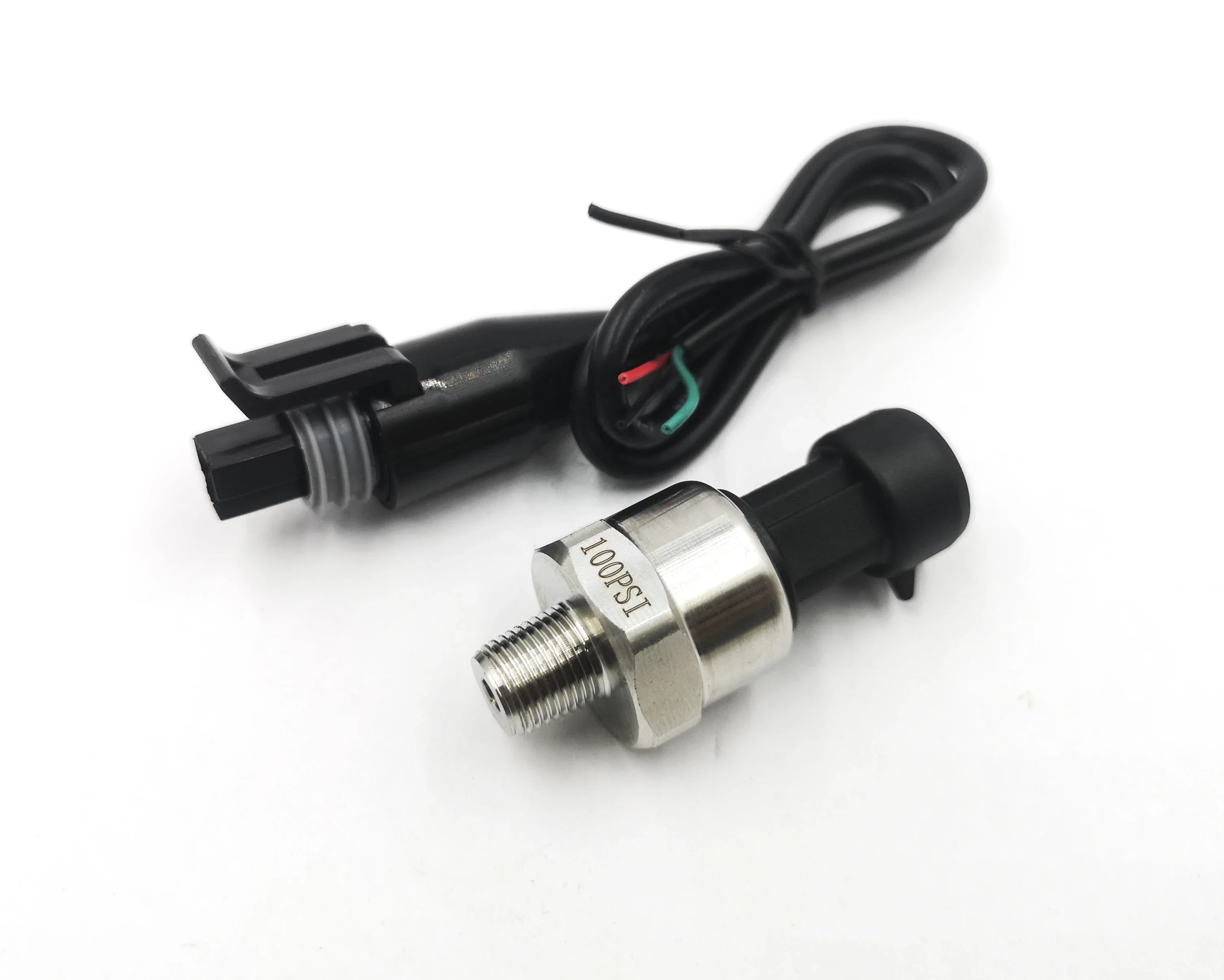

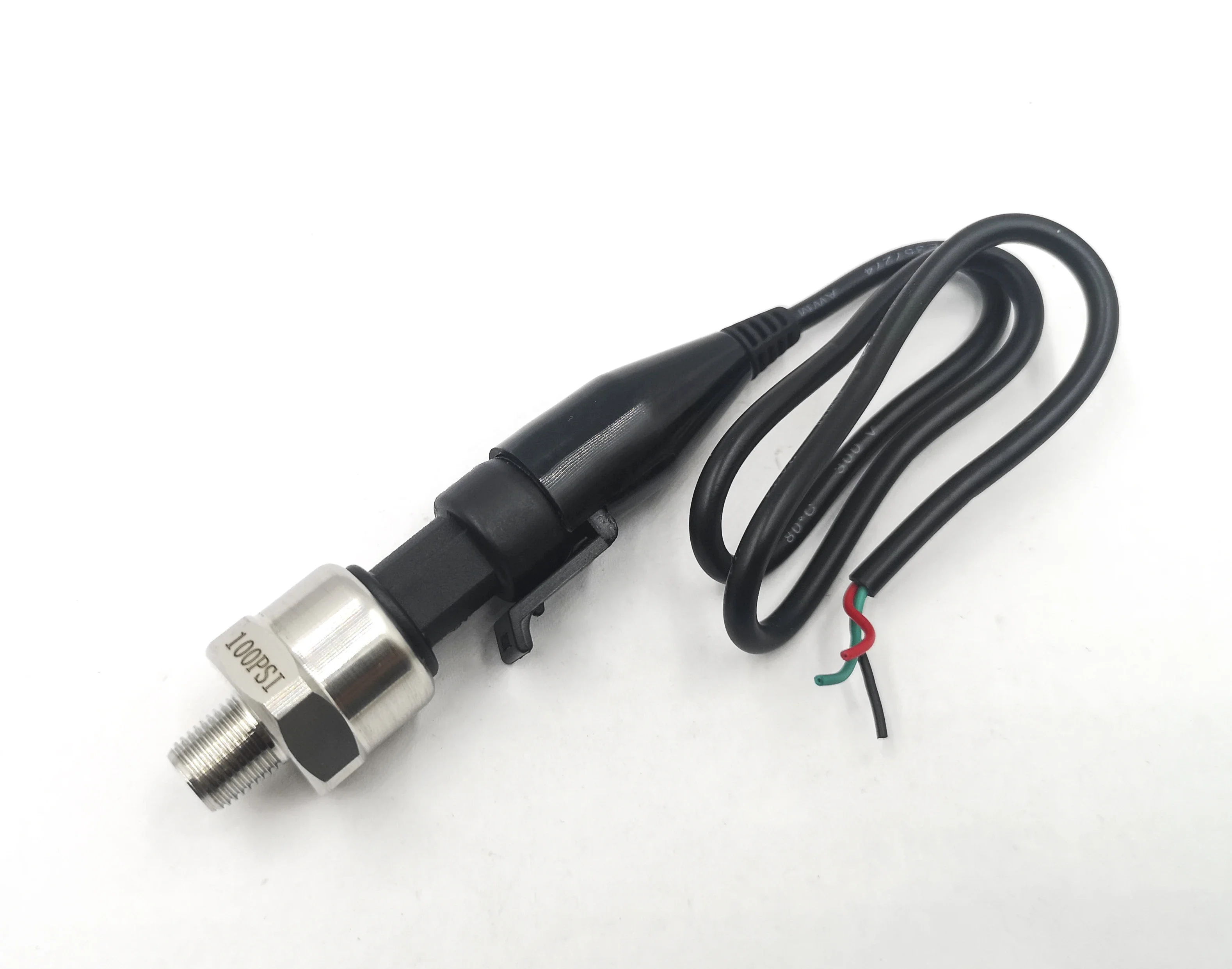

pressure sensor transducer transmitter for water oil fuel gas air 1/8NPT 5VDC ceramic sensor stainless steel 5-300psi optional

Product Description

Material: Stainless steel

Voltage: 5VDC

Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)

Thread Type: 1/8" NPT

Parameters

Measuring range: -14.5-30psi / 5-300psi gauge
pressure
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V, 0-5V, 1-5V
Supply voltage: 5VDC, 12VDC, 3.3VDC
Operating temperature: -40~105℃
Compensation temperature: -20~80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas
Pressure connection: 1/8”NPT, Other pressure connection is on request
Electrical connection: Packard connection
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.080kg

Its an advance pressure transducer than traditional mechanical pressure transducer.

±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.

Light weight and small size, convenient to install and operate.

It has complete surge voltage protection function.

Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
