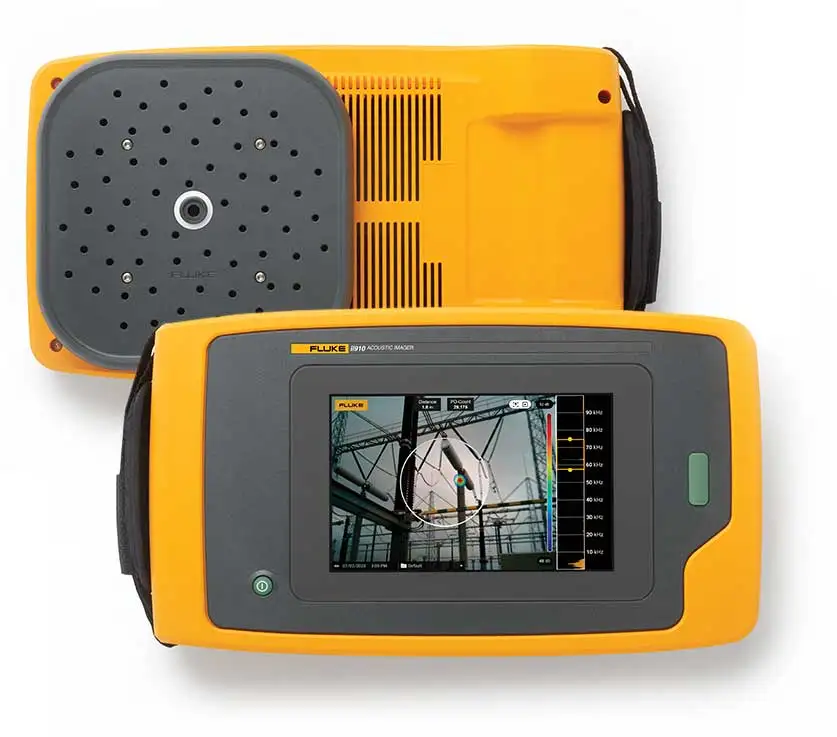

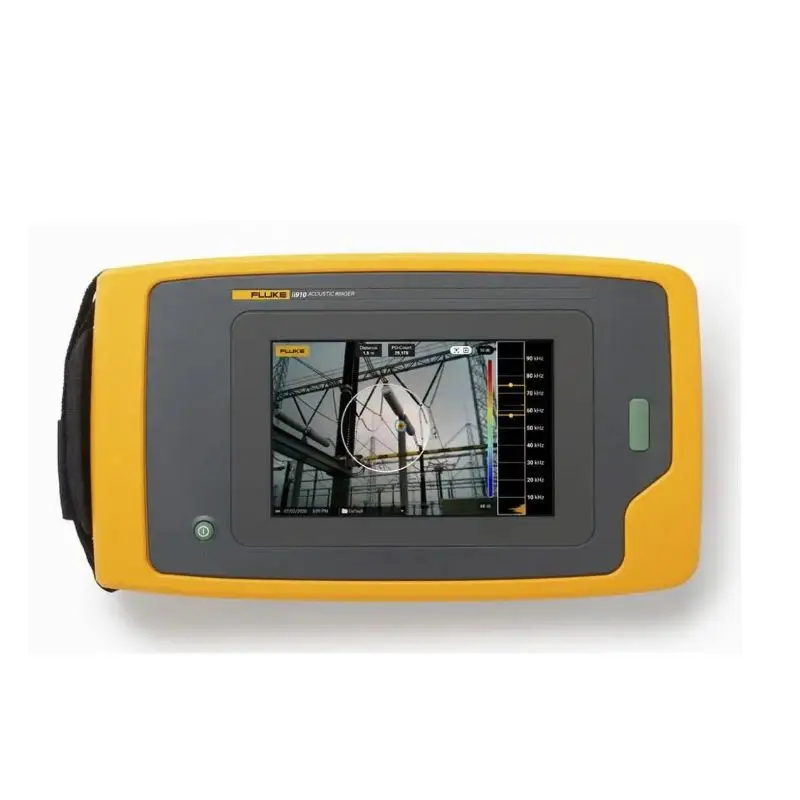

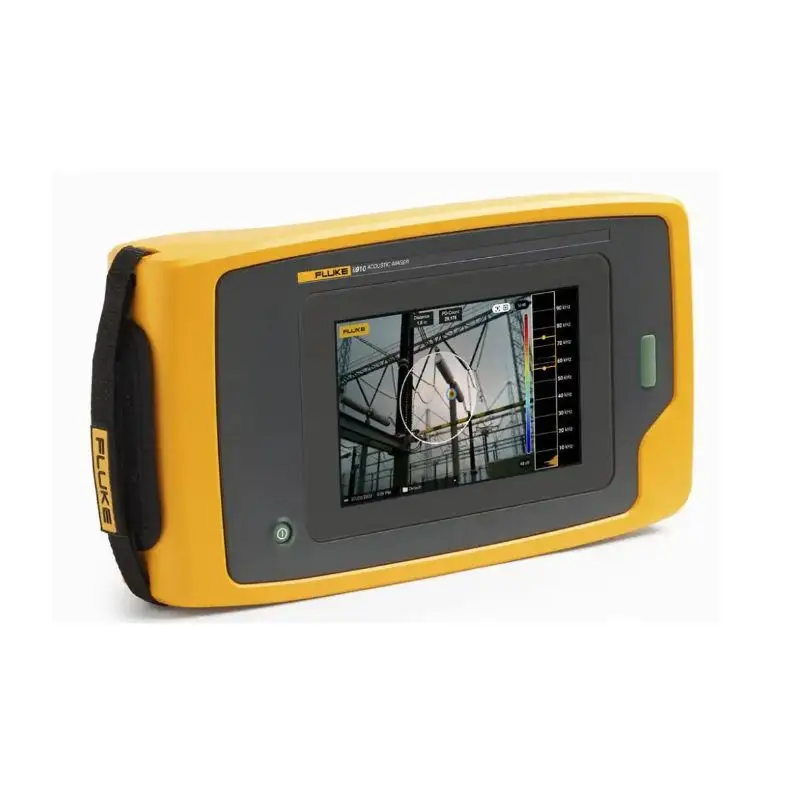

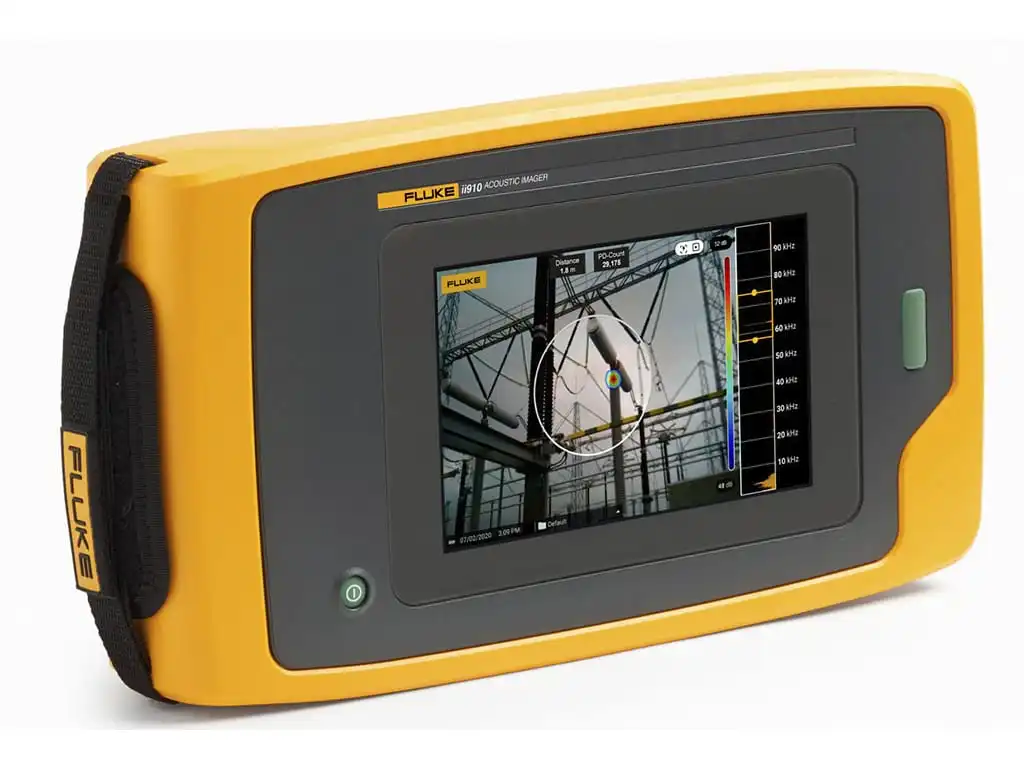

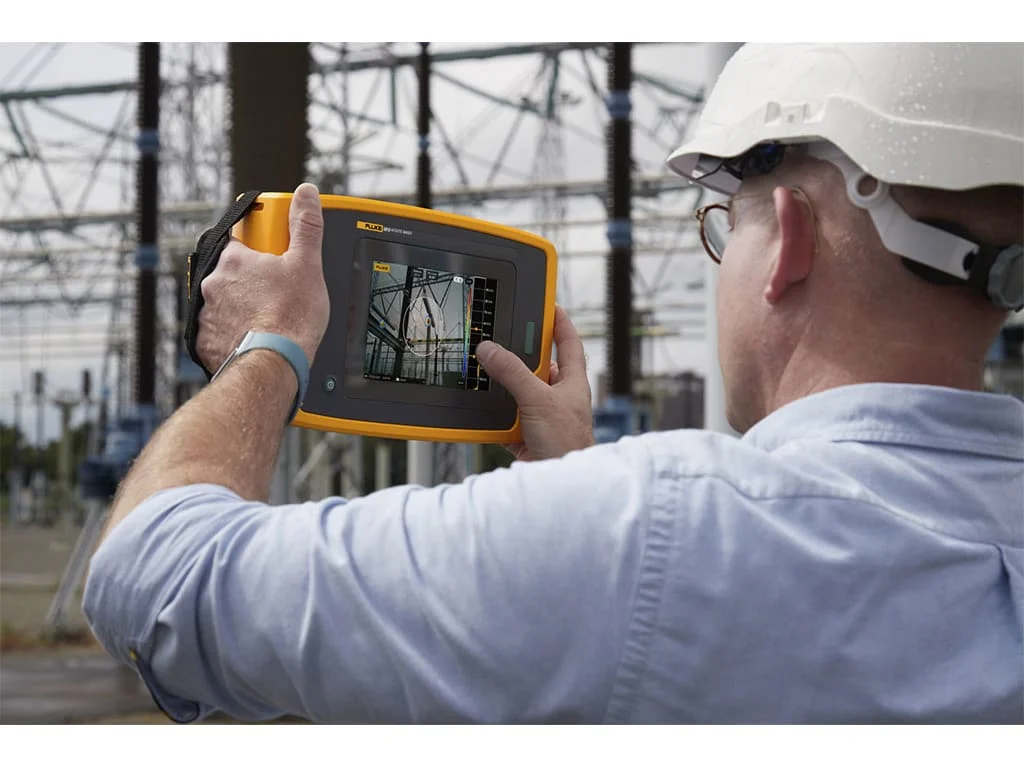

Прецизионный акустический измеритель Fluke ii910 диапазон обнаружения 2-100 кГц 1280x800 до 393
- Категория товара: Spectrometers >>>
- Поставщик (Оптовый магазин): Shenzhen,Mepco,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Leaks in compressed air, gas and vacuum systems hit both production uptime and the operations line. With this precision acoustic imager your maintenance team can quickly pinpoint the location of compressed air and vacuum leaks. With minimal training, your maintenance technicians can begin checking for air leaks during their typical maintenance routine - even during peak operation hours.

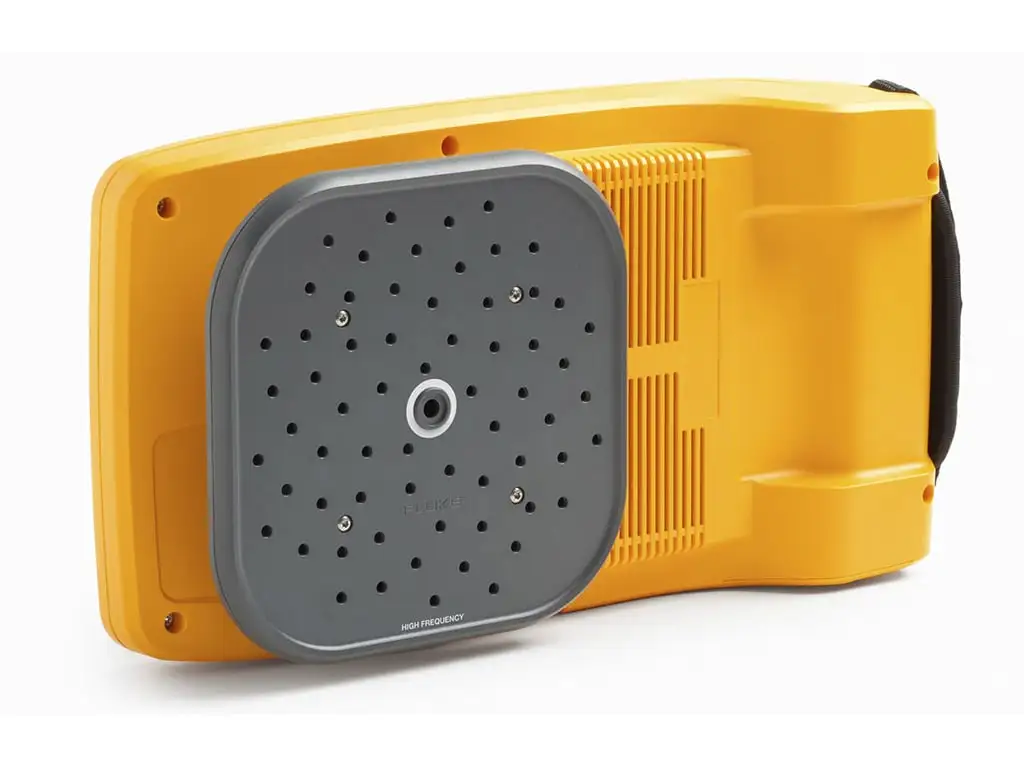

This acoustic imager offers a way to locate issues using sound, and it is an intuitive, simple to use tool that can isolate the frequency of leaks or vacuums, even in extremely noisy production environments. A leak location is determined by discerning the direction from which a sound originates by the time delays that occur as the sound passes over an array of microphones. A SoundMap™ is displayed in color over a visual image allowing for easy visual location. With the full array of microphones, it is easy to scan a large area and even capture leaks from a distance.
This acoustic imager offers a way to locate issues using sound, and it is an intuitive, simple to use tool that can isolate the frequency of leaks or vacuums, even in extremely noisy production environments. A leak location is determined by discerning the direction from which a sound originates by the time delays that occur as the sound passes over an array of microphones. A SoundMap™ is displayed in color over a visual image allowing for easy visual location. With the full array of microphones, it is easy to scan a large area and even capture leaks from a distance.
Features
* SoundSight™ technology
* Acoustic imaging - blended live SoundMap™ with visual image
* Frequency range from 2 to 100 kHz
* Maximum operating distance up to 393' (120 m)
* 7" (17.78 cm) 1280 x 800 LCD display with capacitive touchscreen
* Ensure proper air pressure to your pneumatic equipment
* Reduce leak detection time
* Improve reliability in your production line
* Make leak detection part of your typical maintenance routine
* Train the team in a matter of minutes
* Validate repairs on the spot
* Acoustic imaging - blended live SoundMap™ with visual image
* Frequency range from 2 to 100 kHz
* Maximum operating distance up to 393' (120 m)
* 7" (17.78 cm) 1280 x 800 LCD display with capacitive touchscreen
* Ensure proper air pressure to your pneumatic equipment
* Reduce leak detection time
* Improve reliability in your production line
* Make leak detection part of your typical maintenance routine
* Train the team in a matter of minutes
* Validate repairs on the spot

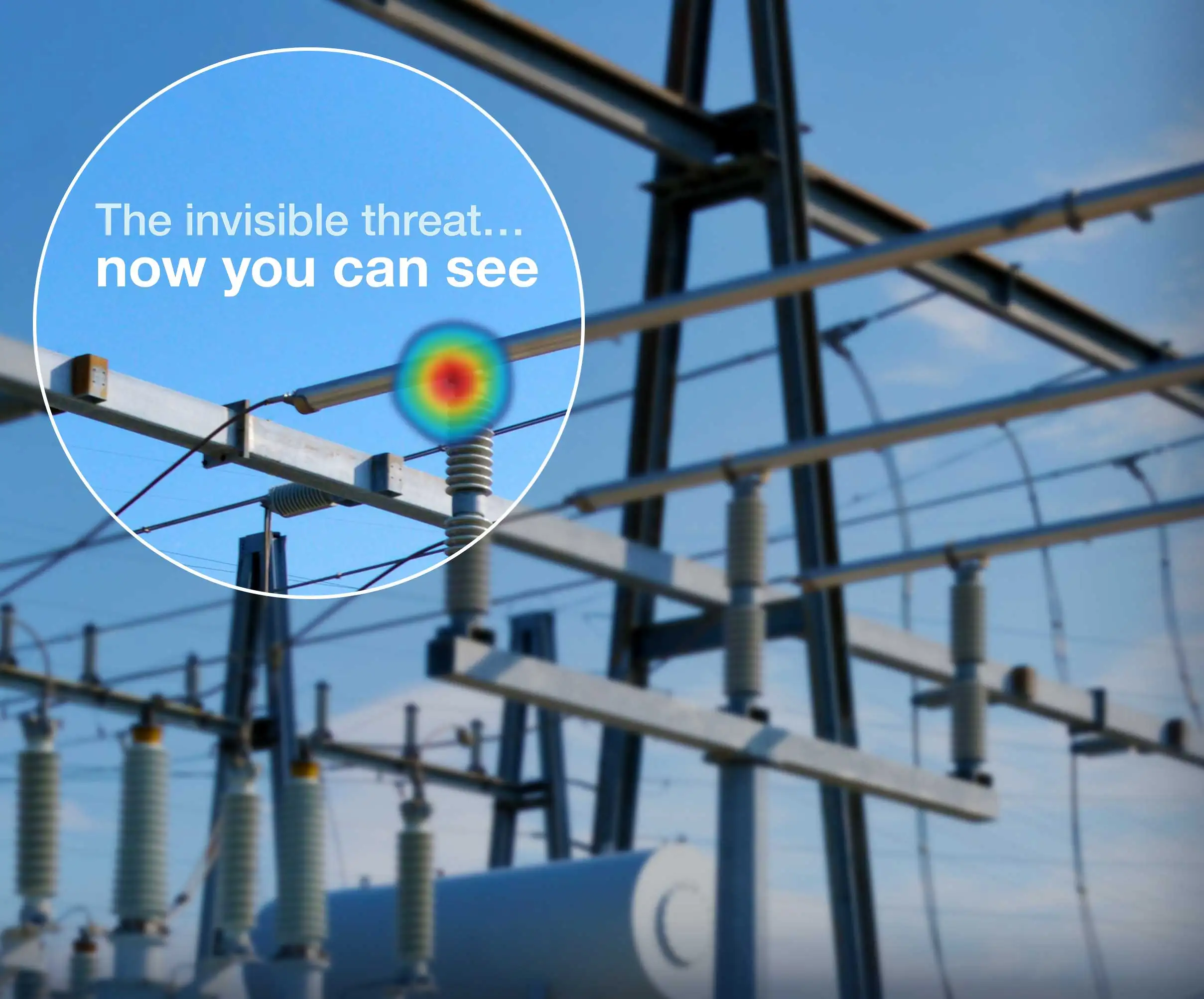

The invisible threat, now you can see:

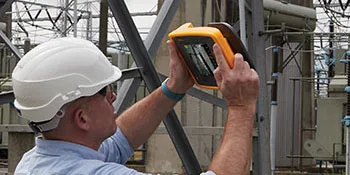

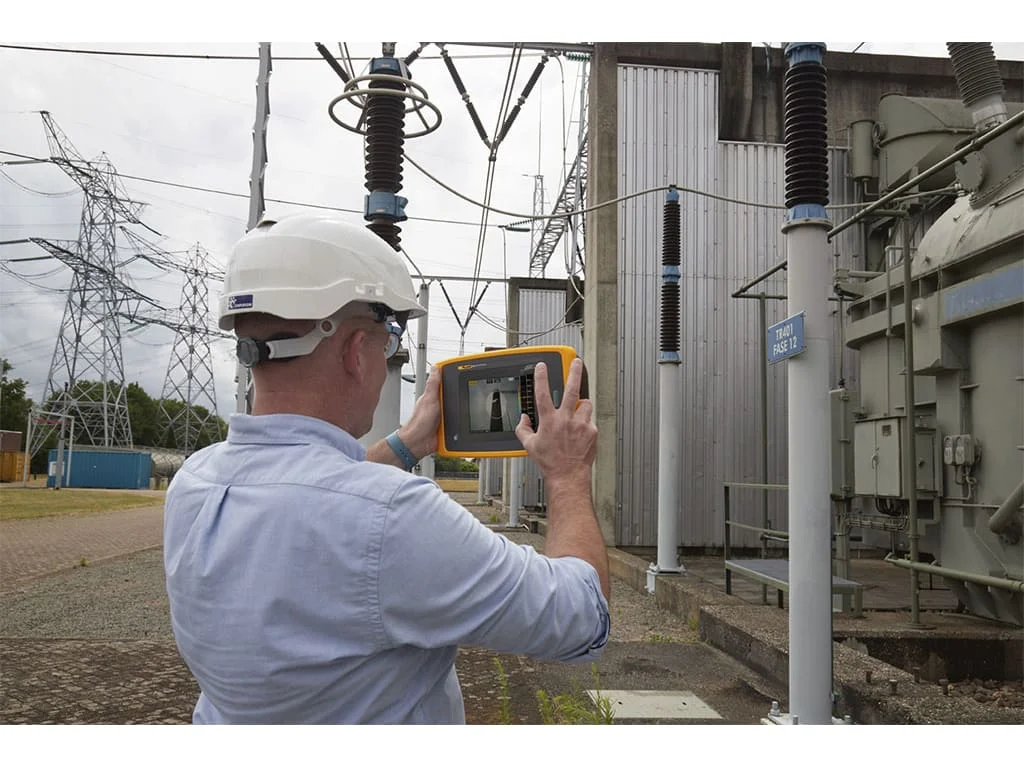

Partial discharge is a serious issue that teams monitor everyday. Whether you are scanning insulators, transformers, switch gears or high voltage power lines you need to be sure that you spot a problem quickly and early. Partial discharge that goes unchecked can cause blackouts, fires, explosions, or death from arc flashes. In addition to the danger that this can pose to the environment and human lives, it also has a very steep price tag. Having equipment go down can cost millions of dollars per hour and studies have shown that a single data center outage could cost as much as $8,851 per minute.
Key areas to scan for PD
* Insulators
* Transformers
* High voltage power lines
* Switch gears
* Arrestors
* Busbars
* High voltage coils
* Breakers
* Capacitors
* Transformers
* High voltage power lines
* Switch gears
* Arrestors
* Busbars
* High voltage coils
* Breakers
* Capacitors
Applications:
* Hospitals
* Power plants
* Transportation
* Material handling
* Oil and gas and mining - refineries, oil rigs, gas processing, and mines
* Process manufacturing - F&B, chemical, pharma, glass, cement, pulp and paper
* Discrete manufacturing - automotive, heavy machinery, fabricated metal, plastics, and electronics
* Hospitals
* Power plants
* Transportation
* Material handling
* Oil and gas and mining - refineries, oil rigs, gas processing, and mines
* Process manufacturing - F&B, chemical, pharma, glass, cement, pulp and paper
* Discrete manufacturing - automotive, heavy machinery, fabricated metal, plastics, and electronics
Specification
Sensors | ||
Frequency Band | 2 to 100 kHz | |
Detection Range | 1.6 to 393' (0.5 to 120 m) | |
Field of View | 63° ±5° | |
Nominal Frame Rate | 25 FPS | |
Built-In Digital Camera (Visible Light) | ||
Field of View | 63° ±5° | |
Focus | Fixed lens | |
Acoustic Measurements | ||
12.1 to 114.6 dB SPL ±1 dB SPL 2 kHz 4.4 to 101.2 dB SPL ±2 dB SPL 19 kHz 12.8 to 119.2 dB SPL ±1 dB SPL 35 kHz 19.8 to 116.1 dB SPL ±3 dB SPL 52 kHz 41.4 to 129.0 dB SPL ±1 dB SPL 80 kHz 54.4 to 135.5 dB SPL ±1 dB SPL 100 kHz | ||
Auto Maximum/Minimum dB Gain | Auto or manual, user selectable | |
Frequency Band Selection | User selectable through user-made presets or manual entry | |
General Specifications | ||
Size: 7" (17.78 cm) LCD with backlight, under-sunlight readable Resolution: 1280 x 800 (1,024,000 pixels) Touchscreen: Capacitive Acoustic image: Yes, SoundMap™ image | ||
Ease of use: Intuitive user interface Trend graphs: Frequency and dB scale Spot markers: dB level reading at center point of the image | ||
Capacity: Internal memory with the capacity for 999 picture files and 20 video files Image format: Blended visual and SoundMap™ .JPG or .PNG Video: Format: Blended visual and SoundMap™ .MP4; Length: Up to 5 minutes Digital export: USB-C for data transfer | ||
Standard Palettes | 3: Grayscale, Ironbow and Blue-Red | |
Temperature | Operating: 14 to 113°F (-10 to 45°C) Storage: -4 to 158°F (-20 to 70°C) without batteries installed | |
Relative Humidity | 10 to 95%, non-condensing | |
Ingress Protection | IP40 | |
General Safety | IEC 61010-1 | |
Electromagnetic Compatibility (EMC) International | IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2 CISPR 11: Group 1, Class A | |
USA (FCC) | 47 CFR 15 subpart B (considered an exempt device per clause 15.103) | |
RoHS Compliant | Yes | |
Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese | ||

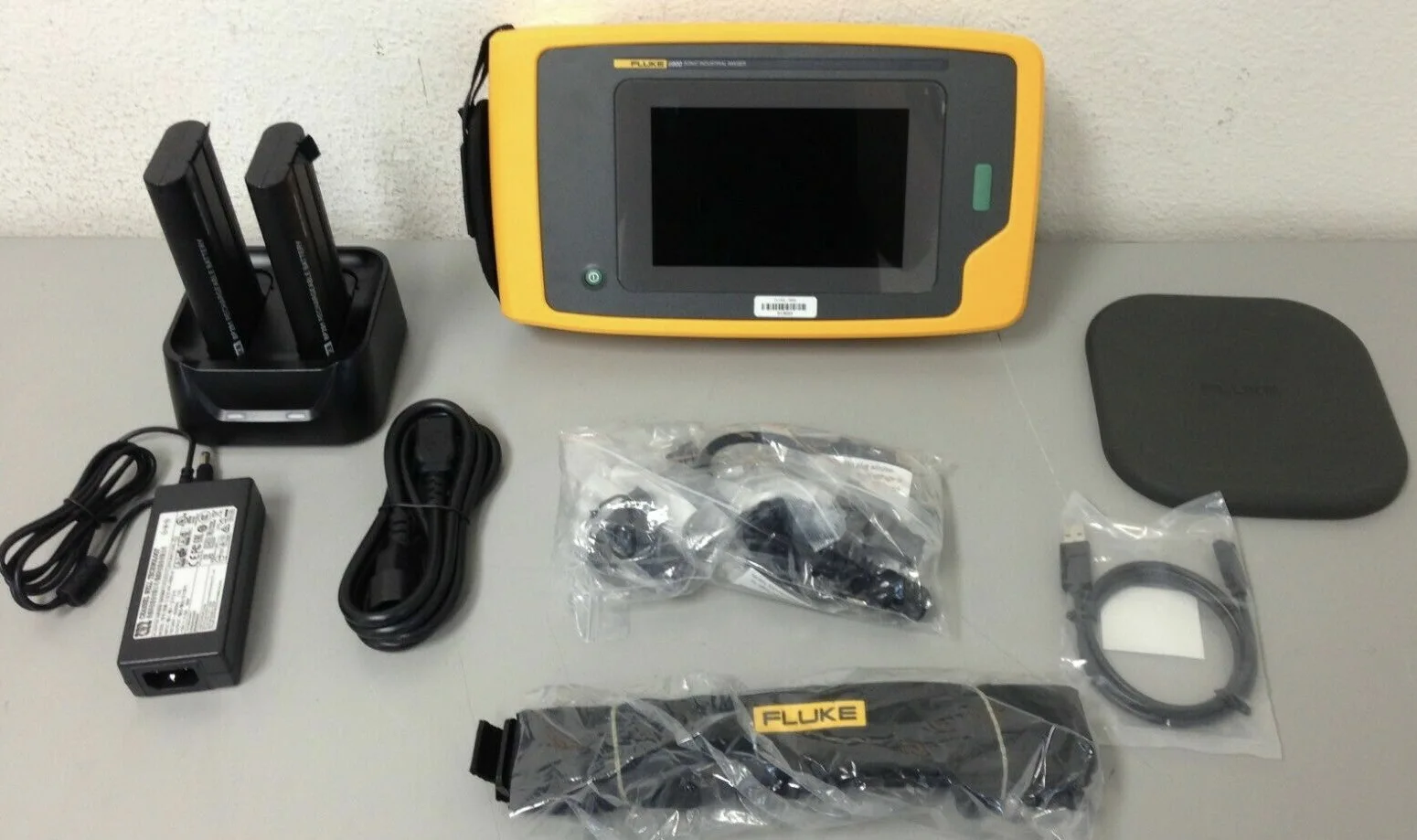

Type: 2 x rechargeable Li-ion Life: 6 hours/battery Charging time: 3 hours Charging system: External dual-bay charger | ||
Dimensions | 7.3 x 12.7 x 2.7" (186 x 322 x 68 mm) | |
Weight | 3.75 lbs (1.7 kg) | |

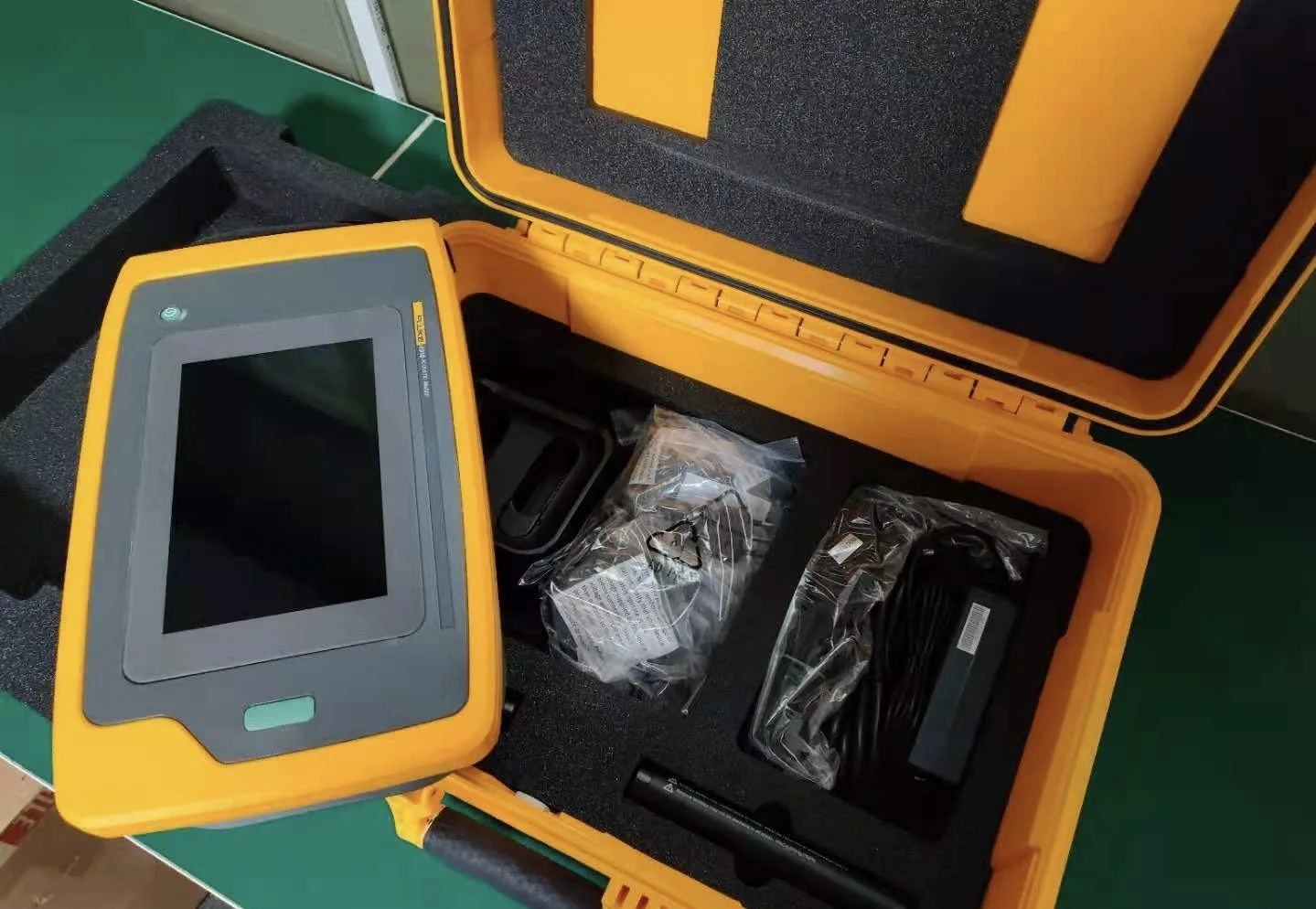

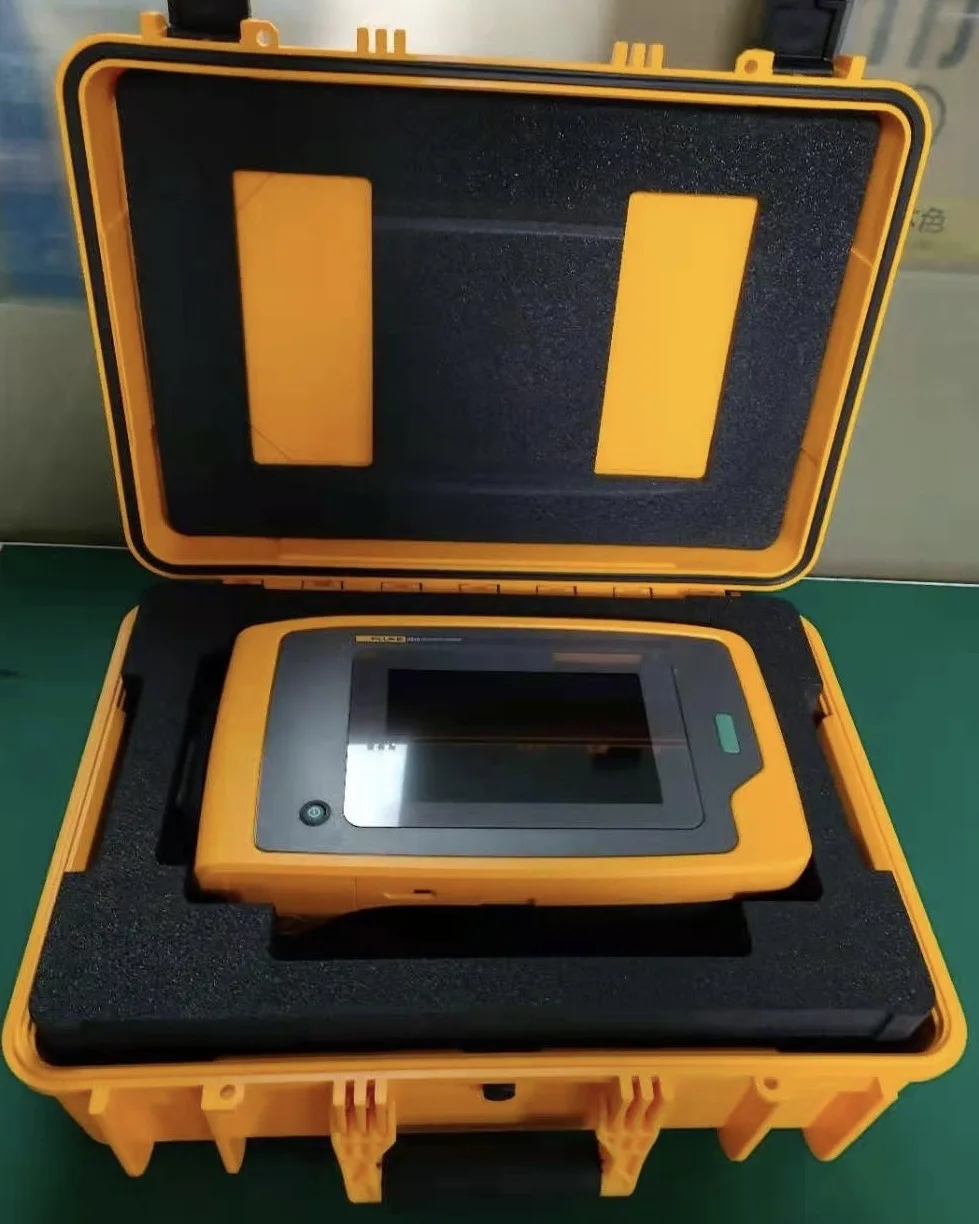

Packing & Delivery
