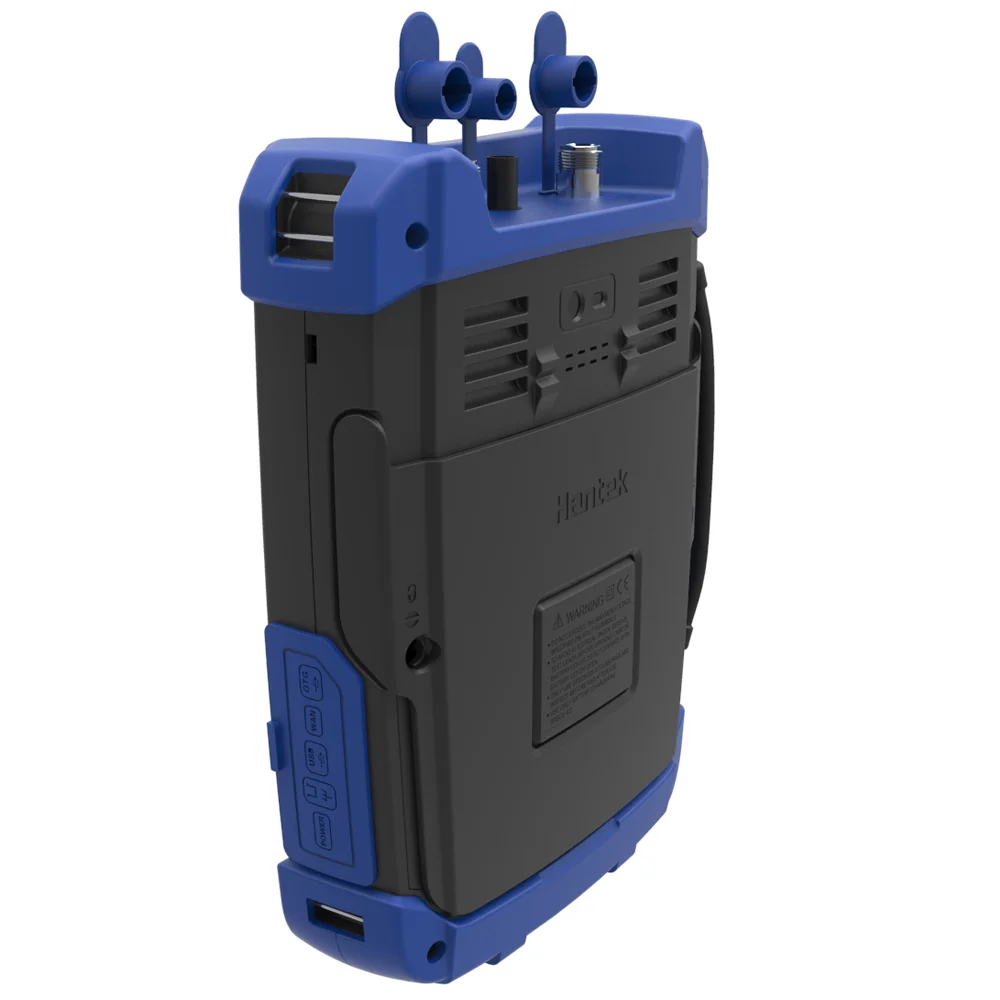

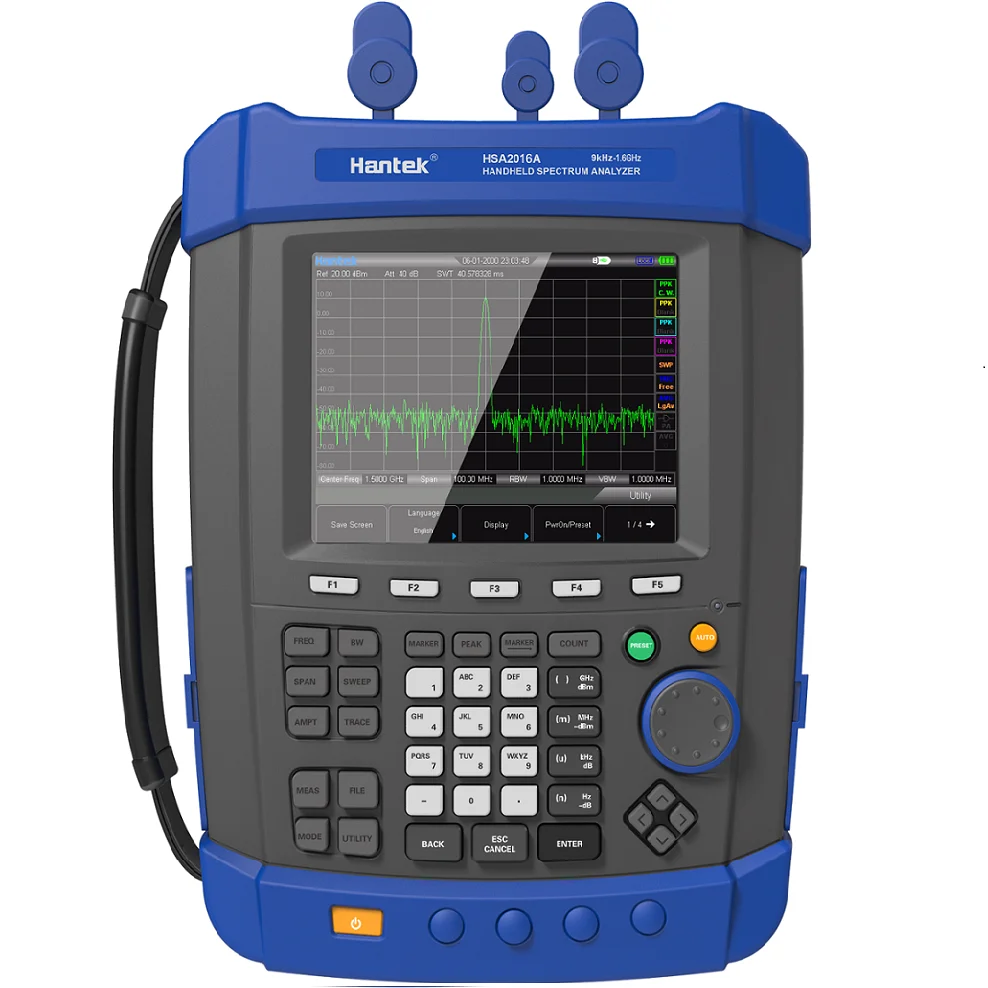

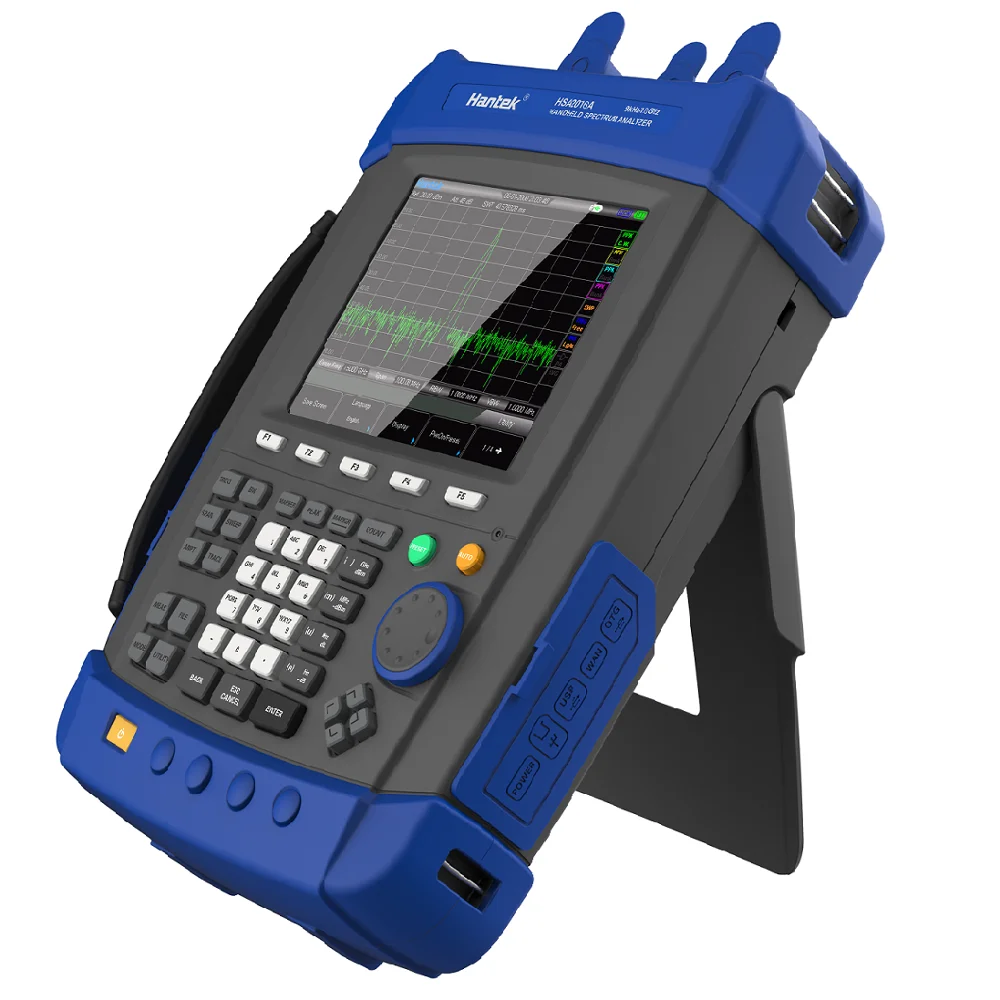

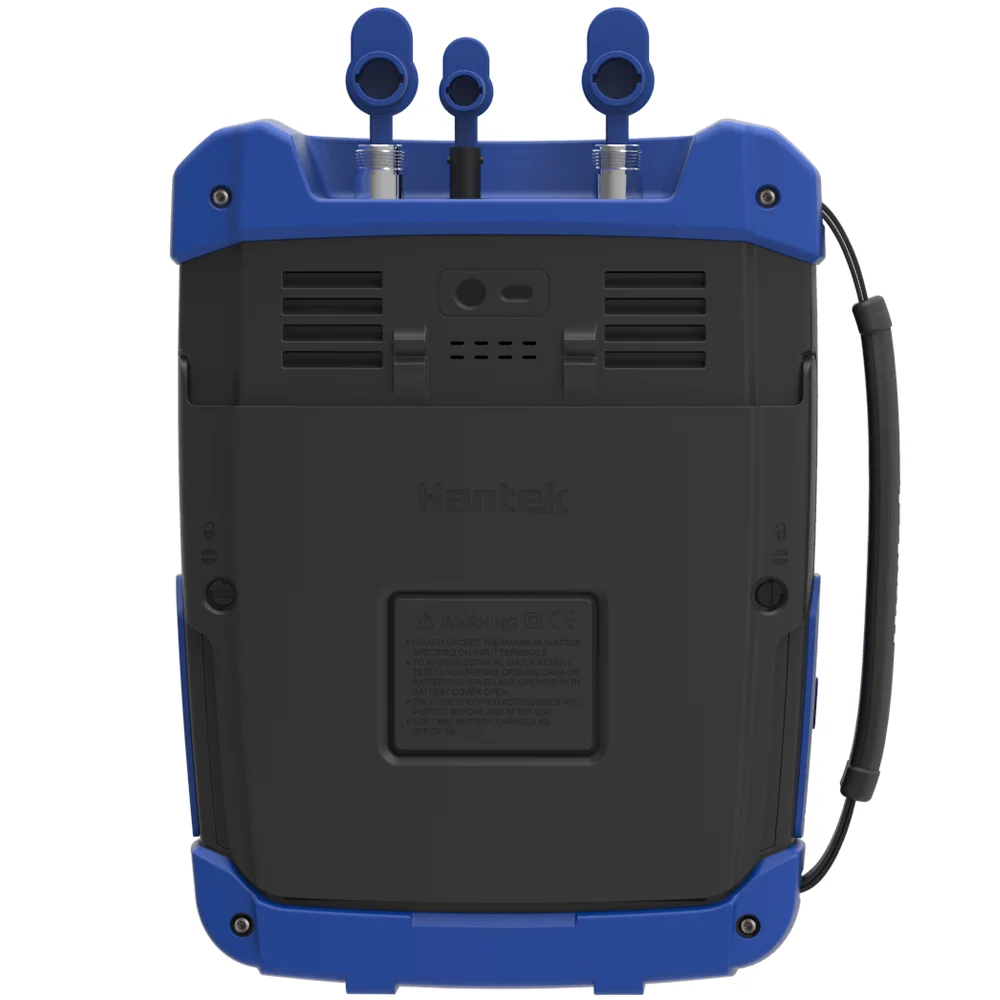

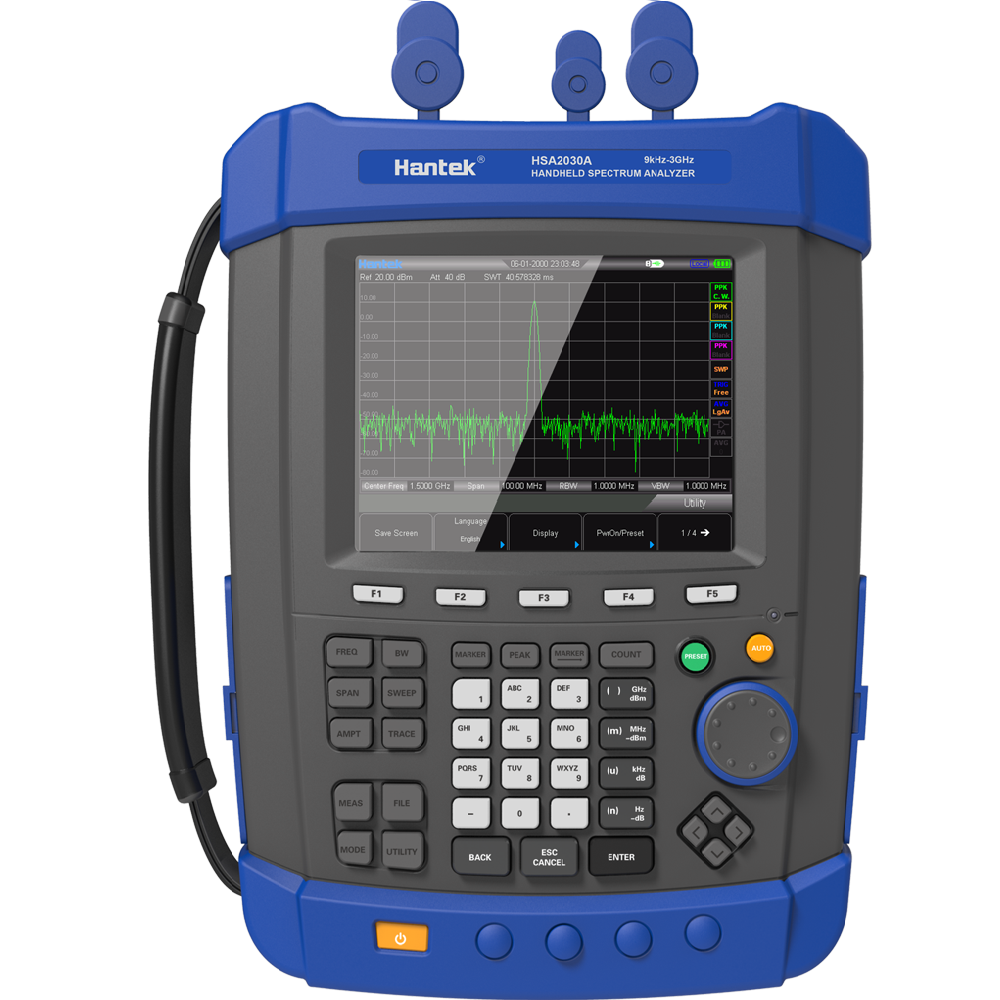

Портативный цифровой анализатор спектра HSA2016A с USB-интерфейсом и портативным полевым измерителем прочности, монитор спектра HLX
- Категория товара: Spectrum Analyzers >>>
- Поставщик (Оптовый магазин): Shenzhen,Hualixin,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
HSA2016A USB interface Handheld Digital spectrum analyzer with portable Field Strength Meter spectrum monitor
HSA2016 Series
Frequency range :9KHz~1.6GHz;Optimal sensitivity: -161dBm;RBW:10Hz to 1MHz.High protection portable design, sturdy and durablecan be used in laboratory, more suitable for field mobile usebuilt-in large capacity lithium battery, can work for more than4 hours. 18650 rechargeable battery.USB/LAN communication, easy for long-range control.5.6 inch highlight color display, 640*480 resolution, waveform display clearly.
· Frequency range: 9KHz-1.6GHz (tunable to 9KHz) AC Coupled
· Optimal sensitivity: -161dBm RBW:10Hz to 1MHz
· IP-51 High protection portable design, sturdy and durable, can be used in laboratory, more suitable for field mobile use.
· built-in large capacity lithium battery, can work for more than 4 hours. 18650 rechargeable battery.
· 5.6 inch highlight color display, 640*480 resolution, waveform display clearly.
· HSA2000 Series spectrum analyzer has the lowest DANL and SSB phase noise, and narrowest RBW. It greatly enhances the recognition ability to the spurious signal and noise signal.
· Optional FM/AM modulation analysis, including carrier power, modulation rate, AM depth/FM deviation, SINAD and carrier frequency offset.
· Standard spectrum feature. It can analyze the signal time stability, and find out lacunar signal in communication system accurately.
· Strong field strength test function, fit for the test work in transmitter, base station and the antenna coverage site. It can show the density of field strength or power. The user could also calibrate gain or loss by using amplitude offset function.
· HAS2000 Series has least RBW in the same level of analyzers, and can easily confirm, distinguish and measure two similar signals.
· The 5.7 inch highlight color display can provide accurate, bright and clear trace both inside and outside, no need to move to shading place for work.
· Short scanning time. It can fast catch the data and help to locate and recognize the irregular transient disturbance signal, and then optimize the testing time and accuracy.
· Advanced built-in battery management system is adopted. Standard super large capacity-7800mAh lithium battery, and support 6 packs of 18650 battery pack which can keep measurement working in site for over 4 hours.
· Firm and tight mechanical structure, close rubber sleeve pack, which is fit for harsh site work environment.
· Integration USB Host & Device, support USB flash disk memory, optional WIFI/LAN, which is convenient for networking and long-range control.
· Its PC software can achieve the management and storage of testing data.
· HSA2000 Series site measurement application.
Parameters
Parameters | |||
Model | HSA2016A | HSA2016B | |
Frequency | |||
Frequency Range | 9KHz~1.6GHz AC Coupled | 9KHz~1.6GHz AC Coupled 5M~1.6GHz TG | |
Frequency Resolution | 1Hz | ||
Reference Frequency | 10MHz | ||
Frequency Readout Accuracy | ±(frequency indication*frequency reference uncertainty+1%*span+20%RBW+marker resolution+1Hz) | ||
Internal 10MHz Reference Accuracy | Aging rate | ±1ppm/year(0℃~50℃,Reference is 25℃) | |
Temperature stability | ±1ppm/year | ||
Marker Resolution | (Frequency span)/(number of sweep points-1) | ||
Resolution Bandwidth(RBW) | |||
-3dB Bandwidth | 10Hz to 1MHz,1-3-10 sequence | ||
Accuracy | ±5% RBW=10Hz~1MHz nominal | ||
Resolution Filter Shape Factor | <5:1 nominal | ||
Video Bandwidth(VBW) | -3dB bandwidth | 1Hz to 1MHz,1-3-10 sequence | |
Accuracy | ±10% VBM=1Hz~1MHz nominal | ||
Displayed Average Noise Level (normalized to1Hz) | |||
9K~1MHz | Preamp off | -108dBm,typical -127dBm | |
1MHz ~10MHz | -128dBm,typical -146dBm | ||
10MHz ~500MHz | -142dBm,typical -146dBm | ||
500MHz ~2.5GHz | -141dBm,typical -145dBm | ||
2.5GHz ~3GHz | -140dBm,typical -144dBm | ||
9K~1MHz | Preamp on | -131dBm,typical -150dBm | |
1MHz ~10MHz | -148dBm,typical -163dBm | ||
10MHz ~500MHz | -161dBm,typical -164dBm | ||
500MHz ~2.5GHz | -159dBm,typical -162dBm | ||
2.5GHz ~3GHz | -158dBm,typical -161dBm | ||
SSB Phase Noise | |||
Carrier Offset(20℃~ 30℃,500MHz Central Frequency) | 10K | < -92 dBc/Hz, typical -95 dBc/Hz | |
30K | < -93 dBc/Hz, typical -96 dBc/Hz | ||
100K | < -95 dBc/Hz, typical -97 dBc/Hz | ||
1MHz | < -117 dBc/Hz, typical -119 dBc/Hz | ||
Sweep Time | |||
Range | Span >100Hz | 2ms to 1000s | |
Span=0Hz | 600ns to 200s | ||
Sweep Mode | Continuous, single | ||
Trigger Source | Free run; video; external | ||
Trigger slope | Selectable positive or negative edge | ||
Trigger delay | Span =0Hz | ±12ms to ±12s nominal | |
Frequency Counter | |||
Counter Resolution | 1Hz | ||
Accuracy | ± (marker frequency × frequency reference uncertainty + counter resolution) | ||
Level Display Range | |||
Log Scale and Units | 1 to 10 dB/divisions in 1, 2, 5, 10 dB steps, 10 divisions displayed | ||
Linear Scale and Units | 0 to 100%,10 divisions displayed | ||
Scale Unit | dBm,dBmV,dBuV,Watts,Volts | ||
Sweep (Trace) Points | 461 | ||
Number of Markers | 4 | ||
Detectors | Normal, positive peak, dample, negative peak, RMS | ||
Number of Traces | 4 | ||
Trace Functions | Clear/write, maximum hold, minimum hold, average, check,close | ||
Level Measurement Error | ±1.5dB(excluding input VSWR mismatch) 20~30℃,peak detector, preamplifier off, input signal -50dBm to 0dBm | ||
Reference Level | |||
Setting Range | -100dBm to +30dBm, steps of 1dB | ||
Setting Resolution | Log scale | 0.01dB | |
Linear scale | Almost log(2.236μV to 7.07V) | ||
Amplitude | |||
Maximum Safety Input Level | Average continuous power | +33dBm | |
DC input voltage | 50Vdc | ||
Measurement Range | 9KHz~2MHz | Displayed average noise level (DANL) to +10dB | |
2MHz~3GHz | Displayed average noise level (DANL) to +20dB | ||
Input attenuator range | 0 to 51dB,1dB steps | ||
Spurious Response | |||
Second Harmonic Distortion(SHI) | <65dBc,50MHz to 3GHz(Mixer level -30dBm,attenuator =0dB,preamp off,20℃~30℃) | ||
Third-Order Intermodulation(TOI) | 50~300MHz | +8dBm,Third-order intermodulation products:2 x -20dBm; frequency separation 100KHz:attenuation = 0dB; preamp off,20℃~30℃ | |
300MHz~1.6GHz | +10dBm | ||
Input Related Spurious | <-75dBc,(input mixer = -30dBm) | ||
Inherent Residual Response | <-90dBm,typical -98dBm (Input terminated and 0 dB RF attenuation, preamplifier off) | ||
RF Input VSWR (at Tuned Frequency) | 10MHz to 1.6GHz | <1.5:1, nominal Attenuator setting 10~20dB | |
10MHz Reference/External Trigger Input | |||
Reference Iinput Frequency | 10MHz | ||
Reference Input Amplitude | 0~10dBm | ||
Trigger Voltage | 5V TTL level | ||
Connector and Output Impendence | N female;(50Ω) | ||
Gennral Feature | |||
Interface Language | English,Chinese,Chinese Traditional | ||
Display Index | 5.7 inch,640*480 resolution,64M color LCD display | ||
Temperature Range | Working | -10℃ to +50℃,(battery:0℃ to 50℃) | |
Storage | -40℃ to +70℃,(battery :-20℃ to 50℃) | ||
Relative Humidity | <95% | ||
Weight | 2.9kg(with battery),2.6kg(without battery) | ||
Size | 260m X 220m X 75m | ||
Power | Input voltage range | DC: 12-17V, maximum 2.8A input 220VAC±15% | |
AC frequency range | 40Hz to 60Hz | ||
Power consumption | Maximum 32W | ||
