Neofibo NEOPL-2000A волоконно-оптический шлифовальный станок машина для производства волоконно-оптических
- Категория товара: Telecommunications >>>
- Поставщик (Оптовый магазин): Shenzhen,Neofibo,Technology,Limited
Поделиться:
Описание и отзывы
Характеристики

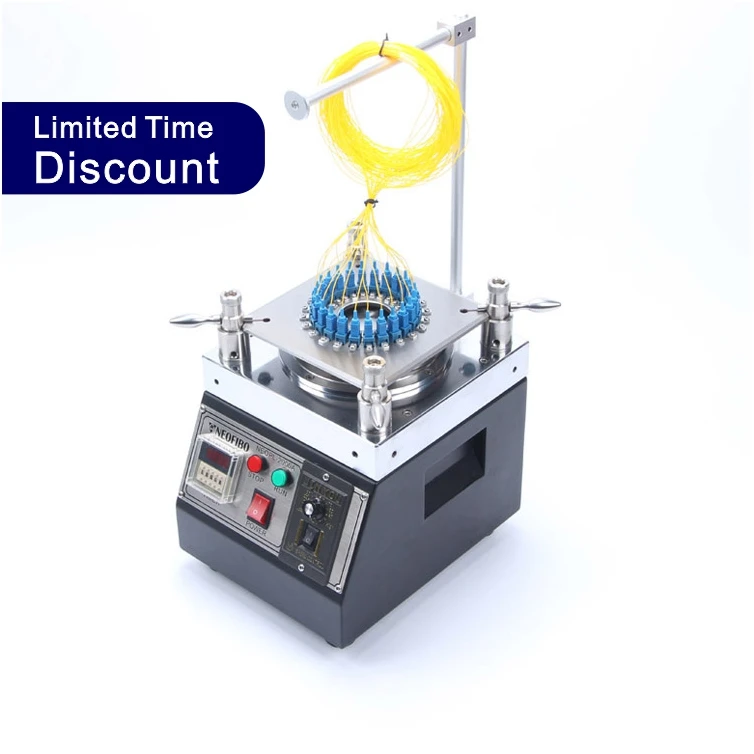

Neofibo NEOPL-2000A fiber optic pigtail grinding machine fiber optic grinding machine fiber patch cord making machineiber optic polishing machine fiber optic polishing machine

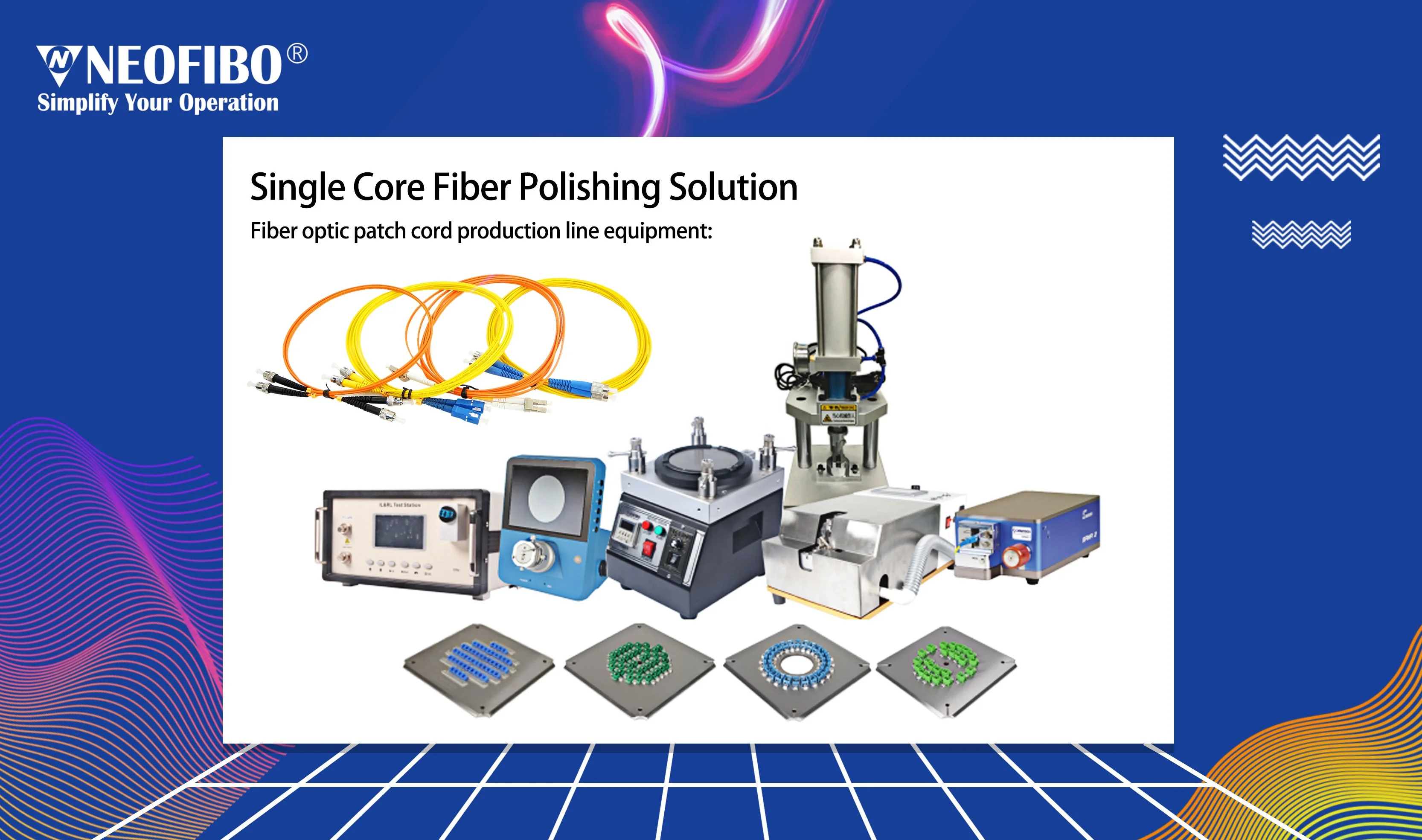

Single Core Fiber Polishing Solution
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
② 13-year Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent - Neoholder®；
④ Products have CE, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
⑨ Free polishing film sample;
Products Description
Description：
>Neofibo CE certified products
>pressure column pressure is applied to the four-square of a square grinding disc;
>Double motor drive,6075B optional;
>The diameter of the polishing pad and the polishing sheet is 127mm;
>It can polish up to 32-52 connectors;
>Applicable to the end face polishing of UPC&APC of various connectors;
>Polishing the fiber end face and 3D data service IEC standard, the effect is better with our company's polishing fixture;
>The price of different shell material is slightly different.fiber optic polishing machine
Machine Size | L 240(mm) × W 240(mm) × H 260(mm) |
O.D. of Rotation Plate | 127 mm（5 inch） |
Time Settings | 99 min 99 sec (Max) |
Speed for Rotation Plate | 90 rpm |
Height of Plate Jumpiness | <10 um |
Pressure Configuration | 21 ~ 36 N/cm2 |
Work Temperature | 10 ~ 40 Celsius degrees |
Relative Humidity | 15%~85% |
Noice | unloading Less 50 dB |
Libration | Working Status 0.25g 5~100Hz 10min |
Stopping Status | 0.50g 5~100Hz 10min |
Power Input | 220～230 VAC 50Hz/60Hz |
Electric Power | 40W/60W |
Net Weight | 28kg |
Polished Material specification for NEOPL-2000A polisher:
No | Material | Type | Remark |
1 | ZrO2 Ceramic Ferrules | φ2.5mm, φ2.0mm, φ1.25mm | PC、APC |
2 | Quartz capillary | φ1.8mm | Plane, inclined plane and spherical surface |
3 | Glass materials | φ1.0mm, φ10.0mm | |
4 | Stainless steel and titanium alloy | φ3.0mm, φ2.5mm | |
5 | Colophony material | MT-RJ, MPO, MPT etc |
Remark：User should use the recommended polishing liquid and polishing films for NEOPL-2000A polisher. We could not ensure the polishing quality meet user’s requirements if other types of polishing liquid and films were used.
Application

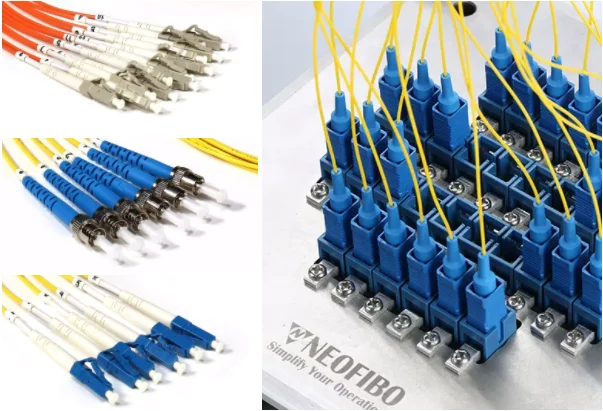

> Mainly used for polishing fiber optic connector, patchcord, ferrule end face;
> Or non-standard materials like metal, glass, ceramic end face polishing;
> Or precision parts end face polishing.
Polishing Effect
Geometry Test Result:
NO. | Parameters | UPC Criterion | APC Criterion |
1 | Radius of Curvature | 5-25mm | 5-12mm |
2 | Apex Offset | 0-50μm | 0-50μm |
3 | Fiber Height | -100~+50μm | -100~+50μm |
4 | Angle | n/a | 8.00+/-0.50° |
ILRL Test Result:
Connector Type | SM/UPC | SM/APC | MM/UPC |
Insertion Loss | ≤0.30dB | ≤0.30dB | ≤0.50dB |
Return loss | ≥55dB | ≥60dB | ≥30dB |
If you are patch cord manufacturer,your criterion could be stricter than the list above.
End-face Quality:
Polishing Process | 4 Process |
Return Loss | ≥50dB |
Top Curvatrue | 10~25mm |
Top Excursion | ≤50μm |
Core Hollow | ≤0.1μm |
Recommend Products

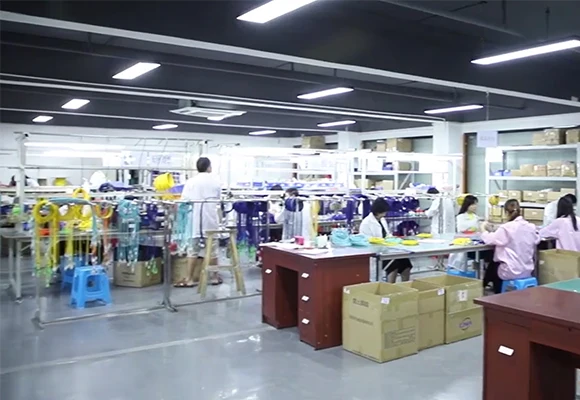

About Us
Shenzhen Neofibo Technology Limited
We has 13 years experience.could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support.
FAQ
1.About the fixture of NEOPL-2000A, does it works perfect with the Seikoh Giken 550 fiber optic polishing machine ?
Yes, we confirm that it works perfect with the Seikoh Giken 550.
2.Polisher can’t work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.
3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
